CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Zalman GigaMax III 850W
序号
Lab IDZL85002187
  • Report: 23PS2187A
  • Receipt Date: May 22, 2023
  • Test Date: May 30, 2023
  • Report Date: May 30, 2023
115V230V
效率等级
115V230V
噪音等级
Aristeidis Bitziopoulos, Lab Director

General Information

被测品资讯

品牌名称Zalman
制造商 (OEM)
系列名称GigaMax III
型号ZM850-GV3
序号
被测品纪录

被测品规格

额定电压 (Vrms)200-240
额定电流 (Arms)7
额定频率 (Hz)50-60
额定功率 (W)850
类别ATX12V
散热120mm Fluid Dynamic Bearing Fan
(D12BM-12)
半被动运转✗
线材设计Semi Modular

电源规范

组3.3V5V12V5VSB-12V
最大功率安培202062.530.3
瓦130850153.6
最大总功率 (W)850

测试设备

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

线材与接头

直出线材
描述 线材数量 总连接器数量 Gauge In Cable Capacitors
ATX 接头 20+4 pin (550mm) 1 1 18-22AWG 否
8 pin EPS 12V 接头 (750mm) / 4+4 pin EPS 12V 接头(+150mm) 1 2 18AWG 否
SATA接头 (460mm+150mm+150mm) 2 6 18AWG 否
4-pin Molex (460mm+150mm+150mm) 1 3 18AWG 否
模组化线材
6+2pin PCIe接头 (550mm+150mm) 1 2 18AWG 否
6+2pin PCIe接头 (550mm) 2 2 18AWG 否
12+4 pin PCIe (610mm) (600W) 1 1 16-24AWG 否

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)30-32 / 86-89.6
符合ErP Lot3/6规范✓
符合(EU) No 617/2013规范✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

平均效率87.798%
平均效率 VSB77.297%
待机功率耗损 (W)0.1458
PF平均值0.965
平均噪音输出32.57 dB(A)
效率等级 (ETA)SILVER
噪音等级 (LAMBDA)Standard++

保持时间 & PG信号

Hold-Up Time (ms)16.4
AC Loss to PWR_OK Hold Up Time (ms)15.2
PWR_OK Inactive to DC Loss Delay (ms)1.2

待机电源

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.79 V 229.76 V 227.70 V 229.85 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.14 % 0.12 % N/A 0.17 % 2.00 % PASS
Real Power: 0.146 W 0.100 W N/A 0.204 W N/A N/A
Apparent Power: 35.652 W 35.594 W N/A 35.708 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs 230V

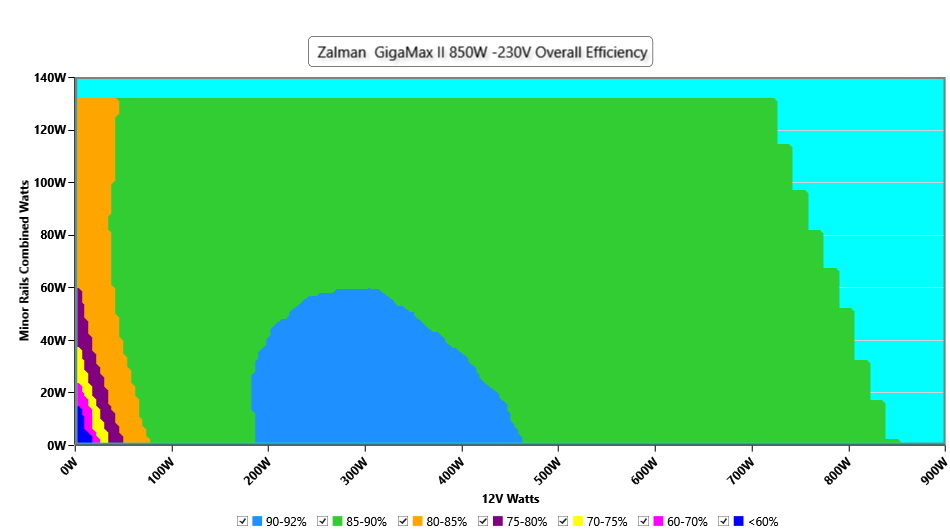

转换效率图表

230V

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

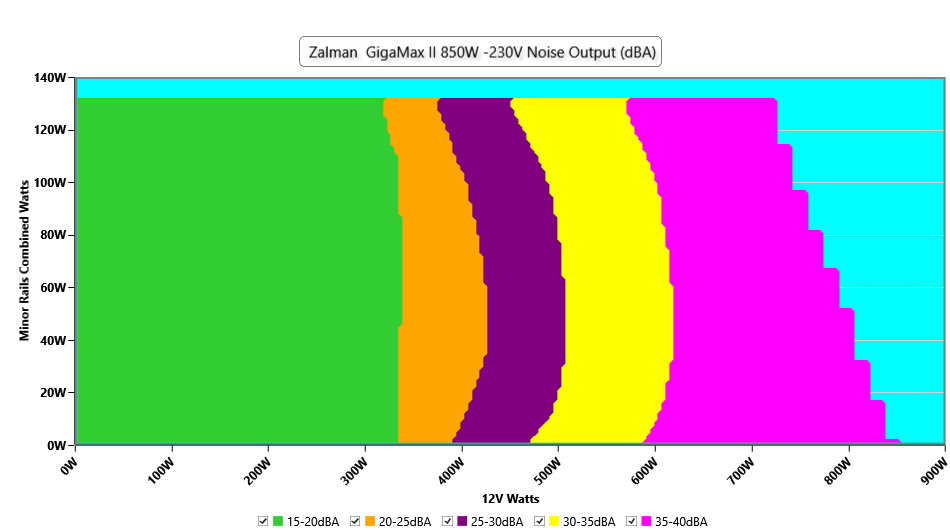

噪音值图表

230V

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

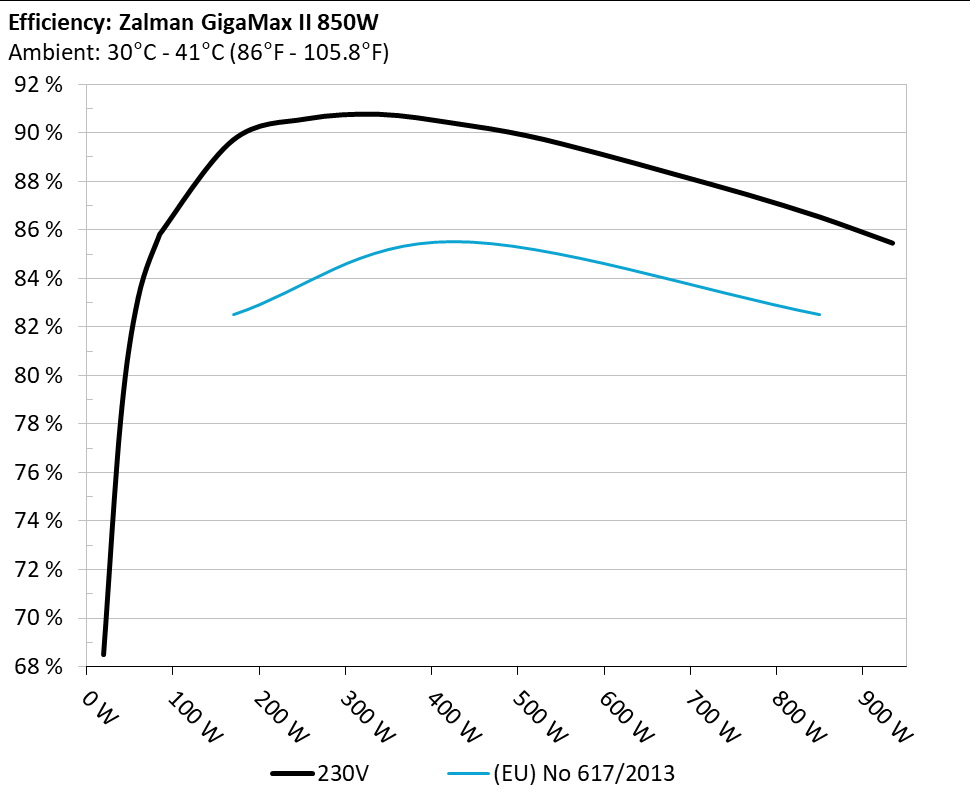

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

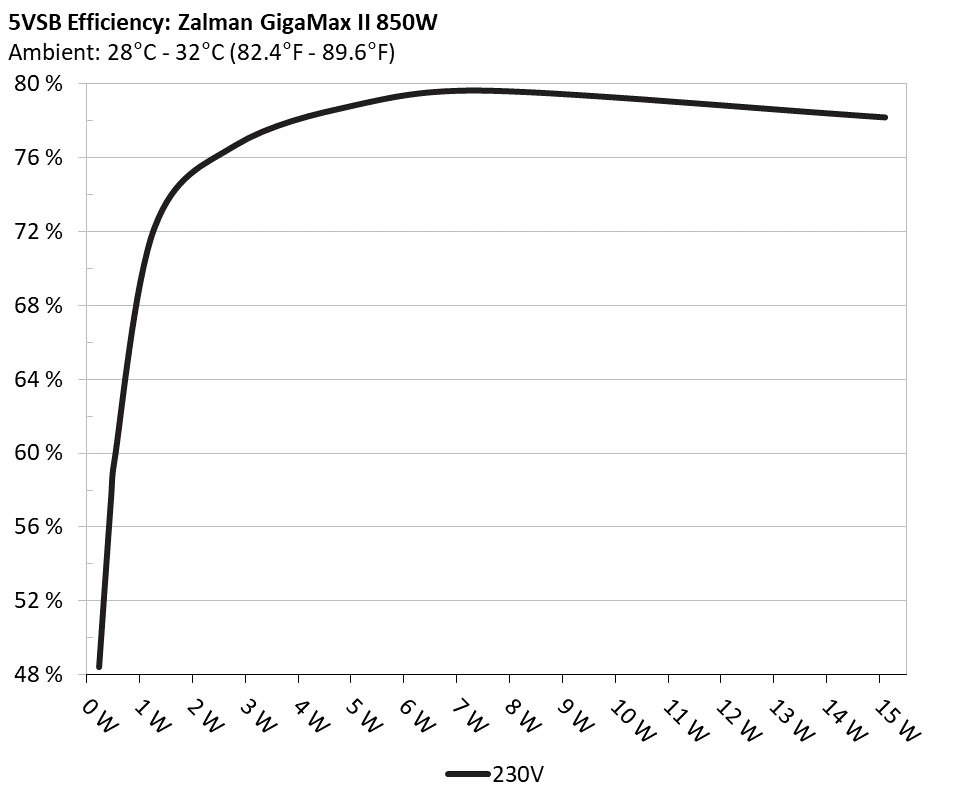

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC) 230V

测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.23W 48.644% 0.016
5.119V 0.473W 229.79V
2 0.09A 0.461W 57.978% 0.026
5.119V 0.796W 229.81V
3 0.55A 2.808W 76.856% 0.114
5.106V 3.654W 229.8V
4 1A 5.093W 79.043% 0.182
5.093V 6.443W 229.79V
5 1.5A 7.619W 79.814% 0.211
5.079V 9.547W 229.79V
6 3A 15.104W 78.37% 0.313
5.035V 19.272W 229.79V

Supplementary Tests (For Reference)

10-110%负载测试 230V

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 5.192A 1.959A 1.967A 0.984A 84.999 85.303% 771 19.5 34.21°C 0.864
12.211V 5.104V 3.356V 5.08V 99.644 38.42°C 229.78V
20% 11.400A 2.948A 2.961A 1.185A 169.936 89.213% 773 19.6 34.5°C 0.941
12.196V 5.088V 3.344V 5.064V 190.484 39.16°C 229.77V
30% 17.970A 3.448A 3.465A 1.387A 254.942 90.09% 775 19.6 35.19°C 0.963
12.181V 5.075V 3.334V 5.049V 282.987 40.27°C 229.75V
40% 24.563A 3.95A 3.971A 1.59A 340.025 90.275% 780 19.7 35.86°C 0.973
12.166V 5.063V 3.324V 5.033V 376.654 41.31°C 229.74V
50% 30.807A 4.954A 4.983A 1.794A 424.82 89.915% 1001 26.4 36.4°C 0.979
12.150V 5.047V 3.311V 5.016V 472.467 42.26°C 229.72V
60% 37.045A 5.965A 6.001A 2A 509.347 89.404% 1248 31.1 36.53°C 0.983
12.135V 5.03V 3.299V 5V 569.715 42.82°C 229.71V
70% 43.367A 6.982A 7.025A 2.208A 594.654 88.655% 1452 35.9 37.32°C 0.985
12.119V 5.013V 3.289V 4.983V 670.754 44.35°C 229.69V
80% 49.712A 8.001A 8.056A 2.316A 679.479 87.827% 1626 38.8 37.92°C 0.987
12.102V 4.996V 3.277V 4.966V 773.661 45.99°C 229.67V
90% 56.470A 8.529A 8.572A 2.424A 764.93 86.976% 1771 40.9 38.45°C 0.989
12.085V 4.982V 3.266V 4.951V 879.477 47.54°C 229.65V
100% 62.980A 9.057A 9.126A 3.049A 849.74 86.044% 1845 43.5 39.39°C 0.991
12.068V 4.968V 3.254V 4.92V 987.567 49.43°C 229.63V
110% 69.373A 10.105A 10.281A 3.057A 934.32 84.968% 1852 43.7 40.59°C 0.992
12.051V 4.947V 3.239V 4.907V 1099.62 51.52°C 229.62V
CL1 0.114A 15.772A 15.731A 0.001A 131.299 82.212% 796 20.0 34.56°C 0.926
12.207V 4.964V 3.281V 5.083V 159.709 39.98°C 229.76V
CL2 0.113A 20.053A 0A 0A 101.341 81.707% 774 19.6 34.53°C 0.898
12.216V 4.984V 3.316V 5.097V 124.032 41.55°C 229.77V
CL3 0.113A 0A 20.035A 0.001A 67.4 76.213% 769 19.5 34.34°C 0.842
12.215V 5.049V 3.295V 5.098V 88.438 43.43°C 229.78V
CL4 70.379A 0A 0A 0.001A 849.535 86.094% 1810 42.0 39.33°C 0.991
12.071V 5.054V 3.295V 5.029V 986.761 50.29°C 229.64V

The results above are not used in the certification process

20-80瓦负载测试 230V

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.215A 0.488A 0.49A 0.196A 20.003 68.007% 764 19.4 30.01°C 0.528
12.225V 5.124V 3.369V 5.11V 29.413 33.1°C 229.78V
40W 2.676A 0.683A 0.686A 0.294A 39.998 77.774% 763 19.4 31.29°C 0.706
12.218V 5.121V 3.367V 5.106V 51.428 34.6°C 229.78V
60W 4.136A 0.879A 0.883A 0.392A 59.995 82.701% 764 19.4 32.06°C 0.798
12.215V 5.117V 3.364V 5.101V 72.544 35.57°C 229.78V
80W 5.594A 1.075A 1.08A 0.491A 79.938 85.335% 768 19.5 33.08°C 0.853
12.212V 5.113V 3.361V 5.096V 93.678 36.89°C 229.79V

The results above are not used in the certification process

纹波测量 230V

Test12V5V3.3V5VSBPass/Fail
10% Load14.02mV13.08mV16.42mV14.22mVPass
20% Load14.07mV14.31mV17.70mV14.63mVPass
30% Load14.58mV15.27mV18.21mV17.03mVPass
40% Load16.01mV16.04mV19.13mV18.52mVPass
50% Load18.47mV17.06mV20.21mV21.13mVPass
60% Load15.45mV14.40mV18.62mV19.23mVPass
70% Load22.66mV19.16mV22.82mV21.53mVPass
80% Load26.91mV19.57mV27.78mV23.84mVPass
90% Load31.77mV20.59mV28.80mV21.89mVPass
100% Load39.99mV26.77mV31.79mV31.65mVPass
110% Load45.86mV25.94mV33.77mV29.83mVPass
Crossload117.55mV20.66mV22.73mV16.28mVPass
Crossload216.22mV22.32mV18.62mV14.22mVPass
Crossload313.66mV12.67mV21.18mV14.73mVPass
Crossload443.34mV24.99mV24.40mV23.69mVPass

The results above are not used in the certification process

Zalman GigaMax III 850W

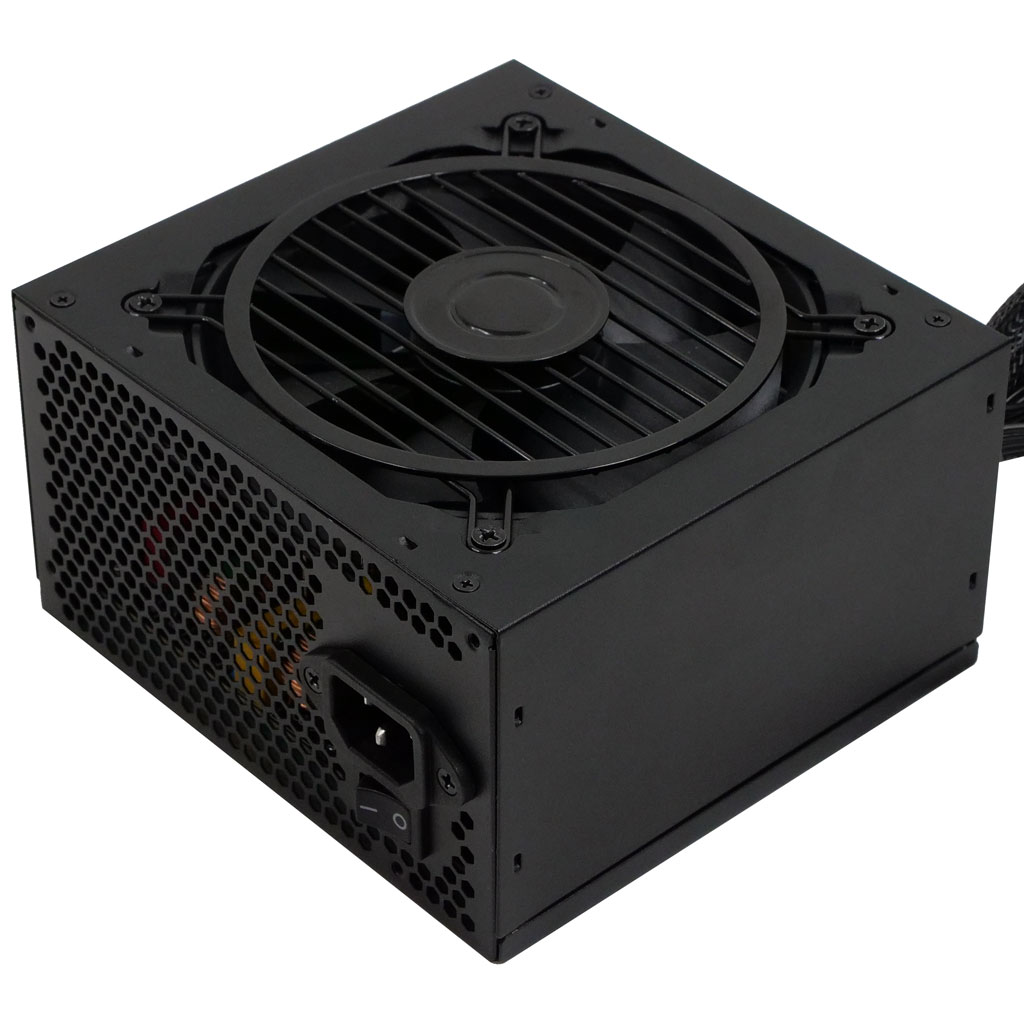

Top side

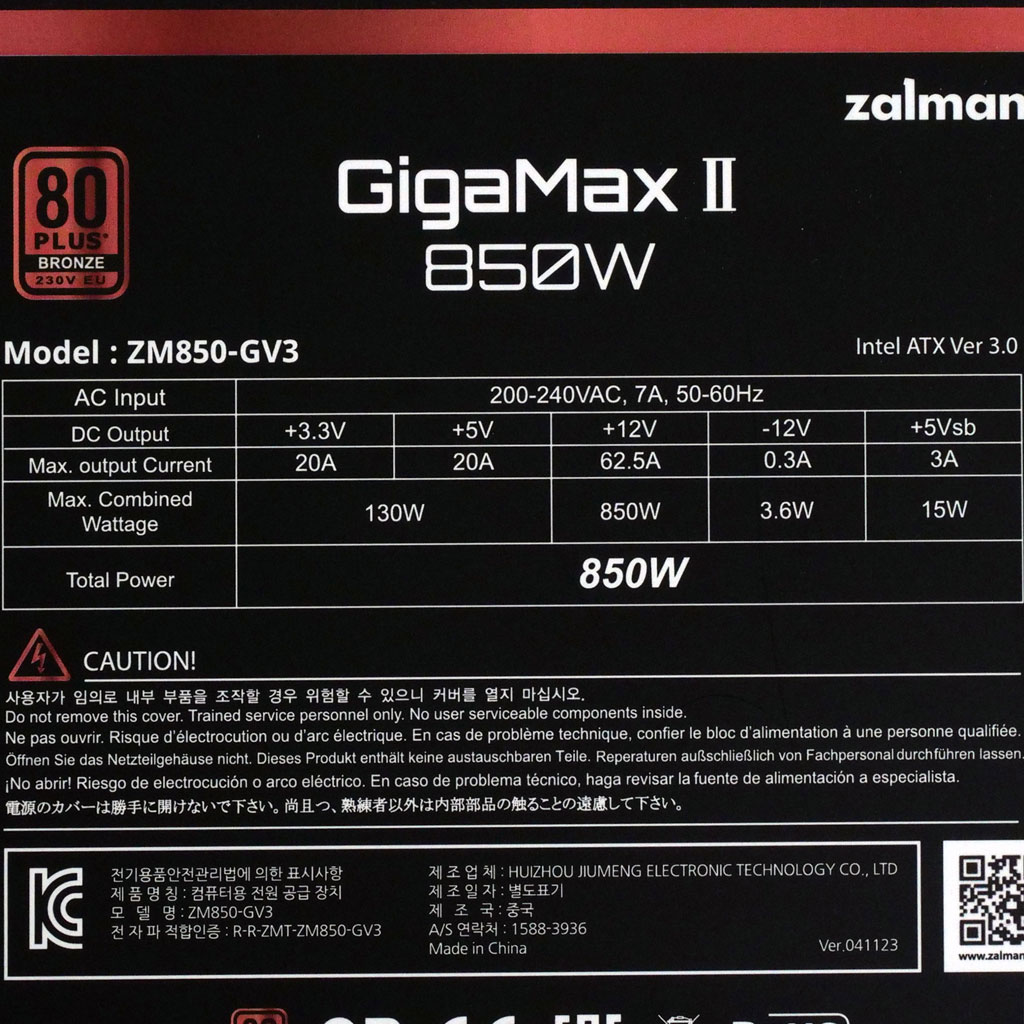

Power specifications label
本测试报告中包含的所有数据和图表均可在以下条件下由任何人使用：使用过程需提及测试结果由Cybenetics提供。
在任何情况下都应提供原始测试结果文档的网站链接
Cybenetics提供ETA和Lambda自愿认证计划，透过该计划推广高效率及静音的电源
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
