Zalman GigaMax III 750W
Lab IDZL75002185
  • Report: 23PS2185A
  • Receipt Date: May 22, 2023
  • Test Date: May 26, 2023
  • Report Date: May 29, 2022
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Zalman
製造商 (OEM)Jiumeng
GigaMax III
ZM750-GV3

(Vrms)200-240
(Arms)6
(Hz)50-60
(W)750
ATX12V
120mm Fluid Dynamic Bearing Fan
(D12BM-12)
✗
Semi Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202062.530.3
Watts120750153.6
Total Max. Power (W)750

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-22AWG No
8 pin EPS12V (750mm) / 4+4 pin EPS12V(+150mm) 1 2 18AWG No
SATA (470mm+150mm+150mm) 2 6 18AWG No
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG No
Modular Cables
6+2 pin PCIe (550mm+150mm) 2 4 18AWG No
12+4 pin PCIe (610mm) (450W) 1 1 16-24AWG No

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary 230V

Hold-Up Time (ms)15.6
AC Loss to PWR_OK Hold Up Time (ms)13.2
PWR_OK Inactive to DC Loss Delay (ms)2.4

待機電源消耗

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.97 V 229.89 V 227.70 V 230.02 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.14 % 0.10 % N/A 0.19 % 2.00 % PASS
Real Power: 0.155 W 0.109 W N/A 0.201 W N/A N/A
Apparent Power: 36.368 W 36.315 W N/A 36.417 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

230V

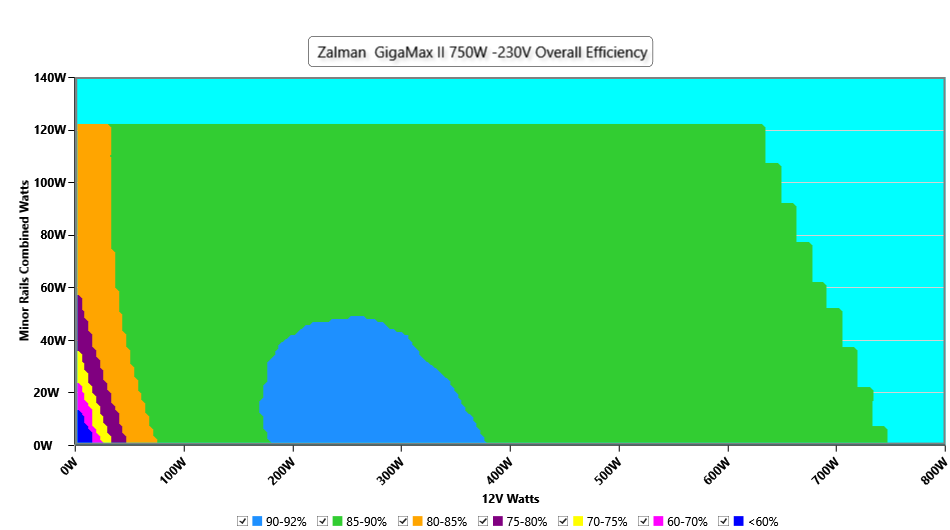

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

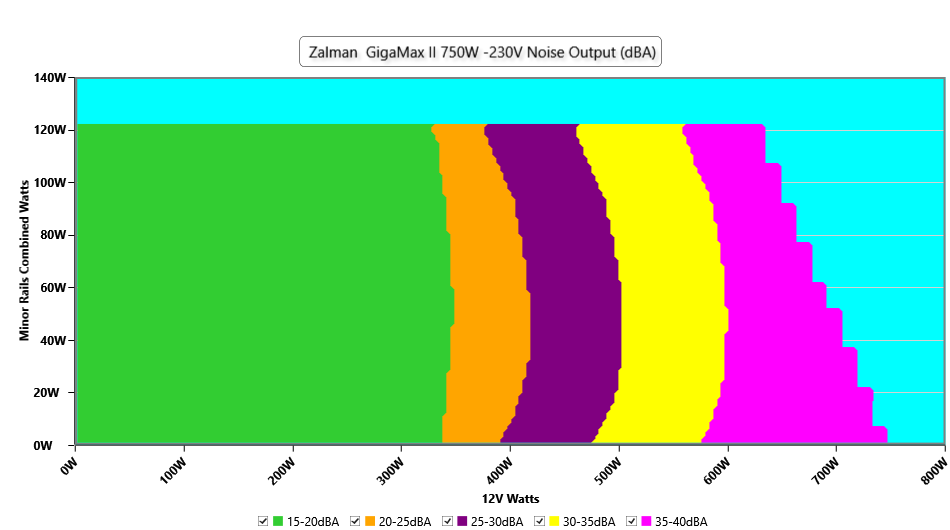

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

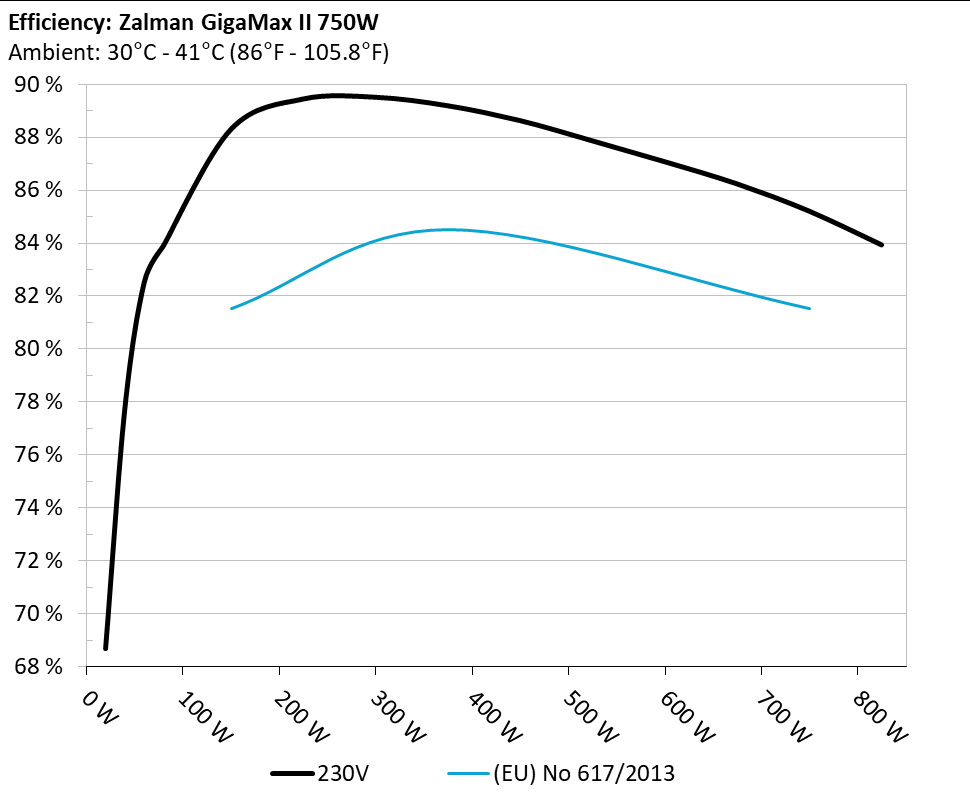

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

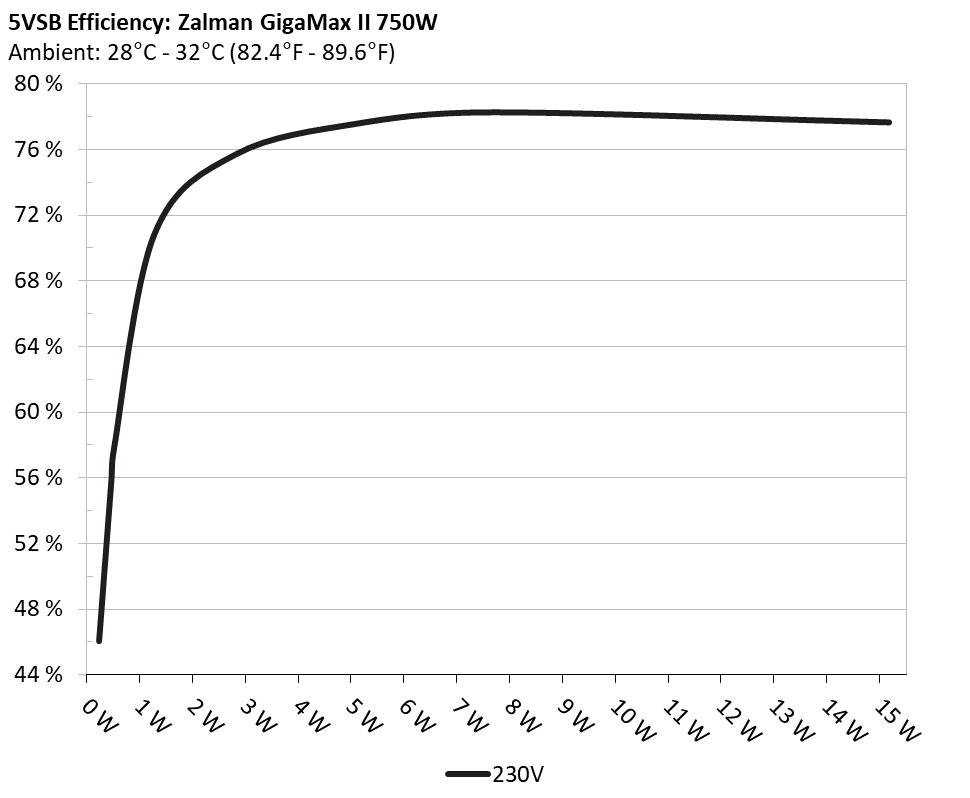

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 46.517% 0.016
5.139V 0.497W 229.94V
2 0.09A 0.462W 56.265% 0.027
5.139V 0.824W 229.95V
3 0.55A 2.819W 76.203% 0.114
5.126V 3.699W 229.94V
4 1A 5.114W 78.072% 0.183
5.114V 6.551W 229.94V
5 1.5A 7.649W 78.761% 0.222
5.099V 9.712W 229.94V
6 3A 15.17W 78.146% 0.321
5.057V 19.412W 229.94V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.402A 1.96A 1.973A 0.98A 74.999 84.379% 765 19.4 34.38°C 0.832
12.130V 5.102V 3.345V 5.102V 88.884 38.62°C 229.93V
20% 9.824A 2.949A 2.97A 1.179A 149.924 88.775% 765 19.4 34.76°C 0.927
12.116V 5.087V 3.333V 5.088V 168.881 39.54°C 229.92V
30% 15.606A 3.447A 3.476A 1.38A 224.921 89.922% 767 19.4 35.27°C 0.955
12.102V 5.077V 3.323V 5.074V 250.127 40.39°C 229.91V
40% 21.408A 3.948A 3.985A 1.581A 300.005 89.989% 769 19.5 35.5°C 0.968
12.089V 5.066V 3.313V 5.059V 333.379 41.12°C 229.89V
50% 26.822A 4.951A 5.001A 1.785A 374.386 89.671% 785 19.8 36.25°C 0.975
12.075V 5.05V 3.3V 5.043V 417.51 42.33°C 229.88V
60% 32.293A 5.959A 6.023A 1.989A 449.295 89.111% 1072 26.9 36.81°C 0.98
12.062V 5.035V 3.287V 5.028V 504.202 43.46°C 229.86V
70% 37.779A 6.974A 7.054A 2.195A 524.232 88.349% 1306 32.9 37.05°C 0.982
12.047V 5.019V 3.275V 5.012V 593.366 44.1°C 229.85V
80% 43.346A 7.996A 8.092A 2.3A 599.448 87.558% 1464 36.1 37.74°C 0.985
12.032V 5.004V 3.262V 4.999V 684.632 45.81°C 229.83V
90% 49.262A 8.513A 8.61A 2.406A 674.487 86.72% 1613 38.6 38.58°C 0.987
12.017V 4.992V 3.252V 4.987V 777.778 47.59°C 229.82V
100% 54.991A 9.037A 9.167A 3.025A 749.695 85.685% 1759 40.6 39.98°C 0.989
12.001V 4.979V 3.24V 4.959V 874.95 49.99°C 229.8V
110% 60.601A 10.079A 10.325A 3.032A 824.722 84.413% 1831 42.9 41.27°C 0.99
11.987V 4.96V 3.225V 4.947V 977.008 52.2°C 229.79V
CL1 0.114A 14.466A 14.486A 0.001A 121.285 82.517% 729 18.4 34.67°C 0.913
12.116V 4.991V 3.292V 5.108V 146.983 40.16°C 229.92V
CL2 0.114A 20.036A 0A 0.001A 101.36 81.489% 729 18.4 35.81°C 0.893
12.131V 4.99V 3.318V 5.12V 124.386 42.82°C 229.92V
CL4 62.447A 0A 0.001A 0.003A 749.522 82.082% 729 18.4 40.4°C 0.99
12.002V 5.057V 3.275V 5.064V 913.177 51.32°C 229.79V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
20W 1.222A 0.488A 0.491A 0.195A 19.994 69.164% 759 19.3 0.5
12.140V 5.121V 3.359V 5.132V 28.908 229.94V
40W 2.694A 0.684A 0.688A 0.293A 39.995 78.244% 758 19.3 0.685
12.136V 5.117V 3.356V 5.127V 51.117 229.94V
60W 4.164A 0.88A 0.886A 0.39A 59.995 82.991% 759 19.3 0.785
12.132V 5.113V 3.352V 5.122V 72.289 229.93V
80W 5.632A 1.076A 1.084A 0.489A 79.936 85.587% 762 19.3 0.841
12.129V 5.11V 3.349V 5.117V 93.401 229.93V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load21.45mV7.93mV13.34mV21.32mVPass
20% Load21.19mV8.50mV14.53mV22.76mVPass
30% Load23.72mV9.58mV15.41mV23.64mVPass
40% Load23.97mV10.30mV15.93mV25.45mVPass
50% Load25.36mV10.46mV16.96mV25.50mVPass
60% Load28.46mV11.69mV18.15mV28.34mVPass
70% Load33.72mV13.34mV19.75mV31.54mVPass
80% Load37.38mV14.63mV21.46mV33.65mVPass
90% Load40.01mV17.77mV23.32mV35.93mVPass
100% Load48.90mV21.02mV28.40mV43.26mVPass
110% Load55.88mV22.11mV30.89mV47.22mVPass
Crossload124.14mV13.07mV19.08mV27.50mVPass
Crossload220.98mV17.31mV14.43mV20.65mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload449.65mV18.27mV26.75mV36.52mVPass

The results above are not used in the certification process

Zalman GigaMax III 750W

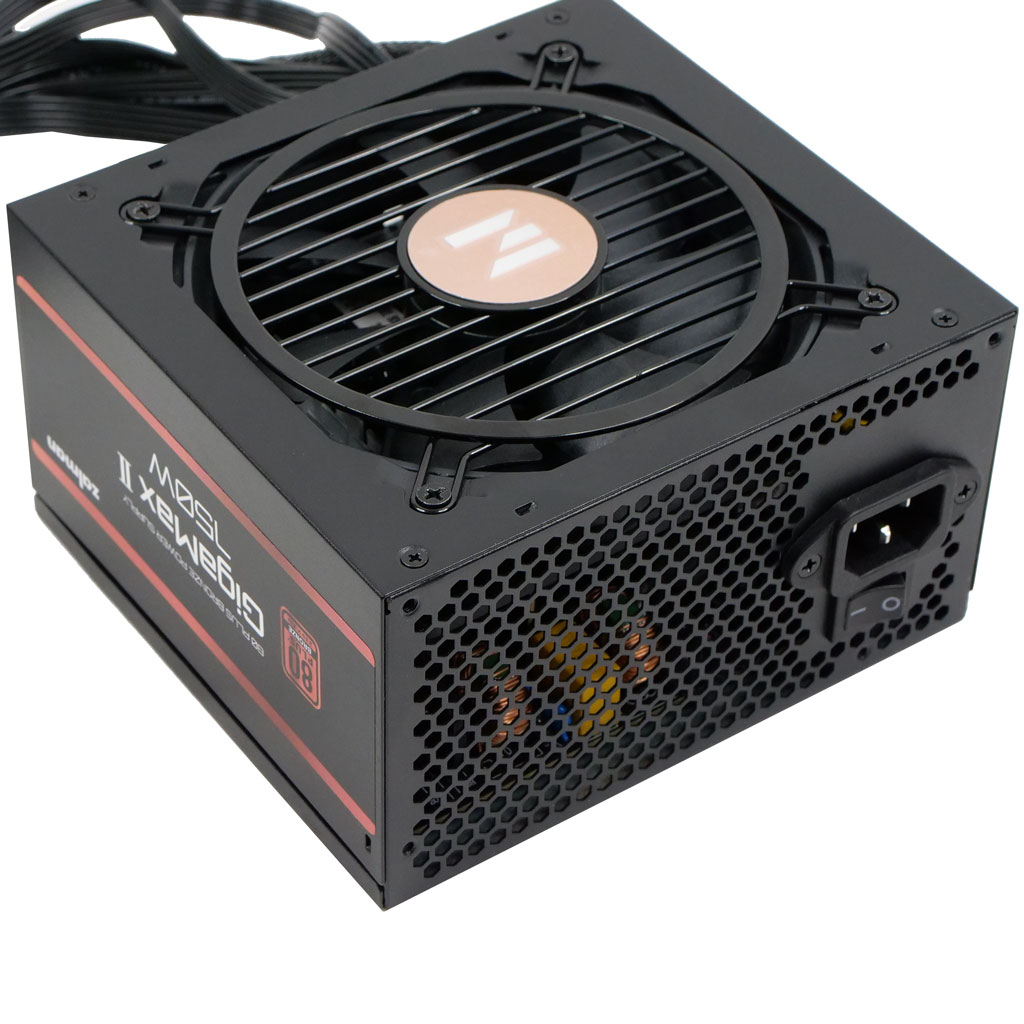

Top side

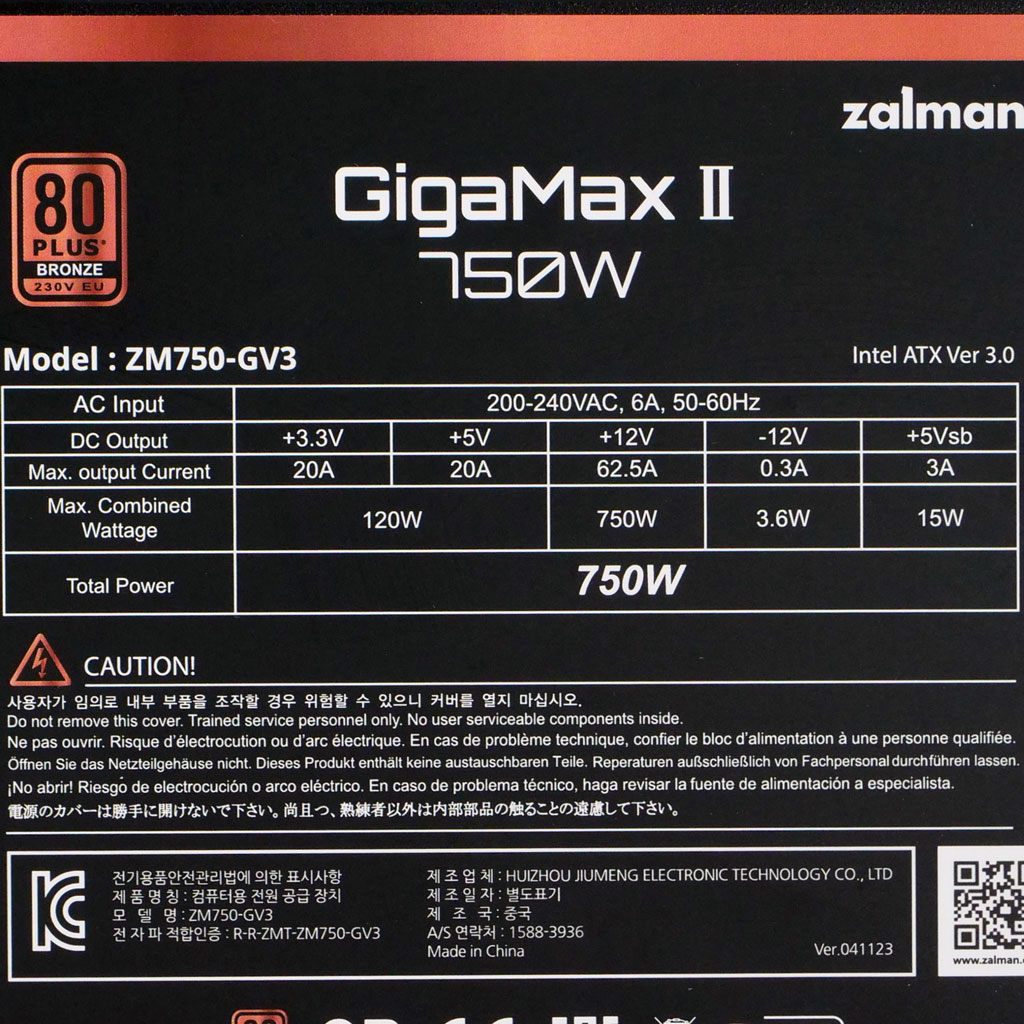

Power specifications label
