CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Cougar GEX X2 850
Serial Number12BC02GX85000091
Lab IDCG85002171
  • Report: 23PS2171A
  • Receipt Date: Apr 12, 2023
  • Test Date: Apr 19, 2023
  • Report Date: Apr 24, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCougar
Manufacturer (OEM)XHY-Power
SeriesGEX X2
Model Number
Serial Number12BC02GX85000091
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling120mm Hydraulic Dynamic Bearing Fan
(EFH-12E12H)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.830.3
Watts100850153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (660mm) 1 1 18AWG No
4+4 pin EPS12V (650mm) 1 1 18AWG No
8 pin EPS12V (650mm) 1 1 18AWG No
6+2 pin PCIe (650mm+100mm) 2 4 18AWG No
12+4 pin PCIe (650mm) (450W) 1 1 16-28AWG No
SATA (510mm+115mm+115mm+115mm) 1 4 18AWG No
SATA (500mm+115mm+115mm) / 4-pin Molex (+115mm) 2 6 / 2 18AWG No
AC Power Cord (1360mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) HEC
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x Mov
Inrush Protection NTC Thermistor MF72 5D15 & Relay HF46F-G
Bridge Rectifier(s) 2x GBU15J (600V, 15A @ 100°C)
APFC MOSFETs 2x Ncepower NCE65TF130 (650V, 28A @ 100°C, Rds(on): 140mOhm)
APFC Boost Diode 1x DS065006C3
Bulk Cap(s) 1x TK (420V, 680uF, 2000h @ 105°C, LGW)
Main Switchers 4x CS13N50FA9R (500V, 8.5A @ 100°C, Rds(on): 0.5Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901T6
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 4x CRSM016N06L2 (60V, 136A @ 100°C, Rds(on): 2.4mOhm)
5V & 3.3V DC-DC Converters: 6x Excelliance MOS EMB07N03H  (20V, 35A @ 100°C, Rds(on): 7mOhm)
PWM Controller(s): uPI-Semi uP3861P
Filtering Capacitors Electrolytic: 9x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 3x Nichicon (2-8,000h @ 105°C), 2x PLH,
Polymer: 21x FPCAP
Supervisor IC Infino IN1S424I (OCP, OVP, UVP, SCP, PG)
Fan Model DWPH EFH-12E12H (120mm, 12V, 0.5A, Hydraulic Dynamic Bearing Fan)
5VSB Circuit -
Rectifier 1x HM69-60R10 SBR (42V, 22A)
Standby PWM Controller Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary 115V

Efficiency RatingPLATINUM
Noise RatingA+
Average Efficiency (>1450 load combinations)89.408%
Average Noise Output (>1450 Load Combinations)19.01dBA
Average PF (>1450 Load Combinations)0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load66.748%
Standby Power Consumption0.0432W
12V Ripple (Full Load)27.86mV
5V Ripple (Full Load)18.79mV
3.3V Ripple (Full Load)19.84mV
5VSB Ripple (Full Load)12.82mV
12V Load Regulation1.50%
5V Load Regulation0.28%
3.3V Load Regulation0.51%
5VSB Load Regulation2.24%
Inrush Current67.380A

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)24.9
AC Loss to PWR_OK Hold Up Time (ms)20.8
PWR_OK Inactive to DC Loss Delay (ms)4.1

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.80 V 113.85 V 114.95 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.21 % 0.17 % N/A 0.30 % 2.00 % PASS
Real Power: 0.043 W -0.001 W N/A 0.081 W N/A N/A
Apparent Power: 6.488 W 6.451 W N/A 6.531 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A

Graphs 115V

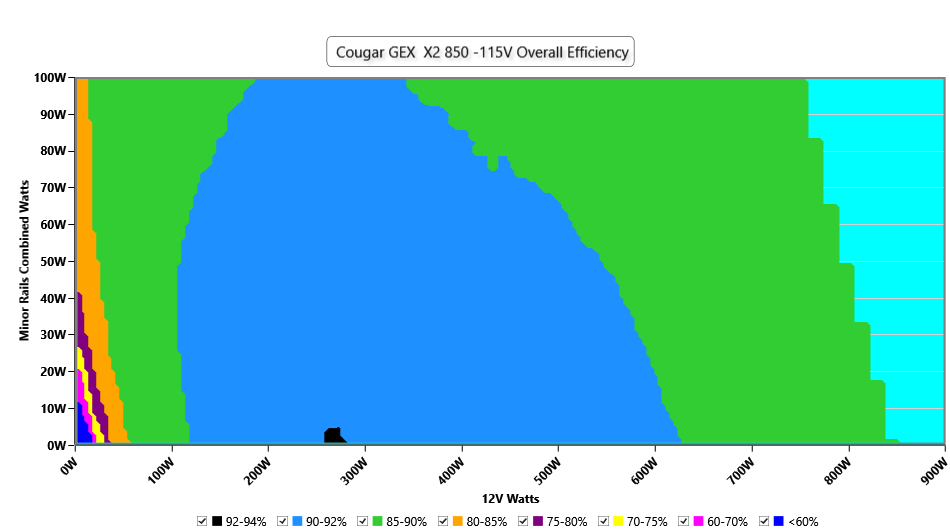

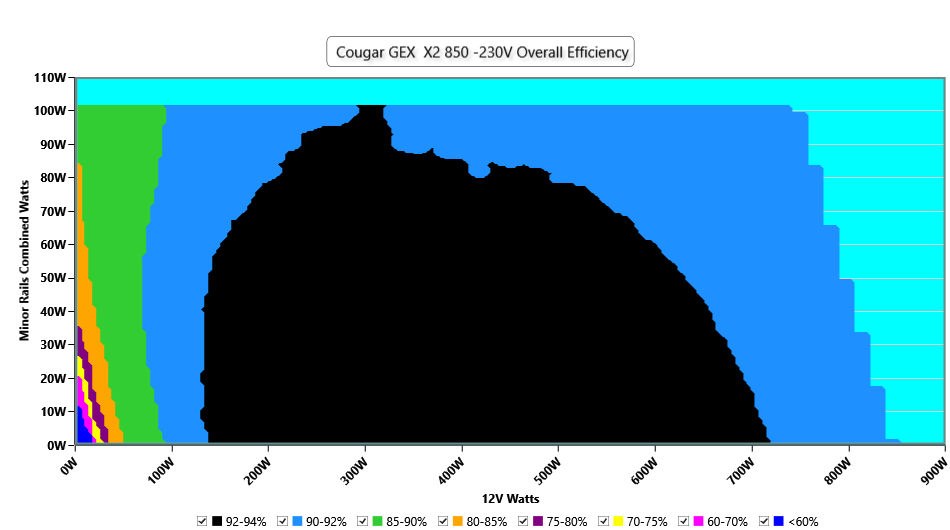

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

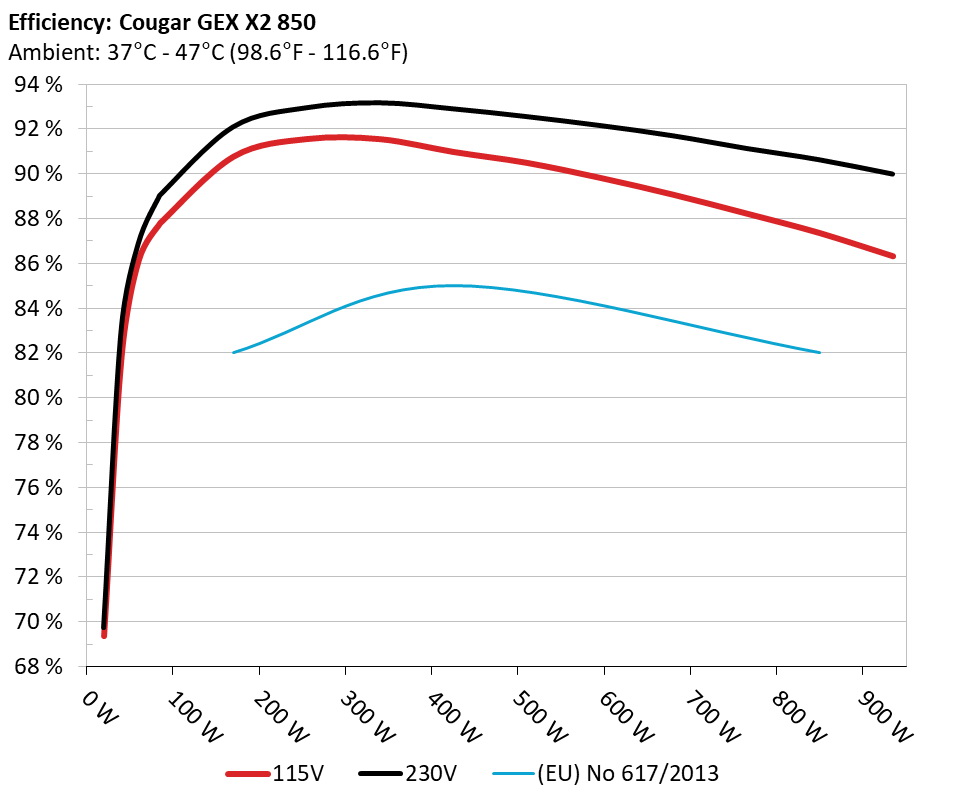

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

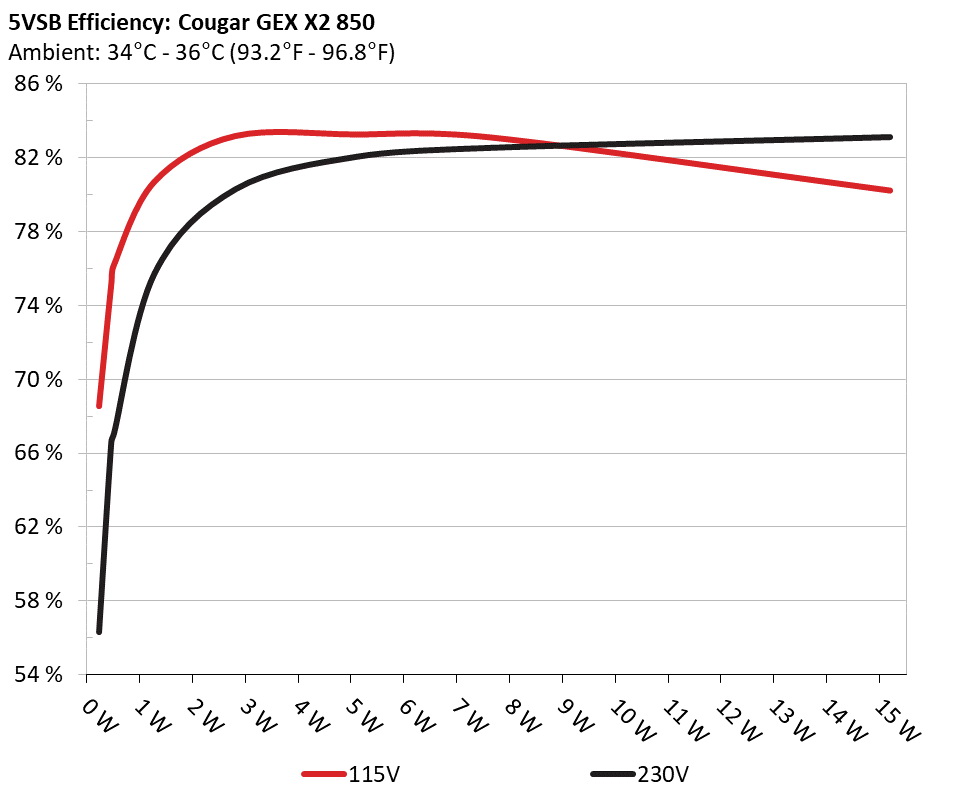

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 68.056% 0.053
5.115V 0.338W 114.88V
2 0.09A 0.46W 74.635% 0.094
5.114V 0.616W 114.88V
3 0.55A 2.808W 82.655% 0.325
5.106V 3.398W 114.88V
4 1A 5.098W 82.739% 0.396
5.098V 6.162W 114.88V
5 1.5A 7.635W 82.578% 0.438
5.09V 9.245W 114.87V
6 3A 15.188W 79.707% 0.493
5.063V 19.055W 114.87V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.332A 1.986A 1.979A 0.982A 84.992 87.776% 0 <6.0 44.54°C 0.961
11.888V 5.033V 3.334V 5.09V 96.831 40.14°C 114.85V
20% 11.691A 2.982A 2.971A 1.181A 169.92 90.779% 0 <6.0 45.68°C 0.973
11.892V 5.03V 3.332V 5.079V 187.179 40.89°C 114.82V
30% 18.409A 3.48A 3.467A 1.381A 254.916 91.566% 0 <6.0 46.39°C 0.98
11.890V 5.029V 3.331V 5.07V 278.398 41.29°C 114.79V
40% 25.131A 3.979A 3.964A 1.581A 339.998 91.56% 0 <6.0 47.26°C 0.986
11.890V 5.027V 3.33V 5.06V 371.335 41.72°C 114.77V
50% 31.475A 4.975A 4.958A 1.782A 424.783 90.99% 396 <6.0 42.04°C 0.989
11.891V 5.025V 3.328V 5.05V 466.843 48.24°C 114.73V
60% 37.808A 5.969A 5.953A 1.984A 509.299 90.506% 745 17.4 42.6°C 0.991
11.889V 5.026V 3.326V 5.04V 562.729 49.31°C 114.7V
70% 44.225A 6.965A 6.949A 2.187A 594.647 89.835% 1187 31.4 43.12°C 0.992
11.884V 5.025V 3.324V 5.03V 661.93 50.17°C 114.67V
80% 50.649A 7.961A 7.946A 2.29A 679.487 89.079% 1717 41.8 43.56°C 0.993
11.878V 5.025V 3.322V 5.022V 762.793 51.57°C 114.63V
90% 57.481A 8.458A 8.431A 2.393A 764.892 88.233% 2249 48.5 44.62°C 0.994
11.872V 5.024V 3.321V 5.014V 866.899 53.69°C 114.6V
100% 64.027A 8.96A 8.948A 3.002A 849.719 87.361% 2266 48.5 45.12°C 0.994
11.870V 5.022V 3.319V 4.997V 972.648 55.22°C 114.56V
110% 70.426A 9.962A 10.038A 3.006A 934.322 86.326% 2283 48.8 46.88°C 0.995
11.871V 5.019V 3.317V 4.99V 1082.315 57.82°C 114.53V
CL1 0.116A 11.986A 11.946A 0A 101.293 83.486% 0 <6.0 46.21°C 0.974
11.908V 5.022V 3.324V 5.098V 121.327 40.73°C 114.83V
CL2 0.116A 19.972A 0A 0A 101.342 81.808% 462 7.3 40.68°C 0.973
11.910V 5.005V 3.329V 5.101V 123.875 47.73°C 114.83V
CL3 0.116A 0A 19.907A 0A 67.396 75.835% 0 <6.0 49.68°C 0.956
11.912V 5.013V 3.316V 5.1V 88.871 40.58°C 114.85V
CL4 71.576A 0A 0A 0A 849.53 87.907% 2270 48.6 45.2°C 0.994
11.869V 5.026V 3.329V 5.057V 966.403 56.01°C 114.57V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.496A 0.494A 0.196A 19.989 69.344% 0 <6.0 39.72°C 0.859
12.048V 5.036V 3.336V 5.109V 28.824 36.65°C 114.87V
40W 2.748A 0.695A 0.693A 0.294A 39.989 81.73% 0 <6.0 41.01°C 0.925
11.890V 5.034V 3.335V 5.106V 48.932 37.57°C 114.86V
60W 4.250A 0.893A 0.89A 0.392A 59.989 86.126% 0 <6.0 42.24°C 0.945
11.888V 5.035V 3.335V 5.103V 69.652 38.43°C 114.86V
80W 5.746A 1.092A 1.088A 0.49A 79.926 87.807% 0 <6.0 43.33°C 0.956
11.888V 5.034V 3.335V 5.099V 91.022 39.37°C 114.85V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load17.14mV13.69mV15.19mV9.26mVPass
20% Load18.96mV13.64mV14.88mV8.49mVPass
30% Load15.74mV14.31mV16.42mV9.00mVPass
40% Load15.54mV14.61mV14.78mV9.77mVPass
50% Load16.41mV16.30mV16.63mV10.54mVPass
60% Load15.23mV15.63mV16.63mV10.43mVPass
70% Load14.69mV16.04mV16.98mV11.30mVPass
80% Load16.22mV17.58mV17.90mV11.92mVPass
90% Load16.68mV18.65mV18.57mV11.15mVPass
100% Load27.86mV18.79mV19.84mV12.82mVPass
110% Load27.79mV19.39mV17.99mV12.06mVPass
Crossload129.95mV21.54mV20.35mV15.99mVPass
Crossload217.58mV31.27mV22.81mV15.70mVPass
Crossload314.46mV20.18mV20.98mV15.60mVPass
Crossload426.29mV15.83mV15.42mV17.42mVPass

The results above are not used in the certification process

Cougar GEX X2 850

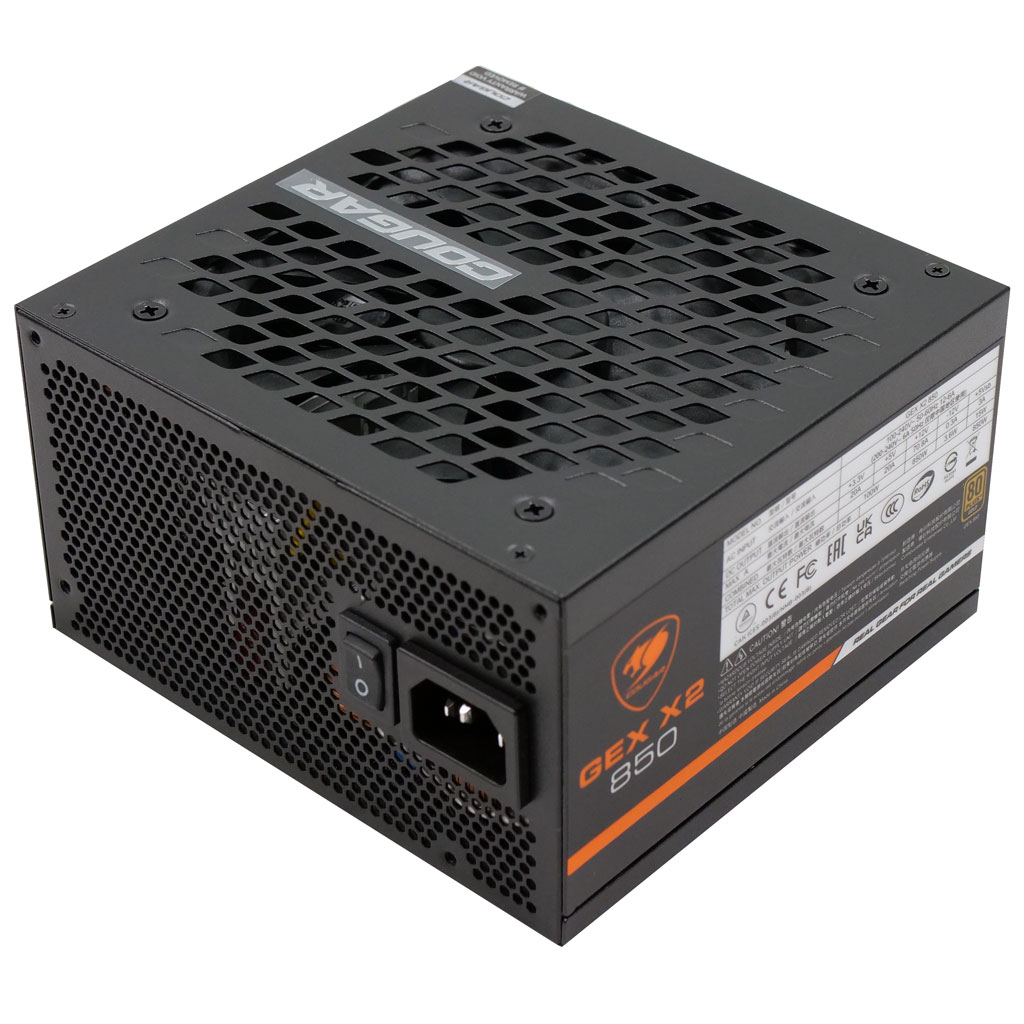

Top side

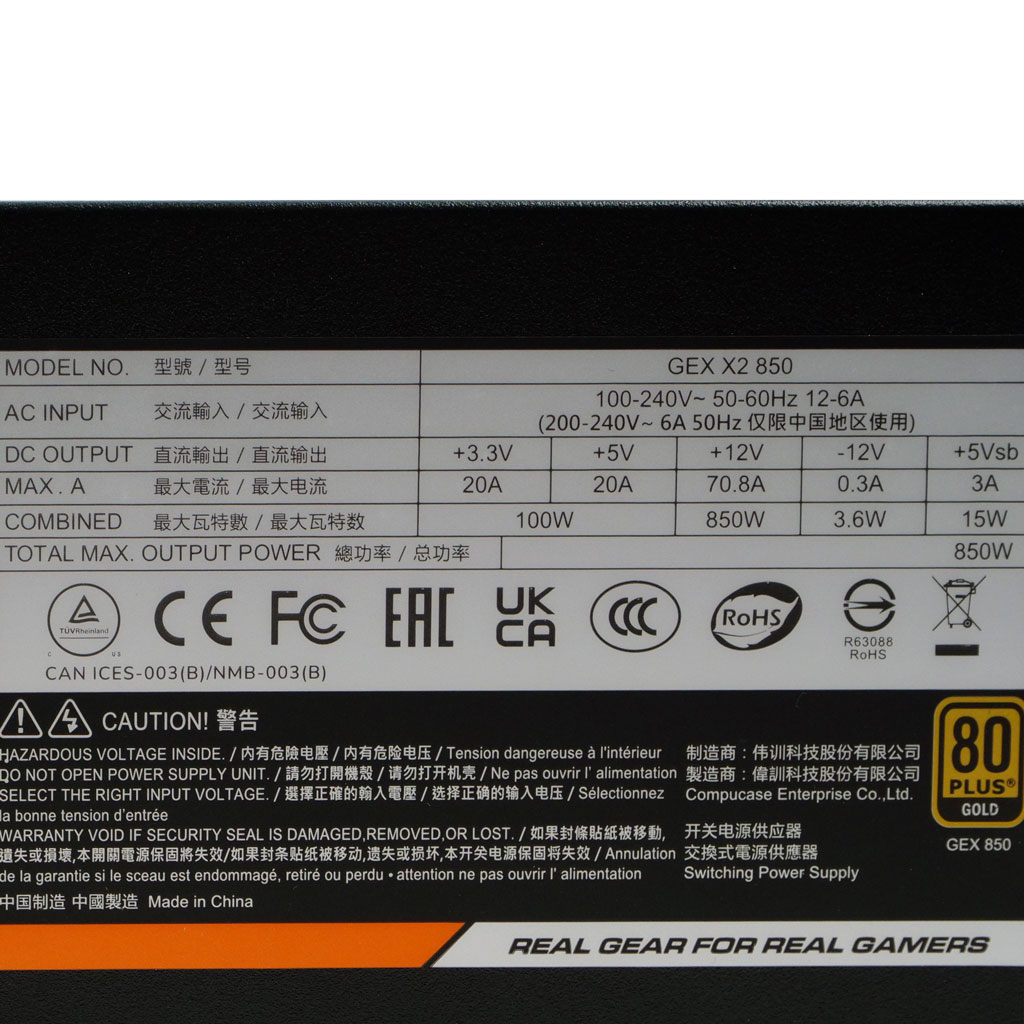

Power specifications label
