Cybenetics Test - EVGA SuperNOVA 1000 G3

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

EVGA SuperNOVA 1000 G3

Serial Number1703441015899001

Lab ID214

Report:
Receipt Date: Nov 2, 2018
Test Date: Nov 11, 2018
Report Date: Nov 13, 2018

	115V	230V
Efficiency Rating

115V	230V
		Noise Rating

Aristeidis Bitziopoulos, Lab Director

General Information

DUT Information

Brand	EVGA
Manufacturer (OEM)	Super Flower
Series	SuperNOVA G3
Model Number
Serial Number	1703441015899001
DUT Notes	Retested on 11/14/17

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	15
Rated Frequency (Hz)	50-60
Rated Power (W)	1000
Type	ATX12V
Cooling	130mm Hydraulic Dynamic Bearing Fan (ED142512W-CA)
Semi-Passive Operation	✓ (selectable)
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	24	24	83.3	3	0.5
Max. Power	Watts	120		999.6	15	6
Total Max. Power (W)		1000

Test Equipment

Electronic Loads	Chroma 6314A x2 63123A x6 63102A 63101A	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, Chroma 61604
Power Analyzers	N4L PPA1530, N4L PPA5530
Oscilloscopes	Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter	Keithley 2015 THD 6.5 Digit
Sound Analyzer	Bruel & Kjaer 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (600mm)	1	1	18-22AWG	Yes
4+4 pin EPS12V (700mm)	2	2	18-22AWG	Yes
6+2 pin PCIe (700mm)	2	2	18-20AWG	Yes
6+2 pin PCIe (700mm+150mm)	3	6	18-20AWG	Yes
SATA (550mm+100mm+100mm)	3	12	18-20AWG	No
4 pin Molex (550mm+100mm+100mm+100mm)	1	4	18AWG	No
FDD Adapter (+100mm)	1	1	20AWG	No
AC Power Cord (1400mm) - C13 coupler	1	1	18AWG	No

Parts Description

General Data
Manufacturer (OEM)	CWT
Platform Model	-
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor & Diode
Bridge Rectifier(s)	2x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETS	2x Infineon IPW50R280CE (550V, 11.4A @ 100°C, 0.28Ohm)
APFC Boost Diode	1x Power Integrations QH08TZ600 (600V, 8A @ 150°C)
Hold-up Cap(s)	1x Nichicon (400V, 390uF, 2000h @ 105 °C, GG)
Main Switchers	2x Vishay SiHG20N50C (560V, 11A @ 100°C, 0.27Ohm)
Combo APFC/PWM Controller	Champion CM6800TX & CM03X Green PFC controller
Topology	Primary side: Half-Bridge & LLC Resonant Controller Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS	4x APEC AP9990GH-HF (60V, 100A @ 25°C, 6mOhm)
5V & 3.3V	DC-DC Converters: 6x APEC AP72T03GP (30V, 47A @ 100°C, 9.5mOhm) PWM Controller: APW7159C
Filtering Capacitors	Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KZE), Suscon (2-5,000h @ 105°C, MF), TAICON (105°C) Polymers: APAQ, EneSol
Supervisor IC	Weltrend WT7502 (OVP, UVP, SCP, PG)
Fan Model	Power Logic PLA13525S12M (12V, 0.40A, 111.1CFM, 41.6 dBA, Hydro Dynamic Bearing)
5VSB Circuit
Rectifier	1x MBR2045CT SBR (45V, 20A) & CEF04N7G (700V, 4A, 3.3Ohm)
Standby PWM Controller	On-Bright OB5269CP
-12V Circuit
Rectifier	UTC 2SB834L

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	ErP Lot 3/6 2010: ✓ ErP Lot 3/6 2013: Partially ErP Lot 3/6 2014, CEC: Partially
(EU) No 617/2013 Compliance	✓

Performance Summary 115V

Average Efficiency	89.652%
Efficiency With 10W (≤500W) or 2% (>500W) Load -115V	73.258
Average Efficiency VSB	76.748%
Standby Power Consumption (W)	0.1344
Average PF	0.987
Avg Noise Output	33.81 dB(A)
Efficiency Rating (ETA)	PLATINUM
Noise Rating (LAMBDA)	Standard++

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	22.52
AC Loss to PWR_OK Hold Up Time (ms)	20.90
PWR_OK Inactive to DC Loss Delay (ms)	1.62

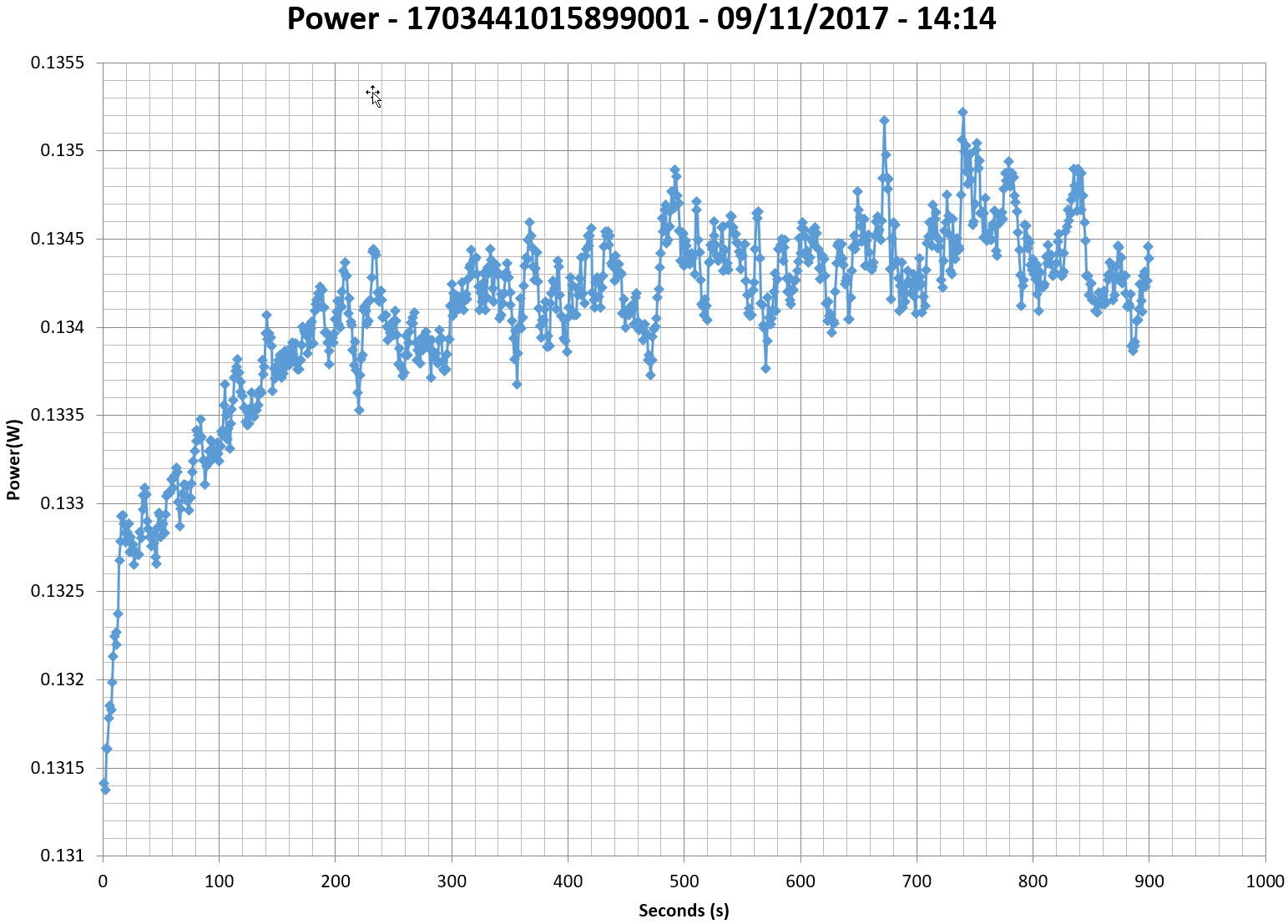

Vampire Power

Tables 115V

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

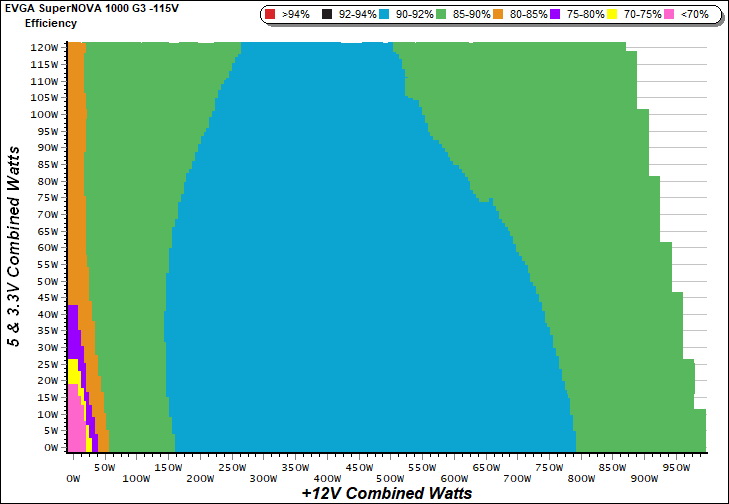

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

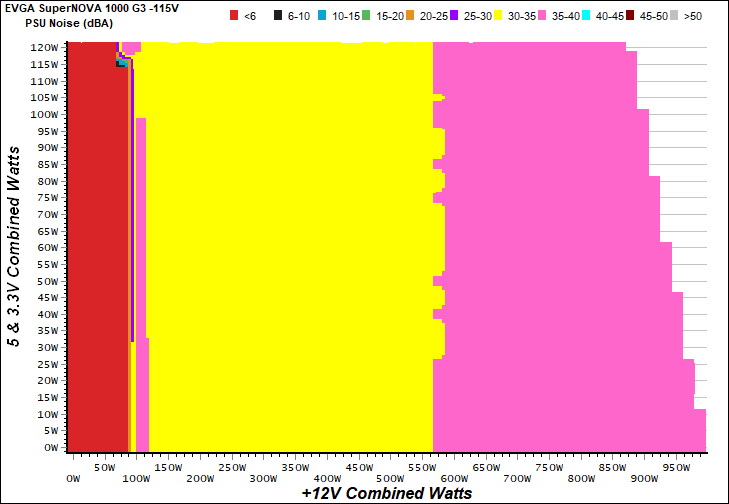

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

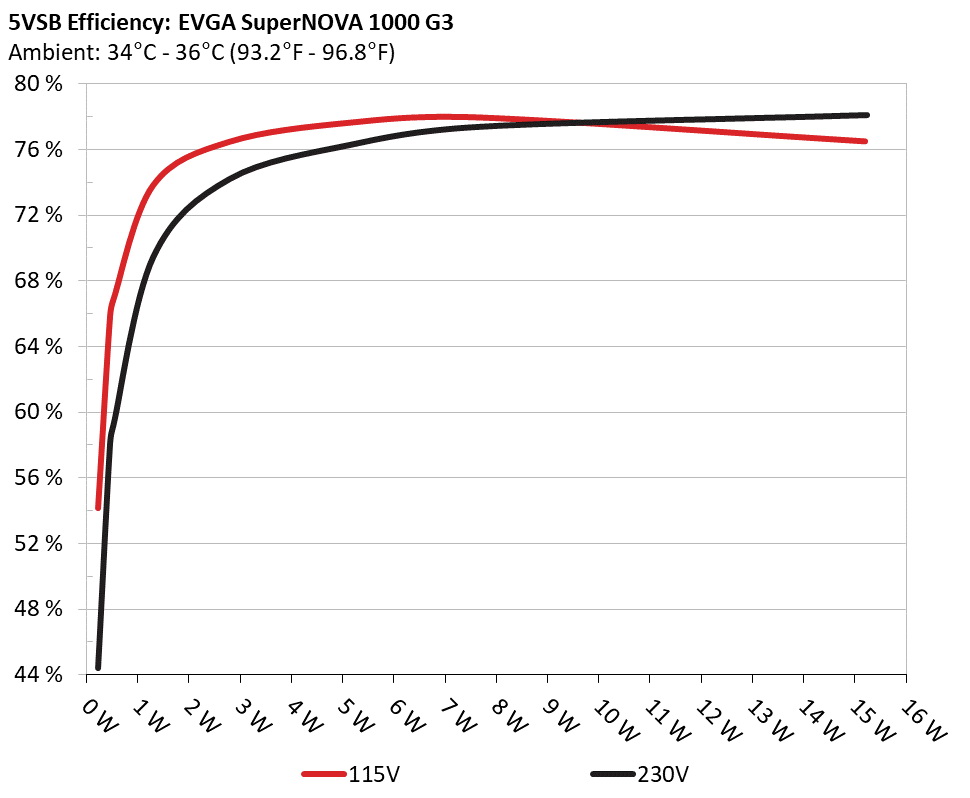

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.042A	0.215	54.156%	0.031
1	5.143V	0.397	54.156%	115.09V
2	0.087A	0.449	65.836%	0.052
2	5.142V	0.682	65.836%	115.09V
3	0.542A	2.781	76.443%	0.233
3	5.131V	3.638	76.443%	115.08V
4	1.002A	5.132	77.605%	0.336
4	5.121V	6.613	77.605%	115.08V
5	1.502A	7.675	77.919%	0.397
5	5.110V	9.850	77.919%	115.08V
6	3.002A	15.206	76.466%	0.478
6	5.066V	19.886	76.466%	115.08V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	6.457A	1.994A	1.991A	0.976A	99.840	87.002%	1565	36.8	38.05°C	0.974
1	12.121V	5.008V	3.310V	5.120V	114.756	87.002%	1565	36.8	43.05°C	115.04V
2	13.933A	2.989A	2.987A	1.171A	199.683	89.988%	1592	37.2	38.35°C	0.978
2	12.118V	5.009V	3.310V	5.111V	221.899	89.988%	1592	37.2	43.72°C	115.04V
3	21.778A	3.497A	3.499A	1.371A	299.956	91.085%	1615	37.5	38.75°C	0.987
3	12.116V	5.009V	3.310V	5.103V	329.315	91.085%	1615	37.5	44.52°C	115.07V
4	29.599A	3.995A	3.983A	1.567A	399.738	91.327%	1653	38.1	39.12°C	0.992
4	12.114V	5.008V	3.310V	5.096V	437.699	91.327%	1653	38.1	45.03°C	115.05V
5	37.075A	4.986A	4.981A	1.766A	499.690	91.119%	1698	38.9	40.06°C	0.994
5	12.117V	5.009V	3.310V	5.090V	548.395	91.119%	1698	38.9	46.17°C	115.06V
6	44.545A	5.985A	5.977A	1.966A	599.615	90.700%	1750	39.3	40.58°C	0.995
6	12.119V	5.010V	3.312V	5.083V	661.098	90.700%	1750	39.3	47.27°C	115.07V
7	52.021A	6.990A	6.972A	2.165A	699.644	89.844%	1850	41.7	42.16°C	0.995
7	12.121V	5.010V	3.312V	5.075V	778.733	89.844%	1850	41.7	49.29°C	115.07V
8	59.486A	7.981A	7.963A	2.365A	799.515	89.181%	1924	43.2	43.76°C	0.995
8	12.123V	5.012V	3.313V	5.067V	896.512	89.181%	1924	43.2	50.94°C	115.08V
9	67.379A	8.482A	8.482A	2.368A	899.502	88.264%	2007	44.5	44.90°C	0.996
9	12.124V	5.012V	3.313V	5.062V	1019.102	88.264%	2007	44.5	52.29°C	115.09V
10	75.026A	8.988A	8.964A	2.970A	999.392	87.415%	2096	45.3	46.37°C	0.996
10	12.125V	5.010V	3.312V	5.045V	1143.269	87.415%	2096	45.3	54.23°C	115.09V
11	83.267A	8.988A	8.971A	2.972A	1099.312	86.461%	2124	45.5	47.73°C	0.996
11	12.125V	5.009V	3.310V	5.042V	1271.453	86.461%	2124	45.5	56.90°C	115.05V
CL1	0.100A	14.025A	14.006A	0.005A	118.927	82.902%	1890	42.6	43.32°C	0.969
CL1	12.105V	5.046V	3.350V	5.141V	143.455	82.902%	1890	42.6	47.82°C	115.09V
CL2	83.264A	1.002A	1.002A	1.002A	1023.383	87.714%	2045	44.7	46.07°C	0.996
CL2	12.130V	4.984V	3.288V	5.092V	1166.729	87.714%	2045	44.7	53.15°C	115.09V

The results above are not used in the certification process

Light Load Tests 115V

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.198A	0.489A	0.481A	0.197A	19.653	73.258%	0	<6.0	0.745
1	12.191V	5.017V	3.310V	5.083V	26.827	73.258%	0	<6.0	115.04V
2	2.421A	0.988A	0.996A	0.391A	39.745	82.438%	0	<6.0	0.866
2	12.187V	5.017V	3.310V	5.078V	48.212	82.438%	0	<6.0	115.04V
3	3.648A	1.485A	1.510A	0.592A	59.903	83.524%	0	<6.0	0.924
3	12.184V	5.018V	3.312V	5.073V	71.719	83.524%	0	<6.0	115.05V
4	4.854A	1.994A	1.989A	0.785A	79.767	85.020%	1760	39.6	0.945
4	12.195V	5.018V	3.312V	5.069V	93.821	85.020%	1760	39.6	115.05V

The results above are not used in the certification process

Ripple Measurements 115V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	5.3 mV	3.6 mV	7.9 mV	8.4 mV	Pass
20% Load	6.6 mV	4.3 mV	4.7 mV	10.3 mV	Pass
30% Load	7.4 mV	4.3 mV	5.1 mV	12.2 mV	Pass
40% Load	8.0 mV	4.7 mV	5.5 mV	13.0 mV	Pass
50% Load	8.1 mV	4.3 mV	5.9 mV	14.4 mV	Pass
60% Load	8.3 mV	4.3 mV	6.5 mV	15.8 mV	Pass
70% Load	9.2 mV	5.1 mV	7.1 mV	18.9 mV	Pass
80% Load	10.2 mV	5.8 mV	7.6 mV	20.3 mV	Pass
90% Load	10.7 mV	5.7 mV	8.5 mV	22.1 mV	Pass
100% Load	11.9 mV	6.7 mV	9.2 mV	25.3 mV	Pass
110% Load	12.8 mV	8.3 mV	9.9 mV	28.3 mV	Pass
Crossload 1	5.9 mV	3.6 mV	4.6 mV	18.9 mV	Pass
Crossload 2	10.3 mV	5.7 mV	8.3 mV	22.5 mV	Pass

The results above are not used in the certification process

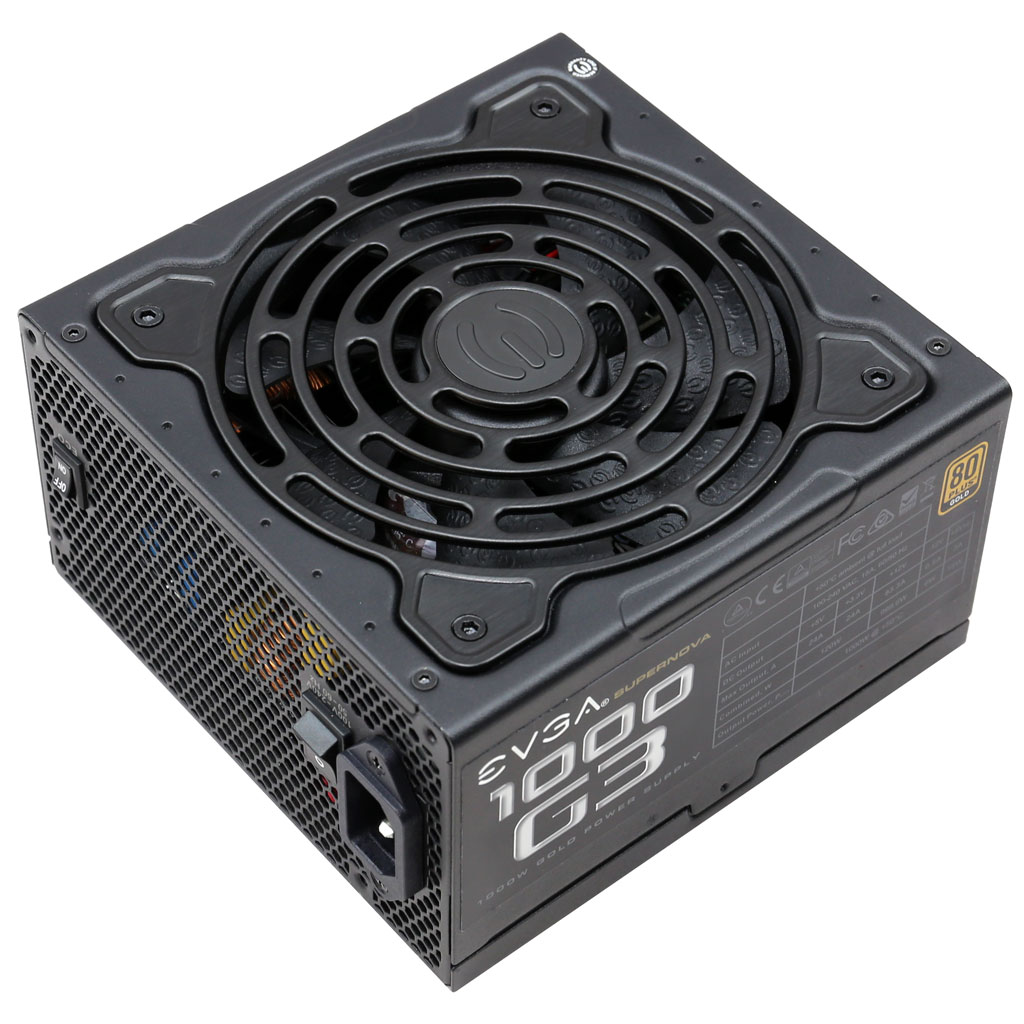

EVGA SuperNOVA 1000 G3

Top side

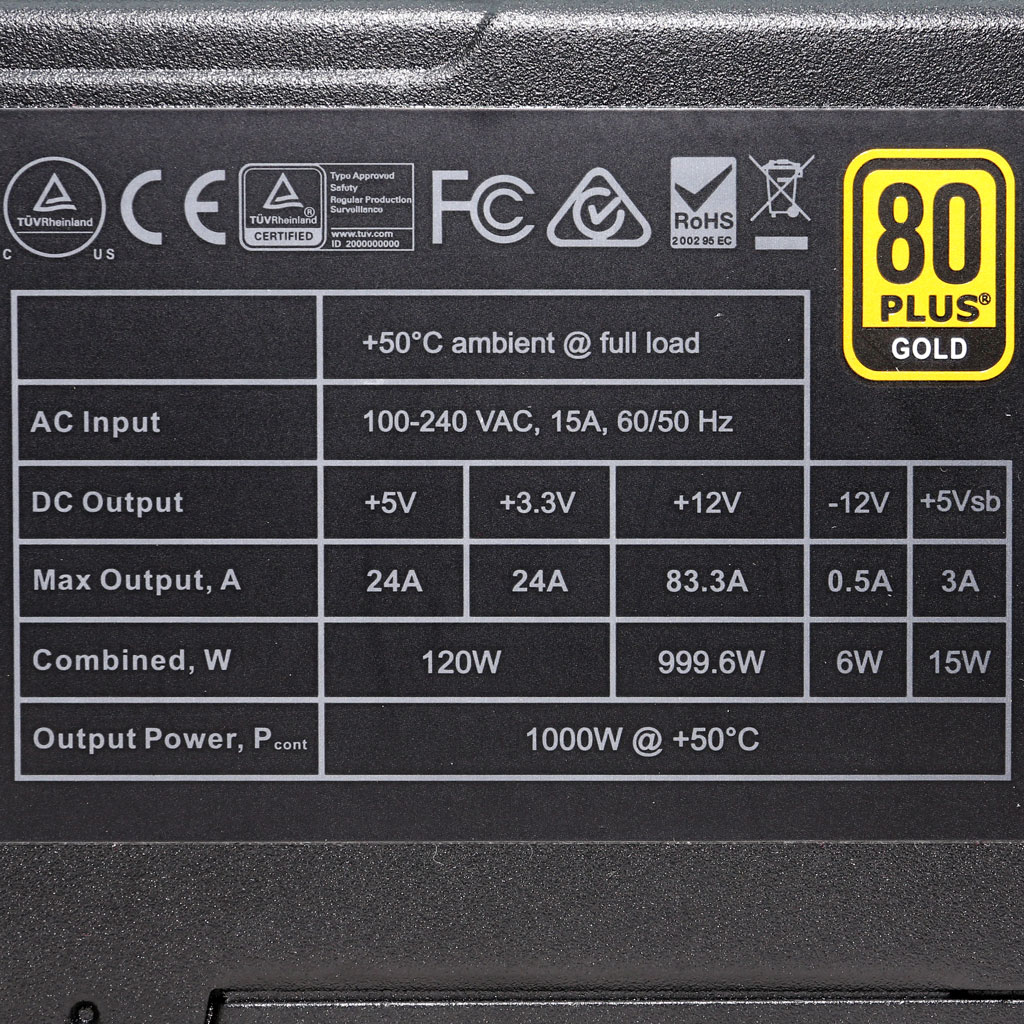

Power specifications label
