CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Montech Titan Gold 1200W
Serial NumberTITAN1200221100114
Lab IDMT12002123
  • Report: 23PS2123A
  • Receipt Date: Jan 20, 2023
  • Test Date: Jan 27, 2023
  • Report Date: Jan 27, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandMontech
Manufacturer (OEM)CWT
SeriesTitan
Model NumberTITAN1200221100114
Serial NumberTITAN1200221100114
DUT Notes

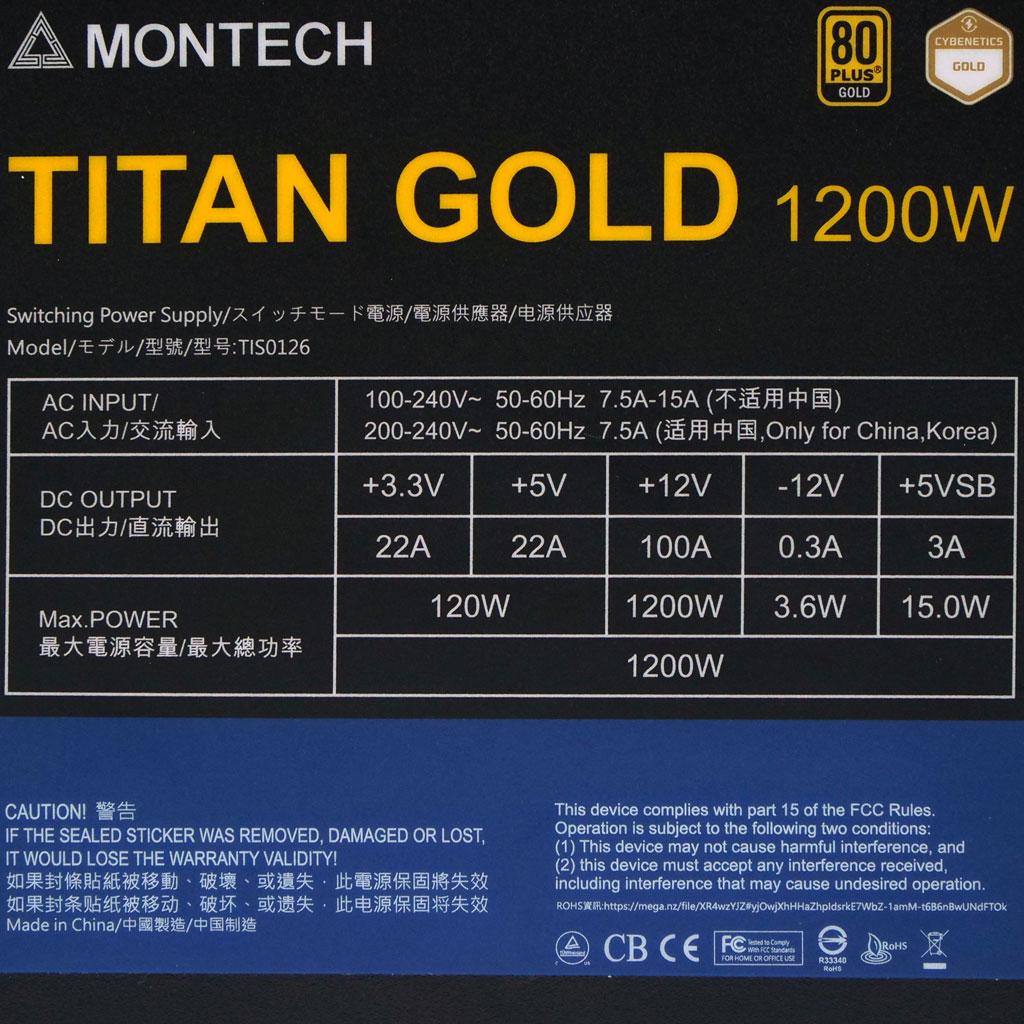

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)7.5-15
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12SF-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222210030.3
Watts1201200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-18AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
8 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (500mm+150mm) 2 4 16-18AWG No
6+2 pin PCIe (600mm) 1 1 16AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (500mm+120mm+120mm+120mm) 1 4 18AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.2
AC Loss to PWR_OK Hold Up Time (ms)18.6
PWR_OK Inactive to DC Loss Delay (ms)2.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.87 V 114.83 V 113.85 V 114.92 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.15 % 0.11 % N/A 0.20 % 2.00 % PASS
Real Power: 0.019 W 0.017 W N/A 0.021 W N/A N/A
Apparent Power: 10.173 W 10.154 W N/A 10.192 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.95 V 229.89 V 227.70 V 229.99 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.19 % 2.00 % PASS
Real Power: 0.086 W 0.074 W N/A 0.102 W N/A N/A
Apparent Power: 34.483 W 34.459 W N/A 34.510 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

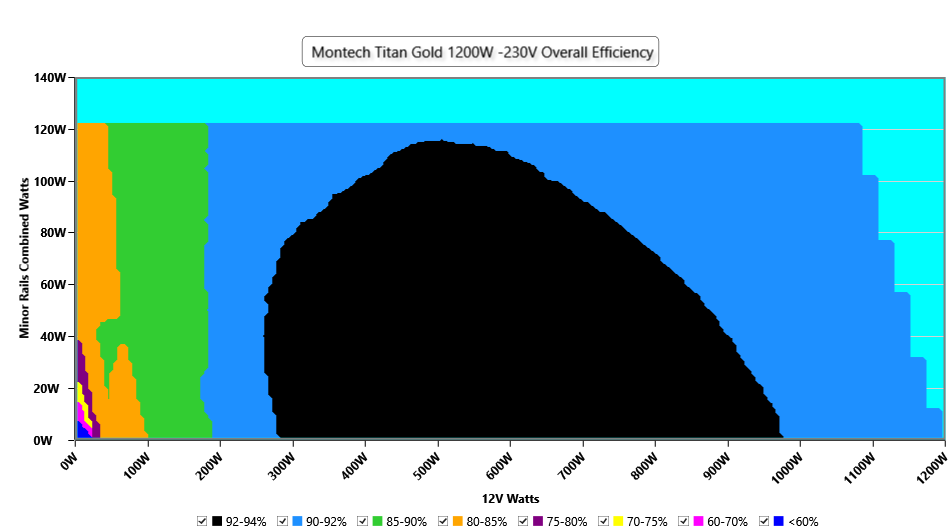

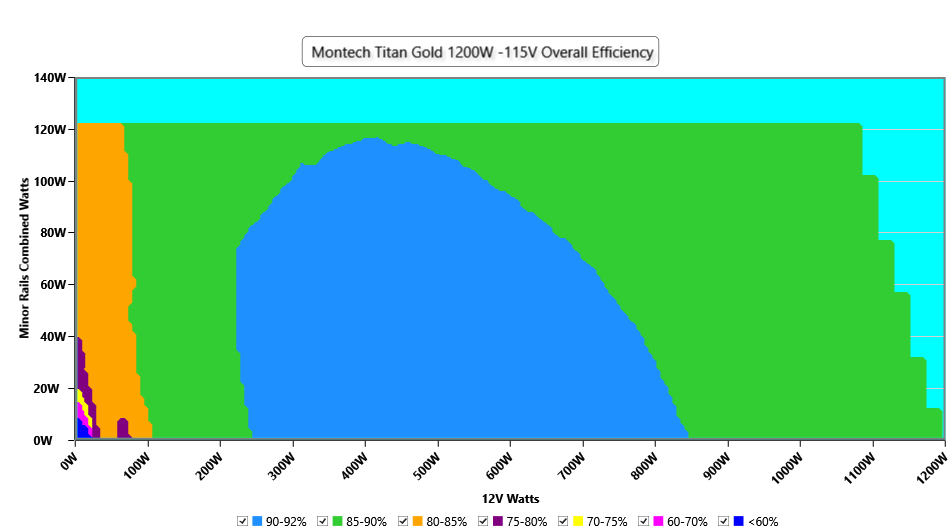

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

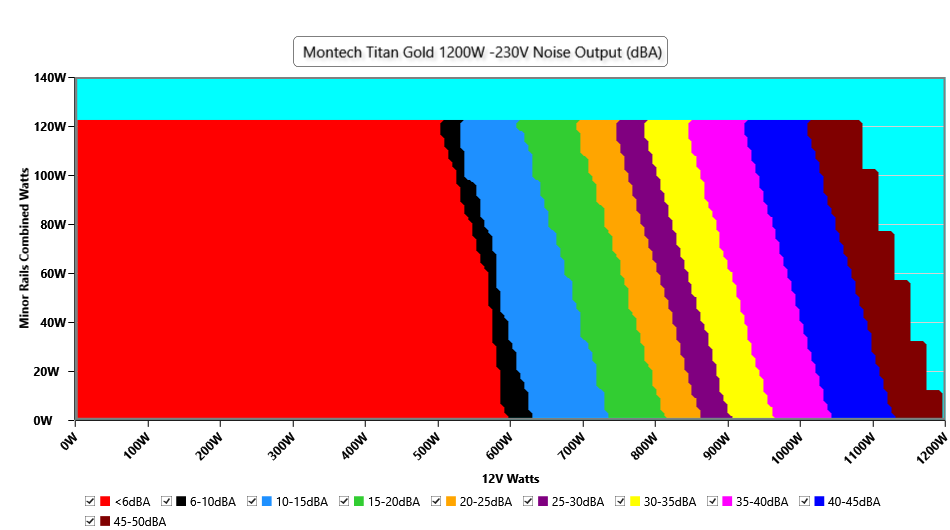

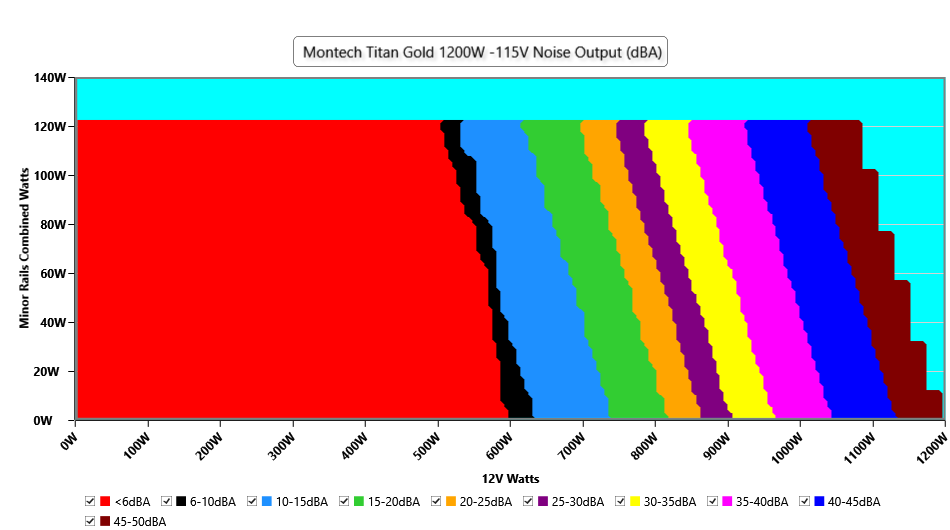

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

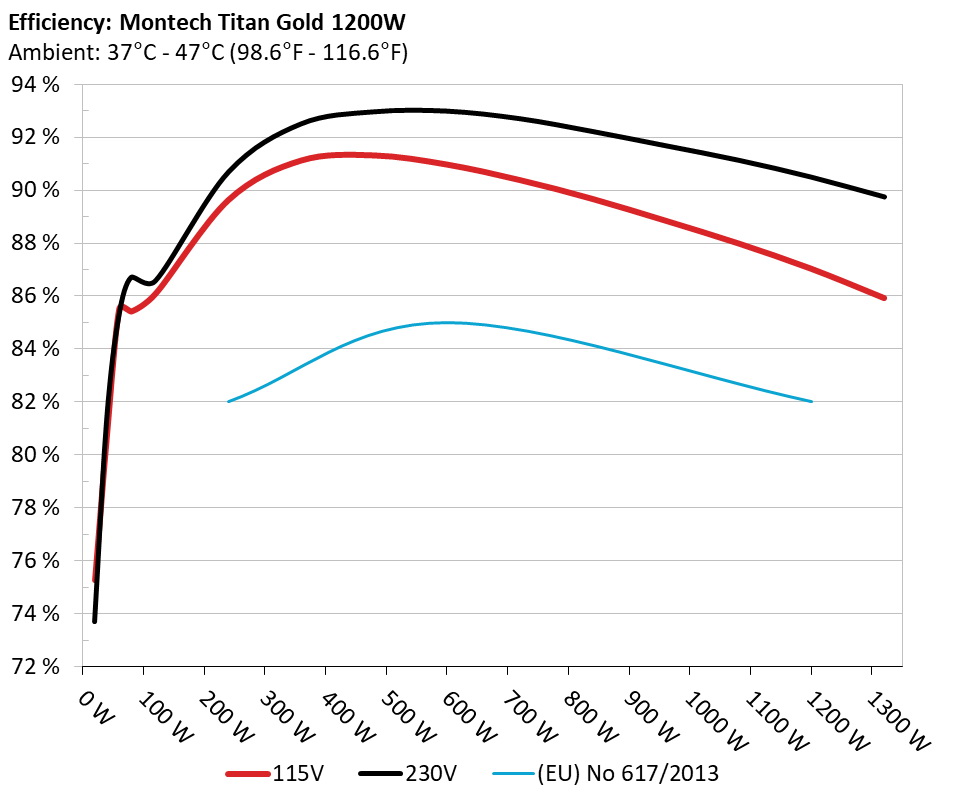

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

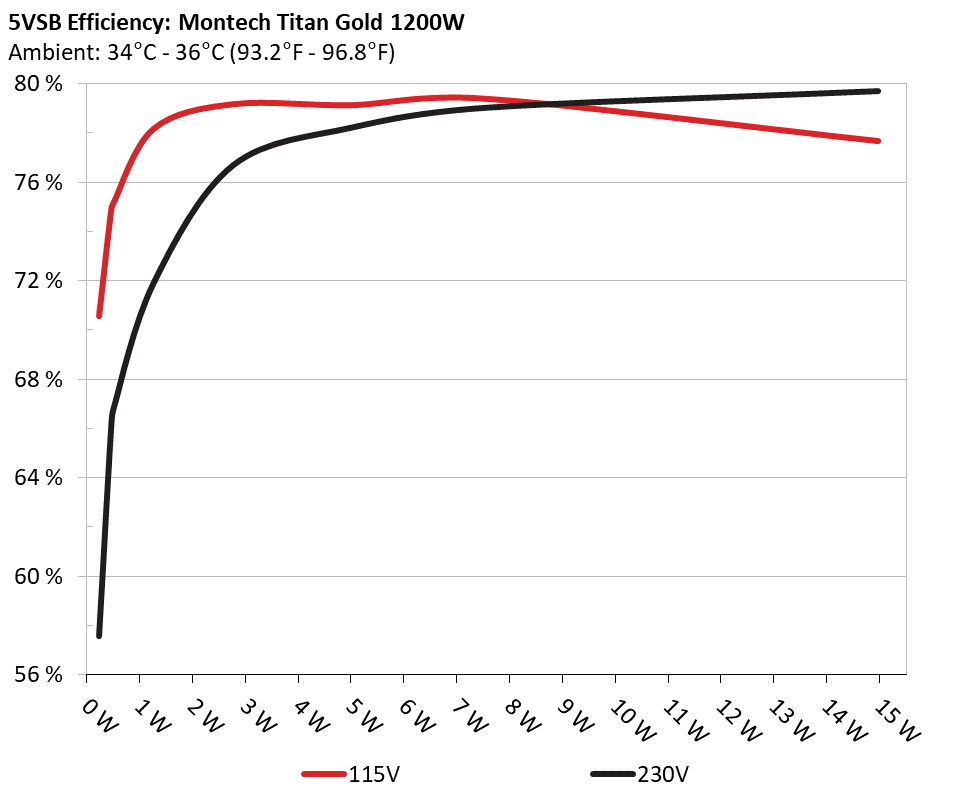

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 70.565% 0.031
5.044V 0.322W 114.87V
2 0.09A 0.454W 74.827% 0.059
5.044V 0.607W 114.87V
3 0.55A 2.769W 79.171% 0.268
5.035V 3.498W 114.87V
4 1A 5.027W 79.132% 0.356
5.027V 6.353W 114.87V
5 1.5A 7.528W 79.396% 0.419
5.018V 9.481W 114.87V
6 3A 14.974W 77.674% 0.5
4.991V 19.278W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 57.555% 0.011
5.047V 0.395W 229.95V
2 0.09A 0.454W 65.974% 0.02
5.045V 0.687W 229.94V
3 0.55A 2.77W 76.689% 0.1
5.035V 3.613W 229.94V
4 1A 5.028W 78.217% 0.167
5.027V 6.428W 229.94V
5 1.5A 7.529W 79.012% 0.208
5.019V 9.528W 229.94V
6 3A 14.975W 79.692% 0.322
4.992V 18.792W 229.94V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.073A 2.001A 2.021A 1.003A 119.987 86.106% 0 <6.0 44.38°C 0.983
12.187V 4.999V 3.266V 4.985V 139.348 40.29°C 114.83V
20% 17.158A 3.002A 3.034A 1.205A 239.945 89.642% 0 <6.0 45.17°C 0.991
12.184V 4.997V 3.263V 4.979V 267.669 40.83°C 114.79V
30% 26.580A 3.503A 3.543A 1.407A 359.207 91.128% 0 <6.0 45.99°C 0.986
12.158V 4.996V 3.26V 4.974V 394.173 41.34°C 114.74V
40% 36.103A 4.004A 4.054A 1.61A 479.61 91.323% 407 <6.0 43.89°C 0.988
12.143V 4.995V 3.257V 4.968V 525.177 48.98°C 114.7V
50% 45.254A 5.005A 5.071A 1.813A 599.338 90.979% 441 <6.0 42.43°C 0.991
12.128V 4.996V 3.254V 4.965V 658.764 47.95°C 114.65V
60% 54.506A 6.006A 6.091A 2A 719.773 90.393% 650 14.9 42.87°C 0.992
12.109V 4.996V 3.251V 4.961V 796.271 48.94°C 114.61V
70% 63.712A 7.009A 7.112A 2.22A 839.563 89.68% 871 24.8 43.51°C 0.994
12.093V 4.995V 3.248V 4.956V 936.185 50.53°C 114.56V
80% 73.026A 8.002A 8.136A 2.322A 959.496 88.86% 1196 34.8 43.81°C 0.994
12.073V 4.994V 3.245V 4.952V 1079.79 52.05°C 114.51V
90% 82.645A 8.514A 8.638A 2.425A 1079.338 88.003% 1568 42.1 44.58°C 0.995
12.062V 4.992V 3.241V 4.948V 1226.487 53.67°C 114.46V
100% 92.041A 9.017A 9.173A 3.04A 1199.38 87.047% 2005 48.7 45.3°C 0.995
12.056V 4.991V 3.238V 4.935V 1377.867 55.36°C 114.4V
110% 101.376A 10.024A 10.298A 3.042A 1319.981 85.935% 2167 50.4 46.51°C 0.996
12.051V 4.988V 3.233V 4.932V 1536.029 57.44°C 114.34V
CL1 0.115A 14.464A 14.625A 0A 121.303 81.069% 412 <6.0 41.78°C 0.983
12.210V 4.992V 3.261V 5.017V 149.628 47.27°C 114.82V
CL2 0.113A 22.021A 0A 0A 111.323 79.786% 411 <6.0 41.23°C 0.983
12.218V 4.993V 3.272V 5.035V 139.533 48.27°C 114.83V
CL3 0.118A 0A 22.307A 0A 74.041 75.651% 409 <6.0 41.8°C 0.977
12.186V 4.999V 3.254V 4.995V 97.877 50.87°C 114.84V
CL4 99.479A 0A 0A 0A 1199.942 87.721% 1892 48.7 45.23°C 0.995
12.062V 5.006V 3.247V 4.983V 1367.913 56.16°C 114.42V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.064A 2A 2.02A 1.003A 119.974 86.588% 0 <6.0 44.39°C 0.916
12.200V 4.999V 3.268V 4.985V 138.553 40.35°C 229.93V
20% 17.140A 3.002A 3.033A 1.205A 239.92 90.686% 0 <6.0 45.01°C 0.962
12.196V 4.997V 3.264V 4.979V 264.563 40.67°C 229.91V
30% 26.587A 3.503A 3.543A 1.408A 359.067 92.51% 0 <6.0 45.98°C 0.974
12.149V 4.995V 3.26V 4.973V 388.139 41.22°C 229.89V
40% 36.112A 4.004A 4.053A 1.61A 479.505 92.972% 405 <6.0 41.93°C 0.979
12.137V 4.995V 3.257V 4.968V 515.749 46.97°C 229.87V
50% 45.273A 5.005A 5.07A 1.813A 599.262 92.997% 440 <6.0 42.43°C 0.983
12.121V 4.996V 3.254V 4.965V 644.391 47.95°C 229.85V
60% 54.523A 6.006A 6.089A 2A 719.735 92.711% 650 14.9 42.69°C 0.984
12.105V 4.996V 3.252V 4.962V 776.316 48.85°C 229.83V
70% 63.723A 7.008A 7.112A 2.219A 839.562 92.228% 825 23 43.28°C 0.985
12.091V 4.995V 3.249V 4.956V 910.31 50.49°C 229.81V
80% 73.030A 8.002A 8.136A 2.322A 959.512 91.693% 1198 34.8 43.92°C 0.987
12.073V 4.994V 3.245V 4.953V 1046.432 51.96°C 229.79V
90% 82.639A 8.513A 8.638A 2.426A 1079.357 91.144% 1572 42.1 44.11°C 0.988
12.063V 4.992V 3.241V 4.948V 1184.223 53.16°C 229.77V
100% 92.051A 9.018A 9.173A 3.04A 1199.394 90.505% 2035 49 45.72°C 0.989
12.055V 4.99V 3.238V 4.934V 1325.223 55.78°C 229.74V
110% 101.376A 10.024A 10.299A 3.043A 1320.006 89.756% 2173 50.5 46.78°C 0.989
12.051V 4.988V 3.233V 4.931V 1470.652 57.65°C 229.72V
CL1 0.113A 14.458A 14.617A 0A 121.28 81.247% 400 <6.0 42.4°C 0.923
12.183V 4.994V 3.263V 5.018V 149.27 47.83°C 229.93V
CL2 0.113A 22.001A 0A 0A 111.299 79.484% 403 <6.0 40.78°C 0.916
12.197V 4.996V 3.274V 5.037V 140.029 47.94°C 229.93V
CL3 0.119A 0A 22.294A 0A 74.052 76.53% 404 <6.0 42.48°C 0.86
12.167V 5.002V 3.256V 4.998V 96.764 51.53°C 229.93V
CL4 99.514A 0A 0A 0A 1199.926 91.13% 1894 48.8 45.36°C 0.989
12.057V 5.007V 3.248V 4.985V 1316.725 56.27°C 229.74V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.498A 0.503A 0.199A 19.995 75.281% 0 <6.0 39.68°C 0.872
12.148V 5.019V 3.279V 5.016V 26.56 36.62°C 114.87V
40W 2.688A 0.698A 0.705A 0.299A 39.995 80.876% 0 <6.0 40.43°C 0.945
12.157V 5.015V 3.277V 5.011V 49.453 37.11°C 114.87V
60W 4.155A 0.899A 0.908A 0.4A 59.995 85.542% 0 <6.0 42.43°C 0.965
12.160V 5.002V 3.27V 4.997V 70.133 38.67°C 114.86V
80W 5.620A 1.1A 1.11A 0.501A 79.937 85.427% 0 <6.0 43.39°C 0.975
12.153V 5.001V 3.268V 4.994V 93.576 39.43°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.498A 0.503A 0.199A 19.989 73.718% 0 <6.0 39.62°C 0.497
12.154V 5.018V 3.28V 5.016V 27.115 36.61°C 229.95V
40W 2.686A 0.698A 0.705A 0.299A 39.99 81.396% 0 <6.0 40.47°C 0.698
12.165V 5.014V 3.278V 5.011V 49.129 37.16°C 229.95V
60W 4.152A 0.899A 0.908A 0.4A 59.99 85.277% 0 <6.0 41.66°C 0.797
12.169V 5.002V 3.271V 4.997V 70.345 38.12°C 229.94V
80W 5.615A 1.1A 1.11A 0.501A 79.925 86.715% 0 <6.0 42.99°C 0.851
12.163V 5.001V 3.27V 4.994V 92.167 39.1°C 229.94V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load6.19mV7.47mV7.45mV9.29mVPass
20% Load6.29mV7.52mV7.29mV10.02mVPass
30% Load10.97mV7.78mV7.65mV10.07mVPass
40% Load9.20mV7.88mV7.91mV10.12mVPass
50% Load8.97mV8.19mV7.86mV9.96mVPass
60% Load9.13mV13.75mV15.82mV14.76mVPass
70% Load10.16mV8.14mV10.71mV10.48mVPass
80% Load9.95mV8.50mV9.82mV9.76mVPass
90% Load10.21mV8.96mV9.46mV10.37mVPass
100% Load15.22mV10.79mV12.47mV12.38mVPass
110% Load16.84mV10.36mV11.71mV11.67mVPass
Crossload16.99mV9.98mV9.72mV9.65mVPass
Crossload29.07mV15.77mV7.65mV9.55mVPass
Crossload355.63mV7.78mV13.60mV9.70mVPass
Crossload415.00mV9.64mV10.40mV10.40mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load5.67mV7.16mV6.62mV7.90mVPass
20% Load7.01mV7.26mV7.19mV7.64mVPass
30% Load12.34mV7.62mV7.24mV8.73mVPass
40% Load9.45mV7.98mV7.39mV8.05mVPass
50% Load13.97mV17.98mV24.05mV19.20mVPass
60% Load9.18mV14.22mV18.25mV14.15mVPass
70% Load9.38mV8.04mV10.29mV8.73mVPass
80% Load9.80mV8.19mV9.36mV8.72mVPass
90% Load10.26mV8.91mV9.57mV8.88mVPass
100% Load16.33mV9.88mV12.66mV10.24mVPass
110% Load16.97mV10.14mV13.74mV11.22mVPass
Crossload16.82mV10.45mV10.12mV7.35mVPass
Crossload28.92mV15.56mV6.72mV6.86mVPass
Crossload355.27mV8.29mV12.62mV7.02mVPass
Crossload415.29mV9.30mV11.18mV9.62mVPass

The results above are not used in the certification process

Montech Titan Gold 1200W

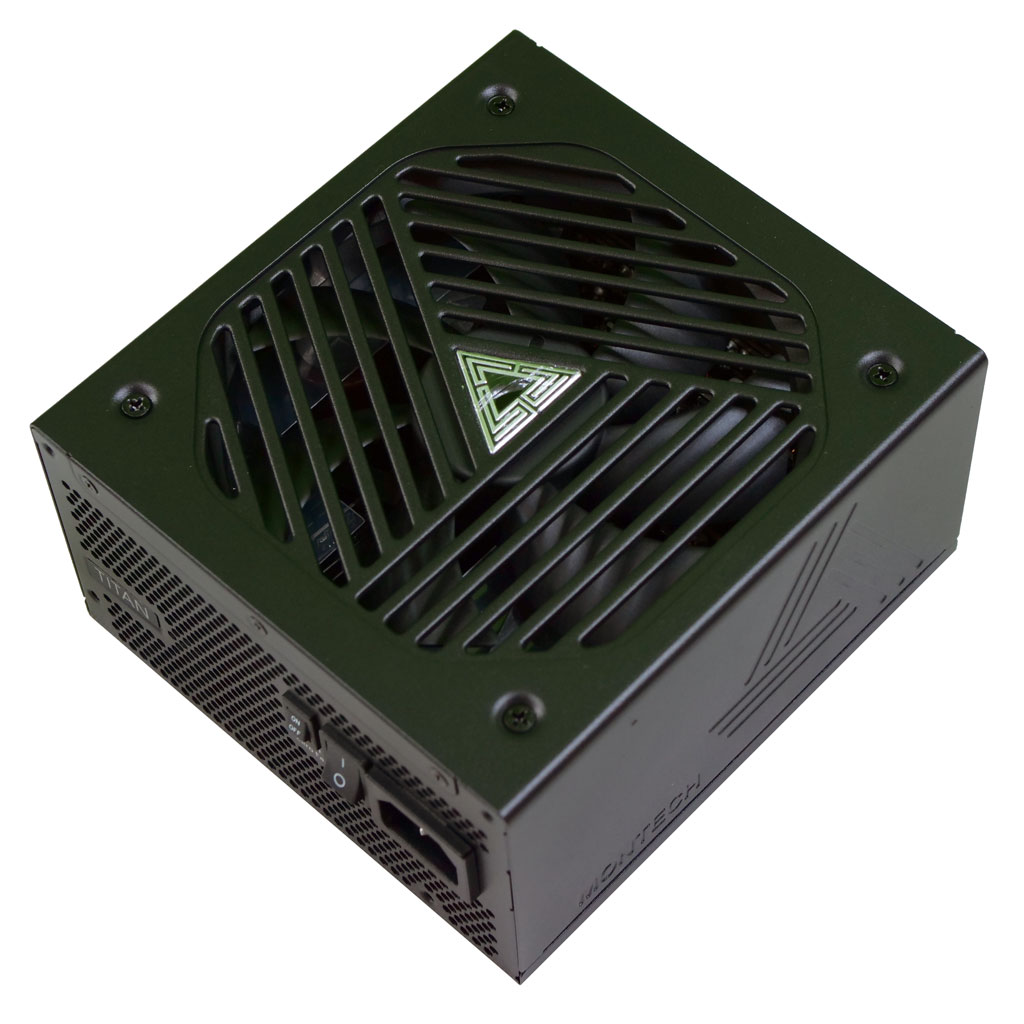

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
