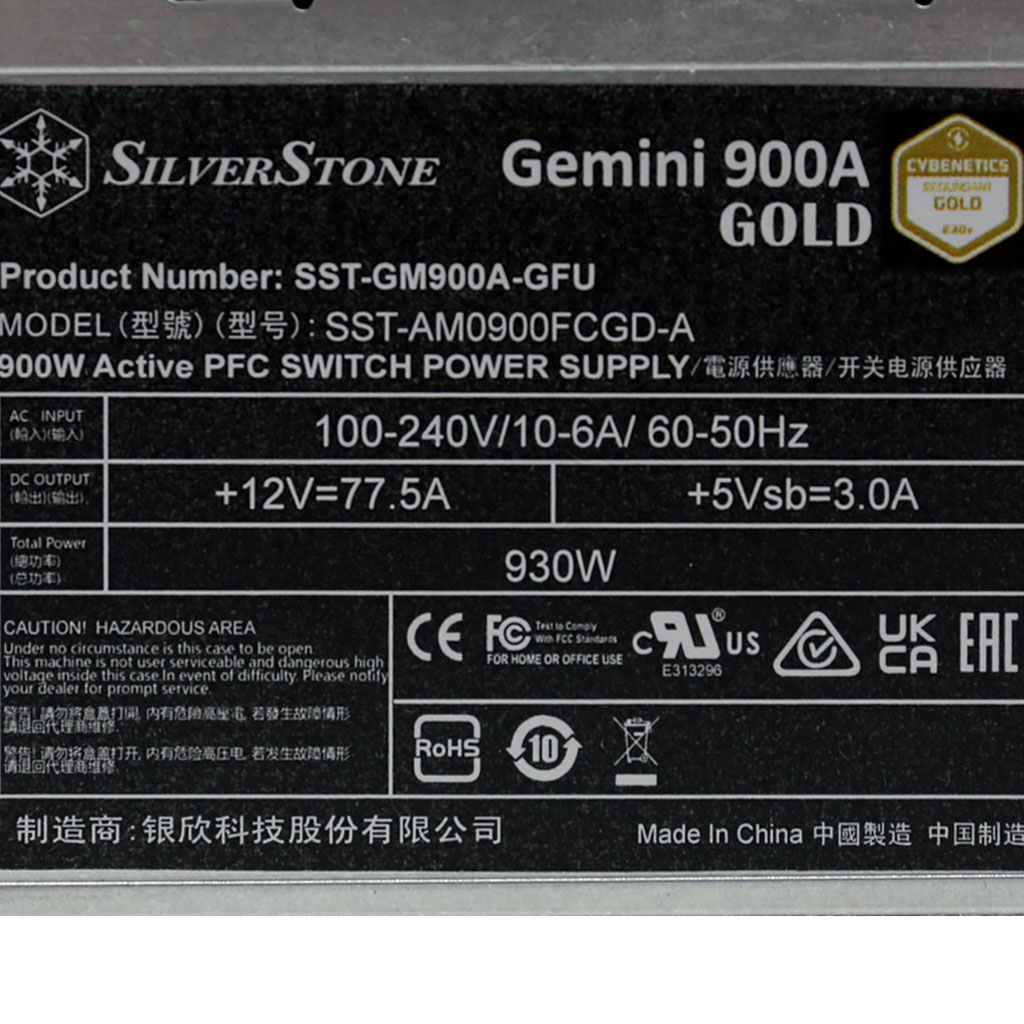

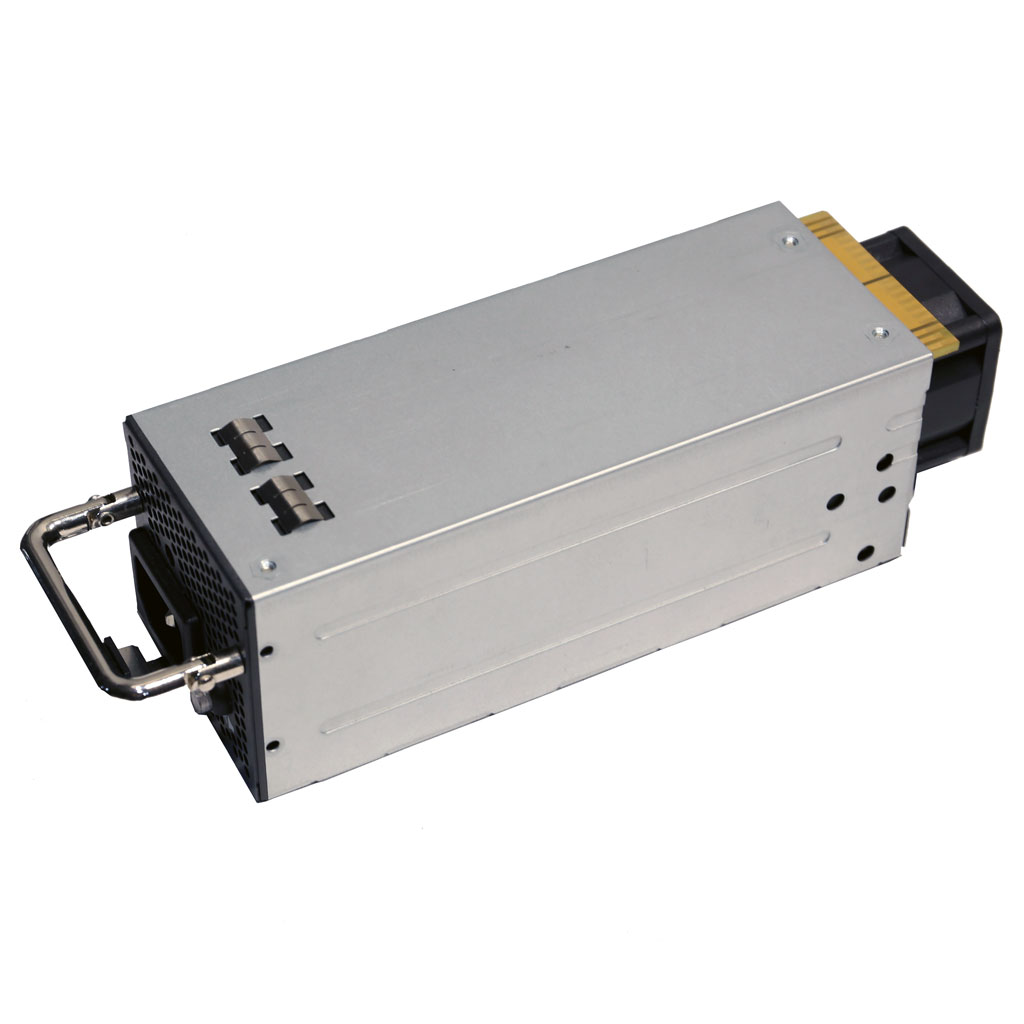

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
噪音值图表
230V
Indicative Performance
高环温电源转换效率
资讯

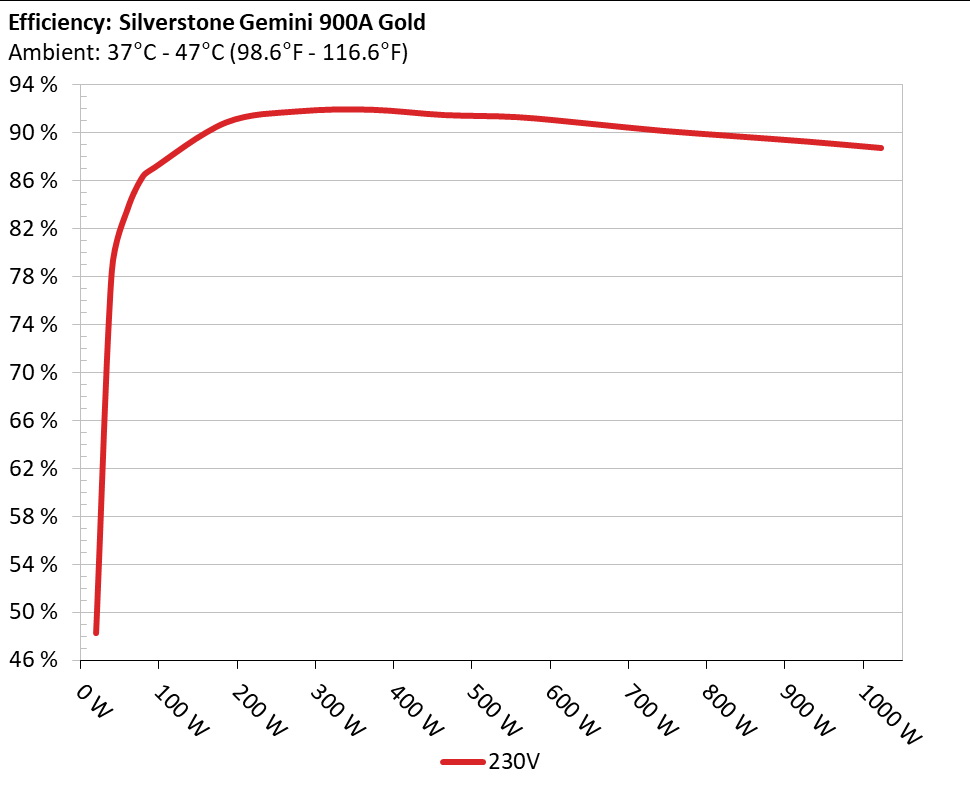

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5Vsb转换效率
资讯

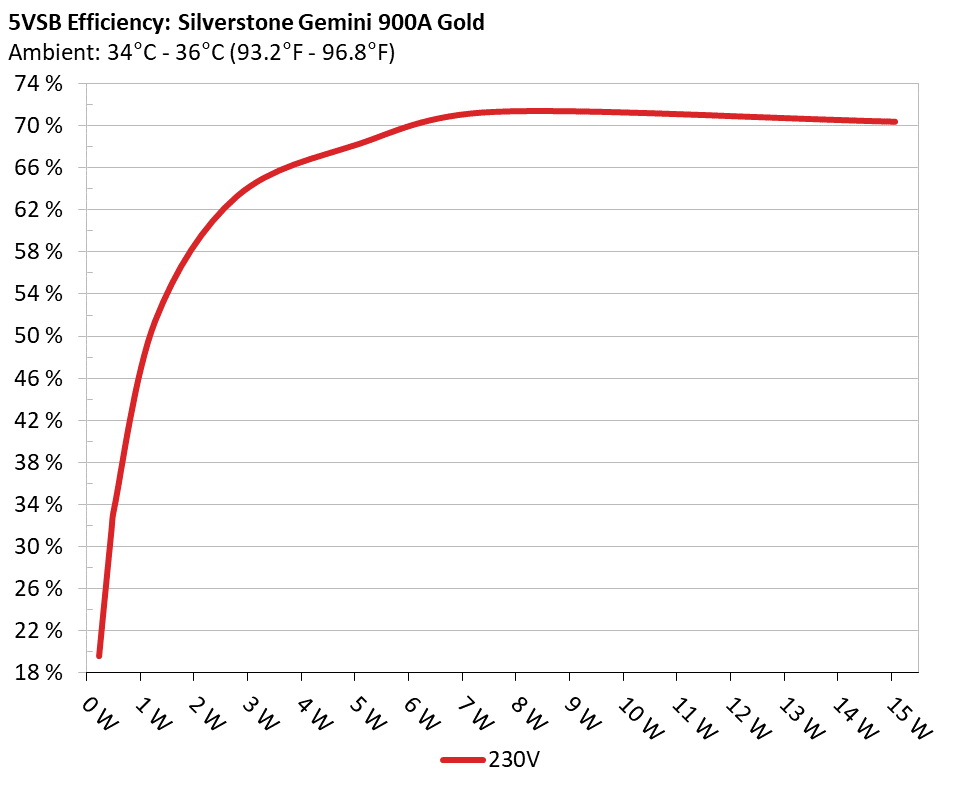

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC) 230V
测试 #
5VSB
DC/AC (瓦)
效率
PF/AC 电压
1
0.045A
0.23W
19.542%
0.033
5.123V
1.177W
229.9V
2
0.09A
0.46W
31.498%
0.041
5.117V
1.461W
229.89V
3
0.55A
2.799W
63.247%
0.12
5.092V
4.426W
229.91V
4
1A
5.076W
68.239%
0.187
5.077V
7.439W
229.9V
5
1.5A
7.597W
71.289%
0.228
5.065V
10.656W
229.9V
6
2.999A
15.071W
70.346%
0.345
5.026V
21.424W
229.9V
Supplementary Tests (For Reference)
10-110%负载测试 230V
测试
Main 组
待机 组
DC/AC (瓦)
效率
温度(输入/输出)
PF/AC 电压
10%
7.146A
0.986A
92.973
87.028%
44.45°C
0.857
12.313V
5.069V
106.833
40.2°C
229.89V
20%
14.636A
1.187A
185.967
90.856%
44.84°C
0.934
12.296V
5.054V
204.688
40.34°C
229.88V
30%
22.157A
1.389A
278.969
91.788%
45.36°C
0.96
12.275V
5.04V
303.931
40.54°C
229.87V
40%
29.685A
1.591A
371.71
91.919%
46.62°C
0.972
12.253V
5.028V
404.386
41.42°C
229.85V
50%
37.320A
1.796A
464.725
91.478%
47.71°C
0.981
12.211V
5.009V
508.026
42.18°C
229.84V
60%
44.951A
1.999A
557.747
91.303%
48.44°C
0.985
12.186V
5.003V
610.861
42.27°C
229.83V
70%
52.588A
2.203A
650.76
90.754%
49.93°C
0.988
12.166V
4.989V
717.049
42.9°C
229.82V
80%
60.268A
2.308A
743.288
90.162%
51.21°C
0.989
12.142V
4.979V
824.379
43.12°C
229.81V
90%
68.102A
2.415A
836.557
89.712%
53.3°C
0.991
12.108V
4.966V
932.478
44.21°C
229.79V
100%
75.806A
3.036A
929.179
89.263%
55.12°C
0.991
12.060V
4.938V
1040.943
45.1°C
229.78V
110%
84.083A
3.04A
1022.794
88.727%
57.49°C
0.992
11.986V
4.931V
1152.756
46.59°C
229.76V
The results above are not used in the certification process
20-80瓦负载测试 230V
测试
Main 组
待机 组
DC/AC (瓦)
效率
温度(输入/输出)
PF/AC 电压
20W
1.540A
0.196A
19.991
48.247%
39.87°C
0.418
12.327V
5.11V
30.077
36.81°C
229.9V
40W
3.124A
0.294A
39.993
78.4%
40.54°C
0.687
12.323V
5.101V
51.012
37.2°C
229.89V
60W
4.707A
0.392A
59.989
83.586%
41.71°C
0.777
12.320V
5.095V
71.769
38.24°C
229.89V
80W
6.287A
0.491A
79.92
86.377%
43.01°C
0.831
12.314V
5.09V
92.534
39.27°C
229.89V
The results above are not used in the certification process
纹波测量 230V
Test
12V
5VSB
Pass/Fail
10% Load
73.46mV
29.90mV
Pass
20% Load
80.60mV
31.83mV
Pass
30% Load
83.79mV
37.44mV
Pass
40% Load
75.89mV
33.85mV
Pass
50% Load
89.36mV
40.94mV
Pass
60% Load
97.72mV
42.30mV
Pass
70% Load
104.25mV
37.75mV
Pass
80% Load
117.51mV
33.34mV
Pass
90% Load
141.20mV
42.97mV
Fail
100% Load
156.60mV
43.74mV
Fail
110% Load
168.30mV
11.19mV
Fail
The results above are not used in the certification process
