XPG Cybercore II 1000 Platinum
Serial Number
Lab IDAD10002074
  • Report: 22PS2074A
  • Receipt Date: Sep 12, 2022
  • Test Date: Oct 10, 2022
  • Report Date: Oct 10, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandXPG
Manufacturer (OEM)CWT
SeriesCybercore II
Model NumberCybercore II 1000 Platinum
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)50-60
Rated Frequency (Hz)13
Rated Power (W)1000
TypeATX12V
Cooling120mm Double Ball Bearing Fan
(D1225C12B6ZPAC7)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222283.3330.3
Watts1201000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (750mm) 1 1 16-18AWG No
4+4 pin EPS12V (750mm) 2 2 16AWG No
6+2 pin PCIe (750mm) 2 2 16AWG No
6+2 pin PCIe (750mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG No
SATA (600mm+150mm+150mm+150mm) 1 4 18AWG No
4-pin Molex (600mm+150mm+150mm+150mm) 1 4 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.1
AC Loss to PWR_OK Hold Up Time (ms)17.5
PWR_OK Inactive to DC Loss Delay (ms)2.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.16 V 115.14 V 113.85 V 115.18 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.91 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.14 % 2.00 % PASS
Real Power: 0.012 W 0.005 W N/A 0.021 W N/A N/A
Apparent Power: 12.536 W 12.528 W N/A 12.546 W N/A N/A
Power Factor: 0.001 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.38 V 230.38 V 227.70 V 230.42 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.049 W 0.031 W N/A 0.066 W N/A N/A
Apparent Power: 41.900 W 41.882 W N/A 41.916 W N/A N/A
Power Factor: 0.001 N/A N/A N/A N/A N/A

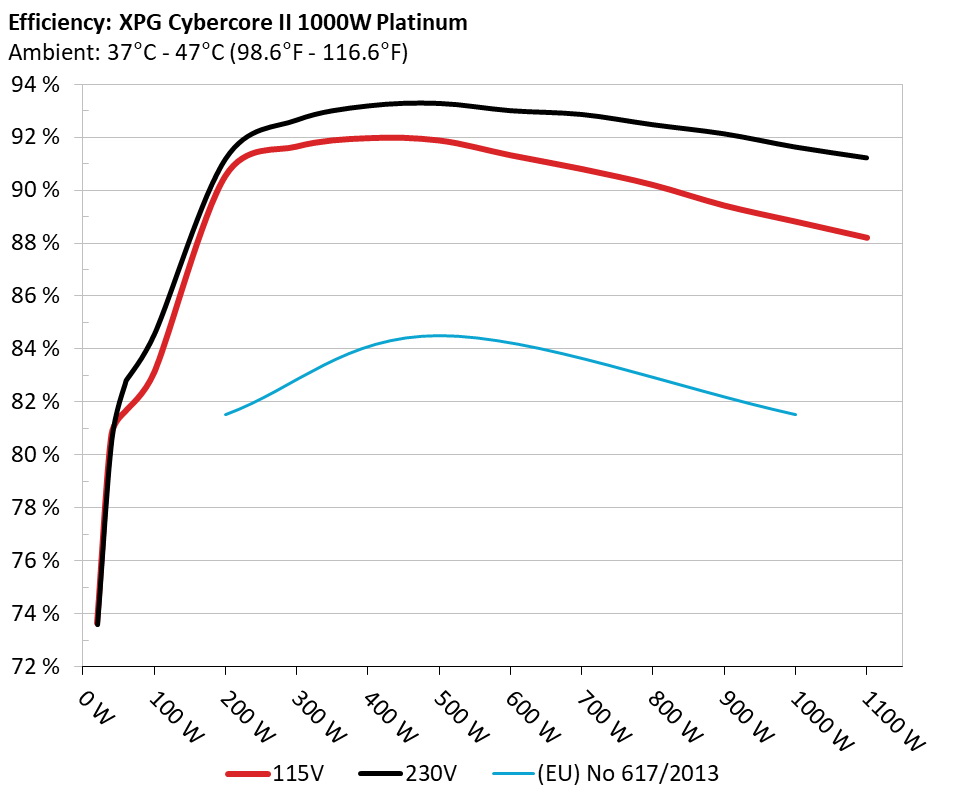

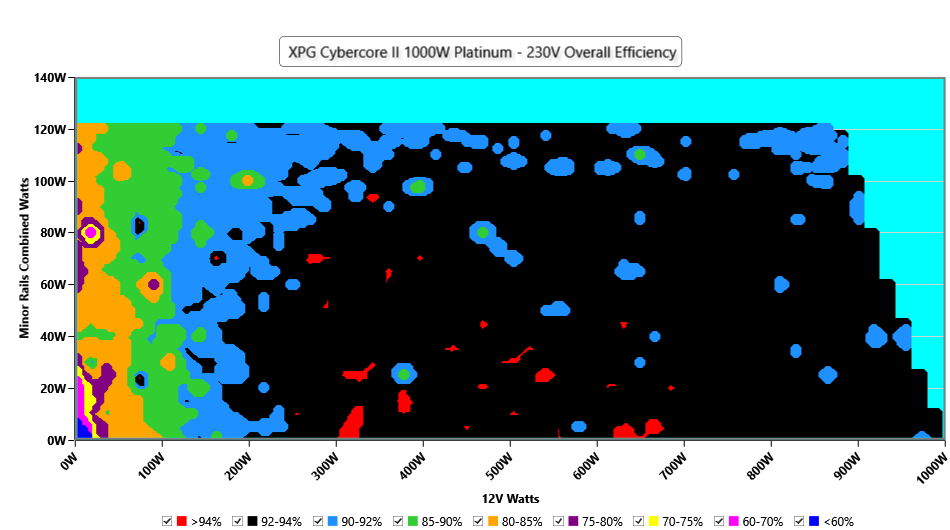

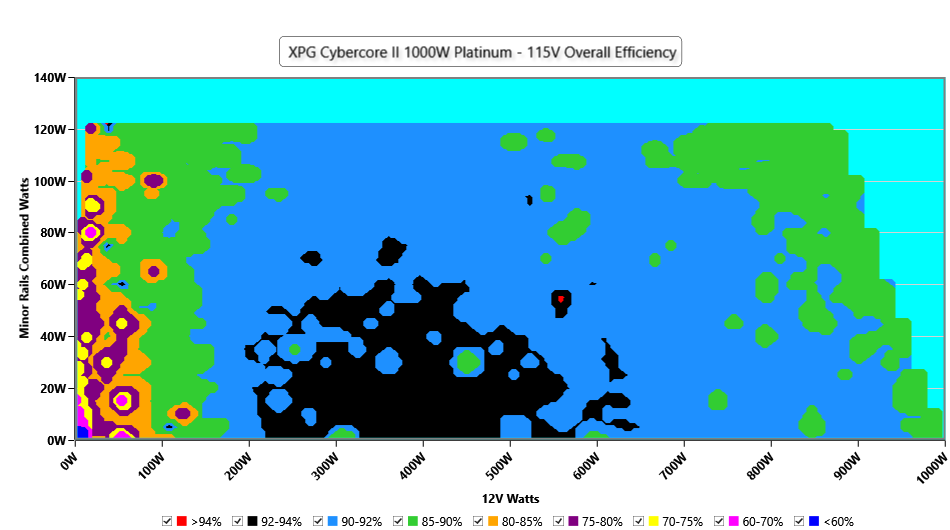

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

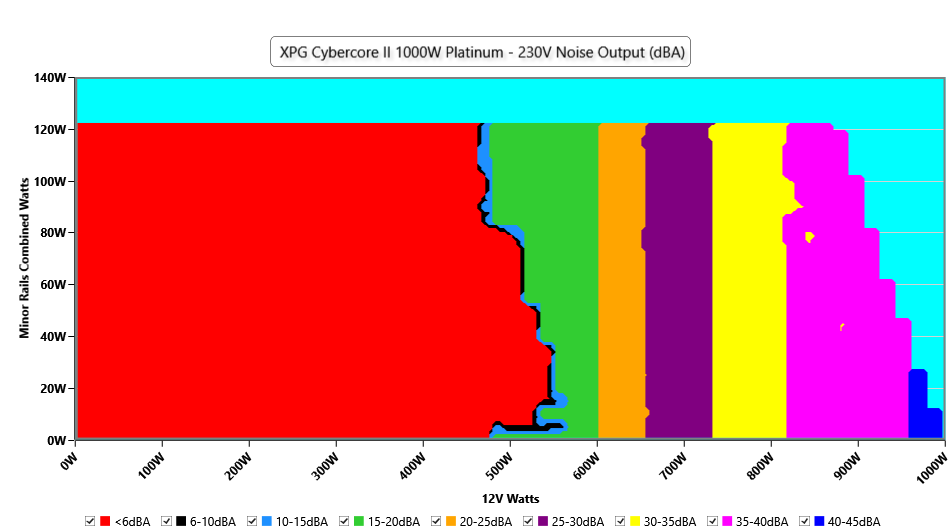

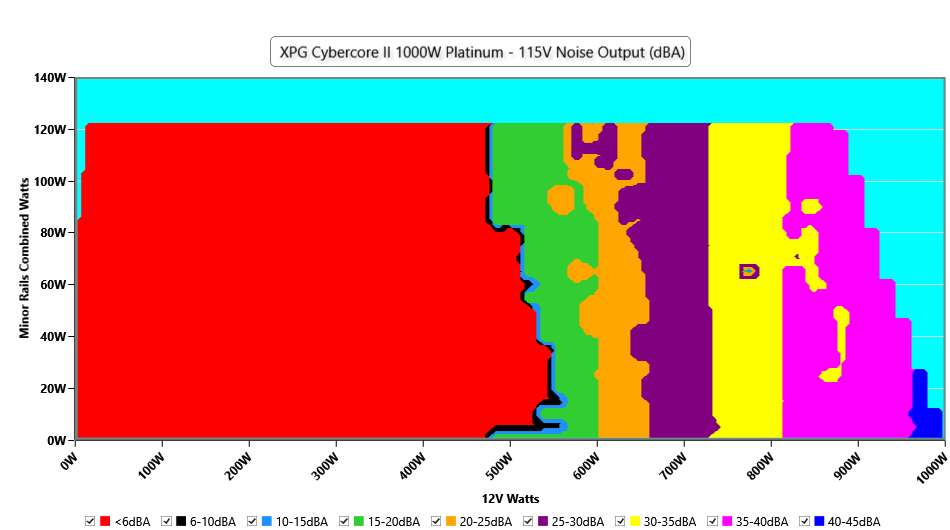

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

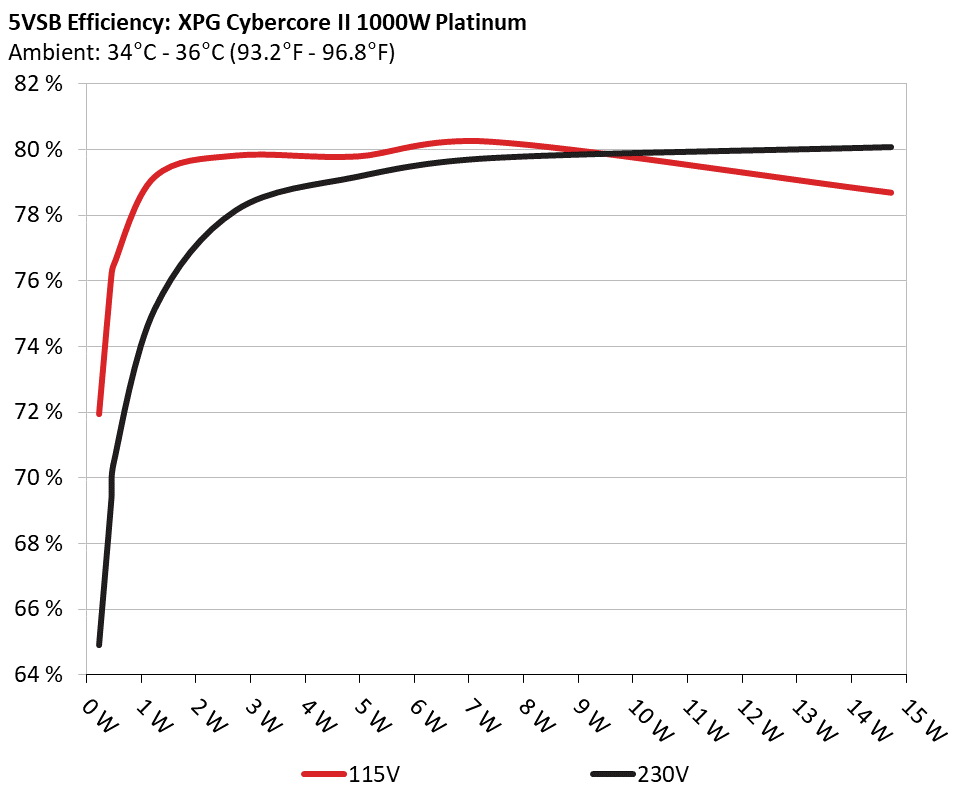

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.224W 71.945% 0.025
4.968V 0.311W 115.16V
2 0.09A 0.447W 76.117% 0.046
4.968V 0.587W 115.16V
3 0.55A 2.728W 79.803% 0.227
4.959V 3.419W 115.16V
4 1A 4.951W 79.774% 0.33
4.95V 6.206W 115.16V
5 1.5A 7.412W 80.223% 0.389
4.94V 9.24W 115.15V
6 3A 14.73W 78.674% 0.47
4.91V 18.723W 115.15V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.224W 64.918% 0.008
4.968V 0.347W 230.37V
2 0.09A 0.447W 69.31% 0.015
4.968V 0.647W 230.38V
3 0.55A 2.728W 78.142% 0.081
4.959V 3.489W 230.37V
4 1A 4.951W 79.165% 0.138
4.95V 6.255W 230.37V
5 1.5A 7.412W 79.735% 0.191
4.94V 9.296W 230.37V
6 3A 14.731W 80.067% 0.3
4.91V 18.4W 230.37V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.480A 1.995A 2.017A 1.001A 100.022 83.603% 0 <6.0 44.11°C 0.866
12.103V 5.013V 3.272V 4.997V 119.347 39.66°C 115.15V
20% 13.985A 2.995A 3.027A 1.202A 199.983 91.032% 0 <6.0 45.17°C 0.992
12.090V 5.01V 3.271V 4.992V 219.729 40.33°C 115.11V
30% 21.849A 3.496A 3.533A 1.404A 300.039 92.142% 0 <6.0 46.86°C 0.996
12.081V 5.007V 3.27V 4.986V 325.555 41.65°C 115.09V
40% 29.703A 3.998A 4.039A 1.607A 399.812 92.458% 0 <6.0 47.79°C 0.997
12.072V 5.004V 3.268V 4.98V 432.398 42.15°C 115.06V
50% 37.222A 5.001A 5.052A 1.81A 499.544 92.373% 0 <6.0 49.17°C 0.997
12.064V 5.001V 3.267V 4.974V 540.821 43.01°C 115.04V
60% 44.819A 6.006A 6.065A 2.001A 600.03 91.812% 953 15.8 43.54°C 0.997
12.054V 4.996V 3.265V 4.967V 653.684 50.28°C 115.01V
70% 52.385A 7.014A 7.079A 2.218A 699.831 91.294% 1230 24.4 44.26°C 0.998
12.040V 4.992V 3.264V 4.96V 766.676 51.32°C 114.99V
80% 60.014A 8.003A 8.093A 2.321A 799.775 90.691% 1509 30.0 44.64°C 0.998
12.030V 4.987V 3.262V 4.955V 882.001 53.01°C 114.96V
90% 68.002A 8.531A 8.588A 2.425A 899.665 89.914% 1800 35.6 45.18°C 0.999
12.017V 4.983V 3.26V 4.95V 1000.759 54.21°C 114.93V
100% 75.789A 9.04A 9.114A 3.041A 999.689 89.309% 2040 38.7 45.46°C 0.999
12.007V 4.979V 3.259V 4.934V 1119.361 55.55°C 114.91V
110% 83.522A 10.054A 10.225A 3.043A 1100.317 88.697% 2239 41.6 47.12°C 0.998
11.997V 4.973V 3.257V 4.93V 1240.491 58.04°C 114.89V
CL1 0.116A 14.421A 14.609A 0A 121.315 80.41% 0 <6.0 48.77°C 0.872
12.093V 5.007V 3.265V 5.032V 150.279 42.32°C 115.15V
CL2 0.116A 21.919A 0A 0A 111.403 78.402% 0 <6.0 50.12°C 0.874
12.098V 5.019V 3.265V 5.065V 141.644 43.03°C 115.15V
CL3 0.116A 0A 22.236A 0A 73.997 72.347% 0 <6.0 52.15°C 0.853
12.093V 5.011V 3.265V 5.002V 102.071 44.08°C 115.16V
CL4 83.239A 0A 0A 0A 1000.157 89.774% 2212 41.1 45.21°C 0.999
12.015V 5.005V 3.274V 5.011V 1114.312 55.19°C 114.92V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.480A 1.995A 2.016A 1.001A 100.028 85.067% 0 <6.0 44.85°C 0.841
12.102V 5.015V 3.274V 4.998V 117.378 40.48°C 230.39V
20% 13.984A 2.995A 3.026A 1.202A 199.969 91.697% 0 <6.0 45.51°C 0.923
12.090V 5.01V 3.272V 4.992V 217.943 40.66°C 230.37V
30% 21.849A 3.496A 3.531A 1.404A 300.026 93.158% 0 <6.0 46.27°C 0.944
12.081V 5.007V 3.271V 4.986V 322.027 40.99°C 230.36V
40% 29.701A 3.998A 4.038A 1.607A 399.778 93.692% 0 <6.0 46.84°C 0.952
12.072V 5.004V 3.269V 4.98V 426.764 41.09°C 230.34V
50% 37.226A 5A 5.05A 1.81A 499.525 93.785% 0 <6.0 48.29°C 0.961
12.062V 5.001V 3.268V 4.974V 532.825 42.16°C 230.33V
60% 44.824A 6.007A 6.063A 2.001A 600.024 93.512% 956 16.0 43.2°C 0.963
12.053V 4.996V 3.266V 4.967V 641.685 49.76°C 230.32V
70% 52.365A 7.015A 7.077A 2.218A 699.814 93.37% 1193 23.9 43.33°C 0.964
12.044V 4.991V 3.265V 4.96V 749.488 50.36°C 230.3V
80% 60.016A 8.003A 8.091A 2.322A 799.764 92.981% 1520 30.2 44.07°C 0.977
12.029V 4.986V 3.263V 4.955V 860.177 52.16°C 230.29V
90% 67.990A 8.533A 8.585A 2.425A 899.664 92.638% 1800 35.6 44.61°C 0.979
12.019V 4.982V 3.261V 4.949V 971.208 53.68°C 230.28V
100% 75.789A 9.043A 9.111A 3.041A 999.684 92.139% 2041 38.7 45.41°C 0.986
12.007V 4.977V 3.26V 4.933V 1085.057 55.44°C 230.26V
110% 83.523A 10.057A 10.222A 3.043A 1100.339 91.727% 2229 41.4 46.86°C 0.984
11.997V 4.972V 3.257V 4.93V 1199.493 57.76°C 230.25V
CL1 0.116A 14.423A 14.608A 0A 121.314 81.311% 0 <6.0 48.26°C 0.881
12.092V 5.006V 3.265V 5.031V 149.209 42.81°C 230.39V
CL2 0.116A 21.932A 0A 0A 111.401 79.8% 0 <6.0 50.62°C 0.871
12.098V 5.016V 3.264V 5.062V 139.851 43.54°C 230.39V
CL3 0.116A 0A 22.239A 0A 73.997 73.371% 0 <6.0 52.13°C 0.809
12.093V 5.01V 3.264V 5.002V 101.126 44.09°C 230.39V
CL4 83.238A 0A 0A 0A 1000.148 92.567% 2222 41.3 45.61°C 0.984
12.015V 5.005V 3.274V 5.011V 1080.445 55.55°C 230.26V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.227A 0.497A 0.502A 0.199A 20.008 74.138% 0 <6.0 40.11°C 0.656
12.109V 5.035V 3.284V 5.032V 27.012 37°C 115.17V
40W 2.700A 0.697A 0.704A 0.299A 40.004 81.254% 0 <6.0 41.08°C 0.727
12.107V 5.025V 3.28V 5.021V 49.274 37.76°C 115.16V
60W 4.174A 0.897A 0.907A 0.399A 60.003 79.801% 0 <6.0 42.09°C 0.828
12.105V 5.016V 3.274V 5.01V 75.034 38.3°C 115.16V
80W 5.646A 1.097A 1.109A 0.5A 79.969 82.152% 0 <6.0 42.81°C 0.843
12.104V 5.014V 3.273V 5.006V 97.077 38.91°C 115.15V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.496A 0.502A 0.199A 20.015 74.075% 0 <6.0 39.93°C 0.43
12.109V 5.037V 3.285V 5.034V 27.089 36.8°C 230.4V
40W 2.700A 0.696A 0.704A 0.299A 40.002 81.059% 0 <6.0 40.99°C 0.612
12.107V 5.026V 3.281V 5.022V 49.415 37.75°C 230.4V
60W 4.174A 0.897A 0.907A 0.399A 60.001 80.363% 0 <6.0 41.38°C 0.731
12.105V 5.017V 3.276V 5.011V 74.654 37.91°C 230.39V
80W 5.646A 1.097A 1.109A 0.499A 79.963 83.301% 0 <6.0 42.56°C 0.797
12.104V 5.015V 3.275V 5.007V 96.149 38.68°C 230.39V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load11.13mV3.94mV4.15mV4.69mVPass
20% Load10.68mV3.94mV3.99mV4.84mVPass
30% Load13.49mV5.37mV5.01mV5.81mVPass
40% Load14.96mV4.86mV4.71mV5.55mVPass
50% Load17.47mV5.17mV4.97mV6.07mVPass
60% Load17.26mV5.98mV6.40mV6.42mVPass
70% Load17.21mV6.80mV7.52mV8.36mVPass
80% Load20.38mV7.88mV12.85mV9.13mVPass
90% Load20.18mV9.20mV13.31mV10.20mVPass
100% Load27.86mV10.73mV15.28mV11.43mVPass
110% Load29.57mV11.23mV15.63mV12.19mVPass
Crossload112.57mV5.85mV12.59mV5.54mVPass
Crossload211.49mV5.83mV4.30mV5.30mVPass
Crossload310.47mV4.75mV14.23mV4.28mVPass
Crossload427.75mV8.89mV9.46mV9.67mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.86mV3.73mV3.89mV4.74mVPass
20% Load10.27mV4.25mV3.99mV5.10mVPass
30% Load12.99mV4.50mV4.20mV5.25mVPass
40% Load15.17mV5.62mV5.43mV6.17mVPass
50% Load15.12mV6.09mV6.09mV6.88mVPass
60% Load15.68mV6.29mV6.91mV7.19mVPass
70% Load18.59mV6.03mV5.48mV7.03mVPass
80% Load19.51mV8.03mV12.13mV8.97mVPass
90% Load21.61mV7.67mV11.62mV7.90mVPass
100% Load29.70mV10.40mV14.22mV11.18mVPass
110% Load30.77mV9.99mV14.67mV10.10mVPass
Crossload111.67mV6.18mV12.32mV5.13mVPass
Crossload210.37mV5.83mV4.04mV5.00mVPass
Crossload310.78mV4.65mV14.59mV4.69mVPass
Crossload428.82mV8.12mV8.71mV9.24mVPass

The results above are not used in the certification process

XPG Cybercore II 1000 Platinum

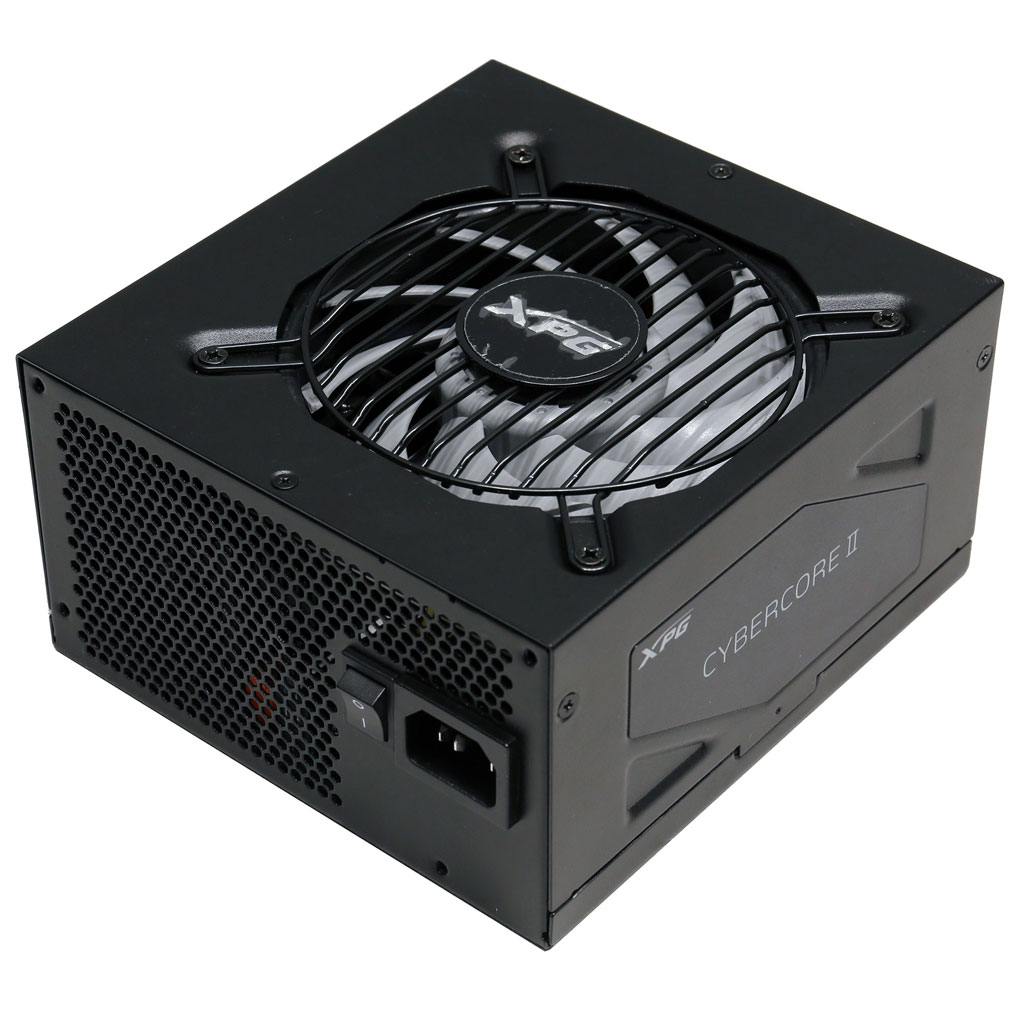

Top side

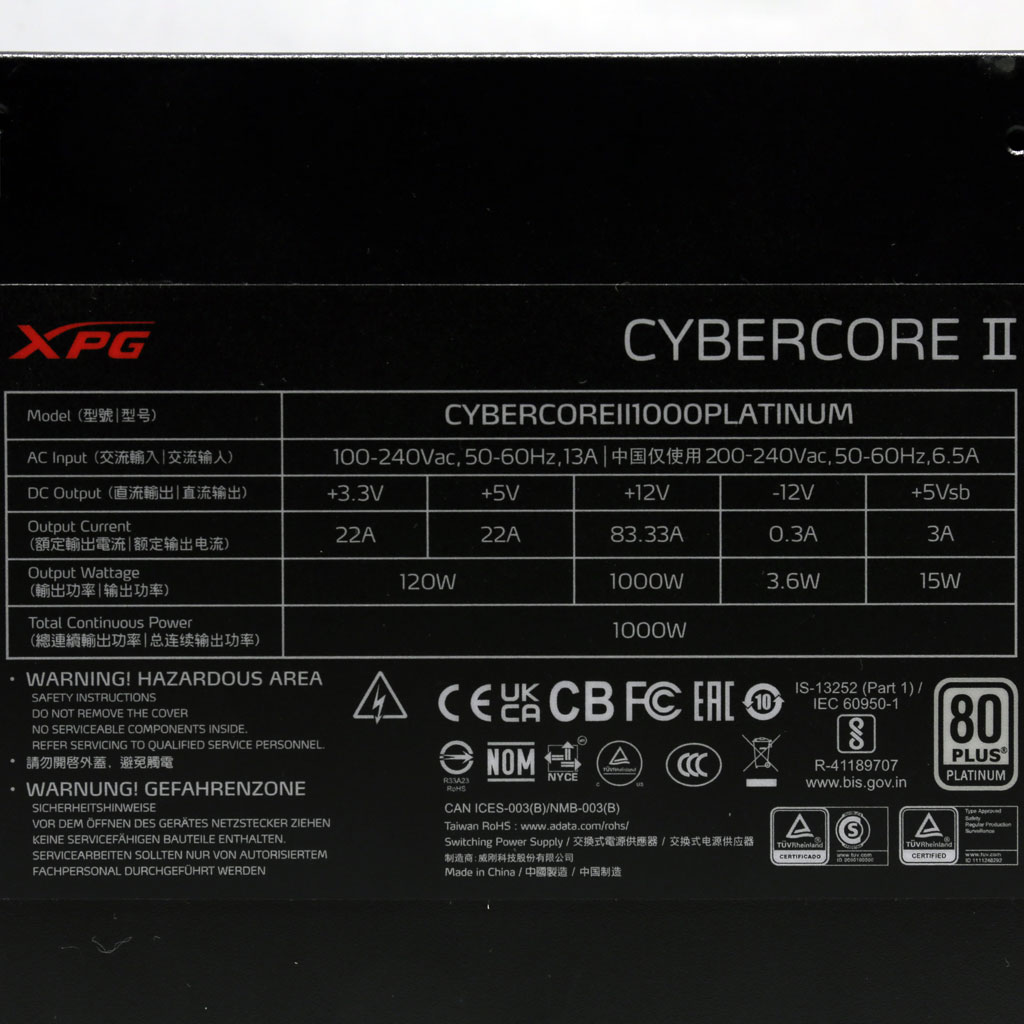

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
