Asus ROG-LOKI-1000P-SFX-L-GAMING
Serial Number2M074140534
Lab IDAS10002069
  • Report: 22PS2069A
  • Receipt Date: Sep 5, 2022
  • Test Date: Sep 23, 2022
  • Report Date: Sep 23, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAsus
Manufacturer (OEM)Great Wall
SeriesROG Loki
Model NumberROG-LOKI-1000P-SFX-L-GAMING
Serial Number2M074140534
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-5
Rated Frequency (Hz)47-63
Rated Power (W)1000
TypeSFX-L
Cooling120mm Double Ball Bearing Fan
(CF1225H12D)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.32.50.8
Watts110100012.59.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (450mm) 1 1 18AWG No
4+4 pin EPS12V (550mm) 2 2 16AWG No
12+4 pin PCIe (450mm) (600W) 1 1 16-24AWG No
2x 6+2 pin PCIe (450mm) 1 2 18AWG No
6+2 pin PCIe (450mm) 1 1 18AWG No
SATA (300mm+190mm+90mm) 2 6 18AWG No
4 pin Molex (300mm+100mm+100mm+100mm) 1 4 18AWG No
Addressable Aura RGB cable (800mm) 1 1 24AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.9
AC Loss to PWR_OK Hold Up Time (ms)20.2
PWR_OK Inactive to DC Loss Delay (ms)2.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.93 V 114.88 V 113.85 V 114.97 V 116.15 V PASS
Mains Frequency: 60.01 Hz 59.98 Hz 59.40 Hz 60.03 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.15 % 0.12 % N/A 0.19 % 2.00 % PASS
Real Power: 0.053 W 0.044 W N/A 0.064 W N/A N/A
Apparent Power: 9.807 W 9.788 W N/A 9.829 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.88 V 229.84 V 227.70 V 229.95 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.416 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.20 % 0.18 % N/A 0.22 % 2.00 % PASS
Real Power: 0.110 W 0.090 W N/A 0.136 W N/A N/A
Apparent Power: 33.117 W 33.097 W N/A 33.136 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

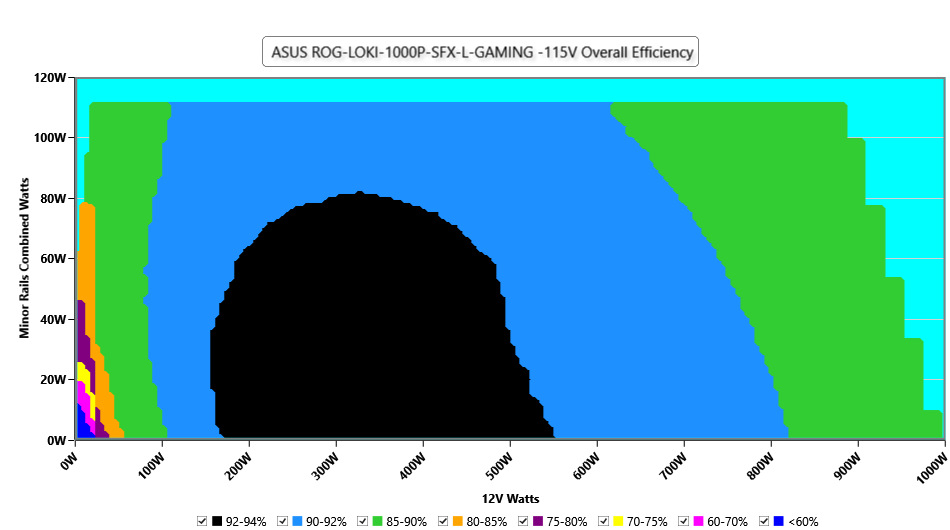

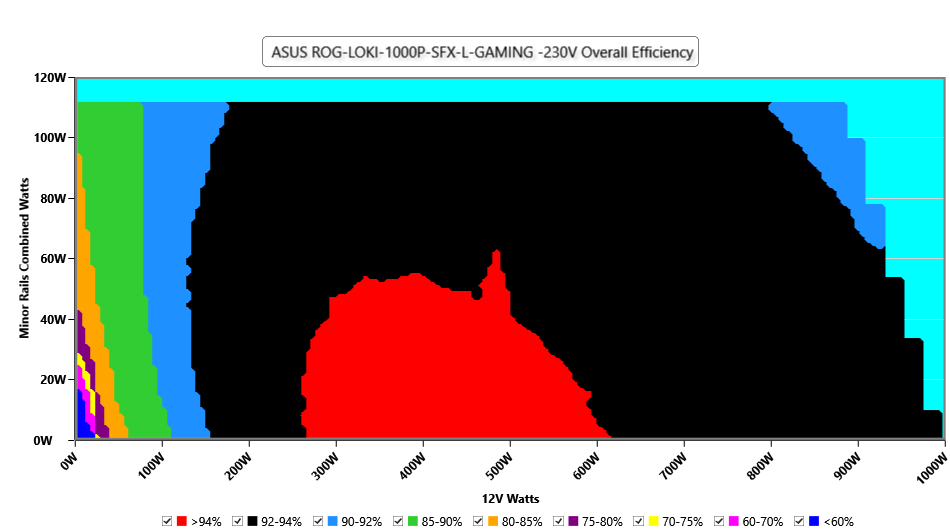

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

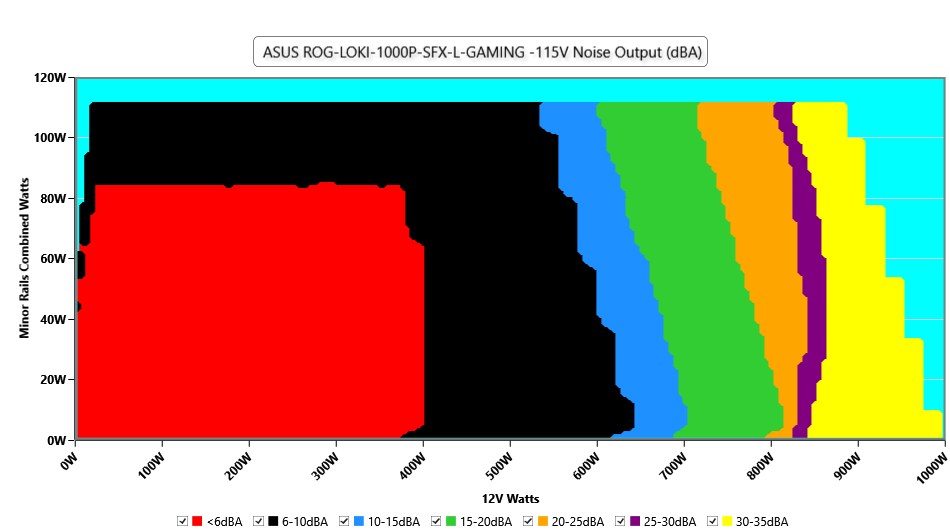

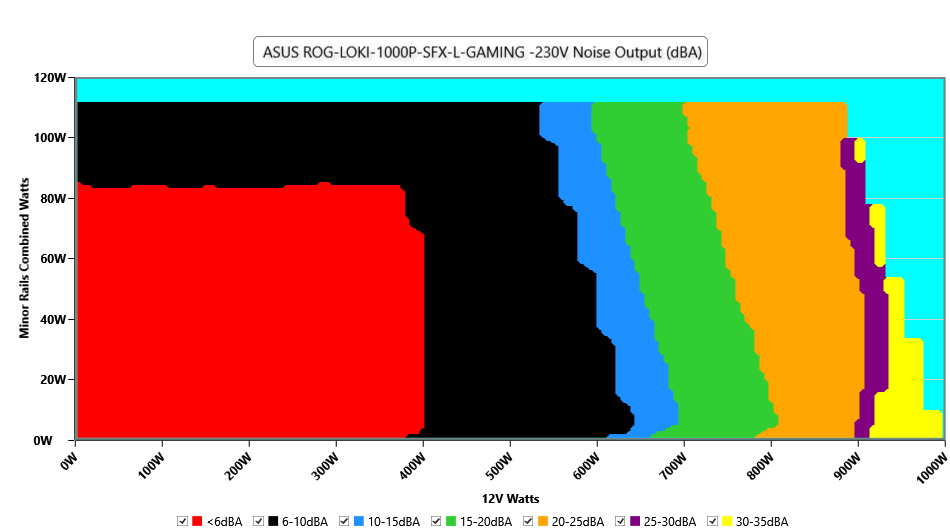

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

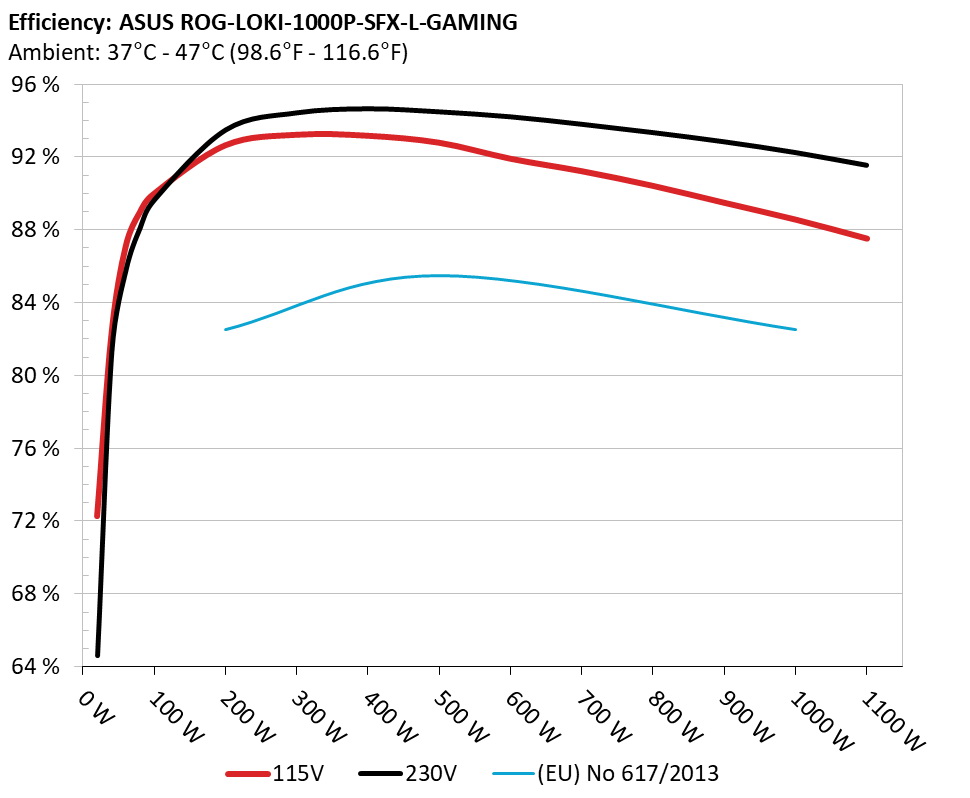

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

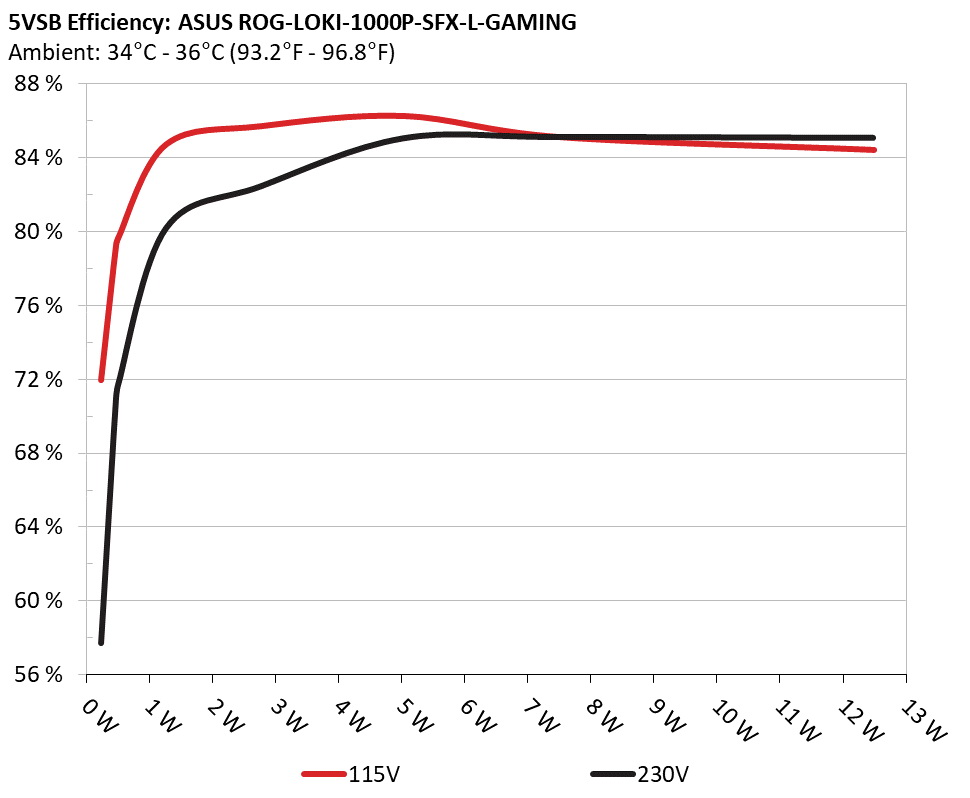

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 71.96% 0.032
5.04V 0.315W 114.93V
2 0.09A 0.454W 78.945% 0.058
5.039V 0.575W 114.92V
3 0.55A 2.767W 85.716% 0.259
5.03V 3.229W 114.93V
4 1A 5.022W 86.267% 0.349
5.022V 5.821W 114.92V
5 1.5A 7.519W 85.118% 0.411
5.012V 8.833W 114.92V
6 2.501A 12.486W 84.428% 0.469
4.994V 14.789W 114.93V
Test #
5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 57.731% 0.012
5.04V 0.395W 229.9V
2 0.09A 0.454W 70.435% 0.019
5.039V 0.645W 229.9V
3 0.55A 2.766W 82.439% 0.097
5.027V 3.353W 229.89V
4 1A 5.02W 85.03% 0.161
5.02V 5.904W 229.89V
5 1.5A 7.517W 85.101% 0.221
5.011V 8.833W 229.89V
6 2.501A 12.482W 85.056% 0.293
4.992V 14.675W 229.89V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.531A 1.985A 1.988A 0.996A 100.041 89.492% 0 <6.0 43.89°C 0.975
12.010V 5.037V 3.32V 5.023V 111.788 39.53°C 114.9V
20% 14.082A 2.98A 2.985A 1.197A 200.011 92.146% 0 <6.0 45.74°C 0.969
12.009V 5.035V 3.317V 5.012V 217.057 40.93°C 114.87V
30% 21.984A 3.477A 3.485A 1.4A 300.075 92.722% 0 <6.0 46.85°C 0.98
12.010V 5.034V 3.315V 5.001V 323.628 41.58°C 114.86V
40% 29.855A 3.975A 3.985A 1.603A 399.799 92.666% 0 <6.0 47.37°C 0.987
12.011V 5.033V 3.313V 4.991V 431.447 41.84°C 114.84V
50% 37.386A 4.972A 4.986A 1.808A 499.508 92.286% 638 7.6 42.02°C 0.99
12.010V 5.028V 3.309V 4.98V 541.261 48.09°C 114.8V
60% 44.969A 5.969A 5.988A 2A 599.949 91.405% 640 7.6 42.85°C 0.992
12.013V 5.026V 3.307V 4.969V 656.363 49.44°C 114.78V
70% 52.490A 6.967A 6.992A 2.219A 699.75 90.722% 843 41.6 43.17°C 0.994
12.014V 5.024V 3.304V 4.957V 771.315 50.23°C 114.76V
80% 60.069A 7.967A 7.995A 2.325A 799.754 89.918% 928 18.6 43.88°C 0.995
12.017V 5.023V 3.302V 4.947V 889.423 51.94°C 114.74V
90% 67.983A 8.467A 8.486A 2.431A 899.522 88.989% 1486 35.6 44.44°C 0.996
12.019V 5.021V 3.299V 4.938V 1010.815 53.54°C 114.71V
100% 75.979A 8.97A 9.01A 2.537A 1000.248 88.063% 1904 43.9 45.44°C 0.997
12.017V 5.018V 3.296V 4.928V 1135.829 55.52°C 114.69V
110% 83.565A 9.972A 10.111A 2.542A 1100.054 87.023% 2043 43.7 47.27°C 0.997
12.017V 5.015V 3.293V 4.919V 1264.097 58.18°C 114.66V
CL1 0.117A 13.176A 13.179A 0A 111.321 85.156% 571 <6.0 42.77°C 0.97
12.030V 5.026V 3.315V 5.038V 130.734 48.19°C 114.9V
CL2 0.116A 19.93A 0A 0A 101.425 83.607% 1043 23.1 43.92°C 0.974
12.027V 5.019V 3.327V 5.043V 121.31 50.26°C 114.91V
CL3 0.116A 0A 19.934A 0A 67.387 79.378% 1260 30.7 44.84°C 0.952
12.017V 5.043V 3.31V 5.037V 84.895 52.96°C 114.91V
CL4 83.240A 0A 0A 0A 1000.042 88.893% 1128 24.9 45.7°C 0.996
12.014V 5.029V 3.302V 4.982V 1125.004 55.61°C 114.68V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.526A 1.985A 1.988A 0.996A 100.02 89.157% 0 <6.0 44.42°C 0.858
12.017V 5.039V 3.321V 5.022V 112.188 40.11°C 229.88V
20% 14.064A 2.979A 2.984A 1.197A 199.978 92.986% 0 <6.0 45.15°C 0.927
12.022V 5.036V 3.318V 5.011V 215.069 40.37°C 229.88V
30% 21.967A 3.476A 3.484A 1.4A 300.044 93.924% 0 <6.0 45.87°C 0.948
12.018V 5.034V 3.315V 5.001V 319.455 40.64°C 229.86V
40% 29.840A 3.974A 3.984A 1.603A 399.77 94.144% 0 <6.0 47.44°C 0.958
12.016V 5.033V 3.313V 4.99V 424.638 41.69°C 229.85V
50% 37.379A 4.972A 4.987A 1.808A 499.527 93.982% 653 7.9 42.12°C 0.965
12.013V 5.028V 3.309V 4.978V 531.506 48.27°C 229.84V
60% 44.969A 5.969A 5.989A 2A 599.956 93.705% 654 7.9 42.8°C 0.972
12.013V 5.027V 3.307V 4.967V 640.263 49.39°C 229.83V
70% 52.490A 6.968A 6.992A 2.22A 699.773 93.299% 850 15.0 43.22°C 0.975
12.015V 5.025V 3.304V 4.955V 750.028 50.23°C 229.81V
80% 60.073A 7.967A 7.996A 2.326A 799.783 92.842% 944 19.4 44.06°C 0.977
12.016V 5.023V 3.301V 4.946V 861.446 52.19°C 229.8V
90% 67.987A 8.468A 8.487A 2.432A 899.556 92.336% 1179 26.3 44.68°C 0.98
12.018V 5.02V 3.299V 4.936V 974.216 53.78°C 229.79V
100% 75.981A 8.971A 9.011A 2.538A 1000.276 91.744% 1749 40.4 45.87°C 0.982
12.017V 5.018V 3.296V 4.926V 1090.293 55.88°C 229.78V
110% 83.577A 9.974A 10.112A 2.543A 1100.092 91.046% 2063 43.8 46.64°C 0.984
12.016V 5.015V 3.293V 4.916V 1208.284 57.53°C 229.77V
CL1 0.117A 13.178A 13.181A 0A 111.328 85.127% 583 6.1 42.99°C 0.875
12.028V 5.025V 3.315V 5.037V 130.779 48.48°C 229.88V
CL2 0.116A 19.933A 0A 0A 101.43 83.283% 1043 23.1 43.84°C 0.868
12.026V 5.019V 3.326V 5.041V 121.785 50.94°C 229.88V
CL3 0.116A 0A 19.939A 0A 67.39 78.525% 1263 30.6 44.08°C 0.807
12.017V 5.042V 3.31V 5.036V 85.823 52.16°C 229.89V
CL4 83.244A 0A 0A 0A 1000.101 92.405% 1127 24.9 45.51°C 0.981
12.014V 5.029V 3.301V 4.981V 1082.305 55.43°C 229.78V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.238A 0.496A 0.497A 0.198A 20.014 71.797% 0 <6.0 39.81°C 0.852
12.011V 5.04V 3.323V 5.044V 27.879 36.69°C 114.93V
40W 2.722A 0.695A 0.695A 0.298A 40.014 81.738% 0 <6.0 41.01°C 0.924
12.012V 5.04V 3.323V 5.039V 48.952 37.67°C 114.91V
60W 4.208A 0.893A 0.894A 0.397A 60.015 86.579% 0 <6.0 41.52°C 0.95
12.010V 5.04V 3.322V 5.036V 69.318 37.74°C 114.91V
80W 5.691A 1.092A 1.093A 0.497A 79.986 88.474% 0 <6.0 43.08°C 0.956
12.011V 5.039V 3.321V 5.033V 90.41 39.1°C 114.9V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.496A 0.497A 0.198A 20.008 64.13% 0 <6.0 39.84°C 0.527
12.028V 5.04V 3.323V 5.043V 31.198 36.77°C 229.89V
40W 2.720A 0.694A 0.695A 0.298A 40.008 80.786% 0 <6.0 40.58°C 0.668
12.021V 5.04V 3.323V 5.039V 49.523 37.34°C 229.89V
60W 4.206A 0.893A 0.894A 0.397A 60.008 85.297% 0 <6.0 41.48°C 0.758
12.018V 5.04V 3.322V 5.036V 70.351 38°C 229.89V
80W 5.686A 1.091A 1.093A 0.497A 79.966 87.62% 0 <6.0 42.83°C 0.82
12.017V 5.04V 3.322V 5.032V 91.268 39.04°C 229.89V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.63mV6.33mV14.68mV5.43mVPass
20% Load9.36mV9.04mV15.49mV5.63mVPass
30% Load9.72mV6.18mV14.98mV5.99mVPass
40% Load10.34mV7.05mV15.09mV6.04mVPass
50% Load11.41mV7.30mV16.01mV6.04mVPass
60% Load13.66mV13.33mV20.04mV6.24mVPass
70% Load13.25mV9.55mV17.13mV6.70mVPass
80% Load13.76mV9.14mV18.97mV7.73mVPass
90% Load14.63mV10.37mV18.36mV7.11mVPass
100% Load21.94mV10.86mV20.63mV7.92mVPass
110% Load22.42mV11.39mV21.47mV8.03mVPass
Crossload117.36mV9.35mV18.74mV4.72mVPass
Crossload216.02mV11.75mV14.16mV14.18mVPass
Crossload318.17mV7.86mV19.23mV13.72mVPass
Crossload419.23mV9.38mV19.41mV6.22mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.39mV6.89mV15.55mV4.97mVPass
20% Load16.25mV7.46mV16.26mV5.73mVPass
30% Load12.11mV6.95mV15.49mV5.89mVPass
40% Load10.49mV7.25mV15.96mV5.63mVPass
50% Load11.46mV7.76mV17.08mV5.84mVPass
60% Load14.17mV14.55mV20.92mV6.09mVPass
70% Load12.59mV9.20mV18.26mV5.94mVPass
80% Load14.22mV9.19mV18.77mV6.45mVPass
90% Load14.33mV9.86mV18.72mV6.35mVPass
100% Load21.97mV11.05mV21.52mV7.31mVPass
110% Load22.39mV11.55mV21.21mV7.71mVPass
Crossload111.88mV9.32mV19.21mV14.36mVPass
Crossload215.86mV11.49mV14.27mV13.66mVPass
Crossload313.25mV7.25mV19.53mV13.20mVPass
Crossload419.28mV9.55mV19.89mV16.35mVPass

The results above are not used in the certification process

Asus ROG-LOKI-1000P-SFX-L-GAMING

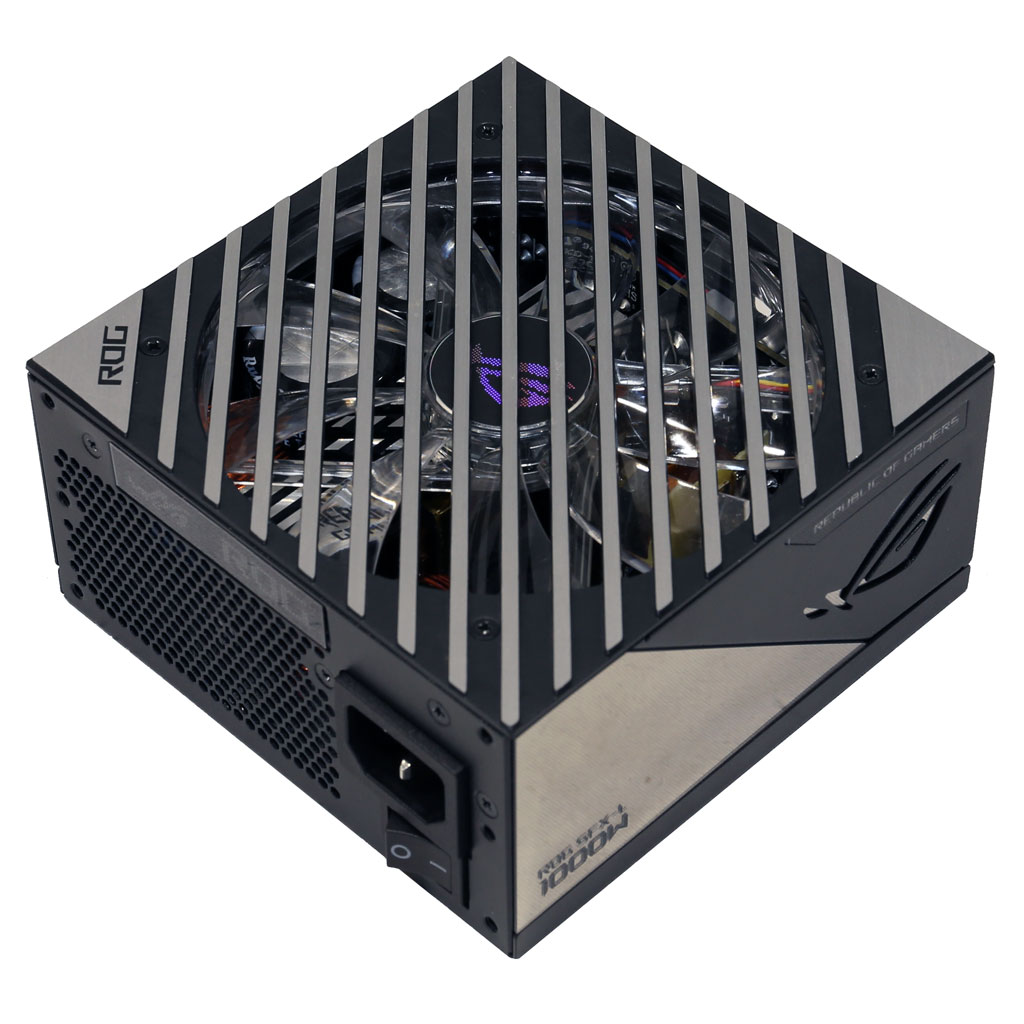

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
