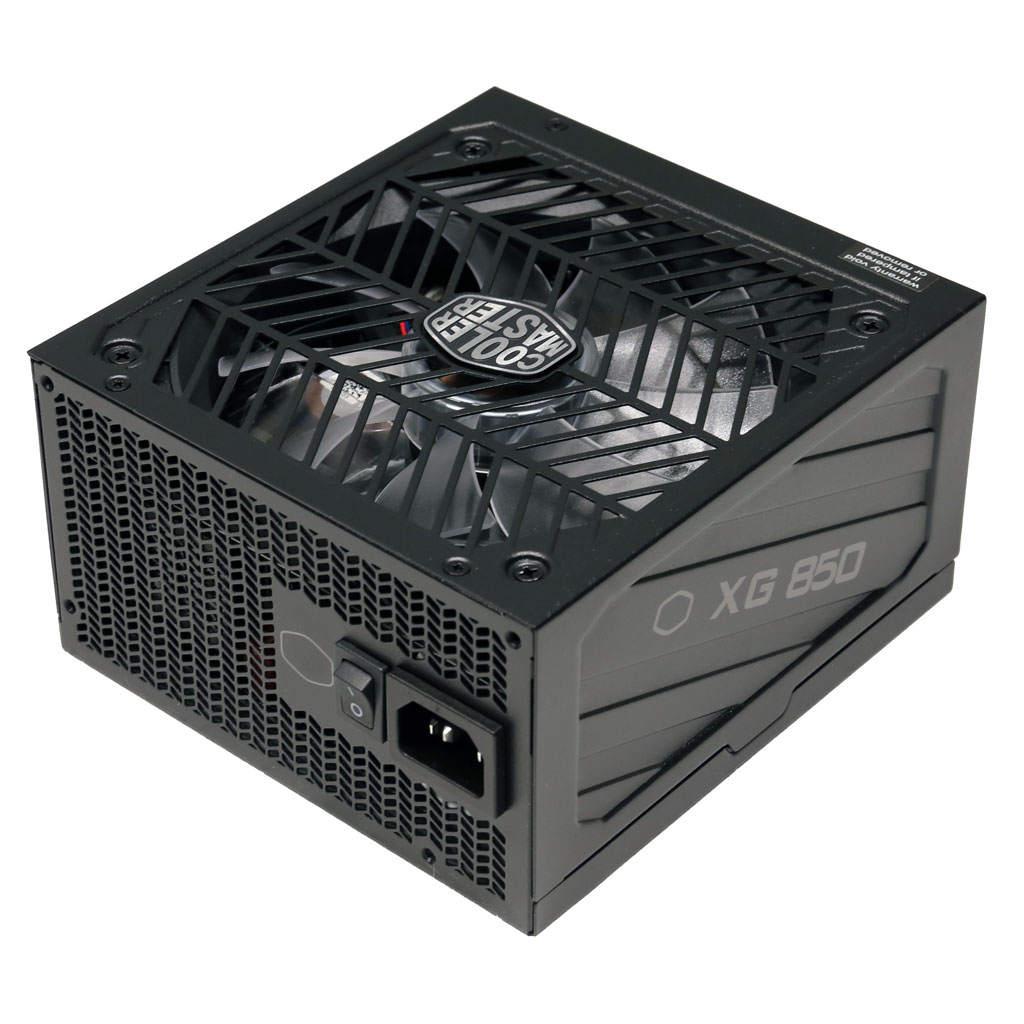

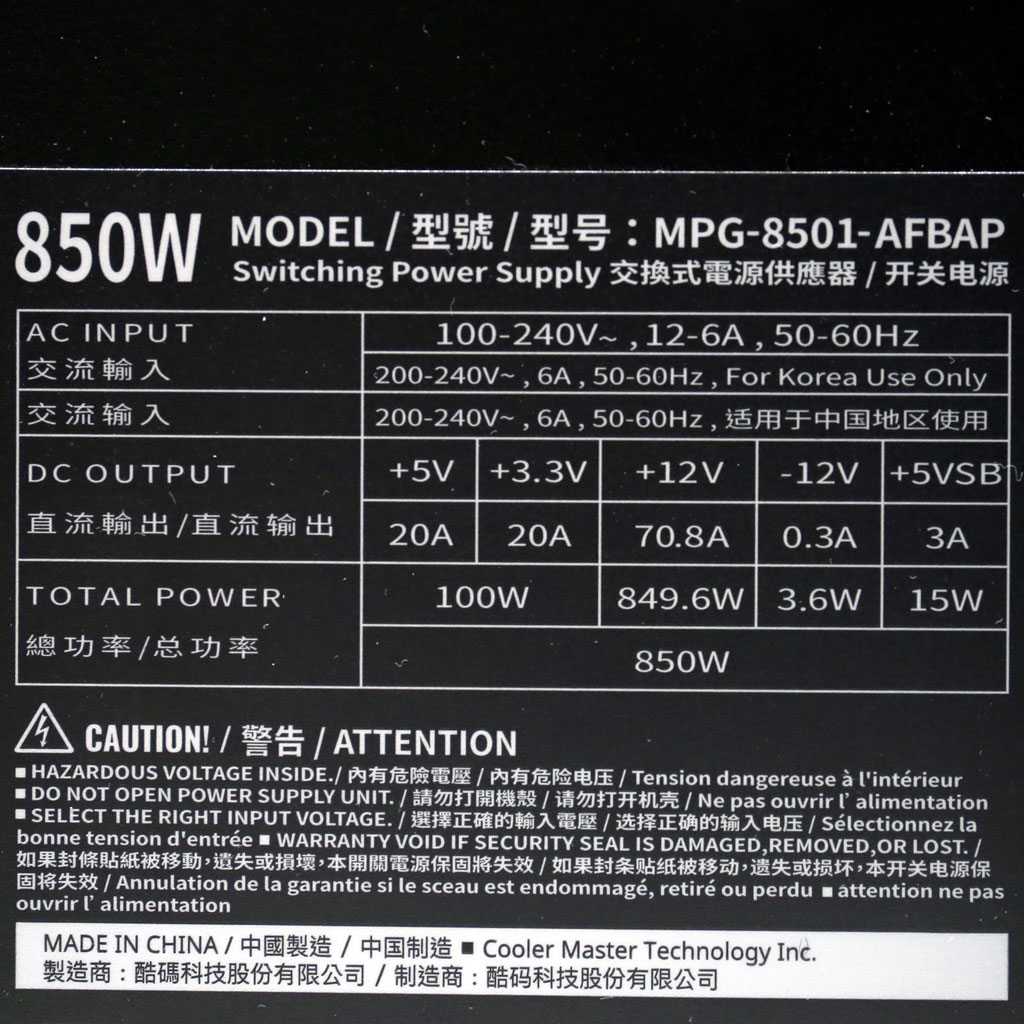

| General Data |
| Manufacturer (OEM) | Huizhou Xin Hui Yuan Tech (Fusion Power) |
| PCB Type | Double Sided |
| Primary Side |
| Transient Filter | 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV |
| Bridge Rectifier(s) | 2x GBU15KL (800 V, 15 A @ 100 °C) |
| Inrush Current Protection | NTC Thermistor (MF72-5D15) (5 Ohm) & Relay |
| APFC MOSFETs | 2x NCE Power NCE65TF099 (650 V, 24 A @ 100 °C, Rds (on): 0.109 Ohm) |
| APFC Boost Diode | 1x Panjit PCDP0865G1 (650 V, 8 A @ 140 °C) |
| Bulk Cap(s) | 1x Nippon Chemi-Con (450 V, 680 uF, 2,000 h @ 105 °C, KMZ) |
| Main Switchers | 4x NCE Power NCE65TF130 (650 V, 18 A @ 100 °C, Rds (on): 0.140 Ohm) |
| APFC Controller | Champion CM6500UNX |
| Switching Controller | Champion CM6901T6X |
| Topology | Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters |
| Secondary Side |
| +12 V MOSFETs | 4x Infineon BSC010N04LS (40 V, 178 A @ 100 °C, Rds (on): 1 mOhm) |
| +5 V & +3.3 V | DC-DC Converters:
2x Excelliance MOS EMB04N03A (30 V, 55 A @ 100 °C, Rds (on): 4 mOhm) &
2x Excelliance MOS EMB07N03 (30 V, 17 A @ 100 °C, Rds (on): 7 mOhm)
PWM Controller(s):
ANPEC APW7159C |
| Filtering Capacitors | Electrolytic:
2x Nippon Chemi-Con (105°C, W),
3x Nippon Chemi-Con (2 - 5,000 h @ 105 °C, KZE),
8x Nippon Chemi-Con (4 - 10,000 h @ 105 °C, KY,
2x Nippon Chemi-Con (5 - 6,000 h @ 105 °C, KZH)
Polymer:
23x FPCAP |
| Supervisor IC | IN1S313I-SAG |
| Fan Model | Cooler Master DF1352512FDHN (135 mm, 12 V, 0.60 A, Fluid Dynamic Bearing Fan) |

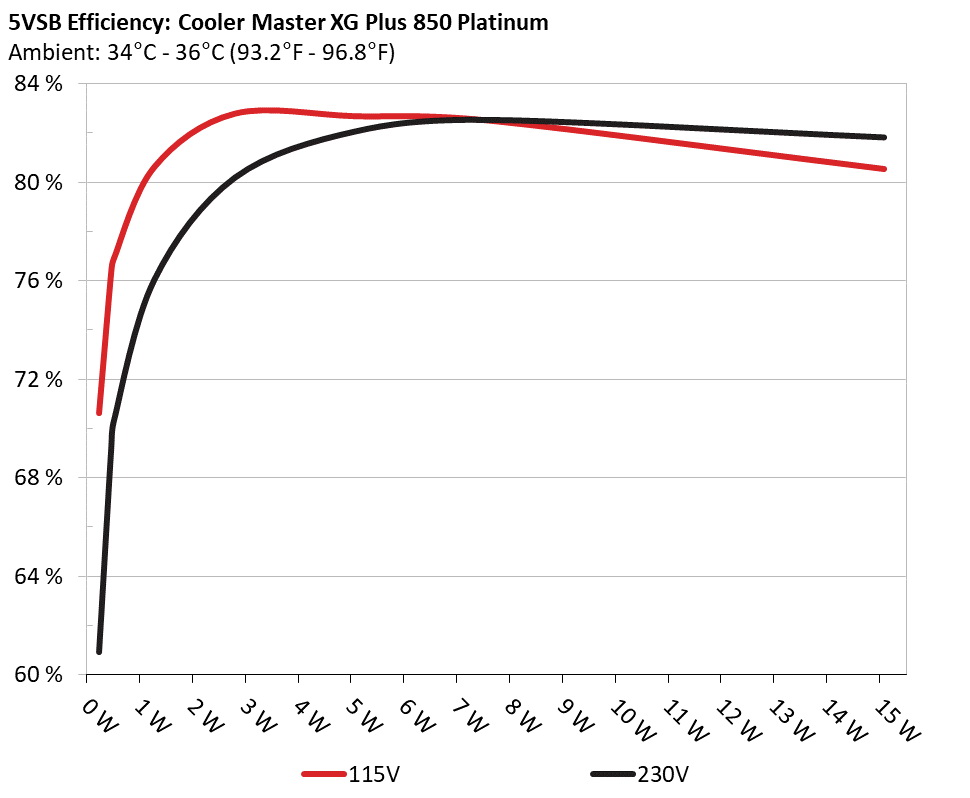

| 5VSB Circuit |
| Rectifier(s) | 1x 45R10S SBR |
| Standby PWM Controller | Excelliance MOS Corp EM8569C |
