Asus ROG-LOKI-750P-SFX-L-GAMING
2M050000255
Lab IDAS75002053
  • Report: 22PS2053A
  • Receipt Date: Jul 2, 2022
  • Test Date: Aug 26, 2022
  • Report Date: Aug 25, 2022
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Asus
Hersteller (OEM)Great Wall
Rog Loki
ROG-LOKI-750P-SFX-L-GAMING
2M050000255

(Vrms)100-240
(Arms)10-5
(Hz)47-63
(W)750
SFX-L
120mm Double Ball Bearing Fan
(CF1225H12D)
✓
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202062.52.50.8
Watts11075012.59.6
Total Max. Power (W)750

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (450mm) 1 1 18AWG No
4+4 pin EPS12V (550mm) 2 2 16AWG No
12+4 pin PCIe (460mm) 1 1 16-24AWG No
2x 6+2 pin PCIe (450mm) 1 2 16AWG No
6+2 pin PCIe (450mm) 1 1 16-18AWG No
SATA (300mm+190mm+90mm) 2 6 18AWG No
4 pin Molex (300mm+100mm+100mm+100mm) 1 4 18AWG No
Addressable Aura RGB cable (80mm) 1 1 22AWG No
RGB controller cable (85mm) 1 1 24AWG No

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseA+
(>1450 load combinations)90.554%
Average Noise Output (>1450 Load Combinations)18.87dBA
(>1450 Load Combinations)0.986
Efficiency With 10W (≤500W) or 2% (>500W) Load71.487%
0.0542W
12V Ripple (Full Load)21.96mV
5V Ripple (Full Load)11.79mV
3.3V Ripple (Full Load)16.72mV
5VSB Ripple (Full Load)10.70mV
12V Load Regulation0.11%
5V Load Regulation0.26%
3.3V Load Regulation0.33%
5VSB Load Regulation3.35%
Inrush Current65.220A
WirkungsgradPLATINUM
LautstärkeklasseA+
(>1450 load combinations)92.331%
Average Noise Output (>1450 Load Combinations)19.20dBA
(>1450 Load Combinations)0.949
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0986W
12V Ripple (Full Load)22.98mV
5V Ripple (Full Load)11.94mV
3.3V Ripple (Full Load)16.59mV
5VSB Ripple (Full Load)10.53mV
12V Load Regulation0.09%
5V Load Regulation0.28%
3.3V Load Regulation0.33%
5VSB Load Regulation3.33%
Inrush Current85.920A
12V Transient Response (200%)11.51V
5V Transient Response (200%)4.938V
3.3V Transient Response (200%)3.232V
5VSB Transient Response (200%)4.848V
20.00ms
AC Loss to PWR_OK Hold Up Time17.40ms
PWR_OK Inactive to DC Loss Delay2.60ms
PSU Timings: T1 (20% / 100%)39.0ms40.0ms
PSU Timings: T3 (20% / 100%)120.0ms120.0ms
OPP (25.57°C / 43.32°C)116.81%125.35%

Hold-Up Time (ms)20
AC Loss to PWR_OK Hold Up Time (ms)17.4
PWR_OK Inactive to DC Loss Delay (ms)2.6

Stromverbrauch im Ruhezustand

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.16 V 115.13 V 113.85 V 115.20 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.95 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.17 % 2.00 % PASS
Real Power: 0.054 W 0.048 W N/A 0.062 W N/A N/A
Apparent Power: 9.902 W 9.697 W N/A 10.121 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.34 V 230.23 V 227.70 V 230.38 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.12 % 0.10 % N/A 0.20 % 2.00 % PASS
Real Power: 0.099 W 0.085 W N/A 0.128 W N/A N/A
Apparent Power: 33.071 W 32.638 W N/A 33.550 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

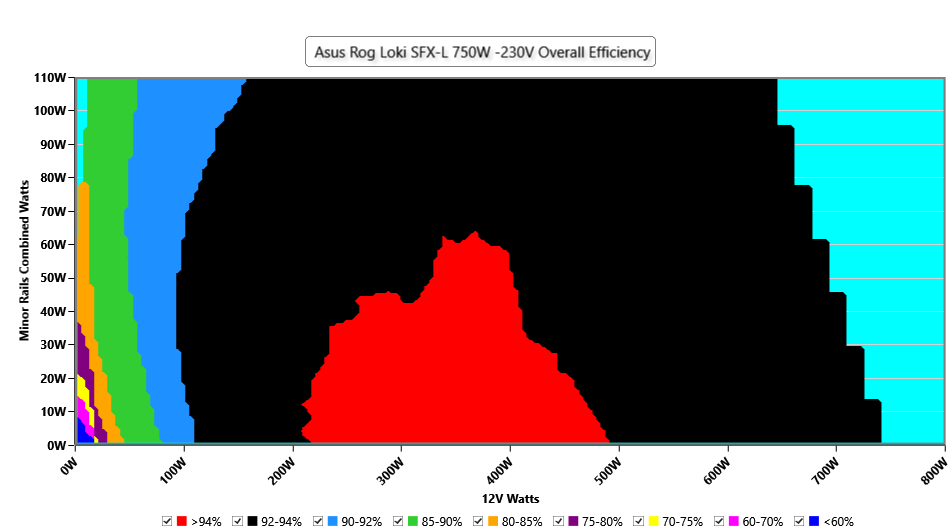

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

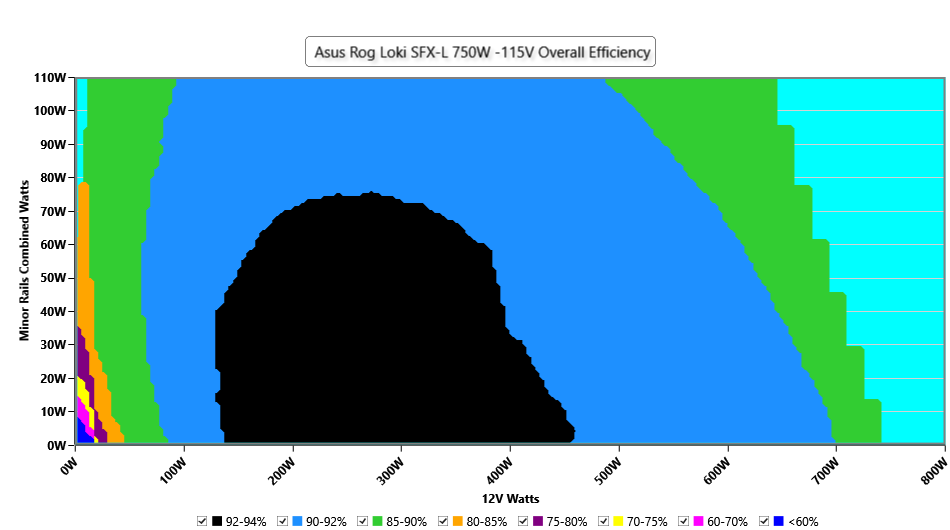

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

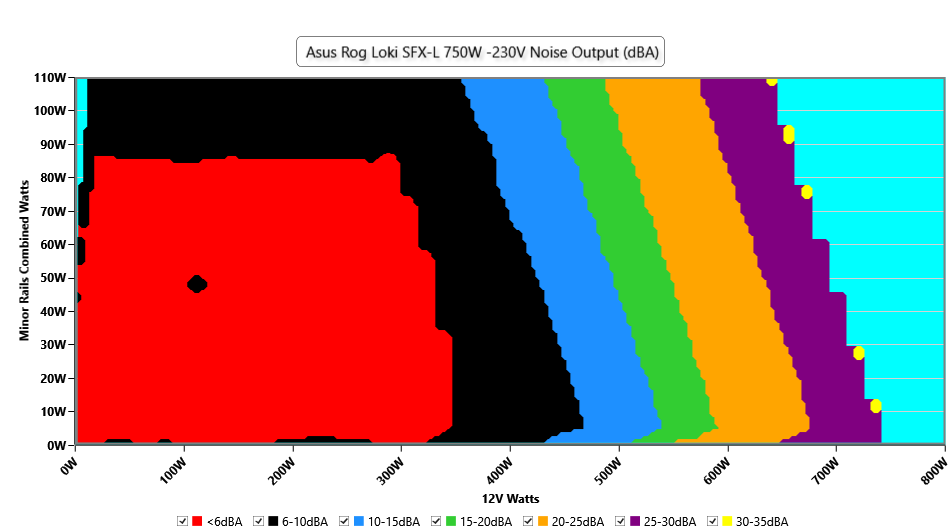

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

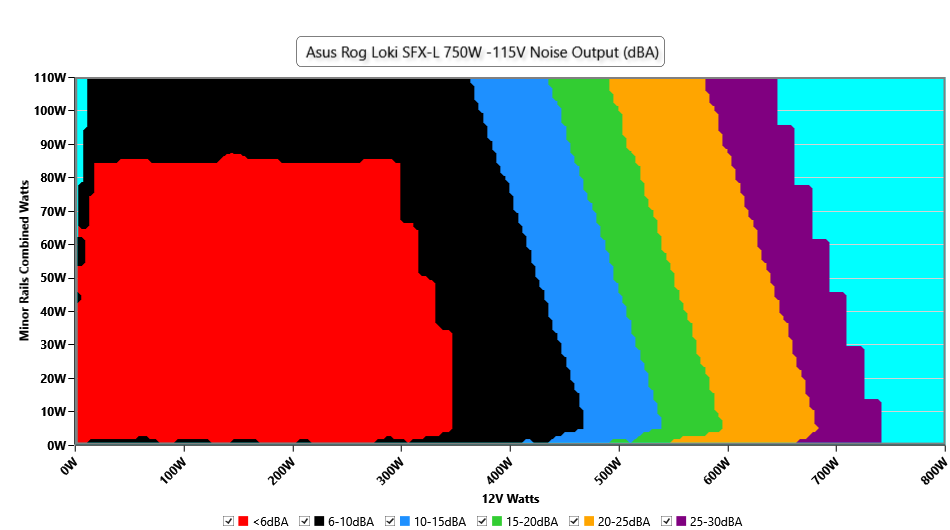

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

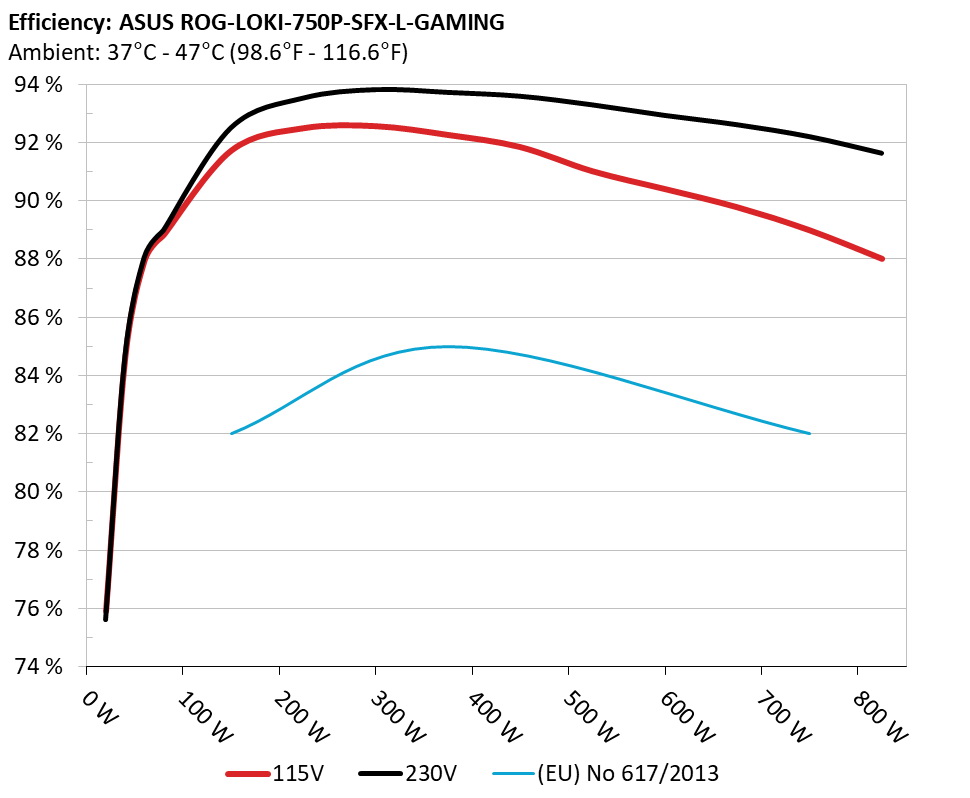

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

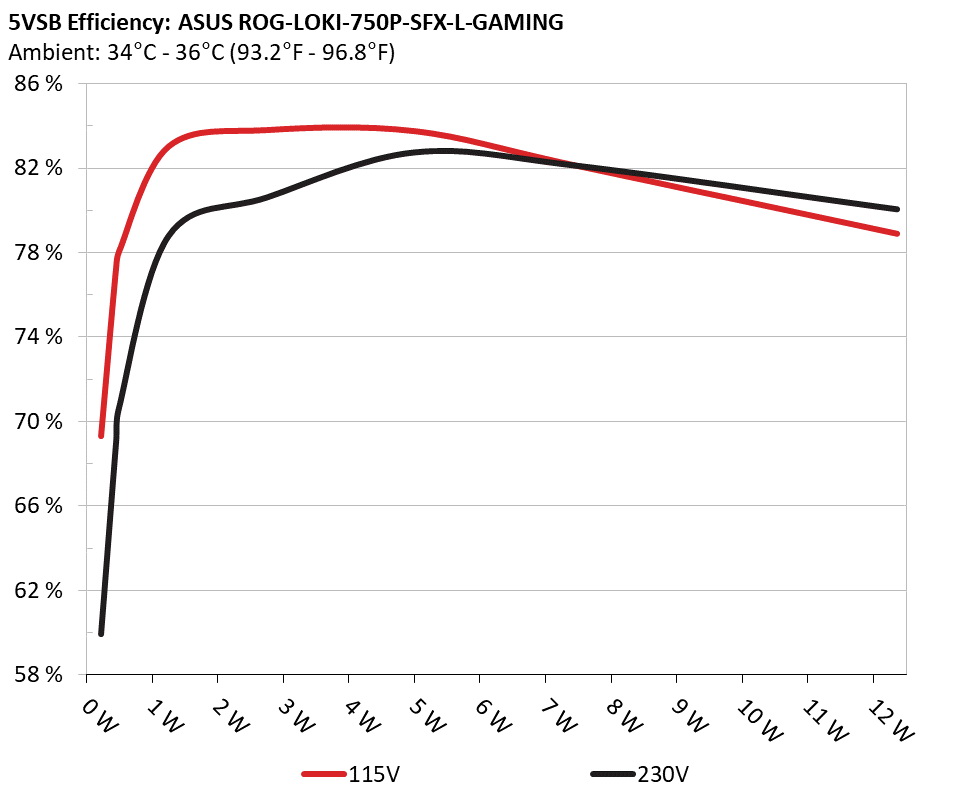

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 69.326% 0.035
5.043V 0.327W 115.17V
2 0.09A 0.454W 77.241% 0.062
5.041V 0.588W 115.17V
3 0.55A 2.761W 83.812% 0.267
5.022V 3.294W 115.17V
4 1A 5.005W 83.763% 0.365
5.005V 5.975W 115.16V
5 1.5A 7.479W 82.124% 0.417
4.986V 9.106W 115.16V
6 2.499A 12.368W 78.906% 0.472
4.949V 15.674W 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 59.92% 0.011
5.043V 0.36W 230.34V
2 0.09A 0.454W 68.967% 0.021
5.041V 0.658W 230.34V
3 0.55A 2.759W 80.628% 0.104
5.018V 3.423W 230.34V
4 1A 5.002W 82.758% 0.17
5.003V 6.044W 230.34V
5 1.5A 7.475W 82.127% 0.231
4.984V 9.102W 230.34V
6 2.499A 12.359W 80.06% 0.311
4.945V 15.437W 230.34V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.448A 1.976A 1.985A 1.003A 74.995 88.831% 0 <6.0 44.28°C 0.982
12.005V 5.062V 3.325V 4.983V 84.423 40.22°C 115.14V
20% 9.914A 2.967A 2.98A 1.207A 149.919 91.726% 0 <6.0 45.43°C 0.981
12.005V 5.056V 3.322V 4.972V 163.442 41.07°C 115.12V
30% 15.728A 3.461A 3.477A 1.412A 224.911 92.494% 0 <6.0 46.28°C 0.98
12.007V 5.057V 3.321V 4.958V 243.165 41.51°C 115.1V
40% 21.551A 3.956A 3.975A 1.618A 299.991 92.564% 0 <6.0 46.75°C 0.985
12.008V 5.056V 3.32V 4.943V 324.09 41.74°C 115.08V
50% 26.970A 4.944A 4.97A 1.827A 374.4 92.262% 0 <6.0 47.79°C 0.989
12.009V 5.057V 3.32V 4.927V 405.803 42.26°C 115.07V
60% 32.428A 5.936A 5.967A 2A 449.161 91.849% 643 7.7 42.85°C 0.992
12.012V 5.054V 3.318V 4.915V 489.026 48.92°C 115.04V
70% 37.888A 6.927A 6.964A 2.245A 524.244 91.015% 795 12.2 43.72°C 0.993
12.013V 5.054V 3.317V 4.897V 576.008 50.82°C 115.01V
80% 43.413A 7.92A 7.959A 2.352A 599.442 90.403% 946 19.5 43.79°C 0.994
12.013V 5.052V 3.316V 4.887V 663.086 52.02°C 114.98V
90% 49.275A 8.415A 8.445A 2.459A 674.456 89.778% 1071 23.8 44.79°C 0.995
12.014V 5.05V 3.315V 4.877V 751.247 54.06°C 114.96V
100% 55.130A 8.912A 8.96A 2.568A 749.586 88.986% 1189 26.8 45°C 0.996
12.015V 5.049V 3.314V 4.866V 842.37 55.14°C 114.93V
110% 60.651A 9.904A 10.049A 2.571A 824.61 88.005% 1307 30.2 46.74°C 0.997
12.017V 5.049V 3.313V 4.86V 937.007 57.71°C 114.9V
CL1 0.115A 13.07A 13.142A 0A 111.278 86.134% 600 6.6 40.37°C 0.986
12.013V 5.065V 3.324V 5.021V 129.192 45.87°C 115.13V
CL2 0.115A 19.739A 0A 0A 101.381 84.756% 982 21.4 39.98°C 0.986
12.009V 5.066V 3.323V 5.028V 119.614 47.26°C 115.14V
CL3 0.115A 0A 19.835A 0A 67.371 81.166% 1282 30.4 40.6°C 0.983
12.006V 5.063V 3.327V 5.026V 83.007 49.62°C 115.14V
CL4 62.370A 0A 0A 0A 749.51 89.967% 1230 29.4 43.46°C 0.995
12.017V 5.051V 3.315V 4.992V 833.089 54.41°C 114.93V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.447A 1.975A 1.985A 1.003A 74.997 88.991% 0 <6.0 44.49°C 0.841
12.007V 5.063V 3.325V 4.986V 84.277 40.46°C 230.33V
20% 9.907A 2.964A 2.979A 1.206A 149.92 92.513% 0 <6.0 44.87°C 0.927
12.013V 5.061V 3.324V 4.973V 162.056 40.55°C 230.32V
30% 15.726A 3.459A 3.476A 1.411A 224.912 93.536% 0 <6.0 45.93°C 0.95
12.009V 5.06V 3.323V 4.96V 240.463 41.18°C 230.31V
40% 21.548A 3.953A 3.974A 1.618A 299.991 93.827% 0 <6.0 47.21°C 0.962
12.010V 5.06V 3.322V 4.945V 319.727 42.19°C 230.3V
50% 26.973A 4.943A 4.969A 1.825A 374.459 93.732% 0 <6.0 48.13°C 0.968
12.010V 5.058V 3.321V 4.93V 399.496 42.68°C 230.29V
60% 32.434A 5.934A 5.966A 2A 449.206 93.601% 631 7.4 42.72°C 0.973
12.011V 5.056V 3.319V 4.917V 479.916 48.74°C 230.28V
70% 37.896A 6.927A 6.964A 2.244A 524.291 93.304% 797 12.3 43.5°C 0.975
12.011V 5.054V 3.317V 4.899V 561.913 50.65°C 230.27V
80% 43.422A 7.919A 7.958A 2.352A 599.506 92.941% 947 19.6 44.13°C 0.978
12.012V 5.053V 3.316V 4.888V 645.04 52.21°C 230.26V
90% 49.281A 8.416A 8.445A 2.459A 674.494 92.621% 1075 24 44.42°C 0.981
12.013V 5.05V 3.315V 4.878V 728.207 53.52°C 230.25V
100% 55.138A 8.913A 8.96A 2.567A 749.623 92.211% 1196 27.1 45.27°C 0.982
12.014V 5.049V 3.314V 4.867V 812.947 55.32°C 230.24V
110% 60.660A 9.905A 10.049A 2.571A 824.659 91.641% 1298 30.1 45.57°C 0.984
12.016V 5.048V 3.313V 4.86V 899.881 56.54°C 230.23V
CL1 0.115A 13.07A 13.142A 0A 111.283 87.057% 597 6.5 42.55°C 0.906
12.021V 5.065V 3.325V 5.021V 127.828 47.98°C 230.33V
CL2 0.115A 19.74A 0A 0A 101.384 85.463% 991 21.8 40.45°C 0.898
12.018V 5.066V 3.323V 5.028V 118.628 47.73°C 230.33V
CL3 0.115A 0A 19.83A 0A 67.372 81.313% 1280 30.4 40.71°C 0.837
12.008V 5.066V 3.328V 5.025V 82.856 49.88°C 230.33V
CL4 62.379A 0A 0A 0A 749.599 92.94% 1230 29.4 43.11°C 0.981
12.017V 5.051V 3.315V 4.991V 806.528 54.05°C 230.24V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.494A 0.496A 0.199A 19.99 75.896% 0 <6.0 40.48°C 0.894
12.001V 5.06V 3.325V 5.029V 26.338 37.39°C 115.16V
40W 2.723A 0.692A 0.695A 0.299A 39.991 84.653% 0 <6.0 41.44°C 0.952
12.002V 5.061V 3.325V 5.021V 47.242 38.19°C 115.15V
60W 4.209A 0.889A 0.893A 0.399A 59.991 87.959% 0 <6.0 43.09°C 0.969
12.003V 5.061V 3.325V 5.013V 68.205 39.43°C 115.15V
80W 5.690A 1.087A 1.092A 0.499A 79.932 89.765% 0 <6.0 43.55°C 0.98
12.004V 5.061V 3.325V 5.007V 89.048 39.57°C 115.15V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.494A 0.496A 0.199A 19.994 75.608% 0 <6.0 39.95°C 0.523
12.006V 5.061V 3.325V 5.029V 26.449 36.92°C 230.33V
40W 2.722A 0.692A 0.695A 0.299A 39.994 84.645% 0 <6.0 40.51°C 0.703
12.005V 5.062V 3.325V 5.021V 47.249 37.22°C 230.33V
60W 4.208A 0.889A 0.893A 0.399A 59.995 88.063% 0 <6.0 42.1°C 0.799
12.006V 5.062V 3.325V 5.013V 68.123 38.57°C 230.33V
80W 5.688A 1.087A 1.092A 0.499A 79.934 90.095% 0 <6.0 43.13°C 0.851
12.008V 5.062V 3.325V 5.007V 88.719 39.41°C 230.33V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load24.41mV19.82mV13.04mV25.71mVPass
20% Load9.06mV8.84mV12.99mV8.80mVPass
30% Load31.95mV21.96mV12.69mV29.75mVPass
40% Load29.36mV21.09mV13.95mV28.28mVPass
50% Load30.38mV20.89mV13.04mV28.59mVPass
60% Load29.57mV17.53mV13.10mV22.87mVPass
70% Load13.42mV9.55mV13.55mV9.26mVPass
80% Load14.53mV10.37mV15.12mV9.21mVPass
90% Load32.35mV21.80mV14.36mV24.44mVPass
100% Load21.96mV11.79mV16.72mV10.70mVPass
110% Load23.98mV12.76mV16.90mV10.63mVPass
Crossload115.89mV10.36mV17.84mV17.01mVPass
Crossload233.27mV22.82mV13.75mV30.21mVPass
Crossload314.94mV7.72mV14.61mV16.60mVPass
Crossload419.74mV9.63mV16.11mV17.61mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load7.29mV8.74mV13.04mV8.60mVPass
20% Load16.28mV8.84mV13.04mV8.30mVPass
30% Load38.33mV9.86mV14.10mV36.59mVPass
40% Load32.76mV11.03mV13.70mV38.71mVPass
50% Load11.55mV9.50mV13.65mV9.56mVPass
60% Load32.61mV9.76mV14.36mV37.50mVPass
70% Load31.75mV10.21mV14.36mV33.19mVPass
80% Load14.73mV9.50mV13.75mV8.45mVPass
90% Load32.51mV12.50mV15.67mV33.85mVPass
100% Load22.98mV11.94mV16.59mV10.53mVPass
110% Load23.95mV12.43mV17.58mV11.39mVPass
Crossload123.75mV11.18mV17.31mV16.60mVPass
Crossload233.47mV17.18mV14.26mV45.49mVPass
Crossload332.40mV13.11mV15.57mV39.87mVPass
Crossload420.01mV10.06mV16.10mV18.31mVPass

The results above are not used in the certification process

Asus ROG-LOKI-750P-SFX-L-GAMING

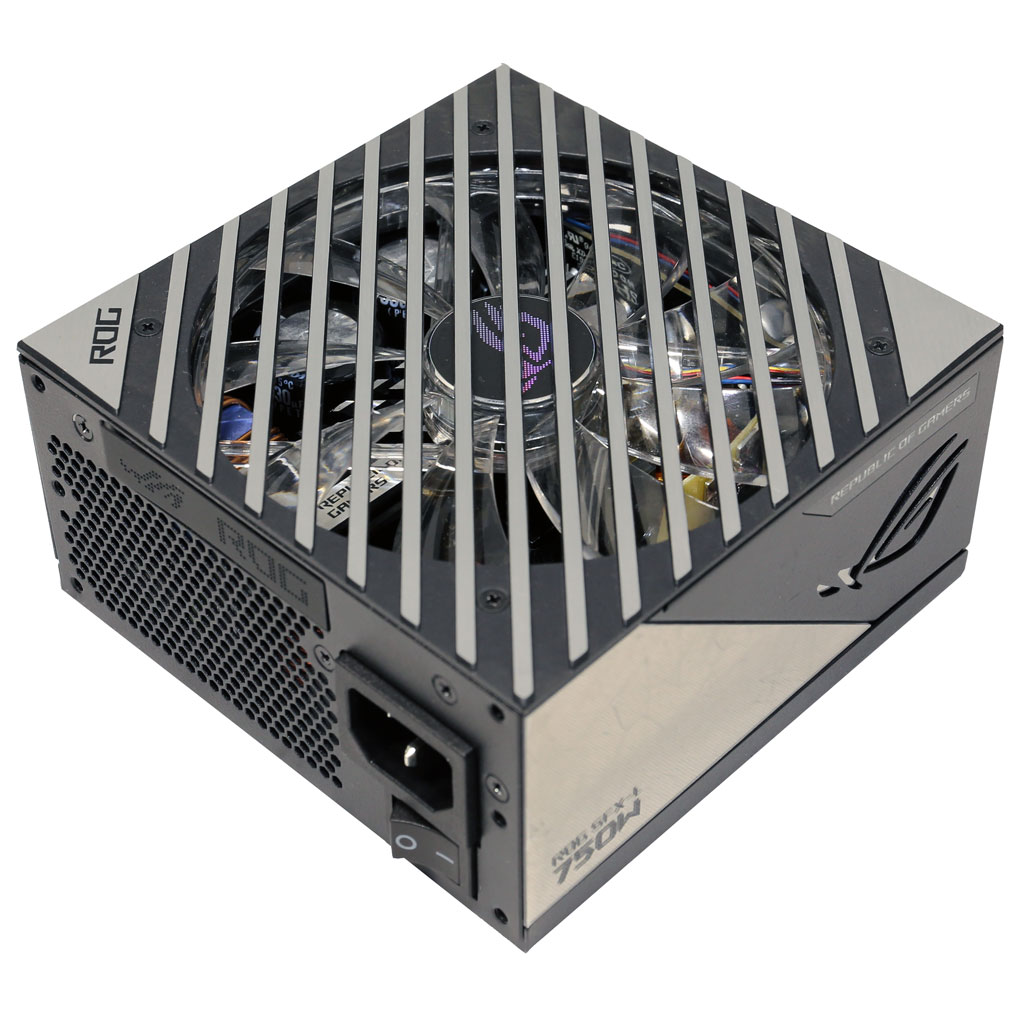

Top side

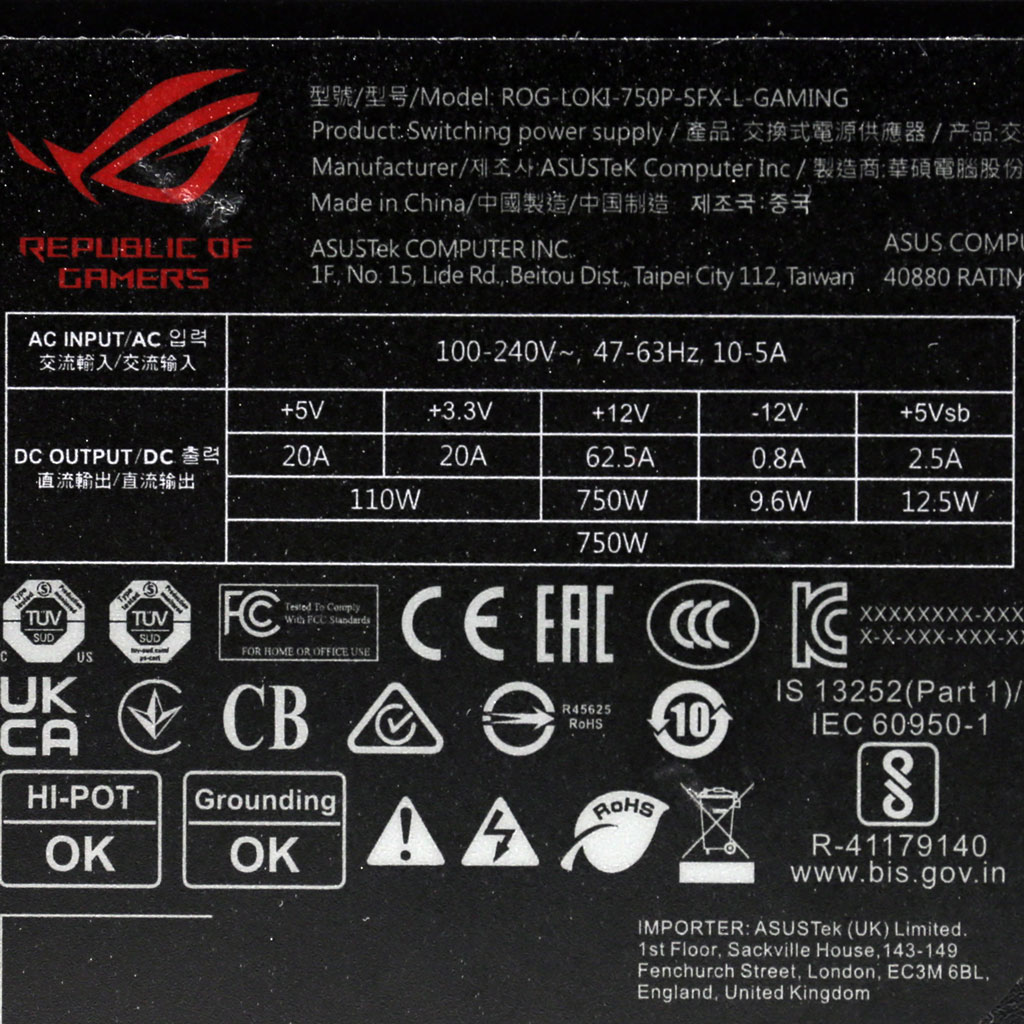

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
