Gigabyte UD750GM
21443G005514
Lab IDGB75002007
  • Report: 22PS2007A
  • Receipt Date: Mar 29, 2022
  • Test Date: Apr 21, 2022
  • Report Date: Apr 21, 2022
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Gigabyte
Hersteller (OEM)MEIC
UD
GP-UD750GM
21443G005514

(Vrms)100-240
(Arms)12-6
(Hz)60-50
(W)750
ATX12V
120mm Rifle Bearing Fan
(D12SH-12)
✓
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20206130.3
Watts105732153.6
Total Max. Power (W)750

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18AWG No
4+4 pin EPS12V (600mm) 2 2 18AWG No
6+2 pin PCIe (600mm+150mm) 2 4 18AWG No
SATA (600mm+150mm+150mm+150mm) 2 8 18AWG No
4-pin Molex (500mm+115mm+115mm) / FDD (+150mm) 1 3 / 1 18AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 16AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time (ms)19.4
AC Loss to PWR_OK Hold Up Time (ms)16.1
PWR_OK Inactive to DC Loss Delay (ms)3.3

Stromverbrauch im Ruhezustand

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.12 V 115.09 V 113.85 V 115.16 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.96 Hz 59.40 Hz 60.03 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.18 % 2.00 % PASS
Real Power: 0.034 W 0.023 W N/A 0.062 W N/A N/A
Apparent Power: 7.216 W 7.179 W N/A 7.253 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.28 V 230.17 V 227.70 V 230.34 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.12 % 0.10 % N/A 0.22 % 2.00 % PASS
Real Power: 0.156 W 0.141 W N/A 0.185 W N/A N/A
Apparent Power: 24.368 W 24.228 W N/A 24.519 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A

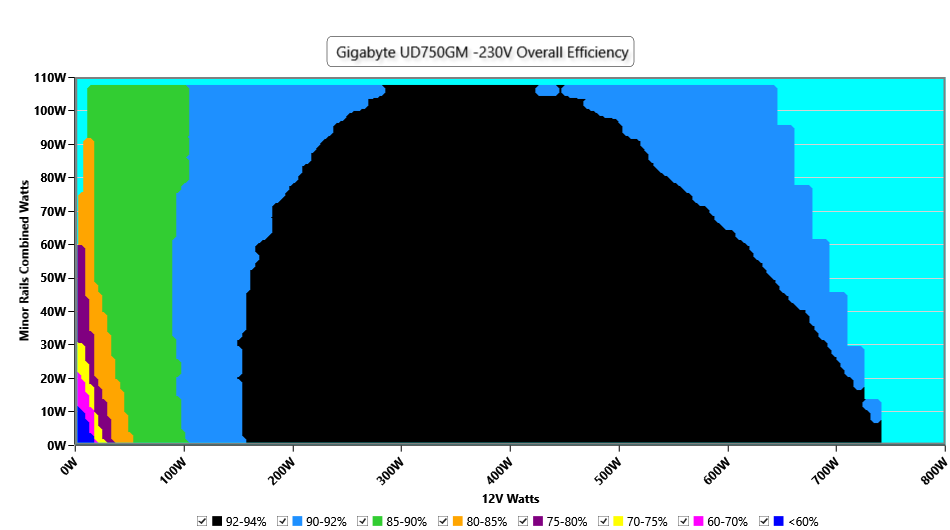

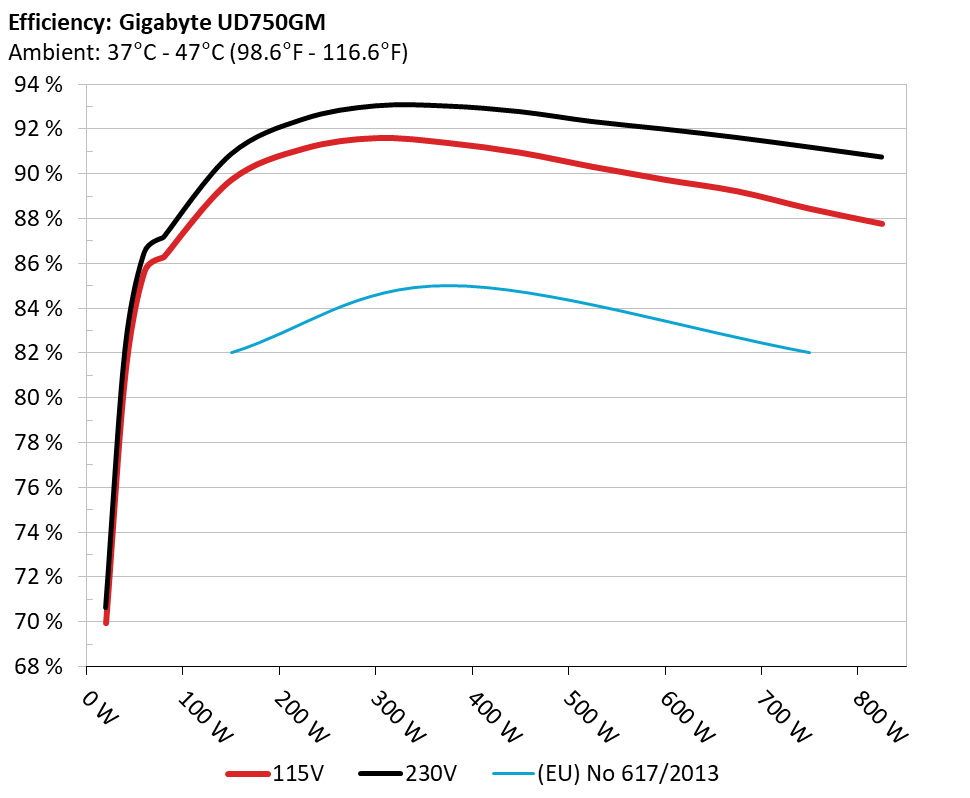

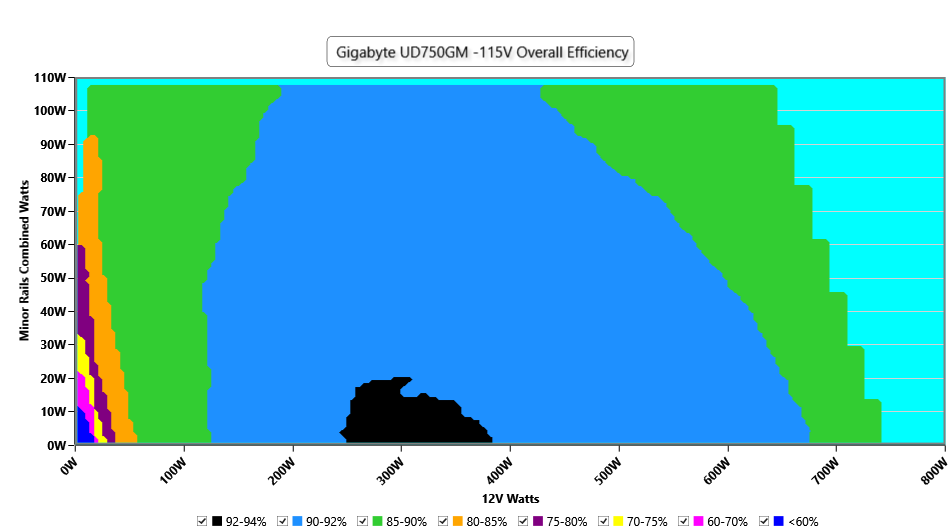

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

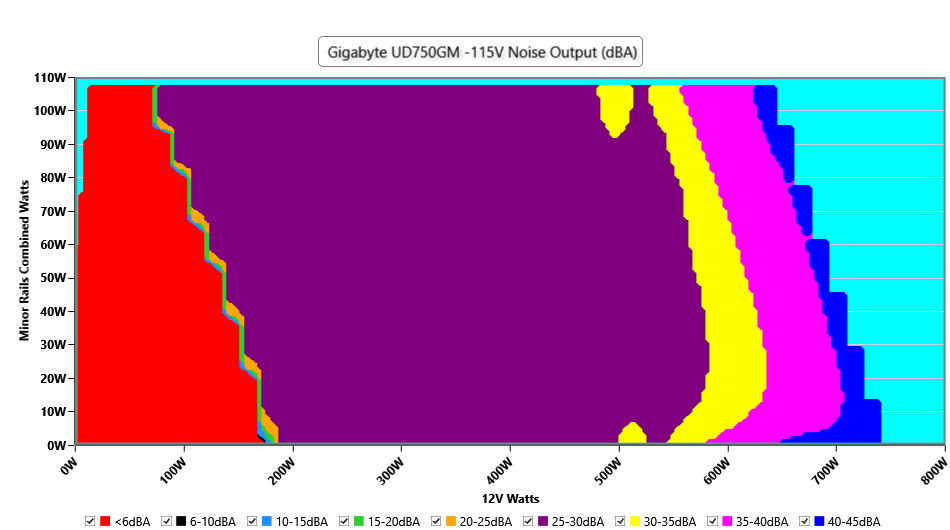

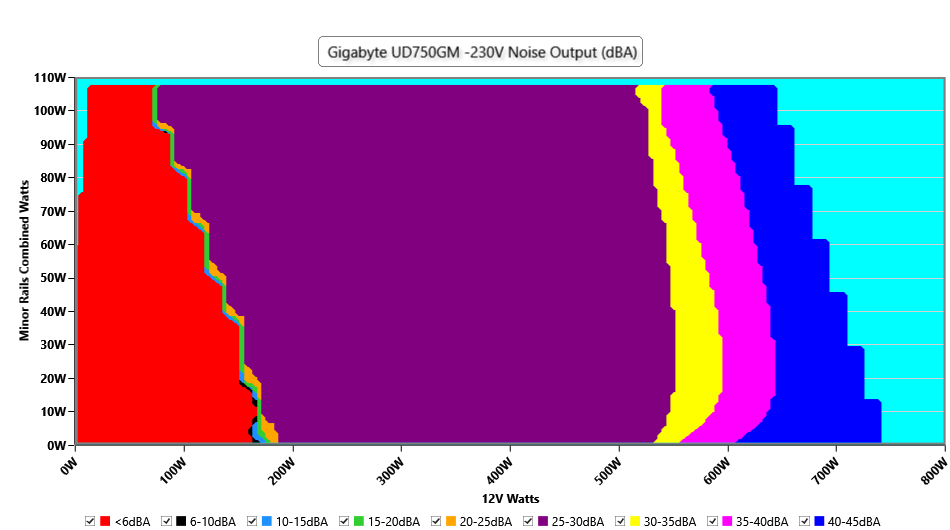

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

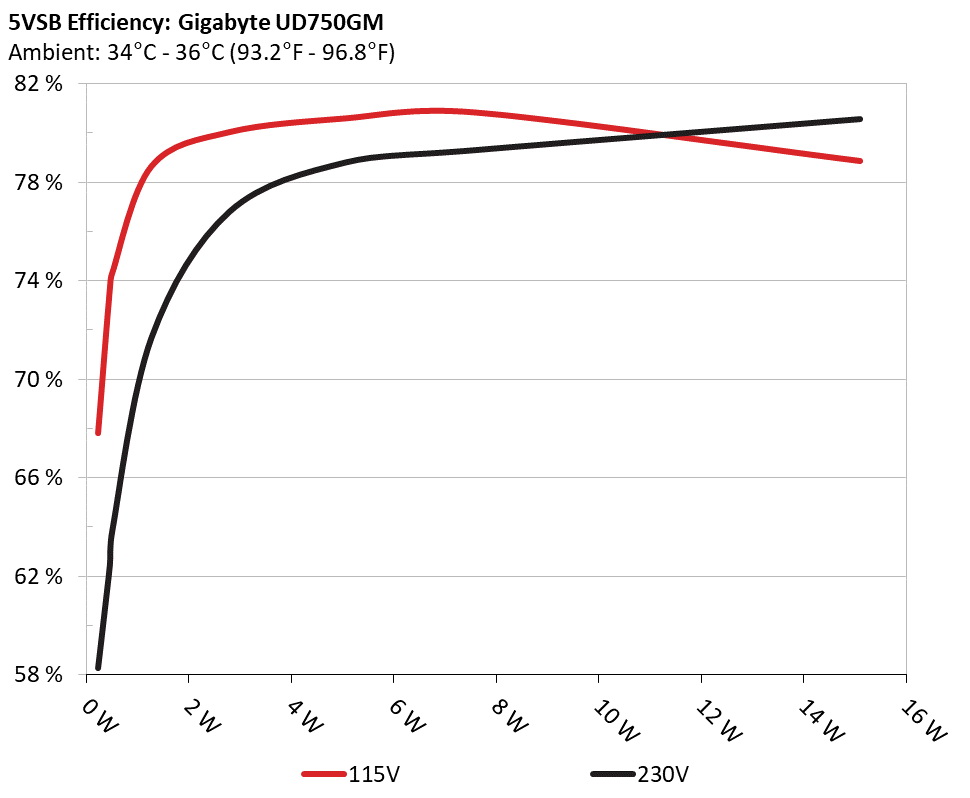

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 67.822% 0.046
5.091V 0.338W 115.12V
2 0.09A 0.458W 73.675% 0.084
5.09V 0.622W 115.12V
3 0.55A 2.795W 80.059% 0.318
5.081V 3.491W 115.12V
4 1A 5.072W 80.616% 0.404
5.072V 6.291W 115.12V
5 1.5A 7.593W 80.853% 0.442
5.061V 9.391W 115.12V
6 3A 15.092W 78.882% 0.496
5.03V 19.132W 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 58.271% 0.016
5.09V 0.396W 230.29V
2 0.09A 0.458W 62.429% 0.03
5.09V 0.734W 230.29V
3 0.55A 2.795W 76.795% 0.137
5.081V 3.64W 230.28V
4 1A 5.072W 78.796% 0.215
5.071V 6.437W 230.28V
5 1.5A 7.592W 79.29% 0.276
5.061V 9.575W 230.28V
6 3A 15.093W 80.547% 0.363
5.031V 18.738W 230.28V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.416A 1.951A 1.954A 0.987A 75.003 86.284% 0 <6.0 45.13°C 0.954
12.094V 5.126V 3.378V 5.064V 86.93 40.54°C 115.1V
20% 9.845A 2.93A 2.939A 1.187A 149.948 89.733% 0 <6.0 46.07°C 0.972
12.092V 5.119V 3.368V 5.054V 167.102 40.7°C 115.08V
30% 15.629A 3.421A 3.434A 1.387A 224.953 91.127% 943 27.9 41.26°C 0.98
12.087V 5.116V 3.364V 5.047V 246.853 47.08°C 115.06V
40% 21.430A 3.915A 3.935A 1.588A 300.056 91.602% 950 28.2 41.54°C 0.984
12.079V 5.109V 3.354V 5.038V 327.559 47.64°C 115.04V
50% 26.851A 4.899A 4.933A 1.79A 374.612 91.384% 958 28.3 42.17°C 0.985
12.071V 5.103V 3.345V 5.028V 409.937 48.69°C 115.02V
60% 32.307A 5.887A 5.937A 1.993A 449.563 90.95% 1250 34.4 42.85°C 0.987
12.064V 5.097V 3.335V 5.018V 494.299 49.94°C 115V
70% 37.769A 6.877A 6.944A 2.197A 524.47 90.32% 1701 41.1 43.62°C 0.987
12.056V 5.09V 3.327V 5.009V 580.68 51.13°C 114.98V
80% 43.303A 7.871A 7.954A 2.3A 599.663 89.743% 1955 44.5 43.73°C 0.988
12.049V 5.084V 3.319V 5.001V 668.196 52.06°C 114.96V
90% 49.173A 8.372A 8.454A 2.403A 674.621 89.225% 1985 44.8 44.76°C 0.989
12.042V 5.077V 3.312V 4.995V 756.082 54.04°C 114.93V
100% 54.852A 8.876A 8.994A 3.014A 749.818 88.446% 1972 44.6 45.43°C 0.986
12.034V 5.07V 3.302V 4.977V 847.773 55.52°C 114.91V
110% 60.401A 9.883A 10.095A 3.017A 824.769 87.771% 1986 44.8 46.66°C 0.986
12.028V 5.059V 3.298V 4.972V 939.669 57.51°C 114.89V
CL1 0.115A 12.337A 12.417A 0A 106.286 83.897% 0 <6.0 48.72°C 0.967
12.090V 5.123V 3.357V 5.073V 126.683 42.25°C 115.09V
CL2 0.115A 19.539A 0A 0A 101.399 82.618% 0 <6.0 50.53°C 0.966
12.092V 5.119V 3.366V 5.078V 122.736 43.17°C 115.09V
CL3 0.115A 0A 19.702A 0A 67.377 77.141% 0 <6.0 52.61°C 0.955
12.090V 5.114V 3.349V 5.075V 87.34 44.52°C 115.1V
CL4 62.269A 0A 0A 0A 749.55 89.433% 1994 44.8 45.74°C 0.99
12.037V 5.062V 3.324V 5.048V 838.103 55.85°C 114.91V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.416A 1.95A 1.955A 0.987A 75.008 87.179% 0 <6.0 44.65°C 0.846
12.094V 5.127V 3.376V 5.064V 86.037 40.23°C 230.27V
20% 9.847A 2.93A 2.94A 1.187A 149.96 90.895% 0 <6.0 45.71°C 0.921
12.091V 5.12V 3.367V 5.055V 164.984 40.68°C 230.26V
30% 15.627A 3.423A 3.436A 1.387A 224.974 92.463% 947 28.1 41.2°C 0.946
12.090V 5.113V 3.361V 5.046V 243.315 46.52°C 230.25V
40% 21.431A 3.917A 3.935A 1.588A 300.064 93.057% 952 28.2 41.38°C 0.959
12.079V 5.107V 3.355V 5.037V 322.449 47.45°C 230.25V
50% 26.852A 4.902A 4.931A 1.79A 374.603 93.047% 958 28.3 42.17°C 0.967
12.070V 5.1V 3.346V 5.028V 402.604 48.74°C 230.24V
60% 32.307A 5.89A 5.933A 1.993A 449.528 92.798% 1286 35.2 42.67°C 0.972
12.063V 5.094V 3.337V 5.018V 484.411 49.73°C 230.23V
70% 37.772A 6.88A 6.939A 2.196A 524.439 92.356% 1624 40.4 43.44°C 0.975
12.055V 5.088V 3.329V 5.009V 567.843 51.22°C 230.22V
80% 43.310A 7.875A 7.948A 2.3A 599.64 92.016% 1888 43.8 43.64°C 0.978
12.047V 5.081V 3.321V 5.002V 651.672 52.05°C 230.21V
90% 49.184A 8.378A 8.451A 2.403A 674.662 91.642% 1978 44.7 44.98°C 0.98
12.040V 5.074V 3.313V 4.995V 736.2 54.18°C 230.2V
100% 54.867A 8.883A 8.99A 3.015A 749.889 91.213% 1980 44.7 46.12°C 0.981
12.032V 5.067V 3.303V 4.977V 822.133 56.14°C 230.19V
110% 60.428A 9.884A 10.095A 3.018A 824.897 90.769% 1973 44.6 46.73°C 0.983
12.024V 5.06V 3.298V 4.971V 908.812 57.64°C 230.18V
CL1 0.116A 12.336A 12.408A 0A 106.304 84.293% 511 9.1 42.67°C 0.894
12.090V 5.124V 3.36V 5.072V 126.116 48.24°C 230.27V
CL2 0.116A 19.54A 0A 0A 101.414 83.561% 0 <6.0 50.76°C 0.889
12.092V 5.119V 3.368V 5.078V 121.367 43.07°C 230.27V
CL3 0.115A 0A 19.739A 0A 67.381 77.906% 0 <6.0 52.26°C 0.847
12.091V 5.112V 3.343V 5.074V 86.483 44.15°C 230.28V
CL4 62.281A 0A 0A 0A 749.62 92.033% 1989 44.8 45.75°C 0.981
12.036V 5.062V 3.319V 5.048V 814.524 55.77°C 230.19V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.488A 0.487A 0.197A 20.001 69.932% 0 <6.0 40.09°C 0.876
12.097V 5.123V 3.385V 5.085V 28.606 37.04°C 115.12V
40W 2.704A 0.683A 0.683A 0.295A 40.002 81.058% 0 <6.0 40.71°C 0.926
12.086V 5.121V 3.383V 5.082V 49.349 37.45°C 115.11V
60W 4.180A 0.879A 0.878A 0.394A 60.001 85.662% 0 <6.0 42.23°C 0.946
12.090V 5.12V 3.382V 5.078V 70.042 38.48°C 115.11V
80W 5.650A 1.074A 1.074A 0.493A 79.952 87.795% 0 <6.0 44.03°C 0.956
12.093V 5.122V 3.38V 5.075V 91.063 39.98°C 115.1V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.488A 0.487A 0.197A 19.999 70.628% 0 <6.0 40.47°C 0.6
12.093V 5.124V 3.384V 5.086V 28.315 37.4°C 230.28V
40W 2.706A 0.683A 0.683A 0.295A 40.001 82.139% 0 <6.0 41.55°C 0.739
12.084V 5.122V 3.381V 5.082V 48.7 38.21°C 230.28V
60W 4.180A 0.878A 0.879A 0.394A 60.003 86.5% 0 <6.0 42.34°C 0.811
12.089V 5.122V 3.38V 5.079V 69.371 38.83°C 230.27V
80W 5.650A 1.073A 1.075A 0.493A 79.962 88.582% 0 <6.0 42.95°C 0.853
12.093V 5.123V 3.378V 5.075V 90.269 39.25°C 230.27V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load7.88mV14.25mV9.97mV15.97mVPass
20% Load9.26mV15.88mV11.86mV15.81mVPass
30% Load16.10mV17.21mV12.32mV20.52mVPass
40% Load13.20mV16.24mV13.14mV17.76mVPass
50% Load14.33mV18.18mV14.78mV17.76mVPass
60% Load14.12mV19.05mV17.33mV16.43mVPass
70% Load15.91mV21.55mV19.74mV17.45mVPass
80% Load17.24mV22.12mV22.14mV17.30mVPass
90% Load17.81mV23.19mV23.42mV18.02mVPass
100% Load26.39mV26.57mV25.50mV21.69mVPass
110% Load28.90mV26.83mV28.32mV22.32mVPass
Crossload110.42mV25.55mV28.99mV15.49mVPass
Crossload28.80mV17.67mV31.81mV14.84mVPass
Crossload38.24mV24.26mV17.69mV14.84mVPass
Crossload424.92mV15.41mV10.97mV19.05mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.14mV14.97mV9.77mV16.43mVPass
20% Load8.80mV14.97mV11.04mV16.07mVPass
30% Load15.53mV17.21mV12.48mV17.25mVPass
40% Load12.41mV16.45mV13.45mV17.19mVPass
50% Load12.69mV18.03mV14.73mV17.50mVPass
60% Load13.10mV19.00mV17.08mV17.14mVPass
70% Load14.38mV21.40mV19.33mV17.35mVPass
80% Load15.15mV21.86mV21.38mV17.81mVPass
90% Load15.86mV22.73mV23.42mV17.71mVPass
100% Load24.33mV24.80mV25.19mV22.28mVPass
110% Load25.56mV25.80mV27.07mV22.53mVPass
Crossload19.92mV24.43mV27.46mV15.33mVPass
Crossload28.24mV17.00mV32.73mV14.74mVPass
Crossload37.83mV17.47mV16.98mV14.07mVPass
Crossload423.34mV14.57mV10.75mV18.86mVPass

The results above are not used in the certification process

Gigabyte UD750GM

Top side

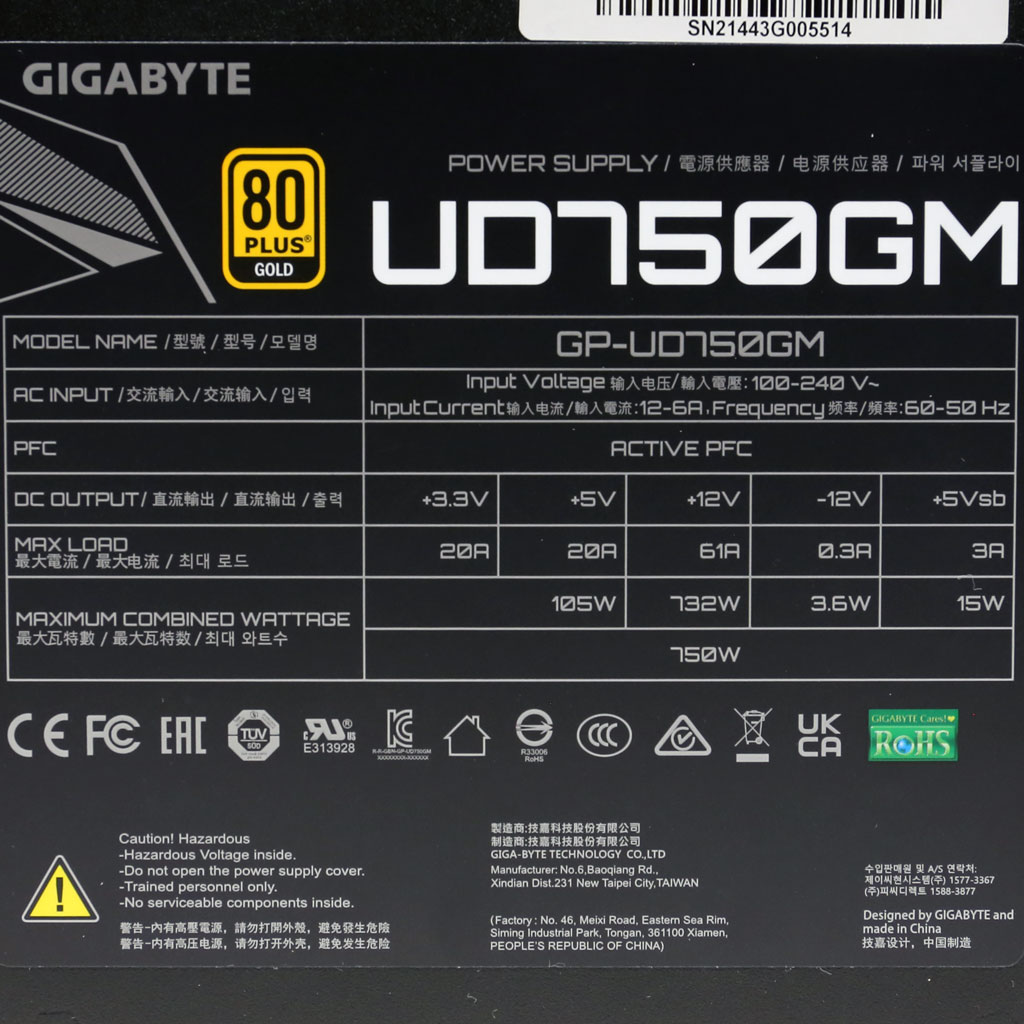

Power specifications label
