CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

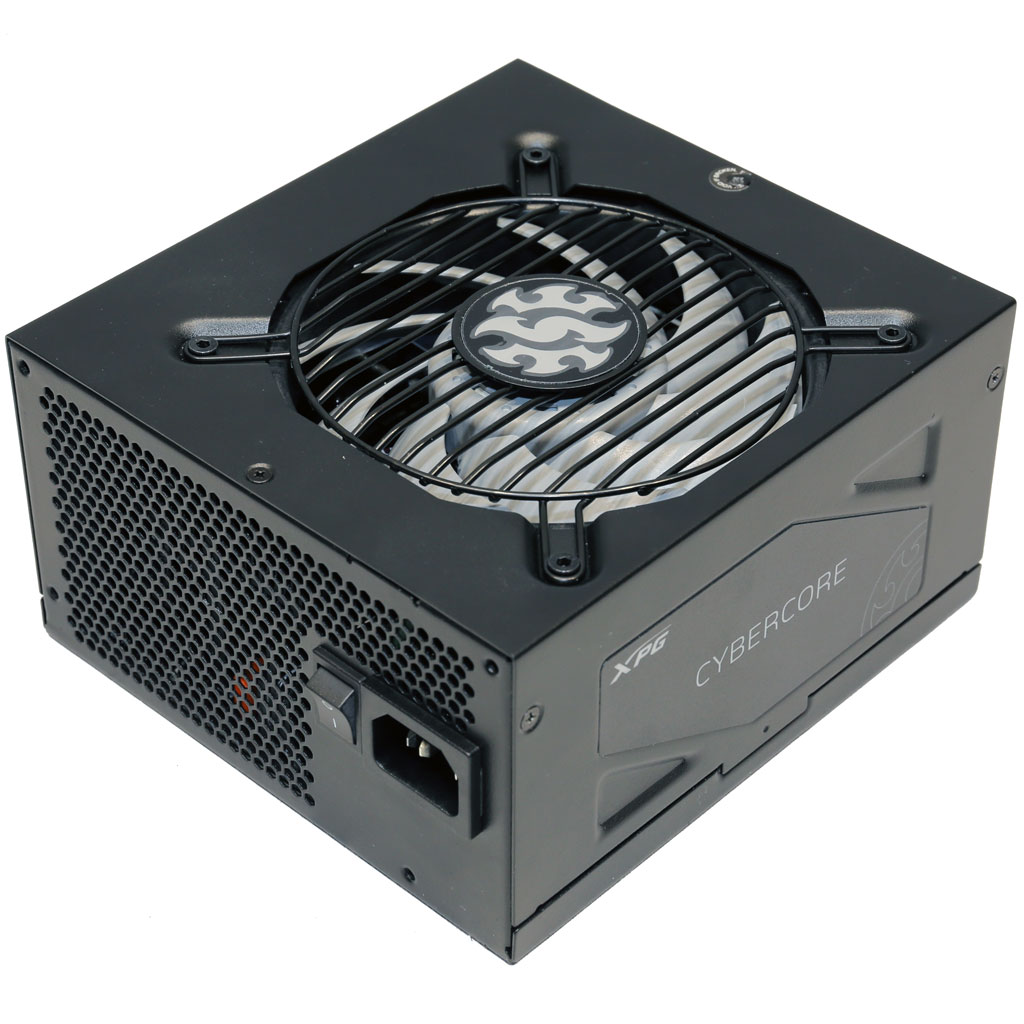

XPG Cybercore 1000 Platinum
Serial Number4L4380000759
Lab IDAD10001994
  • Report: 22PS1994A
  • Receipt Date: Feb 9, 2022
  • Test Date: Mar 28, 2022
  • Report Date: Mar 28, 2022
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Lab Director

General Information

DUT Information

BrandXPG
Manufacturer (OEM)CWT
SeriesCybercore
Model Number
Serial Number4L4380000759
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)13
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling120mm Double Ball Bearing Fan
(D1225C12B6ZPAC7)
Semi-Passive Operation✓
Cable DesignFully Modular

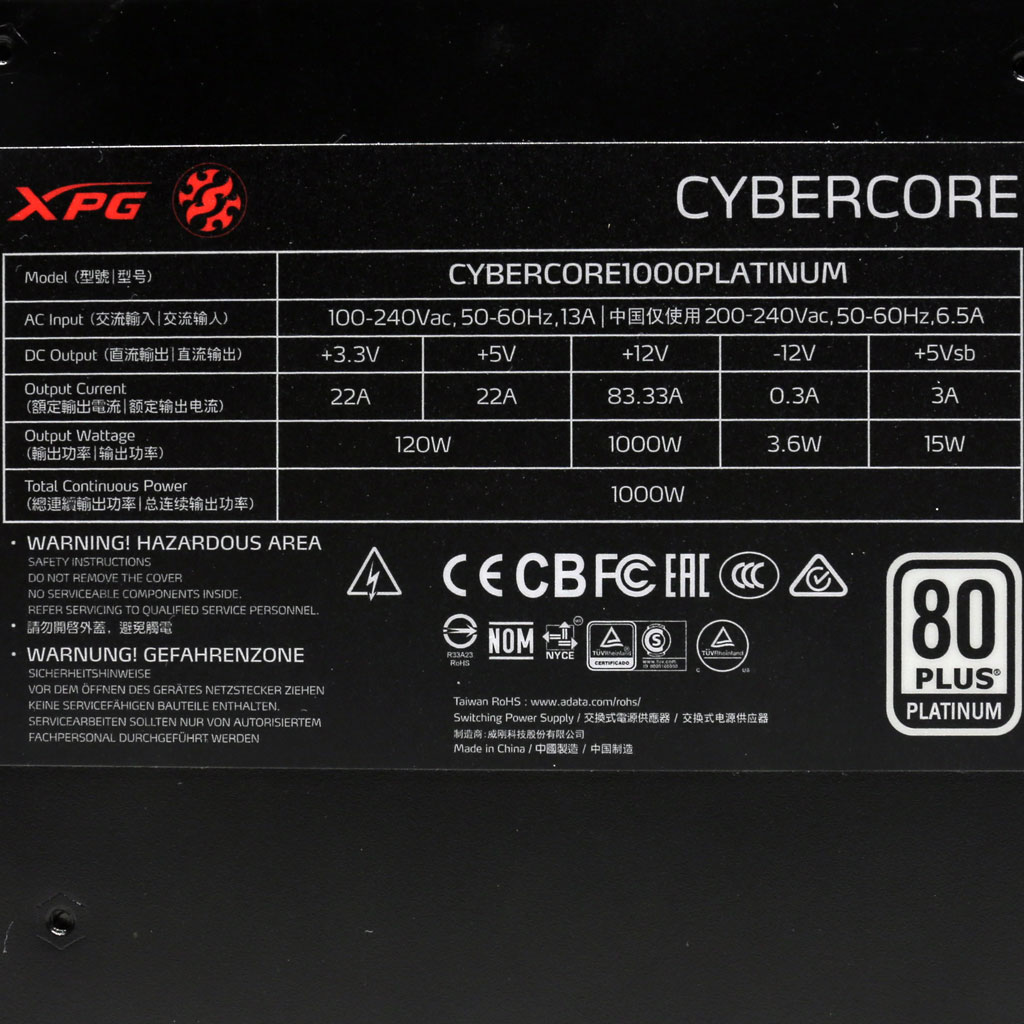

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222283.3330.3
Watts1201000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (750mm) 1 1 16-18AWG No
4+4 pin EPS12V (750mm) 2 2 16AWG No
6+2 pin PCIe (750mm) 2 2 16AWG No
6+2 pin PCIe (750mm+150mm) 2 4 16-18AWG No
SATA (600mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (600mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (150mm) 1 1 20AWG No

Parts Description

General Data -
Manufacturer (OEM) CWT
PCB Type Double Sided
Primary Side -
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK207R0 (7 Ohm) & Relay
Bridge Rectifier(s) 2x Vishay LVB2560 (600V, 25A @ 105°C)
APFC MOSFETs 2x Infineon IPA60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm) &
1x Sync Power SPN5003 FET (for reduced no-load consumption)
APFC Boost Diode 2x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Bulk Cap(s) 1x Nippon Chemi-Con (400V, 680uF, 2,000h @ 105°C, KMW) &
1x Nippon Chemi-Con (400V, 560uF, 2,000h @ 105°C, KMR)
Main Switchers 4x Alpha & Omega AOTF29S50 (500V, 18A @ 100°C, Rds(on): 0.15Ohm)
IC Driver 2x Silicon Labs Si8233BD &
1x On Semiconductor NCP81071
APFC MCU 1x Texas Instrument UCD3138A
LLC Resonant MCU 1x Texas Instrument UCD3138A
Topology Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Infineon BSC016N06NS (60V, 143A @ 100°C, Rds(on): 1.6mOhm)
5V & 3.3V DC-DC Converters
Filtering Capacitors Electrolytic: 4x Nippon Chemi-Con (105°C,W), 2x Nippon Chemi-Con (2-5,000h @ 105°C, KZE), 4x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 2x Rubycon (6-10,000h @ 105°C, ZLH), 1x Rubycon (4-10,000h @ 105°C, YXJ), 1x Rubycon (4-10,000h @ 105°C, YXF)
Polymer: 29x FPCAP, 4x Nippon Chemi-Con
Supervisor IC Weltrend WT7502R (OVP, UVP, SCP, PG)
Fan Model XPG Nidec D1225C12B6ZPAC7 (120mm, 12V, 0.13A, Double Ball Bearing Fan)
5VSB Circuit -
Rectifier 1x PS1045L (45V, 10A) SBR &
1x IPS ISD04N65A FET
Standby PWM Controller On-Bright OB5282

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)89.303%
Average Noise Output (>1450 Load Combinations)29.82dBA
Average PF (>1450 Load Combinations)0.981
Efficiency With 10W (≤500W) or 2% (>500W) Load66.799%
Standby Power Consumption0.0455W
12V Ripple (Full Load)24.52mV
5V Ripple (Full Load)11.81mV
3.3V Ripple (Full Load)25.00mV
5VSB Ripple (Full Load)10.74mV
12V Load Regulation1.30%
5V Load Regulation0.70%
3.3V Load Regulation0.79%
5VSB Load Regulation1.71%
Inrush Current26.670A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)91.165%
Average Noise Output (>1450 Load Combinations)29.85dBA
Average PF (>1450 Load Combinations)0.947
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0869W
12V Ripple (Full Load)25.58mV
5V Ripple (Full Load)10.62mV
3.3V Ripple (Full Load)22.05mV
5VSB Ripple (Full Load)9.53mV
12V Load Regulation1.49%
5V Load Regulation0.92%
3.3V Load Regulation0.85%
5VSB Load Regulation1.75%
Inrush Current95.550A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal19.60ms
AC Loss to PWR_OK Hold Up Time17.60ms
PWR_OK Inactive to DC Loss Delay2.00ms
PSU Timings: T1 (20% / 100%)55.0ms50.0ms
PSU Timings: T3 (20% / 100%)139.0ms141.0ms
OPP (23.48°C / 37.27°C)122.33%122.34%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.6
AC Loss to PWR_OK Hold Up Time (ms)17.6
PWR_OK Inactive to DC Loss Delay (ms)2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.14 V 115.13 V 113.85 V 115.16 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.045 W 0.041 W N/A 0.049 W N/A N/A
Apparent Power: 12.520 W 12.517 W N/A 12.523 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.37 V 230.34 V 227.70 V 230.37 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.087 W 0.079 W N/A 0.095 W N/A N/A
Apparent Power: 41.814 W 41.810 W N/A 41.822 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

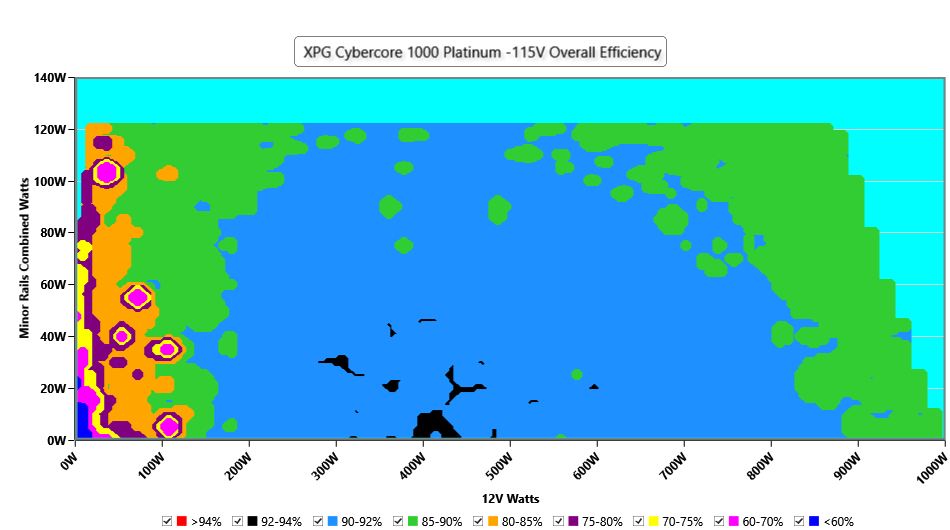

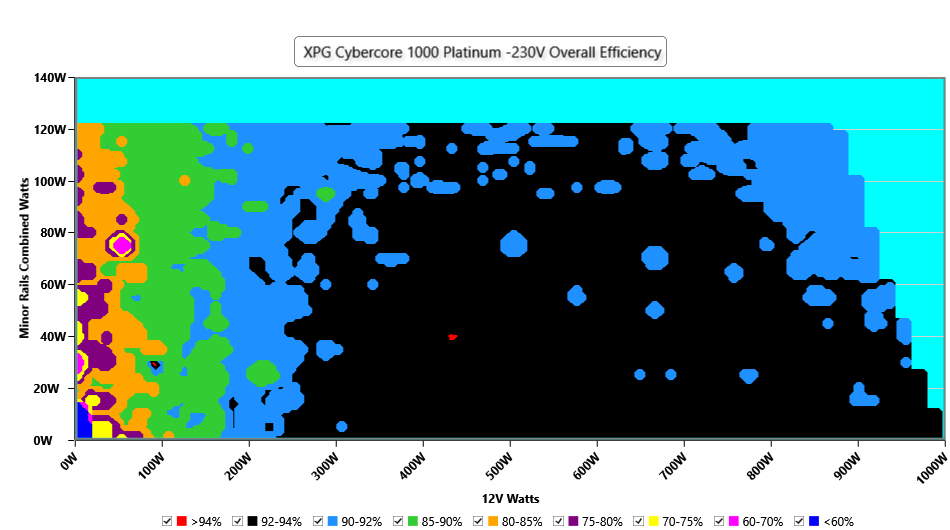

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

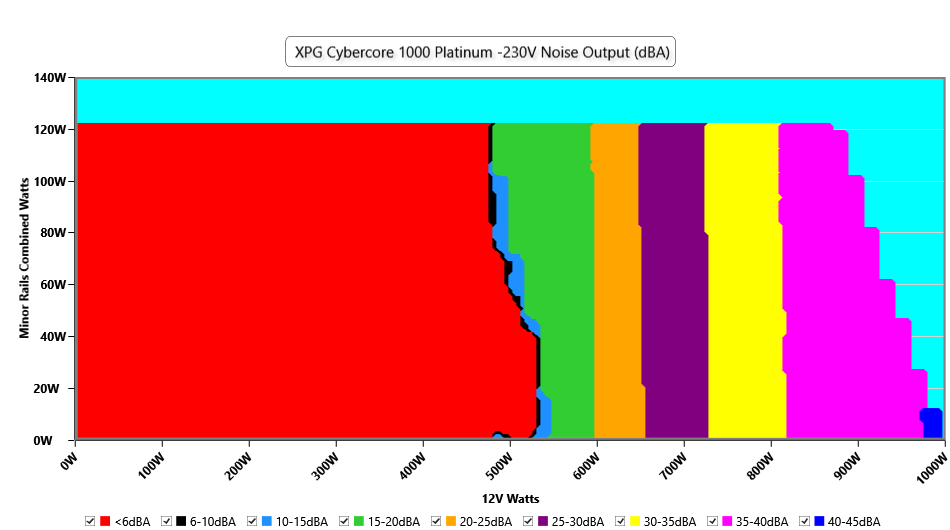

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

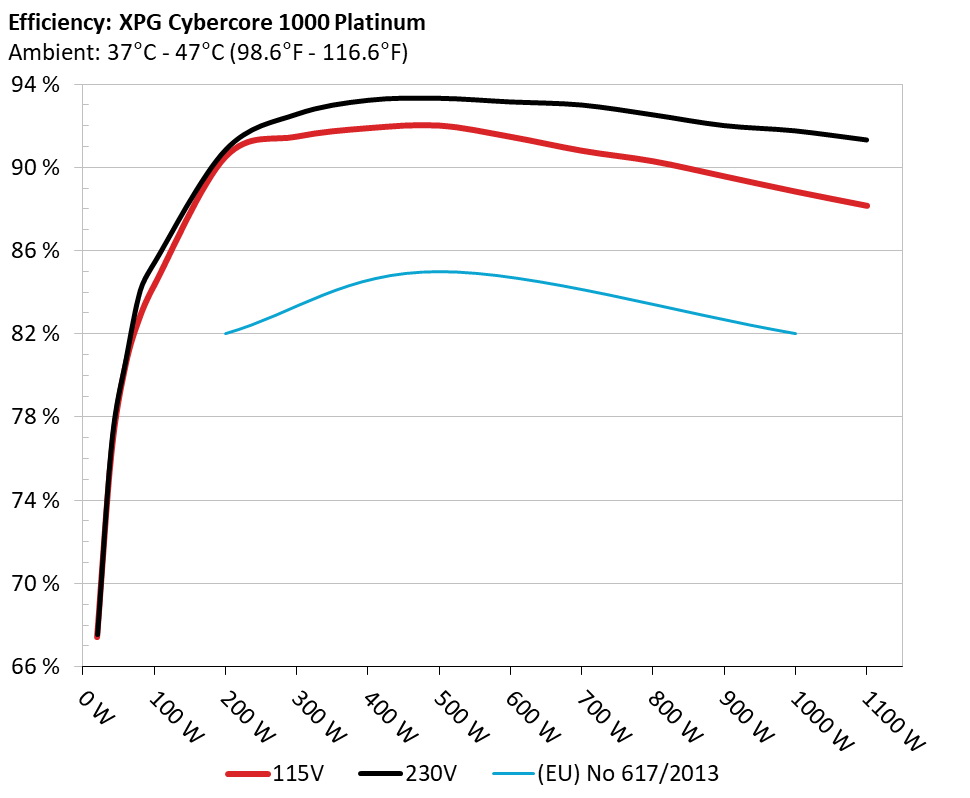

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

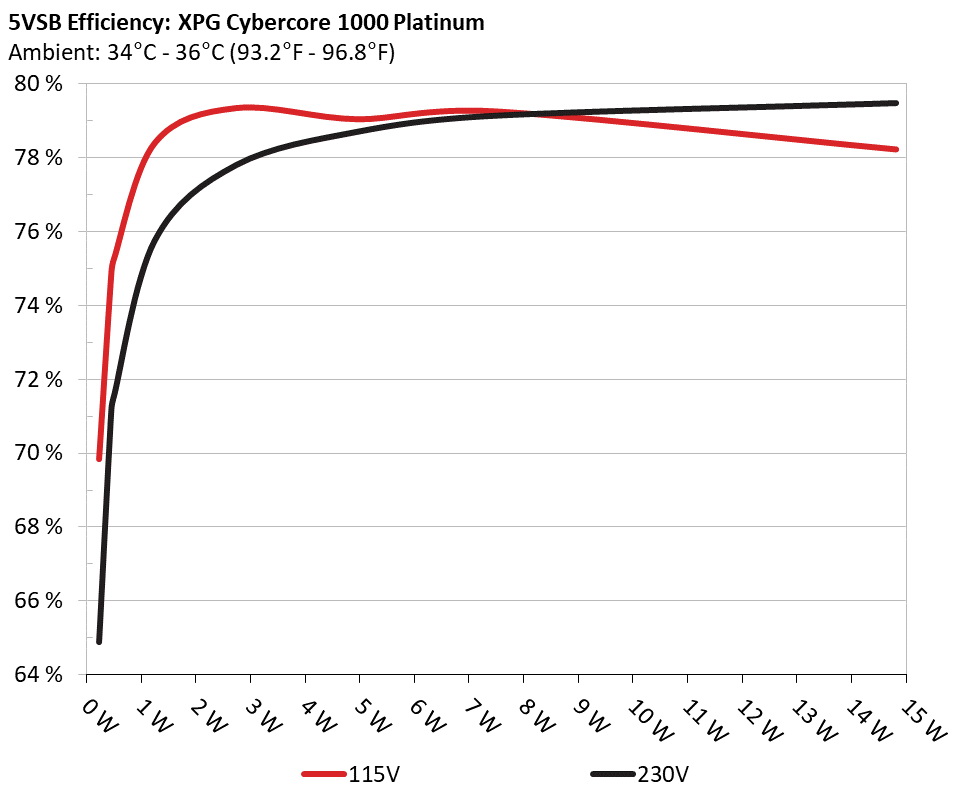

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225W 69.831% 0.026
4.993V 0.322W 115.14V
2 0.09A 0.449W 74.858% 0.048
4.99V 0.6W 115.14V
3 0.55A 2.74W 79.34% 0.233
4.98V 3.453W 115.14V
4 1A 4.973W 79.035% 0.343
4.972V 6.291W 115.14V
5 1.5A 7.447W 79.252% 0.407
4.963V 9.397W 115.14V
6 3A 14.811W 78.22% 0.491
4.937V 18.936W 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.225W 64.88% 0.008
4.992V 0.348W 230.36V
2 0.09A 0.449W 71.157% 0.015
4.989V 0.632W 230.36V
3 0.55A 2.739W 77.8% 0.082
4.979V 3.521W 230.36V
4 1A 4.973W 78.704% 0.14
4.971V 6.319W 230.36V
5 1.5A 7.445W 79.131% 0.196
4.962V 9.409W 230.36V
6 3A 14.807W 79.473% 0.311
4.935V 18.633W 230.35V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.496A 1.982A 1.997A 0.994A 100.009 84.327% 0 <6.0 45.01°C 0.861
12.070V 5.047V 3.306V 5.029V 118.284 40.79°C 115.14V
20% 14.020A 2.975A 2.997A 1.195A 199.964 90.502% 0 <6.0 46.19°C 0.992
12.058V 5.044V 3.303V 5.023V 220.978 41.68°C 115.1V
30% 21.919A 3.472A 3.499A 1.396A 300.022 91.474% 0 <6.0 46.64°C 0.996
12.042V 5.041V 3.301V 5.017V 328.106 41.82°C 115.07V
40% 29.810A 3.971A 4.001A 1.597A 399.737 91.88% 0 <6.0 47.47°C 0.996
12.027V 5.038V 3.299V 5.011V 435.011 42.4°C 115.04V
50% 37.373A 4.966A 5.005A 1.799A 499.465 92.004% 0 <6.0 48.47°C 0.997
12.013V 5.035V 3.297V 5.005V 542.887 42.83°C 115.02V
60% 45.039A 5.966A 6.013A 2.001A 600.021 91.466% 929 16.2 43.48°C 0.997
11.994V 5.03V 3.293V 4.997V 656.029 49.58°C 114.99V
70% 52.641A 6.967A 7.023A 2.205A 699.769 90.798% 1207 24.2 43.92°C 0.997
11.980V 5.025V 3.29V 4.989V 770.621 50.76°C 114.96V
80% 60.342A 7.97A 8.032A 2.308A 799.822 90.291% 1520 30.2 44.23°C 0.998
11.963V 5.021V 3.287V 4.984V 885.962 52.05°C 114.94V
90% 68.388A 8.474A 8.526A 2.411A 899.596 89.569% 1794 35.5 44.84°C 0.999
11.948V 5.016V 3.284V 4.978V 1004.185 53.4°C 114.92V
100% 76.274A 8.978A 9.052A 3.024A 999.64 88.835% 2016 38.5 45.46°C 0.998
11.930V 5.013V 3.281V 4.961V 1125.218 55.04°C 114.89V
110% 84.115A 9.983A 10.158A 3.026A 1100.265 88.152% 2196 40.9 46.83°C 0.998
11.911V 5.009V 3.278V 4.958V 1248.338 57.55°C 114.86V
CL1 0.116A 14.304A 14.452A 0A 121.311 80.854% 0 <6.0 53.72°C 0.878
12.051V 5.048V 3.3V 5.071V 150.132 48.15°C 115.13V
CL2 0.116A 21.755A 0A 0A 111.399 79.795% 925 15.7 42.65°C 0.873
12.058V 5.056V 3.302V 5.1V 139.586 50.19°C 115.13V
CL3 0.116A 0A 21.955A 0A 73.994 73.495% 923 15.7 41.46°C 0.785
12.057V 5.053V 3.307V 5.045V 100.664 51.02°C 115.15V
CL4 83.740A 0A 0A 0A 1000.131 89.337% 2185 40.7 46.99°C 0.998
11.943V 5.021V 3.29V 5.027V 1118.937 58.3°C 114.89V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.500A 1.981A 1.996A 0.994A 100.01 85.426% 0 <6.0 44.82°C 0.836
12.064V 5.05V 3.307V 5.033V 116.992 40.57°C 230.35V
20% 14.032A 2.972A 2.996A 1.194A 199.962 90.839% 0 <6.0 45.56°C 0.927
12.048V 5.047V 3.305V 5.027V 220.078 41°C 230.34V
30% 21.939A 3.47A 3.497A 1.395A 300.009 92.544% 0 <6.0 46.05°C 0.946
12.031V 5.045V 3.303V 5.021V 324.238 41.21°C 230.33V
40% 29.844A 3.967A 3.999A 1.596A 399.71 93.212% 0 <6.0 46.63°C 0.953
12.012V 5.042V 3.301V 5.014V 428.83 41.54°C 230.31V
50% 37.431A 4.961A 5.002A 1.797A 499.439 93.306% 0 <6.0 47.73°C 0.962
11.993V 5.04V 3.299V 5.009V 535.37 42.17°C 230.3V
60% 45.115A 5.959A 6.009A 2A 599.971 93.133% 939 16.0 42.42°C 0.964
11.973V 5.036V 3.295V 5.002V 644.255 48.65°C 230.28V
70% 52.746A 6.96A 7.019A 2.204A 699.704 92.986% 1205 24.2 43.16°C 0.965
11.956V 5.03V 3.291V 4.993V 752.477 50.26°C 230.27V
80% 60.469A 7.964A 8.031A 2.307A 799.762 92.514% 1522 30.2 43.72°C 0.978
11.937V 5.024V 3.287V 4.986V 864.513 51.54°C 230.26V
90% 68.553A 8.468A 8.525A 2.41A 899.537 92% 1798 35.6 44.56°C 0.985
11.919V 5.02V 3.284V 4.981V 977.83 53.03°C 230.25V
100% 76.406A 8.989A 9.052A 3.023A 999.343 91.746% 2017 38.5 45.06°C 0.984
11.906V 5.006V 3.281V 4.962V 1089.275 54.73°C 230.23V
110% 84.313A 9.995A 10.157A 3.025A 1100.08 91.308% 2202 40.9 46.68°C 0.985
11.881V 5.003V 3.278V 4.96V 1204.821 57.47°C 230.21V
CL1 0.116A 14.328A 14.449A 0A 121.3 81.813% 0 <6.0 45.43°C 0.881
12.052V 5.039V 3.301V 5.072V 148.331 39.96°C 230.34V
CL2 0.116A 21.836A 0A 0A 111.382 80.595% 924 16.3 42.46°C 0.869
12.061V 5.037V 3.301V 5.097V 138.269 49.6°C 230.34V
CL3 0.116A 0A 21.96A 0A 73.987 74.294% 922 16.4 40.97°C 0.8
12.059V 5.052V 3.306V 5.044V 99.713 50.12°C 230.35V
CL4 83.962A 0A 0A 0A 1000.084 92.179% 2190 40.8 45.25°C 0.984
11.911V 5.019V 3.289V 5.024V 1085.125 56.33°C 230.22V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.495A 0.499A 0.198A 20 67.441% 0 <6.0 39.78°C 0.663
12.086V 5.048V 3.307V 5.046V 29.856 36.71°C 115.14V
40W 2.706A 0.693A 0.699A 0.298A 39.999 76.257% 0 <6.0 40.57°C 0.735
12.082V 5.048V 3.307V 5.043V 52.499 37.27°C 115.14V
60W 4.184A 0.892A 0.898A 0.397A 59.998 80.508% 0 <6.0 41.84°C 0.767
12.078V 5.048V 3.307V 5.042V 74.463 38.09°C 115.14V
80W 5.658A 1.09A 1.098A 0.496A 79.956 82.812% 0 <6.0 44.42°C 0.833
12.074V 5.048V 3.307V 5.04V 96.402 40.34°C 115.13V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.229A 0.495A 0.499A 0.198A 20.001 67.562% 0 <6.0 40.11°C 0.443
12.083V 5.052V 3.309V 5.049V 29.883 37.01°C 230.36V
40W 2.706A 0.693A 0.698A 0.297A 39.999 76.798% 0 <6.0 40.76°C 0.615
12.079V 5.051V 3.308V 5.046V 52.525 37.49°C 230.36V
60W 4.184A 0.891A 0.898A 0.397A 59.997 80.77% 0 <6.0 41.83°C 0.717
12.075V 5.05V 3.308V 5.043V 74.293 38.3°C 230.36V
80W 5.660A 1.089A 1.097A 0.496A 79.953 84.075% 0 <6.0 43.53°C 0.789
12.071V 5.049V 3.307V 5.041V 95.286 39.75°C 230.36V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load10.98mV6.49mV6.24mV5.71mVPass
20% Load18.25mV6.39mV4.10mV6.07mVPass
30% Load11.64mV6.75mV4.91mV5.76mVPass
40% Load13.13mV7.82mV10.49mV6.52mVPass
50% Load17.83mV7.16mV6.40mV6.88mVPass
60% Load16.34mV7.42mV6.40mV6.48mVPass
70% Load15.07mV7.82mV12.95mV7.04mVPass
80% Load17.77mV10.07mV20.06mV8.87mVPass
90% Load19.00mV11.25mV24.72mV10.15mVPass
100% Load24.52mV11.81mV25.00mV10.74mVPass
110% Load26.16mV10.42mV17.85mV9.66mVPass
Crossload112.61mV7.51mV14.50mV5.59mVPass
Crossload211.24mV7.57mV4.30mV6.02mVPass
Crossload323.09mV5.88mV15.56mV5.00mVPass
Crossload424.17mV8.74mV13.78mV8.97mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load10.72mV6.60mV6.19mV6.27mVPass
20% Load9.81mV6.03mV3.89mV5.87mVPass
30% Load11.36mV6.09mV4.61mV5.40mVPass
40% Load15.22mV7.00mV9.06mV6.02mVPass
50% Load13.99mV7.26mV10.03mV6.02mVPass
60% Load16.86mV8.74mV13.00mV7.44mVPass
70% Load18.44mV7.46mV6.96mV6.88mVPass
80% Load18.13mV9.92mV20.68mV8.57mVPass
90% Load17.73mV11.15mV23.54mV9.08mVPass
100% Load25.58mV10.62mV22.05mV9.53mVPass
110% Load28.00mV10.21mV17.28mV10.28mVPass
Crossload111.57mV6.98mV14.53mV5.64mVPass
Crossload211.39mV7.52mV4.20mV5.35mVPass
Crossload320.79mV5.57mV15.41mV4.79mVPass
Crossload425.63mV8.66mV9.96mV8.63mVPass

The results above are not used in the certification process

XPG Cybercore 1000 Platinum

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
