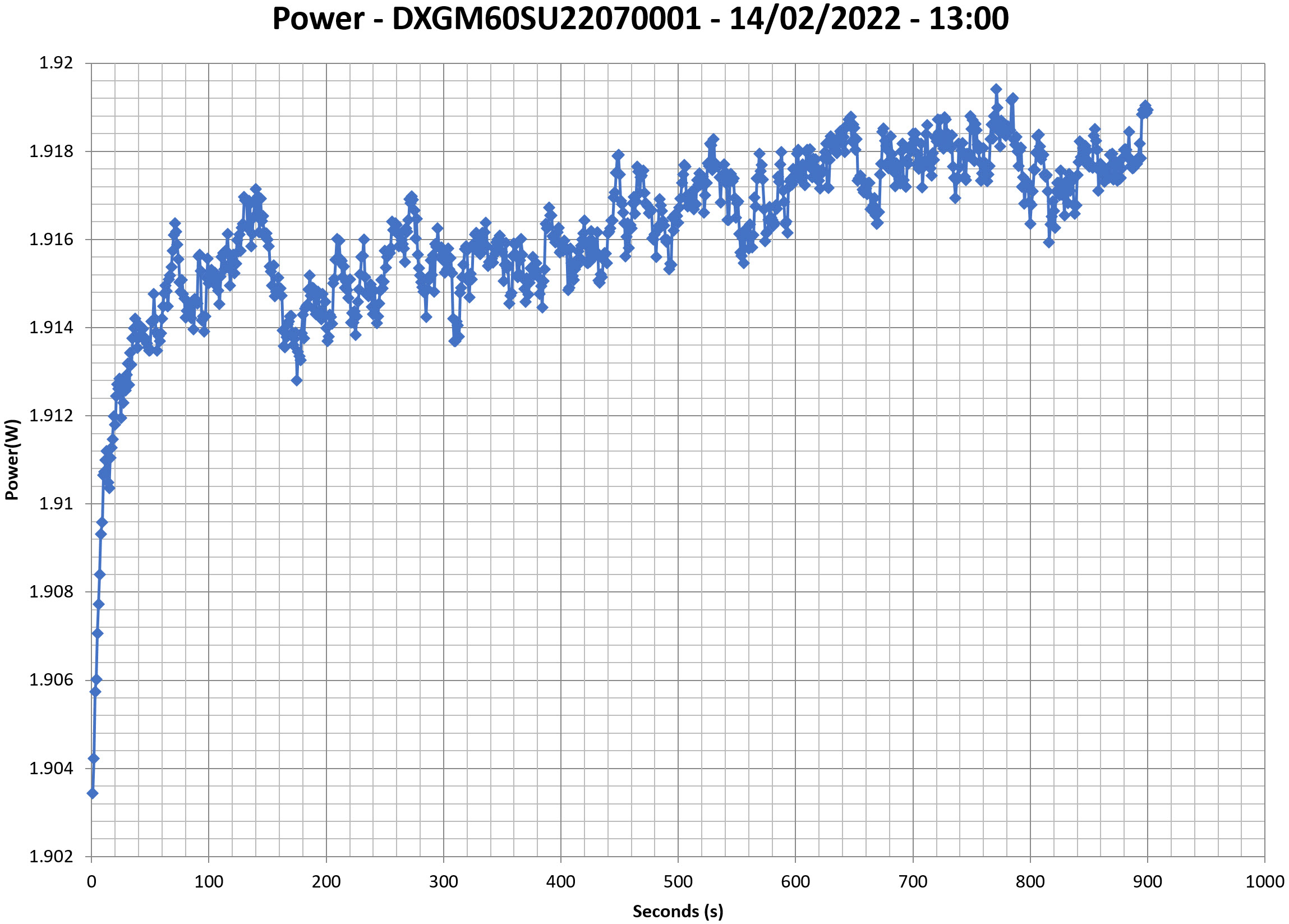

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

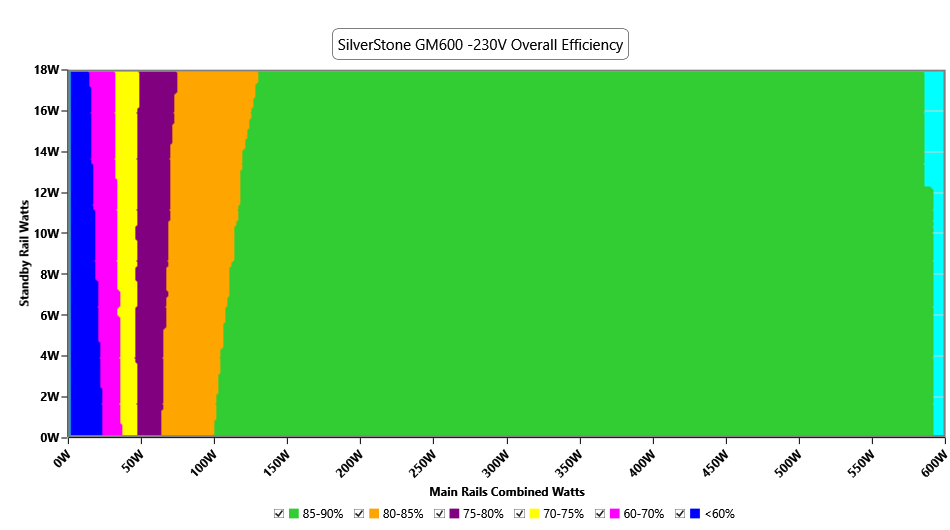

Efficiency Graph
230V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
Noise Graph
230V
Indicative Performance

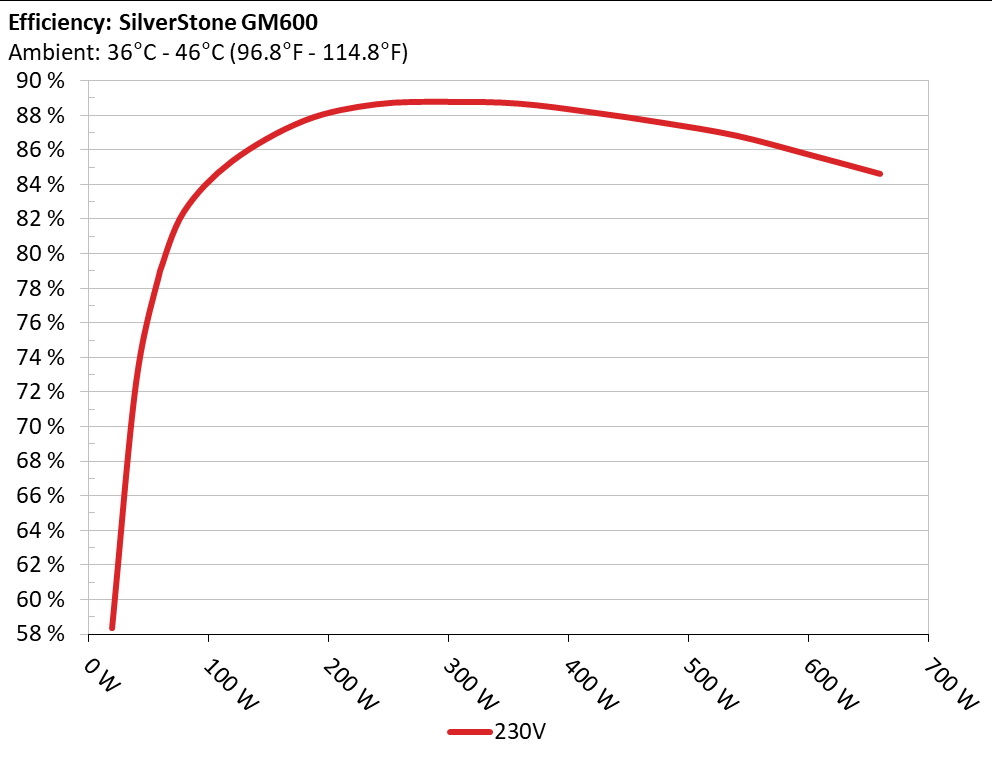

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

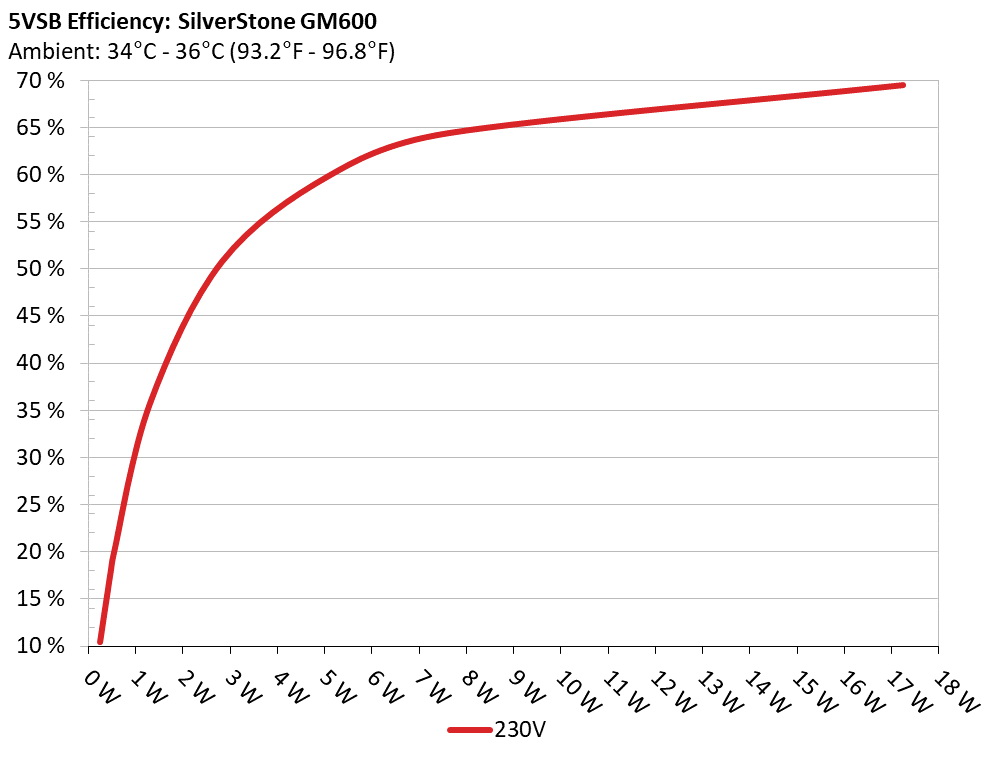

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
5VSB Efficiency (ERP LOT 3/6 & CEC) 230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.235W
10.377%
0.056
5.23V
2.265W
230.35V
2
0.09A
0.468W
18.165%
0.063
5.203V
2.577W
230.35V
3
0.55A
2.818W
50.762%
0.128
5.125V
5.551W
230.33V
4
1A
5.087W
59.881%
0.182
5.087V
8.495W
230.33V
5
1.5A
7.58W
64.359%
0.231
5.053V
11.778W
230.34V
6
3.5A
17.23W
69.475%
0.344
4.924V
24.8W
230.34V
Supplementary Tests (For Reference)
Typical Load Tests 230V
Test
Main Rail
Standby Rail
DC/AC (Watts)
Efficiency
Temps (In/Out)
PF/AC Volts
10%
2.756A
0.982A
38.408
68.681%
34.56°C
0.683
12.123V
5.093V
55.922
38.73°C
230.24V
20%
5.845A
1.183A
76.819
78.986%
34.57°C
0.818
12.117V
5.07V
97.256
39.01°C
230.24V
30%
8.939A
1.387A
115.188
82.852%
35.2°C
0.892
12.102V
5.048V
139.029
39.89°C
230.24V
40%
12.045A
1.592A
153.641
84.614%
35.57°C
0.928
12.091V
5.026V
181.579
40.51°C
230.25V
50%
15.154A
1.798A
192.023
85.57%
35.96°C
0.947
12.077V
5.006V
224.403
41.52°C
230.25V
60%
18.281A
2A
230.447
86.006%
36.42°C
0.96
12.060V
4.985V
267.943
42.72°C
230.25V
70%
21.412A
2.217A
268.858
86.216%
36.9°C
0.965
12.043V
4.964V
311.842
44.24°C
230.25V
80%
24.596A
2.324A
307.298
86.202%
37.43°C
0.968
12.026V
4.95V
356.486
45.85°C
230.25V
90%
27.808A
2.432A
345.841
85.975%
38.57°C
0.973
12.005V
4.935V
402.256
47.58°C
230.25V
100%
30.977A
2.539A
383.913
85.572%
39.01°C
0.975
11.990V
4.924V
448.641
49.44°C
230.25V
110%
34.224A
2.541A
422.287
85.035%
40.45°C
0.975
11.974V
4.919V
496.605
51.71°C
230.24V
The results above are not used in the certification process
Light Load Tests 230V
Test
Main Rail
Standby Rail
DC/AC (Watts)
Efficiency
Temps (In/Out)
PF/AC Volts
20W
1.566A
0.193A
20.001
56.274%
31.36°C
0.569
12.128V
5.175V
35.542
34.4°C
230.22V
40W
3.176A
0.291A
40.007
71.01%
32.65°C
0.686
12.126V
5.156V
56.339
35.83°C
230.22V
60W
4.785A
0.389A
60.005
77.005%
33.55°C
0.763
12.123V
5.141V
77.924
36.98°C
230.22V
80W
6.392A
0.488A
79.95
80.372%
33.62°C
0.826
12.116V
5.127V
99.476
37.31°C
230.23V
The results above are not used in the certification process
Ripple Measurements 230V
Test
12V
12VSB
Pass/Fail
10% Load
8.61mV
7.84mV
Pass
20% Load
9.32mV
7.54mV
Pass
30% Load
10.68mV
7.79mV
Pass
40% Load
12.30mV
7.49mV
Pass
50% Load
14.38mV
8.04mV
Pass
60% Load
18.84mV
9.46mV
Pass
70% Load
22.03mV
9.87mV
Pass
80% Load
24.35mV
10.42mV
Pass
90% Load
28.45mV
11.84mV
Pass
100% Load
34.85mV
13.70mV
Pass
110% Load
39.13mV
14.07mV
Pass
The results above are not used in the certification process
SilverStone GM600 Silver

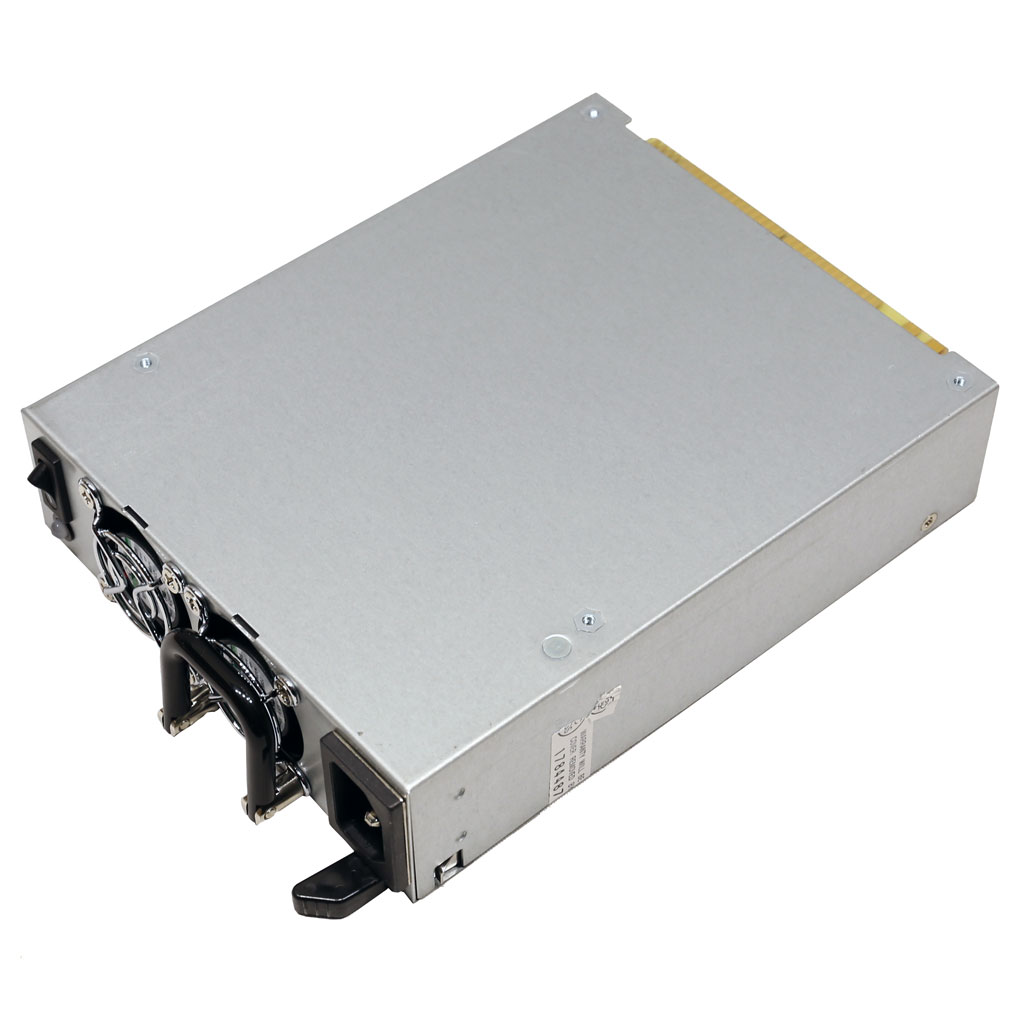

Top side

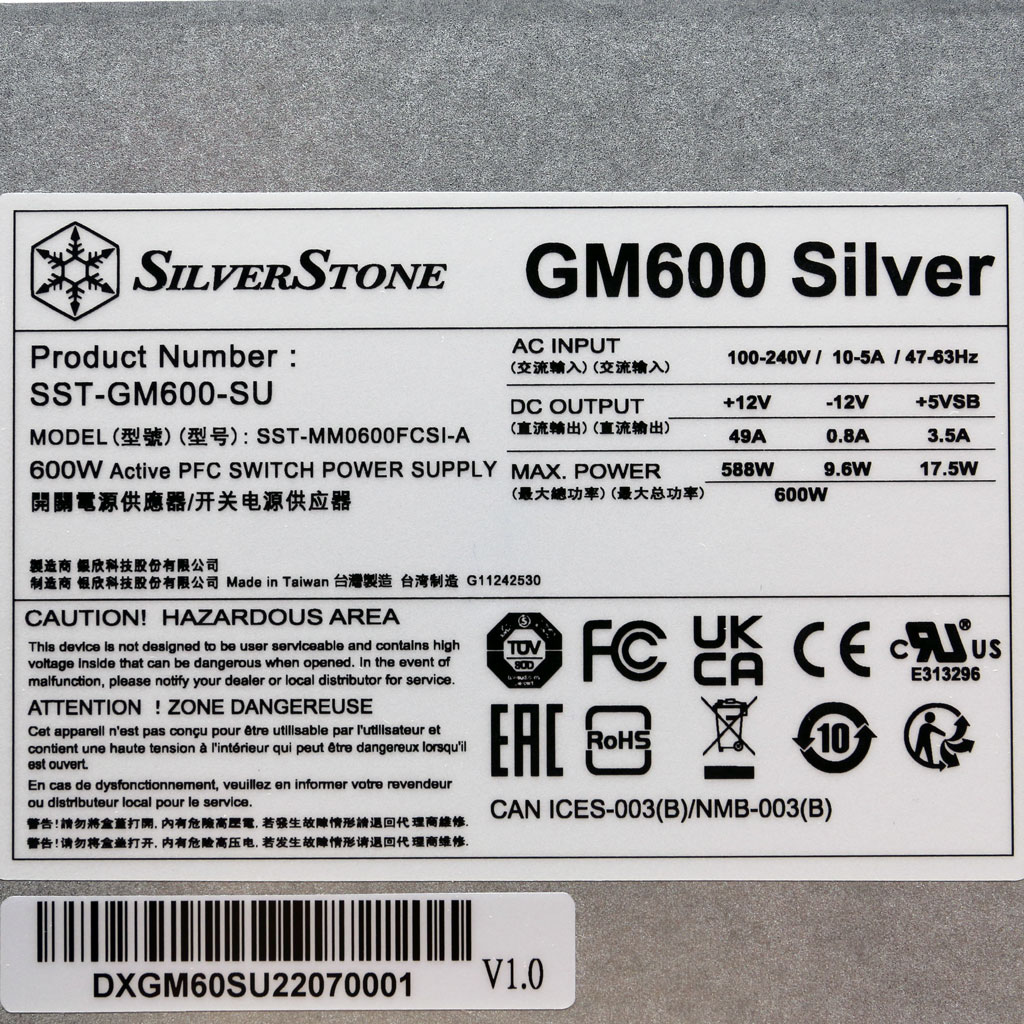

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
