CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

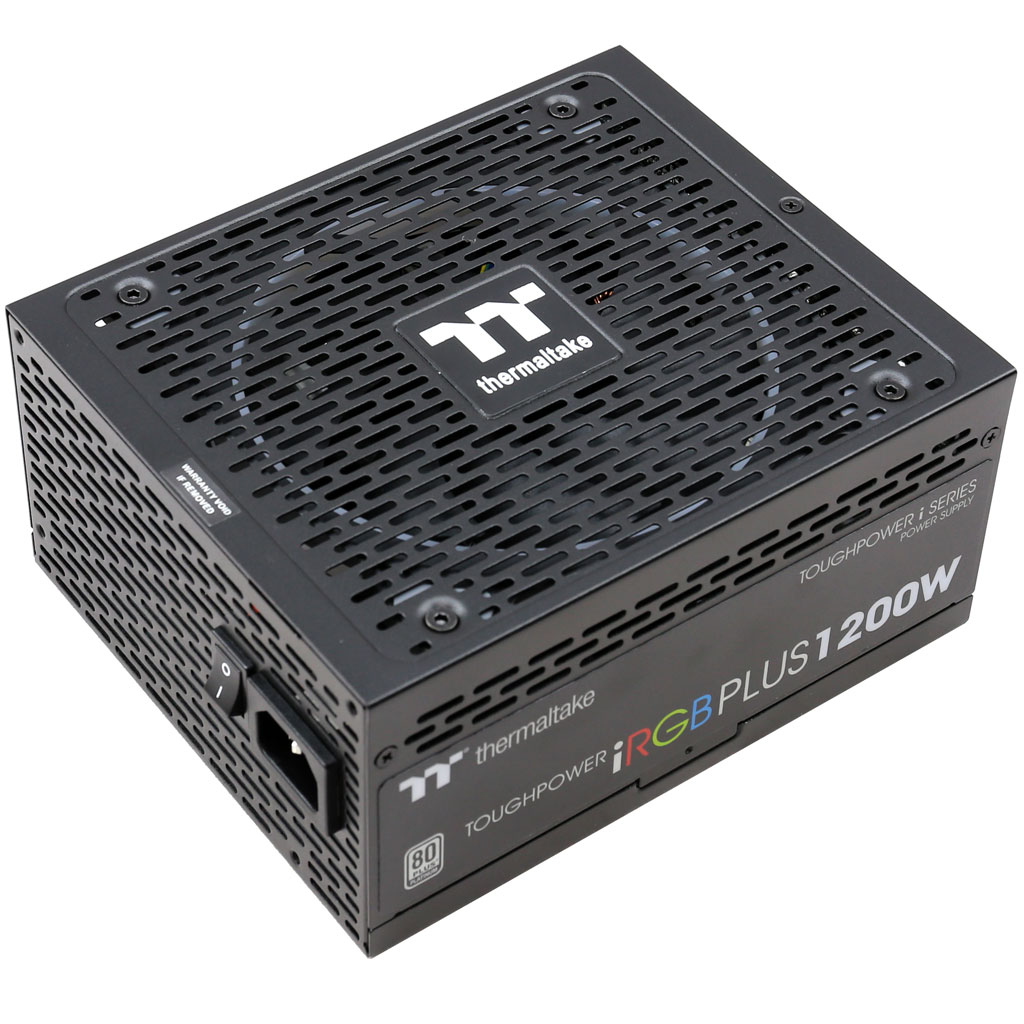

Thermaltake Toughpower iRGB Plus 1200W Platinum
PSTPI1200F2FDPU1AL000004
Lab ID198
  • Report:
  • Receipt Date: Oct 2, 2018
  • Test Date: Oct 13, 2018
  • Report Date: Oct 17, 2018
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Thermaltake
Hersteller (OEM)Channel Well Technology
Tough Power iRGB Plus
PI-1200F2FDP
PSTPI1200F2FDPU1AL000004

(Vrms)100-240
(Arms)14
(Hz)50-60
(W)1200
ATX12V
140mm HDB RGB Fan
(TT-1425/A1425S12S)
✓ (selectable)
Fully Modular

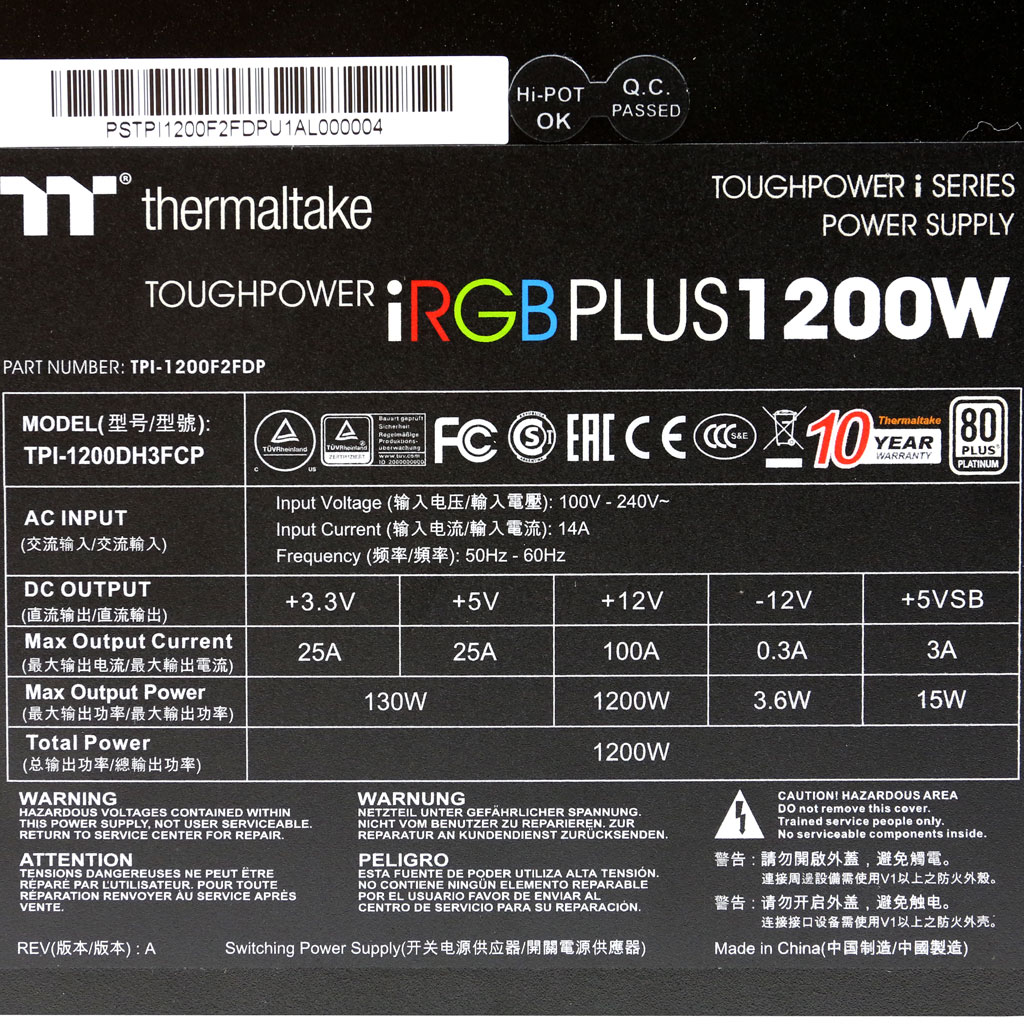

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 25 100 3 0.3
Watts 130 1200 15 3.6
Total Max. Power (W) 1200

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (600mm) 1 1 16AWG
4+4 pin EPS12V (650mm) 1 1 16AWG
8 pin EPS12V (650mm) 1 1 16AWG
6+2 pin PCIe (500mm+150mm) 4 8 16-18AWG
SATA (500mm+150mm+150mm+150mm) 3 12 18AWG
4 pin Molex (500mm+150mm+150mm+150mm) 2 8 18AWG
FDD Adapter (+100mm) 1 1 22AWG
USB Cable (+600mm) 1 1 24-28AWG

Parts Description

General Data
Manufacturer (OEM) CWT
Platform Model -
Primary Side
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CM02X
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x Vishay LVB2560 (600V, 25A @ 105°C)
APFC MOSFETS 2x Toshiba TK25A60X (600V, 25A @ 150°C, 0.105Ohm)
APFC Boost Diode 2x CREE C3D10060A (600V, 10A @ 153°C)
Hold-up Cap(s) 2x Nichicon (400V, 680uF, 2000h @ 105°C, GG)
Main Switchers 4x A25N60EFL
Driver ICs 2x Silicon Labs Si8230BD
APFC MCU Texas Instruments UCD3138A
(31.25 MHz, 32-bit ARM7TDMI-S Processor, 32KB Flash, 4KB RAM, 3x Feedback loop control, 14-bit DAC, up to 2 MHz switching frequency)
USB Interface MCU Microchip PIC32MX230F064D (40 MHz, 64KB Flash, 13x analog channels, 10-bit ADC)
LLC Resonant MCU Texas Instruments UCD3138A
(31.25 MHz, 32-bit ARM7TDMI-S Processor, 32KB Flash, 4KB RAM, 3x Feedback loop control, 14-bit DAC, up to 2 MHz switching frequency)
Topology Primary side: Interleaved PFC, Full-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 8x Infineon BSC014N06NS (60V, 100A @ 100°C, 1.45mOhm)
5V & 3.3V DC-DC Converters: 5x FETS
PWM Controller: 1x
Filtering Capacitors Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KZE), Nippon Chemi-Con (4-10,000 @ 105°C, KY)
Polymers: CapXon & Suscon
Supervisor IC Weltrend WT751002 (OVP, UVP, PG) & LM358
Fan Model Thermaltake TT-1425 (Hong Sheng OEM, A1425S12S-2, 140mm, 12V, 0.70A, hydro dynamic bearing, RGB LED Lighting)
5VSB Circuit
Rectifiers ISD04N65A (650V, 4A, 2.5Ohm), SPN5003 (N-Channel Enhancement Mode FET) & PS1045L SBR
Driver IC Texas Instruments UCC27324
PWM Controller On-Bright OB5282CP

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseStandard++
(>1450 load combinations)89.708%
Average Noise Output (>1450 Load Combinations)32.10dBA
(>1450 Load Combinations)0.993
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0404W
12V Ripple (Full Load)21.82mV
5V Ripple (Full Load)13.00mV
3.3V Ripple (Full Load)17.34mV
5VSB Ripple (Full Load)13.44mV
12V Load Regulation0.37%
5V Load Regulation0.45%
3.3V Load Regulation0.81%
5VSB Load Regulation1.33%
Inrush Current32.013A
WirkungsgradPLATINUM
LautstärkeklasseStandard++
(>1450 load combinations)91.721%
Average Noise Output (>1450 Load Combinations)31.47dBA
(>1450 Load Combinations)0.936
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0588W
12V Ripple (Full Load)23.21mV
5V Ripple (Full Load)11.17mV
3.3V Ripple (Full Load)15.16mV
5VSB Ripple (Full Load)9.28mV
12V Load Regulation0.61%
5V Load Regulation0.34%
3.3V Load Regulation0.69%
5VSB Load Regulation1.07%
Inrush Current54.422A
18.20ms
AC Loss to PWR_OK Hold Up Time22.40ms
PWR_OK Inactive to DC Loss Delay-4.20ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time (ms)18.2
AC Loss to PWR_OK Hold Up Time (ms)22.4
PWR_OK Inactive to DC Loss Delay (ms)-4.2

Stromverbrauch im Ruhezustand

Tables

Graphs

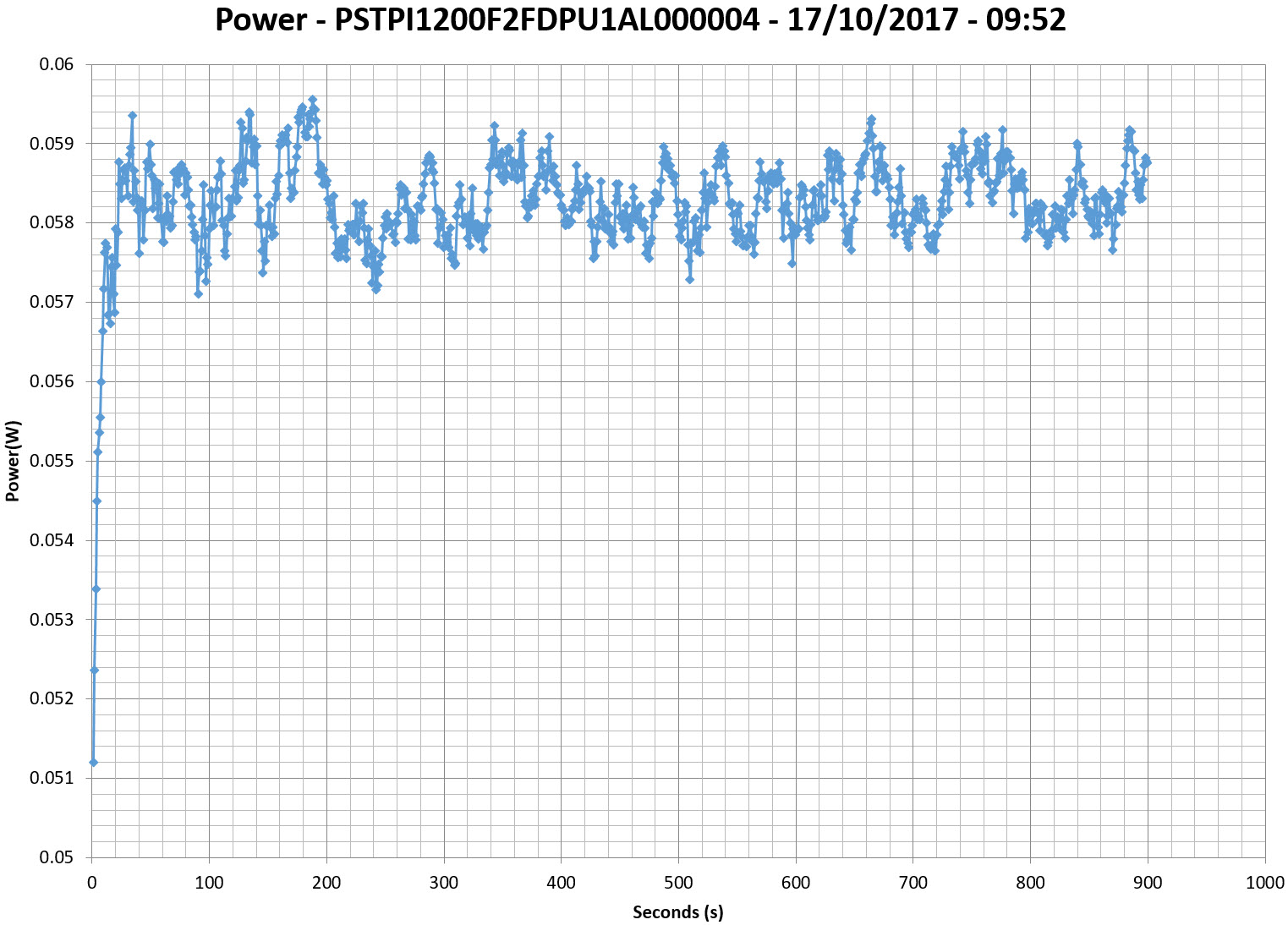

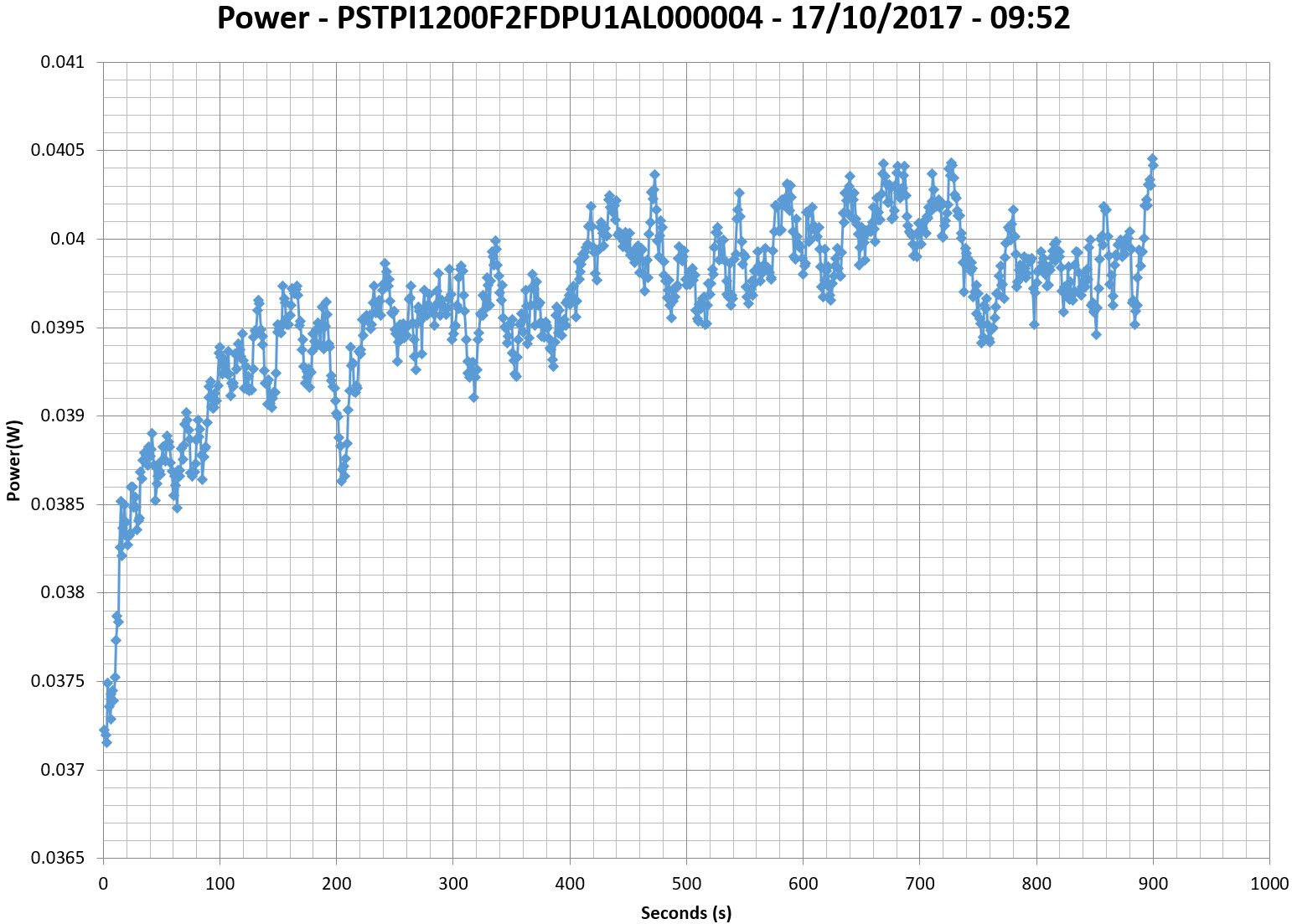

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

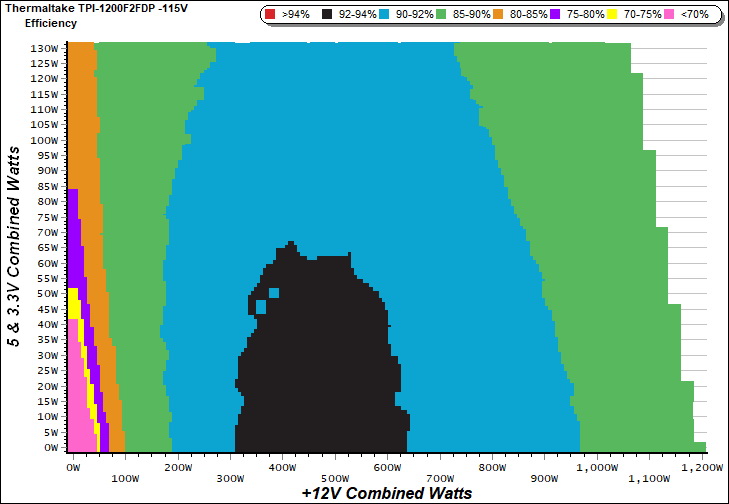

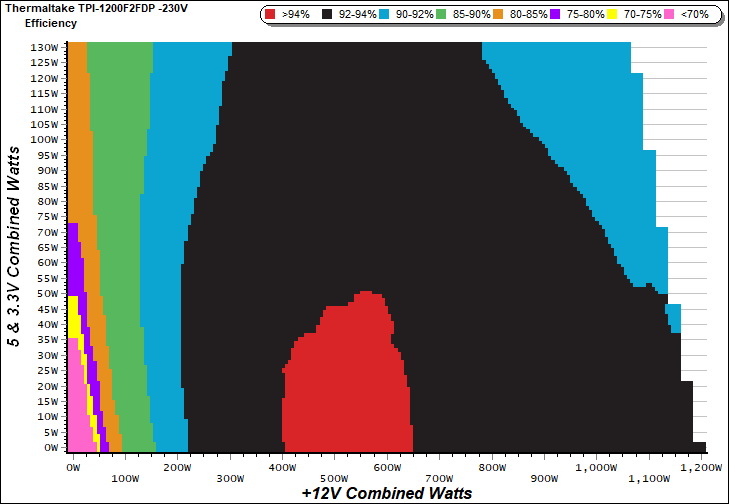

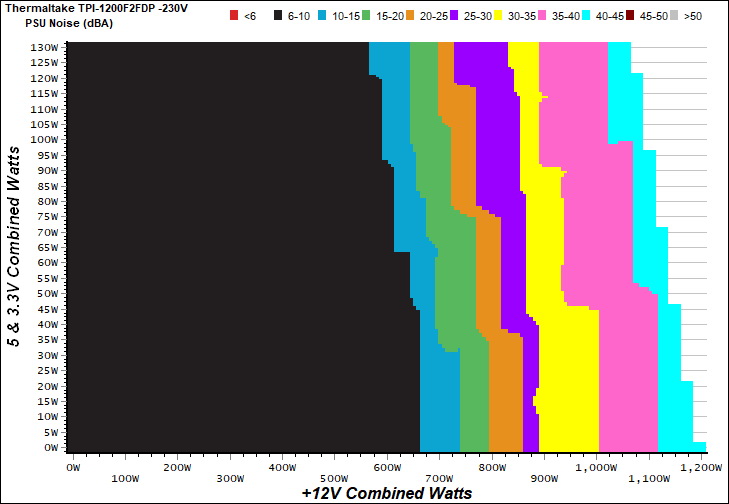

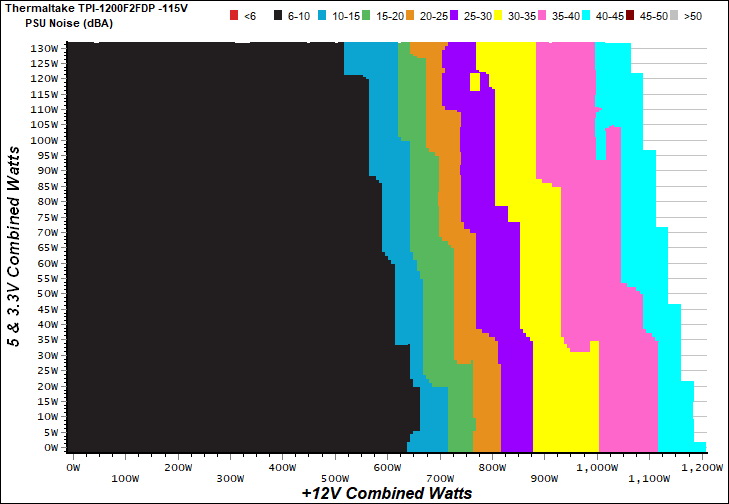

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Indicative Performance

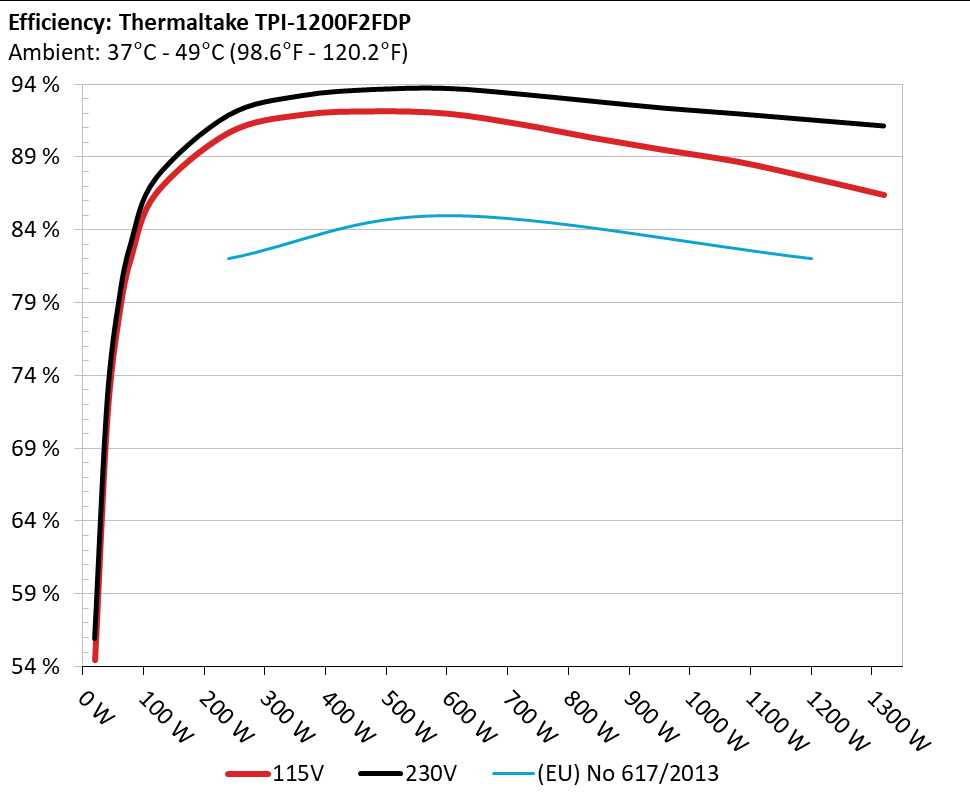

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

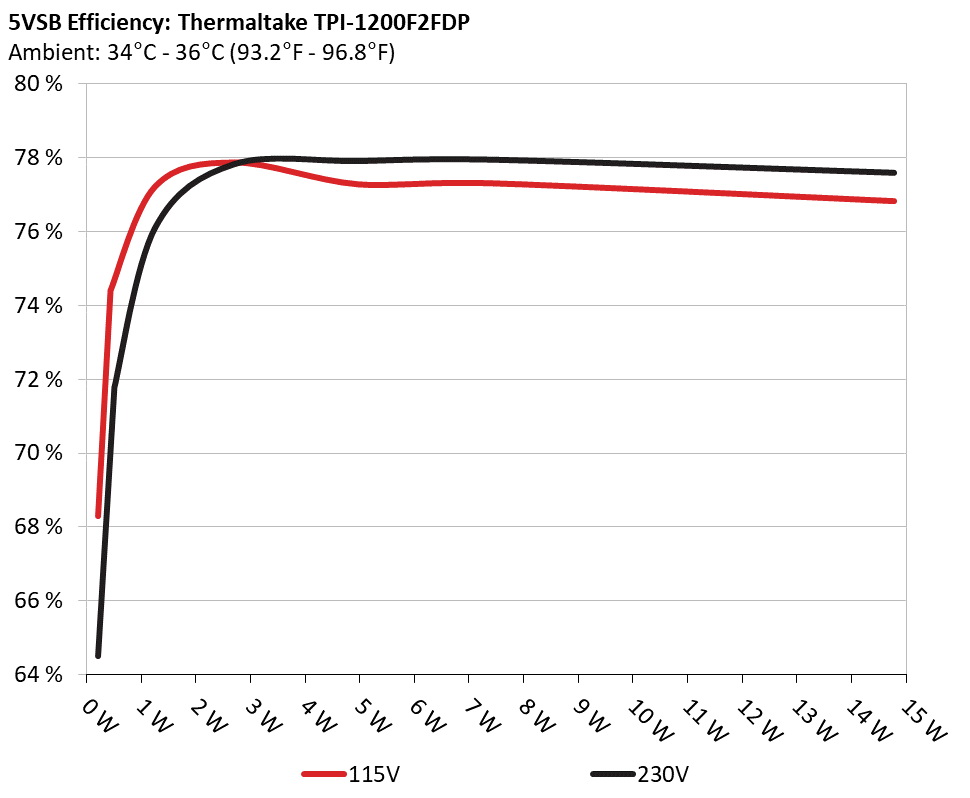

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.209 68.301% 0.031
4.984V 0.306 115.05V
2 0.087A 0.436 74.403% 0.057
4.983V 0.586 115.05V
3 0.542A 2.697 77.880% 0.270
4.972V 3.463 115.05V
4 1.002A 4.975 77.288% 0.382
4.963V 6.437 115.06V
5 1.502A 7.440 77.315% 0.442
4.954V 9.623 115.06V
6 3.002A 14.779 76.834% 0.506
4.923V 19.235 115.06V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.209 64.506% 0.010
4.985V 0.324 230.24V
2 0.087A 0.435 71.782% 0.018
4.984V 0.606 230.24V
3 0.543A 2.698 77.819% 0.099
4.973V 3.467 230.23V
4 1.002A 4.975 77.905% 0.169
4.964V 6.386 230.24V
5 1.502A 7.441 77.941% 0.230
4.954V 9.547 230.24V
6 3.002A 14.778 77.587% 0.342
4.923V 19.047 230.24V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.172A 1.975A 1.985A 0.991A 119.795 86.464% 498 8.8 38.41°C 0.982
12.020V 5.057V 3.319V 5.038V 138.549 43.96°C 115.10V
2 17.370A 2.959A 2.984A 1.191A 239.635 90.647% 499 8.8 38.90°C 0.994
12.020V 5.055V 3.316V 5.034V 264.361 46.34°C 115.10V
3 26.937A 3.465A 3.499A 1.391A 359.820 91.879% 500 8.8 39.40°C 0.996
12.018V 5.052V 3.313V 5.028V 391.622 49.46°C 115.10V
4 36.488A 3.962A 3.983A 1.591A 479.627 92.119% 502 8.8 40.09°C 0.996
12.016V 5.050V 3.311V 5.023V 520.658 51.45°C 115.10V
5 45.704A 4.957A 4.985A 1.790A 599.583 91.963% 504 8.8 40.68°C 0.996
12.014V 5.048V 3.308V 5.018V 651.982 53.30°C 115.11V
6 54.948A 5.945A 5.988A 1.993A 719.478 91.235% 653 14.6 41.94°C 0.997
12.006V 5.045V 3.305V 5.013V 788.596 60.71°C 115.12V
7 64.214A 6.945A 6.989A 2.195A 839.348 90.301% 914 26.1 42.96°C 0.998
11.995V 5.043V 3.303V 5.008V 929.502 67.15°C 115.12V
8 73.495A 7.934A 8.001A 2.396A 959.289 89.452% 1165 33.9 44.70°C 0.998
11.986V 5.040V 3.300V 5.003V 1072.409 70.01°C 115.12V
9 83.193A 8.442A 8.519A 2.397A 1079.350 88.652% 1415 38.7 45.58°C 0.997
11.981V 5.038V 3.298V 5.001V 1217.518 71.06°C 115.13V
10 92.650A 8.943A 9.014A 3.005A 1199.190 87.552% 1611 42.5 47.06°C 0.993
11.975V 5.035V 3.294V 4.987V 1369.683 75.33°C 115.11V
11 102.722A 8.946A 9.020A 3.005A 1319.188 86.378% 1827 45.5 48.87°C 0.987
11.969V 5.033V 3.293V 4.985V 1527.224 77.63°C 115.10V
CL1 0.098A 16.027A 16.003A 0.004A 135.506 82.158% 519 9.4 45.82°C 0.975
12.018V 5.061V 3.324V 5.086V 164.933 64.06°C 115.14V
CL2 99.935A 1.003A 1.003A 1.002A 1210.713 87.862% 1628 42.6 47.40°C 0.992
11.981V 5.039V 3.298V 5.020V 1377.965 74.97°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.170A 1.972A 1.984A 0.992A 119.753 88.193% 438 7.6 38.76°C 0.827
12.018V 5.058V 3.321V 5.043V 135.785 42.61°C 230.63V
2 17.360A 2.964A 2.983A 1.191A 239.484 92.325% 442 7.6 39.38°C 0.893
12.016V 5.056V 3.318V 5.039V 259.391 43.60°C 230.65V
3 26.893A 3.461A 3.467A 1.391A 359.008 93.574% 442 7.6 39.86°C 0.921
12.011V 5.055V 3.316V 5.035V 383.661 44.31°C 230.57V
4 36.502A 3.956A 3.982A 1.591A 479.471 93.934% 443 7.6 40.08°C 0.947
12.007V 5.054V 3.313V 5.031V 510.436 46.12°C 230.48V
5 45.754A 4.948A 4.981A 1.790A 599.628 93.969% 442 7.6 40.96°C 0.955
12.002V 5.052V 3.311V 5.028V 638.112 48.09°C 230.50V
6 55.040A 5.939A 5.982A 1.991A 719.782 93.558% 557 10.2 42.36°C 0.974
11.991V 5.051V 3.309V 5.025V 769.347 50.33°C 230.40V
7 64.329A 6.933A 6.988A 2.192A 839.507 92.898% 809 21.5 42.79°C 0.982
11.976V 5.048V 3.306V 5.020V 903.688 51.01°C 230.43V
8 73.685A 7.925A 7.990A 2.392A 960.047 92.286% 1006 28.9 44.05°C 0.983
11.965V 5.048V 3.304V 5.018V 1040.296 52.65°C 230.33V
9 83.373A 8.423A 8.481A 2.393A 1079.411 91.839% 1293 36.7 45.42°C 0.984
11.957V 5.047V 3.302V 5.017V 1175.335 54.86°C 230.23V
10 92.922A 8.923A 9.004A 2.999A 1199.762 91.421% 1496 40.2 46.10°C 0.985
11.946V 5.044V 3.299V 5.003V 1312.355 55.82°C 230.21V
11 103.046A 8.926A 9.011A 3.000A 1319.883 90.904% 1683 43.3 47.20°C 0.986
11.938V 5.043V 3.296V 5.002V 1451.950 57.00°C 230.14V
CL1 0.738A 16.004A 16.000A 0.000A 143.077 83.732% 442 7.6 44.84°C 0.783
12.013V 5.061V 3.326V 5.097V 170.875 52.82°C 230.92V
CL2 100.011A 1.001A 1.000A 1.000A 1208.816 91.723% 1431 39.1 45.30°C 0.985
11.953V 5.049V 3.301V 5.030V 1317.901 54.74°C 230.24V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.217A 0.489A 0.479A 0.196A 19.675 54.464% 495 8.8 0.858
12.013V 5.058V 3.321V 5.054V 36.125 115.10V
2 2.457A 0.980A 0.990A 0.395A 39.765 70.975% 496 8.8 0.927
12.017V 5.058V 3.321V 5.050V 56.027 115.10V
3 3.697A 1.476A 1.503A 0.591A 59.873 78.261% 497 8.8 0.943
12.019V 5.058V 3.320V 5.047V 76.504 115.10V
4 4.927A 1.974A 1.986A 0.791A 79.784 82.188% 497 8.8 0.965
12.019V 5.058V 3.320V 5.043V 97.075 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.179A 0.492A 0.478A 0.198A 19.243 56.761% 434 7.6 0.478
12.014V 5.059V 3.323V 5.056V 33.902 230.68V
2 2.442A 0.985A 0.989A 0.396A 39.614 72.872% 438 7.6 0.618
12.017V 5.059V 3.322V 5.053V 54.361 230.69V
3 3.642A 1.481A 1.469A 0.594A 59.145 79.995% 437 7.6 0.704
12.019V 5.059V 3.322V 5.050V 73.936 230.66V
4 4.904A 1.974A 1.984A 0.793A 79.517 84.005% 438 7.6 0.765
12.019V 5.058V 3.321V 5.046V 94.657 230.67V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.5 mV 5.1 mV 3.3 mV 4.5 mV Pass
20% Load 16.0 mV 5.6 mV 3.8 mV 5.1 mV Pass
30% Load 17.7 mV 6.1 mV 4.3 mV 5.6 mV Pass
40% Load 16.3 mV 5.6 mV 5.0 mV 5.6 mV Pass
50% Load 20.0 mV 5.9 mV 5.8 mV 5.8 mV Pass
60% Load 18.3 mV 10.4 mV 10.8 mV 9.6 mV Pass
70% Load 19.3 mV 6.8 mV 7.6 mV 6.6 mV Pass
80% Load 19.9 mV 7.0 mV 8.8 mV 6.8 mV Pass
90% Load 19.8 mV 16.2 mV 17.1 mV 16.2 mV Pass
100% Load 21.8 mV 13.0 mV 17.3 mV 13.4 mV Pass
110% Load 25.1 mV 10.6 mV 11.9 mV 11.6 mV Pass
Crossload 1 12.7 mV 4.6 mV 5.0 mV 3.6 mV Pass
Crossload 2 21.6 mV 10.8 mV 15.4 mV 11.2 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.9 mV 4.4 mV 4.1 mV 3.0 mV Pass
20% Load 17.7 mV 5.4 mV 5.3 mV 3.5 mV Pass
30% Load 18.6 mV 5.8 mV 5.4 mV 4.0 mV Pass
40% Load 17.3 mV 6.9 mV 7.9 mV 5.4 mV Pass
50% Load 20.7 mV 7.0 mV 7.1 mV 5.2 mV Pass
60% Load 18.8 mV 7.4 mV 7.9 mV 5.4 mV Pass
70% Load 20.4 mV 8.5 mV 8.6 mV 6.2 mV Pass
80% Load 22.0 mV 8.8 mV 10.2 mV 6.8 mV Pass
90% Load 23.1 mV 14.1 mV 16.3 mV 12.1 mV Pass
100% Load 23.2 mV 11.2 mV 15.2 mV 9.3 mV Pass
110% Load 25.1 mV 11.0 mV 13.0 mV 9.4 mV Pass
Crossload 1 20.8 mV 8.2 mV 7.7 mV 4.8 mV Pass
Crossload 2 21.3 mV 9.5 mV 11.2 mV 9.0 mV Pass

The results above are not used in the certification process

Thermaltake Toughpower iRGB Plus 1200W Platinum

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
