Super Flower Leadex V Pro Platinum 1000W
Serial NumberS2110199002
Lab IDSF10001939
  • Report: 21PS1939A
  • Receipt Date: Oct 22, 2021
  • Test Date: Nov 19, 2021
  • Report Date: Nov 30, 2021
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Lab Director

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex V Pro (Platinum 130 Size)
Model NumberSF-1000F14TP
Serial NumberS2110199002
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)60-50
Rated Power (W)1000
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(S1192312MP-4M)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.32.50.5
Watts100999.612.56
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-20AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (550mm+150mm) 4 8 18-20AWG No
SATA (550mm+130mm+130mm+130mm) 2 8 18AWG No
SATA (550mm+130mm) 2 4 18AWG No
4-pin Molex (550mm+150mm+150mm+150mm) 1 4 18AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Average Efficiency89.703%
Efficiency With 10W (≤500W) or 2% (>500W) Load -115V69.448%
Average Efficiency VSB77.687%
Standby Power Consumption (W)0.0655
Average PF0.987
Avg Noise Output35.63 dB(A)
Efficiency Rating (ETA)PLATINUM
Noise Rating (LAMBDA)Standard+
Average Efficiency91.765%
Average Efficiency VSB76.047%
Standby Power Consumption (W)0.1047
Average PF0.945
Avg Noise Output36.00 dB(A)
Efficiency Rating (ETA)PLATINUM
Noise Rating (LAMBDA)Standard+

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.4
AC Loss to PWR_OK Hold Up Time (ms)16.7
PWR_OK Inactive to DC Loss Delay (ms)5.7

Vampire Power

Tables

Graphs

INFO

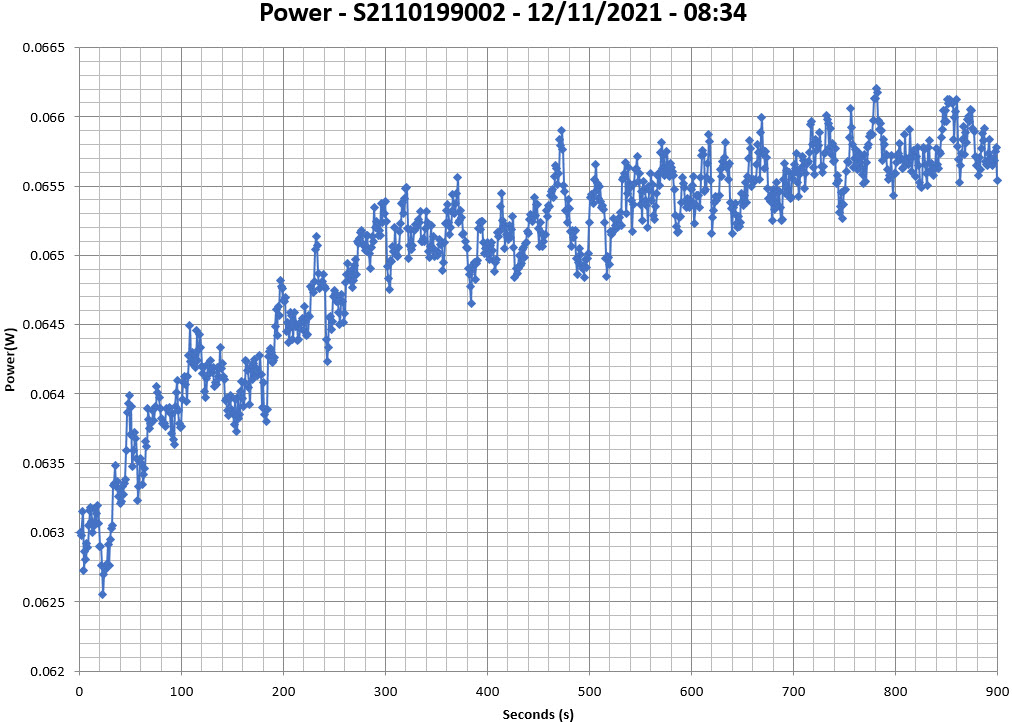

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

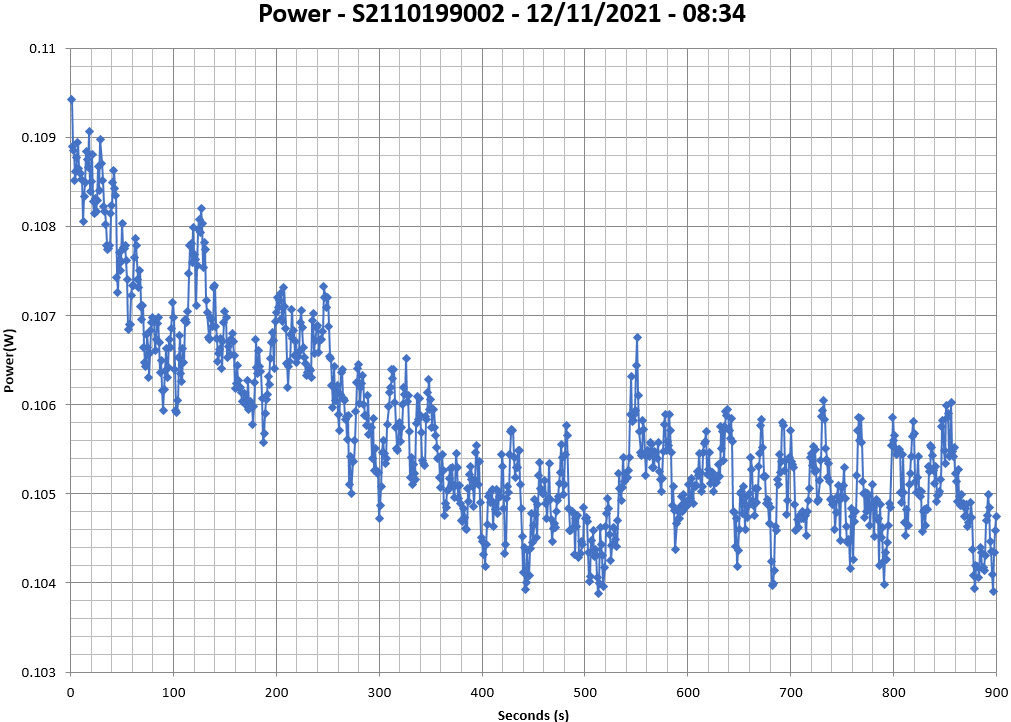

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

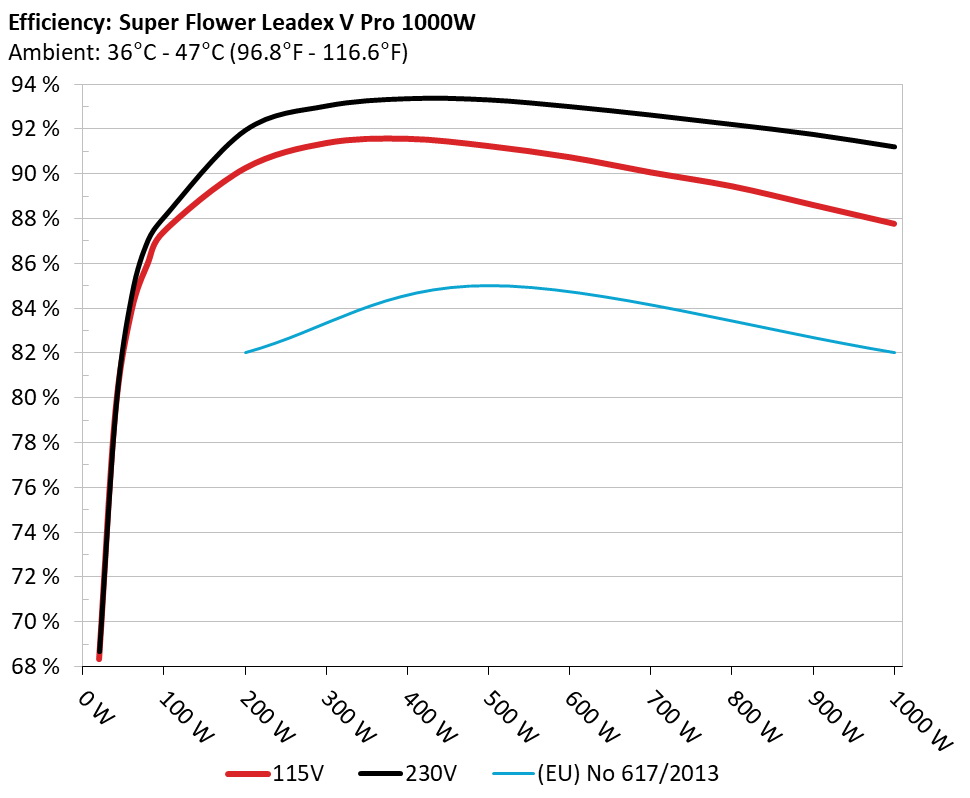

Efficiency Graph

INFO

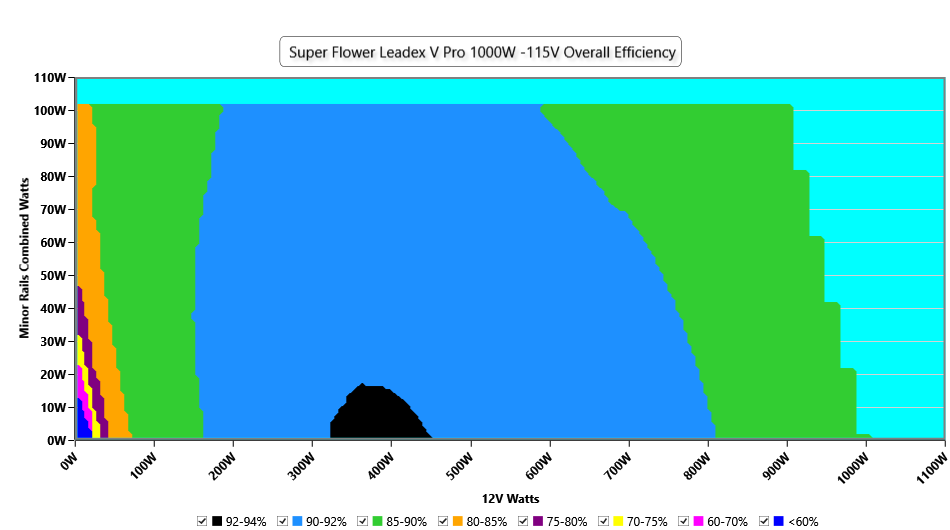

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

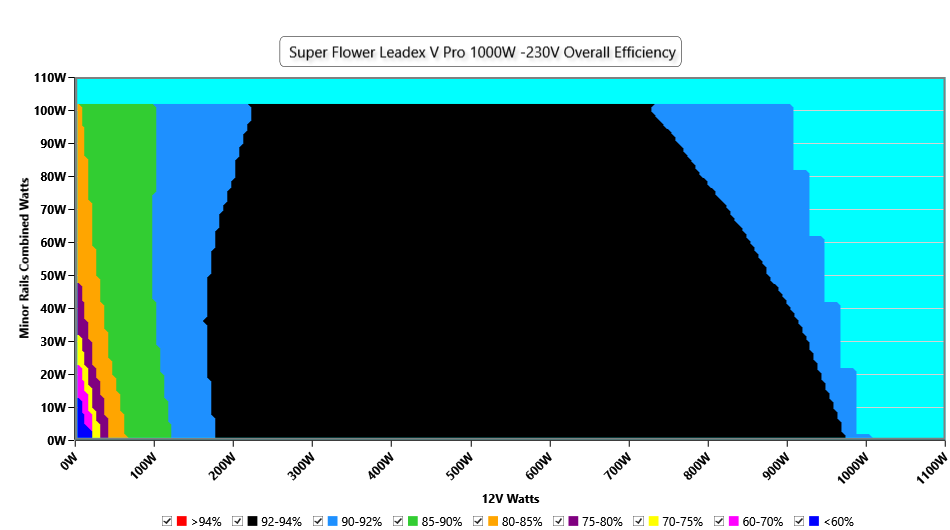

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

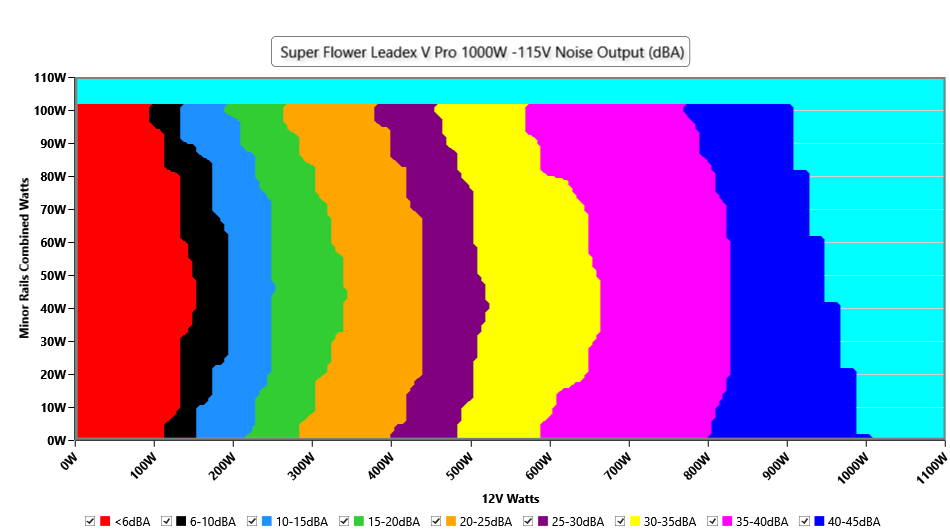

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

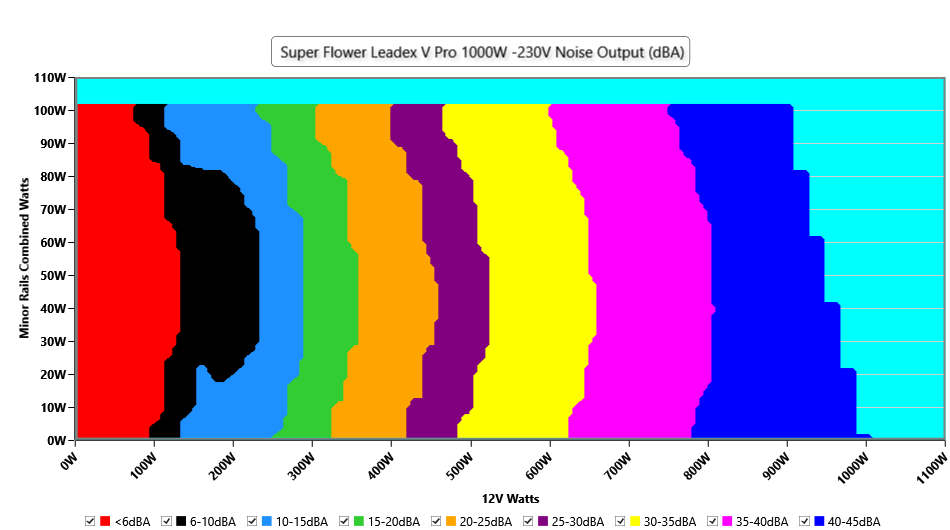

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

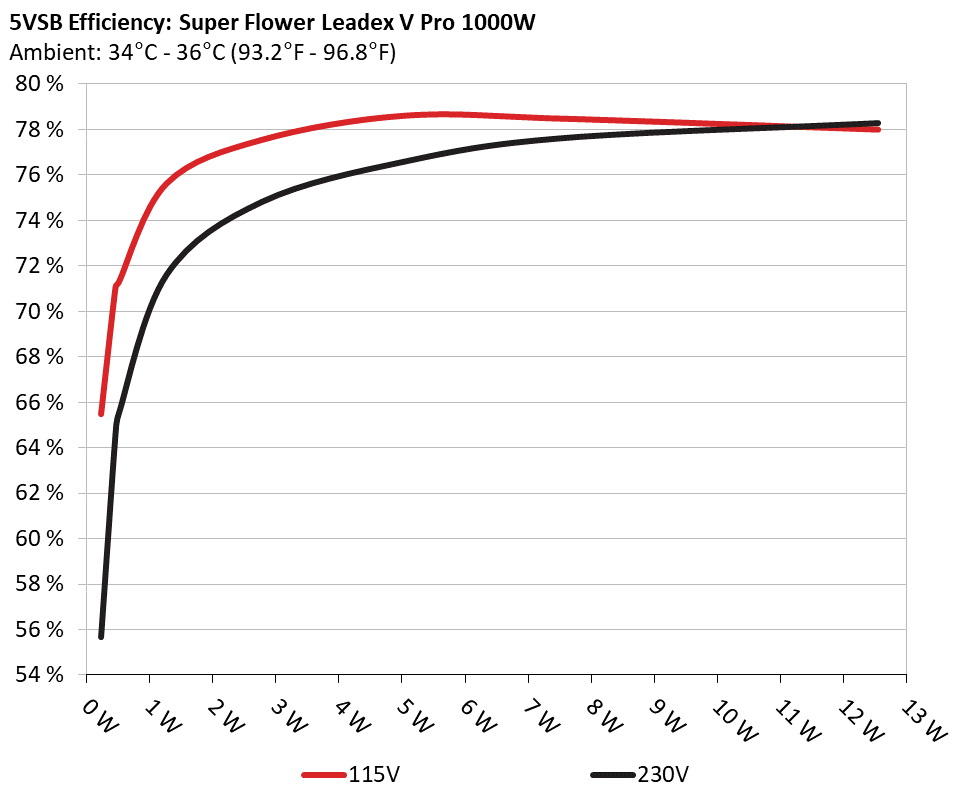

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 65.475% 0.029
5.082V 0.35W 115.18V
2 0.09A 0.457W 71.048% 0.054
5.081V 0.643W 115.18V
3 0.55A 2.789W 77.55% 0.24
5.069V 3.596W 115.18V
4 1A 5.06W 78.608% 0.335
5.059V 6.437W 115.18V
5 1.5A 7.571W 78.473% 0.396
5.046V 9.648W 115.17V
6 2.501A 12.549W 77.992% 0.456
5.018V 16.09W 115.17V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 55.658% 0.01
5.082V 0.412W 230.38V
2 0.09A 0.457W 64.567% 0.018
5.08V 0.708W 230.38V
3 0.55A 2.789W 74.823% 0.091
5.07V 3.727W 230.38V
4 1A 5.061W 76.597% 0.152
5.059V 6.607W 230.38V
5 1.5A 7.572W 77.624% 0.206
5.047V 9.755W 230.38V
6 2.501A 12.555W 78.279% 0.285
5.021V 16.039W 230.38V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.448A 1.985A 1.989A 0.99A 100.014 87.439% 615 12.4 40.3°C 0.969
12.161V 5.039V 3.318V 5.051V 114.381 44.4°C 115.19V
20% 13.908A 2.978A 2.986A 1.191A 199.971 90.254% 704 18.4 41.23°C 0.978
12.157V 5.038V 3.316V 5.039V 221.564 45.63°C 115.19V
30% 21.717A 3.475A 3.485A 1.393A 300.025 91.379% 816 22.4 41.5°C 0.989
12.155V 5.037V 3.315V 5.027V 328.329 46.25°C 115.19V
40% 29.500A 3.973A 3.984A 1.595A 399.783 91.569% 1002 28 41.86°C 0.993
12.155V 5.035V 3.313V 5.016V 436.591 46.89°C 115.19V
50% 36.936A 4.967A 4.984A 1.799A 499.492 91.248% 1214 33.8 42.96°C 0.994
12.156V 5.034V 3.311V 5.004V 547.4 48.75°C 115.19V
60% 44.437A 5.963A 5.986A 2.001A 600.042 90.75% 1389 37.3 43.21°C 0.996
12.158V 5.033V 3.308V 4.991V 661.203 49.16°C 115.19V
70% 51.869A 6.958A 6.989A 2.21A 699.796 90.075% 1569 40.3 43.94°C 0.996
12.159V 5.032V 3.306V 4.978V 776.905 50.78°C 115.19V
80% 59.365A 7.955A 7.993A 2.316A 799.843 89.454% 1736 42.7 44.22°C 0.997
12.161V 5.03V 3.303V 4.967V 894.135 51.46°C 115.2V
90% 67.194A 8.453A 8.481A 2.421A 899.638 88.624% 1905 44.4 45.22°C 0.997
12.161V 5.029V 3.301V 4.957V 1015.124 53.59°C 115.2V
100% 75.123A 8.952A 9.001A 2.527A 1000.373 87.778% 2073 45.9 46.17°C 0.997
12.156V 5.027V 3.3V 4.948V 1139.663 56.58°C 115.2V
CL1 0.115A 11.955A 12.055A 0A 101.304 83.434% 1205 33.7 41.21°C 0.966
12.156V 5.036V 3.293V 5.06V 121.418 46.74°C 115.2V
CL2 0.115A 19.885A 0A 0A 101.397 82.801% 1008 28.1 40.5°C 0.965
12.159V 5.029V 3.321V 5.07V 122.459 48.22°C 115.19V
CL3 0.115A 0A 20.158A 0A 67.39 77.503% 921 25.8 40.73°C 0.949
12.157V 5.044V 3.274V 5.058V 86.952 49.89°C 115.19V
CL4 82.236A 0A 0A 0A 1000.106 88.799% 1896 44.3 46.85°C 0.997
12.161V 5.031V 3.322V 5.024V 1126.27 57.03°C 115.18V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.450A 1.985A 1.989A 0.99A 100.021 88.062% 646 13.9 40.45°C 0.785
12.160V 5.039V 3.318V 5.051V 113.58 44.7°C 230.4V
20% 13.910A 2.978A 2.986A 1.191A 199.977 91.935% 701 18.1 40.7°C 0.909
12.156V 5.037V 3.315V 5.039V 217.521 45.03°C 230.4V
30% 21.720A 3.476A 3.485A 1.393A 300.036 93.019% 814 22.4 41.82°C 0.951
12.153V 5.036V 3.314V 5.027V 322.553 46.45°C 230.41V
40% 29.507A 3.973A 3.985A 1.595A 399.834 93.347% 1008 28.1 42.35°C 0.965
12.154V 5.035V 3.313V 5.015V 428.33 47.09°C 230.42V
50% 36.942A 4.968A 4.986A 1.799A 499.534 93.294% 1172 32.8 42.83°C 0.972
12.155V 5.034V 3.31V 5.003V 535.441 48.03°C 230.42V
60% 44.444A 5.963A 5.988A 2.001A 600.071 92.992% 1350 36.5 43.04°C 0.977
12.157V 5.033V 3.307V 4.991V 645.295 48.56°C 230.42V
70% 51.877A 6.959A 6.991A 2.211A 699.838 92.616% 1521 39.4 43.08°C 0.981
12.158V 5.031V 3.305V 4.977V 755.641 49.6°C 230.43V
80% 59.372A 7.955A 7.996A 2.316A 799.868 92.198% 1704 42.1 43.37°C 0.984
12.159V 5.03V 3.302V 4.967V 867.55 50.73°C 230.43V
90% 67.199A 8.454A 8.484A 2.421A 899.648 91.753% 1855 43.8 44.49°C 0.987
12.161V 5.028V 3.3V 4.957V 980.506 52.7°C 230.43V
100% 75.132A 8.953A 9.003A 2.527A 1000.386 91.195% 2060 45.8 46.97°C 0.989
12.155V 5.027V 3.299V 4.948V 1096.976 56.44°C 230.44V
CL1 0.115A 11.957A 12.06A 0A 101.311 84.329% 1308 35.7 44.5°C 0.802
12.155V 5.035V 3.292V 5.06V 120.137 50.04°C 230.42V
CL2 0.115A 19.89A 0A 0A 101.399 83.691% 1146 32.1 43.1°C 0.809
12.158V 5.028V 3.321V 5.07V 121.158 49.56°C 230.41V
CL3 0.115A 0A 20.164A 0A 67.393 78.242% 1119 31.5 41.6°C 0.712
12.156V 5.044V 3.273V 5.058V 86.135 48.99°C 230.4V
CL4 82.246A 0A 0A 0A 1000.156 91.985% 1888 44.2 42.63°C 0.989
12.160V 5.031V 3.322V 5.023V 1087.307 52.38°C 230.42V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.221A 0.496A 0.497A 0.197A 20.003 68.352% 482 <6.0 37.37°C 0.757
12.165V 5.041V 3.322V 5.076V 29.265 40.8°C 115.19V
40W 2.688A 0.694A 0.695A 0.296A 40.001 79.366% 483 <6.0 37.48°C 0.878
12.164V 5.041V 3.322V 5.072V 50.401 40.96°C 115.19V
60W 4.154A 0.893A 0.894A 0.395A 60 83.888% 510 <6.0 38.85°C 0.927
12.163V 5.04V 3.321V 5.069V 71.523 42.62°C 115.19V
80W 5.618A 1.092A 1.093A 0.494A 79.959 86.006% 541 7.9 39.26°C 0.956
12.162V 5.04V 3.32V 5.064V 92.969 43.2°C 115.18V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.240A 0.5A 0.5A 0.2A 20.285 68.655% 490 <6.0 36.87°C 0.427
12.164V 5.041V 3.322V 5.076V 29.546 39.95°C 230.34V
40W 2.720A 0.7A 0.7A 0.3A 40.461 79.504% 540 7.9 37.42°C 0.559
12.163V 5.04V 3.321V 5.072V 50.892 40.83°C 230.34V
60W 4.155A 0.893A 0.894A 0.395A 60.002 84.552% 540 7.9 38.11°C 0.653
12.162V 5.04V 3.321V 5.067V 70.964 41.88°C 230.38V
80W 5.620A 1.092A 1.093A 0.494A 79.966 87.011% 585 12.4 39.42°C 0.731
12.161V 5.039V 3.32V 5.063V 91.903 43.5°C 230.39V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.7 mV 7.2 mV 7.8 mV 7.2 mV Pass
20% Load 5.4 mV 8.1 mV 8.3 mV 7.4 mV Pass
30% Load 5.7 mV 8.7 mV 9.5 mV 8.5 mV Pass
40% Load 6.6 mV 8.8 mV 8.9 mV 8.4 mV Pass
50% Load 7.3 mV 9.8 mV 11.1 mV 10.2 mV Pass
60% Load 8.0 mV 9.3 mV 10.3 mV 40.4 mV Pass
70% Load 10.7 mV 13.1 mV 11.7 mV 42.3 mV Pass
80% Load 11.1 mV 12.8 mV 17.2 mV 39.9 mV Pass
90% Load 11.5 mV 13.3 mV 18.7 mV 19.0 mV Pass
100% Load 12.1 mV 14.4 mV 18.1 mV 14.2 mV Pass
Crossload 1 7.9 mV 10.5 mV 16.2 mV 42.2 mV Pass
Crossload 2 6.3 mV 7.9 mV 10.2 mV 39.0 mV Pass
Crossload 3 7.7 mV 7.8 mV 15.4 mV 37.6 mV Pass
Crossload 4 11.4 mV 13.1 mV 11.4 mV 44.9 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.4 mV 7.2 mV 7.6 mV 7.7 mV Pass
20% Load 5.8 mV 7.9 mV 7.8 mV 7.7 mV Pass
30% Load 5.6 mV 8.7 mV 9.1 mV 8.0 mV Pass
40% Load 6.6 mV 8.8 mV 8.6 mV 8.0 mV Pass
50% Load 7.3 mV 9.3 mV 9.0 mV 10.5 mV Pass
60% Load 7.6 mV 9.4 mV 10.1 mV 9.7 mV Pass
70% Load 10.5 mV 13.1 mV 11.8 mV 30.6 mV Pass
80% Load 10.4 mV 13.1 mV 16.6 mV 31.2 mV Pass
90% Load 10.5 mV 14.2 mV 16.8 mV 16.4 mV Pass
100% Load 11.7 mV 15.0 mV 19.9 mV 11.0 mV Pass
Crossload 1 7.6 mV 9.8 mV 16.4 mV 37.7 mV Pass
Crossload 2 6.2 mV 7.8 mV 10.9 mV 39.2 mV Pass
Crossload 3 7.7 mV 8.1 mV 16.2 mV 40.6 mV Pass
Crossload 4 10.6 mV 13.3 mV 11.4 mV 44.8 mV Pass

The results above are not used in the certification process

Super Flower Leadex V Pro Platinum 1000W

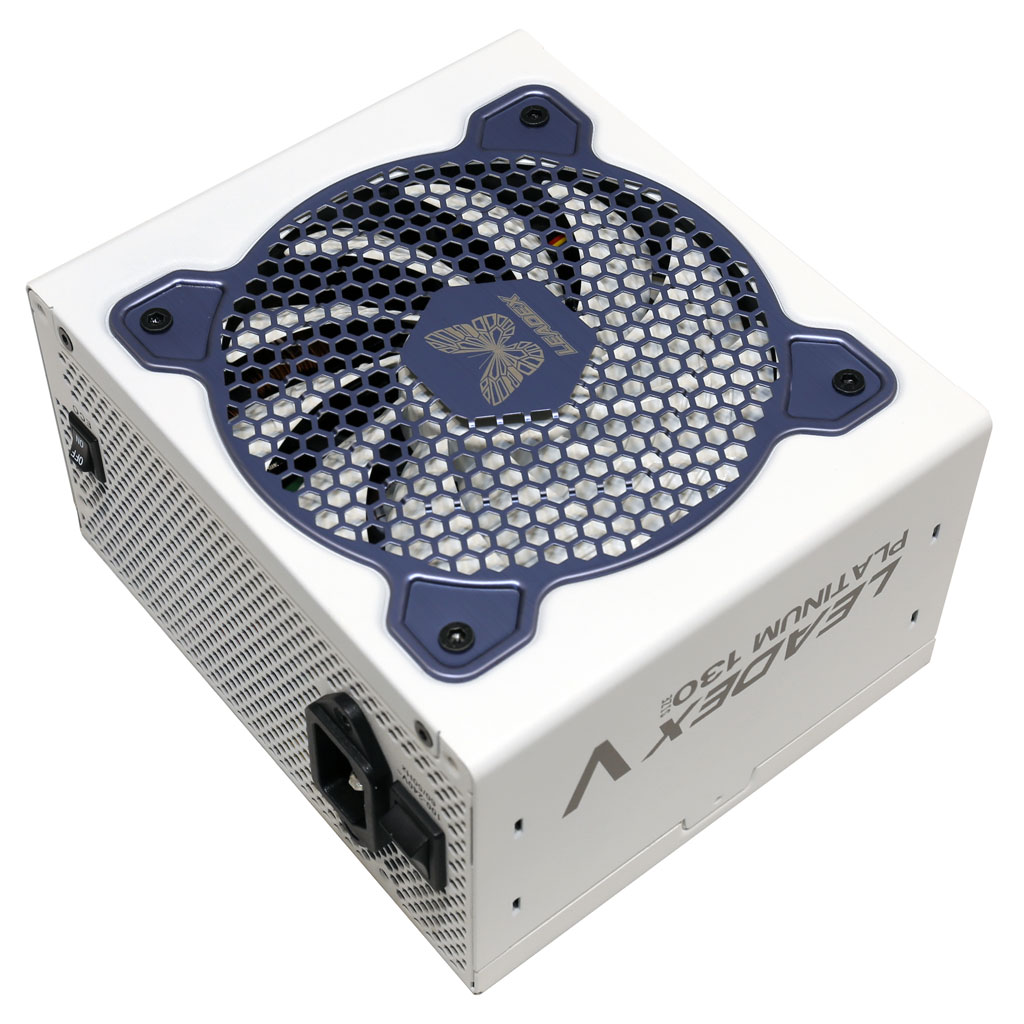

Top side

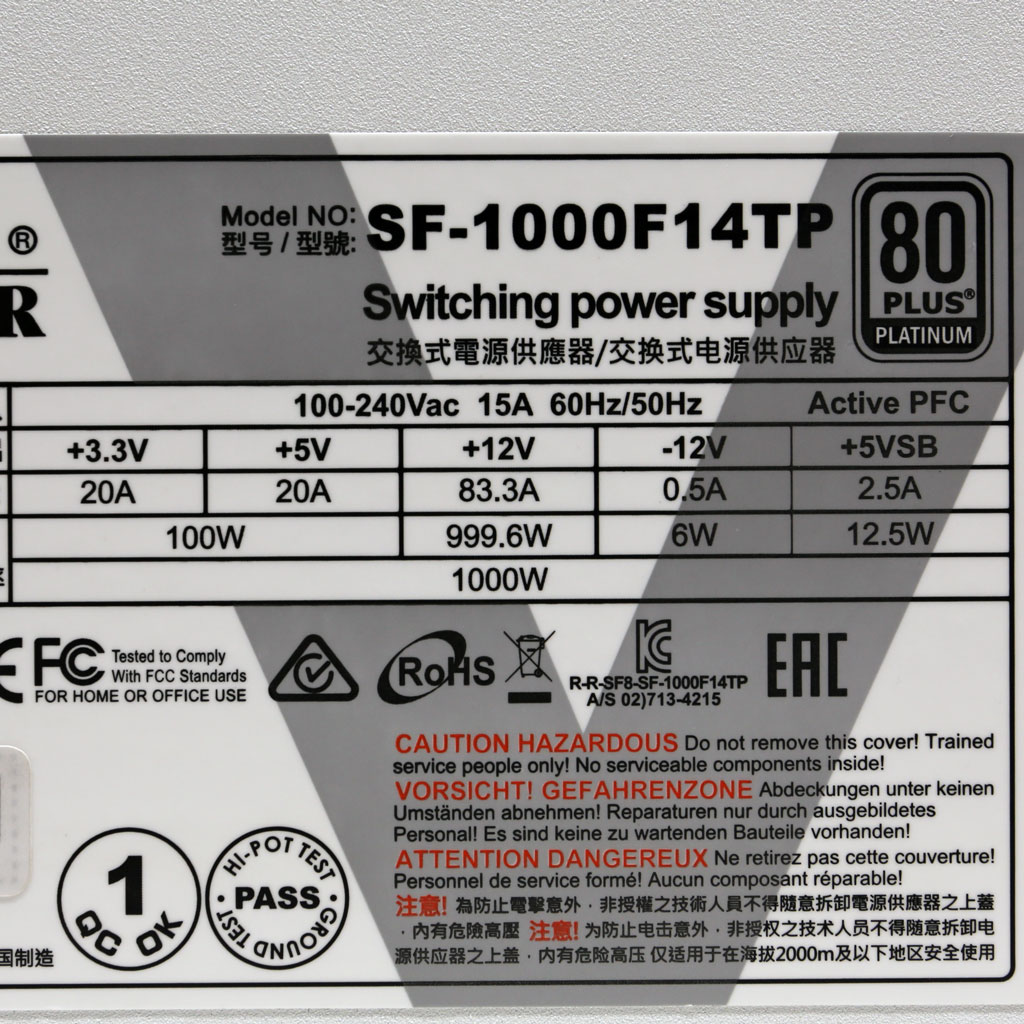

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
