CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
SilverStone HELA 2050 Platinum
DBHA2K50PT21390099
Lab IDSL20501928
  • Report: 21PS1928A
  • Receipt Date: Oct 26, 2021
  • Test Date: Nov 1, 2021
  • Report Date: Nov 2, 2021
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

SilverStone
製造商 (OEM)Enhance Electronics
Hela Platinum
SST-AX2050MCPT-A
DBHA2K50PT21390099

(Vrms)200-240
(Arms)13
(Hz)50
(W)2050
ATX12V
135mm Double Ball Bearing Fan
(RL4Z B1352512EH-3M)
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252217030.3
Watts1202040153.6
Total Max. Power (W)2050

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
12 pin PCIe (560mm) 1 1 16AWG No
6+2 pin PCIe (560mm) 4 4 16AWG No
6+2 pin PCIe (560mm+150mm) 7 14 16-18AWG No
SATA (500mm+125mm+125mm+125mm) 3 12 18AWG No
4-pin Molex (500mm+125mm+125mm) / FDD (+120mm) 1 3 / 1 18-22AWG No

Parts Description

General Data -
Manufacturer (OEM) Enhance Electronics
PCB Type Double Sided
Primary Side -
Transient Filter 6x Y caps, 4x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72-12D20 (12 Ohm) & Relay
Bridge Rectifier(s) 2x
APFC MOSFETs 2x Oriental Semiconductor OSG55R070HF (550V, 30A @ 100°C, Rds(on): 0.07Ohm)
APFC Boost Diode 2x CREE C3D10060A (600V, 10A @ 153°C)
Bulk Cap(s) 3x Nippon Chemi-Con (450V, 680uF each or 2,040uF, 2,000h @ 105°C, KMZ)
Main Switchers 4x Oriental Semiconductor OSG60R074FSZF (600V, 30A @ 100°C, Rds(on): 0.074Ohm)
IC Driver(s) 2x Silicon Labs Si8230BD
APFC Controller ATK AT6201ZSPF
Resonant Controller ATK AT6301ZTSF
Topology Primary side: Interleaved PFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs no info
5V & 3.3V DC-DC Converters
Filtering Capacitors Electrolytic: 5x Unicon (2,000h @ 125°C, UPL), 1x Rubycon (3-6,000h @ 105°C, YXG), 2x Rubycon (4-10,000h @ 105°C, YXF)
Polymer: 21x Unicon
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG)
Fan Controller ATK AT1051ZSP8
Fan Model Globe Fan RL4Z B1352512EH-3M (135mm, 12V, 0.50A, Double Ball Bearing Fan)
5VSB Circuit -
Rectifier 1x 45R10S SBR
Standby PWM Controller ATK AT6002H

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 230V

效率評比PLATINUM
噪音評比Standard
(>1450 load combinations)92.084%
Average Noise Output (>1450 Load Combinations)42.32dBA
(>1450 Load Combinations)0.957
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1440W
12V Ripple (Full Load)44.25mV
5V Ripple (Full Load)19.40mV
3.3V Ripple (Full Load)18.53mV
5VSB Ripple (Full Load)10.07mV
12V Load Regulation1.73%
5V Load Regulation2.37%
3.3V Load Regulation3.63%
5VSB Load Regulation4.84%
Inrush Current88.720A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
11.40ms
AC Loss to PWR_OK Hold Up Time10.20ms
PWR_OK Inactive to DC Loss Delay1.20ms
PSU Timings: T1 (20% / 100%)100.0ms92.0ms
PSU Timings: T3 (20% / 100%)126.0ms128.0ms
OPP (28.78°C / 41.29°C)115.68%115.68%

Hold-Up Time (ms)11.4
AC Loss to PWR_OK Hold Up Time (ms)10.2
PWR_OK Inactive to DC Loss Delay (ms)1.2

待機電源消耗

Tables 230V

Graphs 230V

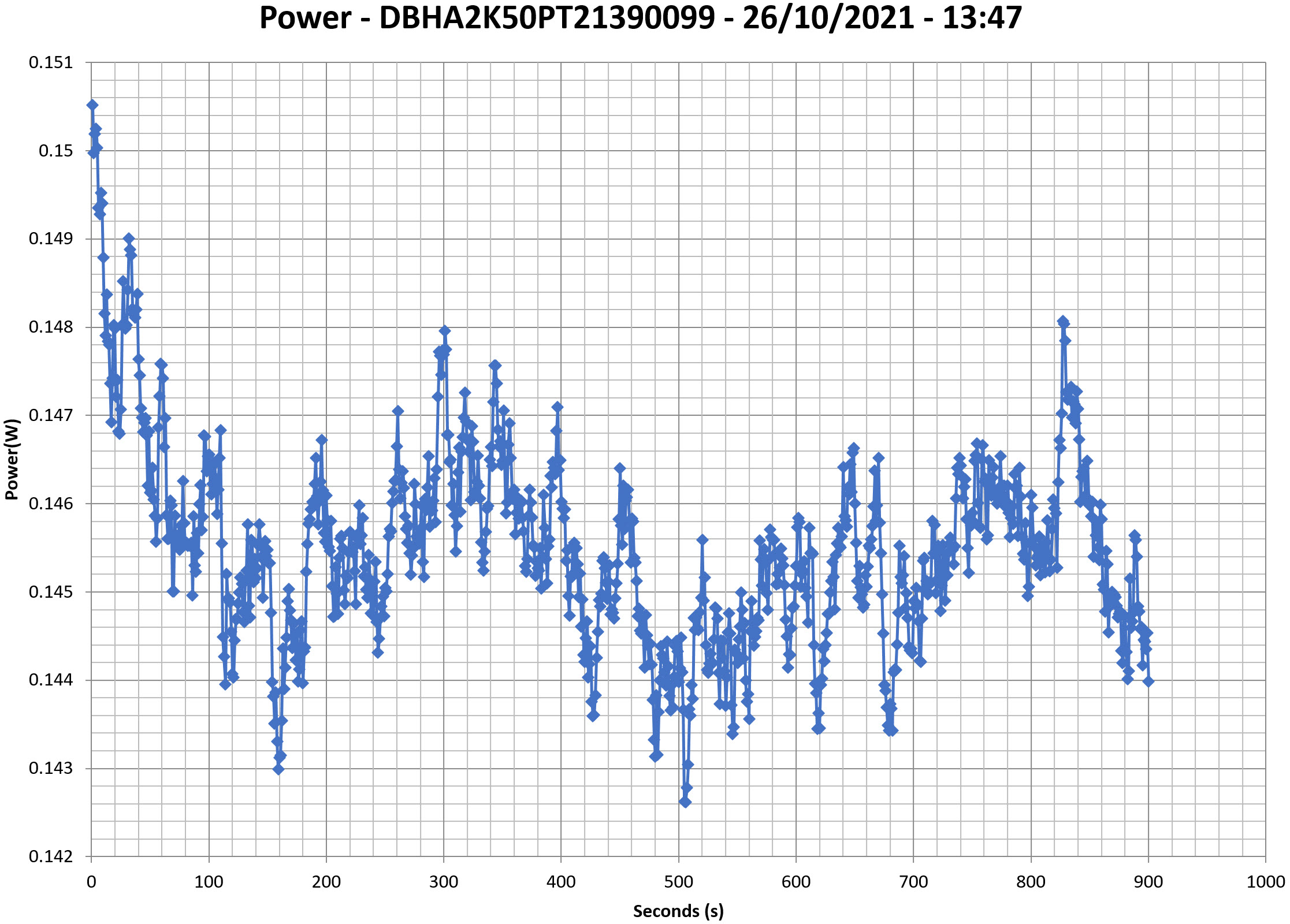

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

230V

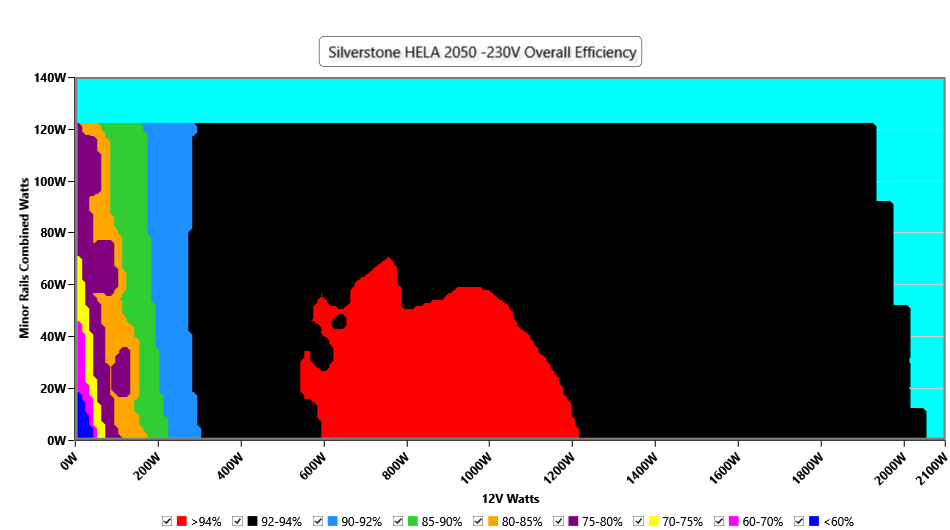

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

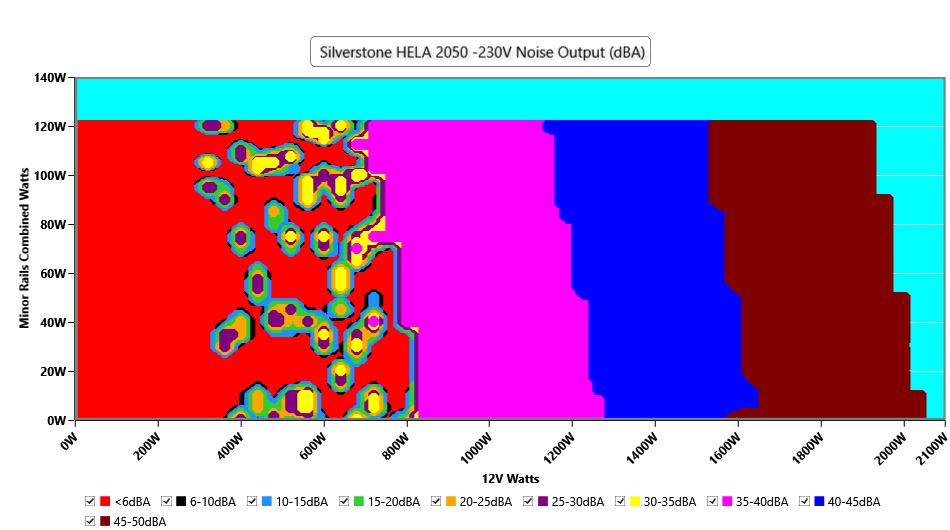

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

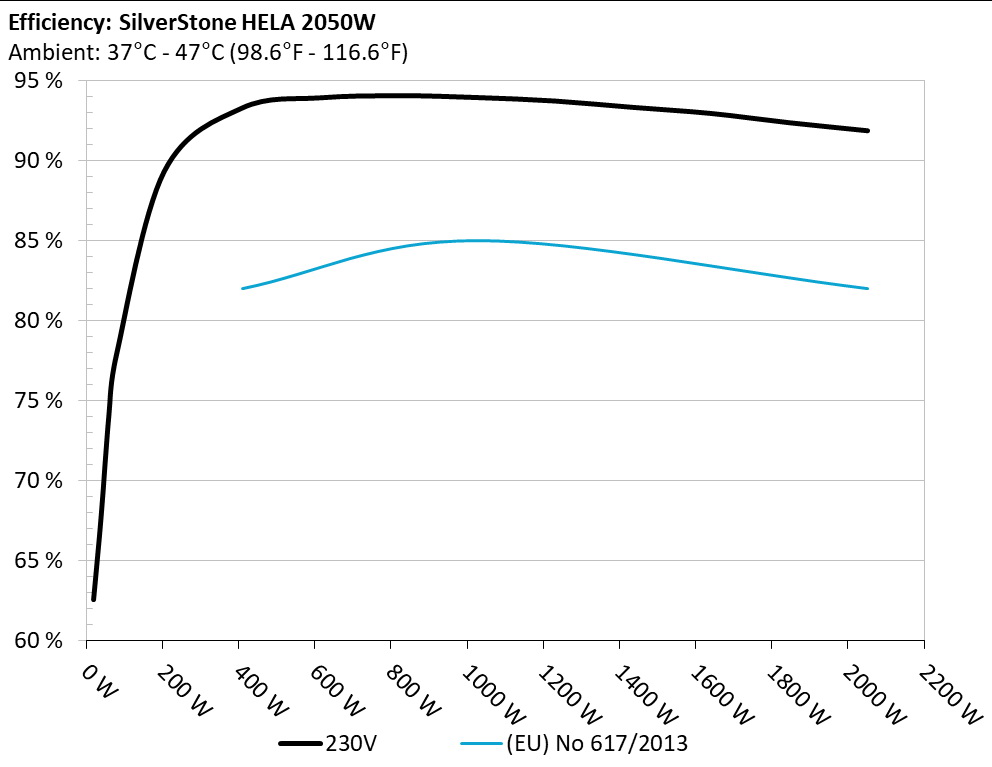

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

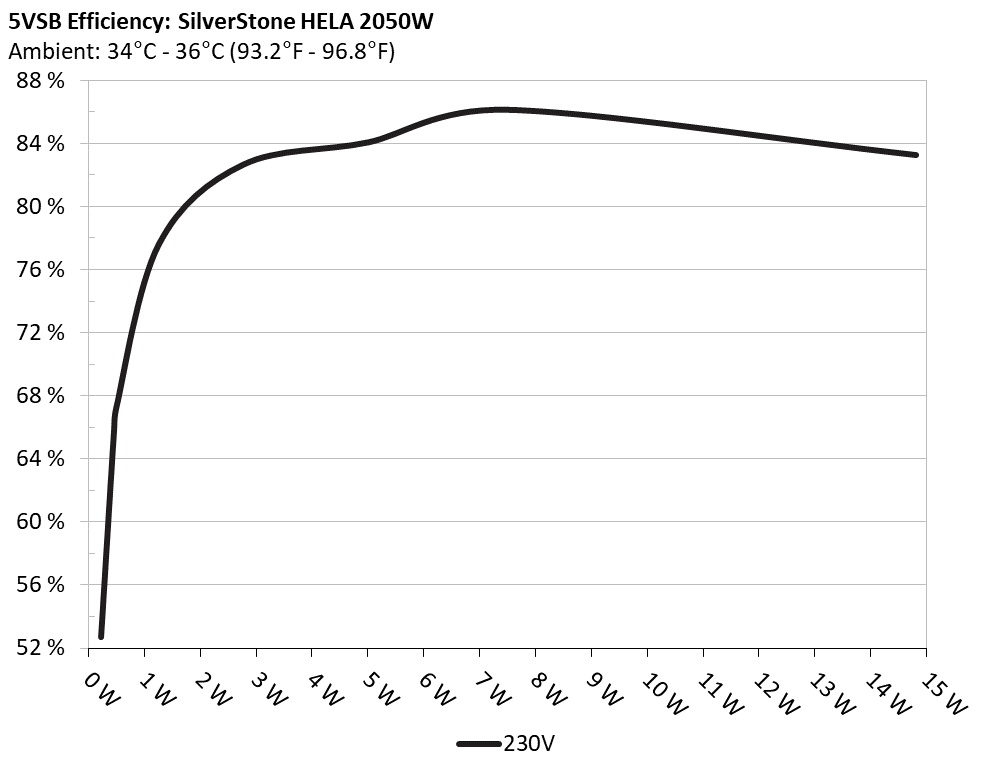

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 52.676% 0.007
5.049V 0.431W 230.24V
2 0.09A 0.454W 65.499% 0.012
5.047V 0.693W 230.25V
3 0.55A 2.767W 82.648% 0.057
5.03V 3.348W 230.25V
4 1A 5.014W 84.075% 0.1
5.013V 5.964W 230.24V
5 1.5A 7.493W 86.139% 0.142
4.994V 8.698W 230.24V
6 3A 14.816W 83.269% 0.256
4.938V 17.792W 230.24V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 15.293A 2.001A 1.963A 1A 204.999 89.314% 0 <6.0 45.84°C 0.881
11.992V 4.997V 3.362V 5.002V 229.525 40.27°C 230.24V
20% 31.613A 3.009A 2.955A 1.204A 409.439 93.295% 0 <6.0 46.88°C 0.964
11.974V 4.985V 3.35V 4.983V 438.863 40.97°C 230.24V
30% 48.404A 3.519A 3.459A 1.41A 614.625 93.934% 1024 32.0 41.49°C 0.976
11.953V 4.974V 3.339V 4.963V 654.317 47.88°C 230.24V
40% 65.227A 4.03A 3.966A 1.618A 819.802 94.067% 1140 35.1 41.89°C 0.974
11.937V 4.963V 3.329V 4.944V 871.502 48.72°C 230.24V
50% 81.748A 5.051A 4.975A 1.828A 1025.107 93.951% 1255 37.8 42.13°C 0.973
11.922V 4.95V 3.317V 4.924V 1091.113 49.46°C 230.24V
60% 98.287A 6.076A 5.993A 2A 1229.512 93.734% 1361 39.7 42.54°C 0.973
11.902V 4.938V 3.304V 4.905V 1311.705 50.53°C 230.24V
70% 114.954A 7.107A 7.018A 2.253A 1435.017 93.336% 1459 41.8 43.2°C 0.973
11.882V 4.926V 3.292V 4.883V 1537.466 51.54°C 230.24V
80% 131.674A 8.004A 8.05A 2.364A 1639.145 92.956% 1555 43.6 43.85°C 0.974
11.862V 4.915V 3.279V 4.866V 1763.355 52.72°C 230.25V
90% 148.807A 8.671A 8.569A 2.475A 1845.271 92.373% 2156 52.5 44.62°C 0.976
11.846V 4.903V 3.268V 4.85V 1997.62 54.25°C 230.25V
100% 165.822A 9.202A 9.125A 3.118A 2050.125 91.875% 2144 52.5 45.71°C 0.978
11.822V 4.892V 3.255V 4.811V 2231.431 55.75°C 230.25V
CL1 0.117A 14.558A 14.274A 0A 121.329 78.819% 896 27.7 42.08°C 0.829
11.979V 4.961V 3.341V 5.036V 153.935 49.05°C 230.26V
CL2 0.117A 22.225A 0A 0A 111.431 77.315% 460 10.7 43.07°C 0.831
11.988V 4.951V 3.36V 5.041V 144.13 50.39°C 230.25V
CL3 0.117A 0A 24.737A 0A 83.888 72.172% 518 12.8 44.35°C 0.794
11.986V 5V 3.335V 5.036V 116.259 52.82°C 230.25V
CL4 173.101A 0A 0A 0A 2049.623 92.398% 2171 52.7 45.04°C 0.978
11.841V 4.925V 3.276V 4.944V 2218.269 55.18°C 230.24V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.499A 0.489A 0.198A 20.01 62.529% 0 <6.0 39.83°C 0.36
12.026V 5.008V 3.373V 5.044V 32.033 36.63°C 230.24V
40W 2.722A 0.699A 0.685A 0.298A 40.008 67.793% 0 <6.0 41.27°C 0.551
12.013V 5.007V 3.372V 5.038V 59.062 37.41°C 230.24V
60W 4.208A 0.899A 0.881A 0.397A 60.008 74.023% 0 <6.0 43.16°C 0.659
12.009V 5.006V 3.371V 5.034V 81.116 38.95°C 230.24V
80W 5.692A 1.099A 1.077A 0.497A 79.967 77.847% 0 <6.0 44.12°C 0.757
12.004V 5.005V 3.37V 5.028V 102.766 39.37°C 230.24V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load10.54mV13.53mV14.16mV5.22mVPass
20% Load12.13mV15.63mV13.86mV5.37mVPass
30% Load15.45mV14.71mV14.68mV5.83mVPass
40% Load17.55mV15.52mV15.34mV6.34mVPass
50% Load20.78mV15.83mV14.93mV6.24mVPass
60% Load23.95mV16.19mV15.24mV6.75mVPass
70% Load29.94mV17.26mV16.57mV8.49mVPass
80% Load30.50mV17.47mV16.72mV7.98mVPass
90% Load34.70mV17.26mV17.23mV8.29mVPass
100% Load44.25mV19.40mV18.53mV10.07mVPass
Crossload116.95mV17.76mV16.35mV7.67mVPass
Crossload210.70mV18.95mV14.57mV4.71mVPass
Crossload39.88mV14.35mV17.80mV4.35mVPass
Crossload444.29mV17.46mV17.62mV10.35mVPass

The results above are not used in the certification process

SilverStone HELA 2050 Platinum

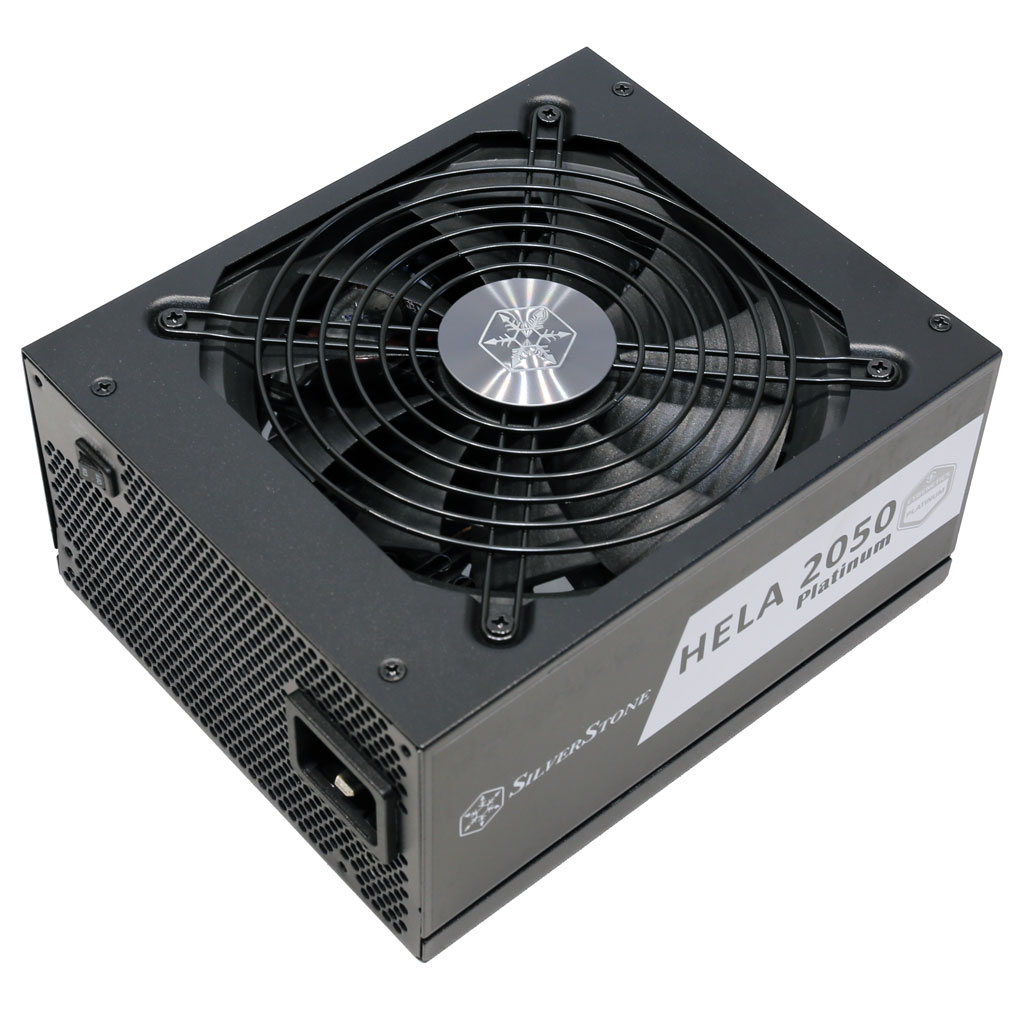

Top side

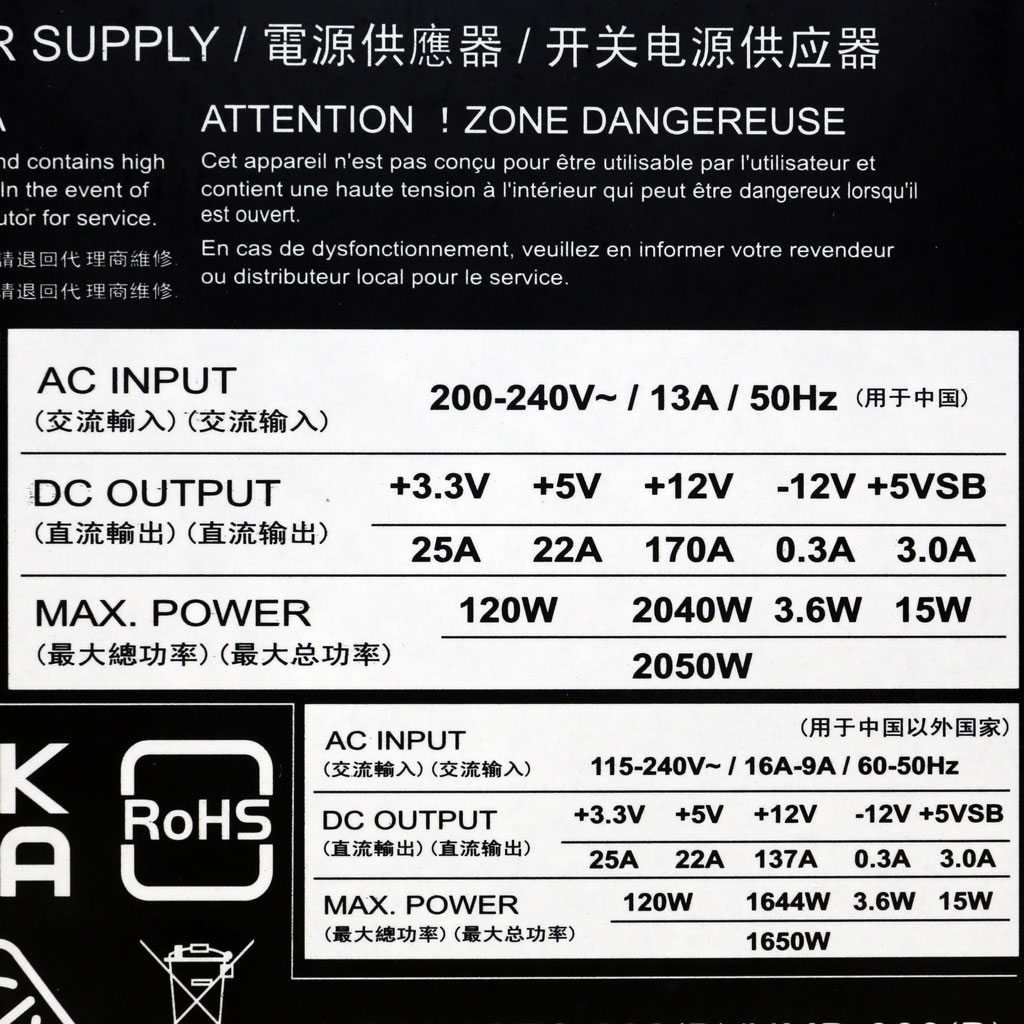

Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
