EVGA SuperNOVA 850 P6
2104040809830201
Lab IDEV85001924
  • Report: 21PS1924A
  • Receipt Date: Oct 20, 2021
  • Test Date: Oct 25, 2021
  • Report Date: Nov 1, 2021
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

EVGA
Hersteller (OEM)Seasonic
SuperNOVA P6
SuperNOVA 850 P6
2104040809830201

(Vrms)100-240
(Arms)12-6
(Hz)50-60
(W)850
ATX12V
135mm Fluid Dynamic Bearing Fan
(HA13525M12F-Z)
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps242470.830.5
Watts120850156
Total Max. Power (W)850

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (700mm+125mm) 2 4 16-18AWG No
6+2 pin PCIe (700mm) 2 2 18AWG No
SATA (550mm+100mm+100mm) 3 9 18AWG No
4-pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (105mm) 1 1 22AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data -
Manufacturer (OEM) Seasonic
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Champion CM02X (Discharge IC)
Inrush Protection NTC Thermistor MF72-5D20L (5 Ohm) & Relay
Bridge Rectifier(s) 2x GBU15JL (600V, 15A @ 115°C)
APFC MOSFETs 2x Infineon IPA60R125P6 (600V, 19A @ 100°C, Rds(on): 0.125Ohm)
APFC Boost Diode 1x STMicroelectronics STPSC8H065D (650V, 8A @ 140°C)
Bulk Cap(s) 2x Nippon Chemi-Con (420V, 390uF each or 780uF combined, 2,000h @ 105°C, KMR)
Main Switchers 4x Infineon IPA60R160P6 (600V, 15A @ 100°C, Rds(on): 0.16Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CU6901V
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 4x Nexperia PSMN1R0-40YLD (40V, 198A @ 100°C, Rds(on): 1.93mOhm)
5V & 3.3V DC-DC Converters: 6x Nexperia PSMN1R0-30YLD (30V, 255A @ 100°C, Rds(on): 1.7mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 6x Nippon Chemi-Con (2-5,000h @ 105°C, KZE), 1x Nippon Chemi-Con (5-6,000h @ 105°C, KZH), 2x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 2x Rubycon (3-6,000h @ 105°C, YXG)
Polymer: 20x Nippon Chemi-Con, 14x NIC
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG) & Weltrend WT51F104 (Firmware OPP)
Fan Controller Weltrend WT51F104
Fan Model Hong Hua HA13525H12F-Z (135mm, 12V, 0.50A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifier 1x MCC MRB1045ULPS SBR (45V, 10A)
Standby PWM Controller Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time (ms)19.8
AC Loss to PWR_OK Hold Up Time (ms)15.2
PWR_OK Inactive to DC Loss Delay (ms)4.6

Stromverbrauch im Ruhezustand

Graphs

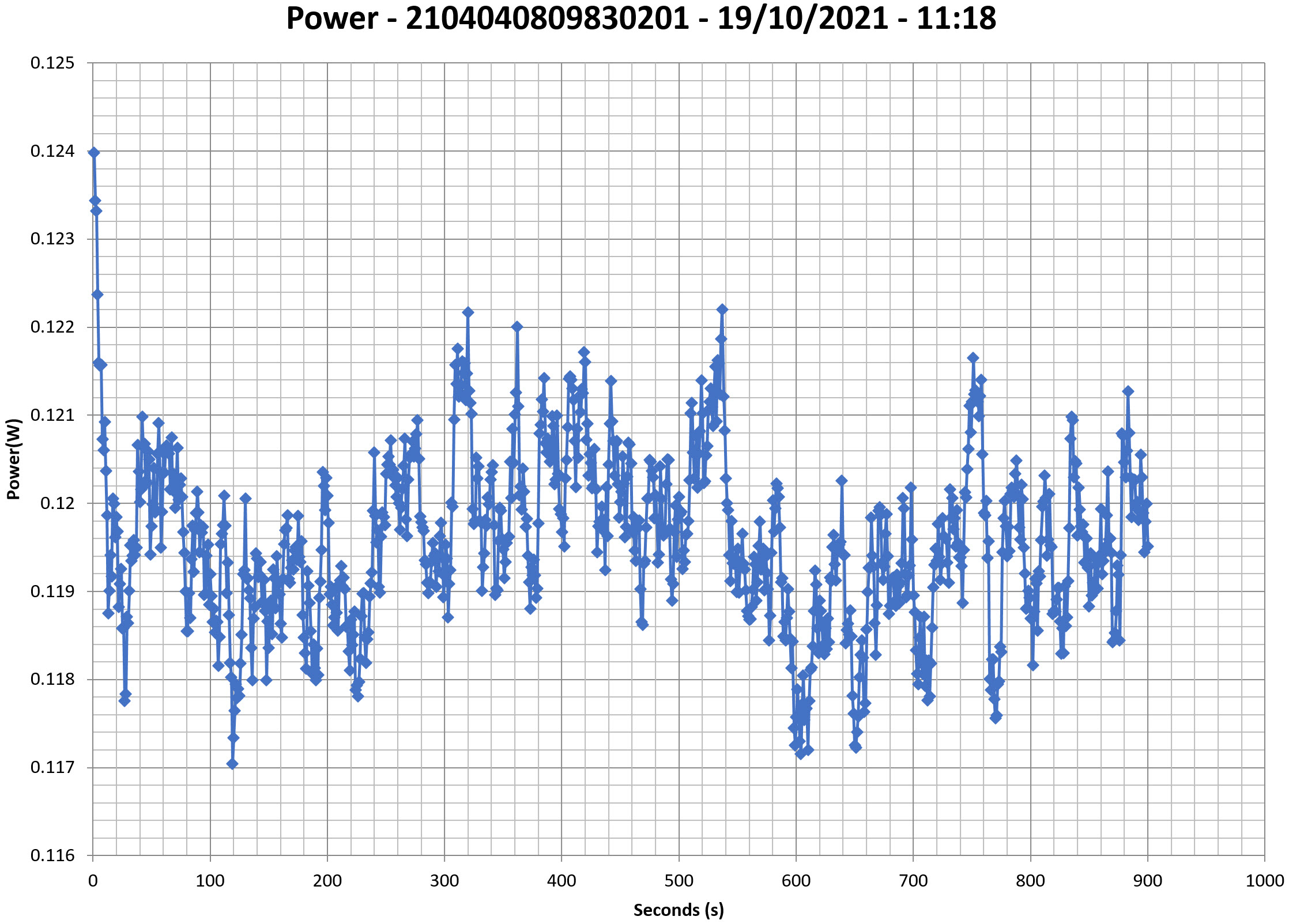

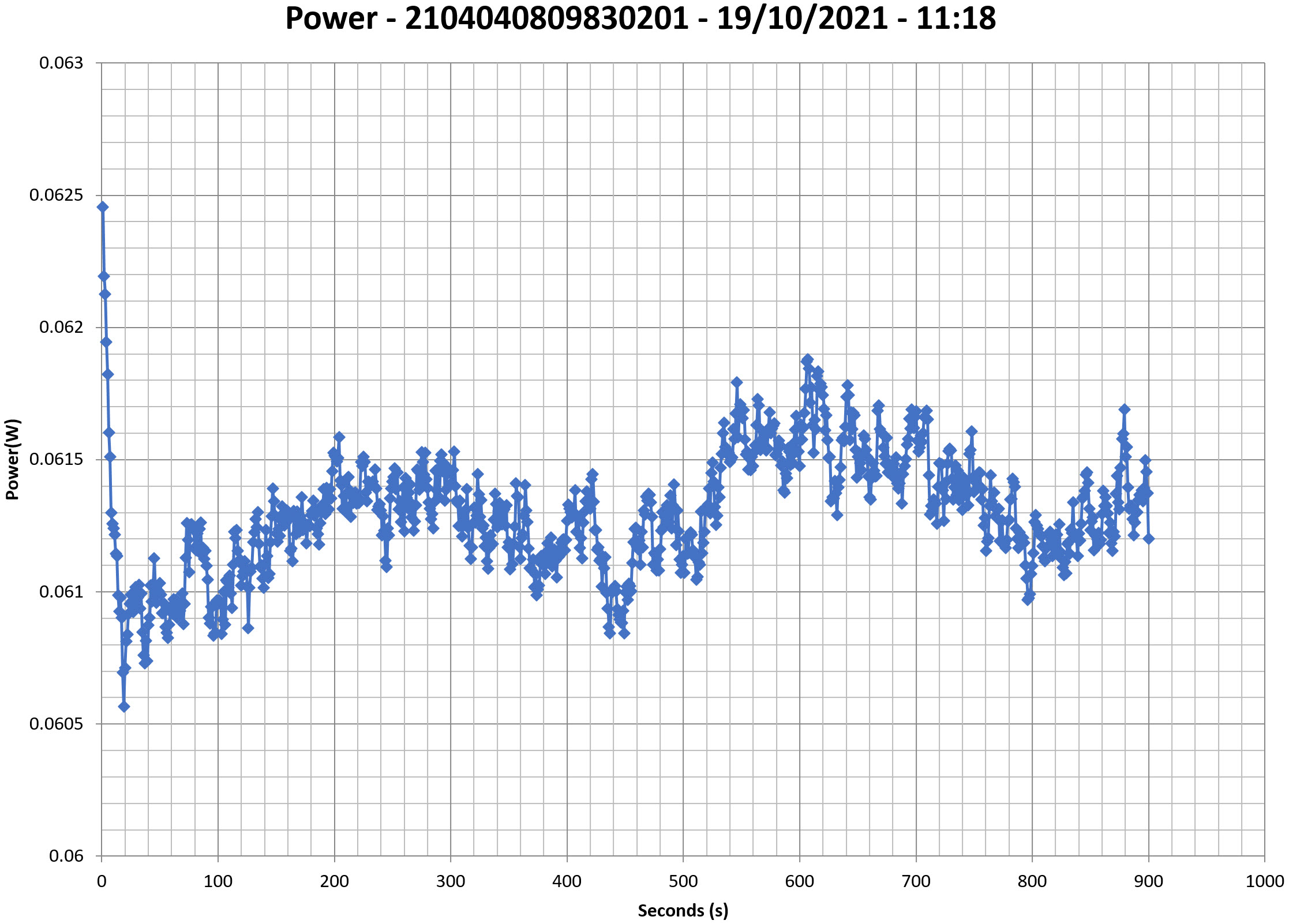

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

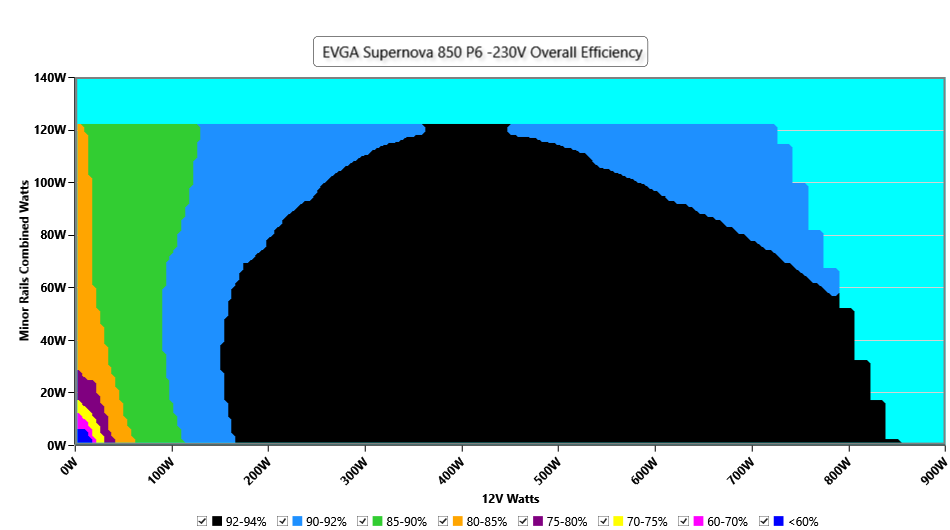

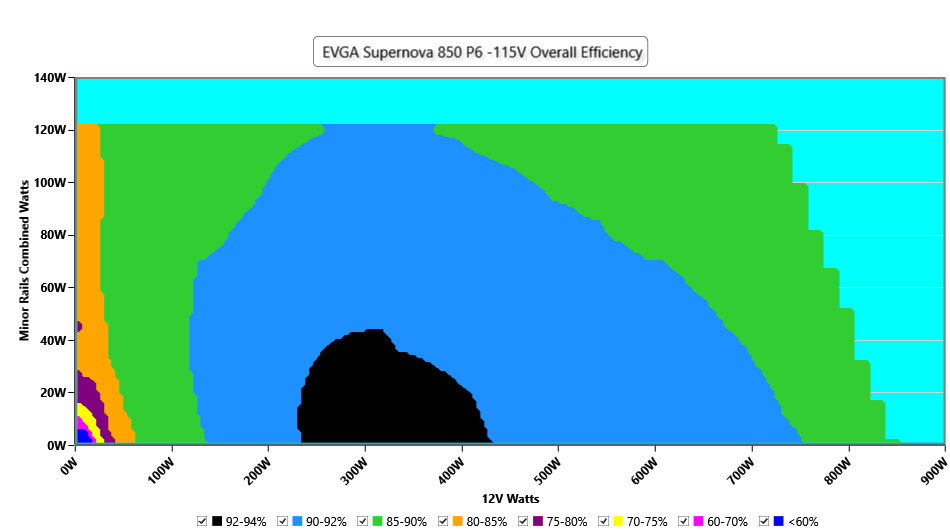

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

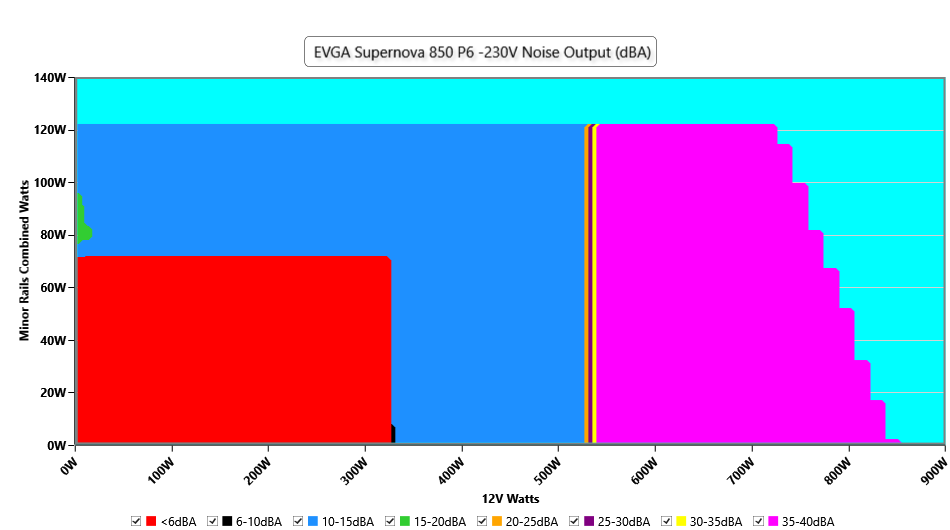

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

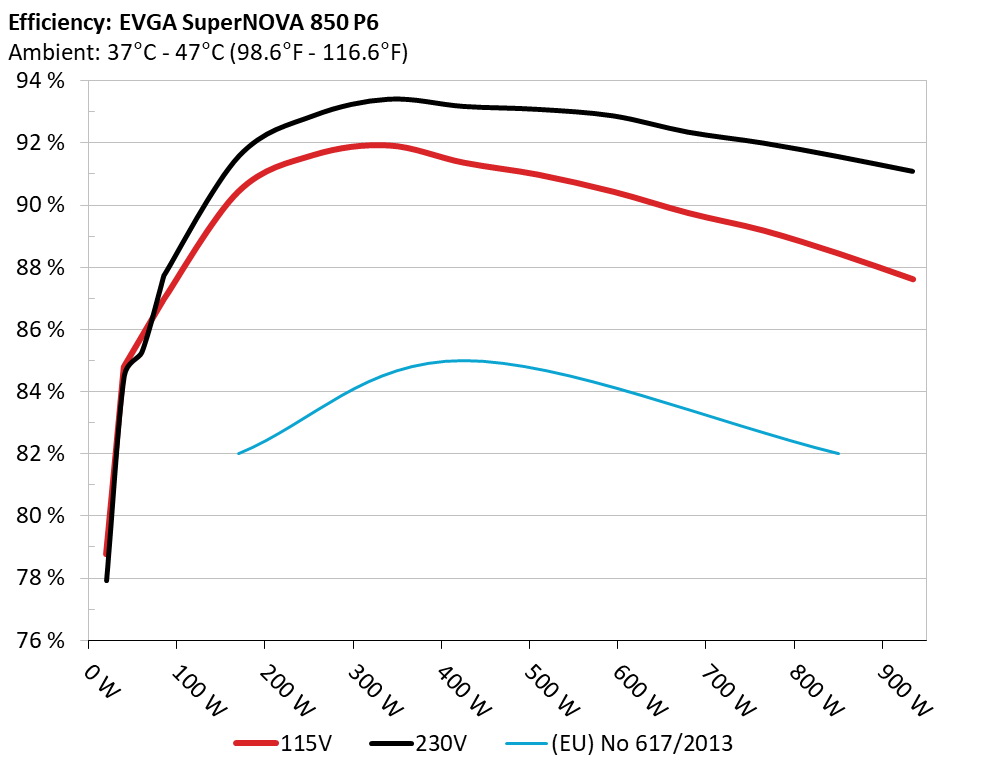

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

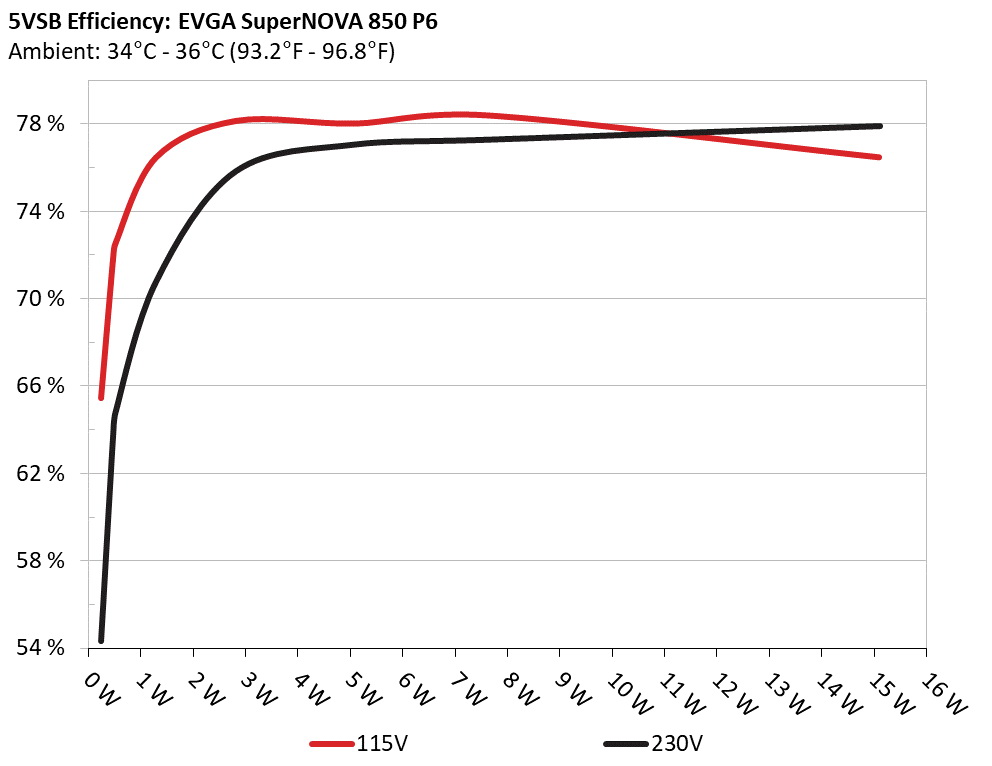

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 65.459% 0.033
5.115V 0.351W 115.12V
2 0.09A 0.46W 71.866% 0.059
5.114V 0.64W 115.12V
3 0.55A 2.807W 78.143% 0.248
5.103V 3.592W 115.12V
4 1A 5.092W 78.019% 0.348
5.091V 6.527W 115.12V
5 1.5A 7.62W 78.396% 0.405
5.08V 9.72W 115.12V
6 3A 15.093W 76.478% 0.484
5.03V 19.735W 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 54.313% 0.012
5.115V 0.423W 230.25V
2 0.09A 0.46W 63.732% 0.02
5.114V 0.722W 230.25V
3 0.55A 2.806W 75.824% 0.098
5.101V 3.701W 230.25V
4 1A 5.091W 77.051% 0.163
5.09V 6.607W 230.25V
5 1.5A 7.617W 77.269% 0.221
5.077V 9.858W 230.25V
6 3A 15.118W 77.89% 0.325
5.039V 19.409W 230.26V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.218A 2A 1.984A 0.985A 85.006 86.654% 0 <6.0 44.82°C 0.966
12.151V 5V 3.326V 5.079V 98.099 39.84°C 115.12V
20% 11.444A 3.003A 2.985A 1.185A 169.964 90.452% 0 <6.0 45.85°C 0.983
12.152V 4.996V 3.316V 5.065V 187.906 40.52°C 115.12V
30% 18.042A 3.506A 3.489A 1.386A 254.983 91.625% 0 <6.0 46.77°C 0.983
12.134V 4.992V 3.311V 5.051V 278.291 41.17°C 115.11V
40% 24.631A 4.011A 3.994A 1.589A 340.087 91.935% 0 <6.0 47.59°C 0.985
12.134V 4.987V 3.305V 5.036V 369.922 41.42°C 115.11V
50% 30.888A 5.017A 5.013A 1.793A 425.104 91.381% 1413 40.4 42.31°C 0.983
12.127V 4.984V 3.292V 5.02V 465.202 48.84°C 115.11V
60% 37.093A 6.028A 6.035A 1.998A 509.641 90.992% 1412 40.3 42.51°C 0.984
12.127V 4.978V 3.281V 5.005V 560.097 49.73°C 115.11V
70% 43.365A 7.041A 7.065A 2.206A 594.942 90.444% 1411 40.3 43.58°C 0.985
12.125V 4.973V 3.27V 4.989V 657.801 51.41°C 115.11V
80% 49.634A 8.003A 8.101A 2.311A 679.492 89.762% 1797 46.4 43.64°C 0.987
12.125V 4.968V 3.259V 4.976V 756.991 52.38°C 115.1V
90% 56.312A 8.563A 8.61A 2.417A 765.103 89.194% 1796 46.4 44.68°C 0.988
12.121V 4.964V 3.252V 4.966V 857.792 53.86°C 115.09V
100% 62.685A 9.078A 9.154A 3.037A 849.921 88.456% 1799 46.5 45.69°C 0.989
12.127V 4.958V 3.244V 4.94V 960.838 55.65°C 115.08V
110% 68.920A 10.102A 10.301A 3.045A 934.504 87.627% 1801 46.4 46.8°C 0.99
12.133V 4.95V 3.232V 4.928V 1066.453 57.62°C 115.08V
CL1 0.115A 14.544A 14.788A 0A 121.313 82.927% 1423 40.5 42.17°C 0.977
12.172V 4.965V 3.225V 5.08V 146.289 49.88°C 115.12V
CL2 0.115A 24.236A 0A 0A 121.425 81.225% 1782 46.1 43.84°C 0.977
12.161V 4.953V 3.339V 5.088V 149.493 51.67°C 115.11V
CL3 0.115A 0A 25.133A 0A 80.582 73.945% 1780 46.1 44.43°C 0.968
12.155V 4.996V 3.151V 5.084V 108.975 53.27°C 115.12V
CL4 70.097A 0A 0A 0.001A 849.609 89.316% 1796 46.4 45.61°C 0.989
12.121V 4.984V 3.319V 5.031V 951.241 55.39°C 115.08V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.218A 2A 1.984A 0.985A 85.012 87.573% 0 <6.0 46.23°C 0.787
12.151V 5V 3.327V 5.079V 97.076 40.59°C 230.26V
20% 11.444A 3.003A 2.985A 1.185A 169.975 91.562% 0 <6.0 47.04°C 0.903
12.152V 4.995V 3.317V 5.065V 185.64 40.9°C 230.26V
30% 18.042A 3.506A 3.489A 1.386A 254.996 92.869% 613 13.7 41.12°C 0.94
12.135V 4.992V 3.311V 5.051V 274.575 47.89°C 230.25V
40% 24.636A 4.01A 3.995A 1.589A 340.1 93.397% 612 13.7 42.13°C 0.954
12.132V 4.988V 3.305V 5.037V 364.145 49.25°C 230.25V
50% 30.881A 5.017A 5.01A 1.793A 425.091 93.165% 1414 40.5 42.52°C 0.963
12.130V 4.984V 3.294V 5.021V 456.277 50.16°C 230.25V
60% 37.097A 6.025A 6.03A 1.997A 509.518 93.07% 1418 40.5 43.09°C 0.968
12.122V 4.979V 3.284V 5.008V 547.459 51.01°C 230.25V
70% 43.361A 7.036A 7.056A 2.204A 594.85 92.861% 1410 40.3 43.46°C 0.971
12.124V 4.976V 3.274V 4.992V 640.579 51.62°C 230.24V
80% 49.627A 8.003A 8.088A 2.31A 679.46 92.34% 1796 46.4 43.78°C 0.973
12.126V 4.972V 3.264V 4.98V 735.824 52.32°C 230.24V
90% 56.257A 8.559A 8.597A 2.416A 765.027 91.989% 1797 46.4 44.13°C 0.976
12.132V 4.966V 3.256V 4.968V 831.651 53.45°C 230.24V
100% 62.652A 9.07A 9.14A 3.035A 849.91 91.554% 1797 46.4 45.69°C 0.977
12.133V 4.963V 3.249V 4.943V 928.313 55.73°C 230.24V
110% 68.903A 10.091A 10.284A 3.042A 934.509 91.082% 1801 46.4 46.75°C 0.979
12.136V 4.956V 3.238V 4.932V 1026.013 57.64°C 230.24V
CL1 0.115A 14.536A 14.769A 0A 121.318 83.965% 1423 40.5 42.87°C 0.867
12.173V 4.968V 3.229V 5.082V 144.487 49.66°C 230.24V
CL2 0.115A 24.221A 0A 0A 121.426 82.224% 1781 46.1 43.81°C 0.871
12.162V 4.956V 3.339V 5.09V 147.678 51.94°C 230.24V
CL3 0.115A 0A 25.103A 0A 80.584 74.745% 1780 46.1 44.51°C 0.81
12.153V 4.997V 3.154V 5.085V 107.811 53.68°C 230.24V
CL4 70.097A 0A 0A 0.001A 849.614 92.4% 1791 46.2 45.28°C 0.976
12.121V 4.987V 3.32V 5.036V 919.5 55.08°C 230.24V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.499A 0.494A 0.196A 20 78.78% 0 <6.0 40.43°C 0.77
12.092V 5.008V 3.341V 5.107V 25.387 37.21°C 115.11V
40W 2.702A 0.699A 0.692A 0.294A 40.001 84.638% 0 <6.0 41.25°C 0.903
12.098V 5.007V 3.338V 5.102V 47.261 37.63°C 115.11V
60W 4.158A 0.899A 0.89A 0.392A 60.002 84.805% 0 <6.0 42.77°C 0.942
12.152V 5.005V 3.336V 5.098V 70.752 38.58°C 115.11V
80W 5.622A 1.099A 1.089A 0.491A 79.957 86.968% 0 <6.0 43.84°C 0.965
12.154V 5.003V 3.333V 5.093V 91.938 39.27°C 115.11V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.499A 0.494A 0.196A 20.008 77.938% 0 <6.0 40.25°C 0.416
12.094V 5.007V 3.34V 5.106V 25.672 36.98°C 230.26V
40W 2.704A 0.699A 0.692A 0.294A 40.009 84.508% 0 <6.0 41.14°C 0.583
12.096V 5.007V 3.338V 5.102V 47.343 37.44°C 230.26V
60W 4.160A 0.899A 0.89A 0.392A 60.01 85.271% 0 <6.0 42.72°C 0.706
12.151V 5.005V 3.336V 5.098V 70.375 38.62°C 230.26V
80W 5.624A 1.1A 1.089A 0.491A 79.974 87.731% 0 <6.0 44.79°C 0.773
12.152V 5.002V 3.334V 5.093V 91.158 40.16°C 230.26V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.01mV10.21mV12.53mV7.06mVPass
20% Load11.21mV9.14mV11.71mV6.55mVPass
30% Load11.36mV9.60mV11.76mV7.27mVPass
40% Load10.39mV11.85mV13.04mV10.75mVPass
50% Load10.23mV11.29mV12.32mV12.08mVPass
60% Load9.98mV11.69mV12.99mV9.88mVPass
70% Load10.64mV11.80mV13.75mV16.32mVPass
80% Load11.36mV12.82mV14.47mV17.71mVPass
90% Load11.26mV12.46mV15.04mV13.25mVPass
100% Load16.07mV14.45mV16.83mV15.13mVPass
110% Load16.10mV17.64mV19.09mV15.83mVPass
Crossload19.12mV11.37mV14.53mV7.47mVPass
Crossload28.90mV10.93mV11.66mV6.40mVPass
Crossload38.91mV9.35mV13.75mV6.24mVPass
Crossload416.00mV13.16mV16.13mV16.33mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.14mV9.65mV12.58mV7.68mVPass
20% Load11.62mV9.20mV11.56mV7.11mVPass
30% Load11.59mV10.17mV11.91mV8.24mVPass
40% Load9.93mV12.05mV13.09mV11.16mVPass
50% Load10.70mV11.29mV12.17mV12.18mVPass
60% Load10.29mV11.44mV13.04mV9.88mVPass
70% Load10.90mV12.72mV14.57mV16.17mVPass
80% Load10.90mV12.05mV14.32mV17.40mVPass
90% Load11.00mV13.28mV15.80mV12.33mVPass
100% Load16.43mV15.97mV19.53mV13.94mVPass
110% Load16.96mV18.00mV19.77mV14.51mVPass
Crossload19.26mV10.86mV14.38mV7.11mVPass
Crossload28.14mV10.83mV11.10mV6.40mVPass
Crossload38.09mV8.89mV13.60mV6.19mVPass
Crossload416.43mV14.20mV16.70mV13.70mVPass

The results above are not used in the certification process

EVGA SuperNOVA 850 P6

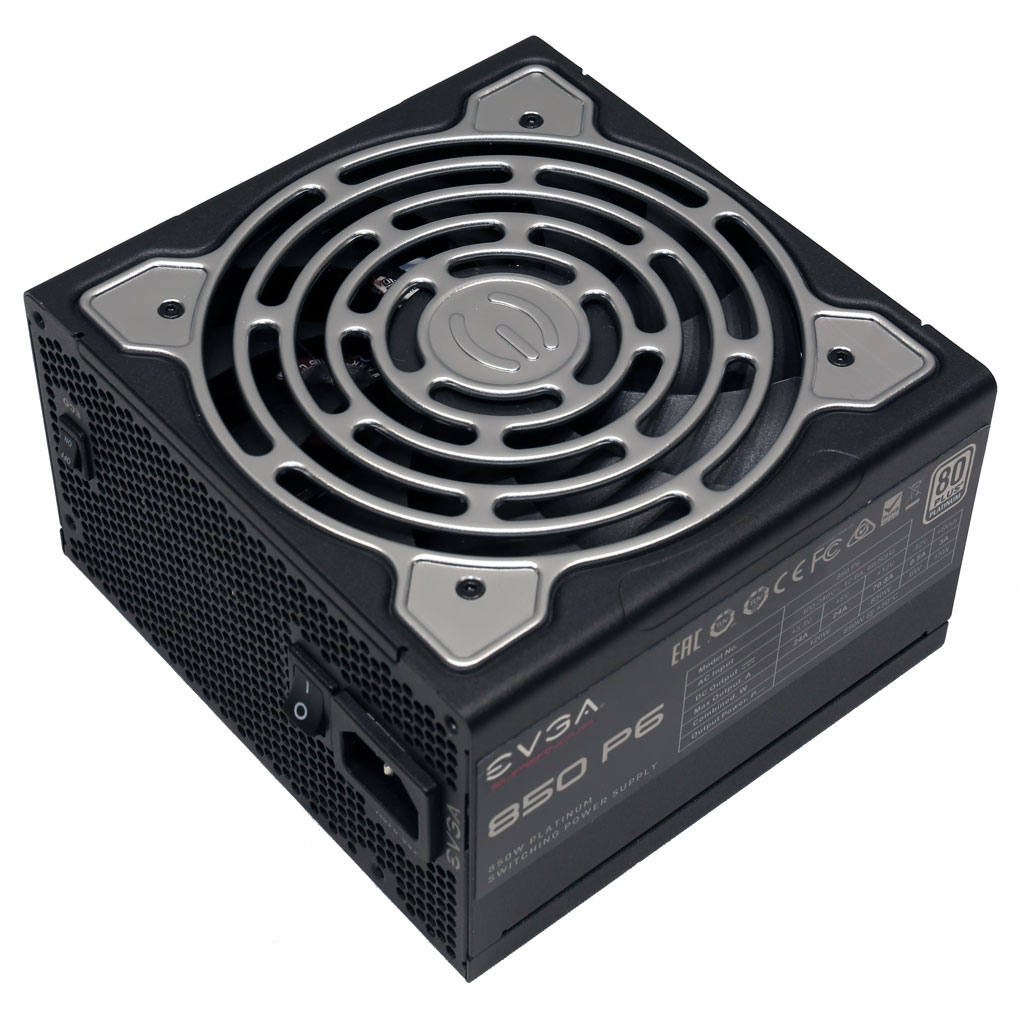

Top side

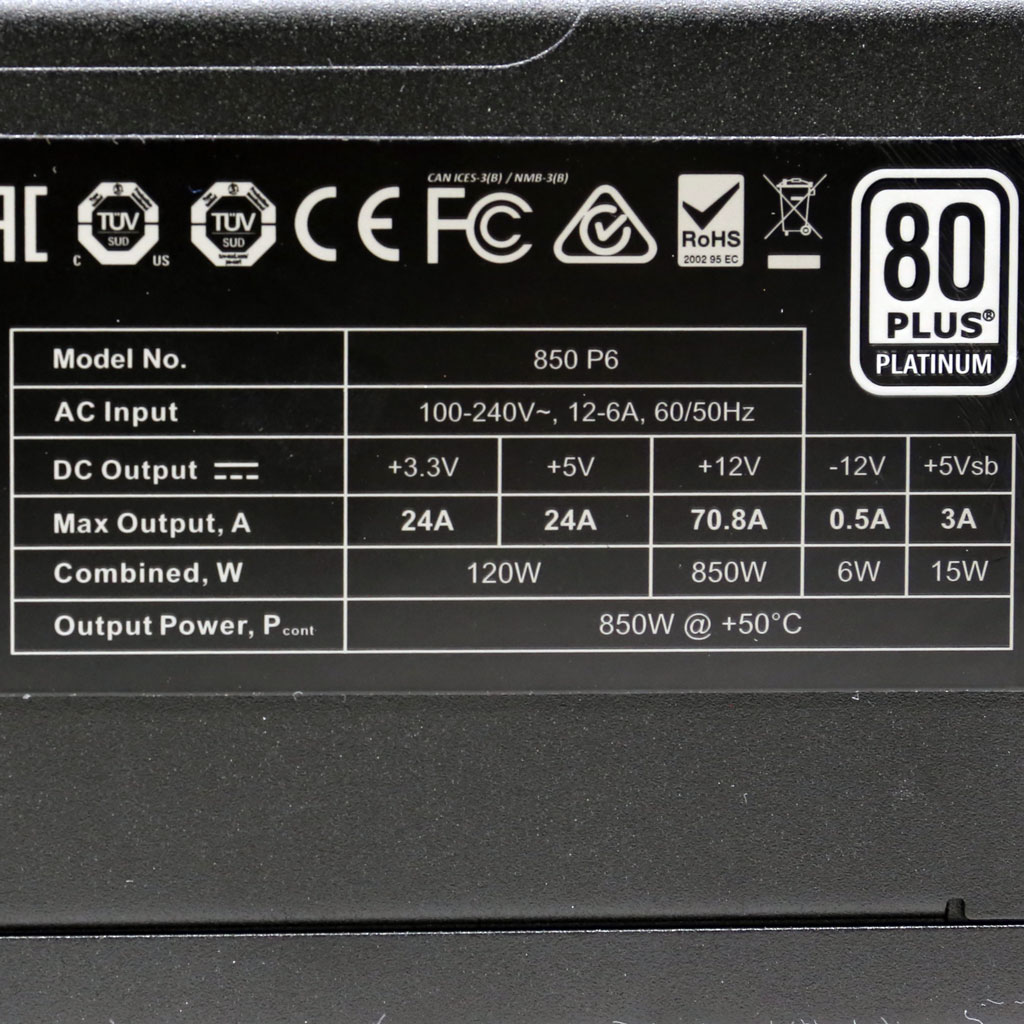

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
