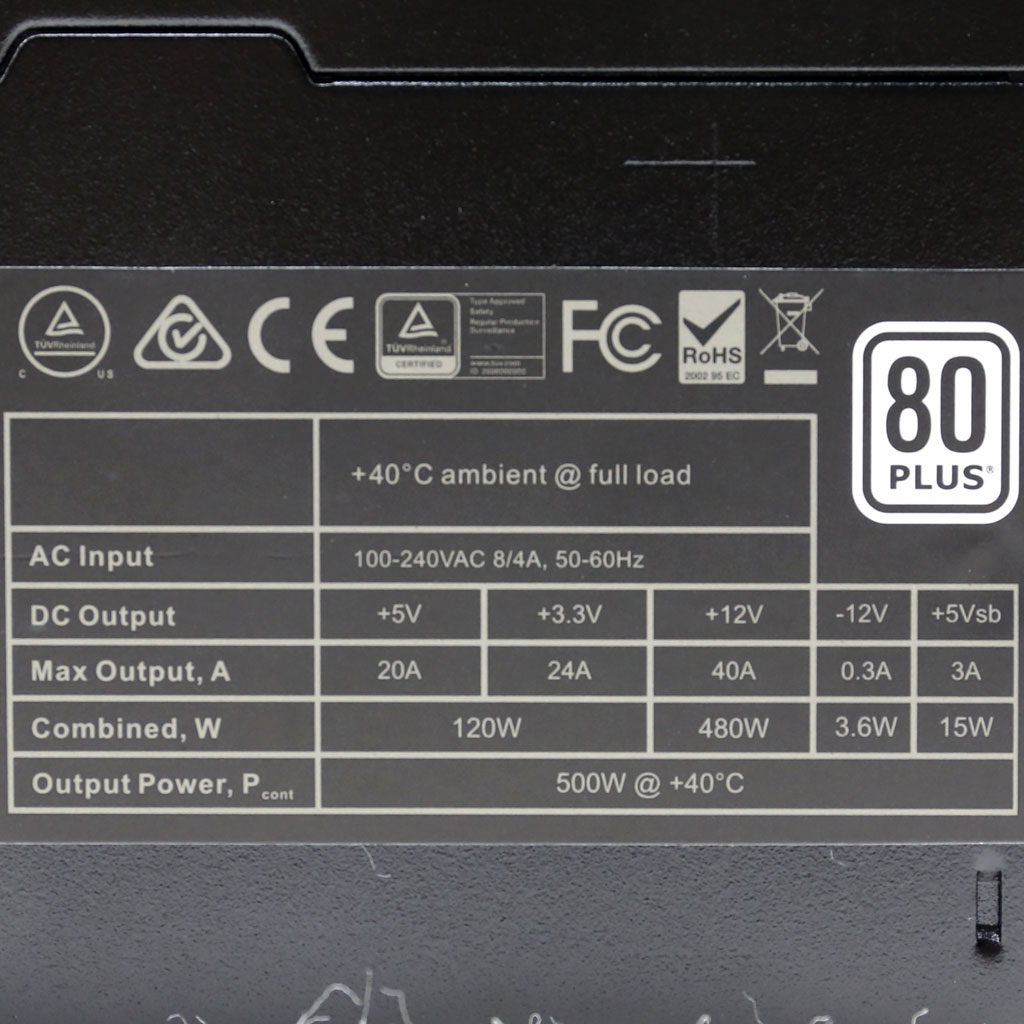

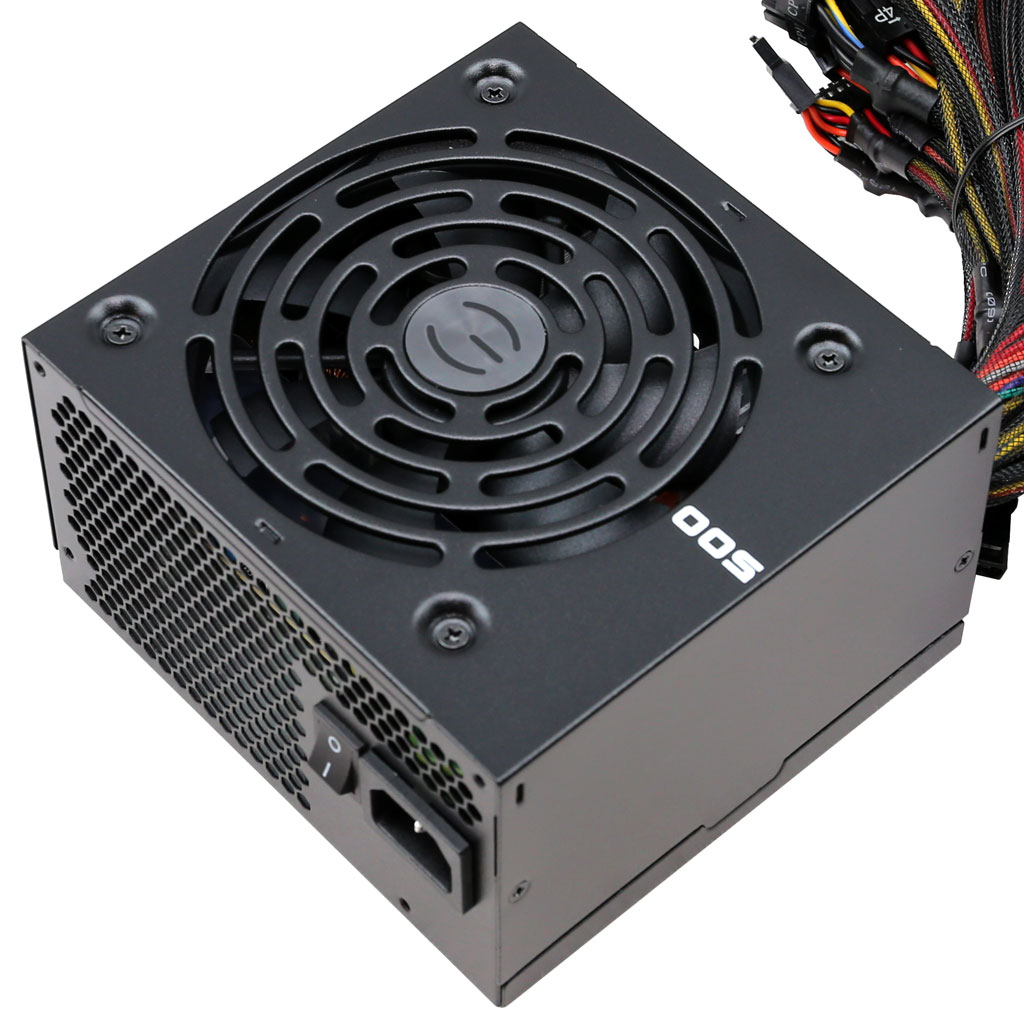

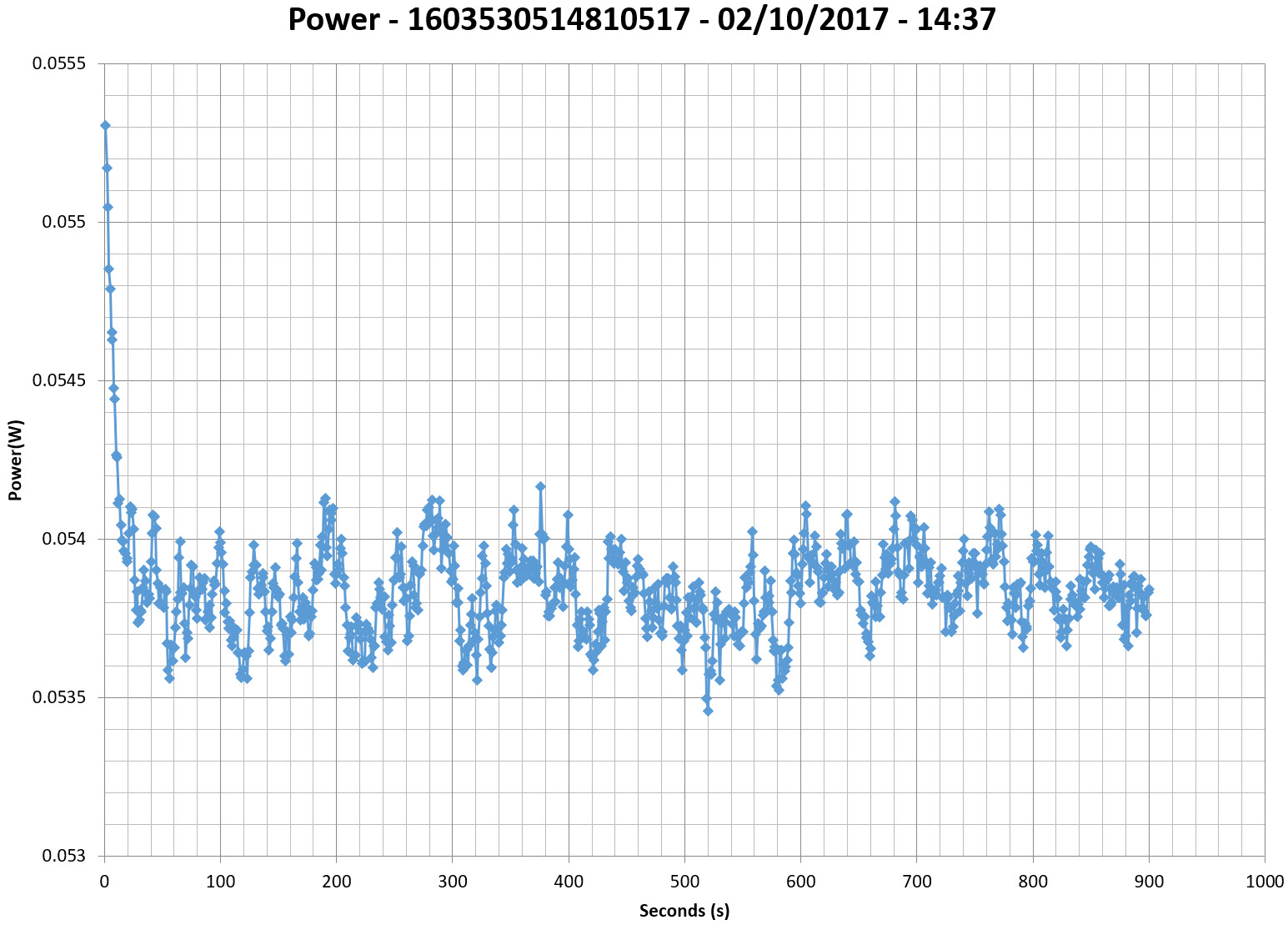

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
转换效率图表
115V
资讯

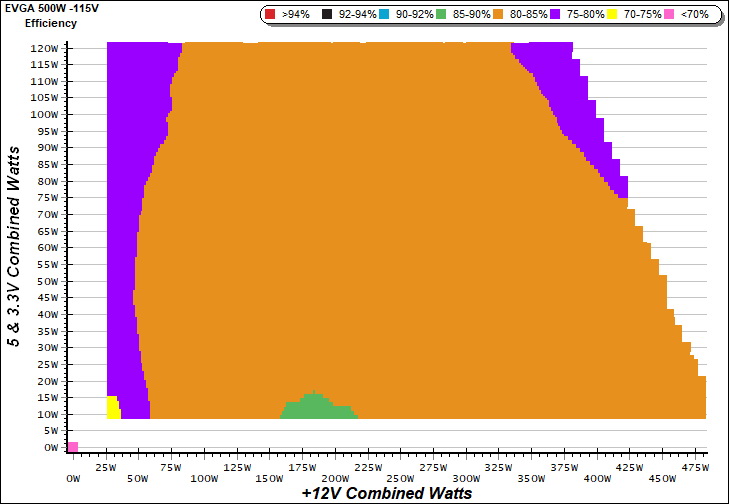

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
噪音值图表
115V
资讯

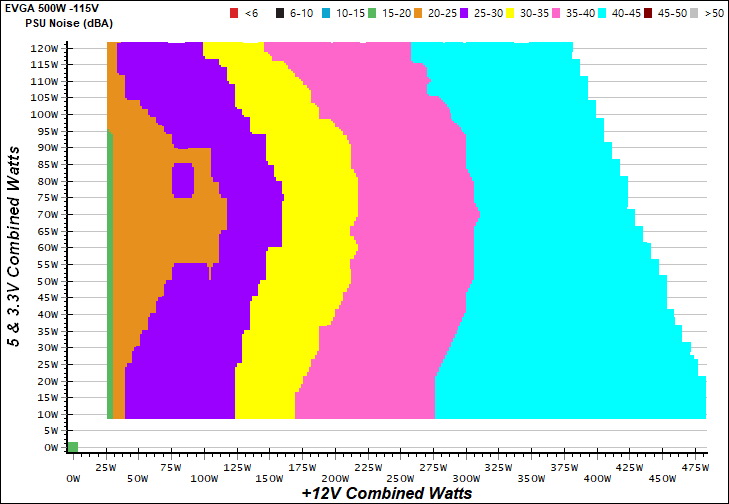

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance
高环温电源转换效率
资讯

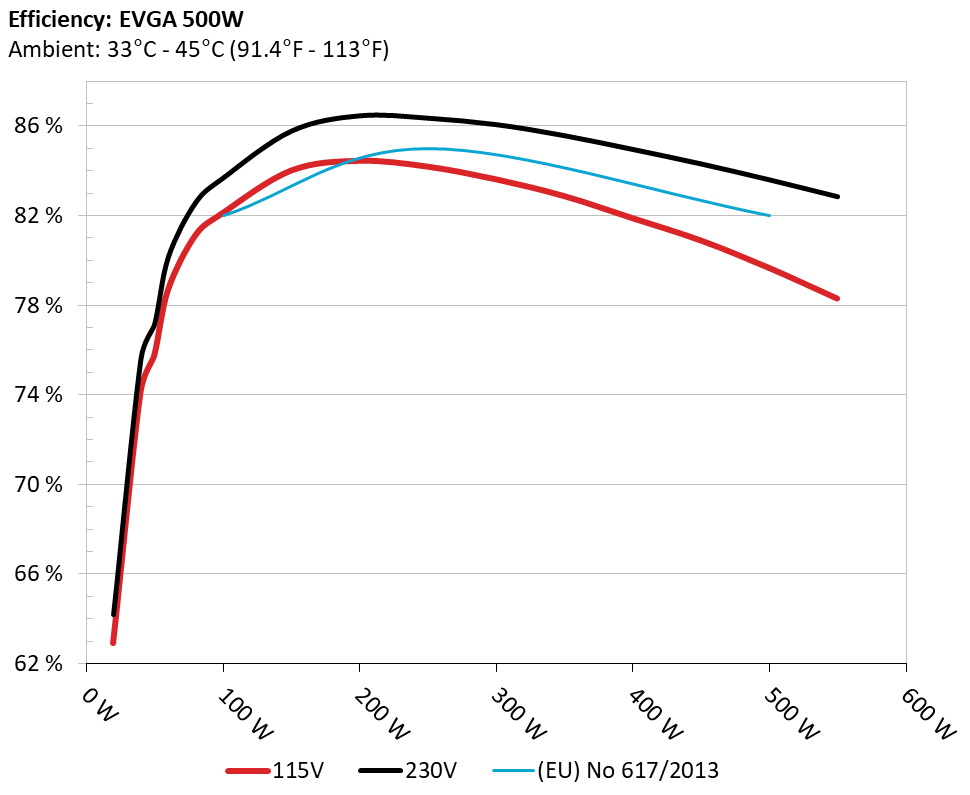

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.
5Vsb转换效率
资讯

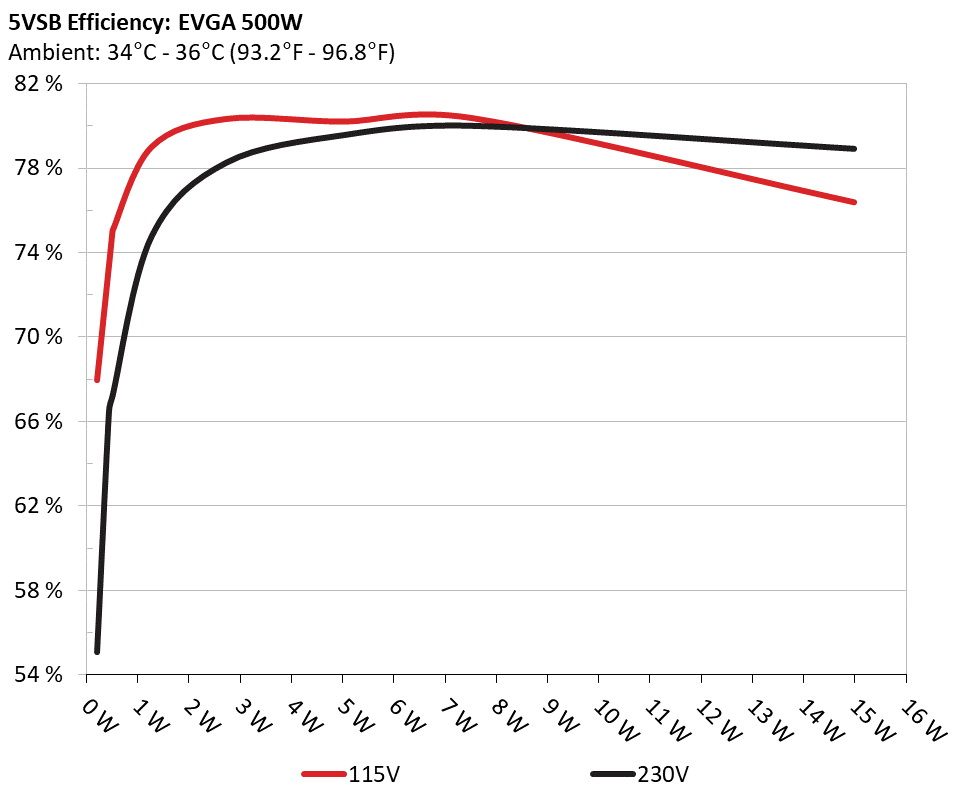

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC) 115V
测试 #
5VSB
DC/AC (瓦)
效率
PF/AC 电压
1
0.042A
0.212
67.949%
0.060
5.050V
0.312
115.06V
2
0.088A
0.442
75.042%
0.107
5.049V
0.589
115.06V
3
0.543A
2.734
80.341%
0.315
5.039V
3.403
115.05V
4
1.002A
5.044
80.216%
0.368
5.033V
6.288
115.05V
5
1.502A
7.542
80.379%
0.396
5.022V
9.383
115.05V
6
3.002A
14.984
76.391%
0.441
4.991V
19.615
115.05V
Supplementary Tests (For Reference)
10-110%负载测试 115V
测试 #
12V
5V
3.3V
5VSB
DC/AC (瓦)
效率
风扇转速 (RPM)
电源供应器噪音 (dB[A])
温度(输入/输出)
PF/AC 电压
1
2.308A
1.975A
1.954A
0.996A
49.762
75.771%
874
20.1
33.90°C
0.912
12.216V
5.055V
3.374V
5.012V
65.674
38.63°C
115.11V
2
5.651A
2.969A
2.938A
1.201A
99.796
82.132%
898
21.2
34.70°C
0.947
12.197V
5.047V
3.364V
4.998V
121.507
40.20°C
115.11V
3
9.354A
3.466A
3.453A
1.400A
149.890
84.035%
1044
25.2
34.82°C
0.966
12.169V
5.047V
3.355V
4.988V
178.366
41.40°C
115.12V
4
13.062A
3.964A
3.941A
1.606A
199.800
84.470%
1242
31.0
35.97°C
0.972
12.143V
5.047V
3.347V
4.975V
236.535
43.17°C
115.13V
5
16.440A
4.970A
4.941A
1.811A
249.816
84.209%
1465
35.6
37.06°C
0.977
12.124V
5.035V
3.338V
4.959V
296.661
44.87°C
115.14V
6
19.820A
5.968A
5.950A
2.020A
299.729
83.643%
1678
39.3
38.26°C
0.981
12.107V
5.026V
3.326V
4.943V
358.345
46.79°C
115.15V
7
23.220A
6.981A
6.964A
2.230A
349.755
82.893%
1850
42.9
39.38°C
0.984
12.087V
5.017V
3.315V
4.926V
421.934
48.76°C
115.15V
8
26.640A
7.987A
7.988A
2.440A
399.764
81.906%
2046
45.2
40.96°C
0.985
12.064V
5.009V
3.304V
4.910V
488.078
51.50°C
115.17V
9
30.518A
8.481A
8.528A
2.445A
449.719
80.911%
2078
45.7
41.48°C
0.986
12.030V
5.012V
3.295V
4.900V
555.821
53.90°C
115.18V
10
34.147A
8.983A
9.041A
3.075A
499.562
79.686%
2078
45.7
42.97°C
0.986
12.003V
5.011V
3.284V
4.875V
626.916
57.48°C
115.19V
11
38.417A
8.969A
9.064A
3.079A
549.437
78.320%
2078
45.7
44.54°C
0.985
11.967V
5.020V
3.276V
4.866V
701.527
60.90°C
115.22V
CL1
0.098A
14.026A
14.003A
0.004A
113.047
73.902%
2104
46.1
43.21°C
0.961
12.568V
4.644V
3.332V
4.976V
152.969
49.82°C
115.14V
CL2
39.969A
1.003A
1.000A
1.001A
486.261
80.372%
2058
45.3
44.75°C
0.986
11.828V
5.224V
3.312V
4.951V
605.015
57.18°C
115.19V
The results above are not used in the certification process
20-80瓦负载测试 115V
测试 #
12V
5V
3.3V
5VSB
DC/AC (瓦)
效率
风扇转速 (RPM)
电源供应器噪音 (dB[A])
PF/AC 电压
1
1.198A
0.491A
0.472A
0.196A
19.699
62.924%
823
18.8
0.866
12.195V
5.098V
3.383V
5.041V
31.306
115.09V
2
2.419A
0.980A
0.975A
0.396A
39.771
74.146%
823
18.8
0.901
12.195V
5.085V
3.379V
5.031V
53.639
115.10V
3
3.643A
1.467A
1.479A
0.596A
59.851
78.705%
863
19.3
0.922
12.194V
5.074V
3.374V
5.025V
76.045
115.10V
4
4.858A
1.975A
1.956A
0.796A
79.814
81.136%
863
19.3
0.937
12.191V
5.066V
3.370V
5.016V
98.371
115.11V
The results above are not used in the certification process
纹波测量 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
9.6 mV
6.4 mV
12.9 mV
16.5 mV
Pass
20% Load
10.7 mV
6.7 mV
14.7 mV
11.3 mV
Pass
30% Load
10.7 mV
6.5 mV
12.7 mV
12.7 mV
Pass
40% Load
13.5 mV
7.6 mV
13.2 mV
13.7 mV
Pass
50% Load
15.0 mV
8.6 mV
13.3 mV
15.6 mV
Pass
60% Load
18.1 mV
10.1 mV
14.1 mV
15.8 mV
Pass
70% Load
21.7 mV
11.5 mV
14.5 mV
23.0 mV
Pass
80% Load
24.9 mV
13.9 mV
15.4 mV
24.8 mV
Pass
90% Load
27.9 mV
15.3 mV
19.2 mV
24.1 mV
Pass
100% Load
39.1 mV
19.3 mV
25.5 mV
26.7 mV
Pass
110% Load
56.4 mV
24.6 mV
19.1 mV
33.0 mV
Pass
Crossload 1
23.7 mV
52.3 mV
22.2 mV
15.3 mV
Fail
Crossload 2
41.0 mV
12.6 mV
15.3 mV
21.8 mV
Pass
The results above are not used in the certification process
