Cybenetics Test - EVGA SuperNOVA 1000 G6

EVGA SuperNOVA 1000 G6

2104041000830069

Lab IDEV10001868

Report: 21PS1868A
Receipt Date: Jun 10, 2021
Test Date: Jul 9, 2021
Report Date: Jul 12, 2021

	115V	230V
Wirkungsgrad

115V	230V
		Lautstärkeklasse

Aristeidis Bitziopoulos, Lab Director

General Information

	EVGA
Hersteller (OEM)	Seasonic
	SuperNOVA G6

	2104041000830069

(Vrms)	100-240
(Arms)	13-6.5
(Hz)	50-60
(W)	1000
	ATX12V
	135mm Fluid Dynamic Bearing Fan (HA13525H12F-Z)
	✓ (selectable)
	Fully Modular

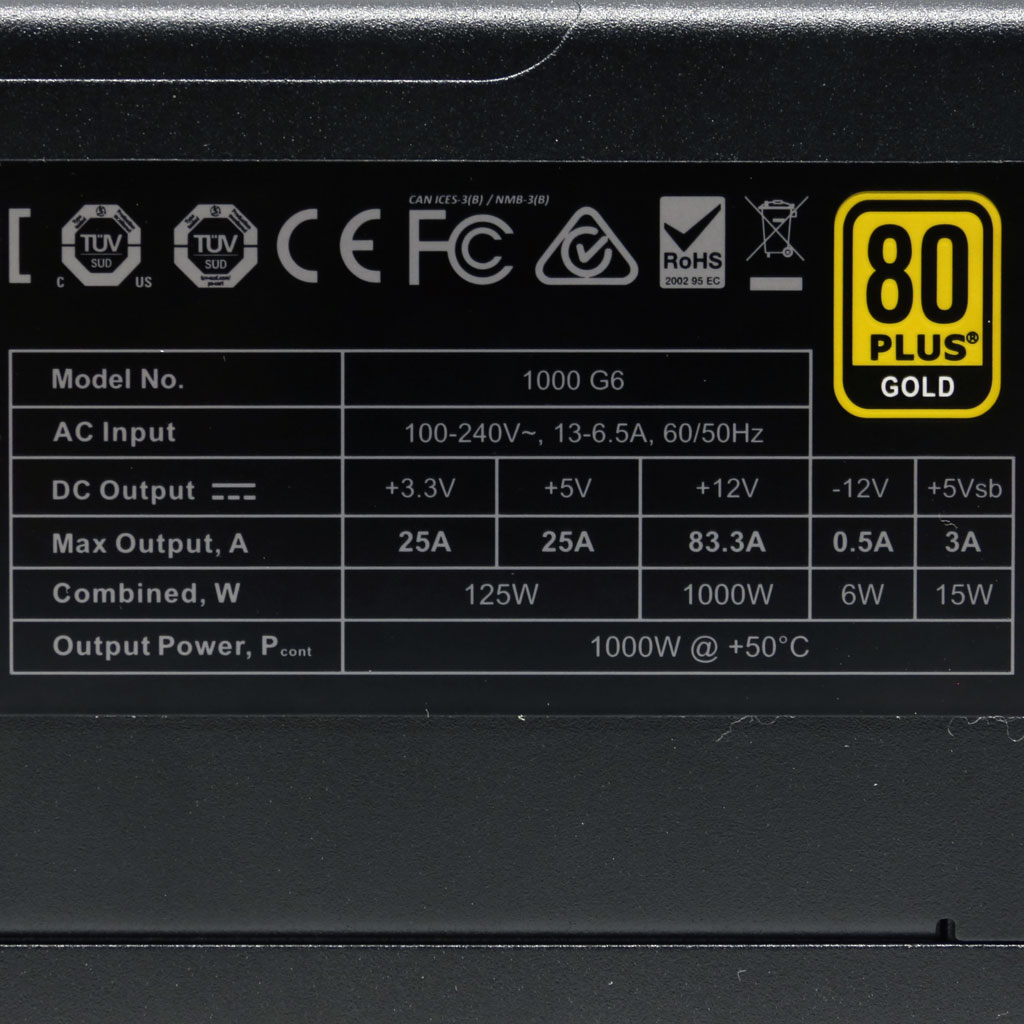

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	25	25	83.3	3	0.5
Max. Power	Watts	125		1000	15	6
Total Max. Power (W)		1000

Electronic Loads	Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources	Chroma 6530, Keysight AC6804B
Power Analyzers	N4L PPA1530 x2
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer	UNI-T UT372 x2
Digital Multimeter	Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS	CyberPower OLS3000E 3kVA x2
Transformer	3kVA x2
Testing Methodology	Cybenetics PSU Test Protocol

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (610mm)	1	1	18-22AWG	No
4+4 pin EPS12V (700mm)	2	2	16AWG	No
6+2 pin PCIe (700mm+125mm)	3	6	16-18AWG	No
6+2 pin PCIe (700mm)	2	2	18AWG	No
SATA (560mm+110mm+110mm)	4	12	18AWG	No
4-pin Molex (560mm+100mm+100mm+100mm)	1	4	18AWG	No
FDD Adapter (105mm)	1	1	22AWG	No
AC Power Cord (1400mm) - C13 coupler	1	1	16AWG	-

Parts Description

General Data
Manufacturer (OEM)	Seasonic
PCB Type	Double Sided
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Discharge IC
Inrush Protection	NTC Thermistor MF72-5D20L (5 Ohm) & Relay
Bridge Rectifier(s)	2x GBUE2560 (600V, 25A @ 140°C)
APFC MOSFETs	2x Infineon IPA60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode	1x STMicroelectronics STPSC10H065 (650V, 10A @ 135°C)
Bulk Cap(s)	2x Nippon Chemi-Con (420V, 470uF each or 940uF combined, 2,000h @ 105°C, KMZ)
Main Switchers	4x Infineon IPA60R190P6 (600V, 12.7A @ 100°C, Rds(on): 0.19Ohm)
APFC Controller	Champion CM6500UN
Resonant Controller	Champion CU6901V
Topology	Primary side: APFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs	6x Nexperia PSMN1R4-40YLD (40V, 220A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V	DC-DC Converters: 6x Nexperia PSMN4R0-30YLD (30V, 67A @ 100°C, Rds(on): 4mOhm) PWM Controller(s): ANPEC APW7159C
Filtering Capacitors	Electrolytic: 6x Nippon Chemi-Con (2-5,000h @ 105°C, KZE), 2x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 1x Nippon Chemi-Con (2,000h @ 105°C, KZH), 3x Rubycon (3-6,000h @ 105°C, YXG) Polymer: 21x Nippon Chemi-Con, 13x FPCAP
Supervisor IC	Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG) & Weltrend WT51F104 (Firmware OPP)
Fan Controller	Weltrend WT51F104
Fan Model	Hong Hua HA13525H12F-Z (135mm, 12V, 0.50A, Fuid DynamicBearing Fan)
5VSB Circuit
Rectifier	1x M.C.C. MBR1045ULPS SBR (45V, 10A)
Standby PWM Controller	Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

(°C /°F)	30-32 / 86-89.6
	✓
	✓
ALPM (Alternative Low Power Mode) compatible	✓

Performance Summary

Wirkungsgrad	GOLD
Lautstärkeklasse	A-
(>1450 load combinations)	88.912%
Average Noise Output (>1450 Load Combinations)	27.69dBA
(>1450 Load Combinations)	0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load	77.006%
	0.0619W
12V Ripple (Full Load)	12.05mV
5V Ripple (Full Load)	12.41mV
3.3V Ripple (Full Load)	14.69mV
5VSB Ripple (Full Load)	14.12mV
12V Load Regulation	0.35%
5V Load Regulation	0.96%
3.3V Load Regulation	1.43%
5VSB Load Regulation	2.81%
Inrush Current	26.620A

Wirkungsgrad	PLATINUM
Lautstärkeklasse	A-
(>1450 load combinations)	91.032%
Average Noise Output (>1450 Load Combinations)	28.13dBA
(>1450 Load Combinations)	0.937
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
	0.1241W
12V Ripple (Full Load)	12.49mV
5V Ripple (Full Load)	13.56mV
3.3V Ripple (Full Load)	14.71mV
5VSB Ripple (Full Load)	14.16mV
12V Load Regulation	0.40%
5V Load Regulation	1.37%
3.3V Load Regulation	1.27%
5VSB Load Regulation	2.87%
Inrush Current	88.810A
12V Transient Response (150%)	0.00V
5V Transient Response (150%)	V
3.3V Transient Response (150%)	V
5VSB Transient Response (150%)	V
	22.80ms
AC Loss to PWR_OK Hold Up Time	18.40ms
PWR_OK Inactive to DC Loss Delay	4.40ms
PSU Timings: T1 (20% / 100%)	89.5ms	90.0ms
PSU Timings: T3 (20% / 100%)	130.0ms	131.0ms
OPP (25.35°C / 42.79°C)	124.05%	124.36%

Hold-Up Time (ms)	22.8
AC Loss to PWR_OK Hold Up Time (ms)	18.4
PWR_OK Inactive to DC Loss Delay (ms)	4.4

Stromverbrauch im Ruhezustand

Tables

Graphs

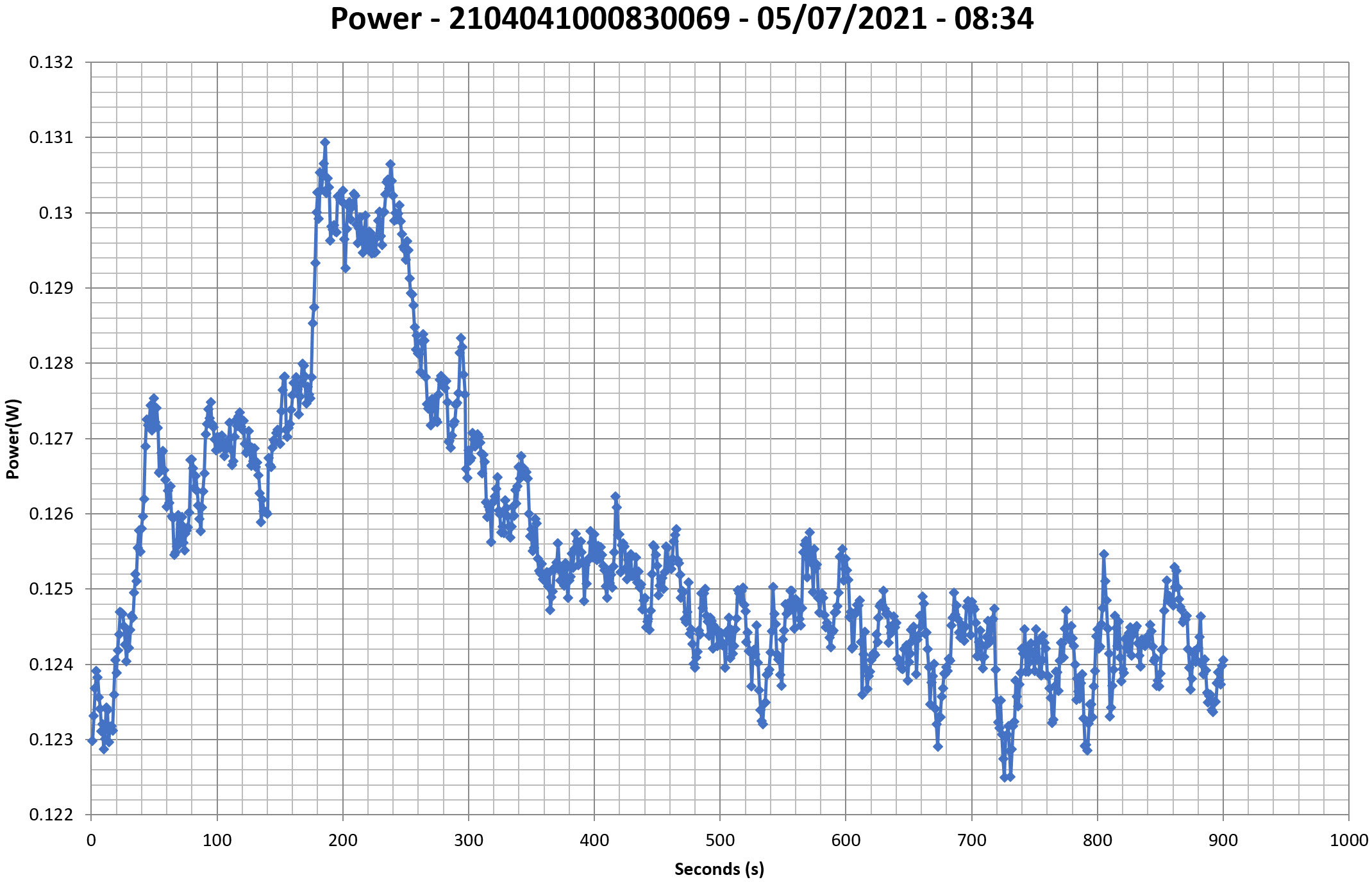

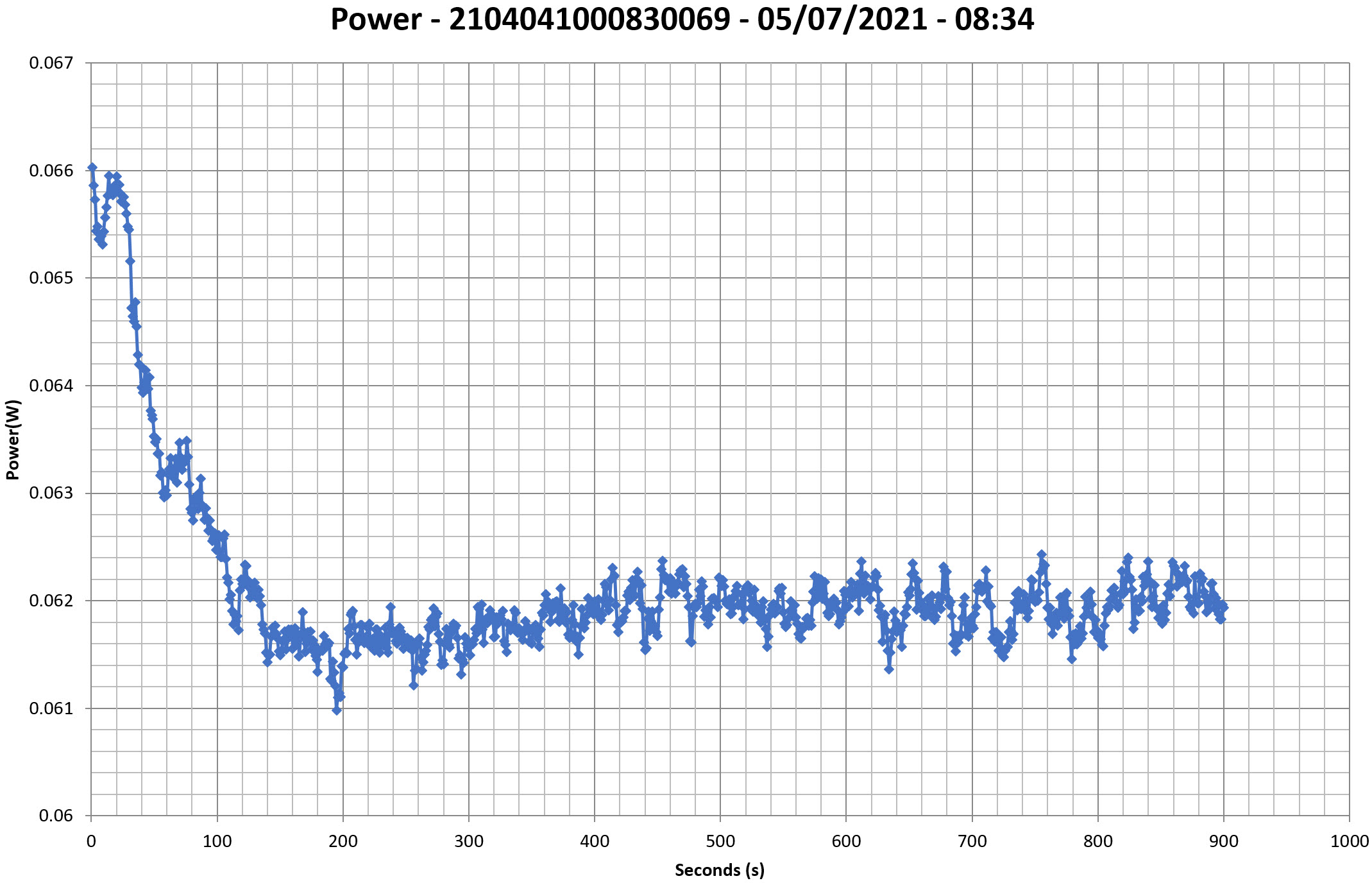

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

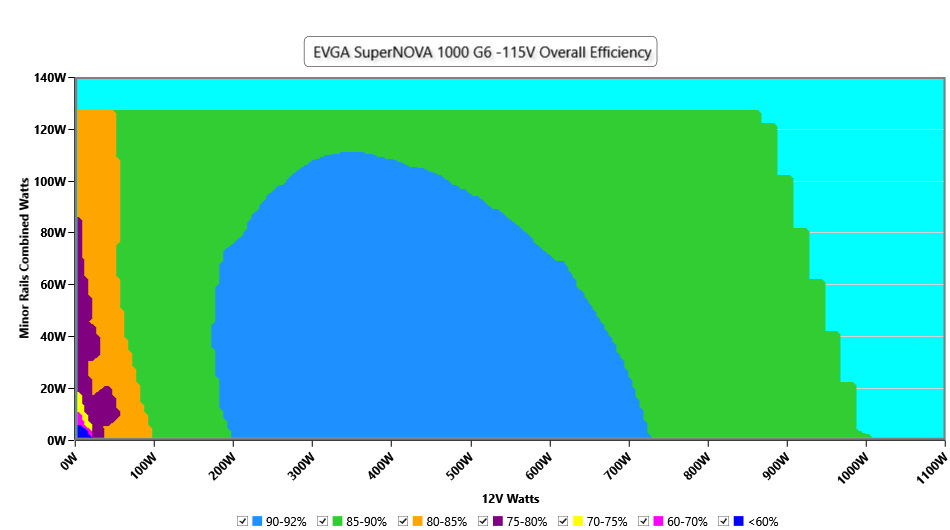

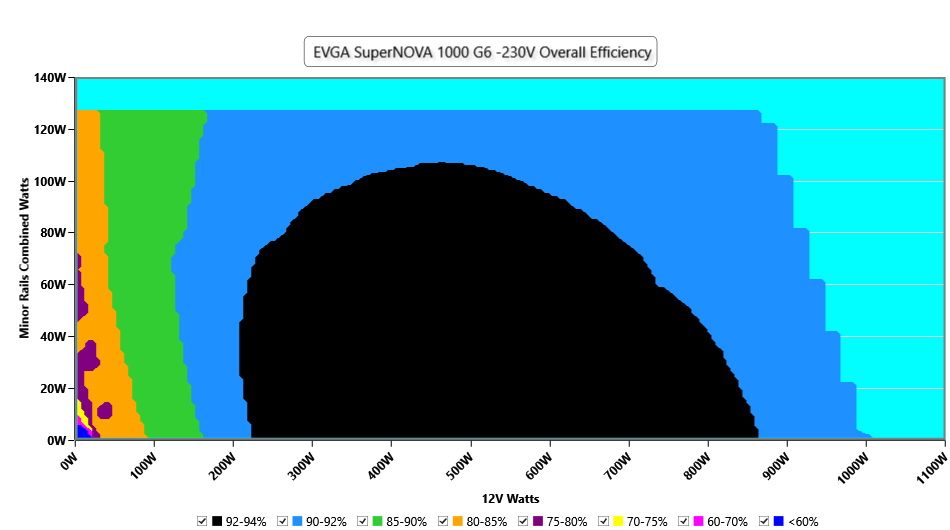

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

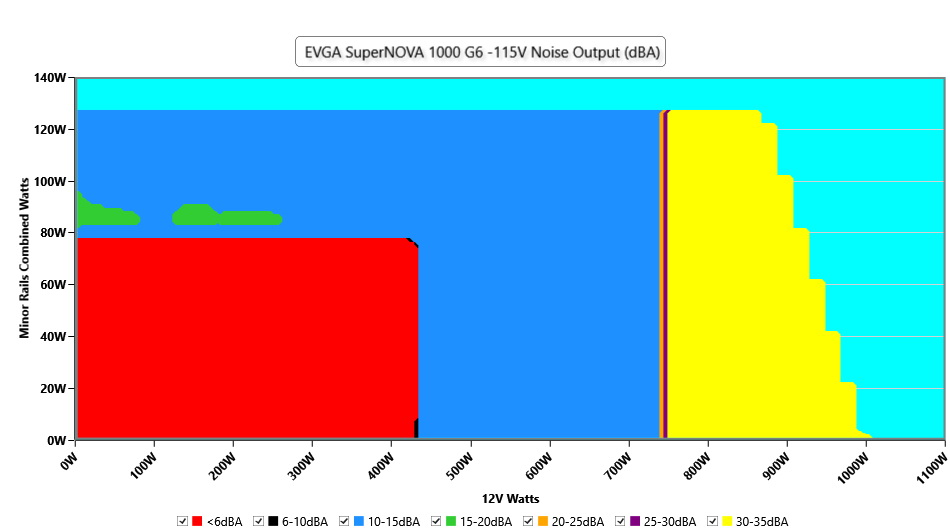

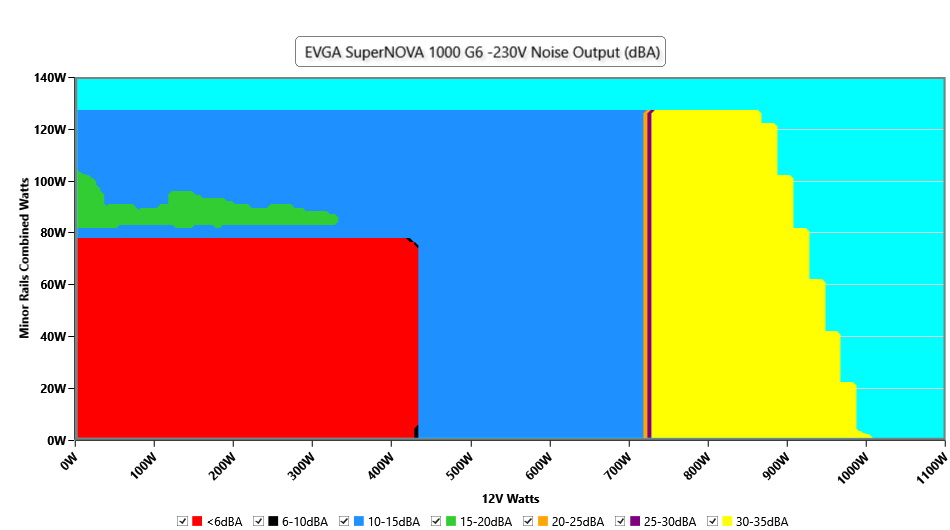

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

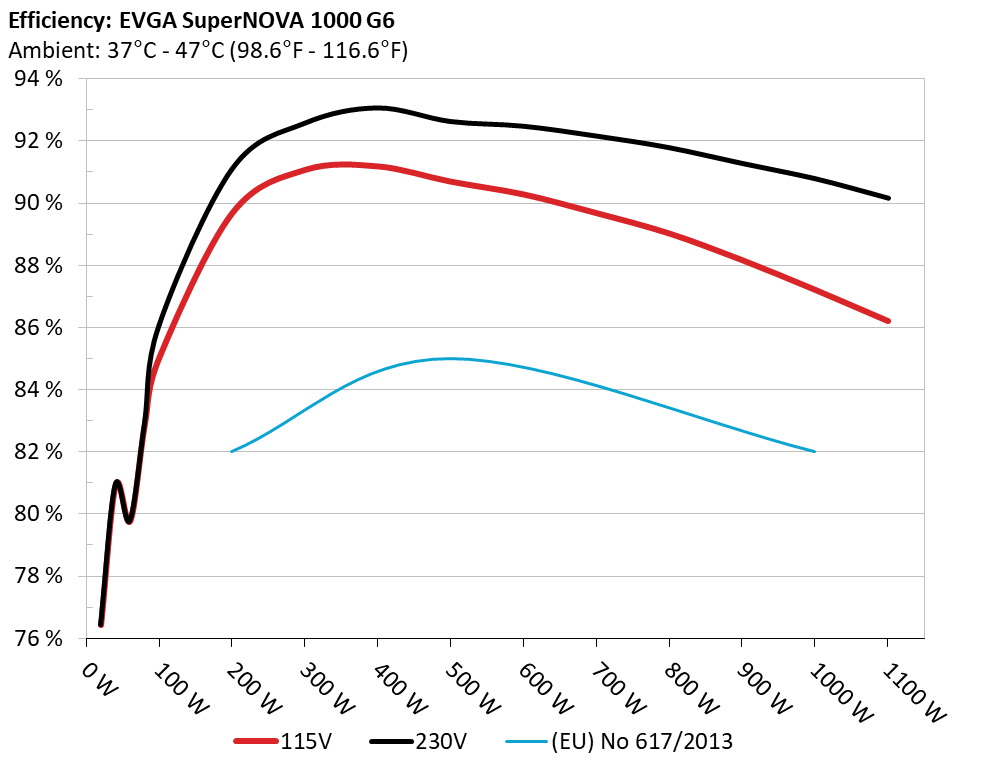

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

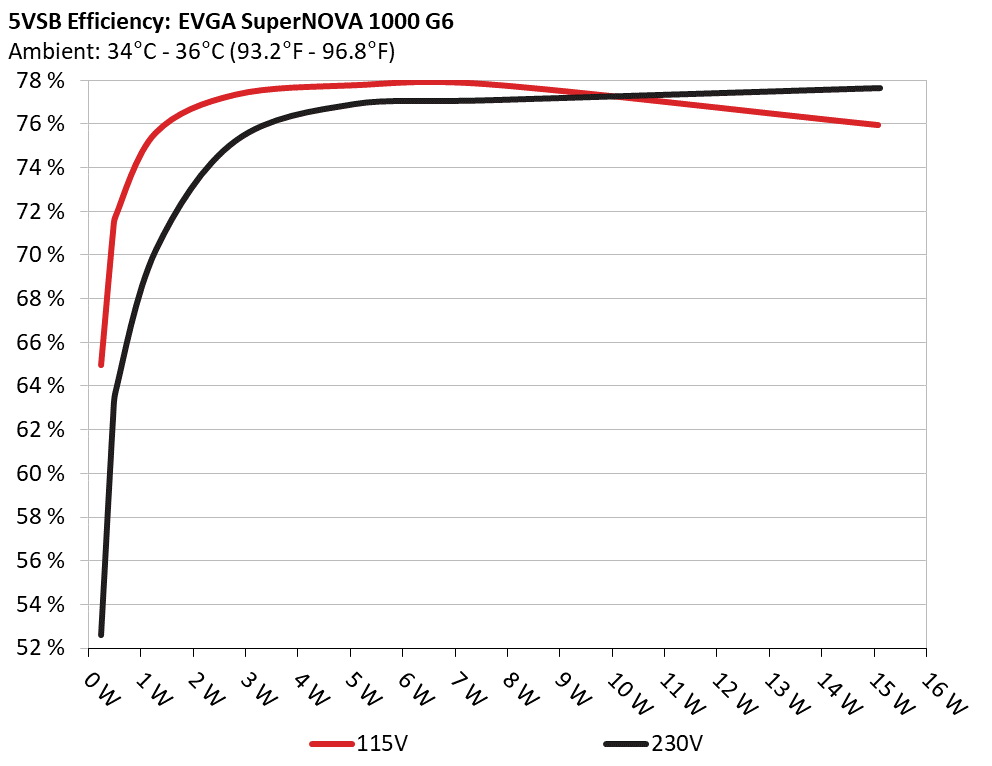

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	64.954%	0.035
1	5.099V	0.354W	64.954%	115.16V
2	0.09A	0.459W	71.082%	0.064
2	5.098V	0.646W	71.082%	115.16V
3	0.55A	2.799W	77.333%	0.27
3	5.088V	3.619W	77.333%	115.16V
4	1A	5.08W	77.764%	0.366
4	5.079V	6.533W	77.764%	115.16V
5	1.5A	7.604W	77.814%	0.42
5	5.068V	9.772W	77.814%	115.16V
6	3A	15.078W	75.943%	0.49
6	5.025V	19.854W	75.943%	115.15V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	52.605%	0.013
1	5.099V	0.437W	52.605%	230.35V
2	0.09A	0.459W	62.567%	0.022
2	5.098V	0.734W	62.567%	230.34V
3	0.55A	2.799W	75.246%	0.108
3	5.088V	3.719W	75.246%	230.3V
4	1A	5.08W	76.934%	0.181
4	5.079V	6.604W	76.934%	230.24V
5	1.5A	7.603W	77.102%	0.247
5	5.067V	9.861W	77.102%	230.25V
6	3A	15.107W	77.659%	0.39
6	5.035V	19.449W	77.659%	230.06V

Supplementary Tests (For Reference)

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.435A	1.994A	1.981A	0.987A	100.008	85.027%	0	<6.0	43.88°C	0.966
10%	12.184V	5.016V	3.332V	5.069V	117.619	85.027%	0	<6.0	40.28°C	115.19V
20%	13.877A	2.994A	2.976A	1.187A	199.965	89.663%	0	<6.0	45.21°C	0.975
20%	12.183V	5.011V	3.327V	5.056V	223.02	89.663%	0	<6.0	40.87°C	115.12V
30%	21.705A	3.495A	3.475A	1.388A	300.019	91.053%	0	<6.0	46.26°C	0.981
30%	12.161V	5.008V	3.324V	5.044V	329.499	91.053%	0	<6.0	41.28°C	115.12V
40%	29.489A	3.998A	3.975A	1.59A	399.833	91.168%	658	15.4	42.03°C	0.986
40%	12.161V	5.004V	3.321V	5.033V	438.569	91.168%	658	15.4	47.54°C	115.12V
50%	36.953A	5.003A	4.979A	1.793A	499.539	90.681%	1482	40.7	42.11°C	0.988
50%	12.151V	4.998V	3.314V	5.02V	550.873	90.681%	1482	40.7	48.25°C	115.12V
60%	44.482A	6.011A	5.985A	1.997A	600.074	90.268%	1483	40.7	42.84°C	0.989
60%	12.146V	4.992V	3.308V	5.008V	664.768	90.268%	1483	40.7	49.91°C	115.11V
70%	51.940A	7.021A	6.994A	2.203A	699.815	89.67%	1481	40.7	43.59°C	0.99
70%	12.143V	4.986V	3.303V	4.994V	780.436	89.67%	1481	40.7	51.39°C	115.11V
80%	59.447A	8.003A	8.005A	2.308A	799.741	89.015%	1484	40.7	43.72°C	0.991
80%	12.145V	4.982V	3.298V	4.985V	898.431	89.015%	1484	40.7	52.28°C	115.11V
90%	67.297A	8.539A	8.498A	2.412A	899.666	88.163%	1850	46.4	44.2°C	0.992
90%	12.143V	4.978V	3.295V	4.975V	1020.457	88.163%	1850	46.4	53.63°C	115.1V
100%	74.925A	9.048A	9.023A	3.029A	999.692	87.21%	1850	46.4	45.71°C	0.992
100%	12.146V	4.975V	3.292V	4.954V	1146.311	87.21%	1850	46.4	55.76°C	115.09V
110%	82.480A	10.062A	10.133A	3.034A	1100.312	86.203%	1853	46.5	46.93°C	0.993
110%	12.148V	4.97V	3.286V	4.945V	1276.423	86.203%	1853	46.5	57.76°C	115.1V
CL1	0.115A	15.088A	15.106A	0A	126.316	81.409%	1490	40.9	42.11°C	0.982
CL1	12.208V	4.991V	3.283V	5.069V	155.163	81.409%	1490	40.9	48.64°C	115.18V
CL2	0.115A	25.112A	0A	0A	126.4	79.477%	1838	46.2	43.56°C	0.98
CL2	12.197V	4.978V	3.33V	5.082V	159.04	79.477%	1838	46.2	50.64°C	115.18V
CL3	0.115A	0A	25.342A	0A	83.897	72.862%	1837	46.2	44.53°C	0.964
CL3	12.186V	5.017V	3.256V	5.067V	115.144	72.862%	1837	46.2	52.52°C	115.19V
CL4	82.450A	0A	0A	0.001A	1000.228	87.932%	1847	46.4	45.63°C	0.992
CL4	12.131V	4.996V	3.327V	5.032V	1137.5	87.932%	1847	46.4	54.51°C	115.08V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.438A	1.996A	1.98A	0.987A	100.012	86.057%	0	<6.0	44.97°C	0.754
10%	12.179V	5.012V	3.334V	5.068V	116.216	86.057%	0	<6.0	40.53°C	230.48V
20%	13.886A	2.998A	2.974A	1.187A	199.981	91.083%	0	<6.0	45.97°C	0.901
20%	12.176V	5.005V	3.329V	5.055V	219.558	91.083%	0	<6.0	40.79°C	230.46V
30%	21.718A	3.501A	3.473A	1.388A	300.038	92.562%	0	<6.0	47.41°C	0.94
30%	12.155V	5V	3.326V	5.044V	324.147	92.562%	0	<6.0	41.5°C	230.45V
40%	29.519A	4.004A	3.972A	1.59A	399.848	93.052%	0	<6.0	48.3°C	0.956
40%	12.150V	4.996V	3.323V	5.032V	429.703	93.052%	0	<6.0	41.82°C	230.41V
50%	36.978A	5.014A	4.975A	1.794A	499.57	92.617%	1482	40.7	42.48°C	0.964
50%	12.144V	4.987V	3.317V	5.018V	539.392	92.617%	1482	40.7	49.3°C	230.41V
60%	44.510A	6.026A	5.978A	1.998A	600.132	92.464%	1483	40.7	42.8°C	0.97
60%	12.140V	4.98V	3.313V	5.006V	649.046	92.464%	1483	40.7	50.18°C	230.42V
70%	51.963A	7.041A	6.984A	2.204A	699.883	92.147%	1485	40.8	43.67°C	0.973
70%	12.139V	4.972V	3.308V	4.992V	759.529	92.147%	1485	40.8	51.74°C	230.41V
80%	59.481A	8.003A	7.991A	2.309A	799.675	91.775%	1485	40.8	44.35°C	0.975
80%	12.139V	4.966V	3.304V	4.982V	871.342	91.775%	1485	40.8	53.1°C	230.43V
90%	67.329A	8.569A	8.484A	2.414A	899.722	91.267%	1847	46.4	44.67°C	0.977
90%	12.138V	4.961V	3.3V	4.972V	985.811	91.267%	1847	46.4	54.09°C	230.39V
100%	74.985A	9.083A	9.009A	3.03A	999.731	90.777%	1846	46.4	45.21°C	0.979
100%	12.136V	4.955V	3.297V	4.951V	1101.311	90.777%	1846	46.4	55.21°C	230.39V
110%	82.513A	10.106A	10.116A	3.036A	1100.382	90.15%	1848	46.4	46.85°C	0.98
110%	12.144V	4.949V	3.292V	4.941V	1220.61	90.15%	1848	46.4	57.57°C	230.42V
CL1	0.115A	15.166A	15.038A	0A	126.311	82.518%	1486	46.4	41.9°C	0.832
CL1	12.193V	4.965V	3.298V	5.068V	153.07	82.518%	1486	46.4	49.59°C	230.45V
CL2	0.115A	25.313A	0A	0A	126.4	79.941%	1831	46.1	42.72°C	0.837
CL2	12.191V	4.938V	3.327V	5.081V	158.116	79.941%	1831	46.1	50.65°C	230.45V
CL3	0.115A	0A	25.147A	0A	83.897	74.206%	1832	46.1	43.74°C	0.746
CL3	12.181V	5.016V	3.281V	5.066V	113.06	74.206%	1832	46.1	52.35°C	230.46V
CL4	82.508A	0A	0A	0.001A	1000.224	91.423%	1846	46.4	45.5°C	0.979
CL4	12.122V	4.992V	3.322V	5.03V	1094.063	91.423%	1846	46.4	55.61°C	230.4V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.222A	0.498A	0.494A	0.196A	20.004	76.442%	0	<6.0	39.37°C	0.617
20W	12.148V	5.023V	3.339V	5.093V	26.169	76.442%	0	<6.0	37.07°C	115.2V
40W	2.690A	0.697A	0.692A	0.295A	40.002	80.941%	0	<6.0	40.84°C	0.833
40W	12.151V	5.022V	3.338V	5.089V	49.428	80.941%	0	<6.0	38.08°C	115.23V
60W	4.148A	0.897A	0.89A	0.393A	60.001	79.783%	0	<6.0	41.28°C	0.92
60W	12.182V	5.02V	3.337V	5.085V	75.205	79.783%	0	<6.0	38.93°C	115.2V
80W	5.608A	1.096A	1.088A	0.492A	79.958	82.868%	0	<6.0	42.61°C	0.952
80W	12.185V	5.018V	3.336V	5.082V	96.488	82.868%	0	<6.0	39.62°C	115.21V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.222A	0.498A	0.494A	0.196A	20.006	78.365%	0	<6.0	38.97°C	0.323
20W	12.153V	5.023V	3.34V	5.092V	25.528	78.365%	0	<6.0	36.66°C	230.44V
40W	2.690A	0.697A	0.692A	0.295A	40.004	83.198%	0	<6.0	40.57°C	0.503
40W	12.157V	5.021V	3.339V	5.089V	48.069	83.198%	0	<6.0	37.88°C	230.43V
60W	4.146A	0.897A	0.89A	0.393A	60.003	81.241%	0	<6.0	41.89°C	0.617
60W	12.187V	5.019V	3.338V	5.085V	73.856	81.241%	0	<6.0	38.64°C	230.44V
80W	5.607A	1.097A	1.088A	0.492A	79.964	84.11%	0	<6.0	42.64°C	0.707
80W	12.187V	5.017V	3.337V	5.081V	95.062	84.11%	0	<6.0	39.03°C	230.47V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10%	9.04mV	5.06mV	4.45mV	6.58mV	Pass
20%	4.34mV	4.60mV	3.94mV	7.29mV	Pass
30%	6.38mV	5.27mV	4.35mV	7.75mV	Pass
40%	6.03mV	6.19mV	4.66mV	8.51mV	Pass
50%	6.95mV	7.98mV	6.04mV	10.60mV	Pass
60%	7.46mV	8.54mV	6.45mV	10.25mV	Pass
70%	8.63mV	8.80mV	6.09mV	13.56mV	Pass
80%	7.81mV	8.74mV	10.75mV	13.72mV	Pass
90%	9.66mV	9.82mV	12.18mV	12.54mV	Pass
100%	12.05mV	12.41mV	14.69mV	14.12mV	Pass
110%	12.98mV	15.51mV	15.86mV	14.75mV	Pass
CL1	11.18mV	7.56mV	12.44mV	7.42mV	Pass
CL2	6.39mV	7.17mV	4.69mV	7.61mV	Pass
CL3	8.96mV	5.40mV	14.53mV	7.77mV	Pass
CL4	11.51mV	10.94mV	9.33mV	13.88mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10%	8.58mV	5.11mV	4.25mV	7.29mV	Pass
20%	6.23mV	4.7mV	4.2mV	6.99mV	Pass
30%	6.88mV	6.44mV	4.5mV	7.65mV	Pass
40%	6.37mV	5.78mV	4.5mV	8.56mV	Pass
50%	6.69mV	8.69mV	6.14mV	10.81mV	Pass
60%	7.35mV	8.23mV	6.81mV	10.4mV	Pass
70%	7.20mV	8.54mV	5.84mV	13.82mV	Pass
80%	7.70mV	8.9mV	11.46mV	14.02mV	Pass
90%	7.66mV	10.07mV	12.85mV	12.03mV	Pass
100%	12.49mV	13.56mV	14.71mV	14.16mV	Pass
110%	13.12mV	16.47mV	16.18mV	15.01mV	Pass
CL1	9.64mV	8.11mV	12.37mV	7.76mV	Pass
CL2	5.55mV	6.77mV	4.32mV	7.69mV	Pass
CL3	9.30mV	5.87mV	14.28mV	7.7mV	Pass
CL4	12.69mV	11.6mV	9.32mV	14.3mV	Pass

The results above are not used in the certification process

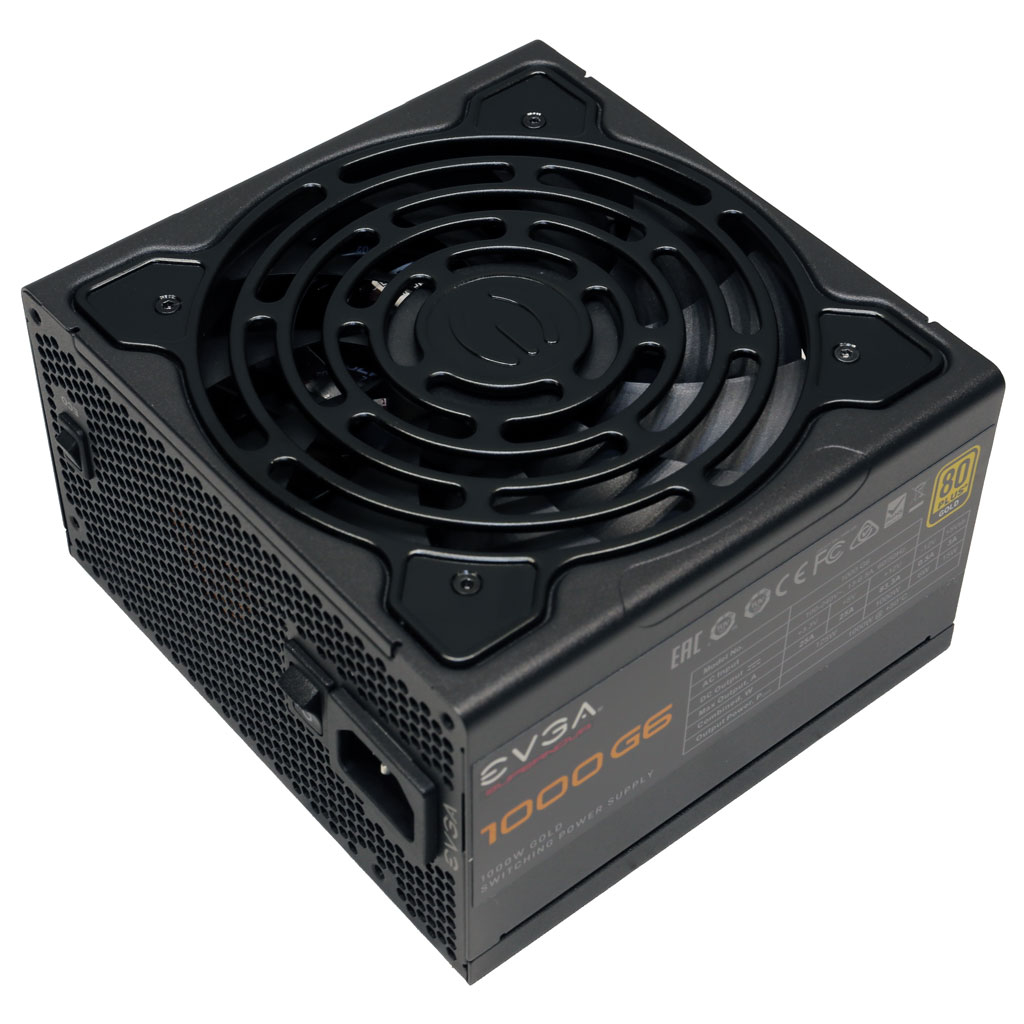

EVGA SuperNOVA 1000 G6

Top side

Power specifications label
