CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
EVGA 600W
Serial Number1603530624804124
Lab ID186
  • Report:
  • Receipt Date: Mar 27, 2018
  • Test Date: Apr 7, 2018
  • Report Date: Apr 10, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEVGA
Manufacturer (OEM)HEC
SeriesW
Model Number
Serial Number1603530624804124
DUT NotesIntense coil whine noise with >50% load and 115V

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Cooling120mm Sleeve Bearing Fan
(EFS-12E12H)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 24 20 49 3 0.3
Watts 130 588 15 3.6
Total Max. Power (W) 600

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (560mm) 1 1 18-22AWG
4+4 pin EPS12V (620mm) 1 1 18AWG
6+2 pin PCIe (570mm+120mm) 1 2 20AWG
SATA (470mm+120mm+120mm) 2 6 20AWG
4 pin Molex (470mm+120mm+120mm) / FDD (+120mm) 1 3 / 1 20-22AWG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 23.9
AC Loss to PWR_OK Hold Up Time  (ms) 17.0
PWR_OK Inactive to DC Loss Delay (ms) 6.9

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

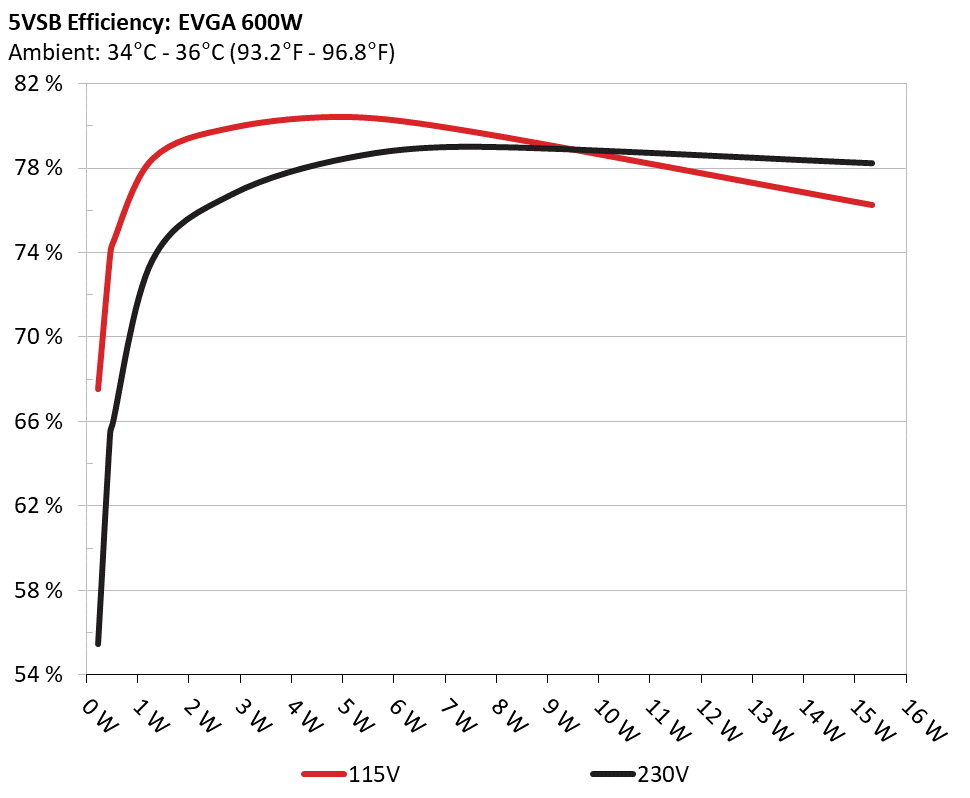

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233 67.536% 0.058
5.179V 0.345 115.38V
2 0.090A 0.466 73.851% 0.102
5.178V 0.631 115.38V
3 0.550A 2.842 79.899% 0.311
5.166V 3.557 115.38V
4 1.000A 5.157 80.402% 0.367
5.156V 6.414 115.37V
5 1.500A 7.718 79.633% 0.399
5.144V 9.692 115.37V
6 3.000A 15.327 76.246% 0.444
5.109V 20.102 115.36V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.167A 1.967A 1.955A 0.973A 60.169 76.844% 874 20.1 34.29°C 0.902
12.177V 5.086V 3.375V 5.141V 78.300 38.85°C 115.35V
2 7.321A 2.957A 2.944A 1.171A 119.893 82.717% 918 21.7 34.95°C 0.945
12.154V 5.077V 3.363V 5.124V 144.944 40.54°C 115.31V
3 11.860A 3.448A 3.430A 1.371A 179.778 84.382% 1044 25.2 35.92°C 0.955
12.122V 5.077V 3.353V 5.109V 213.052 42.14°C 115.31V
4 16.422A 3.941A 3.949A 1.571A 239.781 84.763% 1214 30.5 36.24°C 0.962
12.092V 5.077V 3.342V 5.093V 282.884 43.43°C 115.30V
5 20.661A 4.935A 4.956A 1.773A 299.884 84.530% 1405 34.3 36.89°C 0.965
12.070V 5.066V 3.330V 5.077V 354.767 44.60°C 115.25V
6 24.919A 5.934A 5.969A 1.978A 359.991 83.962% 1598 38.3 37.73°C 0.971
12.046V 5.057V 3.318V 5.057V 428.757 46.63°C 115.22V
7 29.159A 6.939A 6.989A 2.186A 419.698 83.217% 1777 41.1 38.98°C 0.974
12.023V 5.046V 3.305V 5.035V 504.343 48.40°C 115.22V
8 33.493A 7.943A 8.021A 2.392A 480.200 82.222% 1900 43.8 40.03°C 0.975
11.996V 5.037V 3.292V 5.018V 584.030 50.54°C 115.37V
9 38.189A 8.444A 8.536A 2.397A 539.496 81.368% 1964 44.3 41.11°C 0.975
11.966V 5.035V 3.281V 5.008V 663.033 51.96°C 115.45V
10 42.772A 8.934A 9.089A 3.010A 599.907 80.154% 1964 44.3 42.82°C 0.972
11.928V 5.039V 3.268V 4.984V 748.444 56.38°C 115.63V
11 47.959A 8.919A 9.114A 3.015A 659.892 79.097% 1964 44.3 43.21°C 0.971
11.889V 5.047V 3.258V 4.975V 834.277 57.98°C 115.84V
CL1 0.741A 16.003A 16.000A 0.000A 138.434 75.745% 1927 43.9 42.16°C 0.950
12.421V 4.754V 3.322V 5.101V 182.763 49.65°C 115.29V
CL2 49.013A 1.002A 1.000A 0.000A 585.376 80.580% 2046 45.2 43.88°C 0.974
11.769V 5.232V 3.299V 5.025V 726.457 55.79°C 115.59V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.184A 0.490A 0.473A 0.194A 19.521 61.358% 863 19.3 0.829
12.167V 5.123V 3.387V 5.171V 31.815 115.37V
2 2.441A 0.979A 0.976A 0.388A 40.004 72.616% 863 19.3 0.871
12.166V 5.111V 3.382V 5.160V 55.090 115.35V
3 3.625A 1.471A 1.452A 0.582A 59.504 77.457% 874 20.1 0.901
12.165V 5.101V 3.377V 5.153V 76.822 115.35V
4 4.876A 1.965A 1.959A 0.778A 79.916 80.075% 874 20.1 0.915
12.162V 5.092V 3.373V 5.143V 99.801 115.34V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.9 mV 10.6 mV 19.0 mV 9.5 mV Pass
20% Load 12.6 mV 11.6 mV 21.0 mV 12.2 mV Pass
30% Load 14.9 mV 13.0 mV 22.3 mV 12.4 mV Pass
40% Load 16.4 mV 13.8 mV 25.2 mV 15.8 mV Pass
50% Load 19.9 mV 16.1 mV 28.3 mV 17.1 mV Pass
60% Load 24.0 mV 17.6 mV 30.8 mV 22.7 mV Pass
70% Load 27.1 mV 19.6 mV 34.1 mV 30.2 mV Pass
80% Load 29.5 mV 19.4 mV 35.8 mV 28.4 mV Pass
90% Load 38.1 mV 23.1 mV 39.7 mV 37.6 mV Pass
100% Load 49.2 mV 26.8 mV 47.1 mV 56.0 mV Fail
110% Load 57.1 mV 27.0 mV 51.5 mV 66.9 mV Fail
Crossload 1 14.0 mV 43.8 mV 28.7 mV 17.5 mV Pass
Crossload 2 57.4 mV 23.5 mV 44.3 mV 48.6 mV Pass

The results above are not used in the certification process

EVGA 600W

Top side
Power specifications label
