This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

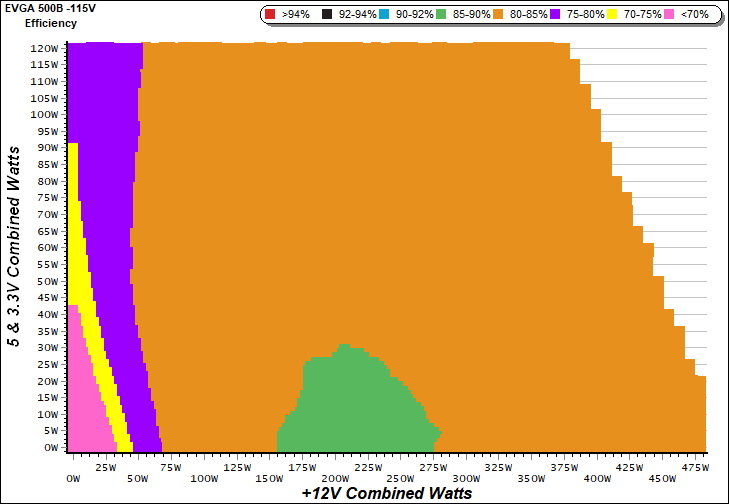

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

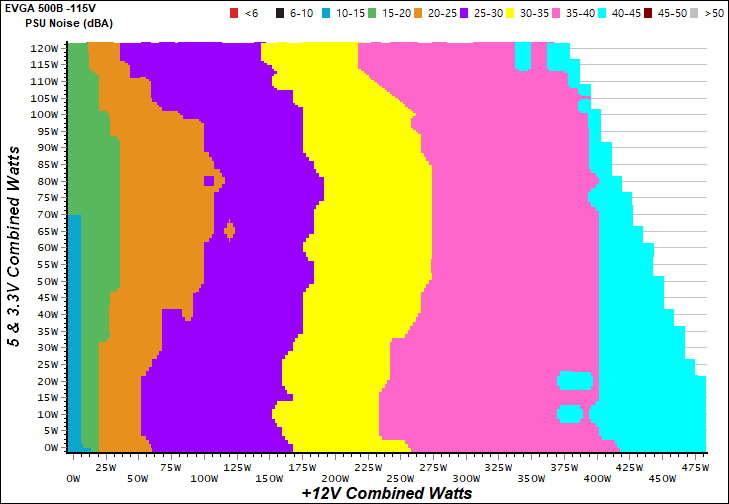

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

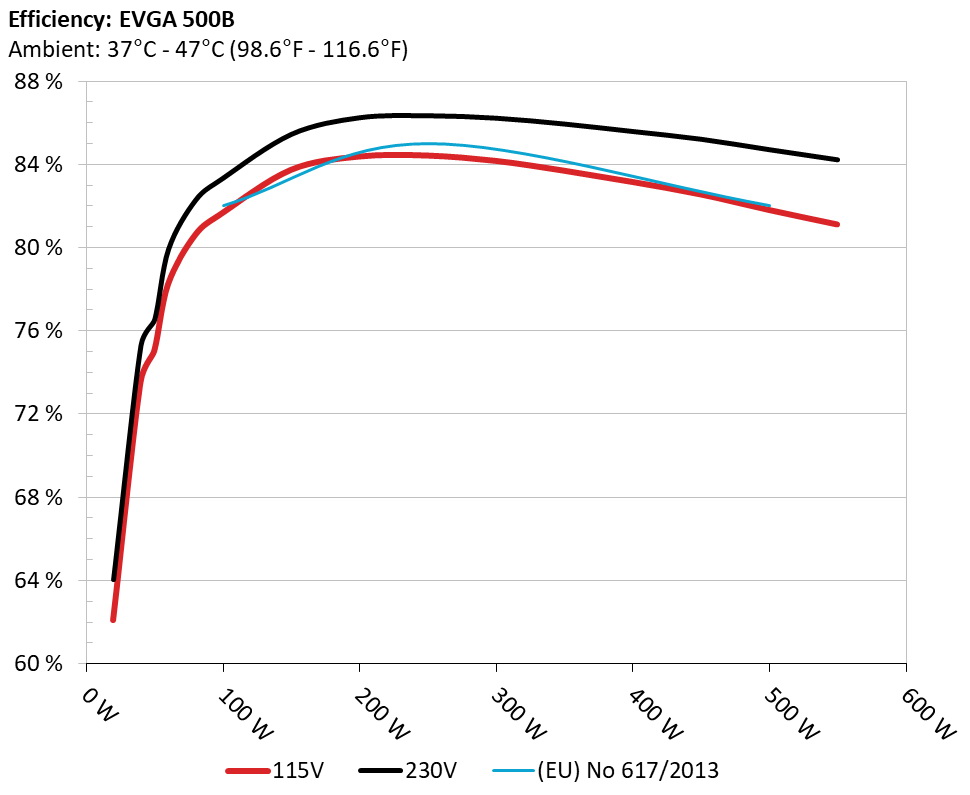

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

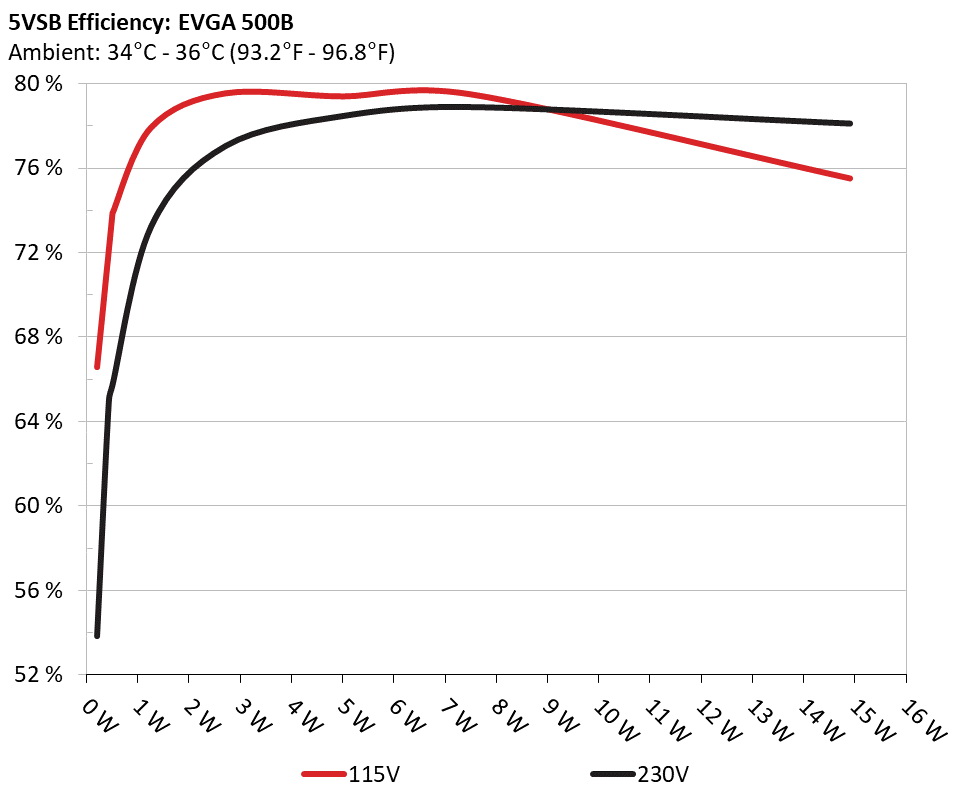

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.209
66.561%
0.058
5.025V
0.314
115.16V
2
0.087A
0.438
73.862%
0.104
5.025V
0.593
115.16V
3
0.542A
2.719
79.549%
0.311
5.016V
3.418
115.13V
4
1.002A
5.018
79.399%
0.365
5.009V
6.320
115.14V
5
1.502A
7.504
79.500%
0.392
4.997V
9.439
115.15V
6
3.001A
14.911
75.510%
0.438
4.969V
19.747
115.15V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.210
53.846%
0.023
5.026V
0.390
230.41V
2
0.087A
0.439
64.941%
0.039
5.024V
0.676
230.41V
3
0.542A
2.719
77.047%
0.169
5.015V
3.529
230.40V
4
1.002A
5.014
78.466%
0.241
5.004V
6.390
230.40V
5
1.502A
7.503
78.888%
0.285
4.997V
9.511
230.40V
6
3.001A
14.905
78.110%
0.343
4.966V
19.082
230.40V
Supplementary Tests (For Reference)
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
2.311A
1.980A
1.955A
1.000A
49.767
75.032%
957
20.3
38.29°C
0.890
12.195V
5.051V
3.375V
4.986V
66.328
43.31°C
115.18V
2
5.660A
2.972A
2.938A
1.206A
99.767
81.658%
1128
25.3
38.42°C
0.935
12.172V
5.042V
3.366V
4.975V
122.176
43.65°C
115.18V
3
9.373A
3.467A
3.450A
1.410A
149.889
83.727%
1300
29.2
38.82°C
0.952
12.143V
5.045V
3.358V
4.962V
179.021
44.35°C
115.19V
4
13.092A
3.962A
3.940A
1.616A
199.770
84.365%
1486
33.1
39.58°C
0.961
12.113V
5.047V
3.349V
4.948V
236.792
45.69°C
115.19V
5
16.482A
4.969A
4.938A
1.823A
249.792
84.410%
1660
36.2
40.23°C
0.967
12.091V
5.037V
3.339V
4.932V
295.926
47.14°C
115.19V
6
19.884A
5.965A
5.941A
2.035A
299.773
84.155%
1865
39.2
41.19°C
0.972
12.070V
5.029V
3.330V
4.910V
356.216
48.94°C
115.19V
7
23.299A
6.975A
6.958A
2.245A
349.763
83.685%
2015
41.4
42.64°C
0.977
12.046V
5.021V
3.318V
4.898V
417.954
51.29°C
115.20V
8
26.729A
7.978A
7.974A
2.455A
399.694
83.147%
2023
41.5
44.12°C
0.980
12.021V
5.015V
3.309V
4.883V
480.710
53.83°C
115.20V
9
30.635A
8.472A
8.515A
2.460A
449.755
82.548%
2023
41.5
45.49°C
0.982
11.985V
5.019V
3.299V
4.871V
544.843
57.17°C
115.21V
10
34.299A
8.968A
9.028A
3.094A
499.618
81.802%
2023
41.5
46.48°C
0.983
11.951V
5.020V
3.290V
4.845V
610.768
59.11°C
115.23V
11
38.606A
8.948A
9.048A
3.097A
549.574
81.107%
2023
41.5
46.64°C
0.983
11.912V
5.031V
3.282V
4.839V
677.593
59.94°C
115.25V
CL1
0.101A
14.026A
14.003A
0.004A
113.347
75.270%
2045
41.8
44.29°C
0.948
12.528V
4.659V
3.336V
4.949V
150.587
53.05°C
115.19V
CL2
39.968A
1.003A
1.002A
1.002A
484.585
82.241%
2015
41.4
45.50°C
0.983
11.787V
5.213V
3.316V
4.922V
589.228
56.76°C
115.22V
The results above are not used in the certification process
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.200A
0.492A
0.472A
0.196A
19.695
62.118%
787
15.6
0.837
12.176V
5.089V
3.384V
5.015V
31.706
115.18V
2
2.423A
0.980A
0.975A
0.396A
39.754
73.542%
822
16.2
0.880
12.175V
5.078V
3.380V
5.005V
54.056
115.18V
3
3.651A
1.470A
1.479A
0.601A
59.883
78.235%
957
20.3
0.907
12.171V
5.069V
3.376V
4.995V
76.542
115.18V
4
4.865A
1.976A
1.953A
0.801A
79.777
80.606%
1040
22.8
0.920
12.167V
5.062V
3.372V
4.989V
98.972
115.18V
The results above are not used in the certification process
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
29.9 mV
18.0 mV
27.5 mV
18.0 mV
Pass
20% Load
31.4 mV
20.6 mV
32.4 mV
19.2 mV
Pass
30% Load
34.8 mV
18.9 mV
35.0 mV
18.0 mV
Pass
40% Load
36.4 mV
18.9 mV
26.8 mV
15.5 mV
Pass
50% Load
43.1 mV
18.8 mV
26.9 mV
18.5 mV
Pass
60% Load
46.0 mV
20.1 mV
27.1 mV
18.8 mV
Pass
70% Load
51.9 mV
21.3 mV
28.9 mV
18.9 mV
Pass
80% Load
57.8 mV
23.2 mV
30.4 mV
22.4 mV
Pass
90% Load
61.6 mV
24.3 mV
27.6 mV
24.1 mV
Pass
100% Load
65.2 mV
26.1 mV
30.3 mV
24.3 mV
Pass
110% Load
71.3 mV
26.5 mV
34.3 mV
27.2 mV
Pass
Crossload 1
42.7 mV
59.9 mV
27.0 mV
22.6 mV
Fail
Crossload 2
72.0 mV
57.4 mV
30.8 mV
29.6 mV
Fail
The results above are not used in the certification process
The results above are not used in the certification process
