Cybenetics Test - Micronics Classic II Full Change 700W

Micronics Classic II Full Change 700W

2105CL2F0700PA00001

Lab IDMC70001822

Report: 21PS1822A
Receipt Date: Mar 26, 2021
Test Date: Mar 31, 2021
Report Date: Apr 2, 2021

	115V	230V
效率評比

115V	230V
		噪音評比

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

	Micronics
製造商 (OEM)	Sirfa (Dong Guan) Electronic
	Classic II Full Change
	HP1-N700ST-E12S
	2105CL2F0700PA00001

(Vrms)	200-240
(Arms)	6.3
(Hz)	50-60
(W)	700
	ATX12V
	120mm Sleeve Bearing Fan (PY-1225M12S)
	✓
	Fixed cables

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	22	22	58.3	3	0.3
Max. Power	Watts	120		700	15	3.6
Total Max. Power (W)		700

Electronic Loads	Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources	Chroma 6530, Keysight AC6804B
Power Analyzers	N4L PPA1530 x2
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer	UNI-T UT372 x2
Digital Multimeter	Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS	CyberPower OLS3000E 3kVA x2
Transformer	3kVA x2
Testing Methodology	Cybenetics PSU Test Protocol

Captive Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (490mm)	1	1	18-24AWG	No
4+4 pin EPS12V (620mm) / 4 pin EPS12V (+150mm)	1	1 / 1	18AWG	No
6+2 pin PCIe (520mm+150mm)	2	4	18AWG	No
SATA (400mm+150mm+150mm) / 4-pin Molex (+150mm)	1	3 / 1	18AWG	No
SATA (400mm+150mm) / 4-pin Molex (+150mm+150mm)	1	2 / 2	18AWG	No

Parts Description

General Data	-
Manufacturer (OEM)	Sirfa (Dong Guan) Electronic
PCB Type	Single Sided
Primary Side	-
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x MPS HF81 (Discharge IC)
Inrush Protection	NTC Thermistor SCK-1R38 (1.3Ohm)
Bridge Rectifier(s)	1x GBU1006 (600V, 3A @ 100°C w/o heatsink)
APFC MOSFETs	1x CWS20N60AF (600V, 13A @ 100°C, Rds(on): 0.19Ohm)
APFC Boost Diode	1x SI8U600F
Bulk Cap(s)	1x Teapo (400V, 560uF, 105°C, LE)
Main Switchers	2x Champion GPT18N50D (500V, 18A, Rds(on): 0.27Ohm)
PFC / PWM Combo Controller	Champion CM6800UX
Topology	Primary side: APFC, Double Forward Secondary side: Passive Rectification (+12V rail) & DC-DC converters (5V & 3.3V rails)
Secondary Side	-
+12V SBRs	4x VISHAY MBR40H60CT (60V, 40A @ 125°C)
5V & 3.3V	DC-DC Converters: 4x Infineon BSC0906NS (30V, 18A, Rds(on): 0.295Ohm) PWM Controllers: ANPEC APW7159C
Filtering Capacitors	Electrolytic: 9x Teapo (1-3,000h @ 105°C, SC), 2x Teapo (2,000h @ 105°C, SH) Polymer: 3x G-Luxon
Supervisor IC	Grenergy GR8313 (OVP, UVP, SCP, PG)
Fan Model	Poweryear PY-1225M12S (120mm, 12V, 0.26A, Sleeve Bearing Fan)
5VSB Circuit	-
Rectifier	1x PSA04N70 FET, 1x PS1045 SBR
Standby PWM Controller	SI8016HSP8

Test Results

Temperature & Compliance Info

(°C /°F)	30-32 / 86-89.6
	✓
	✓
ALPM (Alternative Low Power Mode) compatible	✓

Performance Summary 230V

效率評比	BRONZE
噪音評比	Standard
(>1450 load combinations)	85.296%
Average Noise Output (>1450 Load Combinations)	44.24dBA
(>1450 Load Combinations)	0.956
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
	0.1529W
12V Ripple (Full Load)	31.17mV
5V Ripple (Full Load)	29.94mV
3.3V Ripple (Full Load)	24.18mV
5VSB Ripple (Full Load)	19.90mV
12V Load Regulation	0.79%
5V Load Regulation	2.43%
3.3V Load Regulation	2.46%
5VSB Load Regulation	3.79%
Inrush Current	47.620A
12V Transient Response (150%)	0.00V
5V Transient Response (150%)	V
3.3V Transient Response (150%)	V
5VSB Transient Response (150%)	V
	18.10ms
AC Loss to PWR_OK Hold Up Time	15.60ms
PWR_OK Inactive to DC Loss Delay	2.50ms
PSU Timings: T1 (20% / 100%)	64.0ms	62.0ms
PSU Timings: T3 (20% / 100%)	124.0ms	124.0ms
OPP (0.00°C / 0.00°C)	0.00%	0.00%

Hold-Up Time (ms)	18.1
AC Loss to PWR_OK Hold Up Time (ms)	15.6
PWR_OK Inactive to DC Loss Delay (ms)	2.5

待機電源消耗

Graphs 230V

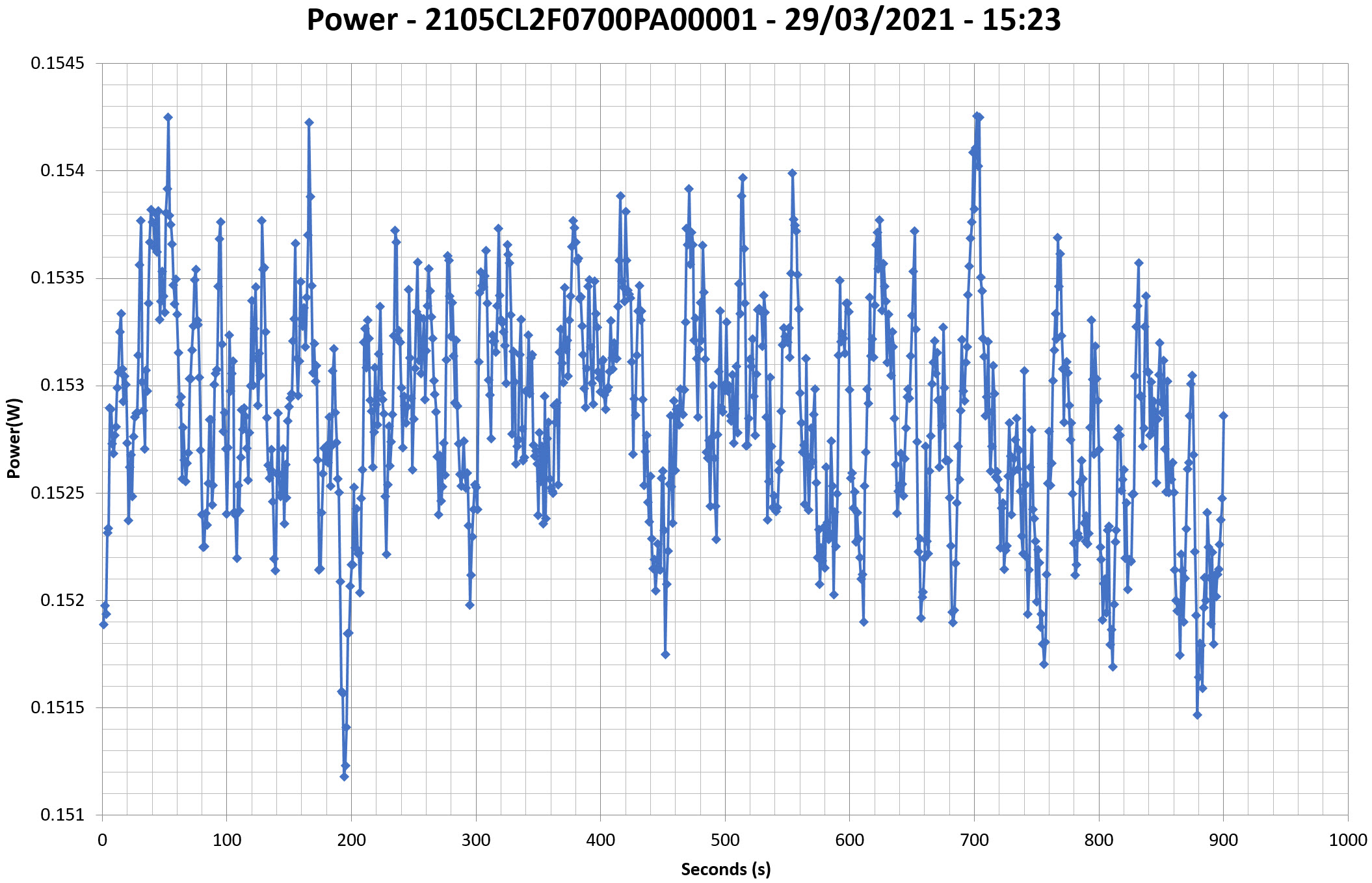

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

230V

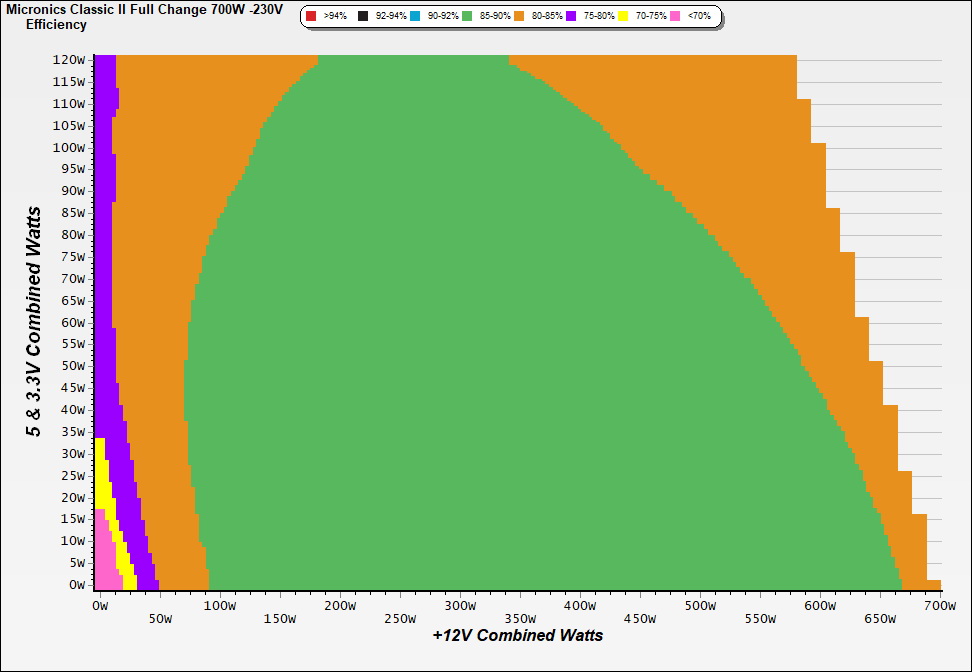

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

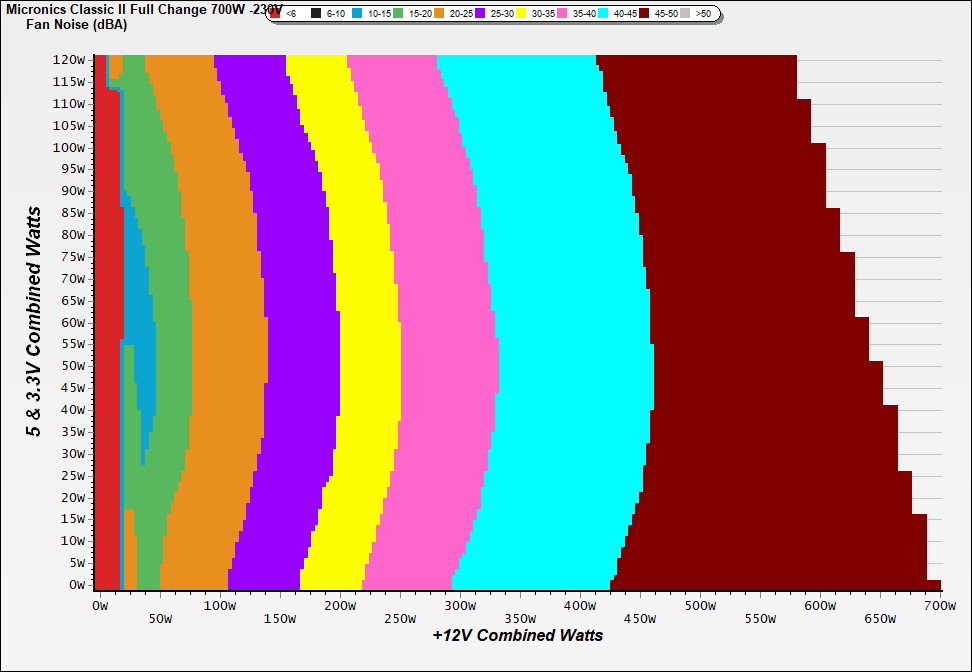

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

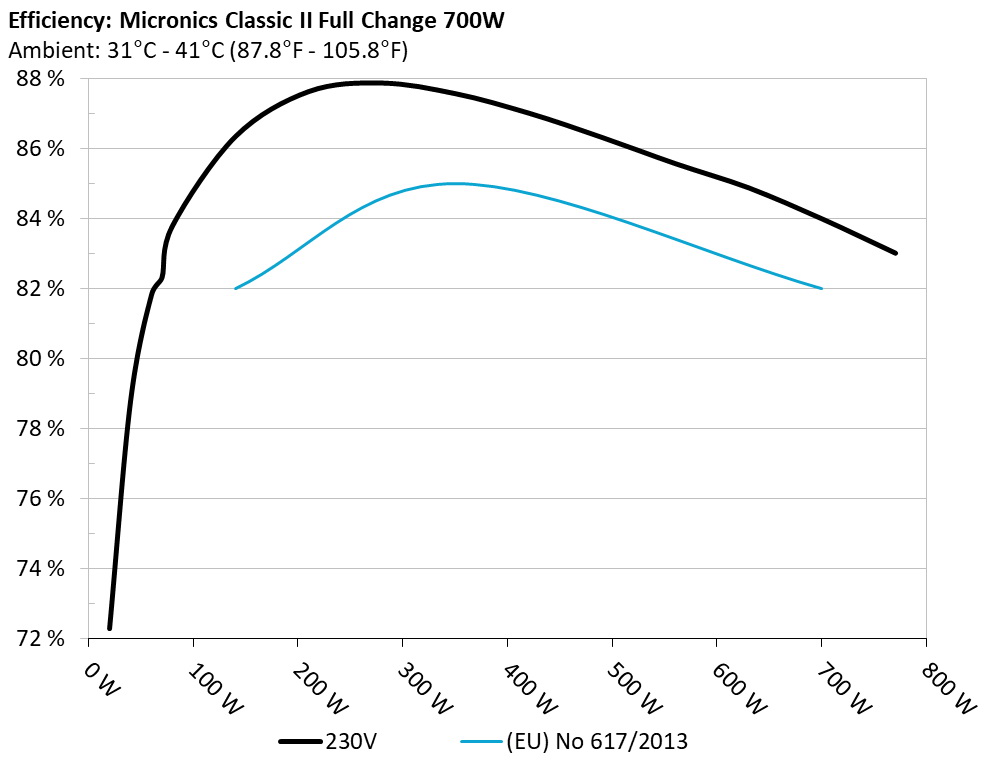

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

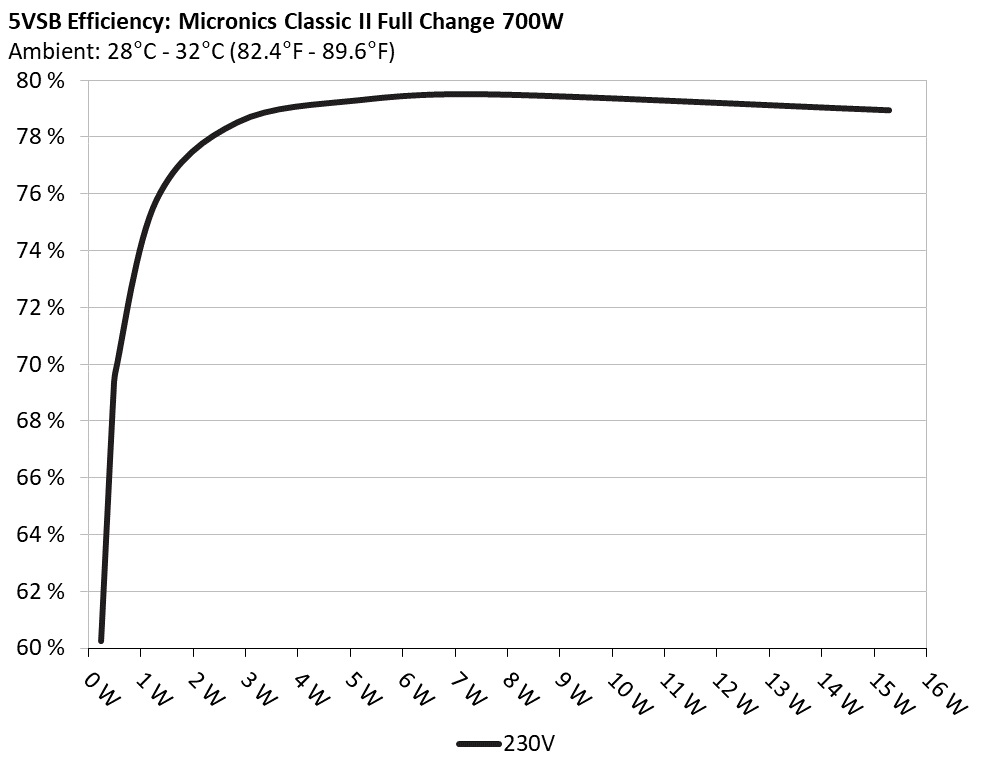

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.232	60.260%	0.017
1	5.162V	0.385	60.260%	230.34V
2	0.090A	0.465	68.889%	0.029
2	5.162V	0.675	68.889%	230.34V
3	0.550A	2.834	78.526%	0.139
3	5.152V	3.609	78.526%	230.35V
4	1.000A	5.142	79.303%	0.212
4	5.141V	6.484	79.303%	230.35V
5	1.500A	7.695	79.510%	0.264
5	5.129V	9.678	79.510%	230.34V
6	3.000A	15.280	78.950%	0.339
6	5.093V	19.354	78.950%	230.35V

Supplementary Tests (For Reference)

230V

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	3.977A	1.967A	1.981A	0.976A	70.000	82.308%	652	18.3	35.92°C	0.879
1	12.168V	5.088V	3.331V	5.124V	85.046	82.308%	652	18.3	40.13°C	230.36V
2	8.976A	2.956A	2.981A	1.175A	140.032	86.334%	831	26.1	35.99°C	0.932
2	12.158V	5.074V	3.322V	5.107V	162.198	86.334%	831	26.1	40.85°C	230.35V
3	14.323A	3.458A	3.485A	1.375A	210.036	87.621%	997	31.6	36.23°C	0.952
3	12.147V	5.063V	3.314V	5.090V	239.711	87.621%	997	31.6	41.80°C	230.34V
4	19.677A	3.959A	3.993A	1.578A	280.045	87.864%	1210	37.1	36.78°C	0.961
4	12.138V	5.052V	3.306V	5.072V	318.727	87.864%	1210	37.1	42.85°C	230.33V
5	24.699A	4.959A	5.004A	1.781A	350.044	87.560%	1435	41.6	37.14°C	0.966
5	12.128V	5.039V	3.298V	5.055V	399.774	87.560%	1435	41.6	43.78°C	230.32V
6	29.720A	5.971A	6.021A	1.986A	419.925	87.005%	1644	44.9	38.01°C	0.968
6	12.117V	5.026V	3.288V	5.036V	482.644	87.005%	1644	44.9	45.11°C	230.31V
7	34.769A	6.987A	7.044A	2.193A	490.059	86.310%	1834	47.6	38.48°C	0.971
7	12.107V	5.011V	3.279V	5.017V	567.792	86.310%	1834	47.6	46.16°C	230.32V
8	39.828A	8.002A	8.074A	2.401A	560.147	85.559%	2014	49.4	39.05°C	0.973
8	12.096V	4.997V	3.270V	4.998V	654.690	85.559%	2014	49.4	47.26°C	230.33V
9	45.292A	8.527A	8.582A	2.408A	629.905	84.870%	2037	49.8	39.90°C	0.975
9	12.086V	4.985V	3.262V	4.985V	742.200	84.870%	2037	49.8	48.74°C	230.33V
10	50.536A	9.051A	9.130A	3.027A	699.935	83.984%	2037	49.8	40.44°C	0.977
10	12.075V	4.973V	3.253V	4.956V	833.416	83.984%	2037	49.8	50.34°C	230.34V
11	56.388A	9.066A	9.154A	3.036A	769.978	83.005%	2038	49.8	40.56°C	0.979
11	12.064V	4.964V	3.245V	4.942V	927.626	83.005%	2038	49.8	51.31°C	230.36V
CL1	0.119A	14.001A	14.001A	0.001A	117.773	78.831%	1436	41.6	37.66°C	0.929
CL1	12.163V	5.007V	3.301V	5.095V	149.400	78.831%	1436	41.6	44.16°C	230.35V
CL2	58.352A	1.001A	1.000A	1.000A	717.819	84.507%	2036	49.8	40.02°C	0.977
CL2	12.073V	5.029V	3.273V	5.028V	849.421	84.507%	2036	49.8	50.10°C	230.31V

The results above are not used in the certification process

230V

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.219A	0.490A	0.492A	0.194A	19.991	72.282%	0	<6.0	0.661
1	12.178V	5.106V	3.340V	5.154V	27.657	72.282%	0	<6.0	230.36V
2	2.438A	0.980A	0.987A	0.389A	39.980	78.783%	0	<6.0	0.797
2	12.175V	5.103V	3.338V	5.146V	50.747	78.783%	0	<6.0	230.36V
3	3.661A	1.472A	1.486A	0.584A	60.009	81.821%	550	14.9	0.858
3	12.171V	5.094V	3.334V	5.135V	73.342	81.821%	550	14.9	230.36V
4	4.878A	1.967A	1.983A	0.780A	79.959	83.782%	622	17.1	0.889
4	12.167V	5.087V	3.330V	5.127V	95.437	83.782%	622	17.1	230.36V

The results above are not used in the certification process

230V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	10.60mV	18.50mV	10.20mV	11.10mV	Pass
20% Load	11.20mV	21.00mV	11.00mV	12.40mV	Pass
30% Load	11.90mV	21.30mV	11.40mV	12.80mV	Pass
40% Load	13.80mV	22.20mV	12.00mV	15.50mV	Pass
50% Load	14.00mV	23.60mV	12.30mV	14.10mV	Pass
60% Load	15.80mV	24.40mV	13.00mV	14.80mV	Pass
70% Load	17.50mV	25.00mV	13.70mV	16.40mV	Pass
80% Load	18.50mV	25.90mV	21.10mV	20.10mV	Pass
90% Load	23.30mV	26.60mV	21.60mV	21.20mV	Pass
100% Load	31.20mV	29.90mV	24.20mV	19.90mV	Pass
110% Load	40.40mV	31.10mV	22.40mV	19.00mV	Pass
Crossload1	12.80mV	25.60mV	22.80mV	24.90mV	Pass
Crossload2	37.20mV	26.70mV	13.70mV	13.80mV	Pass

The results above are not used in the certification process

Micronics Classic II Full Change 700W

Top side

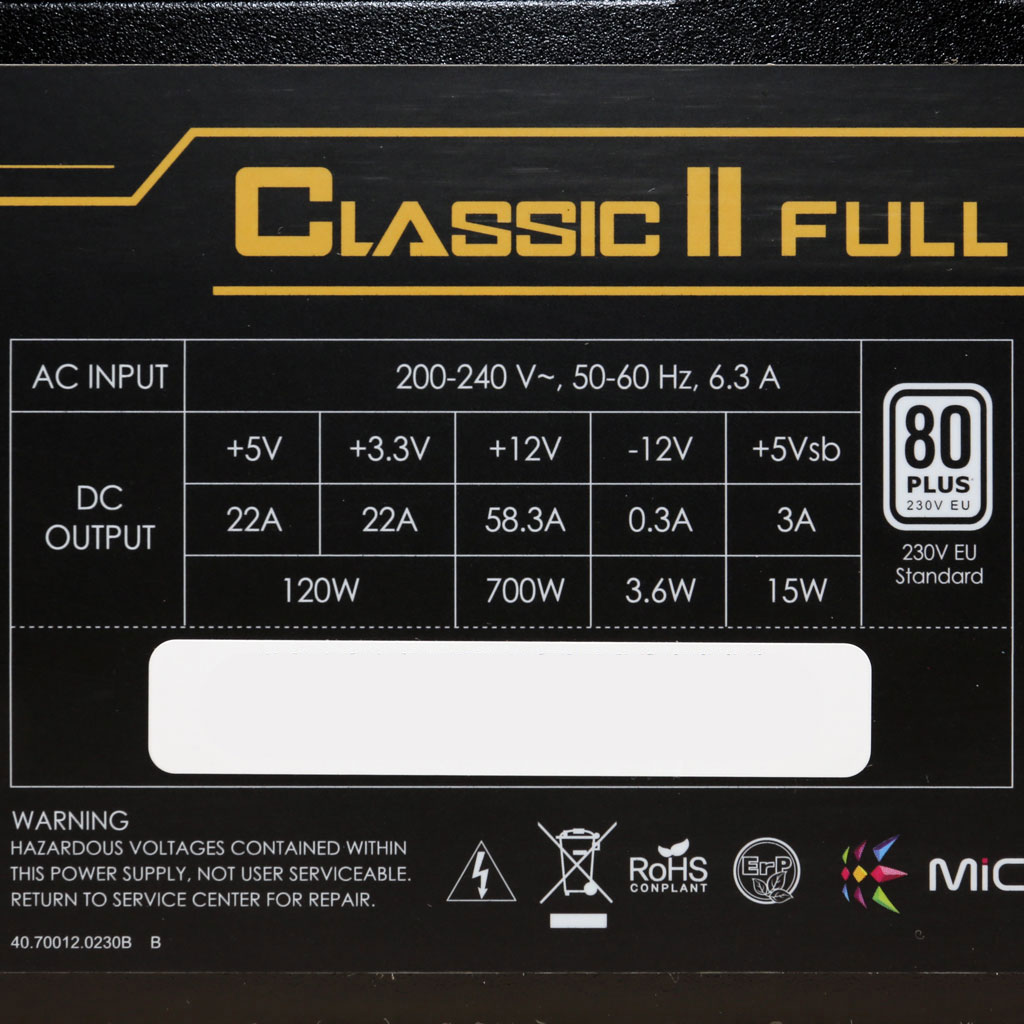

Power specifications label
