Thermaltake Toughpower GF2 ARGB 850W
PSTPD0850F3FAGU2XF000374
Lab IDTT85001815
  • Report: 21PS1815A
  • Receipt Date: Feb 22, 2021
  • Test Date: Mar 22, 2021
  • Report Date: Apr 7, 2021
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Thermaltake
製造商 (OEM)High Power
Toughpower GF2 ARGB
TTP-850AH3FSG-A
PSTPD0850F3FAGU2XF000374

(Vrms)100-240
(Arms)10
(Hz)50-60
(W)850
ATX12V
140mm Hydraulic Bearing Fan
[TT-1425 (A1425S12S-2)]
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222270.930.3
Watts120850153.6
Total Max. Power (W)850

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18AWG No
4+4 pin EPS12V (660mm) 1 1 16AWG No
8 pin EPS12V (660mm) 1 1 16AWG No
6+2 pin PCIe (500mm+160mm) 3 6 16-18AWG No
SATA (510mm+160mm+160mm+160mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (+160mm) 1 1 22AWG No
ARGB Sync Cable (610mm+160mm) 1 2 26AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) High Power
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Champion CMD02X (Discharge IC)
Inrush Protection -
Bridge Rectifier(s) 2x  HY GBU1506L (600V, 15A @ 100°C)
APFC MOSFETs 2x Infineon IPA50R140CP (500V, 15A @ 100°C, Rds(on): 0.14Ohm)
APFC Boost Diode 1x CREE C3D08060A (600V, 8A @ 152°C)
Bulk Cap(s) 1x Rubycon (400V, 470uF, 3,000h @ 105°C, MXK) & 1x Rubycon (400V, 390uF, 2,000h @ 105°C, MXH)
Main Switchers 2x Infineon IPA60R180P7S (600V, 11A @ 100°C, Rds(on): 0.18Ohm)
APFC Controller Infineon ICE3PCS01G
Resonant Controller Champion CM6901X
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 6x Infineon BSC027N04LS (40V, 88A @ 100°C, Rds(on): 2.7mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, Rds(on): 4.5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 3x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 3x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 3x Rubycon (3-6,000h @ 105°C, YXG), 1x Rubycon (6-10,000h @ 105°C, ZLH)
Polymer: 15x FPCAP, 2x NIC
Supervisor IC WT7527RA (OCP, OVP, UVP, SCP, PG)
Fan Model Thermaltake TT-1425 A1425S12S-2 (140mm, 12V, 0.70A, Hydraulic Bearing Fan)
Fan Controller STC STC15W401AS
5VSB Circuit -
Rectifier 1x PFC P10V45SP SBR (45V, 10A), UTC 2N70L FET (700V, 2A, 6.3Ohm)
Standby PWM Controller SI8016HSP8
-12V -
Rectifier 1x KEC KIA7912PI (-12V, 1A)

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time (ms)20
AC Loss to PWR_OK Hold Up Time (ms)17
PWR_OK Inactive to DC Loss Delay (ms)3

待機電源消耗

Graphs

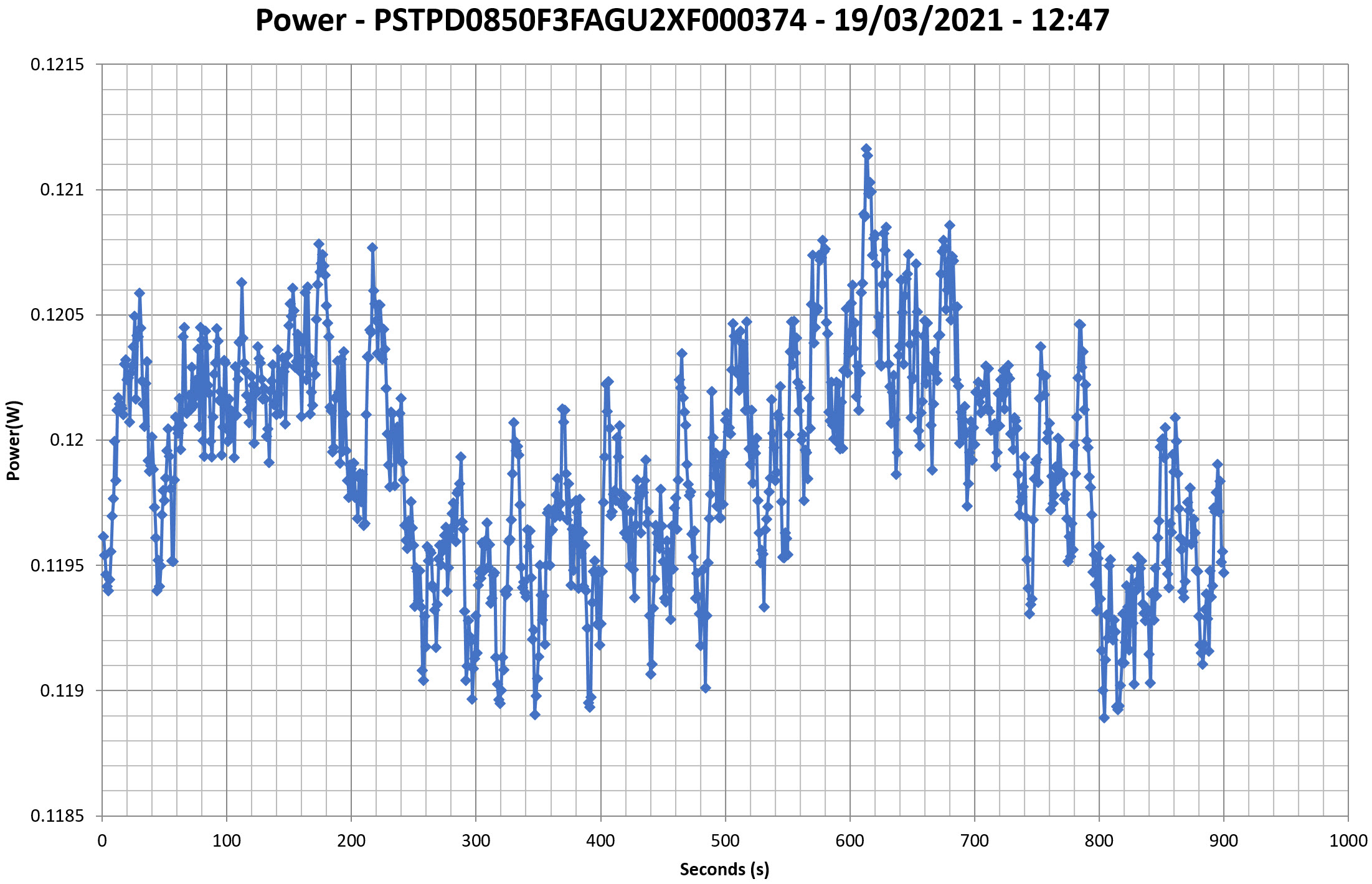

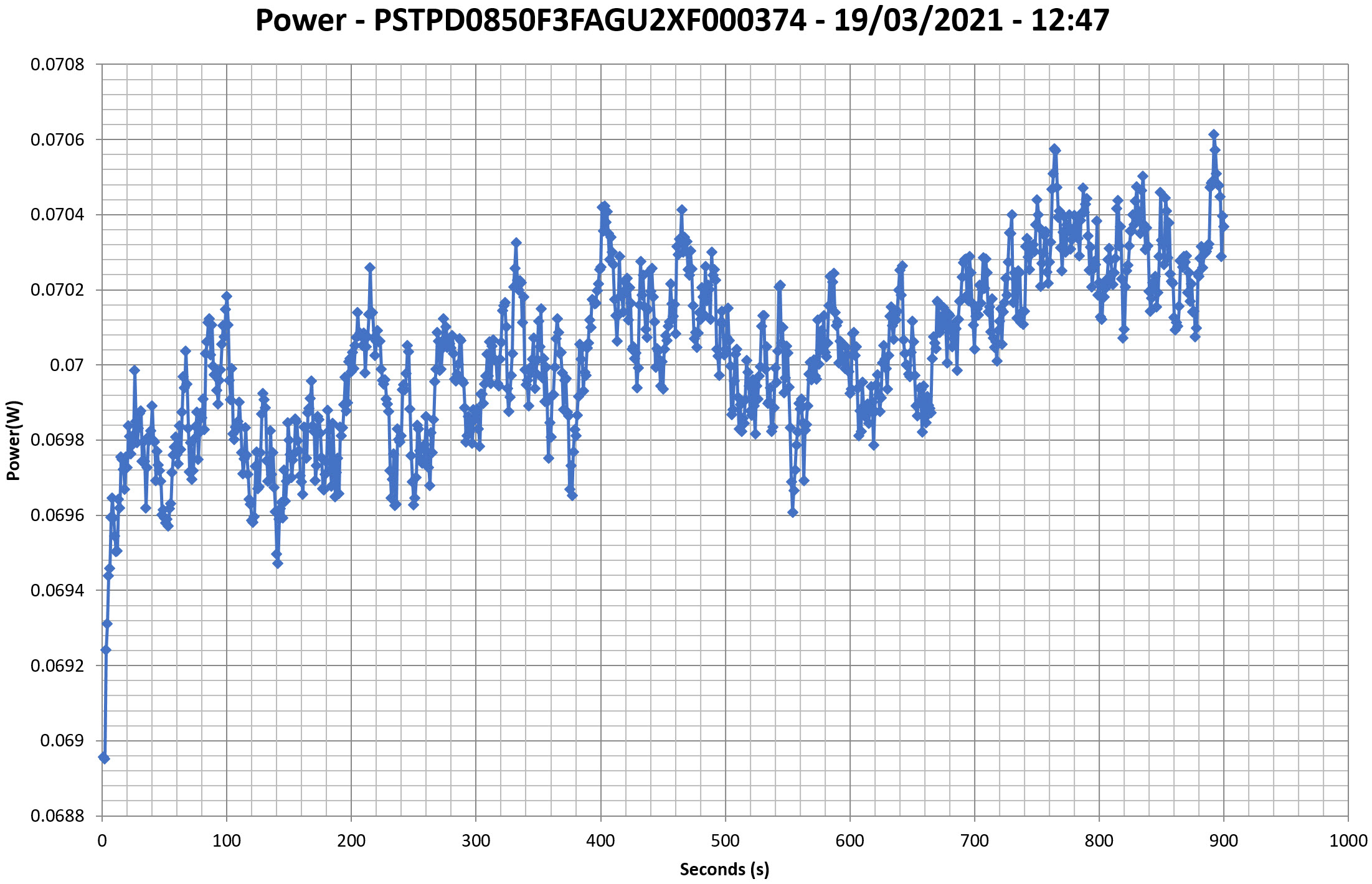

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

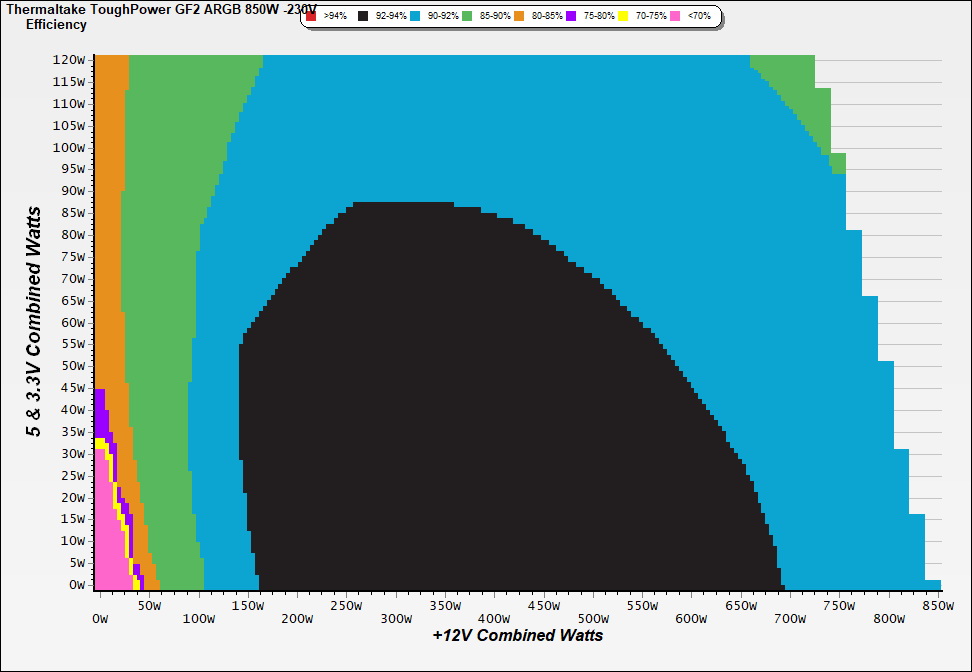

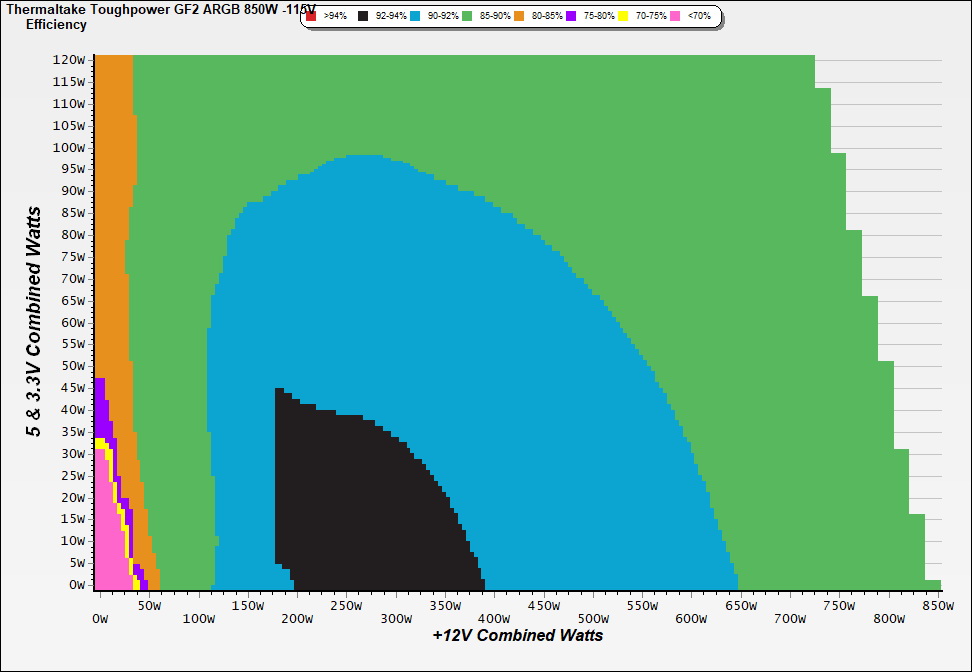

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

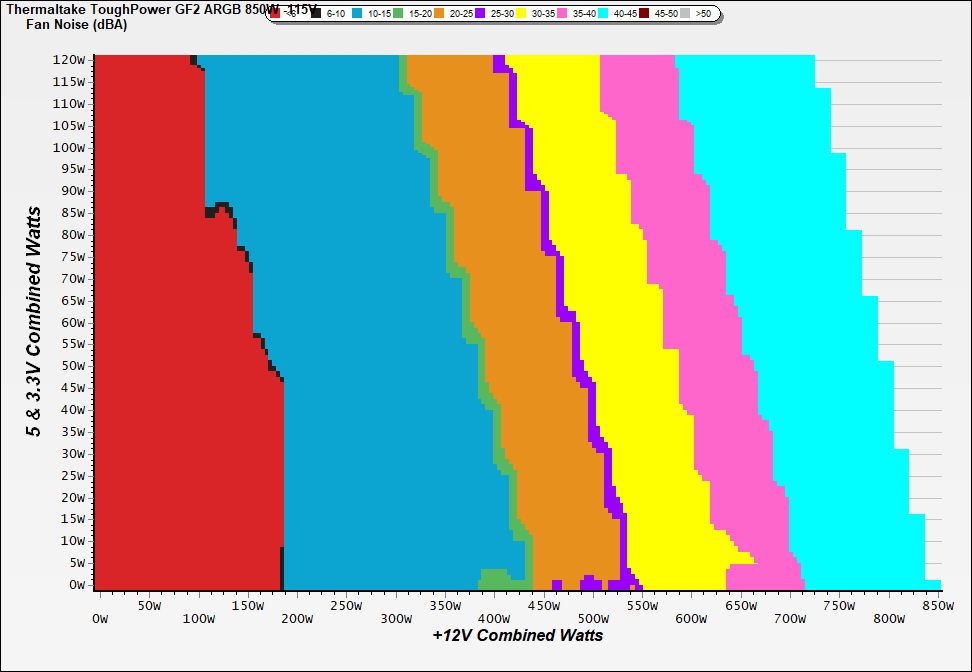

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

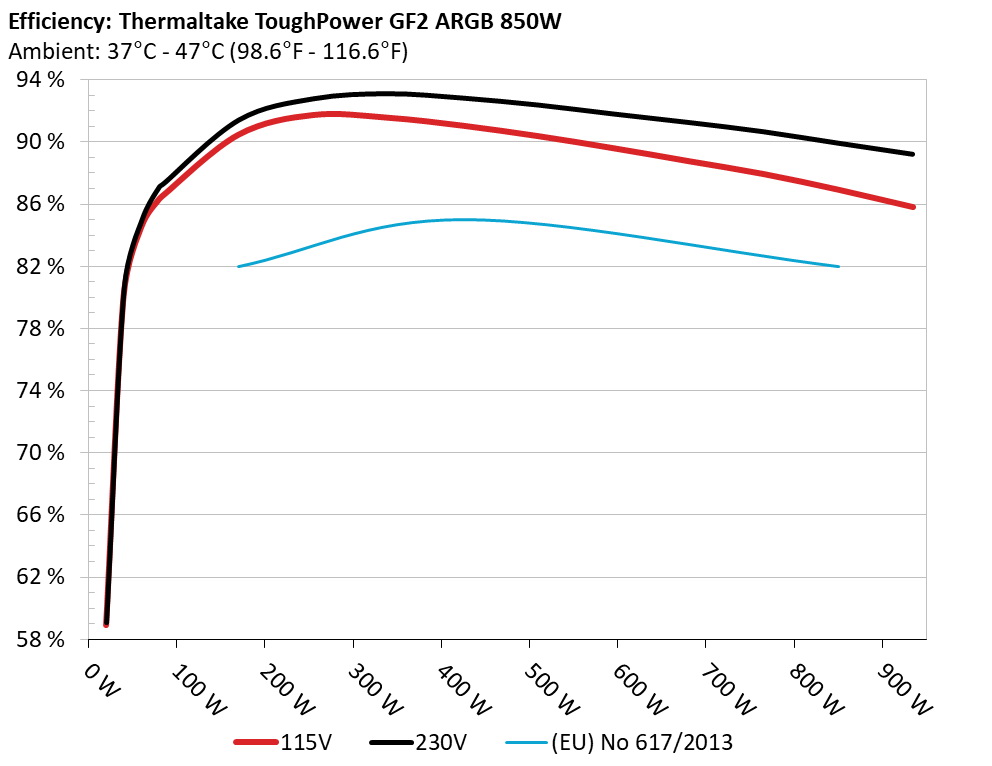

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

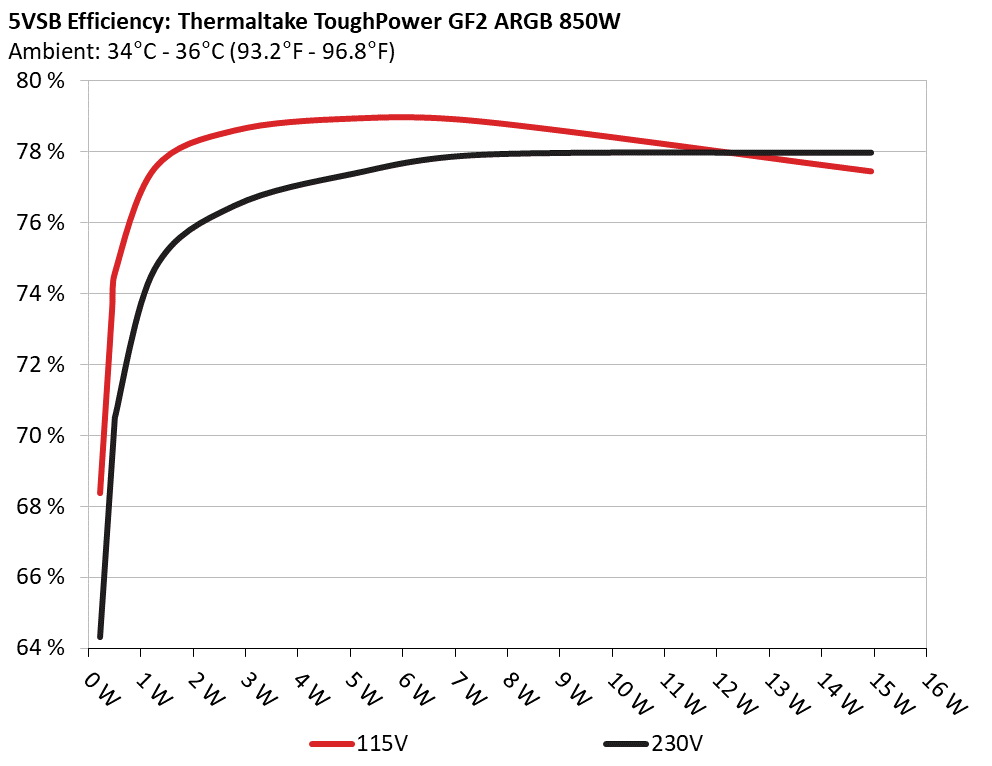

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 68.358% 0.047
5.097V 0.335 115.12V
2 0.090A 0.459 73.558% 0.085
5.095V 0.624 115.13V
3 0.550A 2.793 78.588% 0.256
5.077V 3.554 115.11V
4 1.000A 5.060 78.927% 0.307
5.060V 6.411 115.11V
5 1.500A 7.561 78.834% 0.337
5.040V 9.591 115.12V
6 3.000A 14.941 77.435% 0.376
4.980V 19.295 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 64.326% 0.016
5.097V 0.356 230.27V
2 0.090A 0.459 70.507% 0.028
5.095V 0.651 230.27V
3 0.550A 2.793 76.479% 0.131
5.077V 3.652 230.26V
4 1.000A 5.060 77.382% 0.194
5.060V 6.539 230.25V
5 1.500A 7.562 77.919% 0.235
5.040V 9.705 230.26V
6 3.000A 14.944 77.975% 0.293
4.981V 19.165 230.27V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.269A 1.984A 1.966A 0.991A 84.963 86.569% 0 <6.0 43.85°C 0.970
12.026V 5.040V 3.354V 5.049V 98.145 40.41°C 115.11V
2 11.578A 2.979A 2.955A 1.193A 170.042 90.463% 603 13.4 40.48°C 0.987
12.018V 5.035V 3.350V 5.029V 187.969 44.30°C 115.11V
3 18.224A 3.480A 3.453A 1.397A 255.057 91.733% 606 13.6 41.16°C 0.997
12.017V 5.030V 3.346V 5.011V 278.044 45.62°C 115.10V
4 24.884A 3.979A 3.948A 1.603A 340.088 91.556% 608 13.6 41.99°C 0.996
12.011V 5.028V 3.343V 4.992V 371.454 47.24°C 115.10V
5 31.202A 4.977A 4.942A 1.811A 425.027 91.040% 610 13.8 42.31°C 0.997
12.003V 5.024V 3.339V 4.972V 466.858 48.16°C 115.10V
6 37.489A 5.977A 5.939A 2.000A 509.470 90.375% 877 25.0 42.75°C 0.998
11.997V 5.020V 3.335V 4.952V 563.727 49.30°C 115.09V
7 43.856A 6.980A 6.935A 2.232A 594.915 89.598% 1079 32.1 43.56°C 0.998
11.989V 5.016V 3.332V 4.931V 663.979 50.82°C 115.09V
8 50.231A 7.985A 7.934A 2.445A 680.248 88.764% 1201 35.4 43.96°C 0.998
11.981V 5.012V 3.328V 4.910V 766.357 52.05°C 115.09V
9 57.006A 8.488A 8.424A 2.451A 765.179 87.934% 1496 41.0 44.84°C 0.998
11.975V 5.009V 3.325V 4.898V 870.170 53.71°C 115.08V
10 63.530A 8.995A 8.944A 3.088A 849.991 86.925% 1498 40.9 45.17°C 0.999
11.967V 5.005V 3.321V 4.859V 977.840 54.72°C 115.07V
11 70.651A 8.997A 8.951A 3.095A 934.772 85.807% 1498 40.9 46.69°C 0.999
11.961V 5.003V 3.318V 4.848V 1089.392 57.44°C 115.06V
CL1 0.122A 14.004A 14.000A 0.000A 118.596 81.726% 617 14.5 41.88°C 0.980
12.018V 5.022V 3.343V 5.064V 145.114 48.25°C 115.13V
CL2 70.843A 0.999A 1.000A 1.000A 861.651 87.494% 1496 41.0 45.60°C 0.999
11.975V 5.021V 3.331V 4.959V 984.809 55.04°C 115.07V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.268A 1.984A 1.969A 0.991A 84.959 87.340% 0 <6.0 43.76°C 0.839
12.026V 5.040V 3.354V 5.048V 97.274 40.08°C 230.23V
2 11.576A 2.977A 2.956A 1.193A 170.017 91.426% 0 <6.0 44.86°C 0.932
12.018V 5.036V 3.351V 5.029V 185.962 40.51°C 230.22V
3 18.221A 3.479A 3.451A 1.397A 255.026 92.802% 605 13.4 41.00°C 0.957
12.018V 5.030V 3.346V 5.011V 274.806 45.84°C 230.23V
4 24.881A 3.978A 3.949A 1.603A 340.046 93.122% 607 13.6 41.36°C 0.972
12.011V 5.027V 3.343V 4.992V 365.161 46.59°C 230.23V
5 31.196A 4.977A 4.940A 1.810A 424.944 92.840% 610 13.8 42.44°C 0.982
12.003V 5.024V 3.339V 4.972V 457.716 48.67°C 230.23V
6 37.485A 5.978A 5.938A 2.000A 509.389 92.398% 876 25.0 42.77°C 0.988
11.996V 5.020V 3.335V 4.953V 551.297 49.88°C 230.23V
7 43.848A 6.979A 6.936A 2.231A 594.816 91.823% 1078 32.1 43.31°C 0.990
11.989V 5.016V 3.332V 4.933V 647.787 51.11°C 230.23V
8 50.224A 7.985A 7.933A 2.444A 680.161 91.273% 1202 35.5 43.73°C 0.993
11.981V 5.012V 3.328V 4.912V 745.196 52.19°C 230.23V
9 57.004A 8.489A 8.423A 2.450A 765.085 90.680% 1498 40.9 44.23°C 0.996
11.974V 5.008V 3.324V 4.901V 843.720 53.32°C 230.22V
10 63.519A 8.993A 8.943A 3.086A 849.909 89.941% 1500 40.9 45.71°C 0.997
11.968V 5.005V 3.321V 4.862V 944.966 55.47°C 230.22V
11 70.638A 8.995A 8.949A 3.094A 934.687 89.225% 1499 40.9 46.68°C 0.998
11.962V 5.004V 3.319V 4.849V 1047.556 57.43°C 230.22V
CL1 0.117A 14.003A 13.999A 0.000A 118.584 82.665% 616 14.1 42.30°C 0.899
12.019V 5.025V 3.344V 5.064V 143.452 48.70°C 230.24V
CL2 70.844A 0.999A 0.998A 1.000A 861.582 90.560% 1497 41.0 45.57°C 0.997
11.974V 5.019V 3.330V 4.959V 951.397 55.55°C 230.23V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.240A 0.500A 0.501A 0.200A 20.150 58.903% 0 <6.0 0.892
12.039V 5.044V 3.358V 5.090V 34.209 115.12V
2 2.467A 0.991A 0.984A 0.394A 39.981 80.087% 0 <6.0 0.931
12.031V 5.042V 3.357V 5.079V 49.922 115.11V
3 3.705A 1.488A 1.473A 0.592A 60.011 84.523% 0 <6.0 0.959
12.029V 5.041V 3.355V 5.068V 71.000 115.11V
4 4.936A 1.984A 1.969A 0.791A 79.962 86.302% 0 <6.0 0.966
12.026V 5.039V 3.354V 5.057V 92.654 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.232A 0.496A 0.491A 0.197A 19.988 59.063% 0 <6.0 0.568
12.040V 5.044V 3.358V 5.090V 33.842 230.22V
2 2.466A 0.992A 0.984A 0.394A 39.976 80.558% 0 <6.0 0.666
12.032V 5.042V 3.356V 5.079V 49.624 230.22V
3 3.704A 1.488A 1.475A 0.592A 60.006 84.970% 0 <6.0 0.769
12.029V 5.041V 3.355V 5.068V 70.620 230.22V
4 4.936A 1.983A 1.967A 0.791A 79.957 87.124% 0 <6.0 0.831
12.027V 5.040V 3.354V 5.057V 91.774 230.21V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load32.00mV7.60mV10.70mV3.50mVPass
20% Load11.90mV10.70mV24.60mV7.90mVPass
30% Load9.20mV8.50mV11.80mV3.90mVPass
40% Load9.00mV9.50mV12.40mV4.10mVPass
50% Load9.50mV10.40mV12.50mV4.80mVPass
60% Load9.90mV11.00mV12.20mV4.60mVPass
70% Load11.40mV11.60mV13.10mV5.10mVPass
80% Load12.40mV12.40mV16.00mV5.80mVPass
90% Load13.90mV13.30mV14.60mV6.20mVPass
100% Load16.70mV15.00mV16.10mV7.30mVPass
110% Load19.90mV16.70mV18.50mV7.50mVPass
Crossload125.50mV17.00mV19.20mV14.70mVPass
Crossload216.80mV13.60mV14.30mV6.50mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load31.60mV7.90mV11.20mV4.00mVPass
20% Load9.90mV8.00mV11.60mV3.90mVPass
30% Load7.60mV9.00mV11.90mV4.10mVPass
40% Load8.00mV9.00mV12.40mV4.40mVPass
50% Load8.70mV10.00mV12.40mV4.90mVPass
60% Load10.50mV11.30mV12.30mV4.80mVPass
70% Load11.10mV11.50mV13.00mV5.00mVPass
80% Load11.50mV12.80mV14.80mV5.20mVPass
90% Load12.70mV14.60mV14.90mV6.30mVPass
100% Load16.30mV15.80mV16.50mV7.00mVPass
110% Load19.80mV16.00mV17.50mV7.30mVPass
Crossload125.20mV17.80mV20.60mV14.40mVPass
Crossload215.20mV14.10mV16.40mV5.80mVPass

The results above are not used in the certification process

Thermaltake Toughpower GF2 ARGB 850W

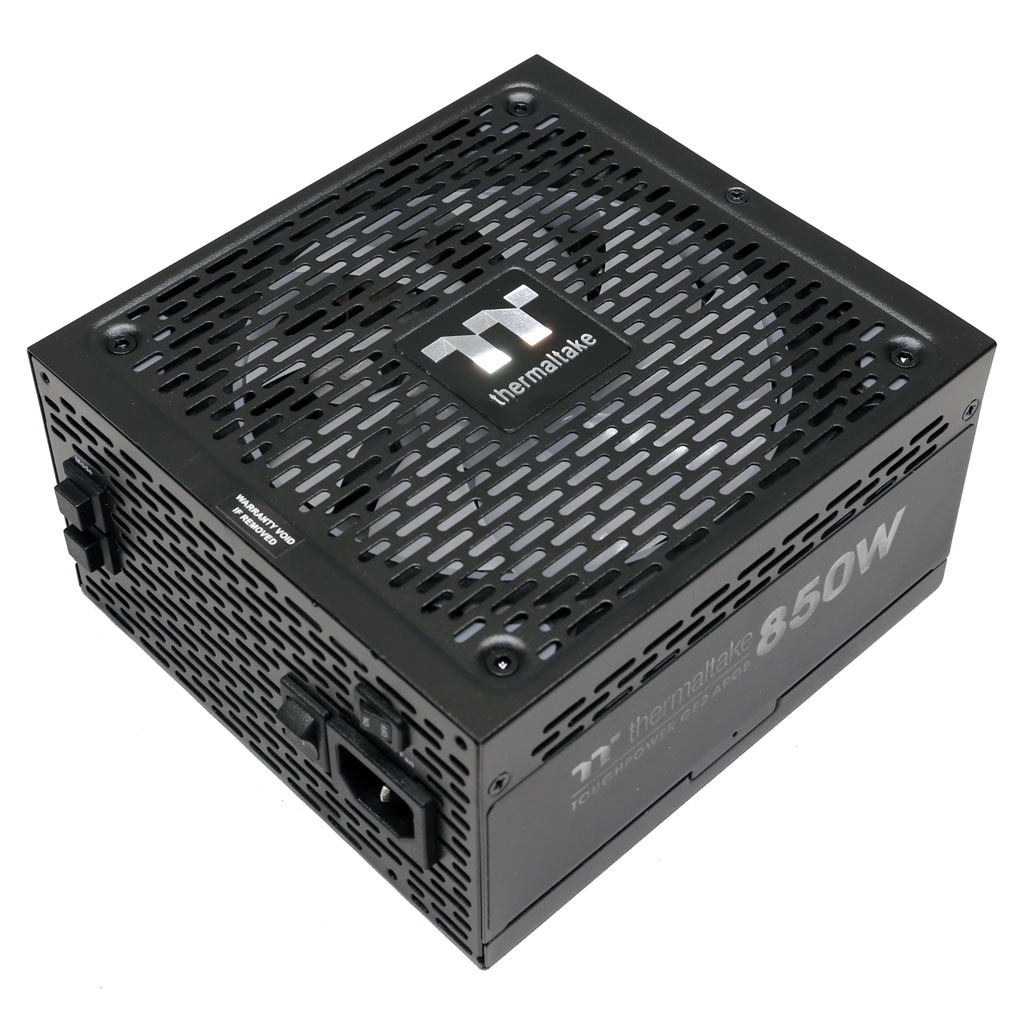

Top side

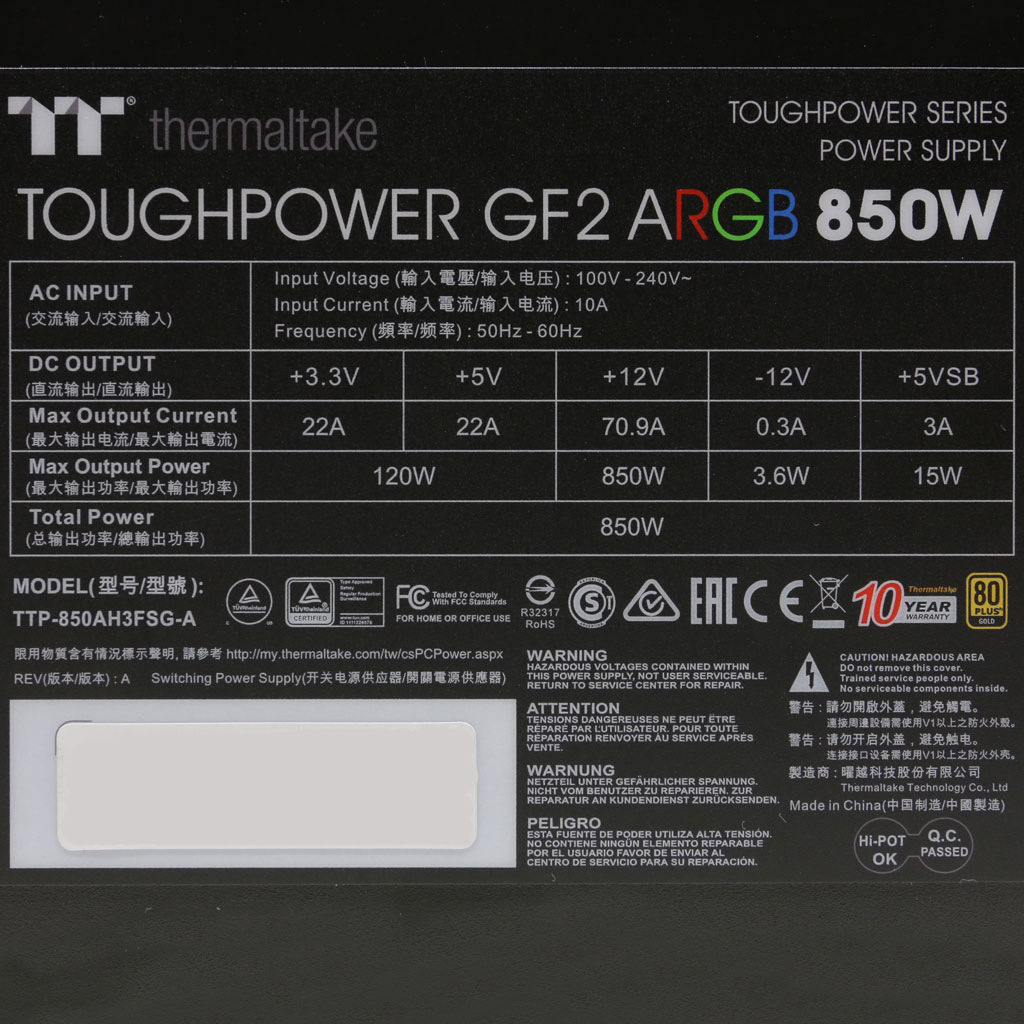

Power specifications label
