Seasonic Prime TX-1000
R2011AA385230126
Lab IDSS10001812
  • Report: 21PS1812A
  • Receipt Date: Feb 12, 2021
  • Test Date: Mar 19, 2021
  • Report Date: Mar 26, 2021
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Lab Director

General Information

Seasonic
Hersteller (OEM)Seasonic
Prime TX
SSR-1000TR
R2011AA385230126

(Vrms)100-240
(Arms)13-6.5
(Hz)50-60
(W)1000
ATX12V
135mm Fluid Dynamic Bearing Fan
(HA13525M12F-Z)
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps25258330.3
Watts125996153.6
Total Max. Power (W)1000

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (620mm) 1 1 18-22AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (760mm) 6 6 18AWG No
SATA (450mm+120mm+120mm+120mm) 2 8 18AWG No
SATA (400mm+160mm+160mm+160mm) 1 4 18AWG No
SATA (300mm+160mm) 1 2 18AWG No
4 pin Molex (450mm+120mm+120mm) 1 3 18AWG No
4 pin Molex (360mm+120mm) 1 2 18AWG No
4 pin Molex to SATA 3.3 Adapter (155mm+155mm) 1 2 18AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) Seasonic
PCB Type Double Sided
Primary Side -
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV, 1x Discharge IC
Inrush Protection NTC Thermistor MF72 5D-20L (5Ohm) & Relay
Bridge Rectifier(s) 2x Vishay LVB2560 (600V, 25A @ 105°C)
APFC MOSFETs 2x Infineon IPP60R099C7(650V, 14A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode 1x STMicroelectronics STPSC10H065D (650V, 10A @ 135°C)
Bulk Cap(s) 1x Nichicon (400V, 820uF, 2,000h @ 105°C, GL) & 1x Nichicon (400V, 470uF, 2,000h @ 105°C, GG)
Main Switchers 4x Infineon IPP50R140CP (550V, 15A @ 100°C, Rds(on): 0.14Ohm)
IC Driver 2x Silicon Labs Si8230BD
APFC Controller On Semiconductor NCP1654
Resonant Controller Champion CM6901T2X
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 6x Nexperia PSMN1R0-40YLD (40V, 198A @ 100°C, Rds(on): 1.93mOhm)
5V & 3.3V DC-DC Converters
Filtering Capacitors Electrolytic: 2x Nippon Chemi-Con (105°C, W), 4x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 1x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 1x Nippon Chemi-Con (5-6,000h @ 105°C, KZH), 2x Rubycon (3-6,000h @ 105°C, ZLQ),1x Rubycon (3-6,000h @ 105°C, YXG), 1x Rubycon (6-10,000h @ 105°C, ZLJ)
Polymer: 12x FPCAP, 8x United Chemi-Con, 19x NIC
Supervisor IC Weltrend WT7527V (OCP, OVP, UVP, SCP, PG)
Fan Controller APW9010
Fan Model Hong Hua HA13525M12F-Z (135mm, 12V, 0.36A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifier(s) 1x STMicroelectronics STF6N65K3 (650V, 3A @ 100°C, Rds(on): 1.3Ohm) FET & MCC MBR1045ULPS (45V, 10A @ 90°C) SBR
Standby PWM Controller Leadtrend LD7750R

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

Hold-Up Time (ms)30.4
AC Loss to PWR_OK Hold Up Time (ms)26.1
PWR_OK Inactive to DC Loss Delay (ms)4.3

Stromverbrauch im Ruhezustand

Graphs

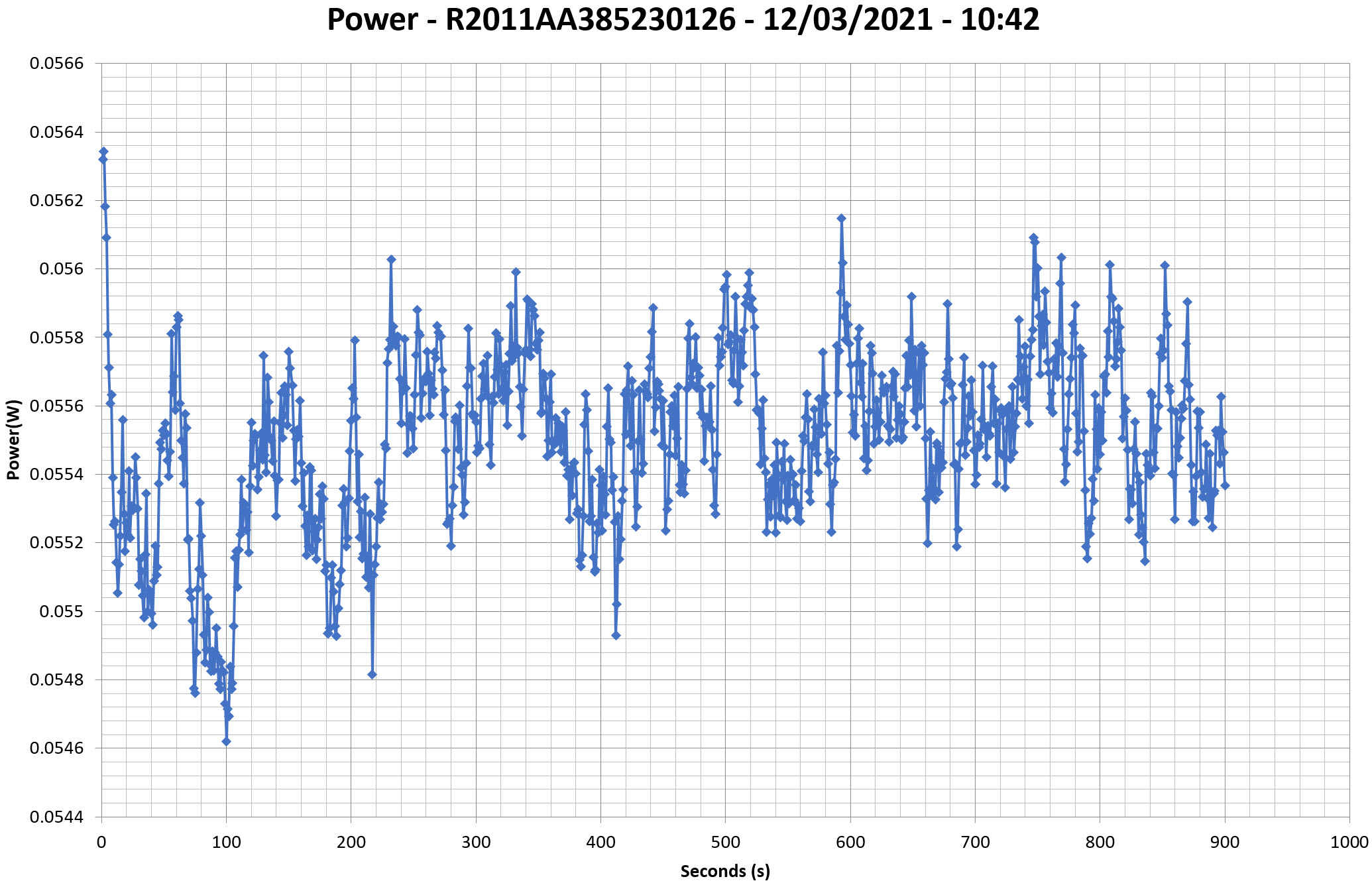

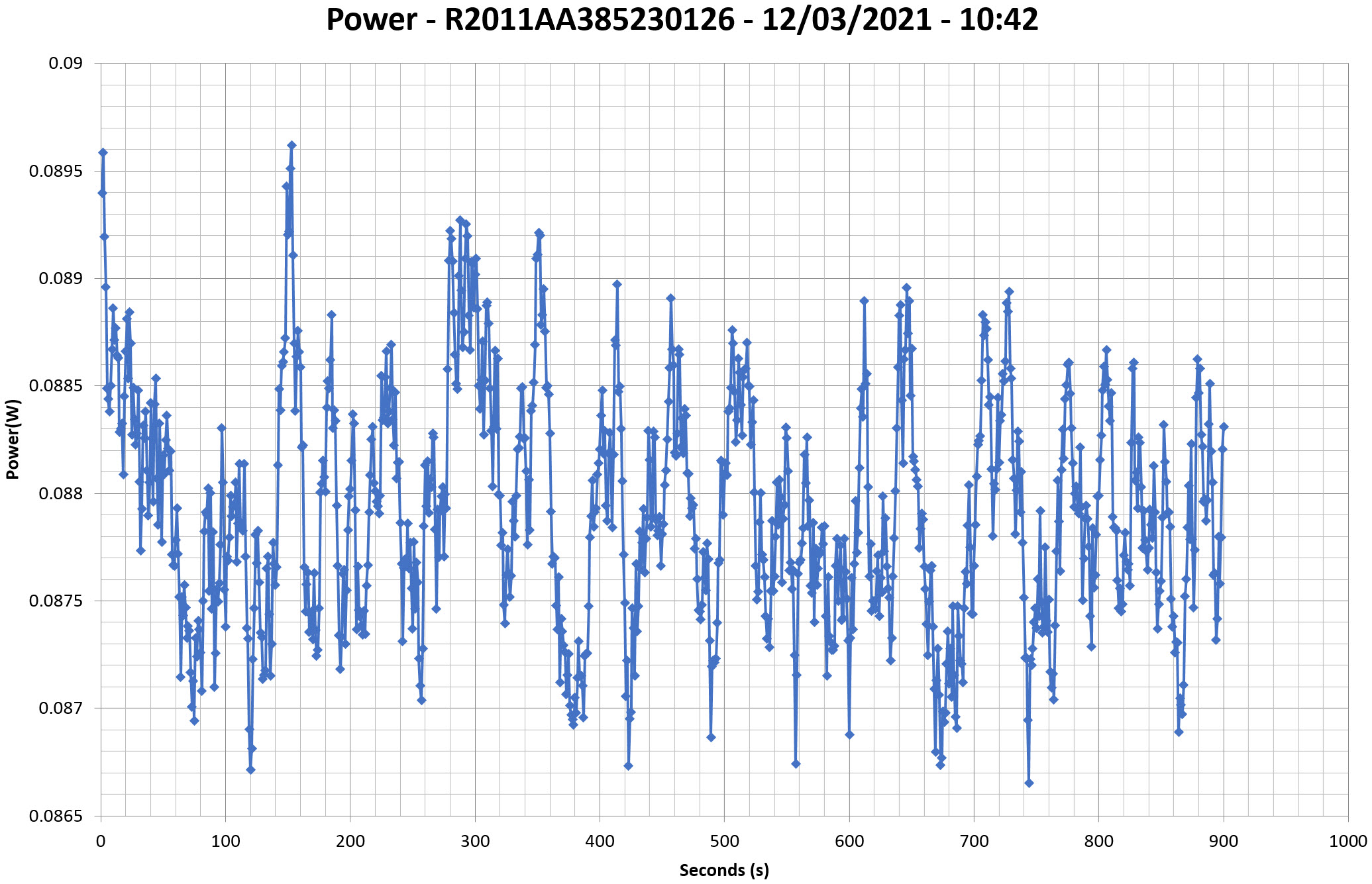

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

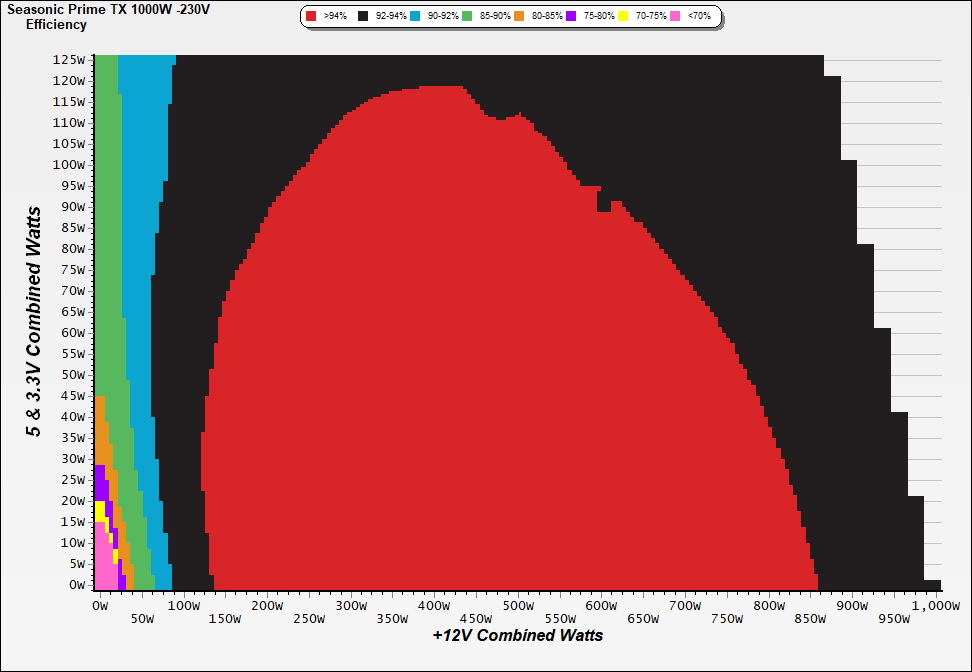

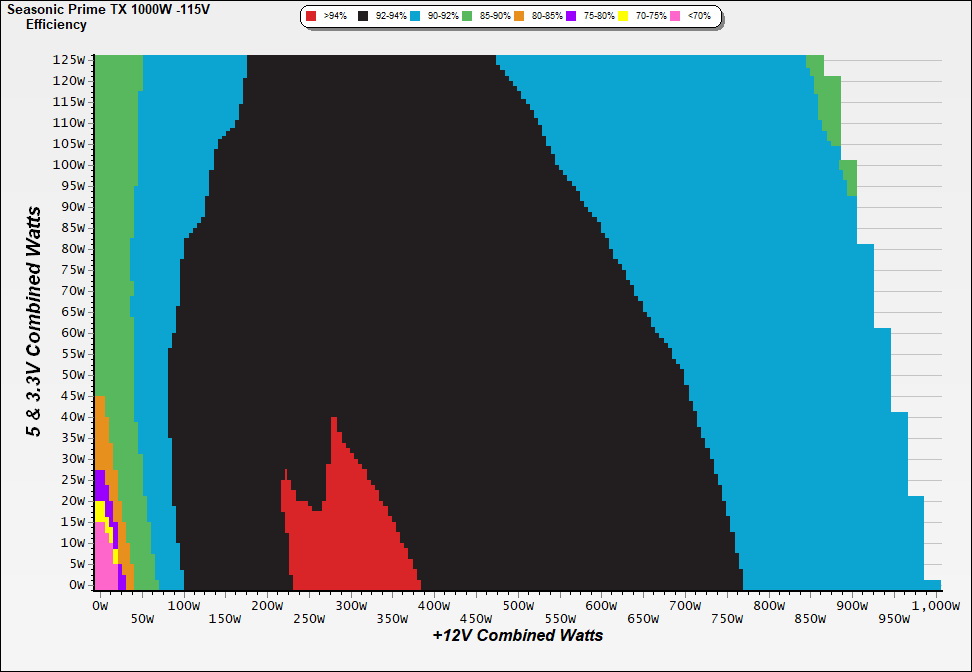

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

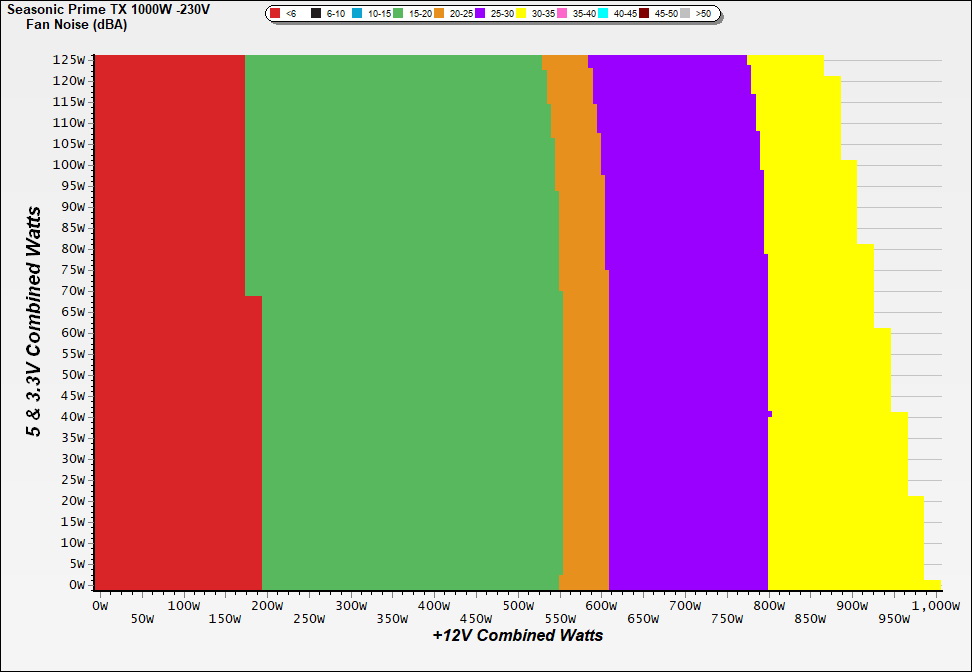

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

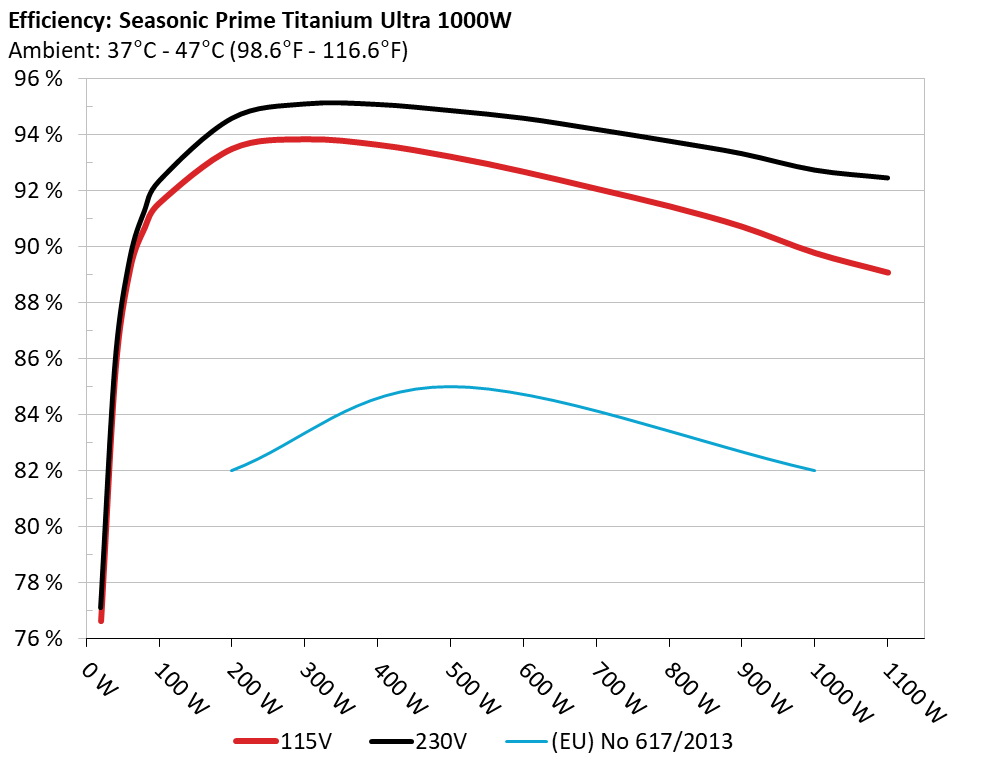

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

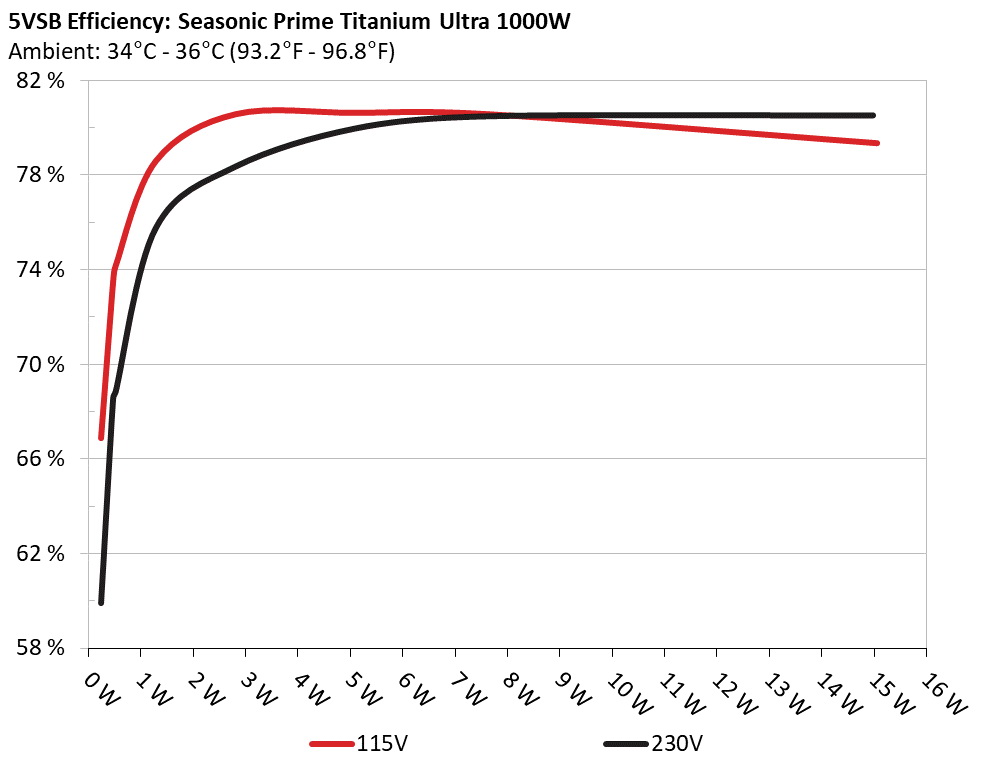

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 66.860% 0.037
5.113V 0.344 115.13V
2 0.090A 0.460 73.482% 0.067
5.111V 0.626 115.14V
3 0.550A 2.802 80.564% 0.280
5.095V 3.478 115.11V
4 1.000A 5.079 80.619% 0.376
5.078V 6.300 115.11V
5 1.500A 7.591 80.567% 0.432
5.060V 9.422 115.11V
6 3.000A 15.046 79.336% 0.513
5.015V 18.965 115.08V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 59.896% 0.013
5.113V 0.384 230.34V
2 0.090A 0.460 68.554% 0.022
5.111V 0.671 230.34V
3 0.550A 2.801 78.372% 0.110
5.092V 3.574 230.32V
4 1.000A 5.072 79.975% 0.180
5.071V 6.342 230.32V
5 1.500A 7.577 80.495% 0.239
5.050V 9.413 230.31V
6 3.000A 14.971 80.533% 0.349
4.990V 18.590 230.31V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.394A 1.961A 1.965A 1.031A 99.997 91.558% 0 <6.0 43.56°C 0.975
12.260V 5.101V 3.359V 4.852V 109.217 40.40°C 115.17V
2 13.797A 2.944A 2.948A 1.240A 200.029 93.497% 0 <6.0 44.81°C 0.988
12.258V 5.097V 3.357V 4.841V 213.941 41.10°C 115.18V
3 21.535A 3.458A 3.442A 1.449A 300.009 93.836% 620 18.4 41.18°C 0.994
12.257V 5.063V 3.354V 4.833V 319.718 45.34°C 115.15V
4 29.250A 3.952A 3.938A 1.659A 399.694 93.639% 675 21.2 42.16°C 0.995
12.256V 5.061V 3.352V 4.825V 426.847 46.77°C 115.09V
5 36.662A 4.939A 4.927A 1.869A 499.809 93.213% 740 24.6 42.27°C 0.994
12.255V 5.063V 3.350V 4.818V 536.202 48.02°C 115.11V
6 44.081A 5.915A 5.916A 2.000A 599.617 92.677% 815 28.5 43.49°C 0.994
12.255V 5.073V 3.348V 4.796V 646.996 50.06°C 115.08V
7 51.459A 6.907A 6.906A 2.291A 699.755 92.066% 895 30.6 44.14°C 0.995
12.255V 5.070V 3.345V 4.804V 760.061 51.55°C 115.14V
8 58.907A 7.902A 7.899A 2.502A 800.273 91.440% 971 32.9 44.97°C 0.996
12.254V 5.065V 3.342V 4.798V 875.189 52.89°C 115.14V
9 66.686A 8.391A 8.381A 2.502A 899.550 90.714% 1283 41.5 45.25°C 0.997
12.252V 5.066V 3.341V 4.797V 991.636 53.97°C 115.14V
10 74.338A 8.875A 8.891A 3.140A 999.899 89.772% 1556 46.2 45.51°C 0.997
12.244V 5.071V 3.340V 4.778V 1113.825 55.11°C 115.13V
11 82.523A 8.879A 8.896A 3.142A 1099.878 89.073% 1784 48.8 46.53°C 0.997
12.241V 5.069V 3.339V 4.775V 1234.809 57.38°C 115.13V
CL1 0.113A 15.001A 15.002A 0.000A 127.969 88.287% 858 29.7 42.06°C 0.983
12.273V 5.093V 3.345V 5.003V 144.947 47.49°C 115.17V
CL2 83.014A 1.000A 1.001A 1.000A 1029.512 90.086% 1442 44.7 45.82°C 0.997
12.242V 5.070V 3.344V 4.838V 1142.805 55.64°C 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.396A 1.962A 1.965A 1.031A 100.015 92.352% 0 <6.0 43.73°C 0.835
12.259V 5.100V 3.358V 4.852V 108.298 40.55°C 230.39V
2 13.802A 2.943A 2.948A 1.239A 200.055 94.600% 610 18.3 40.76°C 0.929
12.256V 5.098V 3.356V 4.843V 211.475 44.22°C 230.40V
3 21.544A 3.435A 3.443A 1.448A 300.031 95.112% 625 18.4 40.82°C 0.961
12.253V 5.095V 3.355V 4.834V 315.451 44.78°C 230.40V
4 29.262A 3.930A 3.939A 1.658A 399.736 95.096% 675 21.2 41.54°C 0.974
12.252V 5.092V 3.353V 4.825V 420.349 45.82°C 230.40V
5 36.680A 4.915A 4.924A 1.869A 499.846 94.877% 743 24.5 42.58°C 0.981
12.250V 5.089V 3.351V 4.817V 526.837 47.65°C 230.40V
6 44.101A 5.902A 5.914A 2.001A 599.634 94.603% 818 28.4 42.90°C 0.984
12.249V 5.085V 3.348V 4.812V 633.844 48.74°C 230.41V
7 51.486A 6.891A 6.905A 2.291A 699.762 94.206% 906 31.2 43.06°C 0.988
12.249V 5.081V 3.346V 4.803V 742.798 49.50°C 230.40V
8 58.937A 7.882A 7.896A 2.502A 800.286 93.784% 979 33.2 43.93°C 0.989
12.248V 5.078V 3.343V 4.798V 853.325 50.89°C 230.40V
9 66.725A 8.377A 8.381A 2.503A 899.566 93.337% 1209 40.4 44.06°C 0.991
12.245V 5.075V 3.341V 4.796V 963.779 52.23°C 230.40V
10 74.350A 8.874A 8.894A 3.141A 999.986 92.748% 1650 47.1 45.89°C 0.991
12.243V 5.072V 3.340V 4.777V 1078.174 55.51°C 230.39V
11 82.522A 8.873A 8.895A 3.143A 1099.769 92.468% 1703 48.5 47.22°C 0.991
12.240V 5.071V 3.339V 4.774V 1189.353 56.98°C 230.38V
CL1 0.117A 15.001A 14.999A 0.000A 128.082 89.094% 893 30.4 42.40°C 0.880
12.272V 5.098V 3.345V 5.008V 143.760 47.87°C 230.40V
CL2 83.019A 1.000A 1.002A 1.000A 1029.584 93.063% 1656 47.4 45.39°C 0.991
12.242V 5.073V 3.343V 4.842V 1106.335 55.45°C 230.40V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.210A 0.490A 0.491A 0.200A 19.968 76.620% 0 <6.0 0.816
12.260V 5.105V 3.361V 4.906V 26.061 115.16V
2 2.420A 0.980A 0.982A 0.410A 39.976 85.624% 0 <6.0 0.914
12.260V 5.105V 3.361V 4.884V 46.688 115.16V
3 3.634A 1.470A 1.473A 0.616A 60.005 89.225% 0 <6.0 0.950
12.260V 5.103V 3.360V 4.871V 67.251 115.16V
4 4.842A 1.959A 1.963A 0.823A 79.954 90.680% 0 <6.0 0.968
12.260V 5.102V 3.360V 4.861V 88.172 115.16V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.211A 0.490A 0.490A 0.200A 19.974 77.111% 0 <6.0 0.489
12.259V 5.104V 3.361V 4.907V 25.903 230.39V
2 2.421A 0.980A 0.982A 0.410A 39.983 85.931% 0 <6.0 0.646
12.259V 5.104V 3.360V 4.886V 46.529 230.39V
3 3.635A 1.470A 1.473A 0.616A 60.013 89.582% 0 <6.0 0.734
12.259V 5.103V 3.360V 4.871V 66.992 230.39V
4 4.842A 1.959A 1.965A 0.823A 79.958 91.281% 0 <6.0 0.792
12.257V 5.106V 3.360V 4.865V 87.595 230.37V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.20mV4.80mV4.50mV5.60mVPass
20% Load11.20mV5.00mV4.50mV6.50mVPass
30% Load10.80mV6.70mV5.70mV7.70mVPass
40% Load7.40mV4.80mV4.20mV6.40mVPass
50% Load9.40mV4.60mV4.60mV6.90mVPass
60% Load10.10mV4.80mV4.70mV6.90mVPass
70% Load11.80mV4.70mV4.40mV7.20mVPass
80% Load11.40mV5.10mV10.00mV8.20mVPass
90% Load12.70mV5.40mV10.70mV8.50mVPass
100% Load19.40mV7.20mV11.70mV8.50mVPass
110% Load3.30mV4.10mV3.70mV5.10mVPass
Crossload113.00mV6.80mV13.80mV8.10mVPass
Crossload220.00mV6.50mV5.50mV10.50mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load10.40mV4.90mV4.50mV5.80mVPass
20% Load12.00mV5.20mV4.20mV5.60mVPass
30% Load7.60mV5.60mV5.10mV5.60mVPass
40% Load7.30mV4.90mV4.40mV6.20mVPass
50% Load9.30mV4.90mV4.30mV6.70mVPass
60% Load10.30mV4.90mV4.50mV7.20mVPass
70% Load10.90mV5.20mV4.80mV8.20mVPass
80% Load11.50mV5.40mV10.90mV8.20mVPass
90% Load11.90mV5.50mV11.00mV9.00mVPass
100% Load20.70mV6.50mV11.50mV9.70mVPass
110% Load19.90mV6.50mV12.20mV10.20mVPass
Crossload114.50mV6.80mV13.50mV8.00mVPass
Crossload220.30mV6.00mV5.00mV9.80mVPass

The results above are not used in the certification process

Seasonic Prime TX-1000

Top side
Power specifications label
