CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
XPG Pylon 450W
4K3680394151
Lab IDAD45001781
  • Report: 21PS1781A
  • Receipt Date: Jan 8, 2021
  • Test Date: Jan 20, 2021
  • Report Date: Feb 1, 2021
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

XPG
Hersteller (OEM)Channel Well Technology
Pylon
PYLON450B-BKCTW
4K3680394151

(Vrms)100-240
(Arms)7-3.5
(Hz)50-60
(W)450
ATX12V
120mm Fluid Dynamic Bearing Fan
(HA1225M12F-Z)
✗
Fixed cables

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202037.52.50.3
Watts10045012.53.6
Total Max. Power (W)450

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Native Cables
Description Cable Count Connector Count (Total) Gauge In Cable Caps
ATX connector 20+4 pin (660mm) 1 1 18-22AWG No
4+4 pinEPS12V (670mm) 1 1 18AWG No
6+2 pin PCIe (560mm+150mm) 1 2 18AWG No
SATA (560mm+150mm+150mm) / 4-pin Molex (+150mm) 1 3 / 1 18AWG No
SATA (560mm+150mm) / 4-pin Molex (+150mm) / FDD (+150mm) 1 2 / 1 / 1 18-20AWG No
Modular Cables
AC Power Cord (1420mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) CWT
PCB Type Single Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CAP200DG (Discharge IC)
Inrush Protection NTC Thermistor SCK - 2R58 (2.5 Ohm)
Bridge Rectifier(s) 1x GBU806 (600V, 8A @ 100°C
APFC MOSFETs 2x Silan Microelectronics SVF18N50F (500V, 11A @ 100°C, Rds(on): 0.31Ohm)
APFC Boost Diode 1x STMicroelectronics STTH8S06 (600V, 8A @ 25°C)
Bulk Cap(s) 1x Nippon Chemi-Con (400V, 330uF, 2,000h @ 105°C, KMR)
Main Switchers 2x Silan Microelectronics SVF13N50F (500V, 8.2 @ 100°C, Rds(on): 0.52Ohm)
PFC/PWM Combo Controller Champion CM6800TX & Champion CM03X
Topology Primary side: APFC, Double Forward
Secondary side: Passive Rectification (12V) & DC-DC converters (5V & 3.3V)
Secondary Side -
+12V SBRs 4x PFC PFR20L60CT (60V, 20A)
5V & 3.3V MOSFETs 4x Sync Power SPN3006 (30V, 57A @ 100°C, Rds(on): 5.5mOhm)
PWM Controller: ANPEC APW7159C
Filtering Capacitors Electrolytic: 2x Elite (3-6,000h @ 105°C, EV), 7x Elite (2-5,000h @ 105°C, ED), 3x Elite (2-5,000h @ 105°C, EK), 3x Elite (4-10,000h @ 105°C, EY), 1x Elite (105°C, EG), 2x Elite (2,000h @ 105°C, PF)
Polymer: 2x APAQ
Supervisor IC INI1S429I - DCG
Fan Model Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Standby PWM Controller Power Integrations TNY287PG

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

WirkungsgradBRONZE
LautstärkeklasseA-
(>1450 load combinations)83.962%
Average Noise Output (>1450 Load Combinations)28.03dBA
(>1450 Load Combinations)0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load57.381%
0.0378W
12V Ripple (Full Load)24.02mV
5V Ripple (Full Load)13.25mV
3.3V Ripple (Full Load)18.60mV
5VSB Ripple (Full Load)10.85mV
12V Load Regulation0.90%
5V Load Regulation0.56%
3.3V Load Regulation0.85%
5VSB Load Regulation2.48%
Inrush Current33.190A
WirkungsgradBRONZE
LautstärkeklasseA-
(>1450 load combinations)85.978%
Average Noise Output (>1450 Load Combinations)27.26dBA
(>1450 Load Combinations)0.961
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0755W
12V Ripple (Full Load)21.13mV
5V Ripple (Full Load)12.84mV
3.3V Ripple (Full Load)17.84mV
5VSB Ripple (Full Load)12.21mV
12V Load Regulation0.89%
5V Load Regulation0.58%
3.3V Load Regulation0.82%
5VSB Load Regulation2.46%
Inrush Current80.050A
16.90ms
AC Loss to PWR_OK Hold Up Time14.70ms
PWR_OK Inactive to DC Loss Delay2.20ms
PSU Timings: T1 (20% / 100%)44.0ms33.0ms
PSU Timings: T3 (20% / 100%)135.0ms136.0ms
OPP (27.60°C / 41.70°C)126.14%124.03%

Hold-Up Time (ms)16.9
AC Loss to PWR_OK Hold Up Time (ms)14.7
PWR_OK Inactive to DC Loss Delay (ms)2.2

Stromverbrauch im Ruhezustand

Tables

Graphs

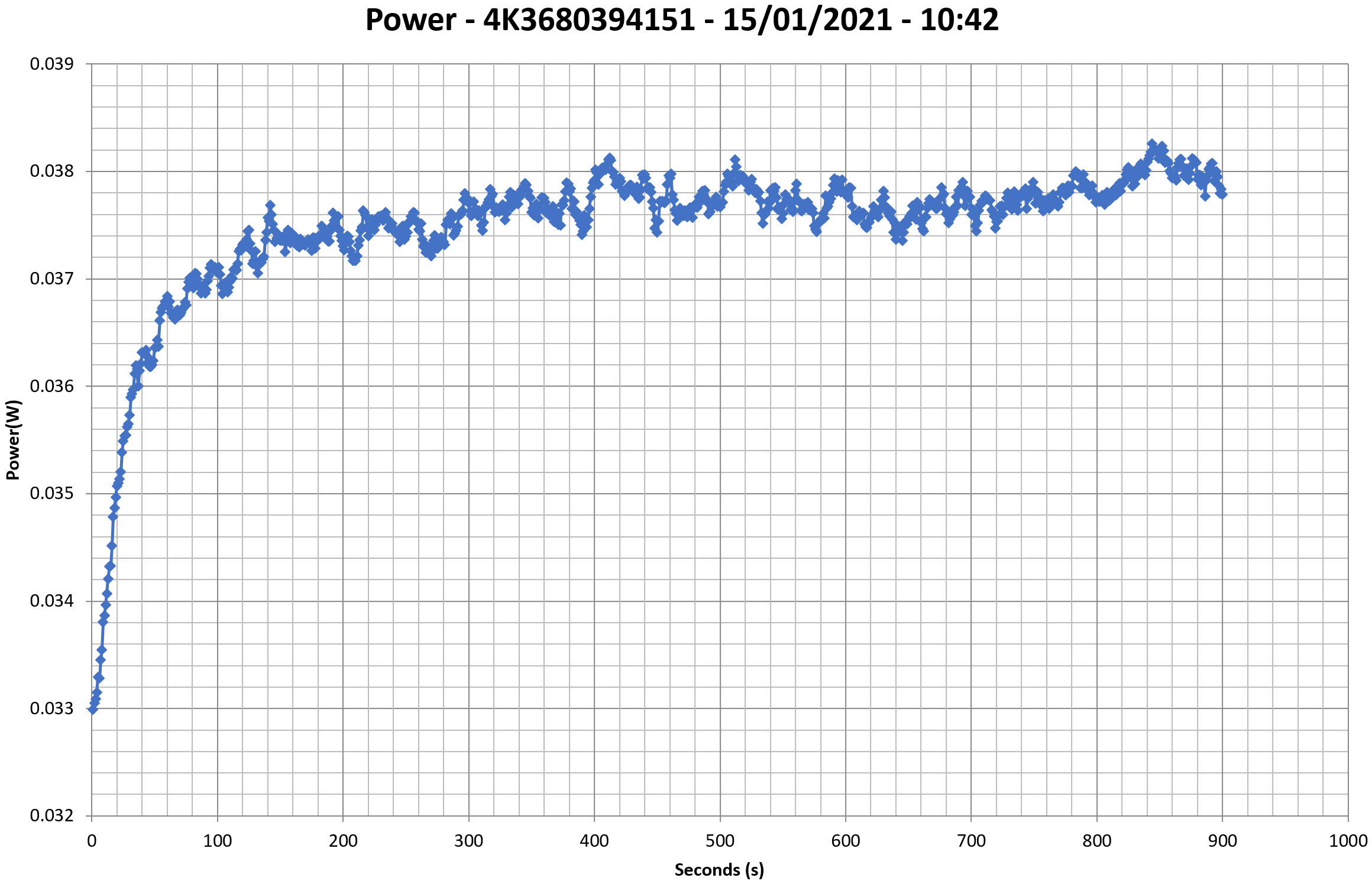

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

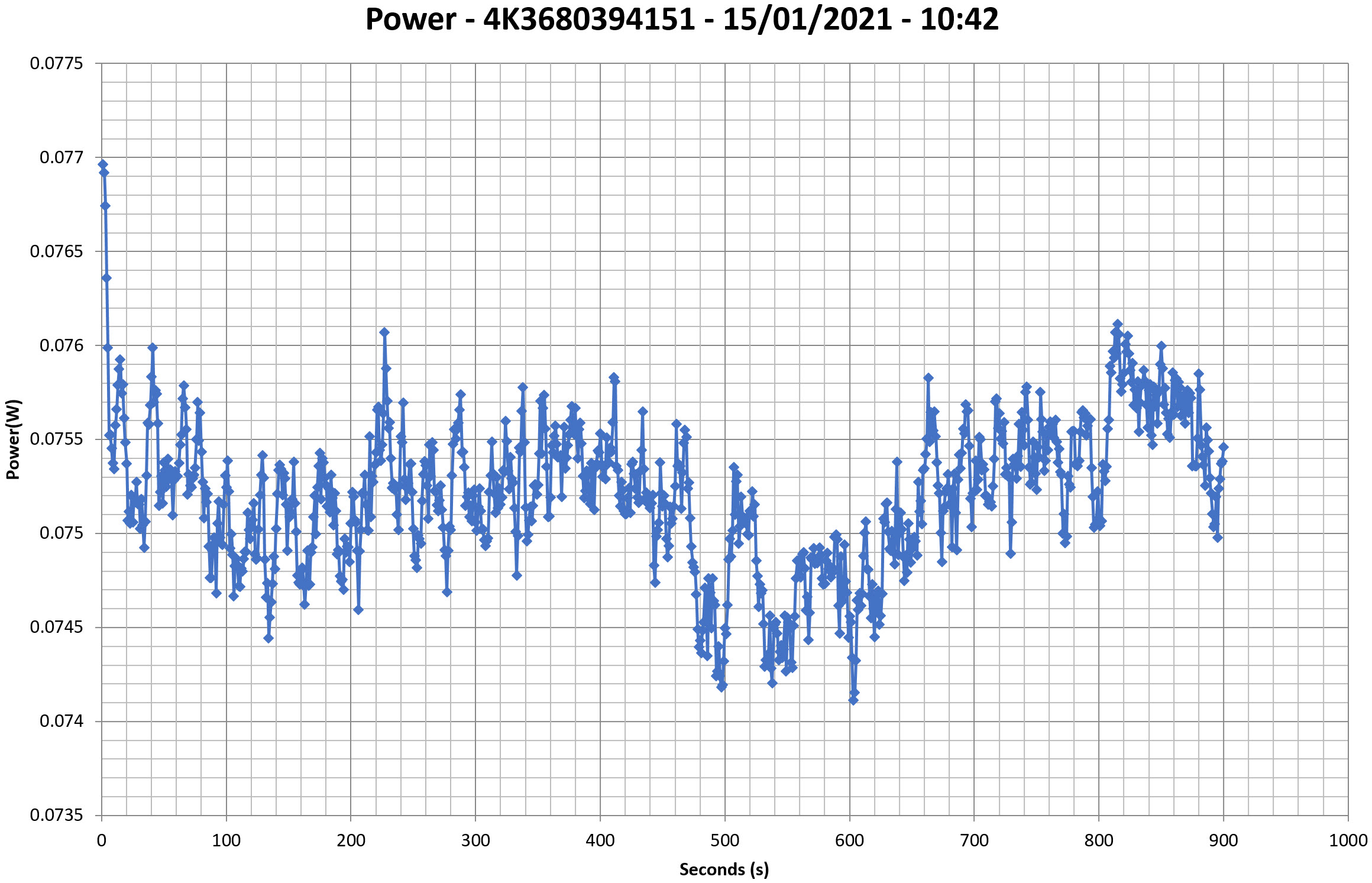

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

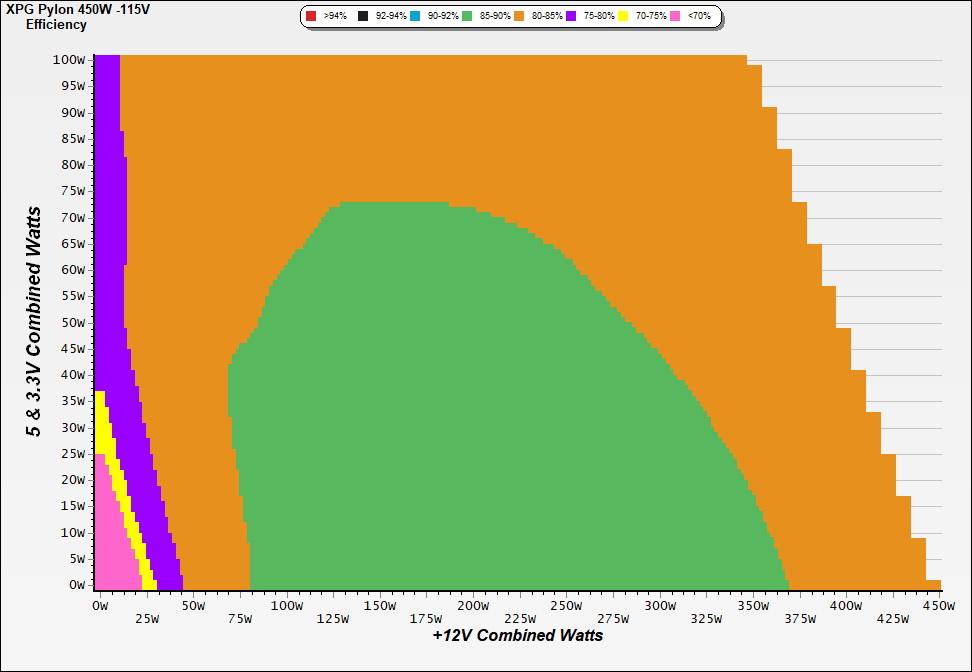

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

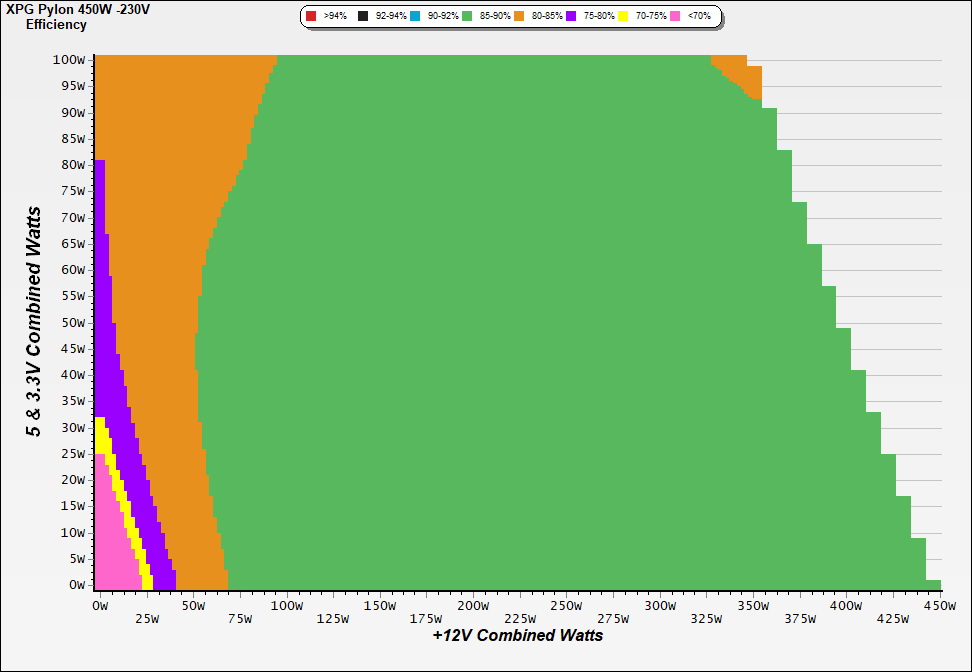

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

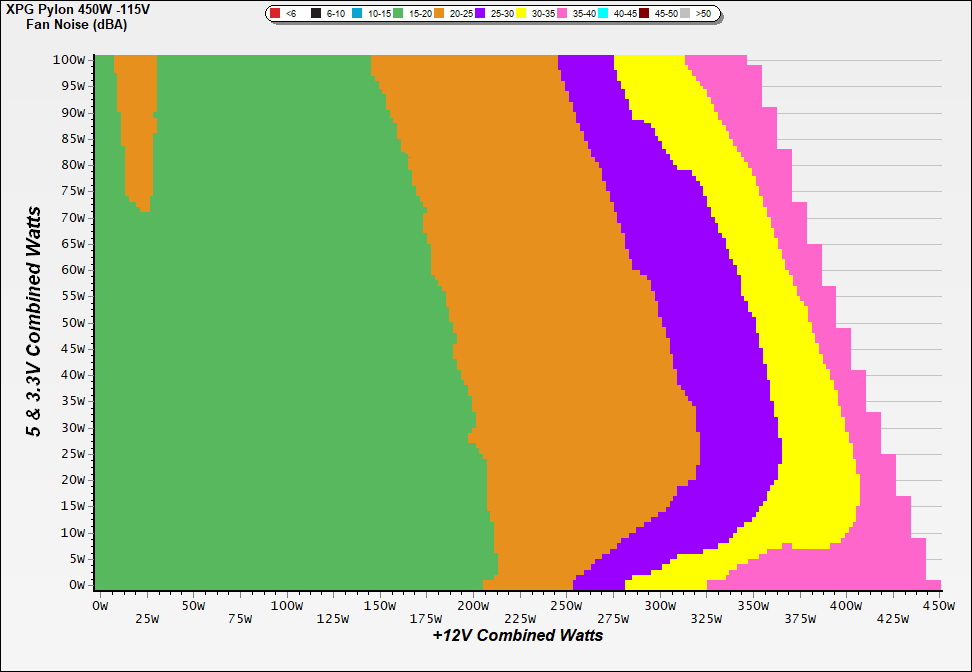

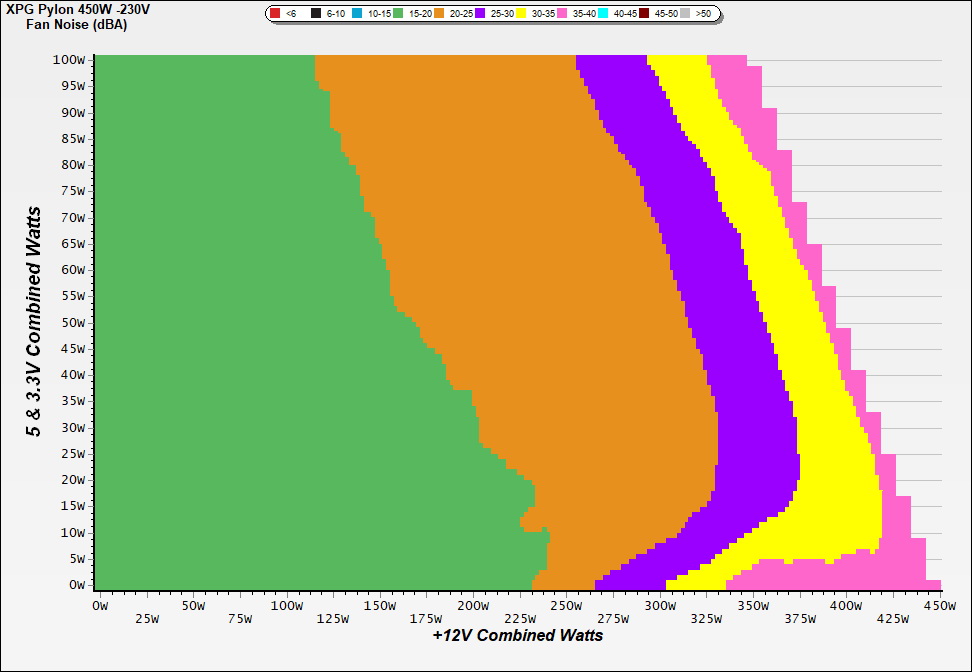

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

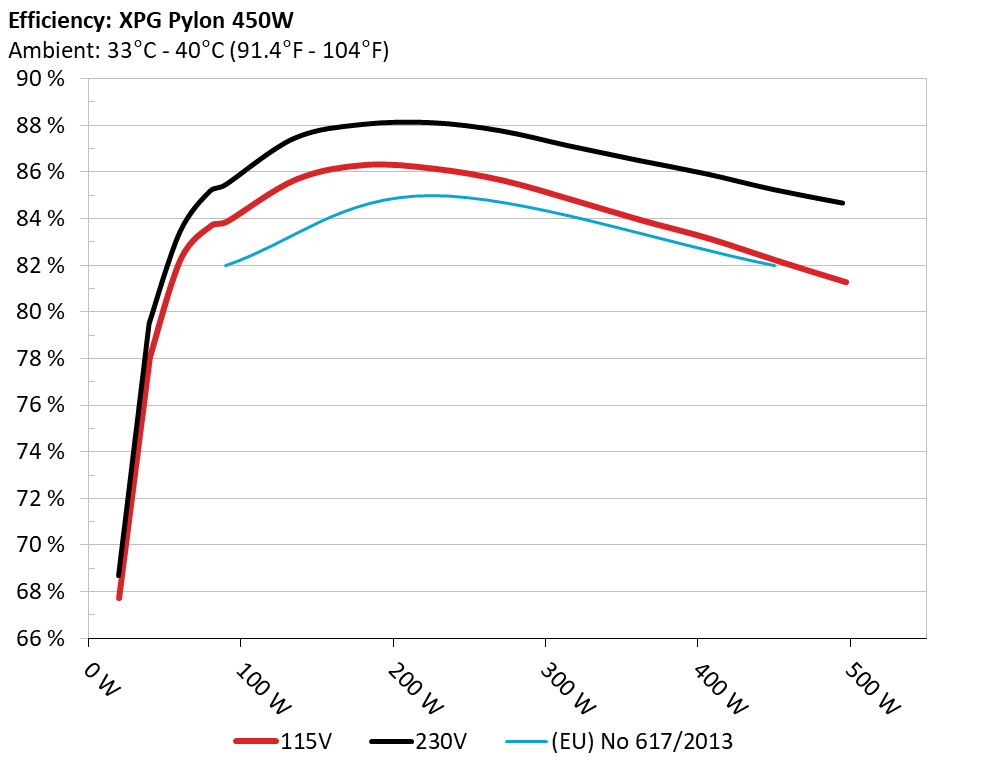

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

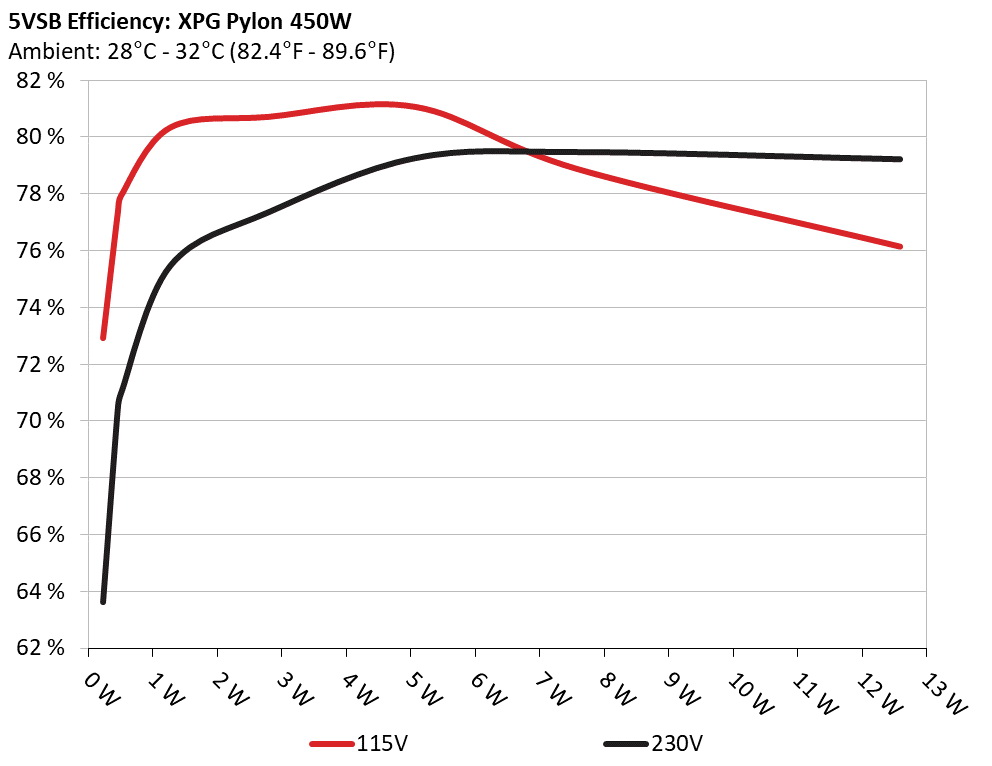

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 72.930% 0.042
5.087V 0.314 115.13V
2 0.090A 0.458 77.365% 0.078
5.086V 0.592 115.12V
3 0.550A 2.792 80.717% 0.290
5.076V 3.459 115.11V
4 1.000A 5.066 81.069% 0.361
5.066V 6.249 115.12V
5 1.500A 7.582 78.881% 0.400
5.054V 9.612 115.12V
6 2.500A 12.583 76.150% 0.443
5.033V 16.524 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 63.611% 0.161
5.060V 0.360 230.25V
2 0.090A 0.458 70.462% 0.027
5.086V 0.650 230.23V
3 0.550A 2.792 77.362% 0.136
5.076V 3.609 230.25V
4 1.000A 5.067 79.271% 0.207
5.066V 6.392 230.24V
5 1.500A 7.582 79.484% 0.260
5.054V 9.539 230.25V
6 2.500A 12.585 79.231% 0.321
5.034V 15.884 230.25V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 1.952A 2.001A 1.999A 1.000A 45.469 78.049% 778 18.0 34.87°C 0.962
12.195V 5.014V 3.290V 5.054V 58.257 39.19°C 115.11V
2 4.928A 3.000A 3.002A 1.200A 90.986 83.878% 782 18.1 35.18°C 0.980
12.183V 5.010V 3.287V 5.043V 108.474 40.49°C 115.11V
3 8.249A 3.500A 3.501A 1.400A 136.464 85.692% 785 18.3 35.40°C 0.986
12.171V 5.007V 3.284V 5.031V 159.250 41.28°C 115.11V
4 11.570A 4.001A 4.000A 1.600A 181.868 86.314% 786 18.3 35.82°C 0.989
12.160V 5.004V 3.281V 5.020V 210.705 42.35°C 115.10V
5 14.548A 5.000A 4.999A 1.800A 227.146 86.149% 791 19.3 36.11°C 0.991
12.148V 5.002V 3.279V 5.008V 263.667 43.10°C 115.10V
6 17.516A 6.001A 6.001A 2.000A 272.239 85.643% 795 22.5 36.84°C 0.993
12.136V 5.002V 3.276V 4.994V 317.876 44.74°C 115.10V
7 20.502A 7.001A 6.998A 2.200A 317.419 84.813% 1065 26.6 37.36°C 0.994
12.124V 4.998V 3.273V 4.981V 374.258 45.70°C 115.10V
8 23.470A 8.001A 7.999A 2.401A 362.290 83.947% 1330 33.1 37.92°C 0.994
12.111V 4.994V 3.270V 4.969V 431.570 46.71°C 115.09V
9 26.879A 8.501A 8.499A 2.401A 407.317 83.150% 1594 37.9 38.39°C 0.994
12.099V 4.991V 3.267V 4.962V 489.858 47.90°C 115.09V
10 30.242A 9.001A 8.999A 2.500A 452.155 82.191% 1931 43.0 39.94°C 0.994
12.086V 4.988V 3.264V 4.952V 550.127 49.89°C 115.09V
11 33.996A 9.001A 8.999A 2.500A 497.039 81.281% 2019 44.1 40.16°C 0.995
12.073V 4.986V 3.263V 4.945V 611.505 50.89°C 115.09V
CL1 0.118A 12.002A 11.999A 0.000A 100.684 79.588% 812 20.4 36.38°C 0.983
12.175V 4.995V 3.275V 5.043V 126.507 43.68°C 115.11V
CL2 37.515A 1.002A 0.999A 1.000A 466.804 83.132% 2016 44.1 39.58°C 0.994
12.089V 5.005V 3.274V 4.999V 561.519 49.92°C 115.09V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 1.916A 1.994A 2.006A 0.989A 44.960 79.508% 780 18.1 34.20°C 0.829
12.194V 5.014V 3.290V 5.054V 56.548 38.96°C 230.23V
2 4.854A 2.993A 3.013A 1.190A 90.025 85.469% 780 18.1 34.65°C 0.921
12.182V 5.009V 3.286V 5.043V 105.330 39.76°C 230.23V
3 8.132A 3.495A 3.519A 1.392A 135.024 87.463% 784 18.3 35.21°C 0.951
12.170V 5.007V 3.284V 5.030V 154.378 40.90°C 230.24V
4 11.417A 3.996A 4.025A 1.594A 180.027 88.062% 788 18.7 35.80°C 0.966
12.159V 5.005V 3.281V 5.020V 204.433 42.61°C 230.24V
5 14.367A 4.999A 5.034A 1.798A 225.024 88.135% 791 19.3 36.24°C 0.974
12.147V 5.002V 3.278V 5.007V 255.317 43.37°C 230.24V
6 17.322A 6.001A 6.046A 2.000A 270.009 87.793% 795 22.5 36.94°C 0.977
12.135V 5.001V 3.276V 4.994V 307.552 44.59°C 230.24V
7 20.292A 7.004A 7.059A 2.209A 315.110 87.141% 1035 25.8 37.11°C 0.982
12.123V 4.998V 3.273V 4.980V 361.609 45.21°C 230.24V
8 23.260A 8.005A 8.075A 2.417A 360.058 86.526% 1303 32.8 37.96°C 0.985
12.110V 4.994V 3.269V 4.967V 416.129 46.66°C 230.24V
9 26.661A 8.518A 8.572A 2.420A 405.039 85.941% 1591 37.9 38.82°C 0.987
12.097V 4.991V 3.267V 4.960V 471.300 48.25°C 230.24V
10 30.000A 9.025A 9.098A 2.526A 449.760 85.256% 1928 43.1 39.50°C 0.989
12.085V 4.987V 3.264V 4.951V 527.539 49.78°C 230.24V
11 33.744A 9.028A 9.107A 2.529A 494.582 84.685% 2017 44.1 40.26°C 0.990
12.072V 4.986V 3.262V 4.944V 584.024 51.07°C 230.24V
CL1 0.118A 12.002A 11.998A 0.000A 100.680 80.879% 809 20.9 36.89°C 0.936
12.174V 4.995V 3.275V 5.042V 124.483 44.12°C 230.25V
CL2 37.518A 1.000A 1.001A 1.000A 466.759 86.310% 2015 44.1 39.17°C 0.989
12.087V 5.004V 3.273V 4.998V 540.792 49.20°C 230.25V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.240A 0.500A 0.500A 0.200A 20.303 67.715% 772 17.5 0.920
12.202V 5.018V 3.293V 5.078V 29.983 115.11V
2 2.472A 1.001A 0.999A 0.400A 40.487 78.026% 774 17.5 0.957
12.196V 5.016V 3.292V 5.071V 51.889 115.11V
3 3.712A 1.501A 1.500A 0.600A 60.749 82.272% 775 17.8 0.970
12.191V 5.013V 3.289V 5.063V 73.839 115.11V
4 4.952A 2.001A 2.000A 0.800A 80.994 83.716% 777 17.8 0.977
12.186V 5.012V 3.288V 5.055V 96.749 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.216A 0.498A 0.501A 0.197A 19.988 68.690% 774 17.5 0.659
12.202V 5.019V 3.294V 5.077V 29.099 230.22V
2 2.434A 0.995A 1.002A 0.395A 39.977 79.018% 774 17.5 0.805
12.196V 5.016V 3.292V 5.070V 50.592 230.22V
3 3.655A 1.496A 1.505A 0.593A 60.009 83.419% 775 17.8 0.870
12.190V 5.014V 3.290V 5.062V 71.937 230.22V
4 4.872A 1.995A 2.005A 0.792A 79.961 85.200% 779 18.0 0.908
12.185V 5.013V 3.288V 5.054V 93.851 230.23V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.80mV11.30mV14.40mV6.30mVPass
20% Load8.40mV10.00mV15.20mV7.40mVPass
30% Load8.70mV10.00mV14.60mV6.90mVPass
40% Load10.10mV11.40mV15.70mV7.70mVPass
50% Load10.30mV10.40mV15.50mV8.70mVPass
60% Load11.40mV10.50mV15.50mV7.80mVPass
70% Load12.90mV12.60mV16.30mV14.40mVPass
80% Load14.10mV12.50mV17.00mV9.90mVPass
90% Load15.50mV12.70mV17.40mV9.20mVPass
100% Load24.00mV13.30mV18.60mV10.90mVPass
110% Load25.00mV13.90mV18.40mV11.50mVPass
Crossload19.40mV12.30mV19.10mV4.30mVPass
Crossload222.30mV10.80mV16.40mV8.20mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.30mV11.20mV11.80mV6.80mVPass
20% Load8.40mV9.70mV14.30mV7.20mVPass
30% Load9.00mV9.30mV14.30mV7.00mVPass
40% Load9.80mV9.70mV14.10mV8.40mVPass
50% Load10.20mV9.90mV14.50mV9.10mVPass
60% Load10.20mV9.50mV14.20mV7.40mVPass
70% Load11.90mV11.80mV12.00mV14.50mVPass
80% Load13.00mV10.80mV14.00mV9.40mVPass
90% Load13.50mV11.90mV14.20mV9.90mVPass
100% Load21.10mV12.80mV17.80mV12.20mVPass
110% Load22.80mV14.20mV19.30mV12.40mVPass
Crossload110.40mV12.10mV17.60mV4.30mVPass
Crossload219.60mV9.60mV16.10mV7.90mVPass

The results above are not used in the certification process

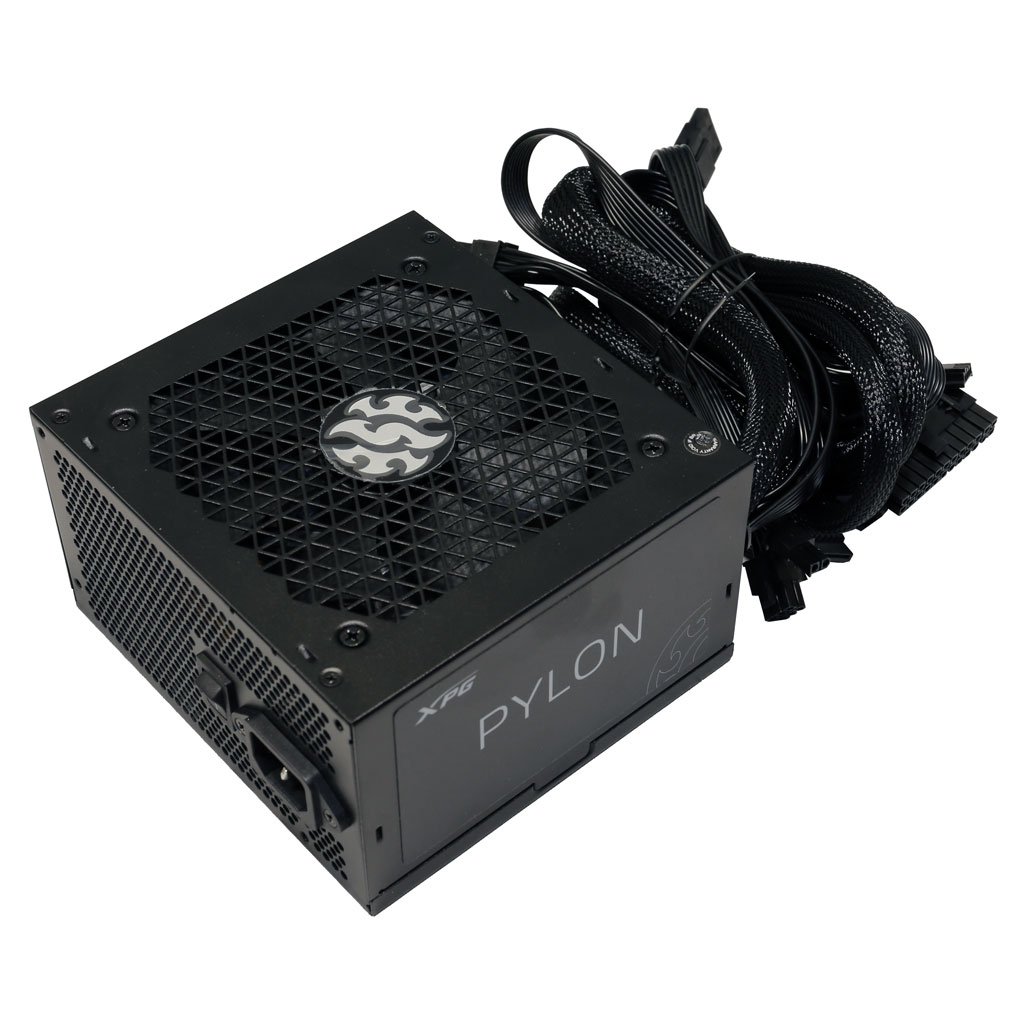

XPG Pylon 450W

Top side

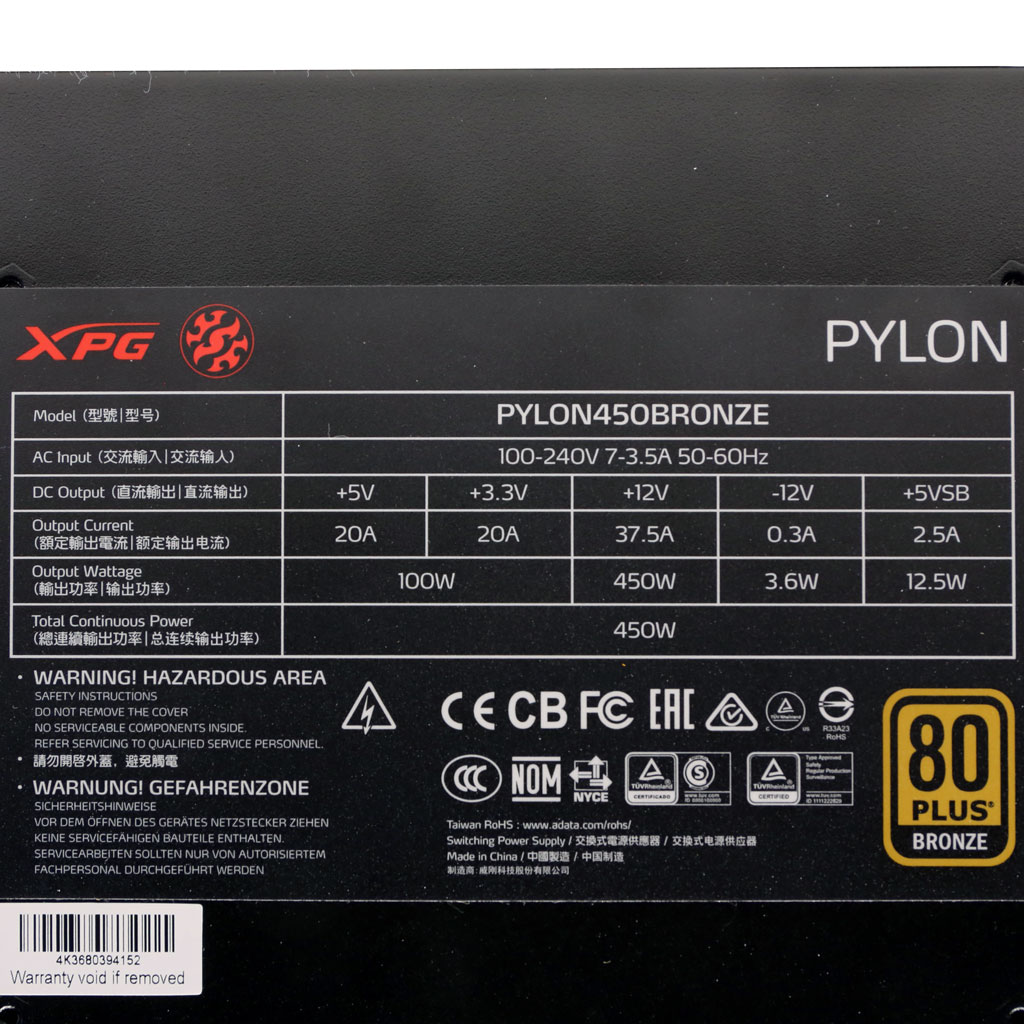

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
