CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
XPG Pylon 750W
Serial Number4K2980524634
Lab IDAD75001778
  • Report: 21PS1778A
  • Receipt Date: Jan 8, 2021
  • Test Date: Jan 14, 2021
  • Report Date: Jan 25, 2021
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandXPG
Manufacturer (OEM)Channel Well Technology
SeriesPylon
Model NumberPYLON750B-BKCJP
Serial Number4K2980524634
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)750
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202062.52.53
Watts12075012.53.6
Total Max. Power (W)750

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Native Cables
Description Cable Count Connector Count (Total) Gauge In Cable Caps
ATX connector 20+4 pin (660mm) 1 1 18-22AWG No
8 pin EPS12V (650mm) / 4+4 pinEPS12V (+150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (560mm+150mm) 2 4 18AWG No
SATA (560mm+150mm+150mm) / 4-pin Molex (+150mm) 2 6 / 2 18AWG No
SATA (560mm+150mm) / 4-pin Molex (+150mm) / FDD (+150mm) 1 2 / 1 / 1 18-20AWG No
Modular Cables
AC Power Cord (1420mm) - C13 coupler 1 1 17AWG -

Parts Description

General Data -
Manufacturer (OEM) CWT
PCB Type Single Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CAP200DG (Discharge IC)
Inrush Protection NTC Thermistor SCK - 2R58 (2.5 Ohm)
Bridge Rectifier(s) 1x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETs 2x Great Power GP28S50G (500V, 28A, Rds (on): 0.125Ohm)
APFC Boost Diode 1x On Semiconductor FFSP0665A (650V, 6A @ 153°C)
Bulk Cap(s) 1x Nippon Chemi-Con (400V, 470uF, 2,000h @ 105°C, KMW)
Main Switchers 2x GP23S60HX
PFC/PWM Combo Controller Champion CM6800TX & Champion CM03X
Topology Primary side: APFC, Double Forward
Secondary side: Semi-Synchronous Rectification (12V) & DC-DC converters (5V & 3.3V)
Secondary Side -
+12V 2x PFC PFR40V60CT SBR (60V, 40A), 2x Advanced Power Electronics AP6N3R5P FET(60V, 80A @ 100°C, Rds (on): 3.58 mOhm) & 1x Sync Power SP6019 Driver IC
5V & 3.3V 4x Sync Power SPN3006 (30V, 57A @ 100°C, Rds(on): 5.5mOhm)
PWM Controller: ANPEC APW7159C
Filtering Capacitors Electrolytic: 5x Elite (2-5,000h @ 105°C, ED), 4x Elite (2-5,000h @ 105°C, EK), 3x Elite (4-10,000h @ 105°C, EY), 2x Elite (3-6,000h @ 105°C, EV), 1x Elite (3-6,000h @ 105°C, EG), 2x Elite (2,000h @ 105°C, PF)
Polymer: 2x Elite
Supervisor IC IN1S429I - DCG
Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Standby PWM Controller Power Integrations TNY287PG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)12.2
AC Loss to PWR_OK Hold Up Time (ms)9.6
PWR_OK Inactive to DC Loss Delay (ms)2.6

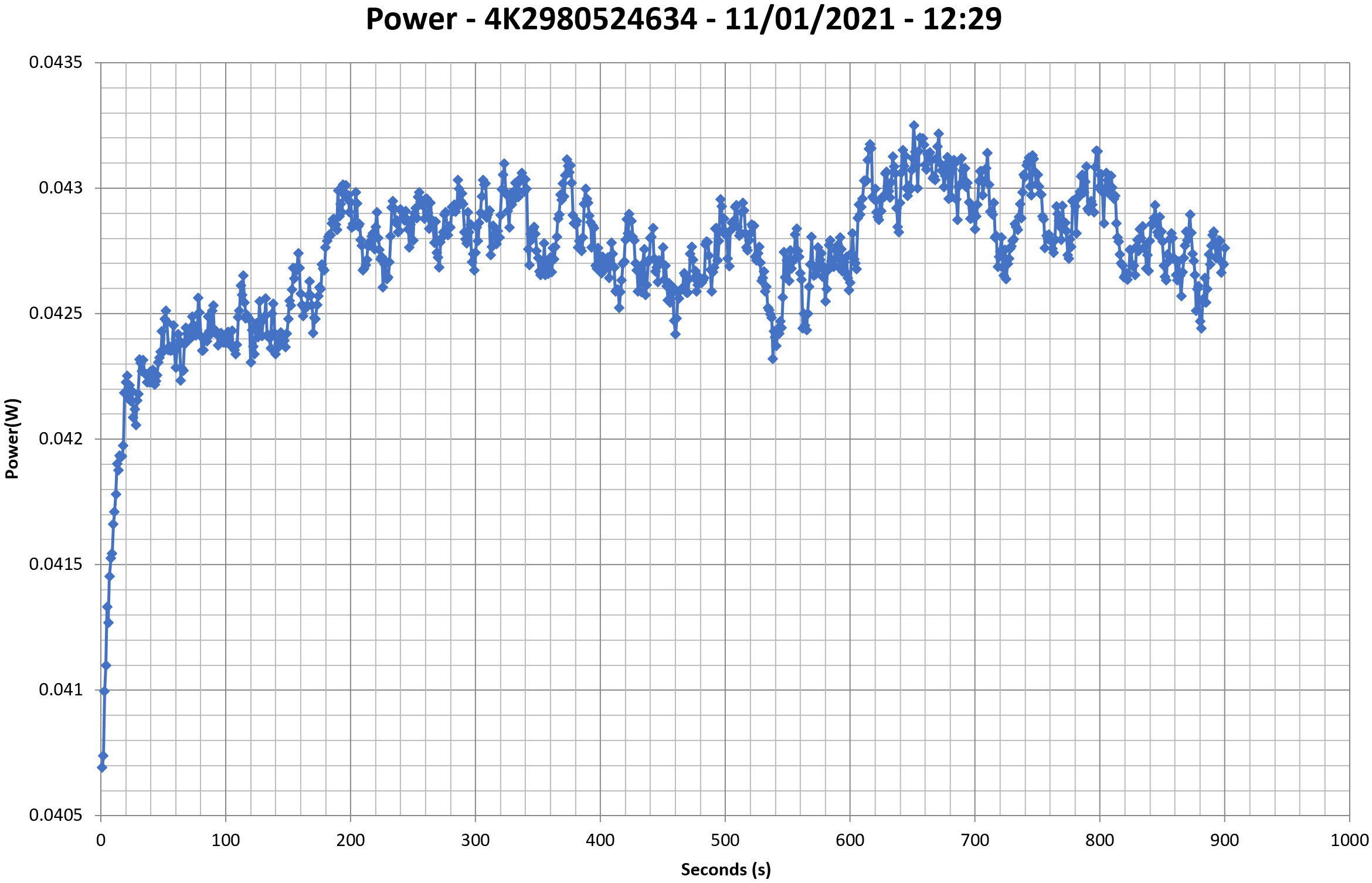

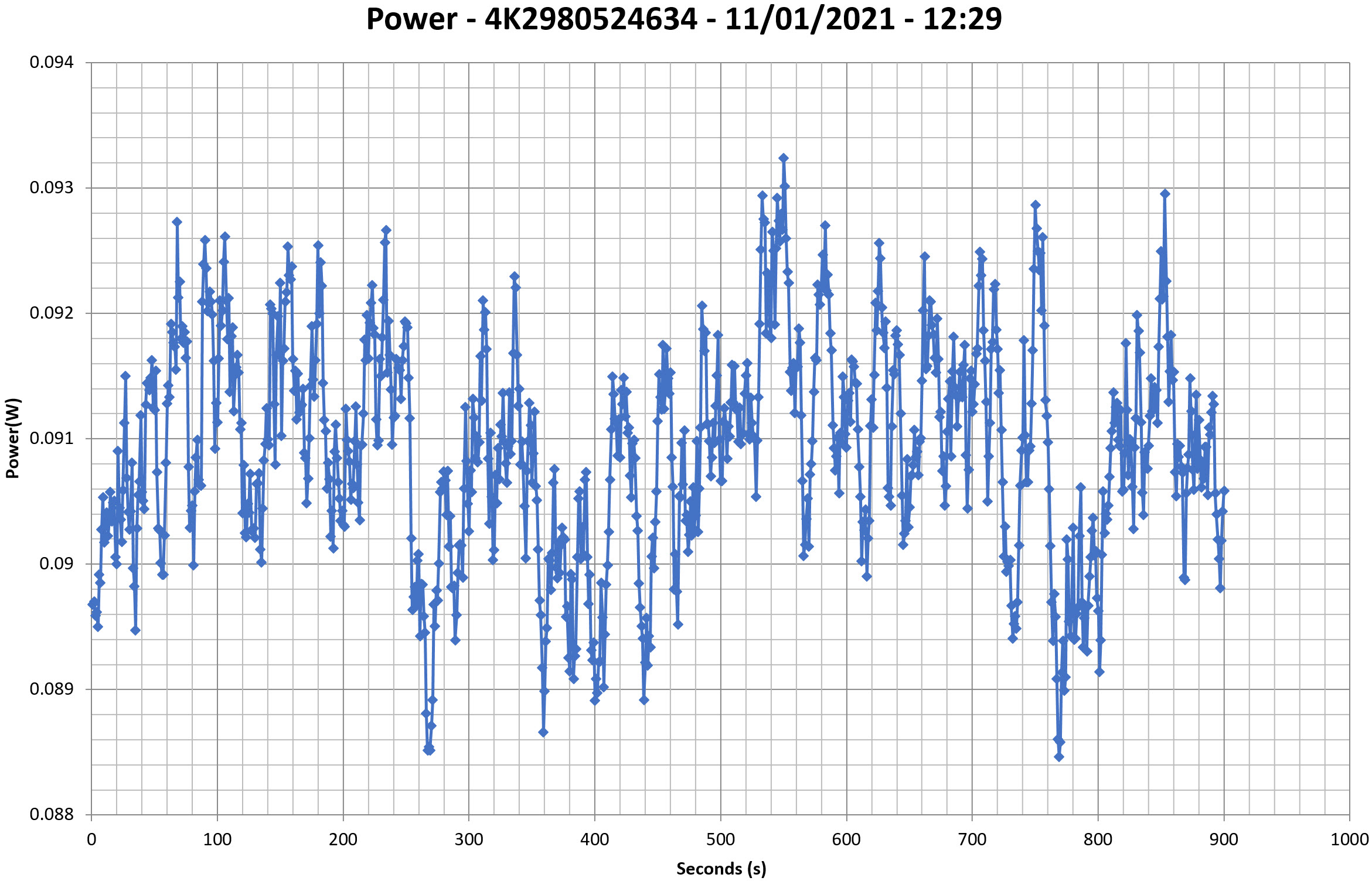

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

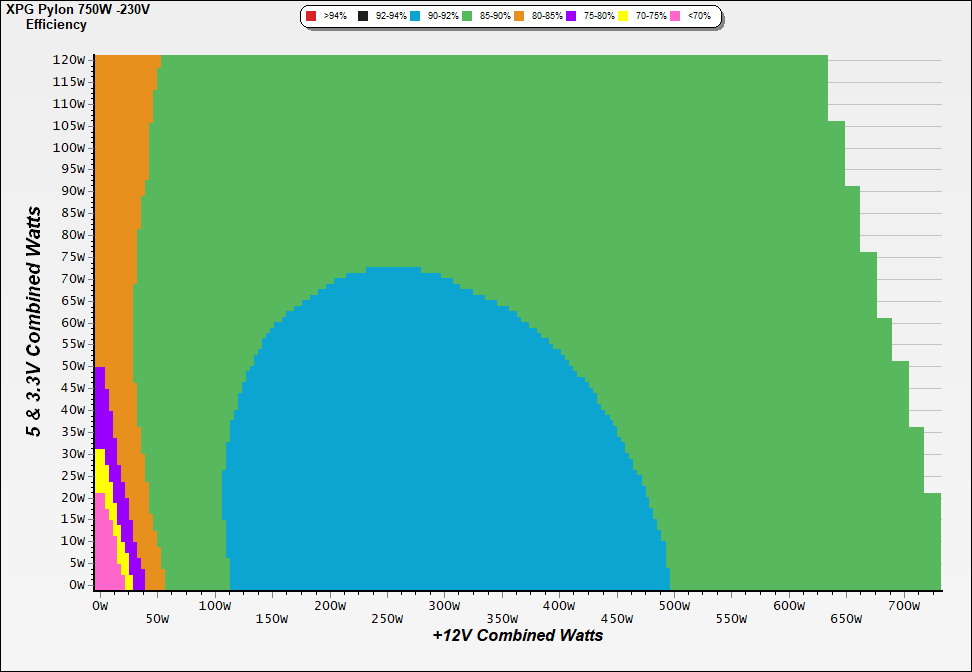

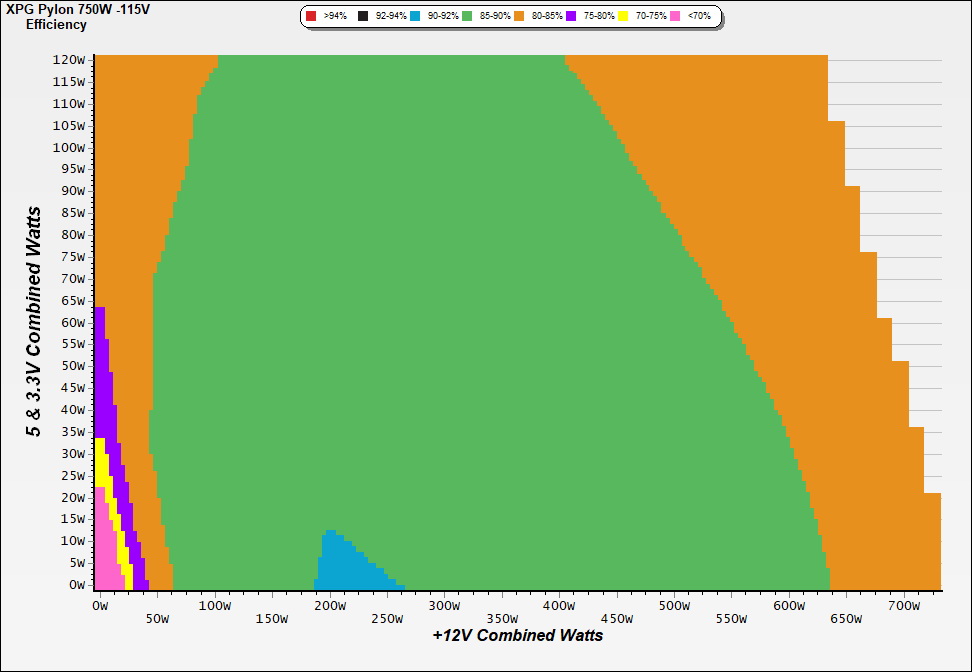

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

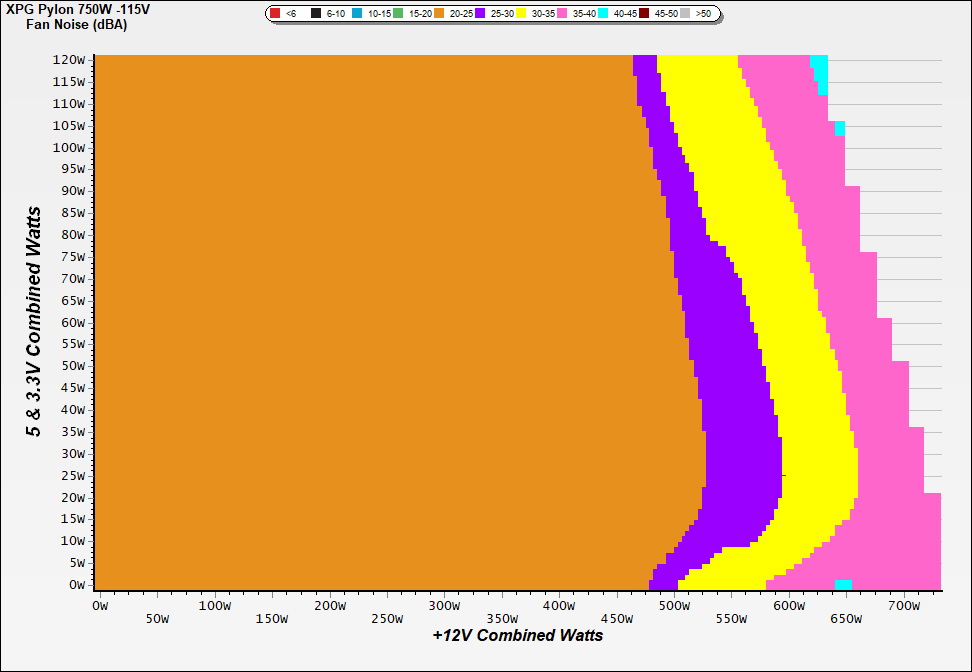

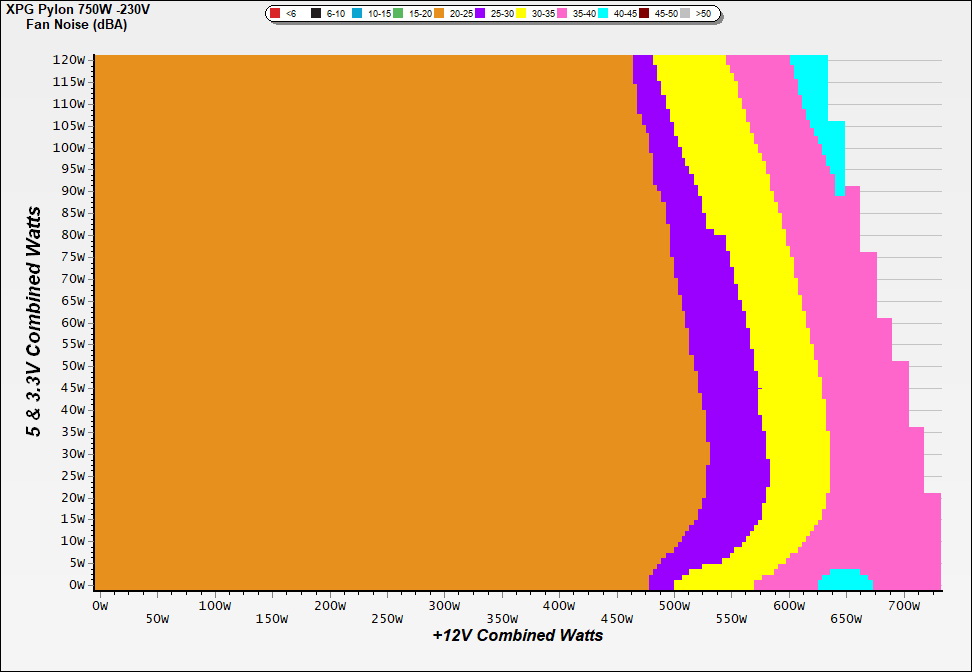

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

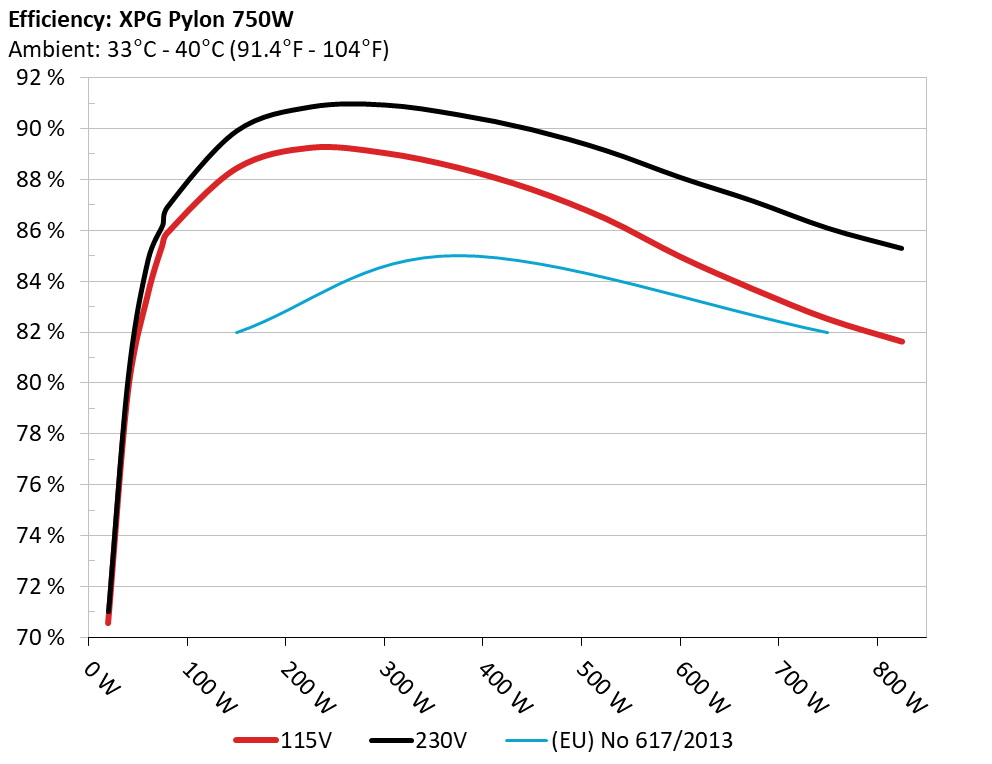

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

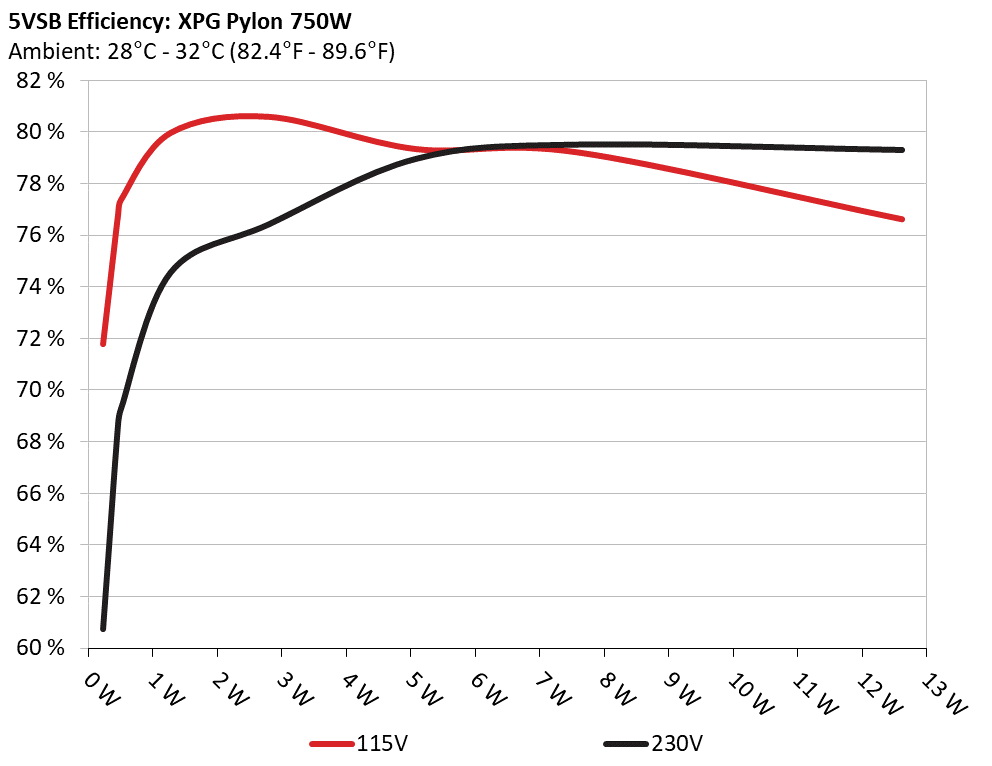

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 71.787% 0.035
5.096V 0.319 115.12V
2 0.090A 0.459 76.756% 0.063
5.096V 0.598 115.11V
3 0.550A 2.798 80.588% 0.262
5.086V 3.472 115.12V
4 1.000A 5.077 79.341% 0.344
5.077V 6.399 115.12V
5 1.500A 7.599 79.206% 0.387
5.065V 9.594 115.12V
6 2.500A 12.614 76.620% 0.432
5.045V 16.463 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 60.743% 0.013
5.096V 0.377 230.23V
2 0.090A 0.459 68.610% 0.023
5.096V 0.669 230.23V
3 0.550A 2.798 76.406% 0.114
5.087V 3.662 230.23V
4 1.000A 5.078 78.937% 0.179
5.077V 6.433 230.22V
5 1.500A 7.600 79.490% 0.233
5.066V 9.561 230.23V
6 2.500A 12.617 79.282% 0.300
5.046V 15.914 230.23V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.377A 1.999A 1.999A 0.987A 74.962 85.403% 864 22.1 35.75°C 0.969
12.193V 5.001V 3.301V 5.064V 87.774 40.00°C 115.11V
2 9.784A 3.002A 3.002A 1.188A 150.031 88.420% 868 21.9 36.46°C 0.984
12.176V 4.998V 3.297V 5.051V 169.680 41.50°C 115.10V
3 15.544A 3.505A 3.506A 1.390A 225.038 89.233% 872 21.8 36.55°C 0.989
12.158V 4.995V 3.293V 5.037V 252.191 42.32°C 115.10V
4 21.322A 4.006A 4.012A 1.593A 300.054 89.027% 875 21.7 36.90°C 0.991
12.140V 4.993V 3.290V 5.024V 337.036 43.31°C 115.10V
5 26.734A 5.009A 5.019A 1.797A 374.575 88.448% 882 22.1 37.43°C 0.992
12.122V 4.992V 3.287V 5.010V 423.497 45.07°C 115.09V
6 32.199A 6.011A 6.028A 2.000A 449.464 87.593% 887 22.9 38.11°C 0.993
12.102V 4.992V 3.284V 4.995V 513.127 46.65°C 115.09V
7 37.719A 7.015A 7.043A 2.211A 524.806 86.436% 910 22.9 38.53°C 0.993
12.081V 4.991V 3.281V 4.977V 607.163 48.07°C 115.09V
8 43.259A 8.003A 8.057A 2.419A 600.024 84.946% 1243 31.7 38.82°C 0.994
12.060V 4.988V 3.276V 4.963V 706.359 49.40°C 115.08V
9 49.176A 8.528A 8.551A 2.424A 674.634 83.663% 1652 39.1 39.74°C 0.994
12.041V 4.985V 3.273V 4.953V 806.367 51.38°C 115.07V
10 55.108A 9.036A 9.081A 2.530A 749.771 82.499% 1979 44.1 39.90°C 0.995
12.023V 4.981V 3.270V 4.942V 908.825 51.95°C 115.06V
11 61.430A 9.041A 9.086A 2.532A 824.860 81.612% 2186 45.8 40.32°C 0.995
12.008V 4.979V 3.268V 4.937V 1010.704 53.13°C 115.06V
CL1 0.117A 14.003A 13.998A 0.000A 117.339 80.260% 893 22.9 37.89°C 0.984
12.168V 4.995V 3.284V 5.052V 146.198 44.99°C 115.11V
CL2 62.507A 1.000A 1.000A 1.000A 765.025 83.415% 1622 38.7 39.28°C 0.995
12.027V 4.986V 3.279V 4.987V 917.130 51.51°C 115.07V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.377A 2.000A 2.000A 0.988A 74.963 86.199% 864 22.1 35.10°C 0.875
12.191V 5.000V 3.300V 5.064V 86.965 39.91°C 230.25V
2 9.786A 3.002A 3.003A 1.188A 150.035 89.902% 868 21.9 35.89°C 0.944
12.174V 4.997V 3.296V 5.051V 166.888 41.18°C 230.25V
3 15.547A 3.502A 3.508A 1.390A 225.051 90.847% 872 21.8 36.23°C 0.965
12.157V 4.995V 3.293V 5.037V 247.726 42.18°C 230.25V
4 21.326A 4.003A 4.013A 1.593A 300.067 90.926% 876 21.7 37.01°C 0.975
12.139V 4.992V 3.290V 5.025V 330.012 43.62°C 230.25V
5 26.740A 5.011A 5.020A 1.797A 374.601 90.543% 879 21.9 37.38°C 0.981
12.120V 4.991V 3.287V 5.010V 413.728 44.98°C 230.25V
6 32.206A 6.012A 6.030A 2.000A 449.516 89.954% 884 22.5 37.47°C 0.984
12.101V 4.990V 3.284V 4.995V 499.720 46.00°C 230.24V
7 37.730A 7.016A 7.045A 2.210A 524.852 89.132% 891 23.0 38.31°C 0.986
12.079V 4.989V 3.280V 4.978V 588.848 47.64°C 230.25V
8 43.273A 8.004A 8.058A 2.419A 600.051 88.078% 1277 32.3 38.71°C 0.988
12.057V 4.986V 3.276V 4.962V 681.273 49.04°C 230.25V
9 49.183A 8.530A 8.556A 2.423A 674.615 87.140% 1619 38.6 39.36°C 0.989
12.039V 4.983V 3.272V 4.953V 774.174 50.42°C 230.25V
10 55.119A 9.037A 9.083A 2.530A 749.738 86.083% 1996 44.2 40.19°C 0.990
12.020V 4.981V 3.269V 4.941V 870.949 52.31°C 230.25V
11 61.462A 9.041A 9.088A 2.534A 824.927 85.288% 2161 45.6 40.27°C 0.991
12.003V 4.978V 3.267V 4.934V 967.227 53.08°C 230.24V
CL1 0.117A 14.001A 13.999A 0.000A 117.317 81.446% 898 22.7 37.53°C 0.935
12.166V 4.995V 3.283V 5.052V 144.043 45.22°C 230.25V
CL2 62.508A 1.000A 1.000A 1.000A 764.848 87.151% 1405 34.9 40.01°C 0.990
12.024V 4.987V 3.278V 4.987V 877.617 52.69°C 230.23V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.215A 0.500A 0.500A 0.197A 19.990 70.549% 856 21.6 0.896
12.207V 5.005V 3.305V 5.089V 28.335 115.11V
2 2.432A 0.999A 1.001A 0.394A 39.980 79.605% 858 21.7 0.944
12.201V 5.003V 3.304V 5.082V 50.223 115.11V
3 3.654A 1.499A 1.499A 0.591A 60.011 83.430% 862 22.0 0.966
12.196V 5.002V 3.302V 5.075V 71.930 115.11V
4 4.869A 2.000A 2.000A 0.789A 79.962 85.882% 864 22.1 0.972
12.191V 5.001V 3.301V 5.068V 93.107 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.215A 0.500A 0.501A 0.197A 19.988 71.000% 861 21.9 0.597
12.204V 5.004V 3.305V 5.088V 28.152 230.24V
2 2.433A 0.999A 0.997A 0.394A 39.978 80.230% 860 21.9 0.764
12.200V 5.003V 3.304V 5.082V 49.829 230.24V
3 3.654A 1.500A 1.499A 0.591A 60.010 84.811% 862 22.0 0.841
12.195V 5.001V 3.302V 5.075V 70.757 230.24V
4 4.870A 2.000A 1.998A 0.789A 79.961 86.923% 863 22.0 0.884
12.191V 5.000V 3.300V 5.067V 91.991 230.24V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load10.50mV13.80mV11.30mV7.90mVPass
20% Load11.10mV13.30mV11.20mV8.00mVPass
30% Load12.50mV11.40mV11.10mV10.10mVPass
40% Load13.60mV10.50mV10.90mV8.60mVPass
50% Load15.10mV11.20mV12.10mV9.90mVPass
60% Load17.80mV13.00mV13.40mV10.60mVPass
70% Load24.70mV13.20mV13.00mV19.70mVPass
80% Load39.30mV14.70mV16.60mV17.50mVPass
90% Load54.20mV17.50mV20.30mV18.50mVPass
100% Load73.40mV22.80mV24.30mV23.60mVPass
110% Load79.80mV22.80mV25.50mV24.90mVPass
Crossload114.00mV17.90mV18.00mV7.00mVPass
Crossload270.90mV17.30mV21.70mV17.80mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load10.50mV14.30mV11.10mV8.10mVPass
20% Load11.00mV12.60mV12.80mV7.90mVPass
30% Load12.50mV11.00mV11.40mV9.70mVPass
40% Load13.40mV10.00mV10.90mV8.80mVPass
50% Load14.60mV10.90mV11.90mV9.40mVPass
60% Load17.40mV13.40mV12.10mV10.60mVPass
70% Load22.90mV12.20mV12.70mV17.80mVPass
80% Load38.30mV15.10mV16.10mV16.20mVPass
90% Load52.90mV17.30mV19.30mV18.70mVPass
100% Load67.40mV22.50mV24.30mV24.40mVPass
110% Load75.70mV23.40mV25.60mV25.70mVPass
Crossload114.20mV18.10mV17.60mV7.00mVPass
Crossload268.10mV18.30mV22.40mV18.40mVPass

The results above are not used in the certification process

XPG Pylon 750W

Top side

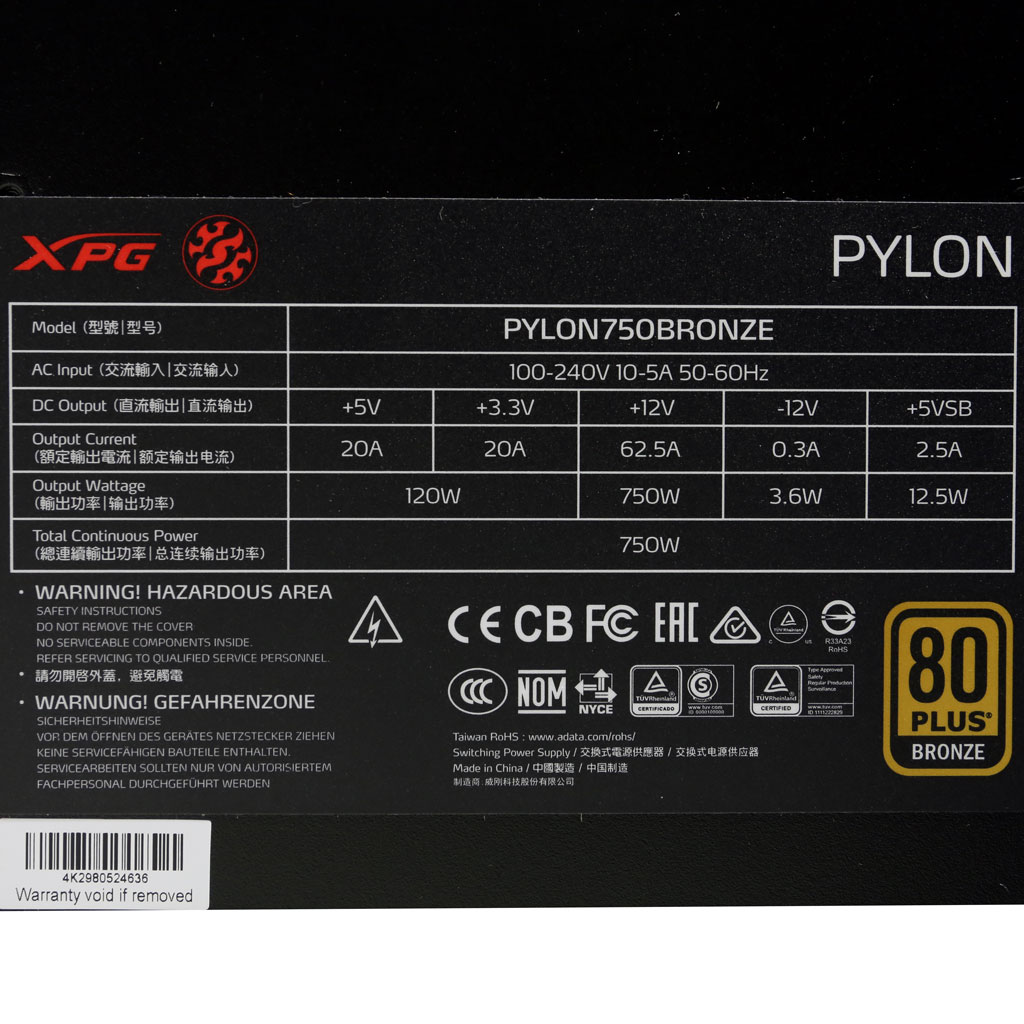

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
