CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
High Power HP1-H850GD-F14C
Serial Number
Lab IDHP85001773
  • Report: 20PS1773A
  • Receipt Date: Dec 22, 2020
  • Test Date: Dec 30, 2020
  • Report Date: Dec 30, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Lab Director

General Information

DUT Information

BrandHigh Power
Manufacturer (OEM)High Power
Series
Model NumberHP1-H850GD-F14C
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-8
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling135mm Double Ball Bearing Fan
(RL4Z B1352512HH)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222270.830.3
Watts120850153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (650mm) 3 3 18AWG No
6+2 pin PCIe (600mm) 2 2 18AWG No
6+2 pin PCIe (600mm+150mm) 1 2 18AWG No
SATA (450mm+150mm+150mm+150mm) 3 12 18AWG No
4 pin Molex (450mm+150mm+150mm) 1 3 18AWG No

Parts Description

General Data -
Manufacturer (OEM) High Power
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x MPS HF81 (Discharge IC)
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x  HY GBU1506L (600V, 15A @ 100°C)
APFC MOSFETs 2x Infineon IPW60R125P6 (650V, 19A @ 100°C, Rds(on): 0.125Ohm)
APFC Boost Diode 1x Infineon IDH08G65C5 (650V, 8A @ 145°C)
Bulk Cap(s) 2x Nichicon (400V, 560uF each or 1,120uF combined, 2,000h @ 105°C, GG)
Main Switchers 2x Infineon IPA60R180P7 (650V, 11A @ 100°C, Rds(on): 0.18Ohm)
APFC Controller Infineon ICE3PCS01G
Resonant Controller Champion CM6901X
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 4x Toshiba TPHR8504PL (40V, 150A, Rds(on): 0.85mOhm)
5V & 3.3V DC-DC Converters: 4x
PWM Controllers: ANPEC APW7159C
Filtering Capacitors Electrolytic: 8x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 3x Rubycon (3-6,000h @ 105°C, YXG), 1x Nichicon (4-10,000h @ 105°C, HE)
Polymer: 9x United Chemi-Con, 12x FPCAP
Supervisor IC Weltrend WT2527RA (OCP, OVP, UVP, SCP, PG)
Fan Model Globe Fan RZ4L B1352512HH (135mm, 12V, 0.45A, Double Ball Bearing Fan)
5VSB Circuit -
Rectifier 1x IPS ITA04N65R (650V, 4A, Rds(on): 2.8Ohm) MOSFET
Standby PWM Controller SI8016HSP8
-12V -
Rectifier KEC KIA7912PI

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)89.145%
Average Noise Output (>1450 Load Combinations)31.92dBA
Average PF (>1450 Load Combinations)0.991
Efficiency With 10W (≤500W) or 2% (>500W) Load63.821%
Standby Power Consumption0.0339W
12V Ripple (Full Load)24.09mV
5V Ripple (Full Load)13.92mV
3.3V Ripple (Full Load)18.48mV
5VSB Ripple (Full Load)11.62mV
12V Load Regulation0.13%
5V Load Regulation0.41%
3.3V Load Regulation0.60%
5VSB Load Regulation3.69%
Inrush Current24.840A
Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.825%
Average Noise Output (>1450 Load Combinations)32.57dBA
Average PF (>1450 Load Combinations)0.963
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1189W
12V Ripple (Full Load)22.46mV
5V Ripple (Full Load)14.06mV
3.3V Ripple (Full Load)19.15mV
5VSB Ripple (Full Load)11.57mV
12V Load Regulation0.13%
5V Load Regulation0.41%
3.3V Load Regulation0.60%
5VSB Load Regulation3.67%
Inrush Current52.040A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal19.60ms
AC Loss to PWR_OK Hold Up Time18.80ms
PWR_OK Inactive to DC Loss Delay0.80ms
PSU Timings: T1 (20% / 100%)48.0ms48.0ms
PSU Timings: T3 (20% / 100%)129.0ms126.0ms
OPP (25.00°C / 43.90°C)149.41%149.41%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.6
AC Loss to PWR_OK Hold Up Time (ms)18.8
PWR_OK Inactive to DC Loss Delay (ms)0.8

Vampire Power

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

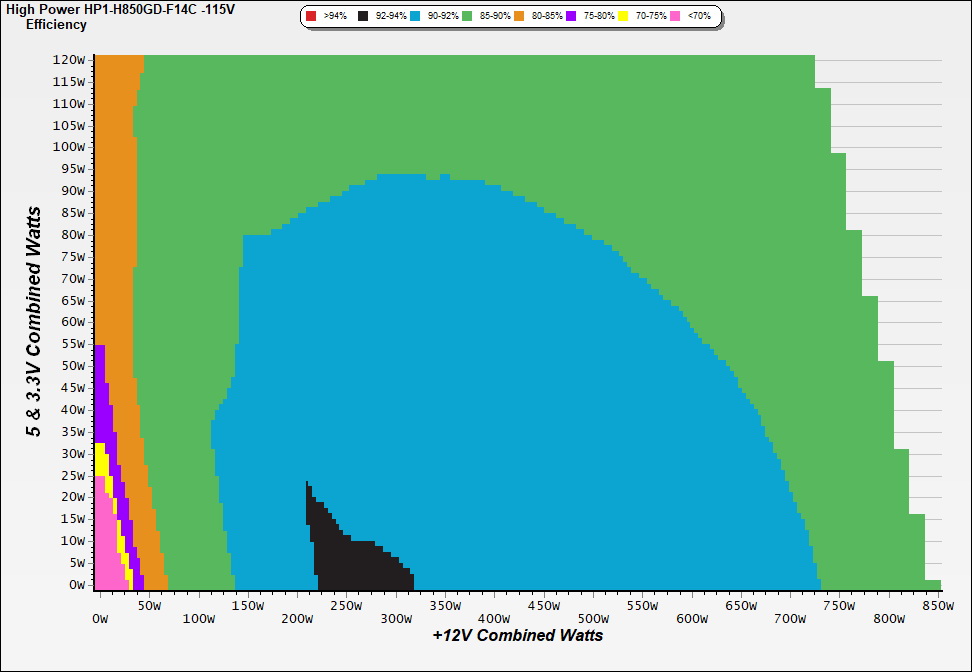

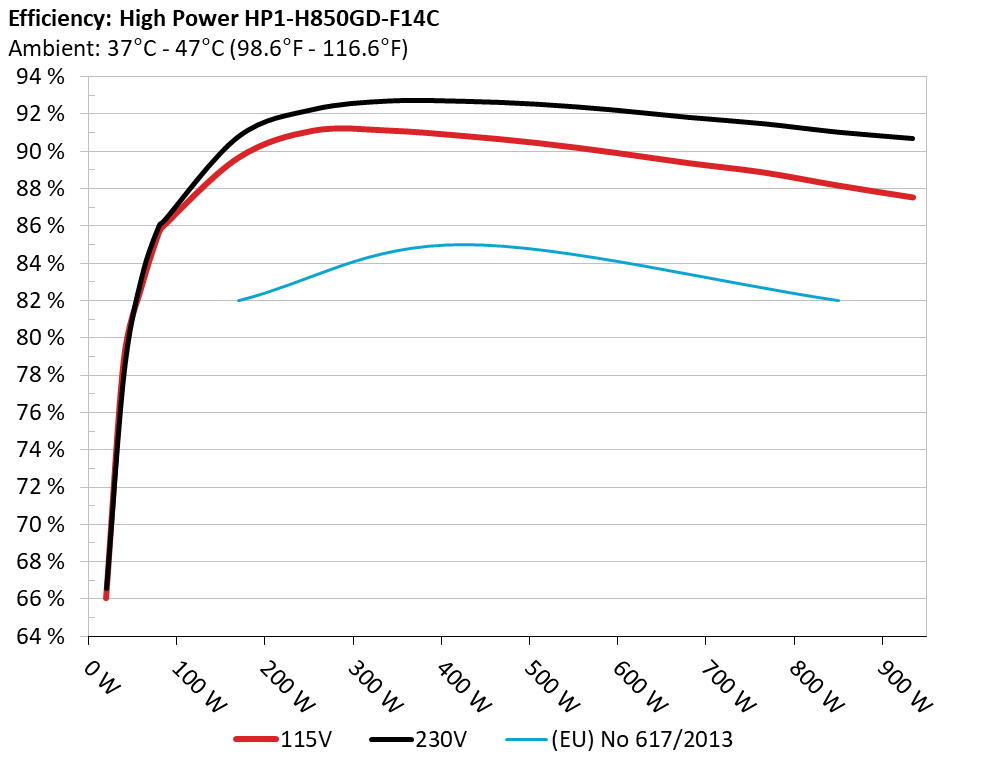

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

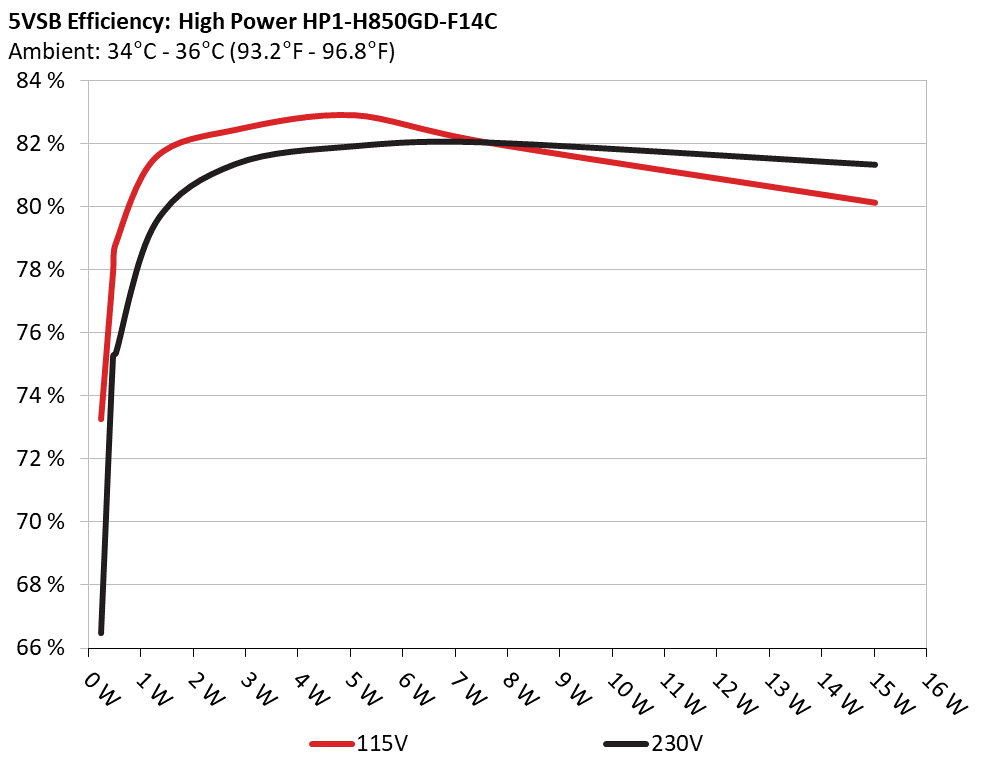

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 73.248% 0.035
5.104V 0.314 115.14V
2 0.090A 0.459 77.929% 0.064
5.102V 0.589 115.14V
3 0.550A 2.798 82.440% 0.270
5.088V 3.394 115.14V
4 1.000A 5.073 82.906% 0.358
5.073V 6.119 115.14V
5 1.500A 7.586 82.046% 0.408
5.058V 9.246 115.14V
6 2.999A 15.024 80.124% 0.473
5.009V 18.751 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 66.474% 0.012
5.104V 0.346 230.27V
2 0.090A 0.459 75.246% 0.021
5.103V 0.610 230.27V
3 0.550A 2.798 81.337% 0.111
5.088V 3.440 230.27V
4 1.000A 5.073 81.902% 0.181
5.074V 6.194 230.27V
5 1.500A 7.586 82.020% 0.239
5.058V 9.249 230.27V
6 2.999A 15.026 81.314% 0.336
5.010V 18.479 230.27V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.289A 1.974A 1.993A 0.988A 84.950 86.009% 927 27.5 40.41°C 0.973
11.978V 5.066V 3.309V 5.063V 98.769 43.88°C 115.16V
2 11.607A 2.963A 2.994A 1.189A 170.008 89.680% 974 32.0 41.02°C 0.986
11.985V 5.063V 3.306V 5.046V 189.572 45.13°C 115.16V
3 18.274A 3.458A 3.495A 1.391A 255.006 91.129% 1003 29.2 41.36°C 0.995
11.982V 5.061V 3.304V 5.031V 279.829 46.48°C 115.15V
4 24.944A 3.953A 3.999A 1.595A 340.006 91.134% 1089 33.0 41.90°C 0.994
11.979V 5.059V 3.302V 5.015V 373.084 47.70°C 115.15V
5 31.242A 4.945A 5.001A 1.800A 424.720 90.845% 1150 33.7 42.32°C 0.994
11.978V 5.056V 3.300V 4.999V 467.523 48.87°C 115.15V
6 37.530A 5.937A 6.003A 2.000A 509.229 90.465% 1239 36.3 42.45°C 0.995
11.976V 5.054V 3.298V 4.983V 562.902 49.89°C 115.14V
7 43.882A 6.932A 7.011A 2.215A 594.571 89.958% 1307 37.6 43.29°C 0.996
11.974V 5.052V 3.296V 4.966V 660.943 51.58°C 115.14V
8 50.237A 7.924A 8.014A 2.424A 679.880 89.388% 1384 39.0 43.57°C 0.996
11.973V 5.049V 3.293V 4.948V 760.595 52.82°C 115.13V
9 56.990A 8.419A 8.506A 2.429A 764.764 88.889% 1462 40.8 45.17°C 0.996
11.972V 5.047V 3.291V 4.939V 860.354 55.50°C 115.12V
10 63.485A 8.919A 9.027A 3.056A 849.600 88.182% 1524 42.1 45.95°C 0.997
11.970V 5.045V 3.289V 4.908V 963.463 56.82°C 115.11V
11 70.573A 8.921A 9.031A 3.062A 934.371 87.547% 1577 43.2 46.73°C 0.997
11.969V 5.043V 3.288V 4.899V 1067.285 58.46°C 115.11V
CL1 0.116A 13.999A 13.998A 0.000A 118.488 81.201% 1217 36.5 42.28°C 0.980
11.986V 5.061V 3.304V 5.075V 145.919 49.03°C 115.17V
CL2 70.815A 0.999A 0.999A 1.000A 860.979 88.884% 1500 41.3 46.16°C 0.997
11.970V 5.049V 3.295V 4.988V 968.655 56.55°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.288A 1.975A 1.995A 0.987A 84.949 86.272% 924 27.5 40.16°C 0.830
11.979V 5.066V 3.309V 5.063V 98.466 43.25°C 230.28V
2 11.606A 2.962A 2.995A 1.189A 169.997 90.816% 961 29.2 41.69°C 0.933
11.985V 5.063V 3.306V 5.047V 187.188 45.48°C 230.28V
3 18.273A 3.458A 3.495A 1.391A 254.994 92.259% 1013 29.6 41.87°C 0.962
11.982V 5.061V 3.304V 5.031V 276.388 46.19°C 230.28V
4 24.941A 3.953A 3.998A 1.595A 339.995 92.709% 1112 32.8 42.07°C 0.978
11.980V 5.059V 3.303V 5.015V 366.732 47.26°C 230.29V
5 31.239A 4.945A 4.998A 1.800A 424.680 92.693% 1166 34.0 42.55°C 0.985
11.978V 5.057V 3.300V 4.999V 458.156 48.52°C 230.29V
6 37.526A 5.938A 6.004A 2.000A 509.189 92.535% 1239 36.3 42.78°C 0.989
11.976V 5.054V 3.298V 4.983V 550.265 49.44°C 230.29V
7 43.880A 6.931A 7.012A 2.214A 594.484 92.231% 1232 36.3 43.30°C 0.991
11.973V 5.051V 3.295V 4.966V 644.562 50.80°C 230.28V
8 50.237A 7.925A 8.014A 2.424A 679.837 91.831% 1378 39.0 44.29°C 0.993
11.972V 5.049V 3.293V 4.949V 740.314 52.38°C 230.28V
9 56.987A 8.417A 8.504A 2.429A 764.729 91.495% 1464 41.0 44.39°C 0.995
11.972V 5.048V 3.292V 4.939V 835.816 53.79°C 230.29V
10 63.485A 8.918A 9.024A 3.055A 849.580 91.039% 1517 41.7 45.29°C 0.997
11.970V 5.045V 3.289V 4.908V 933.207 55.40°C 230.29V
11 70.577A 8.922A 9.031A 3.060A 934.259 90.700% 1538 42.6 46.53°C 0.997
11.967V 5.042V 3.287V 4.900V 1030.058 58.34°C 230.28V
CL1 0.116A 13.998A 13.997A 0.000A 118.494 81.914% 1200 35.5 42.79°C 0.896
11.986V 5.062V 3.304V 5.075V 144.657 48.90°C 230.30V
CL2 70.813A 0.998A 1.000A 1.000A 860.954 91.701% 1499 41.3 45.83°C 0.996
11.970V 5.050V 3.294V 4.988V 938.872 55.56°C 230.29V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.239A 0.493A 0.496A 0.196A 19.978 66.045% 904 26.4 0.848
11.976V 5.068V 3.310V 5.096V 30.249 115.16V
2 2.477A 0.987A 0.999A 0.393A 39.967 78.796% 903 26.4 0.930
11.975V 5.066V 3.309V 5.088V 50.722 115.16V
3 3.720A 1.480A 1.494A 0.591A 59.998 82.728% 911 26.6 0.956
11.977V 5.066V 3.309V 5.079V 72.524 115.16V
4 4.956A 1.973A 1.996A 0.789A 79.949 85.686% 914 26.8 0.972
11.976V 5.065V 3.308V 5.070V 93.305 115.16V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.238A 0.493A 0.498A 0.196A 19.976 66.580% 913 26.8 0.497
11.978V 5.069V 3.312V 5.097V 30.003 230.28V
2 2.477A 0.987A 0.996A 0.393A 39.965 78.176% 910 26.6 0.651
11.977V 5.067V 3.310V 5.088V 51.122 230.29V
3 3.720A 1.479A 1.495A 0.591A 59.996 83.290% 910 26.6 0.753
11.977V 5.066V 3.309V 5.079V 72.033 230.28V
4 4.956A 1.973A 1.994A 0.789A 79.948 86.060% 918 27.1 0.817
11.977V 5.065V 3.308V 5.070V 92.898 230.27V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load7.10mV8.20mV8.10mV5.10mVPass
20% Load12.90mV8.90mV8.60mV5.10mVPass
30% Load15.80mV10.40mV9.50mV6.60mVPass
40% Load9.80mV9.50mV9.70mV6.20mVPass
50% Load10.60mV9.70mV10.30mV6.70mVPass
60% Load12.00mV10.60mV11.00mV7.60mVPass
70% Load13.60mV13.40mV12.80mV8.20mVPass
80% Load14.90mV11.50mV16.20mV8.80mVPass
90% Load16.50mV13.60mV17.90mV9.70mVPass
100% Load24.10mV13.90mV18.50mV11.60mVPass
110% Load26.70mV15.50mV21.80mV12.50mVPass
Crossload117.30mV11.80mV15.60mV16.20mVPass
Crossload223.60mV11.90mV13.40mV10.60mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load11.90mV8.20mV7.70mV5.10mVPass
20% Load12.10mV8.60mV8.50mV5.10mVPass
30% Load10.00mV9.10mV9.00mV5.70mVPass
40% Load8.80mV9.30mV9.80mV6.00mVPass
50% Load10.40mV10.00mV10.20mV6.60mVPass
60% Load10.90mV10.70mV11.30mV8.10mVPass
70% Load17.60mV13.30mV13.00mV8.90mVPass
80% Load18.90mV11.60mV18.10mV9.80mVPass
90% Load20.90mV13.10mV18.00mV10.50mVPass
100% Load22.50mV14.10mV19.20mV11.60mVPass
110% Load24.90mV15.60mV22.40mV12.10mVPass
Crossload114.90mV11.40mV16.30mV6.20mVPass
Crossload222.30mV12.40mV13.50mV10.50mVPass

The results above are not used in the certification process

High Power HP1-H850GD-F14C

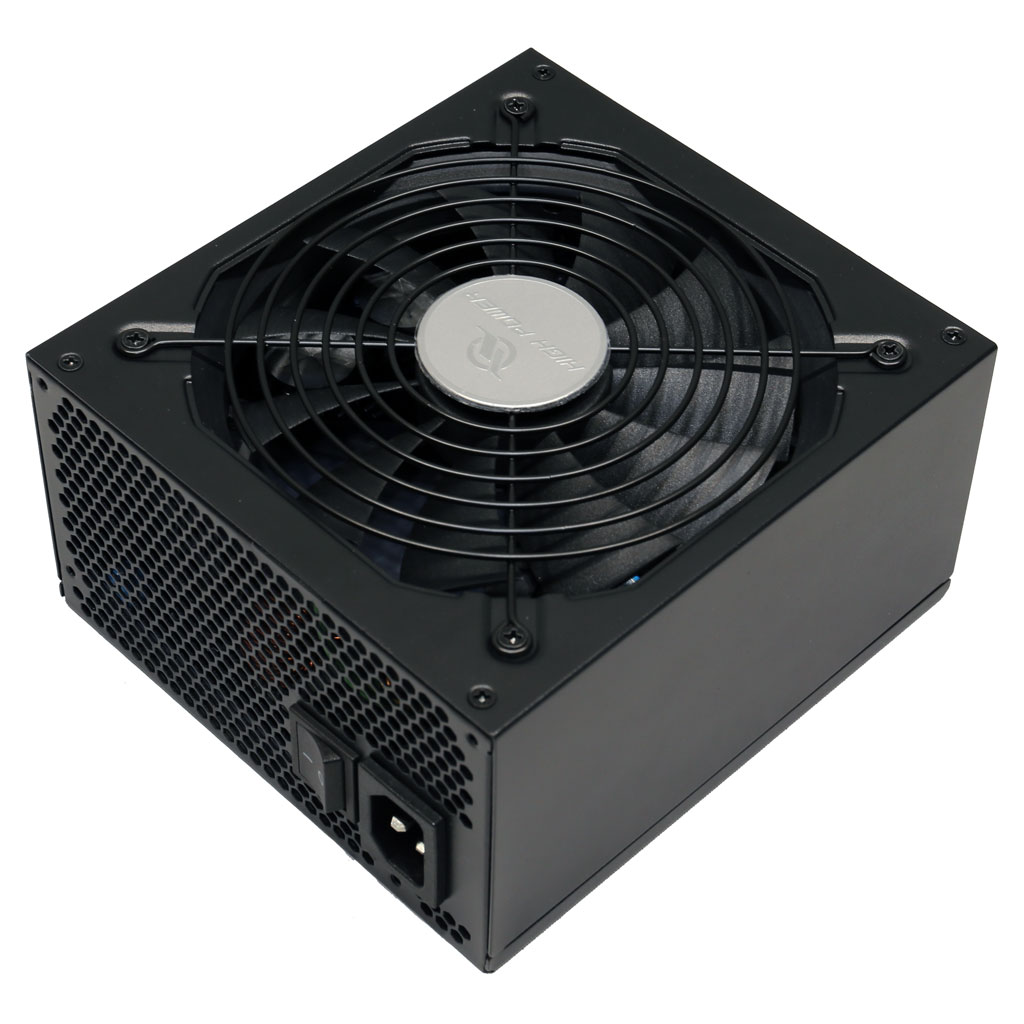

Top side

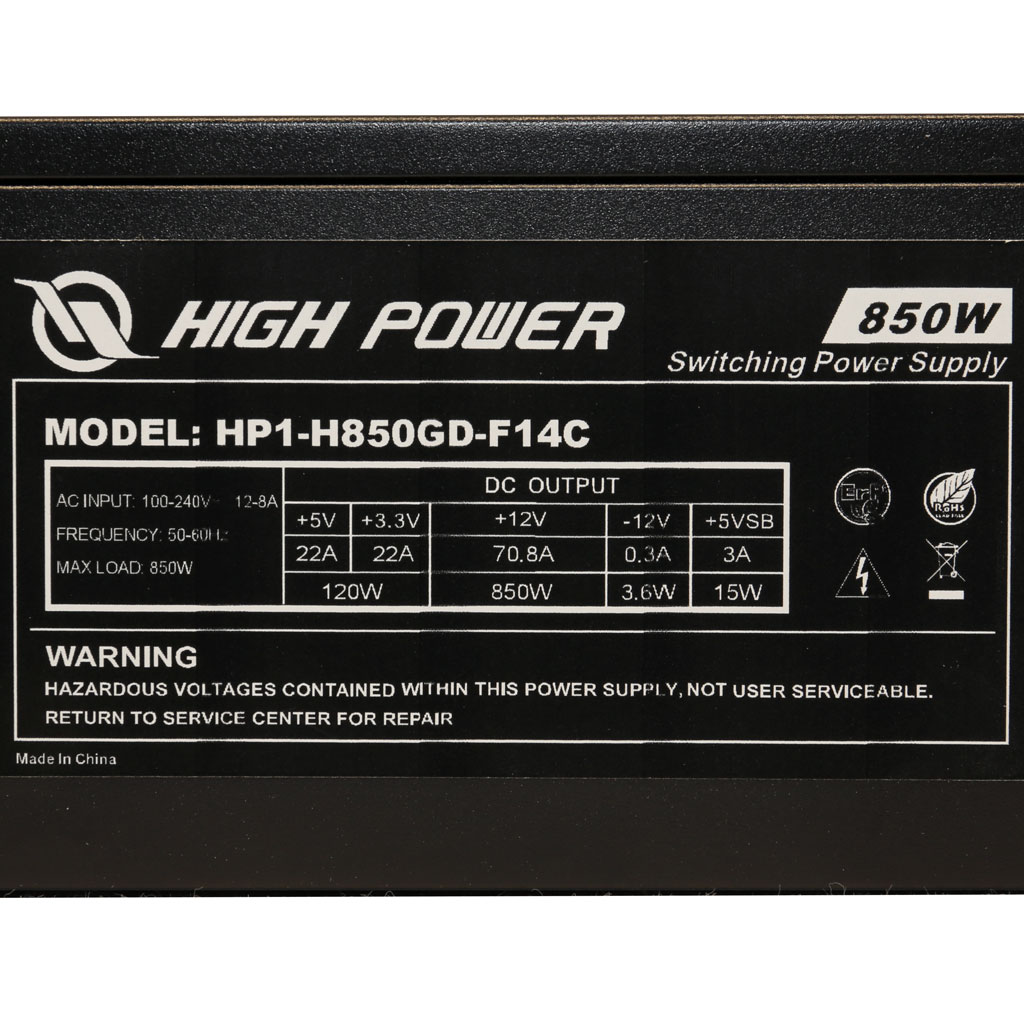

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
