CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
EVGA 600B
Serial Number1603530615803629
Lab ID177
  • Report:
  • Receipt Date: Sep 9, 2018
  • Test Date: Sep 17, 2018
  • Report Date: Sep 20, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEVGA
Manufacturer (OEM)HEC
SeriesB
Model Number
Serial Number1603530615803629
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Cooling120mm Sleeve Bearing Fan
(EFS-12E12H)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 24 20 49 3 0.3
Watts 130 588 15 3.6
Total Max. Power (W) 600

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (560) 1 1 18-20AWG
4+4 pin EPS12V (620mm) 1 1 18AWG
6+2 pin PCIe (570mm+120mm) 1 2 20AWG
SATA (470mm+120mm+120mm) 2 6 20AWG
4 pin Molex (470mm+120mm+120mm) / FDD (+120mm) 1 3 / 1 20-22AWG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 17.70
AC Loss to PWR_OK Hold Up Time  (ms) 11.96
PWR_OK Inactive to DC Loss Delay (ms) 5.74

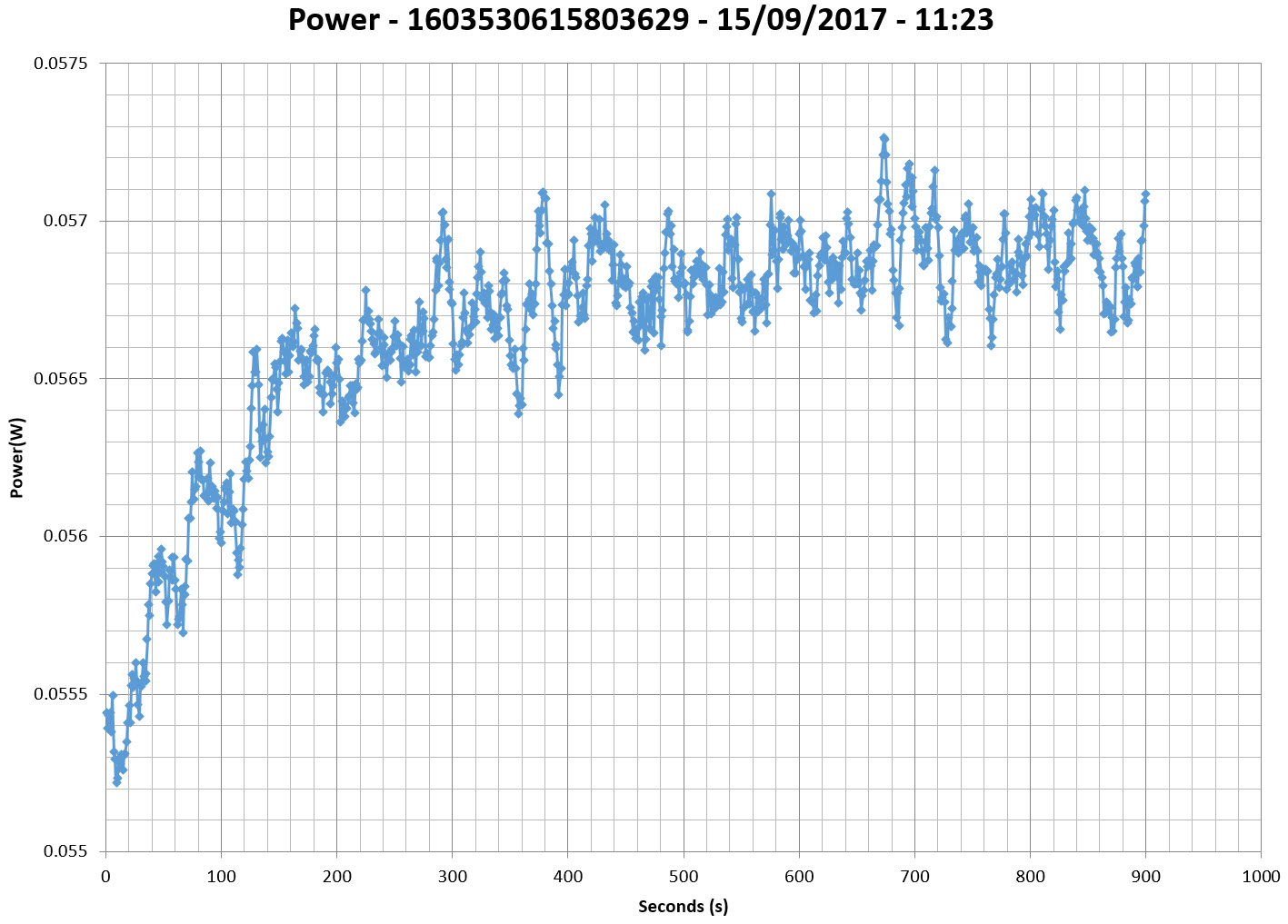

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

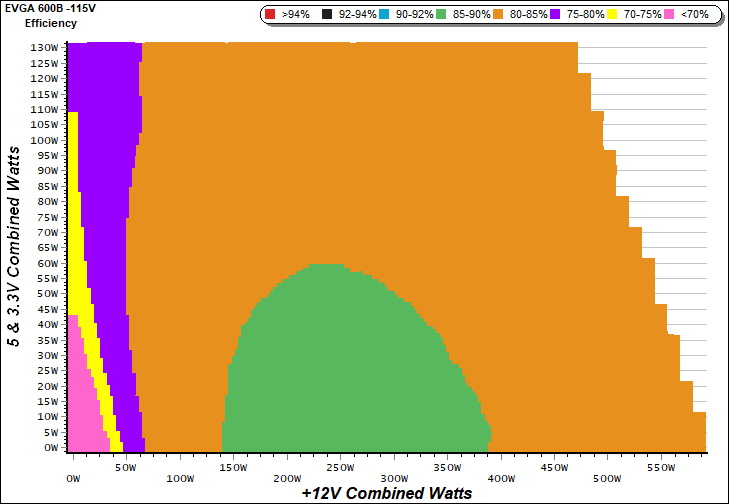

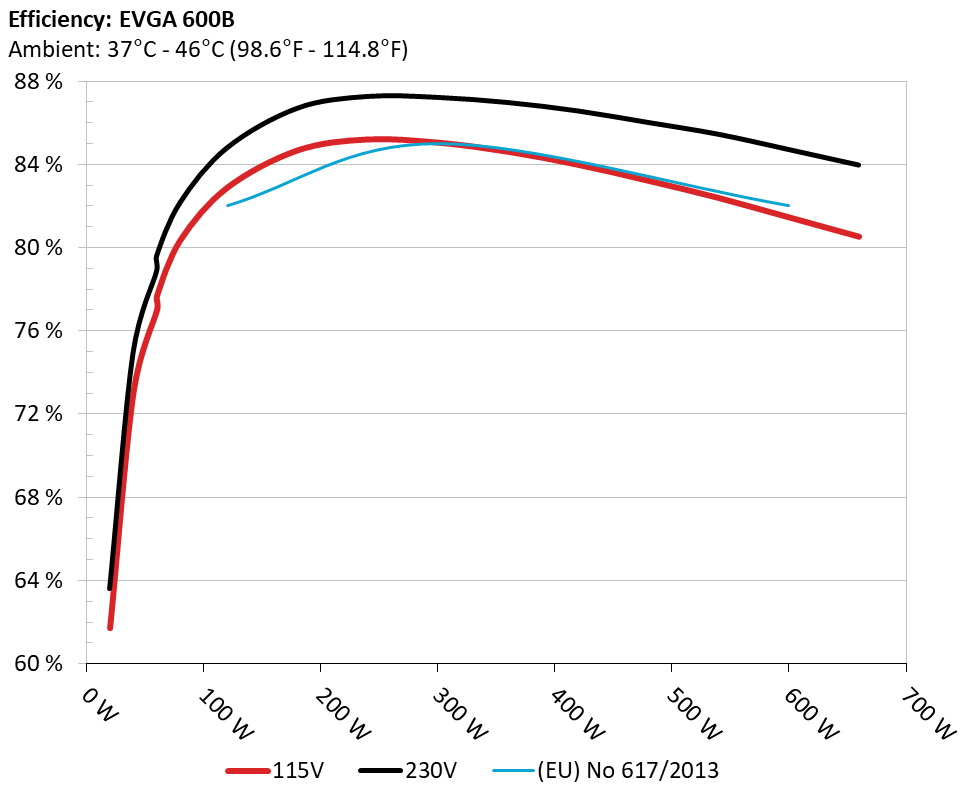

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

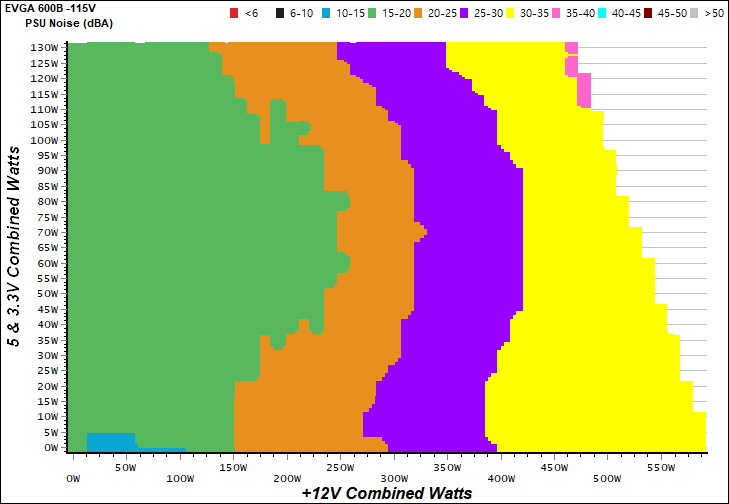

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

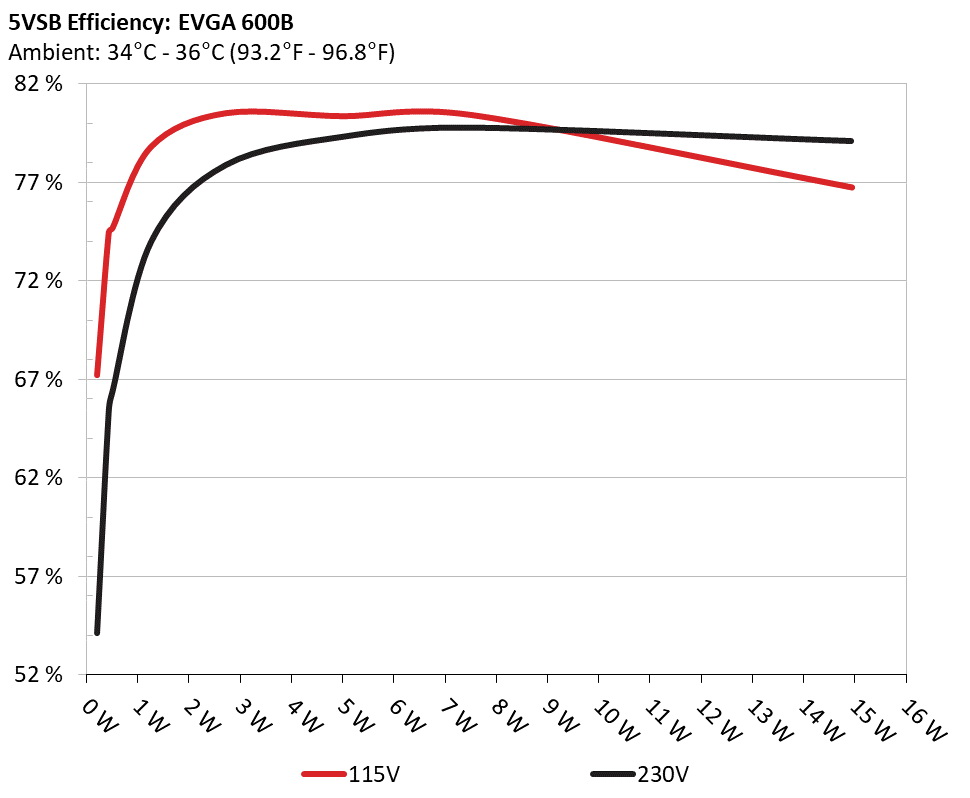

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.209 67.203% 0.058
5.032V 0.311 115.14V
2 0.087A 0.437 74.446% 0.104
5.032V 0.587 115.14V
3 0.542A 2.722 80.509% 0.310
5.022V 3.381 115.10V
4 1.002A 5.026 80.352% 0.362
5.016V 6.255 115.22V
5 1.501A 7.515 80.417% 0.391
5.005V 9.345 115.13V
6 3.002A 14.943 76.737% 0.437
4.978V 19.473 115.13V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.107A 1.965A 1.950A 1.001A 59.809 77.028% 787 15.6 38.13°C 0.916
12.303V 5.088V 3.378V 4.993V 77.646 41.89°C 115.18V
2 7.243A 2.950A 2.938A 1.202A 119.794 82.898% 822 16.2 38.37°C 0.952
12.280V 5.077V 3.365V 4.980V 144.507 43.18°C 115.18V
3 11.740A 3.447A 3.456A 1.405A 179.863 84.693% 873 17.4 38.87°C 0.963
12.248V 5.076V 3.355V 4.967V 212.371 43.88°C 115.18V
4 16.253A 3.943A 3.945A 1.615A 239.769 85.220% 1040 22.8 39.29°C 0.969
12.218V 5.074V 3.343V 4.950V 281.354 44.62°C 115.19V
5 20.440A 4.942A 4.949A 1.820A 299.743 85.066% 1240 27.6 39.70°C 0.975
12.195V 5.062V 3.330V 4.934V 352.364 45.84°C 115.19V
6 24.643A 5.938A 5.969A 2.035A 359.708 84.629% 1450 32.1 41.06°C 0.980
12.171V 5.051V 3.316V 4.910V 425.043 47.68°C 115.19V
7 28.865A 6.950A 6.993A 2.245A 419.697 84.001% 1630 35.9 41.89°C 0.983
12.146V 5.039V 3.302V 4.896V 499.636 49.37°C 115.20V
8 33.107A 7.956A 8.027A 2.455A 479.604 83.231% 1795 38.5 42.64°C 0.985
12.119V 5.028V 3.288V 4.882V 576.235 51.36°C 115.21V
9 37.822A 8.464A 8.573A 2.460A 539.682 82.402% 1938 40.5 44.40°C 0.986
12.085V 5.026V 3.276V 4.869V 654.939 53.49°C 115.22V
10 42.322A 8.957A 9.101A 3.095A 599.492 81.473% 2015 41.4 45.64°C 0.986
12.046V 5.024V 3.263V 4.842V 735.813 56.15°C 115.23V
11 47.459A 8.949A 9.132A 3.102A 659.451 80.540% 2015 41.4 46.36°C 0.986
12.005V 5.031V 3.252V 4.831V 818.604 57.18°C 115.25V
CL1 0.098A 16.027A 16.004A 0.004A 129.078 74.742% 1960 40.8 45.75°C 0.959
12.653V 4.664V 3.316V 4.952V 172.697 54.44°C 115.20V
CL2 48.961A 1.004A 1.002A 1.001A 595.062 81.696% 1980 41.1 46.38°C 0.986
11.879V 5.219V 3.294V 4.909V 728.390 55.47°C 115.24V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.187A 0.483A 0.468A 0.196A 19.640 61.707% 768 15.2 0.860
12.295V 5.124V 3.390V 5.023V 31.828 115.18V
2 2.400A 0.966A 0.973A 0.396A 39.727 73.075% 787 15.6 0.893
12.296V 5.112V 3.385V 5.012V 54.365 115.18V
3 3.614A 1.467A 1.476A 0.596A 59.875 77.714% 787 15.6 0.915
12.292V 5.100V 3.380V 5.004V 77.045 115.18V
4 4.817A 1.966A 1.954A 0.801A 79.806 80.379% 787 15.6 0.932
12.289V 5.093V 3.375V 4.997V 99.287 115.18V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.9 mV 15.5 mV 14.0 mV 18.7 mV Pass
20% Load 13.8 mV 19.3 mV 17.6 mV 17.2 mV Pass
30% Load 14.7 mV 20.7 mV 15.0 mV 17.5 mV Pass
40% Load 15.8 mV 20.2 mV 15.3 mV 20.1 mV Pass
50% Load 18.1 mV 21.4 mV 16.0 mV 20.2 mV Pass
60% Load 20.9 mV 21.7 mV 17.7 mV 20.9 mV Pass
70% Load 23.0 mV 23.3 mV 21.7 mV 23.4 mV Pass
80% Load 25.2 mV 25.8 mV 24.3 mV 26.3 mV Pass
90% Load 28.7 mV 25.8 mV 27.4 mV 25.2 mV Pass
100% Load 32.4 mV 28.8 mV 26.0 mV 25.0 mV Pass
110% Load 36.3 mV 26.5 mV 25.5 mV 26.3 mV Pass
Crossload 1 34.3 mV 62.0 mV 16.3 mV 21.5 mV Fail
Crossload 2 37.9 mV 20.0 mV 24.5 mV 23.4 mV Pass

The results above are not used in the certification process

EVGA 600B

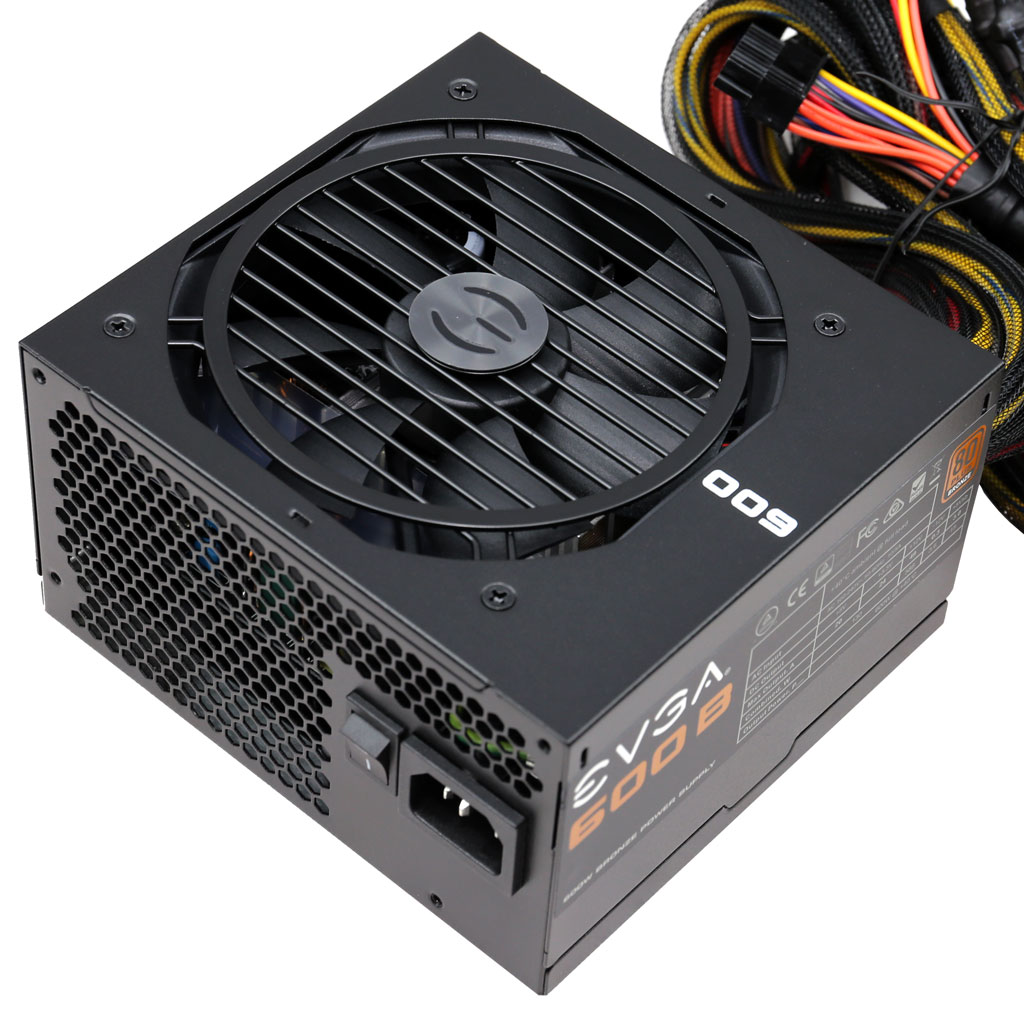

Top side

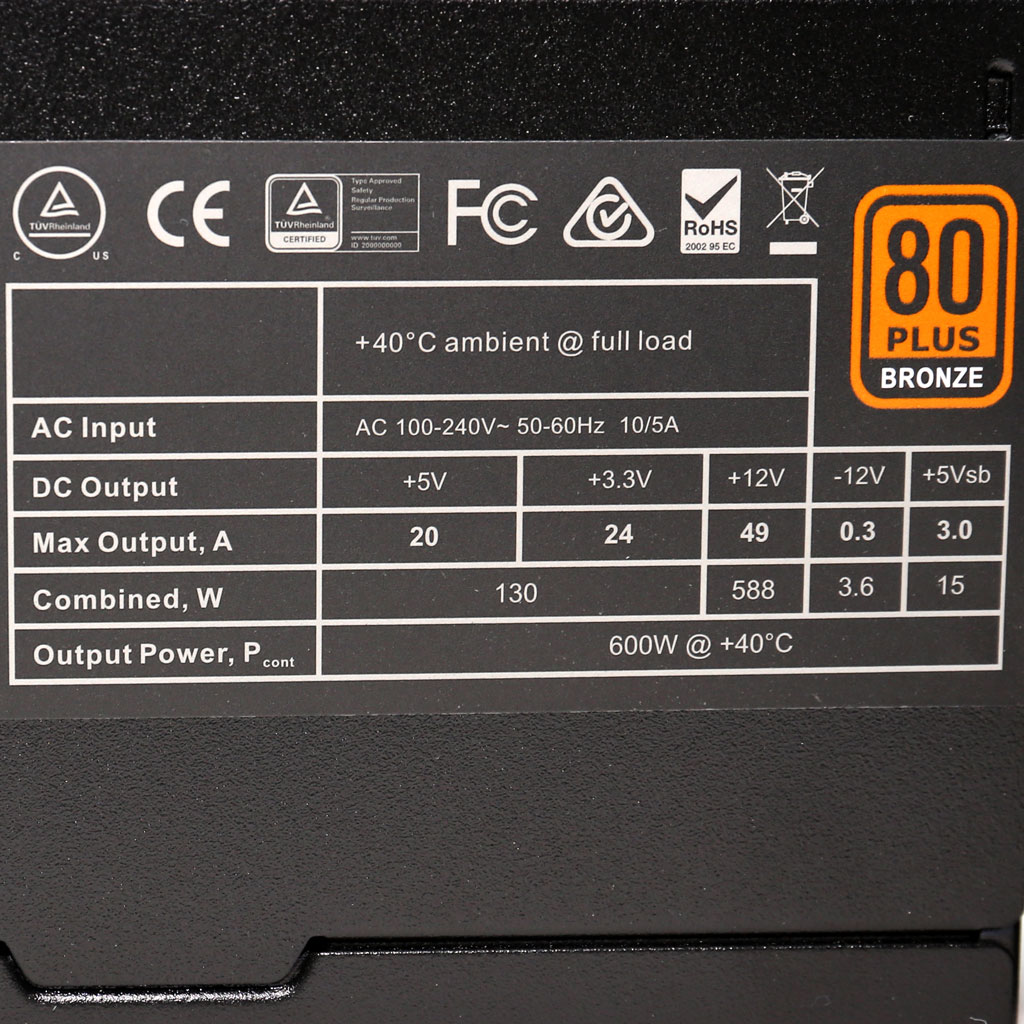

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
