CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Thermaltake Toughpower PF1 750W
Serial NumberPSTPD0750FNFAPU1XD000042
Lab IDTT75001713
  • Report: 20PS1713A
  • Receipt Date: Jul 28, 2020
  • Test Date: Sep 9, 2020
  • Report Date: Sep 12, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandThermaltake
Manufacturer (OEM)Jiu Zhou Yang Guang Power Supply (HKC)
SeriesToughpower PF1
Model NumberTTP-750AH2FKP
Serial NumberPSTPD0750FNFAPU1XD000042
DUT NotesToughpower PF1

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)750
TypeATX12V
Cooling120mm Hydraulic Bearing Fan
[TT-1225(XW12025MS)]
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V(1)12V(2)5VSB-12V
Max. PowerAmps20206202.50.3
Watts10075012.53.6
Total Max. Power (W)750

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-18AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (500mm+150mm) 2 4 16-18AWG No
SATA (480mm+150mm+150mm) 3 9 18AWG No
4-pin Molex (480mm+150mm+150mm+150mm) 1 4 18AWG No
FDD Adapter (+100mm) 1 1 22AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.8
AC Loss to PWR_OK Hold Up Time (ms)17.1
PWR_OK Inactive to DC Loss Delay (ms)0.7

Vampire Power

Graphs

INFO

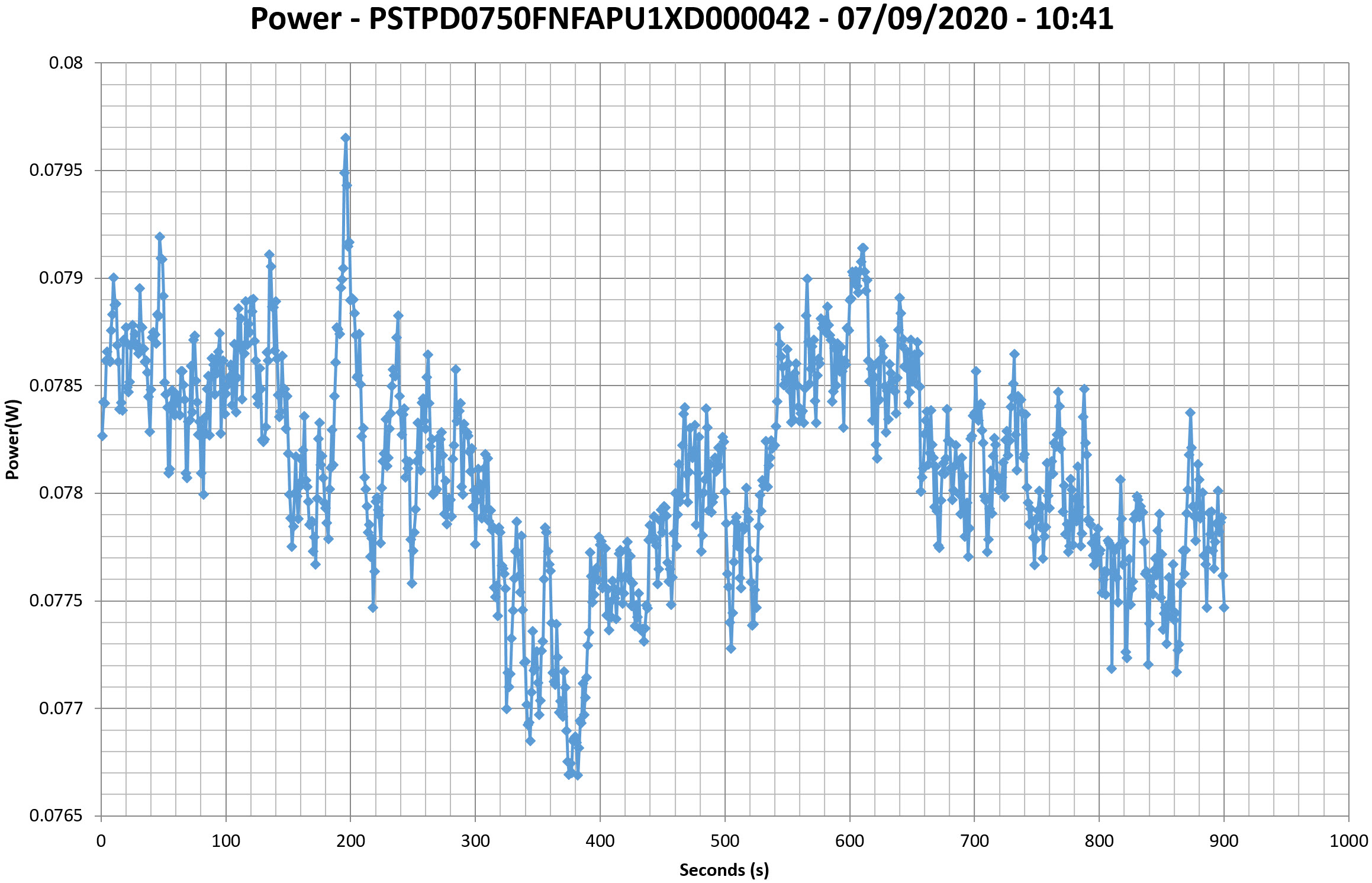

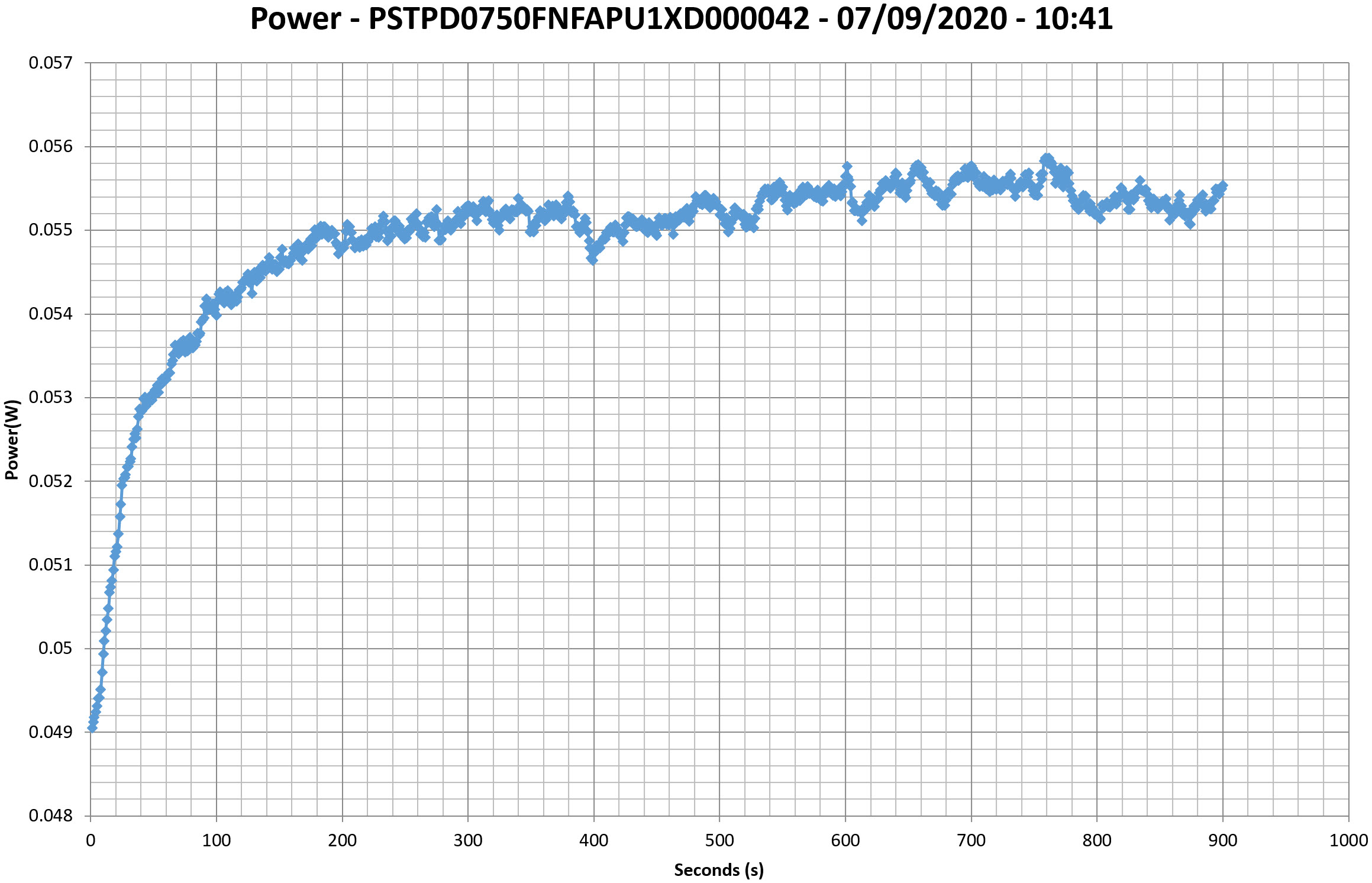

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

Efficiency Graph

INFO

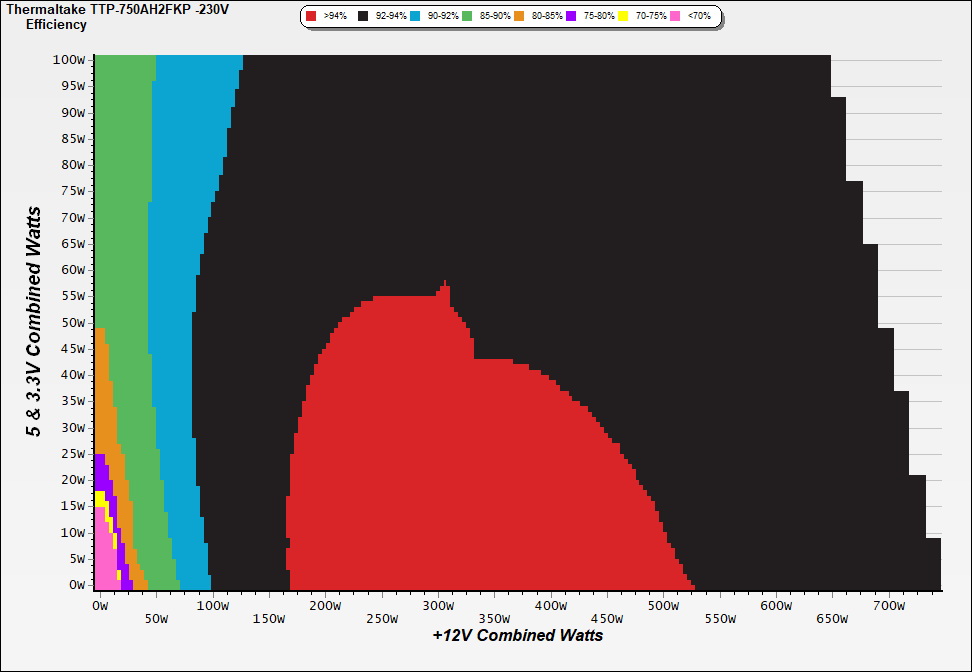

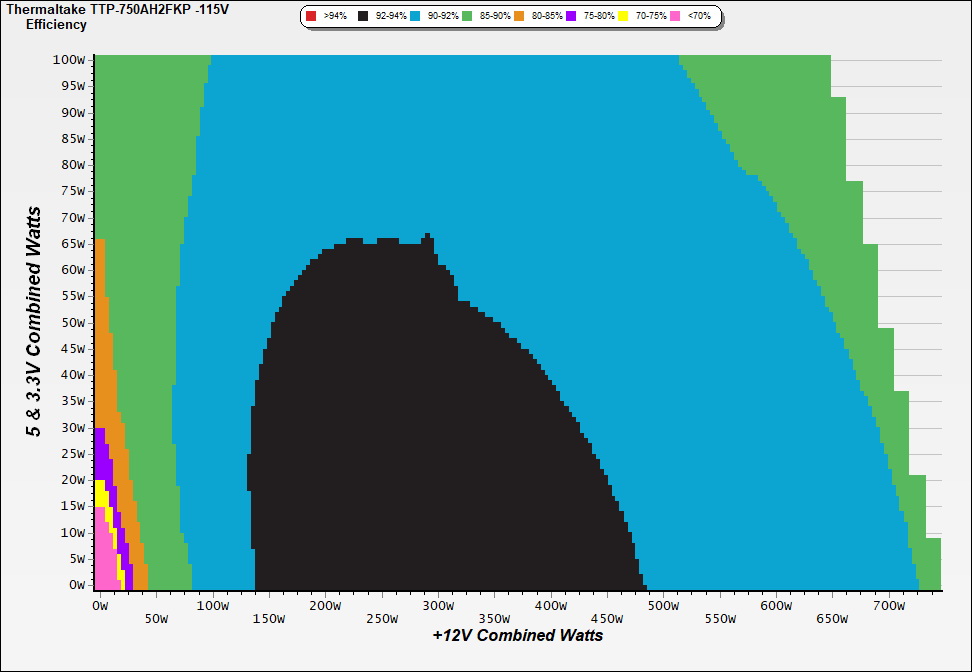

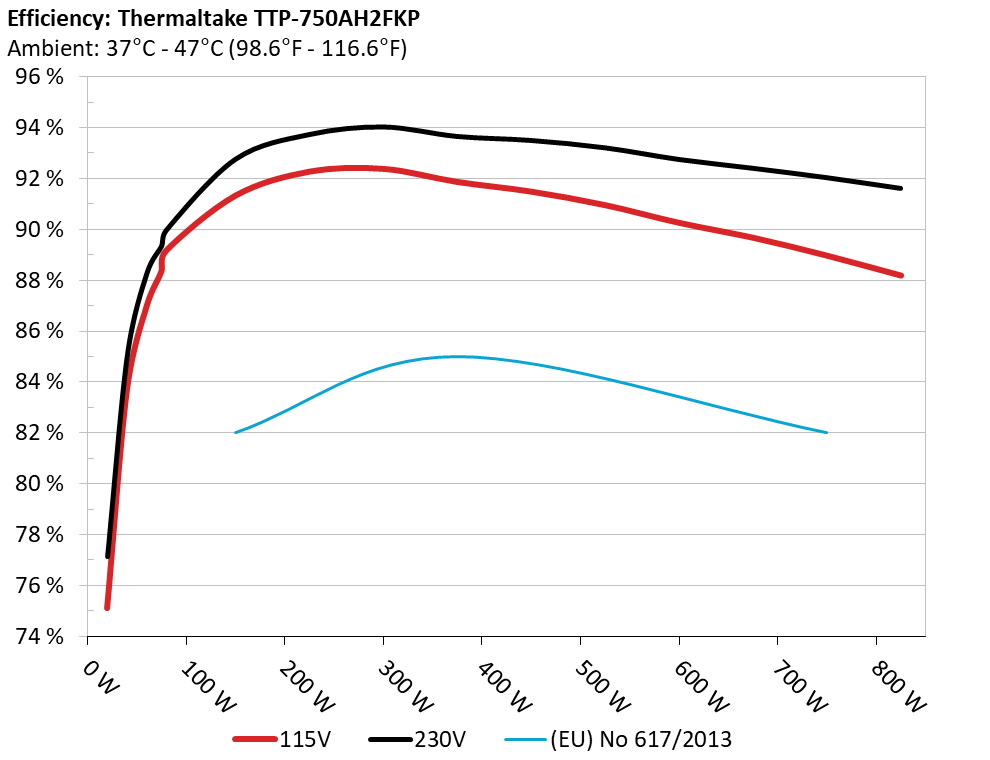

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

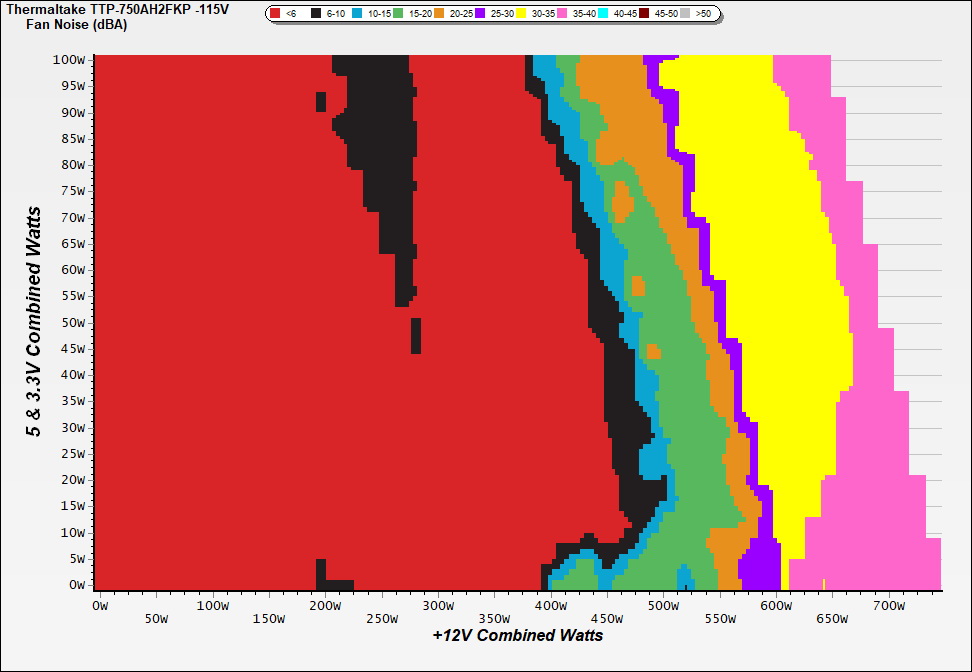

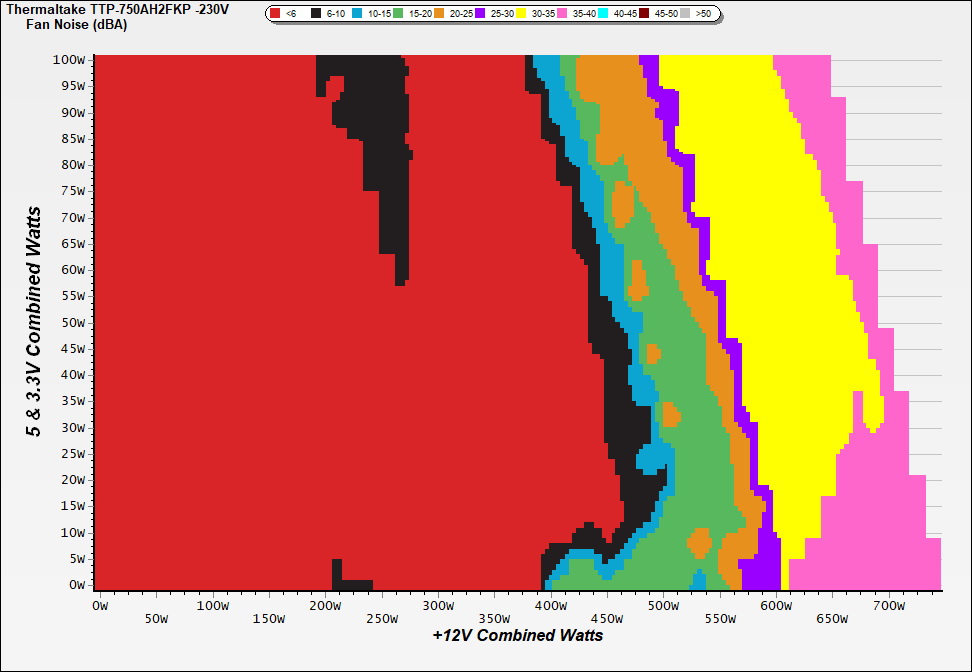

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

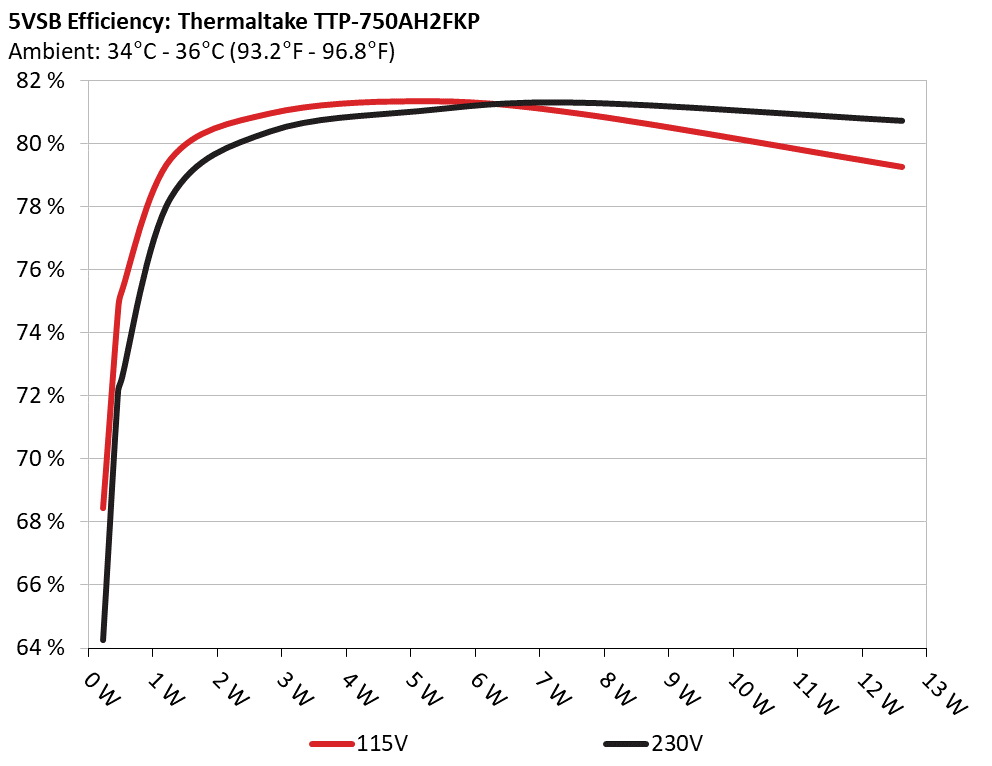

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 68.437% 0.039
5.143V 0.339 115.13V
2 0.090A 0.463 74.677% 0.069
5.141V 0.620 115.13V
3 0.550A 2.819 80.936% 0.274
5.124V 3.483 115.13V
4 1.000A 5.108 81.325% 0.354
5.107V 6.281 115.13V
5 1.500A 7.632 80.925% 0.399
5.087V 9.431 115.13V
6 2.500A 12.622 79.244% 0.444
5.048V 15.928 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 64.266% 0.012
5.143V 0.361 230.28V
2 0.090A 0.463 72.118% 0.022
5.141V 0.642 230.28V
3 0.550A 2.819 80.382% 0.111
5.123V 3.507 230.28V
4 1.000A 5.107 81.025% 0.179
5.106V 6.303 230.28V
5 1.500A 7.632 81.295% 0.234
5.087V 9.388 230.28V
6 2.501A 12.621 80.723% 0.303
5.047V 15.635 230.28V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.419A 1.967A 1.973A 0.982A 74.973 88.331% 0 <6.0 44.60°C 0.953
12.078V 5.085V 3.343V 5.093V 84.877 40.00°C 115.13V
2 9.861A 2.951A 2.965A 1.182A 150.052 91.314% 0 <6.0 45.77°C 0.974
12.083V 5.084V 3.339V 5.075V 164.326 40.75°C 115.13V
3 15.639A 3.443A 3.461A 1.384A 225.064 92.257% 0 <6.0 47.37°C 0.985
12.086V 5.083V 3.337V 5.059V 243.952 41.60°C 115.13V
4 21.410A 3.938A 3.962A 1.587A 300.087 92.369% 559 <6.0 41.66°C 0.990
12.091V 5.081V 3.334V 5.041V 324.880 48.43°C 115.13V
5 26.803A 4.925A 4.956A 1.792A 374.750 91.857% 582 <6.0 42.04°C 0.993
12.097V 5.078V 3.330V 5.023V 407.970 49.55°C 115.12V
6 32.206A 5.911A 5.954A 1.999A 449.669 91.477% 835 17.3 42.17°C 0.995
12.105V 5.077V 3.326V 5.004V 491.565 50.95°C 115.12V
7 37.640A 6.898A 6.959A 2.208A 524.990 90.945% 966 22.5 43.49°C 0.995
12.111V 5.076V 3.321V 4.985V 577.260 52.73°C 115.12V
8 43.097A 7.888A 7.958A 2.418A 600.306 90.248% 1059 25.6 43.64°C 0.996
12.109V 5.074V 3.319V 4.966V 665.172 53.49°C 115.12V
9 48.922A 8.384A 8.445A 2.422A 674.838 89.666% 1574 37.6 44.80°C 0.996
12.107V 5.072V 3.317V 4.956V 752.612 55.27°C 115.11V
10 54.716A 8.880A 8.964A 2.530A 749.951 88.962% 1808 41.3 45.91°C 0.997
12.112V 5.070V 3.314V 4.942V 843.003 57.19°C 115.11V
11 60.912A 8.880A 8.968A 2.535A 825.177 88.178% 2168 46.2 46.64°C 0.997
12.115V 5.069V 3.313V 4.933V 935.805 58.31°C 115.10V
CL1 0.101A 12.004A 11.999A 0.000A 102.078 85.683% 592 6.5 41.91°C 0.967
12.123V 5.081V 3.322V 5.110V 119.135 49.52°C 115.13V
CL2 62.022A 1.000A 1.000A 1.000A 764.762 89.507% 1804 41.1 45.55°C 0.997
12.114V 5.076V 3.333V 5.018V 854.418 57.05°C 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.418A 1.967A 1.975A 0.982A 74.969 89.352% 0 <6.0 44.88°C 0.716
12.078V 5.086V 3.343V 5.093V 83.903 40.04°C 230.28V
2 9.862A 2.950A 2.965A 1.182A 150.042 92.757% 0 <6.0 46.11°C 0.876
12.081V 5.084V 3.340V 5.075V 161.758 40.82°C 230.28V
3 15.634A 3.443A 3.462A 1.384A 225.054 93.726% 447 <6.0 41.14°C 0.929
12.089V 5.083V 3.337V 5.058V 240.120 47.99°C 230.28V
4 21.406A 3.937A 3.961A 1.587A 300.067 94.021% 491 <6.0 41.30°C 0.951
12.093V 5.080V 3.334V 5.040V 319.149 48.75°C 230.28V
5 26.793A 4.923A 4.956A 1.793A 374.702 93.650% 586 6.1 42.11°C 0.967
12.100V 5.078V 3.330V 5.022V 400.107 50.39°C 230.28V
6 32.204A 5.911A 5.953A 1.999A 449.620 93.493% 838 17.4 42.79°C 0.973
12.104V 5.078V 3.327V 5.003V 480.914 51.42°C 230.28V
7 37.640A 6.897A 6.952A 2.208A 524.937 93.202% 896 19.9 43.07°C 0.977
12.110V 5.076V 3.323V 4.984V 563.226 52.24°C 230.28V
8 43.087A 7.887A 7.954A 2.418A 600.251 92.743% 1371 33.8 43.73°C 0.980
12.111V 5.074V 3.319V 4.965V 647.222 53.38°C 230.28V
9 48.907A 8.383A 8.445A 2.422A 674.796 92.399% 1768 40.8 44.77°C 0.982
12.110V 5.072V 3.317V 4.955V 730.305 55.45°C 230.27V
10 54.715A 8.877A 8.962A 2.531A 749.877 92.031% 1803 41.1 45.10°C 0.985
12.111V 5.071V 3.314V 4.942V 814.813 56.21°C 230.27V
11 60.932A 8.882A 8.968A 2.535A 825.126 91.608% 2159 45.9 46.54°C 0.986
12.110V 5.069V 3.313V 4.933V 900.712 58.45°C 230.27V
CL1 0.103A 12.004A 12.000A 0.000A 102.058 86.990% 588 6.3 42.21°C 0.812
12.122V 5.079V 3.320V 5.110V 117.321 50.82°C 230.27V
CL2 62.037A 1.000A 1.001A 1.000A 764.515 92.629% 1803 41.1 45.43°C 0.985
12.107V 5.077V 3.334V 5.018V 825.356 56.61°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.231A 0.492A 0.493A 0.195A 19.998 75.116% 0 <6.0 0.716
12.060V 5.085V 3.346V 5.133V 26.623 115.13V
2 2.461A 0.983A 0.985A 0.391A 39.989 83.661% 0 <6.0 0.872
12.065V 5.085V 3.345V 5.123V 47.799 115.13V
3 3.693A 1.475A 1.481A 0.587A 60.020 86.965% 0 <6.0 0.932
12.068V 5.085V 3.344V 5.112V 69.016 115.13V
4 4.918A 1.967A 1.973A 0.784A 79.972 89.160% 0 <6.0 0.963
12.073V 5.085V 3.343V 5.101V 89.695 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.231A 0.492A 0.491A 0.195A 19.998 77.135% 0 <6.0 0.436
12.064V 5.086V 3.347V 5.133V 25.926 230.28V
2 2.460A 0.982A 0.988A 0.391A 39.987 85.008% 0 <6.0 0.538
12.067V 5.086V 3.345V 5.123V 47.039 230.28V
3 3.692A 1.475A 1.480A 0.587A 60.018 88.279% 0 <6.0 0.649
12.071V 5.086V 3.344V 5.112V 67.987 230.29V
4 4.917A 1.967A 1.974A 0.784A 79.969 89.979% 0 <6.0 0.733
12.074V 5.085V 3.343V 5.101V 88.875 230.28V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load11.70mV11.50mV15.00mV4.20mVPass
20% Load12.30mV11.80mV14.50mV4.90mVPass
30% Load12.80mV12.60mV15.00mV5.80mVPass
40% Load15.80mV13.40mV15.20mV6.90mVPass
50% Load15.20mV14.70mV18.20mV8.20mVPass
60% Load16.10mV16.90mV18.00mV10.10mVPass
70% Load16.30mV17.90mV19.00mV10.90mVPass
80% Load16.90mV18.10mV17.40mV12.00mVPass
90% Load17.60mV20.10mV19.40mV11.80mVPass
100% Load23.80mV23.10mV21.40mV13.70mVPass
110% Load24.70mV24.70mV23.20mV15.00mVPass
Crossload116.50mV15.00mV19.70mV6.30mVPass
Crossload223.50mV22.10mV19.80mV11.10mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load11.20mV10.80mV14.80mV3.90mVPass
20% Load11.30mV11.80mV13.50mV4.60mVPass
30% Load12.00mV11.90mV15.30mV5.30mVPass
40% Load13.40mV12.70mV15.50mV6.10mVPass
50% Load14.30mV13.50mV15.60mV6.80mVPass
60% Load15.20mV15.50mV16.30mV9.20mVPass
70% Load15.90mV15.80mV16.90mV10.30mVPass
80% Load15.20mV16.40mV17.20mV9.10mVPass
90% Load16.80mV17.70mV18.00mV9.90mVPass
100% Load22.70mV20.30mV20.10mV11.30mVPass
110% Load23.50mV20.90mV21.50mV12.70mVPass
Crossload115.40mV14.90mV19.00mV6.50mVPass
Crossload221.90mV18.40mV17.70mV10.60mVPass

The results above are not used in the certification process

Thermaltake Toughpower PF1 750W

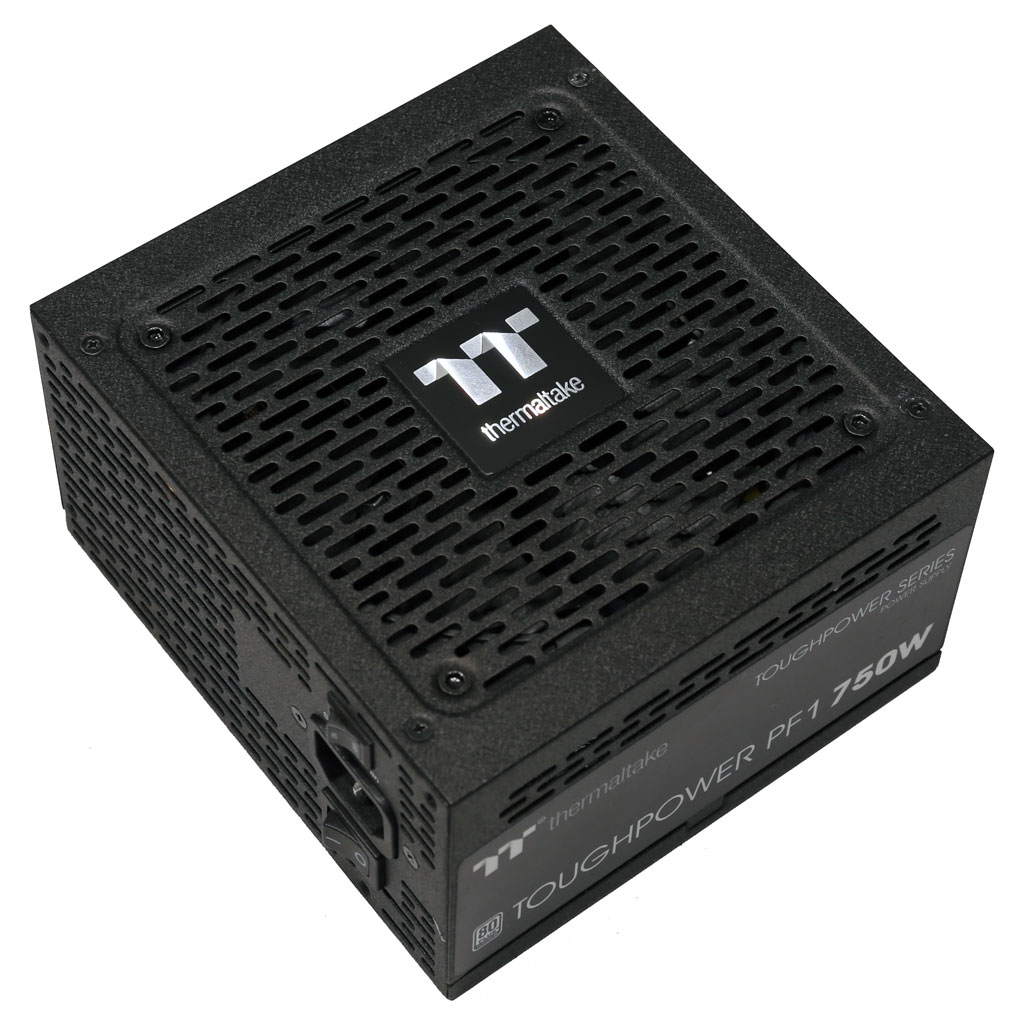

Top side

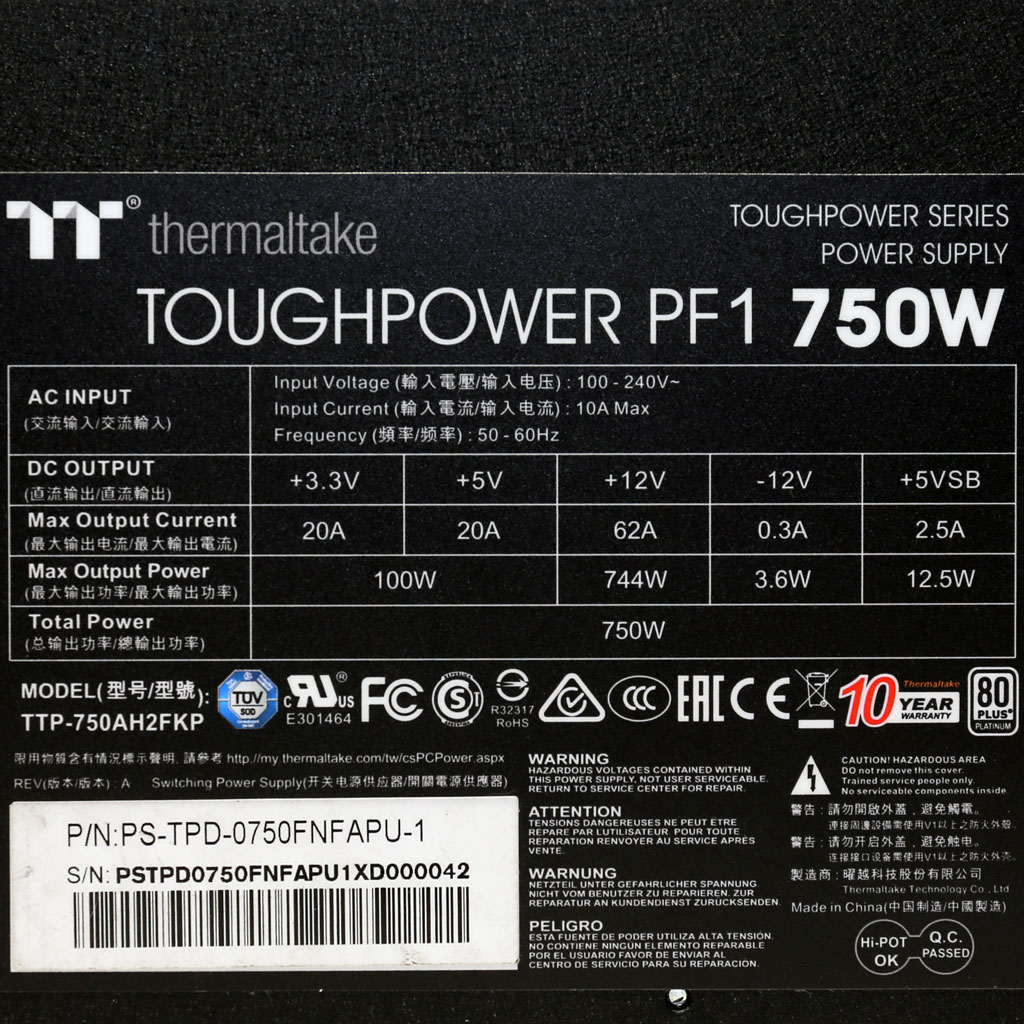

Power specifications label
