EVGA 650 BQ (#2)
Serial Number1703560615801533
Lab ID164
  • Report:
  • Receipt Date: Aug 15, 2018
  • Test Date: Aug 21, 2018
  • Report Date: Aug 23, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEVGA
Manufacturer (OEM)HEC
SeriesBQ
Model Number
Serial Number1703560615801533
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling140mm Teflon Nano-Steel Fan
(RL4Z T1352512H)
Semi-Passive Operation✗
Cable DesignSemi Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 24 20 54 3 0.3
Watts 130 648 15 3.6
Total Max. Power (W) 650

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (570mm) 1 1 18-22AWG
4+4 pin EPS12V (620mm) 1 1 18AWG
6+2 pin PCIe (580mm+150mm) 1 2 18AWG
Modular Cables
6+2 pin PCIe (550mm+150mm) 1 2 18AWG
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG
SATA (500mm+150mm+150mm) 1 3 18AWG
4 pin Molex (550mm+150mm+150mm)+FDD (+150mm) 1 3 / 1 18-20AWG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 17.60
AC Loss to PWR_OK Hold Up Time  (ms) 15.32
PWR_OK Inactive to DC Loss Delay (ms) 2.28

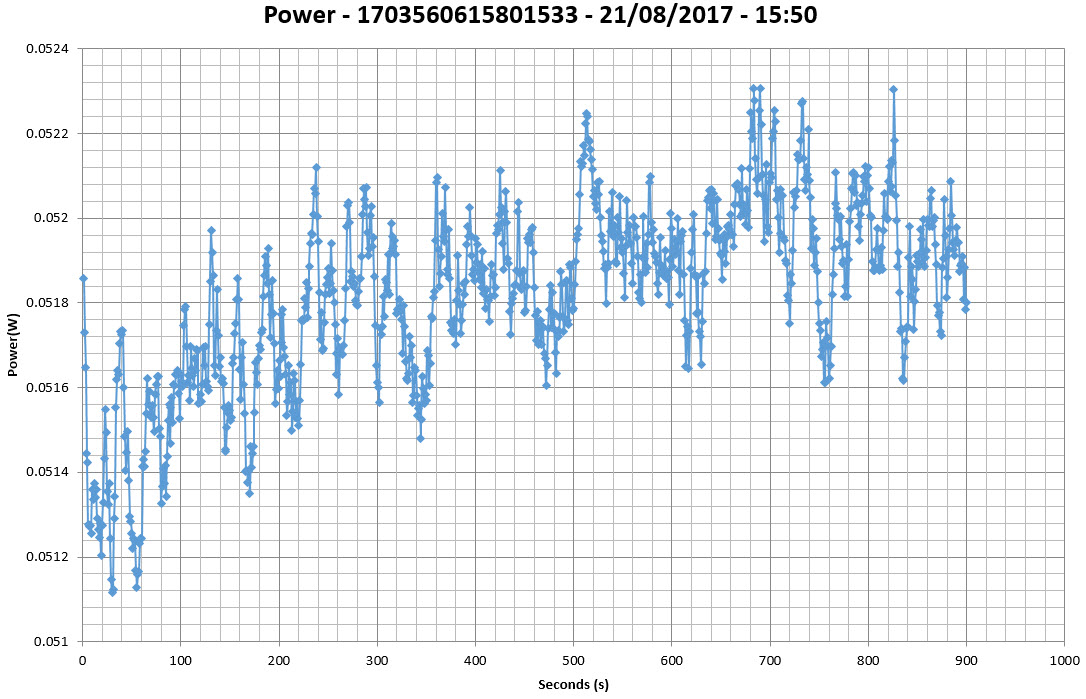

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

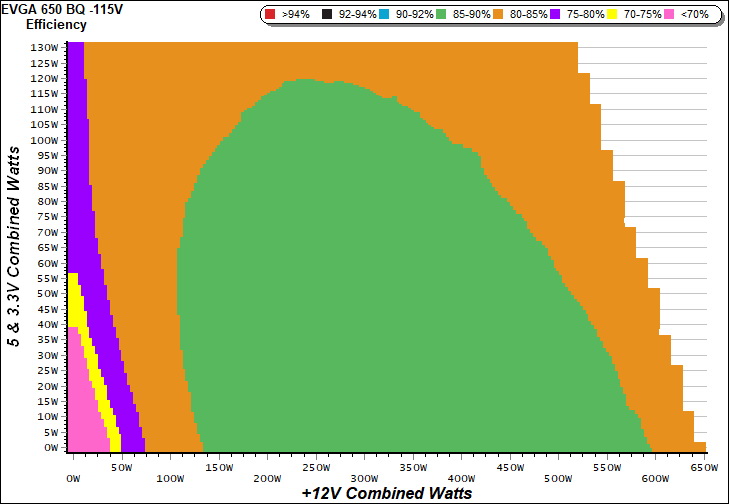

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

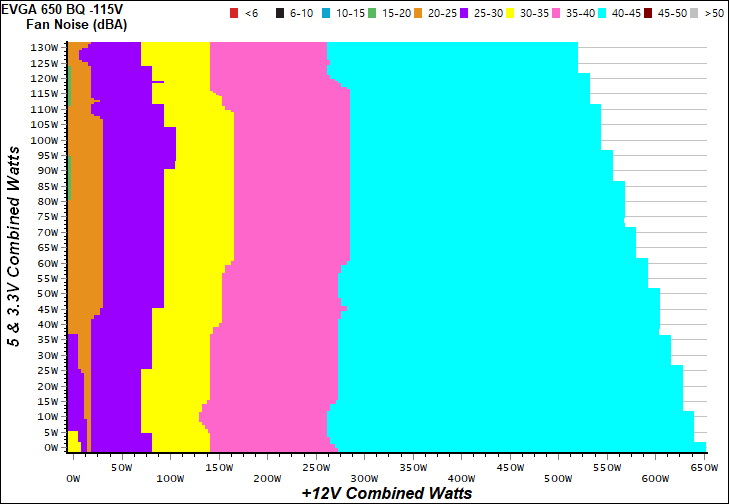

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

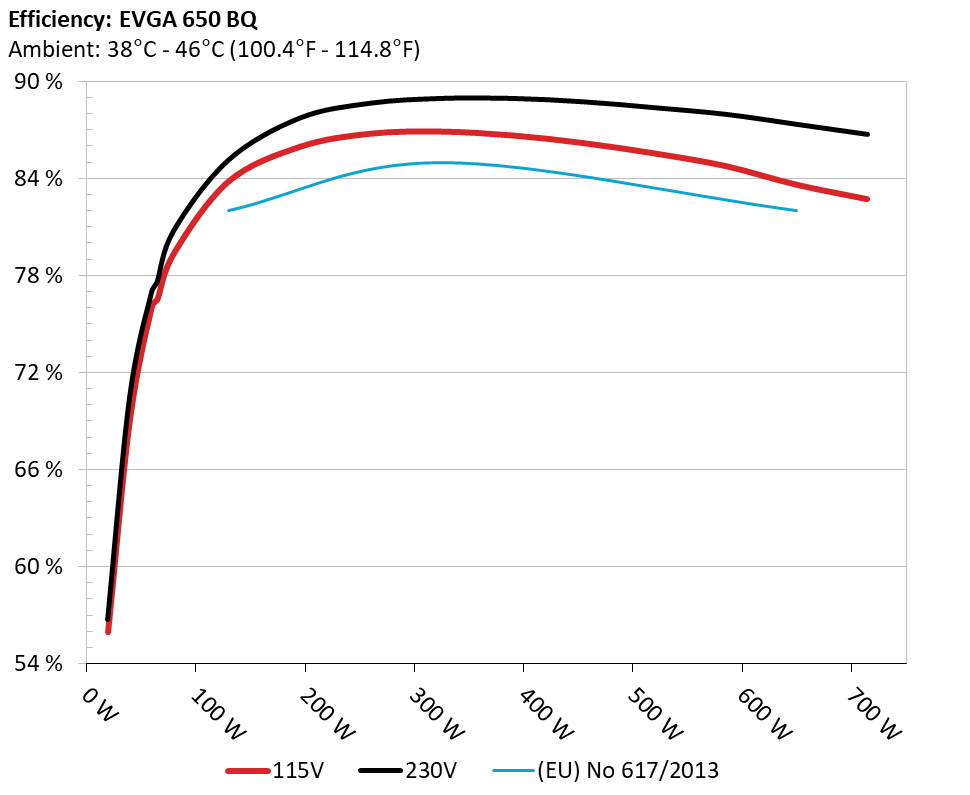

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

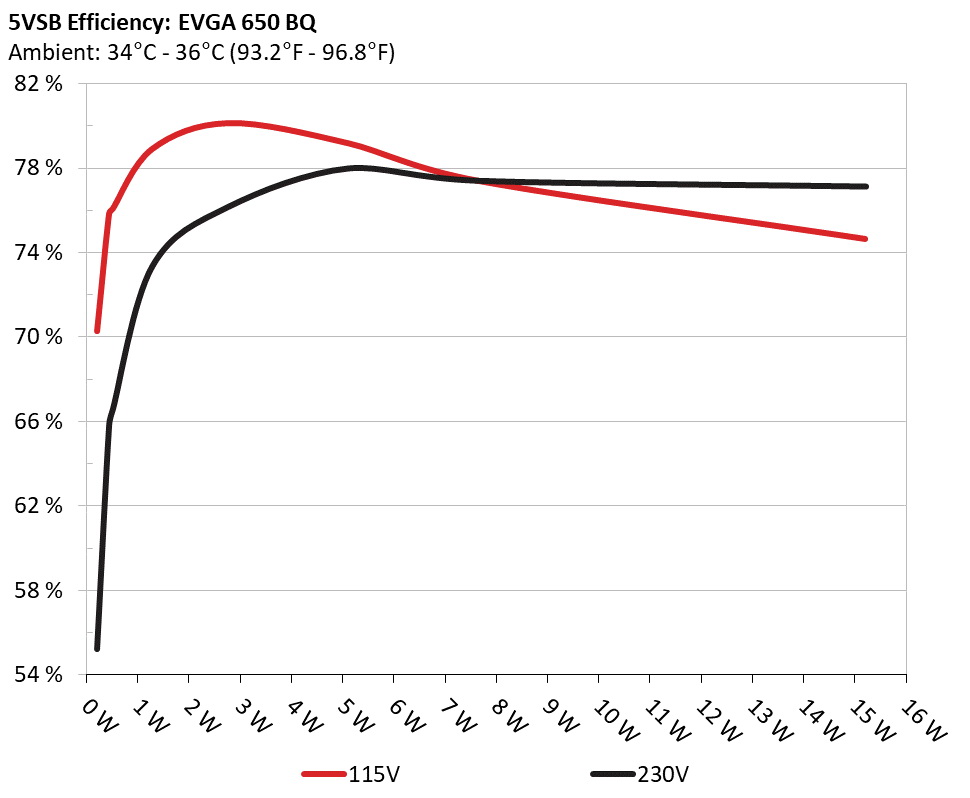

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.213 70.297% 0.043
5.131V 0.303 115.17V
2 0.087A 0.446 75.850% 0.082
5.130V 0.588 115.19V
3 0.542A 2.776 80.162% 0.288
5.122V 3.463 115.17V
4 1.002A 5.119 79.205% 0.350
5.110V 6.463 115.18V
5 1.501A 7.657 77.422% 0.384
5.100V 9.890 115.18V
6 3.001A 15.204 74.669% 0.431
5.066V 20.362 115.18V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.529A 1.975A 1.965A 0.980A 64.769 76.505% 1677 40.8 38.45°C 0.980
12.242V 5.056V 3.353V 5.094V 84.660 40.82°C 115.19V
2 8.091A 2.973A 2.957A 1.181A 129.754 83.798% 1685 40.9 38.70°C 0.987
12.222V 5.038V 3.344V 5.080V 154.842 41.27°C 115.19V
3 13.012A 3.489A 3.474A 1.380A 194.886 85.941% 1692 41.0 39.02°C 0.980
12.202V 5.025V 3.336V 5.066V 226.767 41.74°C 115.18V
4 17.943A 3.992A 3.966A 1.580A 259.751 86.759% 1692 41.0 39.51°C 0.983
12.181V 5.013V 3.327V 5.051V 299.395 42.40°C 115.18V
5 22.553A 5.000A 4.971A 1.786A 324.699 86.886% 1692 41.0 40.11°C 0.986
12.160V 4.994V 3.318V 5.034V 373.705 43.44°C 115.18V
6 27.186A 6.034A 6.013A 1.991A 389.709 86.652% 1692 41.0 40.87°C 0.989
12.137V 4.975V 3.283V 5.019V 449.738 44.79°C 115.17V
7 31.826A 7.058A 7.052A 2.196A 454.581 86.180% 1692 41.0 42.14°C 0.990
12.113V 4.958V 3.275V 5.002V 527.476 46.38°C 115.17V
8 36.500A 8.098A 8.103A 2.405A 519.615 85.542% 1692 41.0 42.89°C 0.993
12.088V 4.942V 3.257V 4.986V 607.440 47.88°C 115.17V
9 41.619A 8.631A 8.658A 2.410A 584.659 84.761% 1692 41.0 44.37°C 0.995
12.063V 4.928V 3.244V 4.975V 689.776 50.13°C 115.18V
10 46.500A 9.163A 9.190A 3.029A 649.512 83.612% 1692 41.0 45.56°C 0.996
12.039V 4.913V 3.231V 4.948V 776.817 51.91°C 115.18V
11 51.982A 9.182A 9.218A 3.035A 714.385 82.714% 1692 41.0 46.28°C 0.996
12.017V 4.904V 3.222V 4.939V 863.678 53.33°C 115.18V
CL1 0.094A 16.028A 16.002A 0.004A 132.463 78.754% 1692 41.0 43.46°C 0.984
12.189V 4.929V 3.268V 5.072V 168.199 49.16°C 115.19V
CL2 54.112A 1.004A 1.003A 1.002A 665.402 84.138% 1692 41.0 45.94°C 0.996
12.051V 4.980V 3.267V 5.011V 790.843 51.62°C 115.18V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.186A 0.494A 0.475A 0.195A 19.645 55.945% 1638 40.0 0.947
12.262V 5.075V 3.361V 5.124V 35.115 115.20V
2 2.406A 0.981A 0.981A 0.390A 39.733 69.108% 1650 40.2 0.970
12.251V 5.067V 3.356V 5.115V 57.494 115.19V
3 3.627A 1.474A 1.489A 0.586A 59.853 76.093% 1658 40.5 0.983
12.244V 5.060V 3.354V 5.105V 78.658 115.19V
4 4.837A 1.975A 1.967A 0.780A 79.739 79.338% 1677 40.8 0.977
12.237V 5.054V 3.351V 5.098V 100.505 115.19V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 6.7 mV 10.1 mV 21.0 mV 11.2 mV Pass
20% Load 7.1 mV 11.7 mV 23.3 mV 10.4 mV Pass
30% Load 8.3 mV 10.1 mV 23.8 mV 11.6 mV Pass
40% Load 9.2 mV 10.1 mV 25.4 mV 17.0 mV Pass
50% Load 10.4 mV 11.5 mV 27.3 mV 12.8 mV Pass
60% Load 12.4 mV 11.9 mV 28.8 mV 13.6 mV Pass
70% Load 14.5 mV 11.7 mV 30.6 mV 14.1 mV Pass
80% Load 15.8 mV 13.9 mV 33.6 mV 16.6 mV Pass
90% Load 17.3 mV 15.8 mV 36.3 mV 19.2 mV Pass
100% Load 20.1 mV 16.5 mV 40.9 mV 27.0 mV Pass
110% Load 22.5 mV 16.2 mV 38.8 mV 26.7 mV Pass
Crossload 1 16.1 mV 17.8 mV 48.6 mV 16.6 mV Pass
Crossload 2 20.0 mV 12.6 mV 25.0 mV 15.8 mV Pass

The results above are not used in the certification process

EVGA 650 BQ (#2)

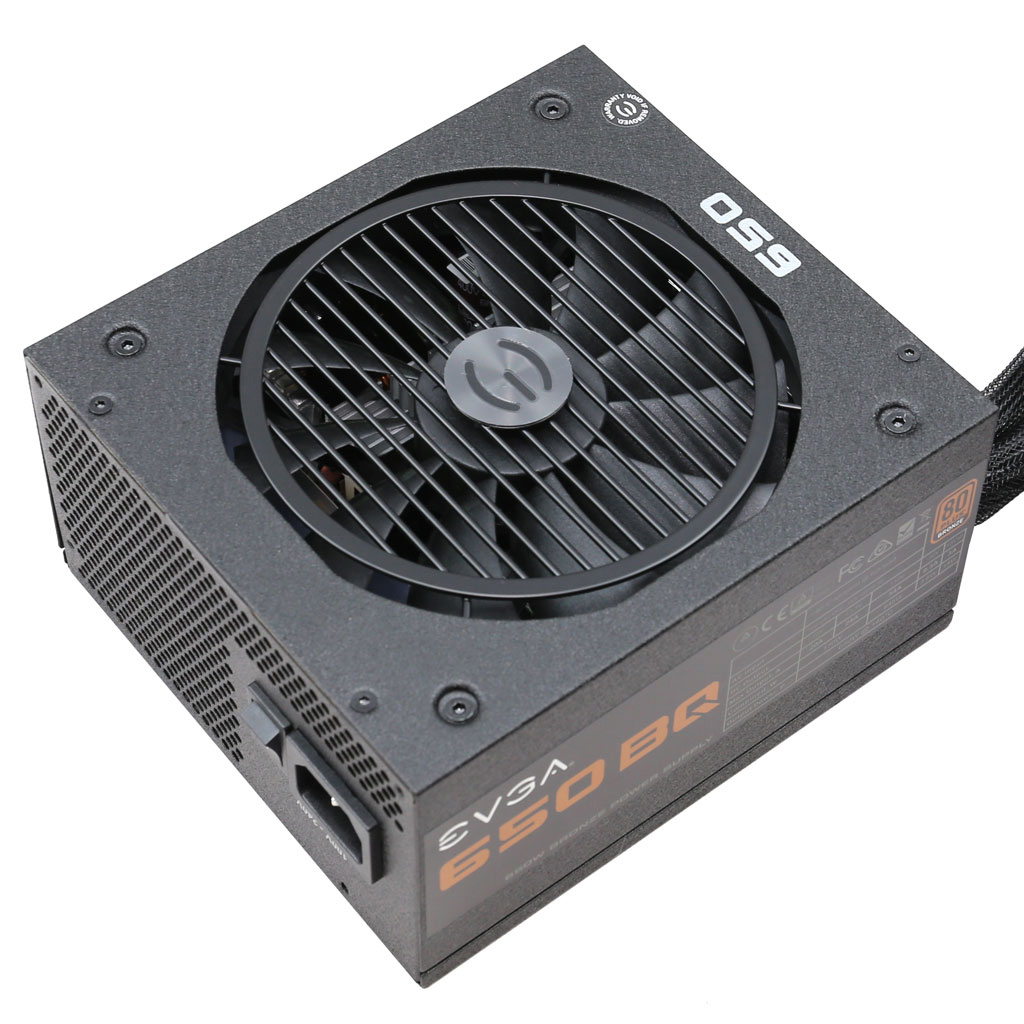

Top side

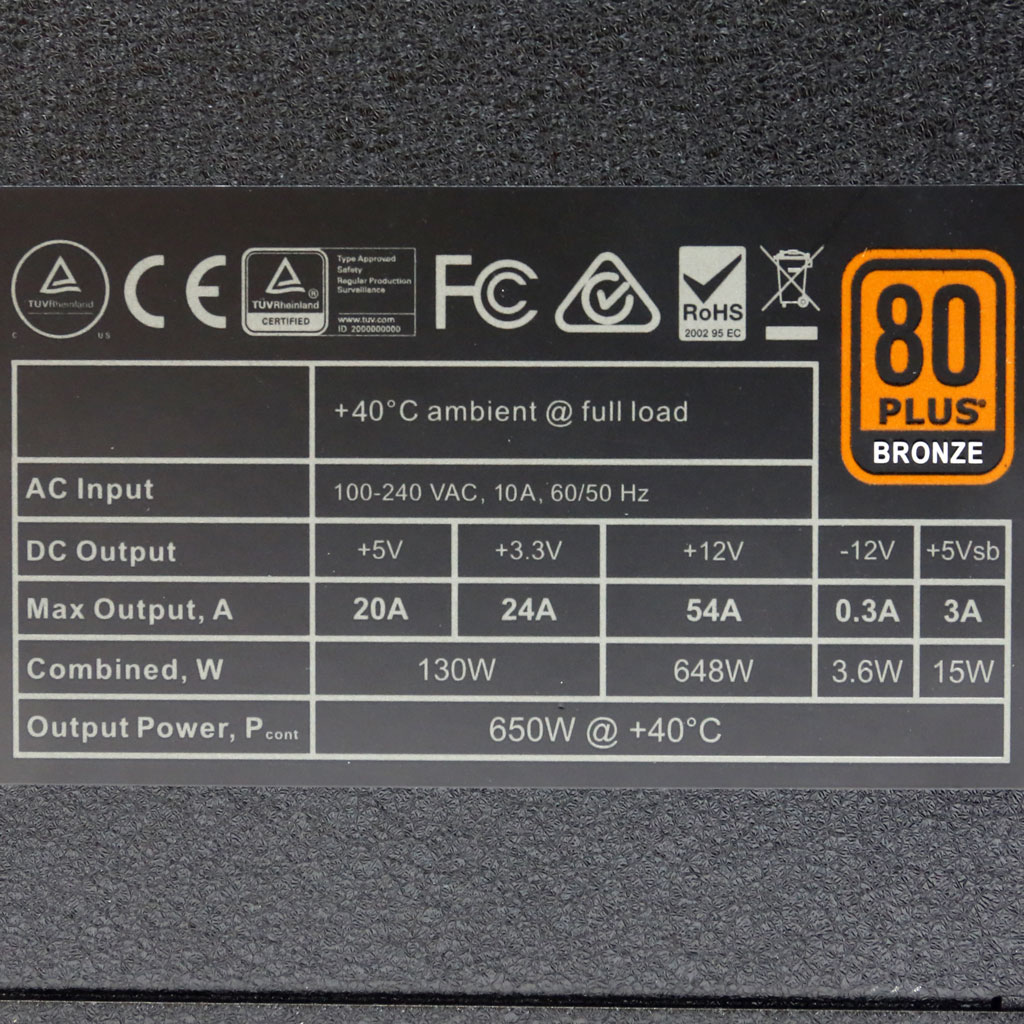

Power specifications label
