Cybenetics Test - Chieftec Polaris 750W

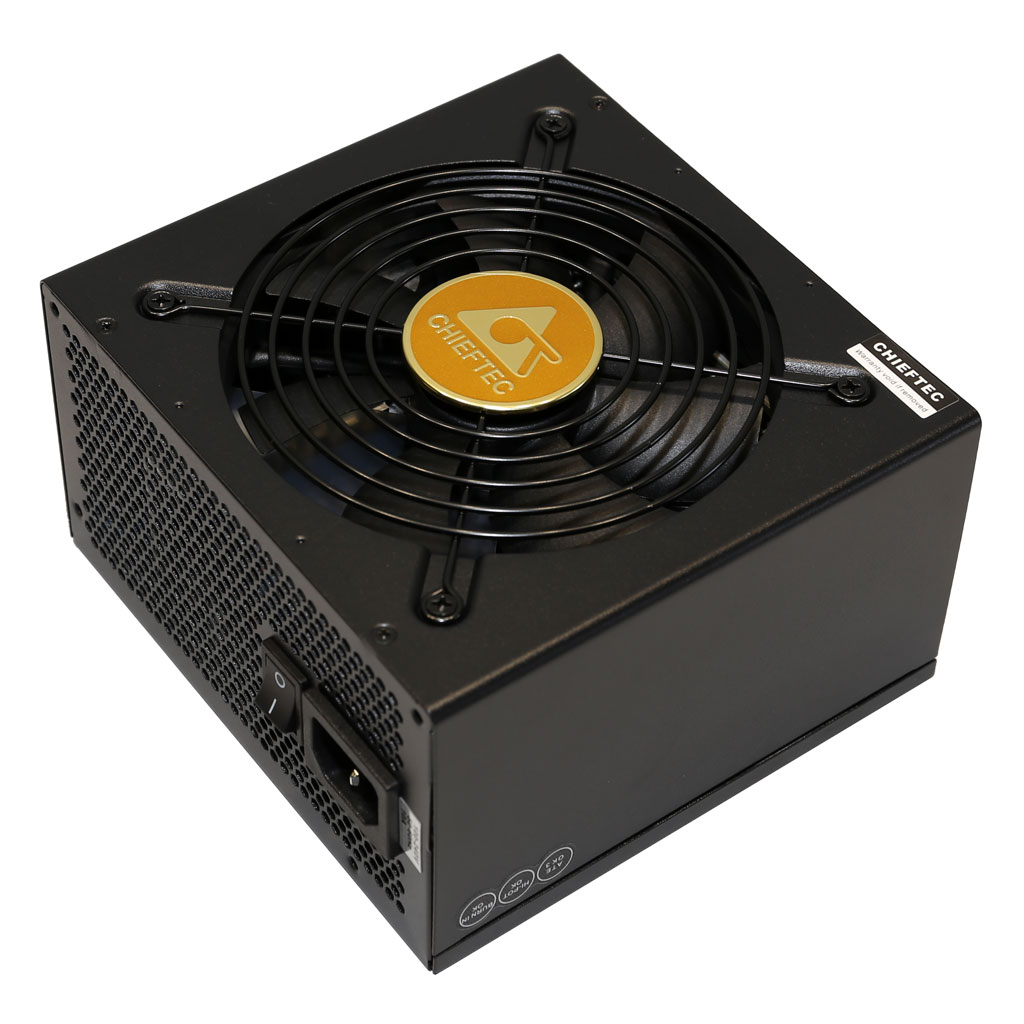

Chieftec Polaris 750W

1938080045191750JGD1F04000047

Lab IDCF75001628

Report: 20PS1628A
Receipt Date: Mar 9, 2020
Test Date: Mar 23, 2020
Report Date: Apr 1, 2020

	115V	230V
效率評比

115V	230V
		噪音評比

Aristeidis Bitziopoulos, Laboratory General Manager

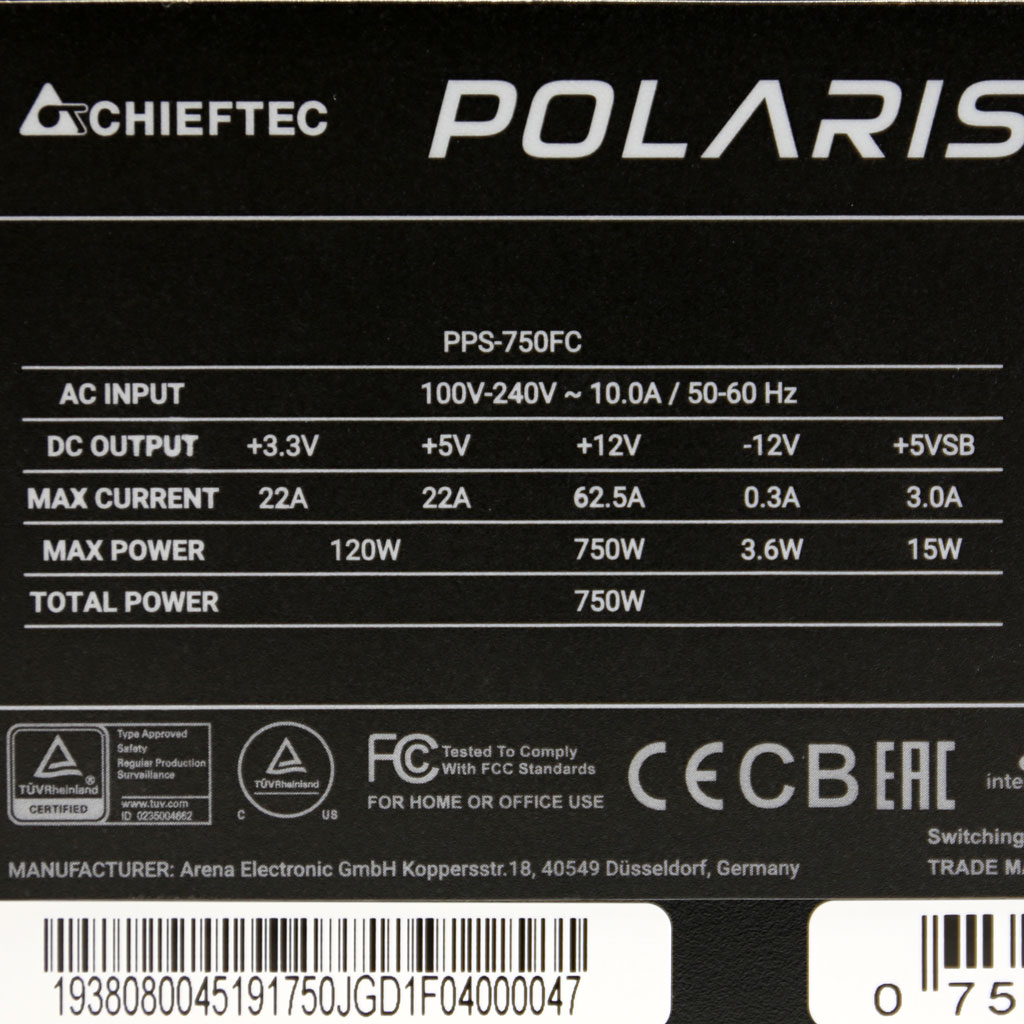

General Information

	Chieftec
製造商 (OEM)	High Power
	Polaris
	PPS-750FC
	1938080045191750JGD1F04000047

(Vrms)	100-240
(Arms)	10
(Hz)	50-60
(W)	750
	ATX12V
	120mm Sleeve Bearing Fan (PY-1225M12s)
	✗
	Fully Modular

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	22	22	62.5	3	0.3
Max. Power	Watts	120		750	15	3.6
Total Max. Power (W)		750

Electronic Loads	Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources	Chroma 6530, Keysight AC6804B
Power Analyzers	N4L PPA1530 x2
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer	UNI-T UT372 x2
Digital Multimeter	Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS	CyberPower OLS3000E 3kVA x2
Transformer	3kVA x2
Testing Methodology	Cybenetics PSU Test Protocol

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (650mm)	1	1	18-22AWG	No
4+4 pin EPS12V (650mm+150mm)	1	2	16-18AWG	No
6+2 pin PCIe (500mm+150mm)	2	4	16-18AWG	No
SATA (450mm+150mm+150mm+150mm)	2	8	18AWG	No
4-pin Molex (450mm+150mm+150mm) / FDD (+150mm)	1	3 / 1	18-22AWG	No
AC Power Cord (1380mm) - C13 coupler	1	1	18AWG	-

Parts Description

General Data	-
Manufacturer (OEM)	High Power
PCB Type	Single Sided
Primary Side	-
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Discharge IC
Inrush Protection	NTC Thermistor & Relay
Bridge Rectifier(s)	2x GBU1006F (600V, 10A @ 100°C)
APFC MOSFETs	2x Infineon IPA60R120P7 (650V, 16A @ 100°C, 0.12Ohm)
APFC Boost Diode	1x USCi UJD06508TS (650V, 8A @ 152°C)
Hold-up Cap(s)	1x Nichicon (400V, 680uF, 2,000h @ 105°C, GG)
Main Switchers	2x Infineon IPA60R180P7S (650V, 11A @ 100°C, 0.18Ohm)
APFC Controller	Infineon ICE3PCS01G
Resonant Controller	Champion CM6901X
Topology	Primary side: Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side	-
+12V MOSFETs	6x Infineon BSC027N04LS (40V, 88A @ 100°C, 2.7mOhm)
5V & 3.3V	DC-DC Converters: 4x Advansed Power AP3R303GMT (30V, 25A @ 70°C, 3.3mOhm) PWM Controllers: ANPEC APW7159C
Filtering Capacitors	Electrolytic: 6x Rubycon (3-6,000h @ 105°C, YXG), 2x Nippon Chemi-Con (1-2,000h @ 105°C, KMG), 5x Teapo (1-3,000h @ 105°C, SC) Polymer: 7x Teapo
Supervisor IC	SITI PS224 (OCP, OVP, UVP, SCP, PG)
Fan Model	Poweryear PY-1225M12S (120mm, 12V, 0.26A, Sleeve Bearing Fan)
5VSB Circuit	-
Rectifier	1xPFC P10V45SP SBR (45V, 10A) & IPS ITA04N65R FET (650V, 4A, 2.8Ohm)
Standby PWM Controller	ON Semiconductor NCP1230
-12V Circuit	-
Rectifier	KEC KIA7912PI (-12V, 1A)

Test Results

Temperature & Compliance Info

(°C /°F)	30-32 / 86-89.6
	✓
	✓

Performance Summary

效率評比	GOLD
噪音評比	Standard++
(>1450 load combinations)	88.794%
Average Noise Output (>1450 Load Combinations)	31.84dBA
(>1450 Load Combinations)	0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load	50.646%
	0.0750W
12V Ripple (Full Load)	17.91mV
5V Ripple (Full Load)	15.02mV
3.3V Ripple (Full Load)	12.12mV
5VSB Ripple (Full Load)	6.66mV
12V Load Regulation	1.51%
5V Load Regulation	2.57%
3.3V Load Regulation	3.62%
5VSB Load Regulation	4.59%
Inrush Current	24.480A

效率評比	GOLD
噪音評比	Standard++
(>1450 load combinations)	90.477%
Average Noise Output (>1450 Load Combinations)	31.63dBA
(>1450 Load Combinations)	0.944
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
	0.1468W
12V Ripple (Full Load)	16.93mV
5V Ripple (Full Load)	15.22mV
3.3V Ripple (Full Load)	13.46mV
5VSB Ripple (Full Load)	6.01mV
12V Load Regulation	1.50%
5V Load Regulation	2.51%
3.3V Load Regulation	3.56%
5VSB Load Regulation	4.50%
Inrush Current	50.660A
12V Transient Response (150%)	0.00V
5V Transient Response (150%)	V
3.3V Transient Response (150%)	V
5VSB Transient Response (150%)	V
	15.00ms
AC Loss to PWR_OK Hold Up Time	12.40ms
PWR_OK Inactive to DC Loss Delay	2.60ms
PSU Timings: T1 (20% / 100%)	60.0ms	94.0ms
PSU Timings: T3 (20% / 100%)	308.0ms	304.0ms
OPP (0.00°C / 0.00°C)	137.31%	0.00%

Hold-Up Time (ms)	15
AC Loss to PWR_OK Hold Up Time (ms)	12.4
PWR_OK Inactive to DC Loss Delay (ms)	2.6

待機電源消耗

Tables

Graphs

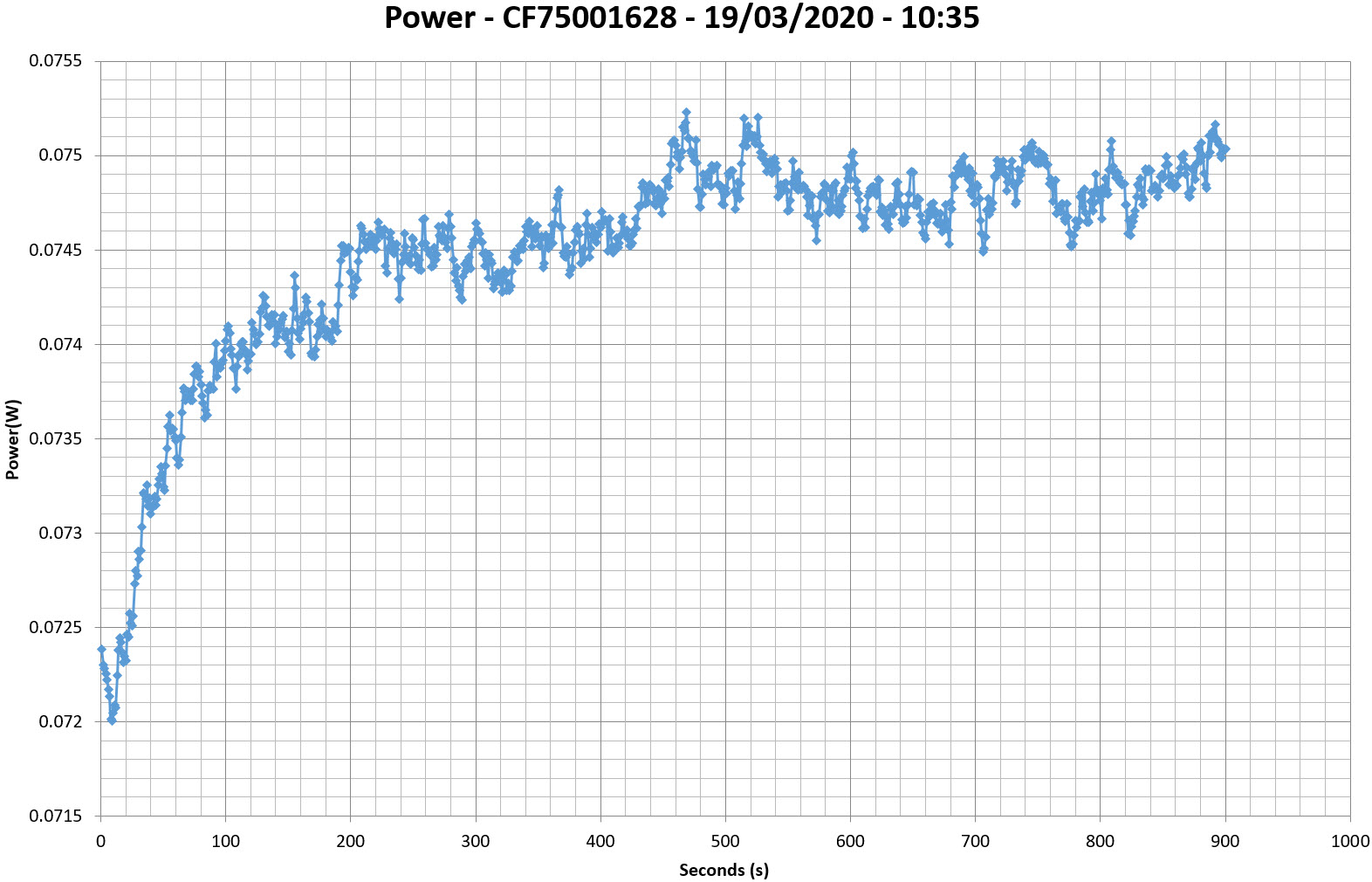

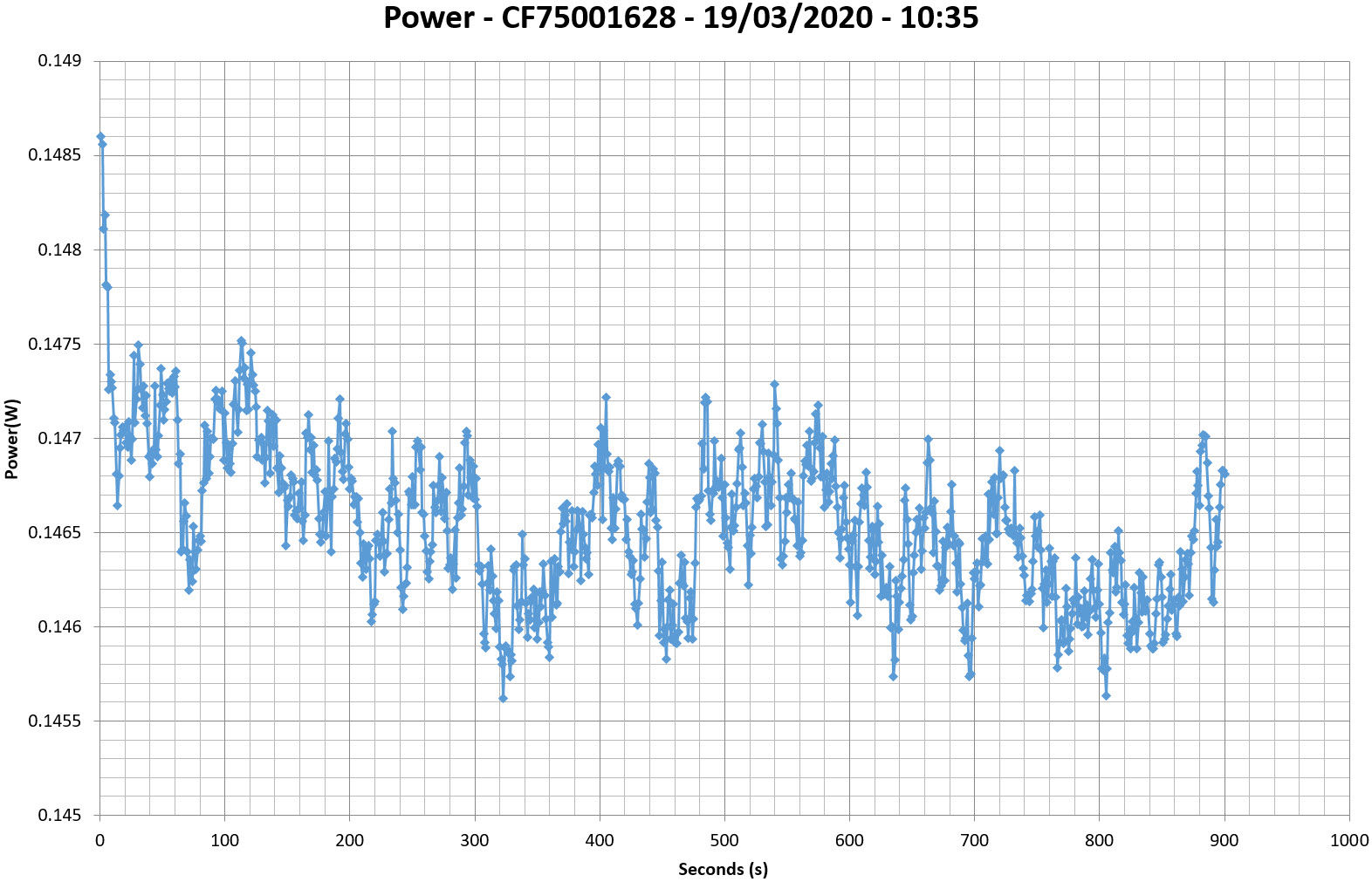

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

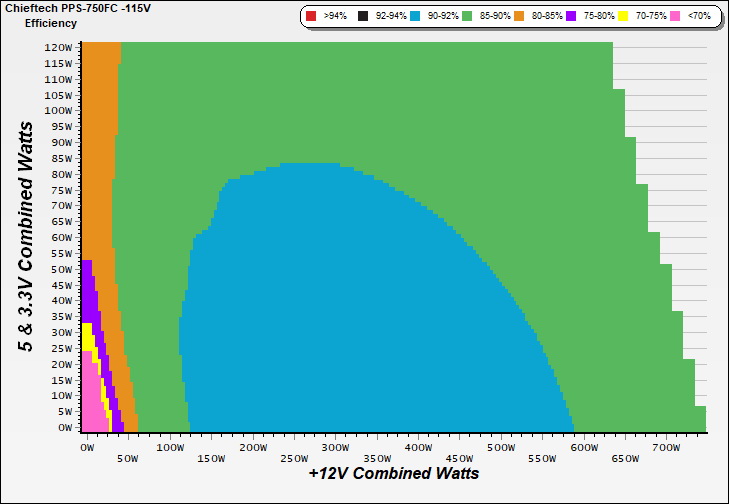

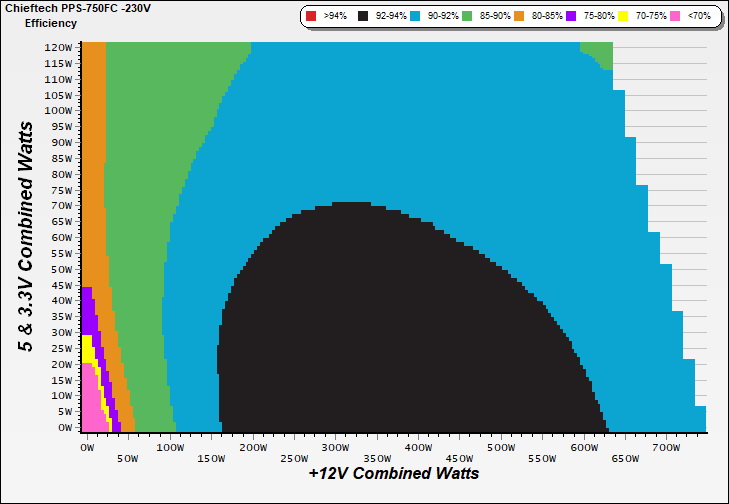

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

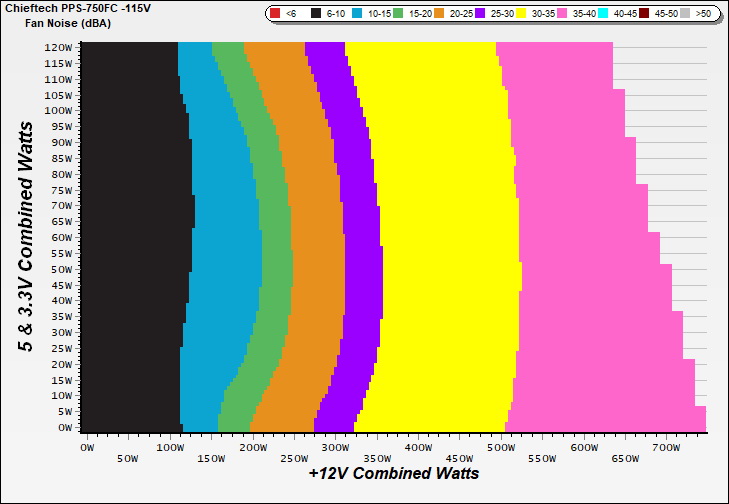

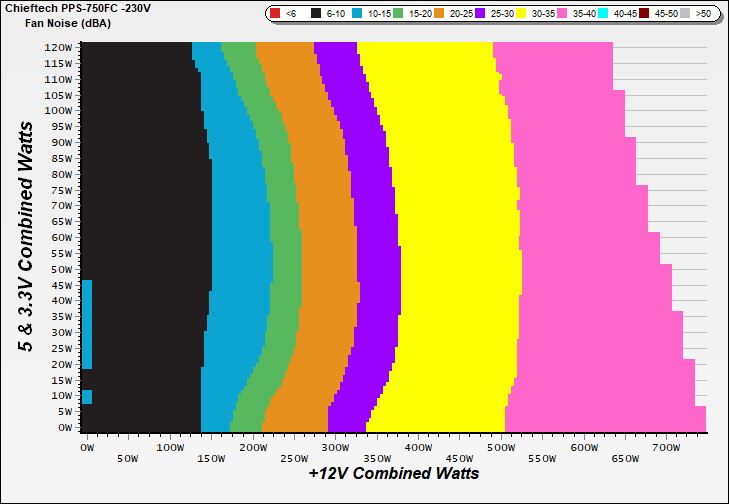

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

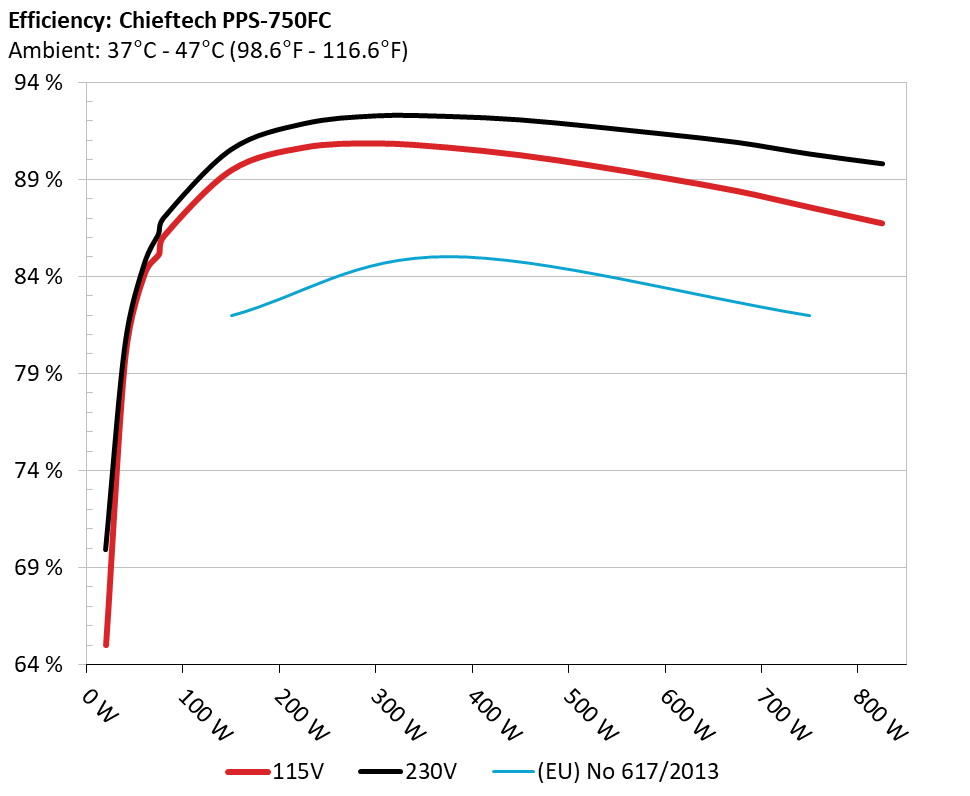

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

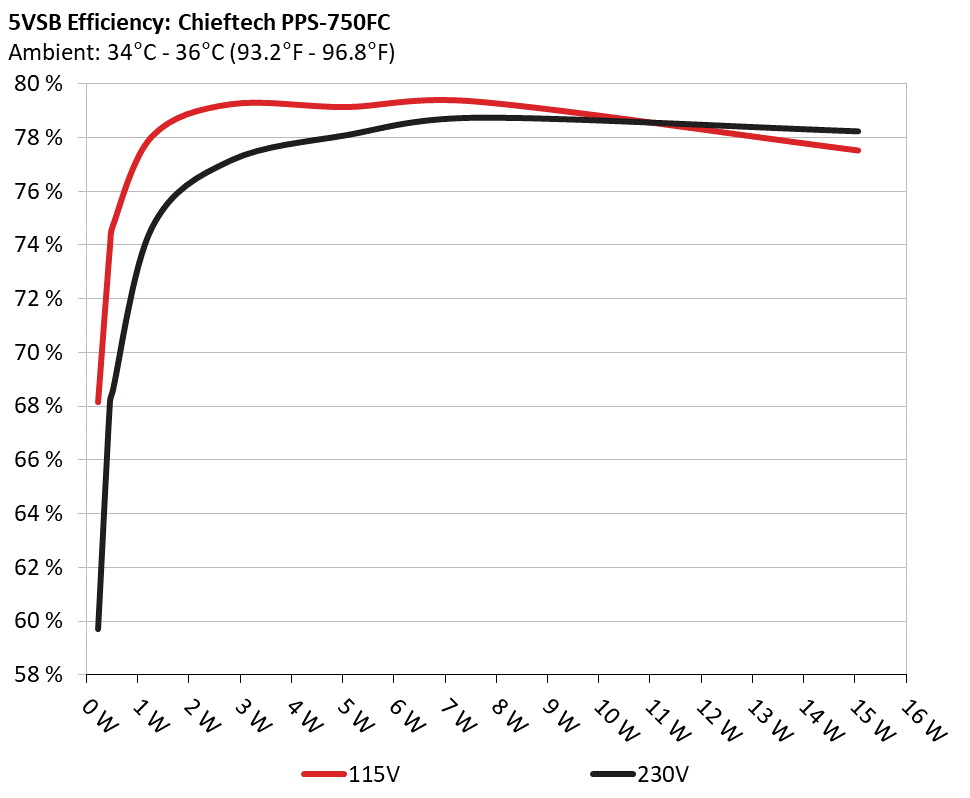

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231	68.142%	0.070
1	5.133V	0.339	68.142%	115.09V
2	0.090A	0.462	73.920%	0.123
2	5.133V	0.625	73.920%	115.09V
3	0.550A	2.814	79.223%	0.350
3	5.117V	3.552	79.223%	115.07V
4	1.000A	5.100	79.119%	0.409
4	5.101V	6.446	79.119%	115.07V
5	1.500A	7.622	79.321%	0.441
5	5.083V	9.609	79.321%	115.07V
6	2.999A	15.056	77.504%	0.483
6	5.021V	19.426	77.504%	115.09V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231	59.690%	0.024
1	5.130V	0.387	59.690%	230.24V
2	0.090A	0.462	68.142%	0.042
2	5.130V	0.678	68.142%	230.25V
3	0.550A	2.816	77.130%	0.187
3	5.119V	3.651	77.130%	230.22V
4	1.000A	5.102	78.084%	0.266
4	5.102V	6.534	78.084%	230.23V
5	1.500A	7.623	78.726%	0.314
5	5.082V	9.683	78.726%	230.24V
6	2.999A	15.065	78.219%	0.379
6	5.024V	19.260	78.219%	230.23V

Supplementary Tests (For Reference)

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	4.343A	1.980A	1.978A	0.986A	74.967	85.146%	1184	27.0	40.45°C	0.966
1	12.287V	5.051V	3.337V	5.075V	88.045	85.146%	1184	27.0	46.01°C	115.12V
2	9.712A	2.978A	2.980A	1.187A	150.035	89.463%	1279	29.7	41.32°C	0.987
2	12.266V	5.037V	3.324V	5.056V	167.706	89.463%	1279	29.7	47.44°C	115.11V
3	15.433A	3.482A	3.485A	1.390A	225.042	90.629%	1398	32.1	41.69°C	0.994
3	12.246V	5.026V	3.313V	5.039V	248.310	90.629%	1398	32.1	48.43°C	115.11V
4	21.170A	3.989A	3.997A	1.594A	300.053	90.845%	1482	34.3	41.85°C	0.997
4	12.227V	5.014V	3.303V	5.022V	330.290	90.845%	1482	34.3	49.67°C	115.11V
5	26.549A	5.002A	5.018A	1.800A	374.597	90.631%	1517	35.1	42.09°C	0.995
5	12.207V	4.999V	3.289V	5.002V	413.320	90.631%	1517	35.1	50.52°C	115.10V
6	31.972A	6.021A	6.046A	2.000A	449.488	90.241%	1533	35.3	42.57°C	0.996
6	12.189V	4.985V	3.276V	4.980V	498.095	90.241%	1533	35.3	51.61°C	115.10V
7	37.446A	7.045A	7.083A	2.220A	524.842	89.694%	1535	35.3	43.59°C	0.996
7	12.170V	4.970V	3.262V	4.958V	585.145	89.694%	1535	35.3	53.12°C	115.09V
8	42.937A	8.003A	8.127A	2.433A	599.784	89.063%	1537	35.3	44.14°C	0.997
8	12.151V	4.955V	3.248V	4.934V	673.435	89.063%	1537	35.3	54.13°C	115.09V
9	48.806A	8.600A	8.649A	2.440A	674.681	88.392%	1539	35.4	45.22°C	0.997
9	12.133V	4.944V	3.237V	4.919V	763.283	88.392%	1539	35.4	55.54°C	115.09V
10	54.502A	9.129A	9.208A	3.075A	749.912	87.559%	1540	35.4	45.50°C	0.997
10	12.113V	4.932V	3.225V	4.881V	856.466	87.559%	1540	35.4	56.29°C	115.08V
11	60.794A	9.141A	9.235A	3.086A	825.142	86.728%	1539	35.4	46.81°C	0.997
11	12.097V	4.924V	3.216V	4.863V	951.413	86.728%	1539	35.4	58.01°C	115.08V
CL1	0.102A	14.005A	13.999A	0.000A	116.676	82.236%	1533	35.3	42.25°C	0.955
CL1	12.274V	4.968V	3.275V	5.046V	141.880	82.236%	1533	35.3	50.55°C	115.11V
CL2	62.517A	1.000A	1.000A	1.000A	771.640	88.215%	1543	35.5	44.95°C	0.997
CL2	12.131V	4.992V	3.269V	4.985V	874.725	88.215%	1543	35.5	56.41°C	115.08V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	4.342A	1.979A	1.979A	0.985A	74.965	86.201%	993	21.2	40.04°C	0.862
1	12.290V	5.052V	3.337V	5.076V	86.965	86.201%	993	21.2	45.12°C	230.23V
2	9.710A	2.979A	2.979A	1.187A	150.033	90.529%	1132	26.3	40.89°C	0.933
2	12.268V	5.037V	3.324V	5.057V	165.730	90.529%	1132	26.3	46.71°C	230.23V
3	15.430A	3.481A	3.486A	1.389A	225.042	91.855%	1275	29.6	41.58°C	0.962
3	12.248V	5.026V	3.313V	5.040V	244.997	91.855%	1275	29.6	47.83°C	230.23V
4	21.166A	3.989A	3.999A	1.593A	300.052	92.262%	1449	33.6	41.76°C	0.977
4	12.229V	5.015V	3.303V	5.022V	325.219	92.262%	1449	33.6	48.85°C	230.23V
5	26.547A	5.001A	5.017A	1.799A	374.618	92.235%	1511	34.9	42.07°C	0.982
5	12.209V	5.000V	3.289V	5.003V	406.158	92.235%	1511	34.9	49.83°C	230.23V
6	31.971A	6.019A	6.046A	2.000A	449.509	92.056%	1536	35.3	42.77°C	0.986
6	12.190V	4.986V	3.276V	4.982V	488.297	92.056%	1536	35.3	51.17°C	230.23V
7	37.445A	7.044A	7.081A	2.218A	524.858	91.710%	1543	35.5	43.52°C	0.989
7	12.171V	4.971V	3.262V	4.960V	572.303	91.710%	1543	35.5	52.89°C	230.23V
8	42.936A	8.003A	8.127A	2.431A	599.821	91.321%	1545	35.5	43.91°C	0.993
8	12.152V	4.956V	3.248V	4.938V	656.824	91.321%	1545	35.5	53.97°C	230.23V
9	48.799A	8.598A	8.648A	2.439A	674.692	90.895%	1548	35.6	44.37°C	0.995
9	12.135V	4.945V	3.237V	4.922V	742.276	90.895%	1548	35.6	55.18°C	230.23V
10	54.504A	9.126A	9.210A	3.073A	749.934	90.296%	1548	35.6	45.34°C	0.997
10	12.113V	4.933V	3.225V	4.883V	830.527	90.296%	1548	35.6	56.42°C	230.23V
11	60.804A	9.142A	9.234A	3.082A	825.161	89.796%	1548	35.6	46.81°C	0.997
11	12.095V	4.925V	3.217V	4.869V	918.925	89.796%	1548	35.6	58.53°C	230.23V
CL1	0.104A	14.004A	13.999A	0.000A	116.710	83.039%	1538	35.4	42.55°C	0.851
CL1	12.273V	4.970V	3.274V	5.049V	140.548	83.039%	1538	35.4	49.75°C	230.24V
CL2	62.521A	1.000A	1.000A	1.000A	771.504	90.989%	1551	35.6	45.01°C	0.996
CL2	12.128V	4.992V	3.269V	4.987V	847.910	90.989%	1551	35.6	56.85°C	230.22V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.207A	0.494A	0.491A	0.196A	19.999	65.010%	760	13.6	0.813
1	12.301V	5.068V	3.351V	5.116V	30.763	65.010%	760	13.6	115.13V
2	2.414A	0.988A	0.985A	0.392A	39.988	79.847%	910	18.4	0.894
2	12.299V	5.062V	3.346V	5.106V	50.081	79.847%	910	18.4	115.13V
3	3.626A	1.483A	1.480A	0.589A	60.018	84.125%	938	19.6	0.961
3	12.293V	5.056V	3.341V	5.094V	71.344	84.125%	938	19.6	115.13V
4	4.832A	1.980A	1.976A	0.787A	79.967	86.067%	1071	23.9	0.959
4	12.287V	5.051V	3.337V	5.083V	92.913	86.067%	1071	23.9	115.12V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.207A	0.491A	0.492A	0.196A	19.995	69.937%	761	13.6	0.568
1	12.307V	5.069V	3.352V	5.114V	28.590	69.937%	761	13.6	230.23V
2	2.413A	0.988A	0.985A	0.392A	39.984	80.436%	804	14.7	0.694
2	12.302V	5.063V	3.346V	5.105V	49.709	80.436%	804	14.7	230.23V
3	3.624A	1.483A	1.483A	0.589A	60.014	84.633%	911	18.4	0.817
3	12.296V	5.057V	3.341V	5.093V	70.911	84.633%	911	18.4	230.23V
4	4.830A	1.980A	1.979A	0.787A	79.965	86.997%	937	19.5	0.865
4	12.290V	5.051V	3.337V	5.082V	91.917	86.997%	937	19.5	230.24V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	8.50mV	8.80mV	9.30mV	3.20mV	Pass
20% Load	9.90mV	9.60mV	9.70mV	3.20mV	Pass
30% Load	8.50mV	10.70mV	11.60mV	3.40mV	Pass
40% Load	8.20mV	11.70mV	10.70mV	3.40mV	Pass
50% Load	9.10mV	12.10mV	10.30mV	3.30mV	Pass
60% Load	9.80mV	12.00mV	9.90mV	3.30mV	Pass
70% Load	10.70mV	12.40mV	9.90mV	3.70mV	Pass
80% Load	11.70mV	13.10mV	11.20mV	4.00mV	Pass
90% Load	12.70mV	15.20mV	12.50mV	4.60mV	Pass
100% Load	17.90mV	15.00mV	12.10mV	6.70mV	Pass
110% Load	19.50mV	16.70mV	12.70mV	6.90mV	Pass
Crossload1	15.50mV	15.30mV	12.60mV	9.80mV	Pass
Crossload2	18.40mV	11.10mV	10.20mV	5.10mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	8.80mV	9.00mV	11.30mV	3.40mV	Pass
20% Load	11.00mV	9.50mV	10.60mV	3.40mV	Pass
30% Load	9.00mV	10.60mV	12.00mV	3.50mV	Pass
40% Load	8.00mV	10.70mV	10.90mV	3.50mV	Pass
50% Load	8.20mV	11.40mV	11.20mV	3.70mV	Pass
60% Load	8.90mV	12.10mV	10.90mV	3.50mV	Pass
70% Load	9.90mV	12.70mV	11.30mV	3.80mV	Pass
80% Load	11.00mV	13.20mV	12.50mV	4.00mV	Pass
90% Load	11.40mV	13.90mV	11.60mV	4.60mV	Pass
100% Load	16.90mV	15.20mV	13.50mV	6.00mV	Pass
110% Load	20.00mV	16.10mV	14.40mV	6.30mV	Pass
Crossload1	17.30mV	15.70mV	15.30mV	9.70mV	Pass
Crossload2	18.10mV	10.90mV	11.70mV	5.30mV	Pass

The results above are not used in the certification process

Chieftec Polaris 750W

Top side

Power specifications label
