CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
EVGA 450Β
Serial Number1603530425800472
Lab ID162
  • Report:
  • Receipt Date: Aug 1, 2018
  • Test Date: Aug 14, 2018
  • Report Date: Aug 18, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEVGA
Manufacturer (OEM)HEC
SeriesB
Model Number
Serial Number1603530425800472
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)8-4
Rated Frequency (Hz)50-60
Rated Power (W)450
TypeATX12V
Cooling120mm Sleeve Bearing Fan
(EFS-12E12H)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 35 3 0.3
Watts 120 420 15 3.6
Total Max. Power (W) 450

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (560mm) 1 1 18-20AWG
4+4 pin EPS12V (620mm) 1 1 18AWG
6+2 pin PCIe (560mm) 1 1 20AWG
SATA (460mm+115mm) 2 4 20AWG
4 pin Molex (460mm+120mm+120mm)+FDD (+120mm) 1 3 / 1 20-22AWG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.7
AC Loss to PWR_OK Hold Up Time (ms)11.8
PWR_OK Inactive to DC Loss Delay (ms)5.9

Vampire Power

Graphs

INFO

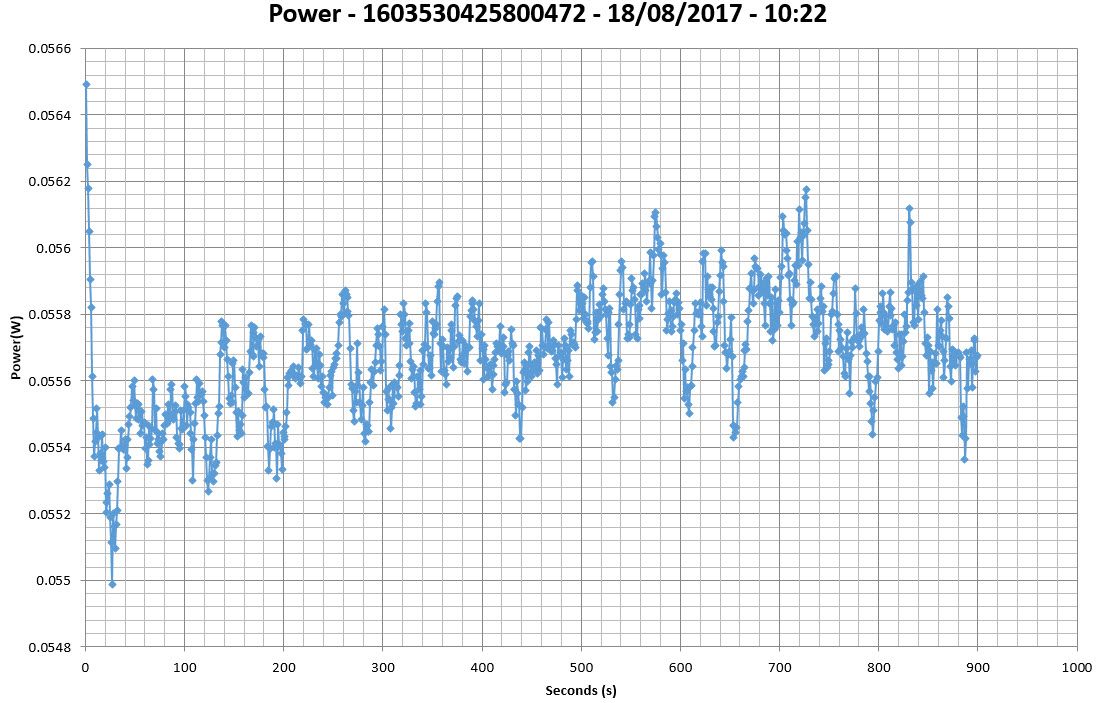

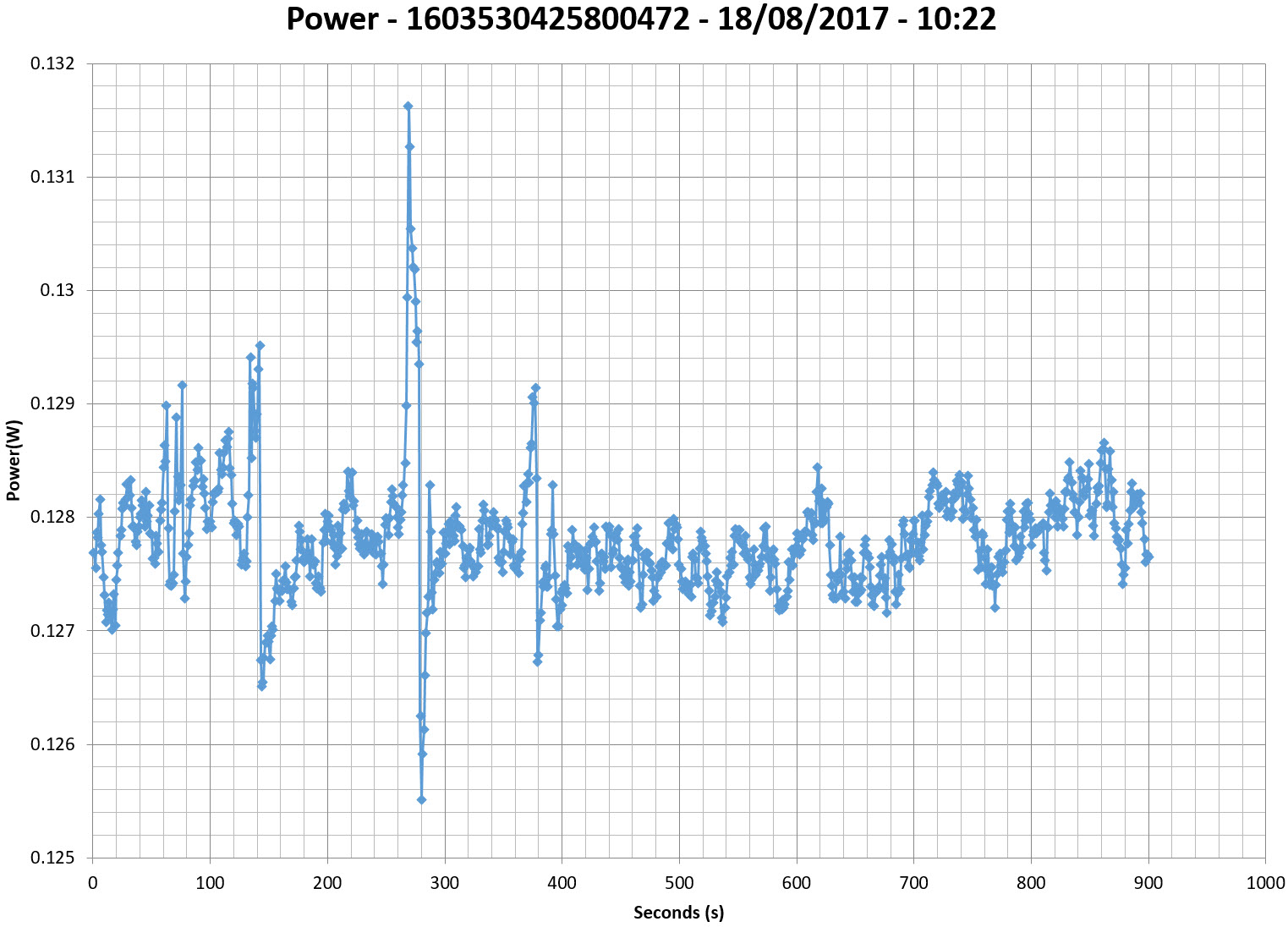

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

Efficiency Graph

INFO

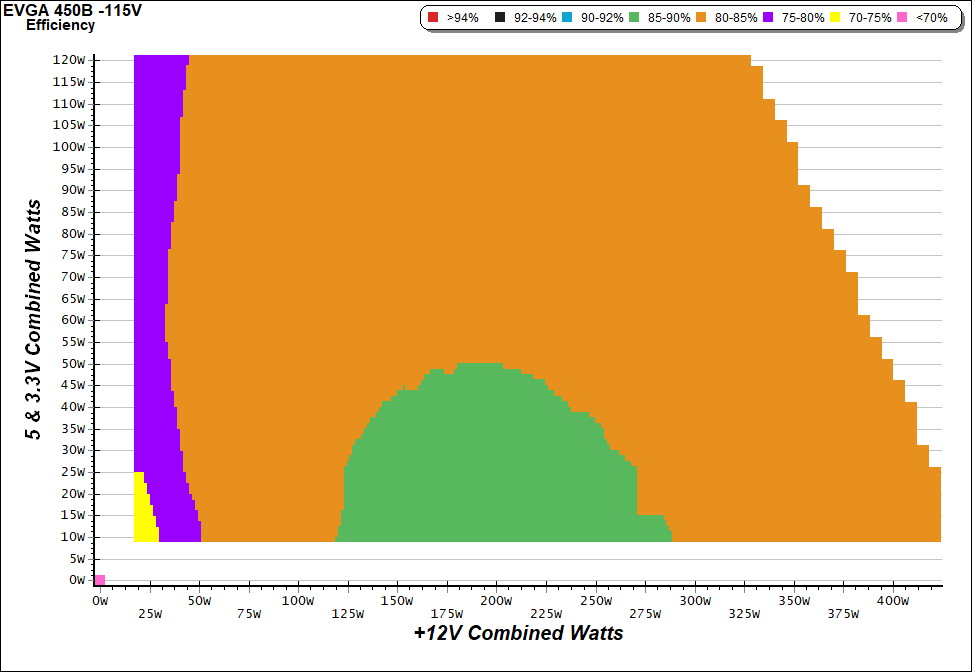

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

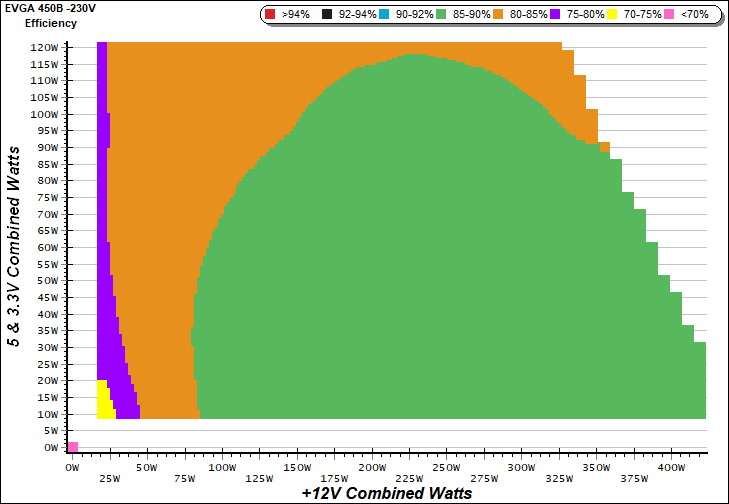

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Noise Graph

INFO

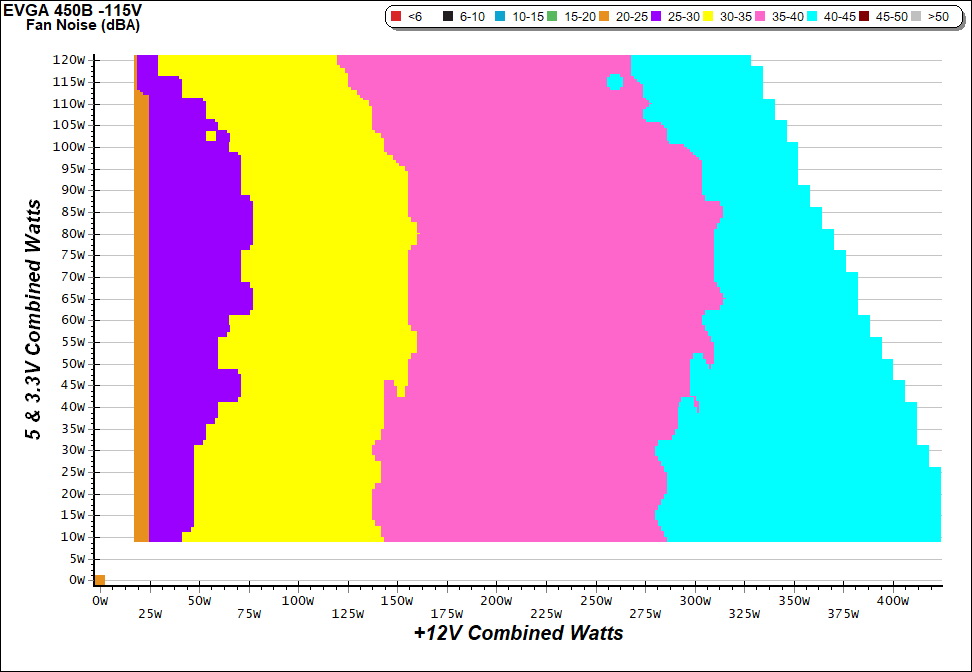

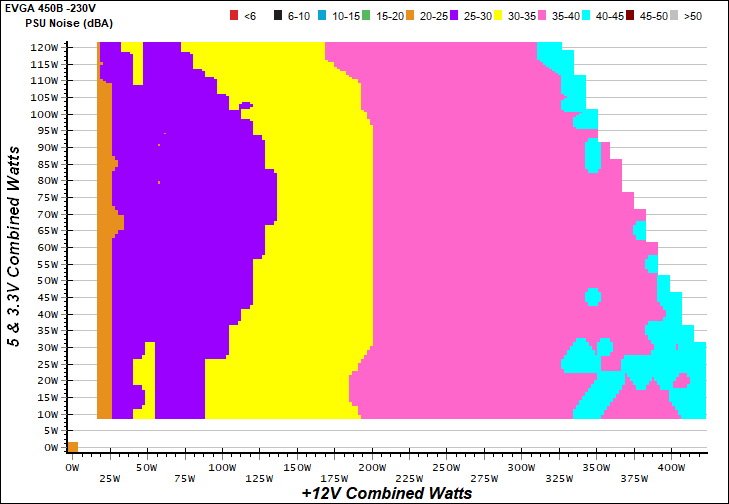

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

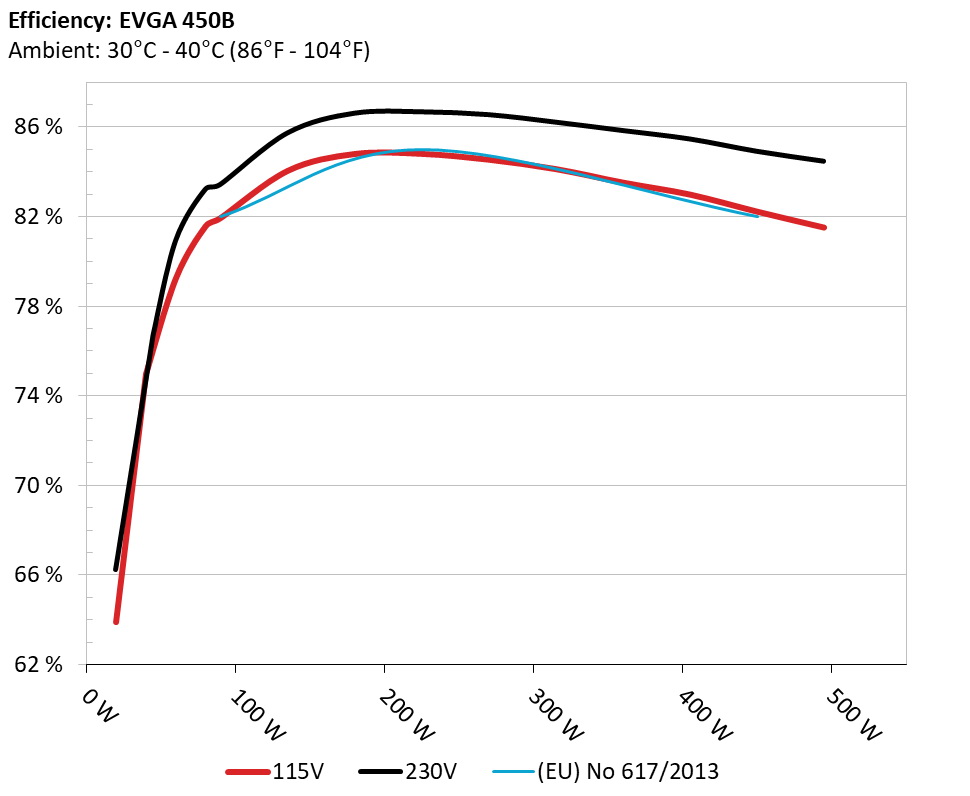

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

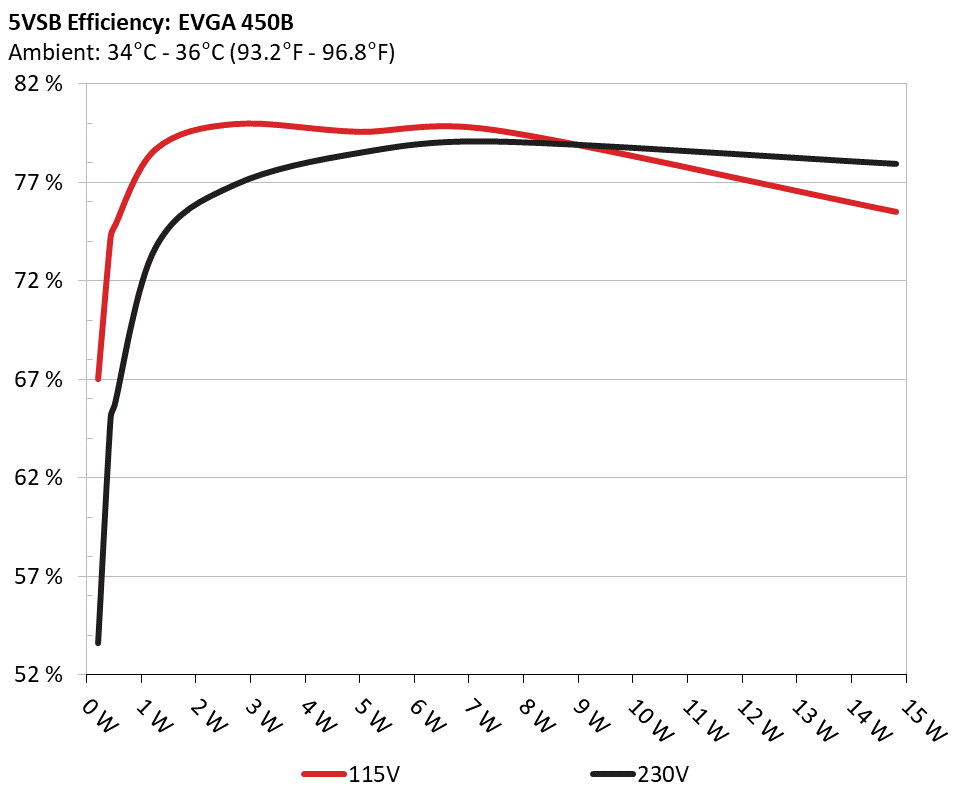

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.209 66.987% 0.057
5.016V 0.312 115.17V
2 0.087A 0.437 74.194% 0.103
5.015V 0.589 115.17V
3 0.542A 2.712 79.953% 0.305
5.004V 3.392 115.16V
4 1.002A 5.000 79.554% 0.357
4.991V 6.285 115.16V
5 1.502A 7.473 79.644% 0.385
4.977V 9.383 115.16V
6 3.001A 14.815 75.490% 0.431
4.936V 19.625 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.209 53.590% 0.023
5.016V 0.390 230.41V
2 0.087A 0.437 65.030% 0.038
5.015V 0.672 230.41V
3 0.542A 2.712 76.893% 0.168
5.003V 3.527 230.40V
4 1.002A 4.999 78.514% 0.240
4.989V 6.367 230.40V
5 1.502A 7.473 79.088% 0.282
4.977V 9.449 230.40V
6 3.001A 14.812 77.954% 0.342
4.935V 19.001 230.41V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 1.900A 1.975A 1.950A 1.005A 44.750 74.995% 587 23.4 31.72°C 0.892
12.196V 5.057V 3.380V 4.974V 59.671 37.26°C 115.19V
2 4.837A 2.971A 2.934A 1.209A 89.776 81.957% 612 24.5 32.03°C 0.928
12.177V 5.045V 3.372V 4.958V 109.540 38.09°C 115.19V
3 8.135A 3.466A 3.447A 1.416A 134.892 84.067% 691 26.7 32.55°C 0.952
12.148V 5.045V 3.361V 4.941V 160.457 39.61°C 115.20V
4 11.435A 3.963A 3.935A 1.621A 179.779 84.818% 837 30.6 33.26°C 0.960
12.122V 5.043V 3.353V 4.926V 211.959 41.15°C 115.20V
5 14.398A 4.972A 4.932A 1.831A 224.739 84.824% 987 35.6 33.94°C 0.965
12.103V 5.030V 3.343V 4.906V 264.947 42.47°C 115.20V
6 17.375A 5.979A 5.936A 2.042A 269.729 84.562% 1168 37.3 34.96°C 0.970
12.084V 5.017V 3.334V 4.889V 318.972 44.18°C 115.20V
7 20.363A 6.999A 6.950A 2.256A 314.773 84.143% 1319 39.7 35.76°C 0.975
12.064V 5.005V 3.323V 4.871V 374.091 45.76°C 115.24V
8 23.355A 8.015A 7.970A 2.470A 359.693 83.538% 1470 41.6 36.97°C 0.978
12.045V 4.991V 3.312V 4.851V 430.574 47.20°C 115.20V
9 26.822A 8.514A 8.506A 2.475A 404.816 83.002% 1581 43.1 37.76°C 0.980
12.014V 4.991V 3.304V 4.840V 487.719 48.85°C 115.25V
10 30.031A 9.030A 9.017A 3.116A 449.640 82.243% 1710 44.7 39.01°C 0.982
11.985V 4.989V 3.292V 4.809V 546.718 50.68°C 115.24V
11 33.887A 9.010A 9.040A 3.125A 494.624 81.532% 1776 45.6 40.00°C 0.983
11.948V 5.000V 3.285V 4.799V 606.665 52.38°C 115.24V
CL1 0.099A 14.027A 14.004A 0.004A 112.647 76.131% 1443 41.2 38.87°C 0.949
12.572V 4.595V 3.351V 4.938V 147.964 47.89°C 115.20V
CL2 34.958A 1.005A 1.002A 1.002A 426.573 82.830% 1667 43.8 39.77°C 0.981
11.817V 5.214V 3.314V 4.904V 514.996 50.98°C 115.24V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 1.906A 1.978A 1.952A 1.004A 44.840 76.151% 733 27.8 40.05°C 0.801
12.195V 5.058V 3.378V 4.978V 58.883 43.58°C 230.32V
2 4.799A 2.972A 2.939A 1.210A 89.341 83.242% 837 30.6 40.70°C 0.869
12.177V 5.048V 3.368V 4.961V 107.327 44.65°C 230.31V
3 8.103A 3.467A 3.423A 1.415A 134.431 85.584% 970 35.0 41.12°C 0.898
12.148V 5.048V 3.358V 4.947V 157.075 45.85°C 230.30V
4 11.424A 3.962A 3.940A 1.622A 179.664 86.465% 1120 36.8 41.86°C 0.919
12.121V 5.048V 3.349V 4.931V 207.788 46.95°C 230.30V
5 14.414A 4.965A 4.942A 1.832A 224.937 86.568% 1275 39.0 42.17°C 0.930
12.102V 5.035V 3.338V 4.914V 259.838 47.77°C 230.29V
6 17.347A 5.974A 5.950A 2.042A 269.466 86.469% 1400 40.7 42.78°C 0.939
12.086V 5.023V 3.328V 4.898V 311.633 48.67°C 230.29V
7 20.357A 6.986A 6.965A 2.255A 314.755 86.220% 1530 42.4 43.17°C 0.947
12.067V 5.011V 3.316V 4.880V 365.059 49.50°C 230.29V
8 23.383A 8.001A 7.987A 2.469A 360.075 85.830% 1667 43.8 44.02°C 0.952
12.046V 5.000V 3.305V 4.861V 419.521 50.87°C 230.28V
9 26.837A 8.499A 8.495A 2.475A 404.980 85.458% 1735 45.1 44.23°C 0.956
12.016V 5.001V 3.296V 4.850V 473.895 51.47°C 230.29V
10 30.037A 9.004A 9.040A 3.112A 449.797 84.942% 1830 45.7 45.23°C 0.961
11.988V 4.999V 3.285V 4.822V 529.534 52.89°C 230.29V
11 33.867A 8.986A 9.061A 3.117A 494.488 84.567% 1830 45.7 45.77°C 0.965
11.952V 5.008V 3.278V 4.814V 584.732 53.89°C 230.26V
CL1 0.129A 14.000A 13.999A 0.000A 112.832 77.629% 1360 40.2 43.31°C 0.893
12.559V 4.616V 3.328V 4.939V 145.348 49.10°C 230.25V
CL2 34.994A 1.001A 0.999A 1.000A 427.115 85.705% 1620 43.4 45.57°C 0.958
11.821V 5.217V 3.320V 4.912V 498.352 52.84°C 230.26V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.200A 0.491A 0.469A 0.196A 19.680 63.911% 556 22.5 0.855
12.171V 5.101V 3.388V 5.005V 30.793 115.18V
2 2.421A 0.980A 0.973A 0.401A 39.746 74.992% 556 22.5 0.889
12.170V 5.089V 3.384V 4.994V 53.000 115.18V
3 3.653A 1.468A 1.477A 0.601A 59.883 79.270% 556 22.5 0.908
12.166V 5.079V 3.379V 4.983V 75.543 115.18V
4 4.866A 1.976A 1.953A 0.801A 79.773 81.590% 587 23.4 0.924
12.162V 5.069V 3.375V 4.974V 97.773 115.18V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.202A 0.492A 0.471A 0.200A 19.735 65.755% 587 23.4 0.702
12.168V 5.106V 3.388V 5.007V 30.013 230.34V
2 2.446A 0.985A 0.977A 0.400A 40.084 76.563% 632 25.1 0.786
12.168V 5.092V 3.383V 4.998V 52.354 230.34V
3 3.624A 1.478A 1.450A 0.602A 59.497 80.735% 632 25.1 0.827
12.165V 5.082V 3.378V 4.987V 73.694 230.34V
4 4.874A 1.969A 1.956A 0.804A 79.847 82.916% 691 26.7 0.859
12.155V 5.082V 3.373V 4.975V 96.299 230.25V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.1 mV 24.3 mV 17.9 mV 10.4 mV Pass
20% Load 13.4 mV 28.8 mV 20.5 mV 10.9 mV Pass
30% Load 14.2 mV 28.3 mV 21.2 mV 11.2 mV Pass
40% Load 16.0 mV 26.7 mV 21.3 mV 13.1 mV Pass
50% Load 16.9 mV 29.3 mV 23.1 mV 16.0 mV Pass
60% Load 18.4 mV 30.3 mV 22.9 mV 16.8 mV Pass
70% Load 19.7 mV 29.0 mV 20.5 mV 15.1 mV Pass
80% Load 21.0 mV 28.4 mV 18.7 mV 16.3 mV Pass
90% Load 25.6 mV 27.7 mV 17.5 mV 16.8 mV Pass
100% Load 29.8 mV 27.5 mV 16.0 mV 23.5 mV Pass
110% Load 34.8 mV 30.5 mV 15.7 mV 23.4 mV Pass
Crossload 1 26.3 mV 49.4 mV 24.3 mV 16.0 mV Pass
Crossload 2 37.2 mV 20.9 mV 13.4 mV 18.2 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.9 mV 10.1 mV 14.2 mV 7.8 mV Pass
20% Load 11.7 mV 11.1 mV 15.2 mV 8.8 mV Pass
30% Load 12.6 mV 13.6 mV 15.5 mV 9.1 mV Pass
40% Load 14.8 mV 14.8 mV 16.1 mV 11.0 mV Pass
50% Load 16.5 mV 16.2 mV 16.0 mV 13.4 mV Pass
60% Load 18.9 mV 17.9 mV 17.3 mV 16.8 mV Pass
70% Load 20.6 mV 16.7 mV 18.4 mV 15.9 mV Pass
80% Load 23.7 mV 20.5 mV 20.8 mV 16.4 mV Pass
90% Load 26.6 mV 22.0 mV 21.7 mV 16.5 mV Pass
100% Load 31.7 mV 22.0 mV 24.8 mV 26.3 mV Pass
110% Load 35.2 mV 21.9 mV 23.8 mV 24.9 mV Pass
Crossload 1 24.8 mV 43.0 mV 36.8 mV 13.5 mV Pass
Crossload 2 36.4 mV 19.4 mV 14.3 mV 16.2 mV Pass

The results above are not used in the certification process

EVGA 450Β

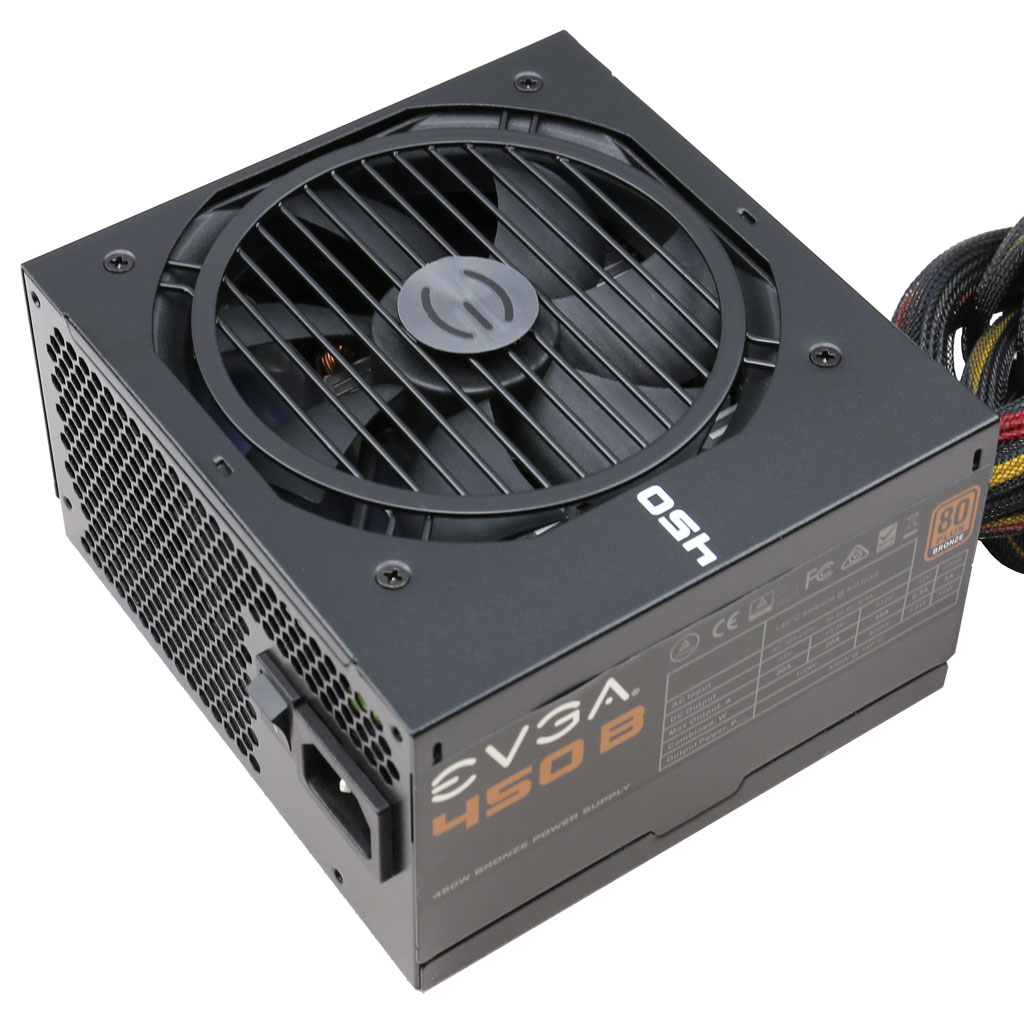

Top side

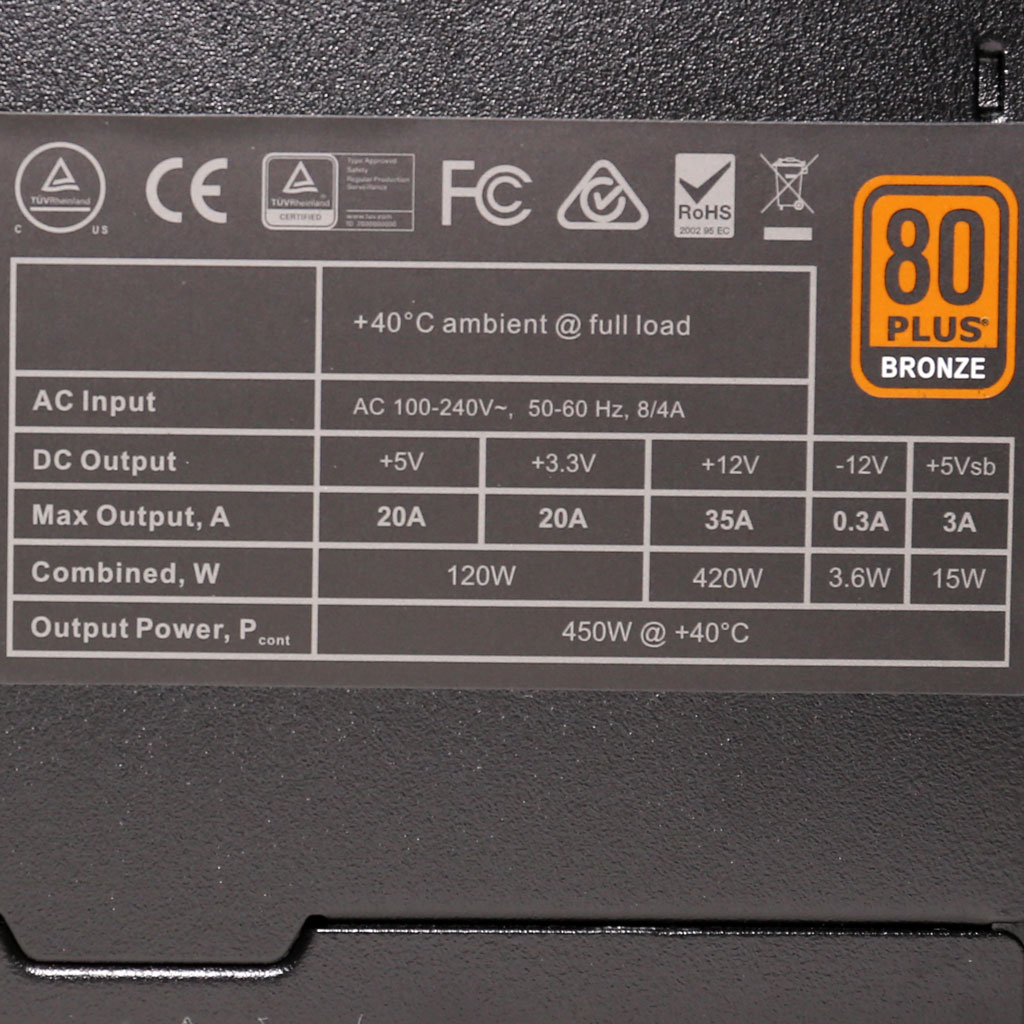

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
