Antec Signature Titanium 1000W
ST1000GSN200200207
Lab IDAN10001615
  • Report: 20PS1615A
  • Receipt Date: Feb 26, 2020
  • Test Date: Mar 3, 2020
  • Report Date: Mar 4, 2020
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Antec
製造商 (OEM)Seasonic
Signature Titanium
X9000A505-18
ST1000GSN200200207

(Vrms)100-240
(Arms)13-6.5
(Hz)50-60
(W)1000
ATX12V
135mm Fluid Dynamic Bearing Fan
(HA13525M12F-Z)
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps25258330.3
Watts125996153.6
Total Max. Power (W)1000

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18-22AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (750mm) 4 4 18AWG No
6+2 pin PCIe (680mm+70mm) 2 4 18AWG No
SATA (400mm+115mm+115mm+115mm) 2 8 18AWG No
SATA (350mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (300mm+150mm) 1 2 18AWG No
4-pin Molex (450mm+120mm+120mm) 1 3 18AWG No
4-pin Molex (350mm+120mm) 1 2 18AWG No
FDD Adapter (105mm) 1 1 22AWG No
4 pin Molex to SATA 3.3V Adapter (150mm+150mm) 1 2 18AWG No
OC Link Cable (460mm) 1 1 24AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 16AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

Hold-Up Time (ms)24.8
AC Loss to PWR_OK Hold Up Time (ms)21
PWR_OK Inactive to DC Loss Delay (ms)3.8

待機電源消耗

Graphs

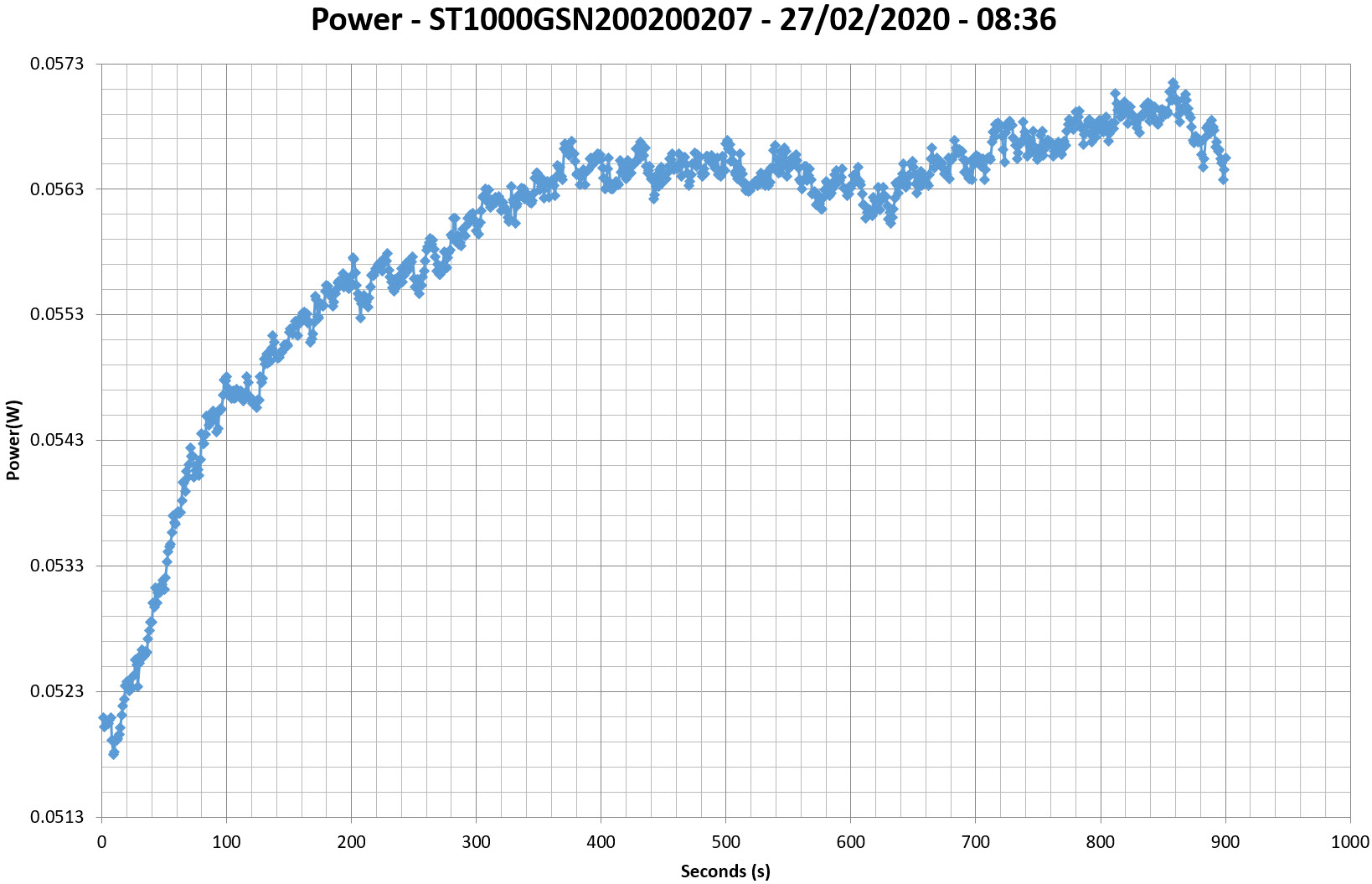

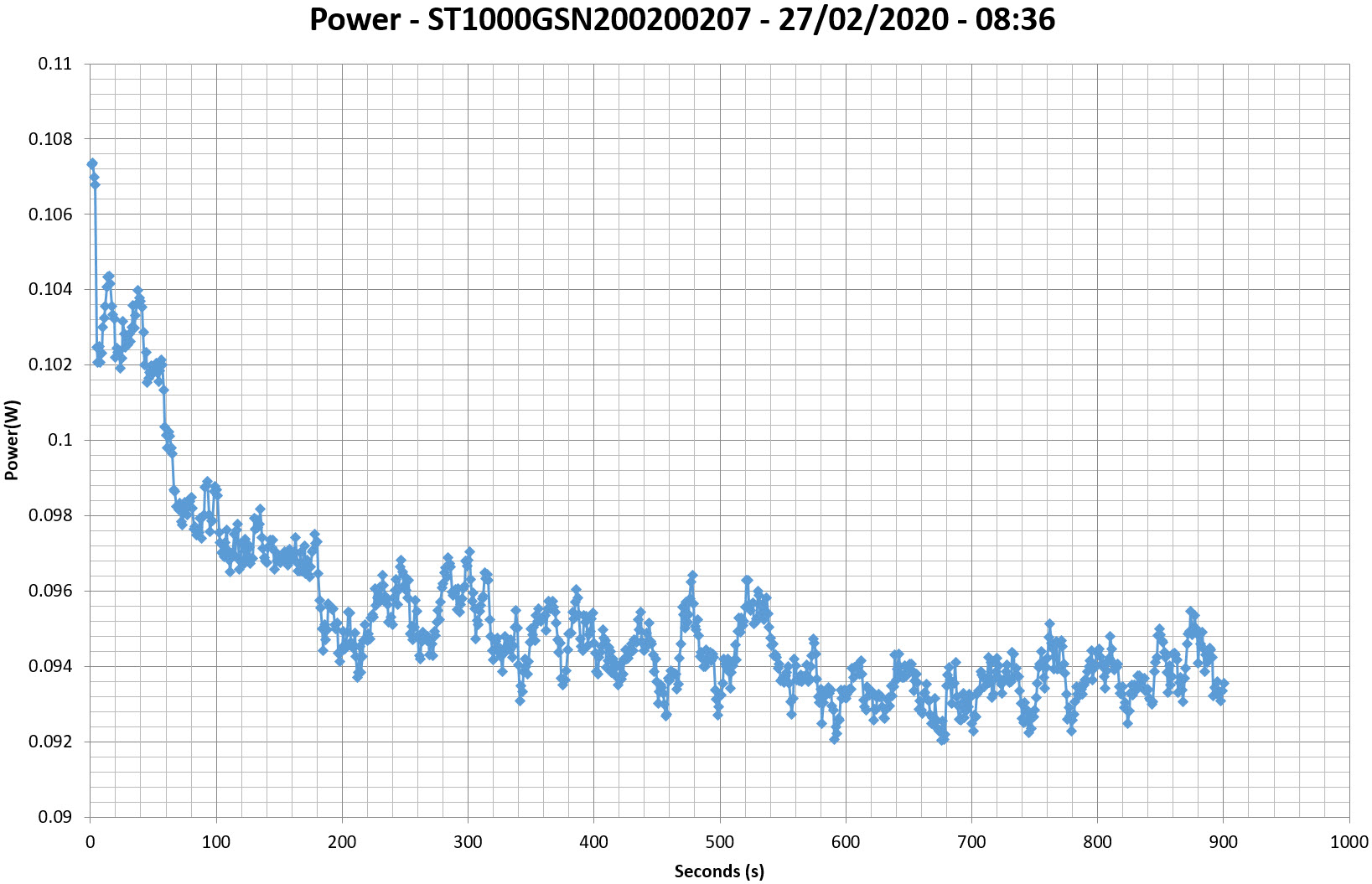

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

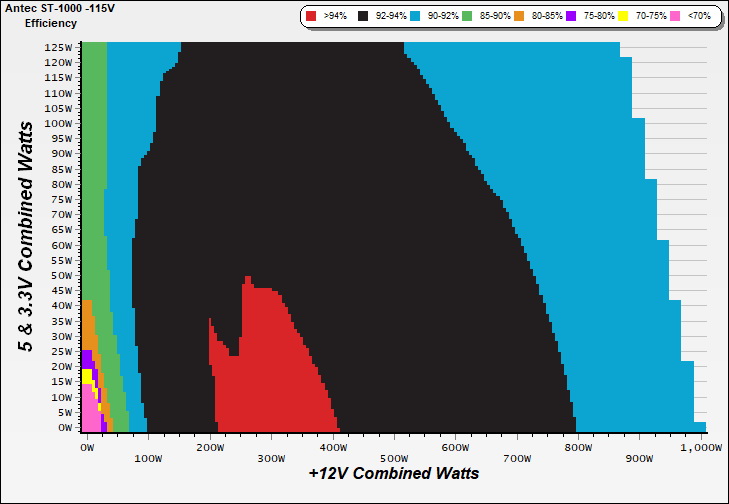

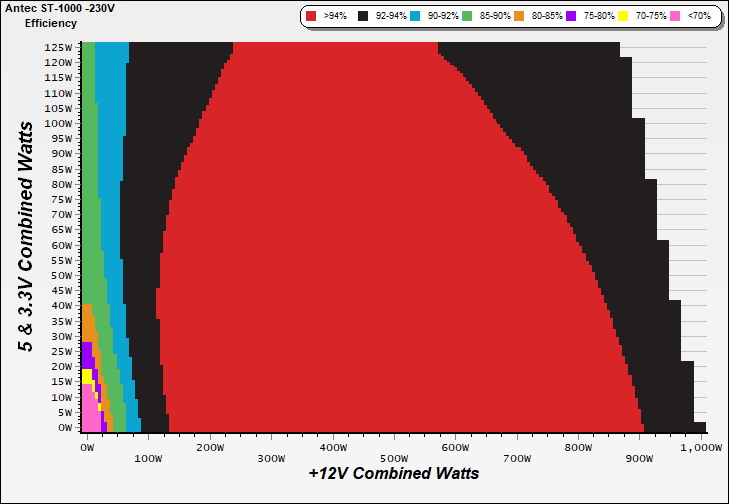

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

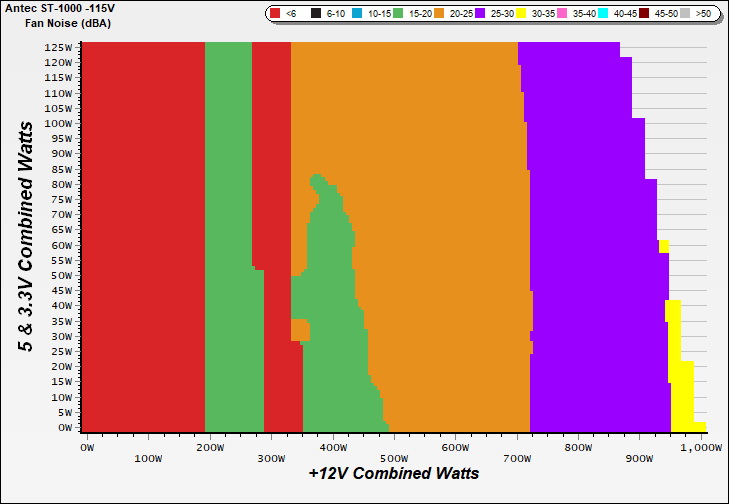

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

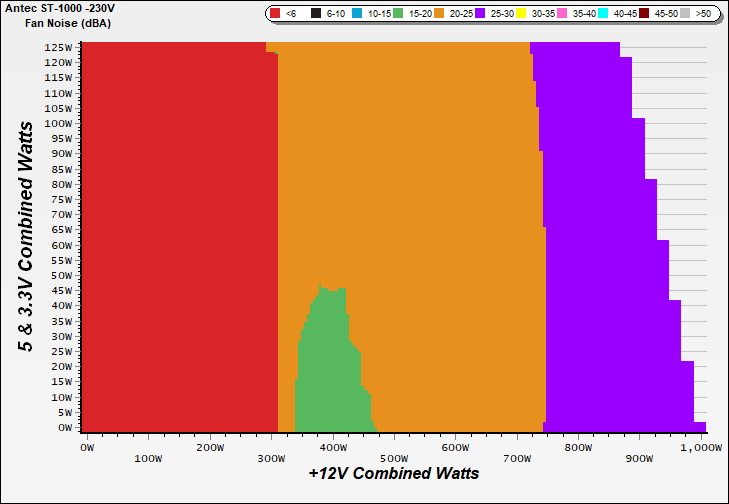

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

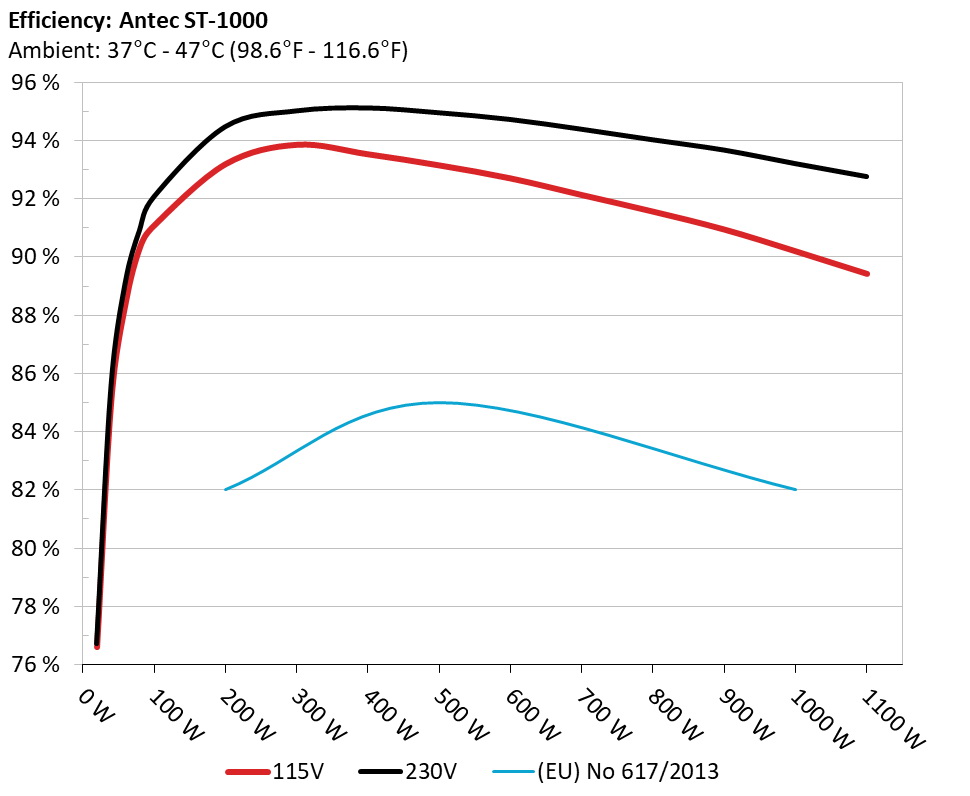

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

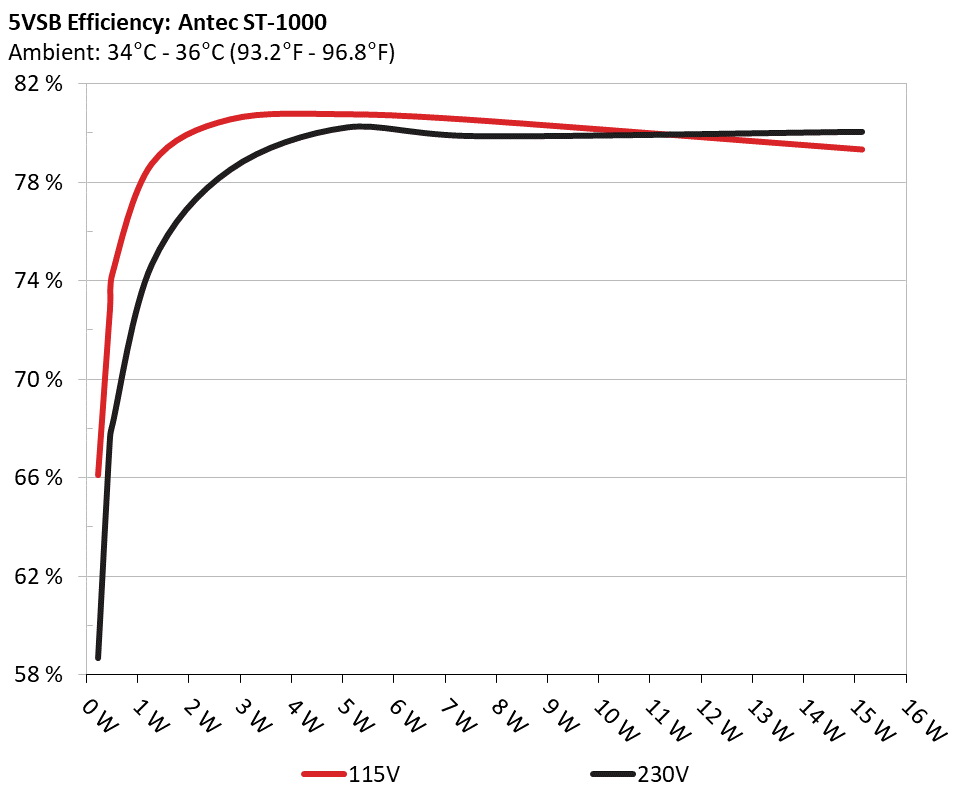

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 66.092% 0.036
5.120V 0.348 115.10V
2 0.090A 0.461 72.828% 0.065
5.119V 0.633 115.11V
3 0.550A 2.809 80.556% 0.272
5.107V 3.487 115.11V
4 1.000A 5.096 80.761% 0.367
5.096V 6.310 115.11V
5 1.500A 7.625 80.517% 0.420
5.083V 9.470 115.11V
6 3.000A 15.138 79.331% 0.493
5.046V 19.082 115.11V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 58.673% 0.012
5.120V 0.392 230.25V
2 0.090A 0.461 67.595% 0.021
5.119V 0.682 230.24V
3 0.550A 2.809 78.508% 0.106
5.107V 3.578 230.23V
4 1.000A 5.096 80.227% 0.174
5.096V 6.352 230.22V
5 1.500A 7.626 79.870% 0.234
5.083V 9.548 230.22V
6 3.001A 15.138 80.044% 0.337
5.045V 18.912 230.22V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.370A 1.962A 1.959A 1.006A 100.006 91.091% 0 <6.0 43.26°C 0.972
12.309V 5.097V 3.368V 4.969V 109.787 40.64°C 115.11V
2 13.741A 2.945A 2.942A 1.211A 200.040 93.201% 0 <6.0 44.78°C 0.988
12.309V 5.094V 3.365V 4.956V 214.633 41.12°C 115.10V
3 21.443A 3.436A 3.436A 1.416A 300.014 93.867% 0 <6.0 45.53°C 0.995
12.310V 5.092V 3.363V 4.943V 319.617 41.52°C 115.10V
4 29.127A 3.930A 3.928A 1.623A 399.672 93.542% 636 20.1 41.76°C 0.995
12.307V 5.090V 3.361V 4.930V 427.263 47.20°C 115.10V
5 36.516A 4.914A 4.915A 1.831A 499.807 93.161% 652 20.9 42.21°C 0.994
12.304V 5.088V 3.359V 4.917V 536.496 48.27°C 115.10V
6 43.889A 5.902A 5.901A 2.000A 599.724 92.713% 707 23.7 43.29°C 0.995
12.306V 5.085V 3.356V 4.905V 646.860 49.85°C 115.09V
7 51.234A 6.889A 6.890A 2.250A 699.658 92.142% 781 27.0 43.42°C 0.996
12.307V 5.082V 3.354V 4.890V 759.326 50.39°C 115.09V
8 58.643A 7.878A 7.876A 2.461A 800.183 91.569% 857 29.8 44.96°C 0.997
12.308V 5.079V 3.351V 4.876V 873.859 52.72°C 115.09V
9 66.370A 8.371A 8.359A 2.465A 899.455 90.958% 939 32.1 45.24°C 0.997
12.309V 5.077V 3.350V 4.870V 988.866 53.48°C 115.08V
10 73.938A 8.868A 8.873A 3.096A 999.880 90.208% 1012 35.2 45.40°C 0.998
12.310V 5.075V 3.347V 4.845V 1108.417 54.53°C 115.08V
11 82.056A 8.872A 8.878A 3.100A 1099.896 89.433% 1443 43.8 46.53°C 0.998
12.311V 5.073V 3.345V 4.839V 1229.849 56.42°C 115.08V
CL1 0.101A 15.002A 14.997A 0.000A 127.741 88.643% 839 29.2 42.75°C 0.980
12.339V 5.077V 3.356V 5.010V 144.108 48.69°C 115.11V
CL2 83.008A 1.000A 1.000A 1.000A 1034.919 90.329% 1010 35.2 45.65°C 0.998
12.307V 5.084V 3.352V 4.905V 1145.728 54.22°C 115.08V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.368A 1.962A 1.962A 1.006A 100.007 92.043% 0 <6.0 42.80°C 0.822
12.312V 5.097V 3.367V 4.969V 108.652 39.84°C 230.24V
2 13.739A 2.944A 2.942A 1.211A 200.038 94.459% 0 <6.0 44.47°C 0.921
12.311V 5.094V 3.365V 4.955V 211.772 40.77°C 230.24V
3 21.448A 3.437A 3.434A 1.416A 300.012 95.006% 632 20.1 41.46°C 0.953
12.307V 5.093V 3.363V 4.943V 315.781 45.76°C 230.24V
4 29.133A 3.927A 3.926A 1.623A 399.670 95.106% 636 20.1 41.62°C 0.967
12.305V 5.091V 3.361V 4.930V 420.237 46.55°C 230.24V
5 36.511A 4.913A 4.913A 1.831A 499.802 94.942% 670 23.1 42.09°C 0.975
12.306V 5.088V 3.358V 4.917V 526.427 47.87°C 230.23V
6 43.894A 5.901A 5.904A 2.000A 599.739 94.712% 724 24.5 42.57°C 0.981
12.305V 5.085V 3.355V 4.905V 633.225 48.85°C 230.23V
7 51.238A 6.888A 6.891A 2.250A 699.654 94.378% 783 27.0 43.42°C 0.984
12.306V 5.083V 3.353V 4.890V 741.333 50.29°C 230.23V
8 58.646A 7.878A 7.878A 2.461A 800.179 94.012% 853 29.8 43.65°C 0.987
12.307V 5.080V 3.351V 4.877V 851.149 51.11°C 230.24V
9 66.379A 8.372A 8.360A 2.465A 899.442 93.662% 925 32.2 44.22°C 0.989
12.307V 5.078V 3.349V 4.870V 960.302 52.50°C 230.23V
10 73.943A 8.869A 8.872A 3.096A 999.873 93.194% 1005 34.2 45.25°C 0.990
12.309V 5.075V 3.347V 4.846V 1072.891 54.31°C 230.24V
11 82.062A 8.869A 8.879A 3.100A 1099.889 92.750% 1316 41.6 46.55°C 0.991
12.310V 5.074V 3.345V 4.840V 1185.863 56.34°C 230.23V
CL1 0.101A 15.000A 14.998A 0.000A 127.749 89.546% 814 28.4 42.16°C 0.873
12.335V 5.077V 3.357V 5.009V 142.663 47.51°C 230.25V
CL2 83.018A 1.000A 1.001A 1.000A 1035.050 93.422% 1008 35.2 45.61°C 0.990
12.307V 5.085V 3.352V 4.906V 1107.930 54.81°C 230.24V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.207A 0.489A 0.488A 0.200A 19.991 76.606% 0 <6.0 0.810
12.303V 5.106V 3.373V 4.997V 26.096 115.11V
2 2.412A 0.981A 0.979A 0.401A 39.981 85.104% 0 <6.0 0.911
12.304V 5.101V 3.370V 4.990V 46.979 115.11V
3 3.622A 1.471A 1.467A 0.602A 60.012 88.426% 0 <6.0 0.946
12.305V 5.099V 3.369V 4.983V 67.867 115.11V
4 4.823A 1.962A 1.959A 0.804A 79.963 90.332% 0 <6.0 0.964
12.308V 5.098V 3.368V 4.976V 88.521 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.206A 0.490A 0.489A 0.200A 19.994 76.708% 0 <6.0 0.463
12.308V 5.105V 3.373V 4.997V 26.065 230.25V
2 2.412A 0.979A 0.980A 0.401A 39.985 85.518% 0 <6.0 0.629
12.309V 5.100V 3.369V 4.990V 46.756 230.25V
3 3.620A 1.472A 1.469A 0.602A 60.014 89.090% 0 <6.0 0.718
12.310V 5.098V 3.368V 4.983V 67.363 230.25V
4 4.822A 1.962A 1.961A 0.804A 79.964 90.896% 0 <6.0 0.784
12.310V 5.097V 3.368V 4.976V 87.973 230.25V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.20mV6.40mV12.20mV3.60mVPass
20% Load11.60mV6.50mV12.80mV4.10mVPass
30% Load11.00mV7.00mV14.20mV4.50mVPass
40% Load8.60mV7.40mV13.90mV5.20mVPass
50% Load8.50mV8.00mV15.50mV5.40mVPass
60% Load8.90mV7.40mV14.90mV5.90mVPass
70% Load9.70mV7.50mV15.70mV6.50mVPass
80% Load10.60mV8.70mV16.40mV6.60mVPass
90% Load11.30mV8.20mV16.30mV7.20mVPass
100% Load18.00mV8.50mV17.20mV9.00mVPass
110% Load18.90mV8.90mV17.10mV9.30mVPass
Crossload113.50mV9.00mV18.80mV4.30mVPass
Crossload218.30mV7.80mV13.80mV8.80mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.30mV6.40mV13.30mV3.50mVPass
20% Load11.50mV6.90mV12.90mV4.20mVPass
30% Load10.60mV6.80mV15.00mV4.20mVPass
40% Load7.90mV8.00mV14.70mV4.70mVPass
50% Load8.10mV8.00mV15.20mV5.60mVPass
60% Load9.10mV7.70mV15.40mV6.10mVPass
70% Load9.40mV7.40mV15.50mV6.40mVPass
80% Load10.40mV7.80mV16.00mV6.50mVPass
90% Load11.00mV8.10mV16.60mV7.00mVPass
100% Load17.10mV9.00mV17.50mV8.40mVPass
110% Load18.50mV8.90mV17.60mV9.10mVPass
Crossload113.90mV8.90mV16.30mV4.20mVPass
Crossload217.70mV7.70mV13.90mV8.30mVPass

The results above are not used in the certification process

Antec Signature Titanium 1000W

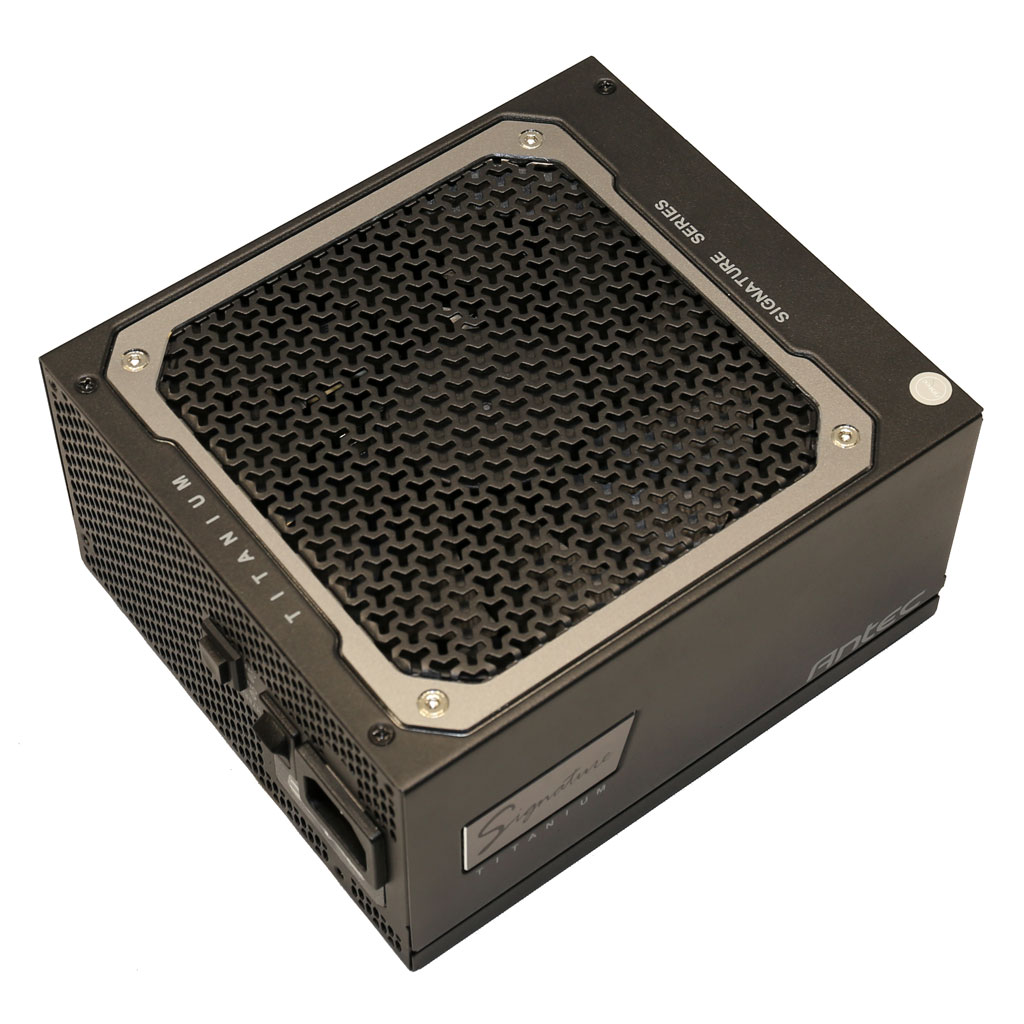

Top side

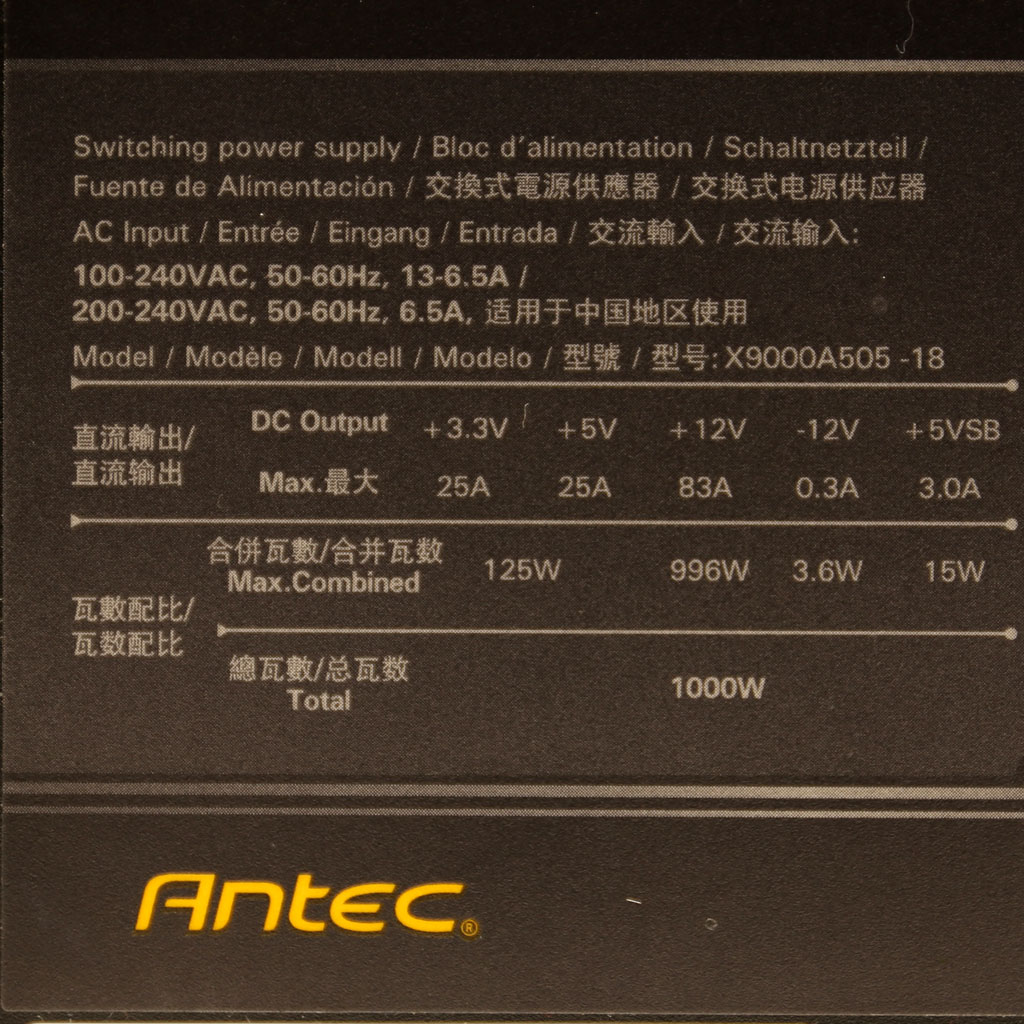

Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
