ErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: ✓
ErP Lot 3/6 2014, CEC: Partially
(EU) No 617/2013 Compliance
✓
Performance Summary 115V
Efficiency Rating
SILVER
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
85.300%
Average Noise Output (>1450 Load Combinations)
32.81dBA
Average PF (>1450 Load Combinations)
0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.1272W
12V Ripple (Full Load)
14.03mV
5V Ripple (Full Load)
18.88mV
3.3V Ripple (Full Load)
19.89mV
5VSB Ripple (Full Load)
24.24mV
12V Load Regulation
0.70%
5V Load Regulation
0.95%
3.3V Load Regulation
1.39%
5VSB Load Regulation
3.80%
Inrush Current
45.351A
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
20.28
AC Loss to PWR_OK Hold Up Time (ms)
17.08
PWR_OK Inactive to DC Loss Delay (ms)
3.20
Vampire Power
Tables 115V
Graphs 115V
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

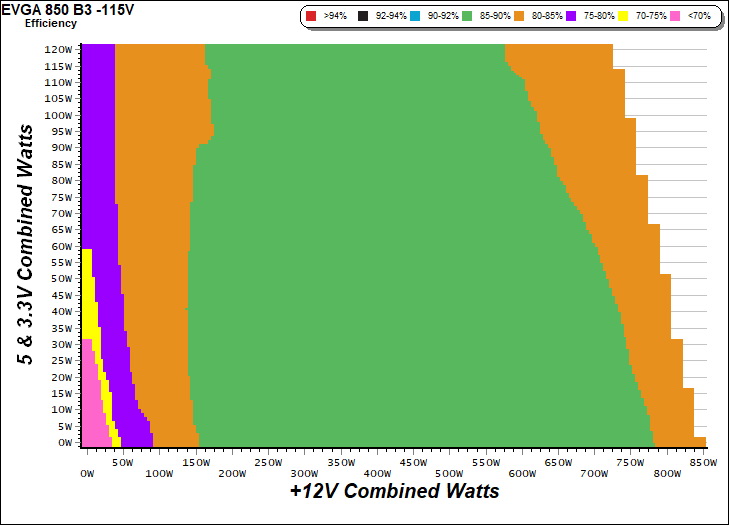

Efficiency Graph
115V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

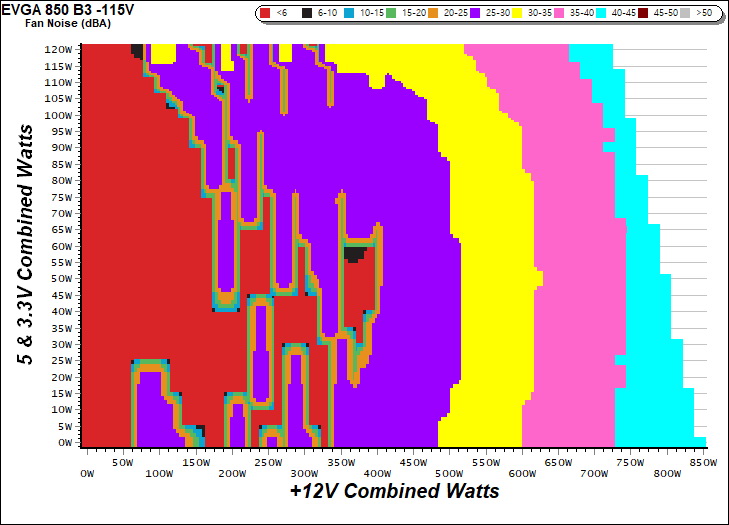

Noise Graph
115V
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
Indicative Performance

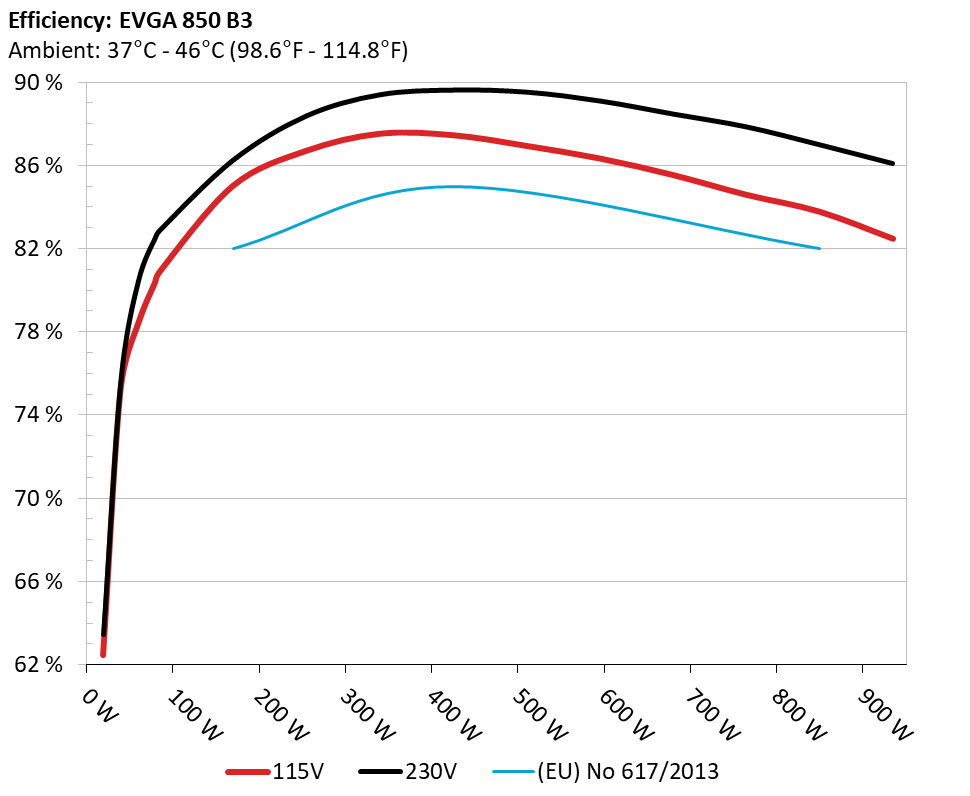

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

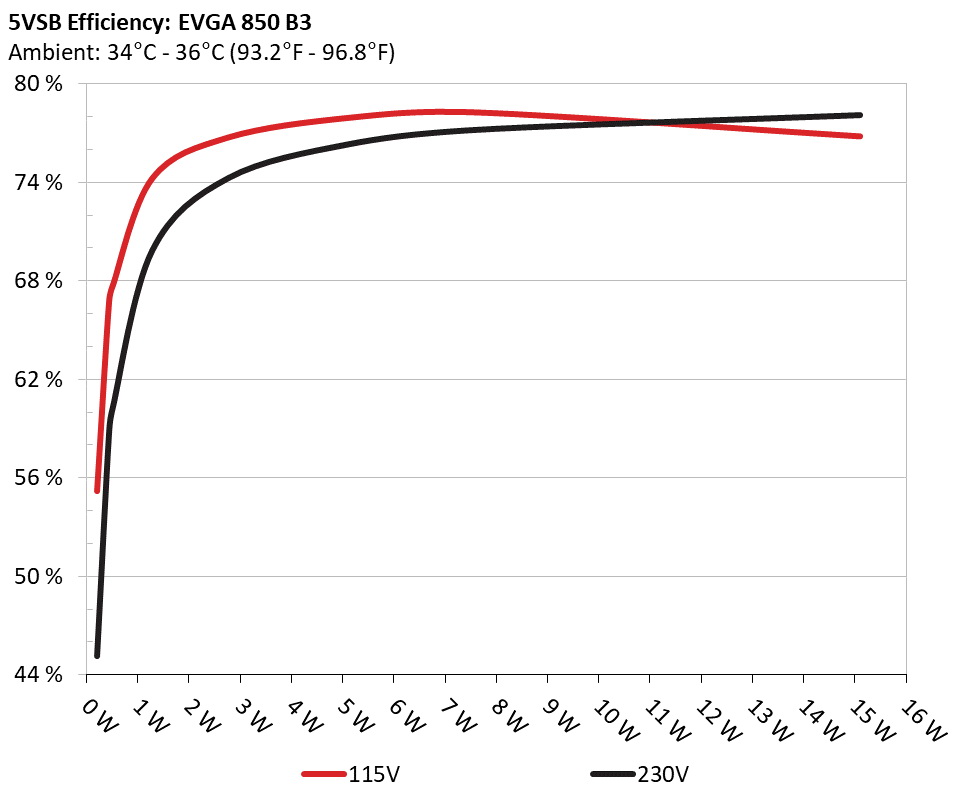

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC) 115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.041A
0.213
55.181%
0.030
5.141V
0.386
115.16V
2
0.087A
0.447
66.716%
0.051
5.139V
0.670
115.16V
3
0.542A
2.776
76.727%
0.227
5.123V
3.618
115.16V
4
1.002A
5.116
77.917%
0.326
5.107V
6.566
115.16V
5
1.502A
7.643
78.245%
0.385
5.090V
9.768
115.16V
6
3.001A
15.097
76.790%
0.465
5.031V
19.660
115.16V
Supplementary Tests (For Reference)
Typical Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
5.210A
1.985A
1.991A
0.980A
84.785
80.878%
0
<6.0
45.75°C
0.954
12.128V
5.047V
3.310V
5.092V
104.831
38.55°C
115.18V
2
11.444A
2.971A
2.992A
1.181A
169.620
85.014%
0
<6.0
43.19°C
0.982
12.125V
5.041V
3.305V
5.076V
199.521
40.50°C
115.18V
3
18.052A
3.478A
3.510A
1.380A
254.853
86.712%
1218
27.3
41.24°C
0.989
12.119V
5.036V
3.300V
5.060V
293.906
47.13°C
115.19V
4
24.648A
3.977A
4.001A
1.584A
339.727
87.533%
1276
29.0
41.29°C
0.992
12.112V
5.032V
3.296V
5.045V
388.113
47.08°C
115.20V
5
30.912A
4.974A
5.009A
1.785A
424.624
87.466%
1338
30.7
41.63°C
0.994
12.104V
5.026V
3.292V
5.029V
485.473
48.15°C
115.22V
6
37.193A
5.977A
6.022A
1.994A
509.607
86.950%
1462
34.3
42.72°C
0.995
12.094V
5.021V
3.287V
5.010V
586.089
49.76°C
115.19V
7
43.502A
6.981A
7.038A
2.199A
594.560
86.345%
1600
36.1
43.47°C
0.996
12.079V
5.017V
3.282V
4.992V
688.583
51.70°C
115.20V
8
49.797A
7.987A
8.058A
2.410A
679.494
85.549%
1743
40.0
44.14°C
0.996
12.071V
5.010V
3.275V
4.975V
794.273
53.88°C
115.18V
9
56.545A
8.488A
8.583A
2.414A
764.493
84.596%
1885
42.2
44.62°C
0.996
12.060V
5.007V
3.271V
4.965V
903.702
54.68°C
115.18V
10
63.031A
9.005A
9.088A
3.036A
849.365
83.782%
1885
42.2
45.71°C
0.997
12.052V
5.002V
3.267V
4.935V
1013.785
56.43°C
115.18V
11
70.143A
9.016A
9.099A
3.042A
934.308
82.482%
2014
43.1
46.20°C
0.997
12.041V
4.997V
3.262V
4.925V
1132.742
56.85°C
115.18V
CL1
0.098A
14.023A
14.004A
0.004A
117.803
77.549%
1432
32.6
44.59°C
0.974
12.123V
5.027V
3.292V
5.107V
151.908
51.67°C
115.20V
CL2
70.778A
1.004A
1.003A
1.002A
865.942
83.783%
2003
43.0
47.16°C
0.996
12.046V
5.011V
3.278V
5.022V
1033.550
56.62°C
115.18V
The results above are not used in the certification process
Light Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.200A
0.493A
0.478A
0.192A
19.629
62.453%
0
<6.0
0.834
12.141V
5.052V
3.315V
5.130V
31.430
115.18V
2
2.428A
0.987A
0.994A
0.391A
39.749
75.220%
0
<6.0
0.933
12.137V
5.050V
3.313V
5.121V
52.844
115.18V
3
3.662A
1.477A
1.508A
0.585A
59.870
78.364%
0
<6.0
0.937
12.133V
5.048V
3.312V
5.110V
76.400
115.18V
4
4.881A
1.985A
1.990A
0.781A
79.789
80.384%
0
<6.0
0.951
12.129V
5.047V
3.310V
5.099V
99.260
115.18V
The results above are not used in the certification process
Ripple Measurements 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
5.9 mV
9.0 mV
9.0 mV
12.5 mV
Pass
20% Load
7.6 mV
9.4 mV
9.7 mV
13.4 mV
Pass
30% Load
8.9 mV
11.2 mV
11.2 mV
13.7 mV
Pass
40% Load
8.8 mV
11.3 mV
13.1 mV
13.6 mV
Pass
50% Load
10.0 mV
11.1 mV
13.7 mV
14.3 mV
Pass
60% Load
10.9 mV
11.7 mV
15.0 mV
15.7 mV
Pass
70% Load
10.7 mV
13.5 mV
14.7 mV
16.9 mV
Pass
80% Load
11.9 mV
14.7 mV
17.2 mV
20.0 mV
Pass
90% Load
11.8 mV
17.8 mV
19.5 mV
18.7 mV
Pass
100% Load
14.0 mV
18.9 mV
19.9 mV
24.2 mV
Pass
110% Load
14.2 mV
20.2 mV
20.6 mV
25.8 mV
Pass
Crossload 1
7.8 mV
10.7 mV
11.1 mV
14.6 mV
Pass
Crossload 2
12.9 mV
17.1 mV
19.6 mV
21.3 mV
Pass
The results above are not used in the certification process
EVGA 850 B3

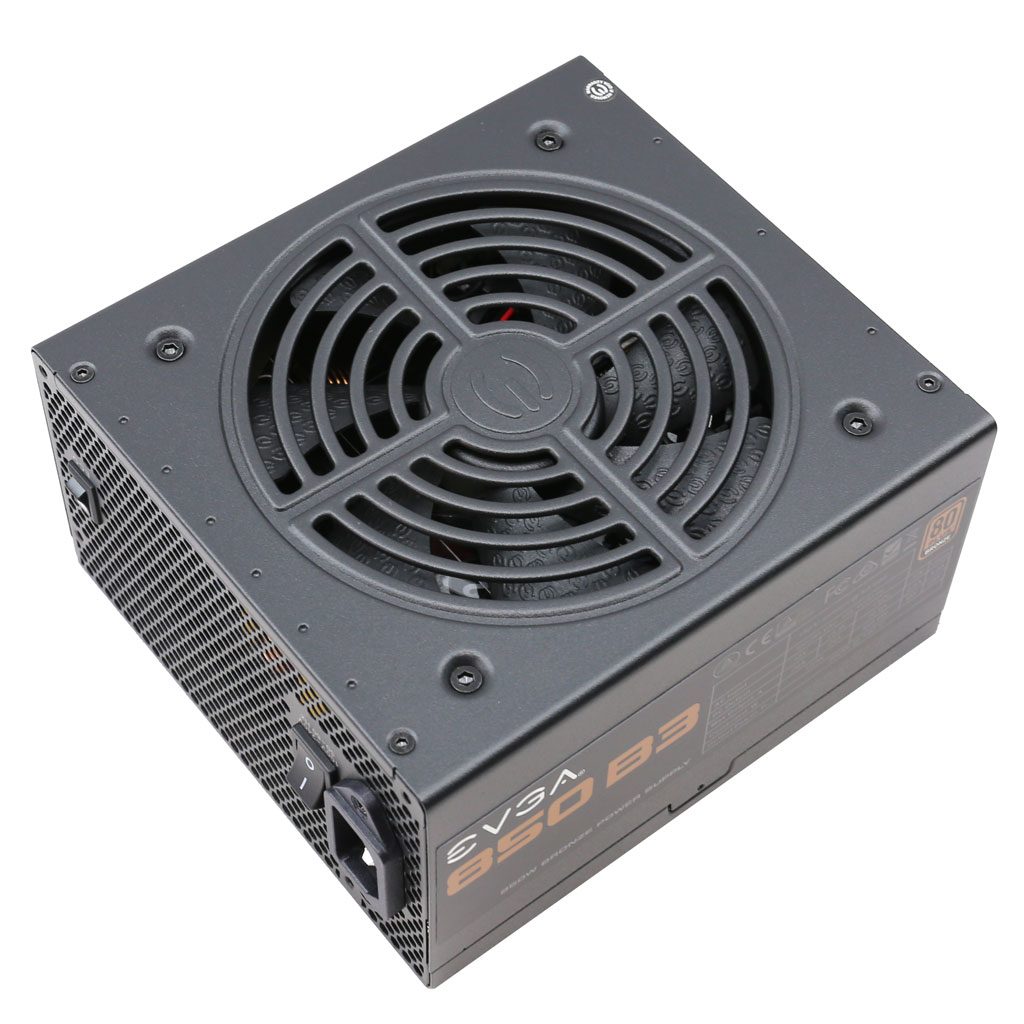

Top side

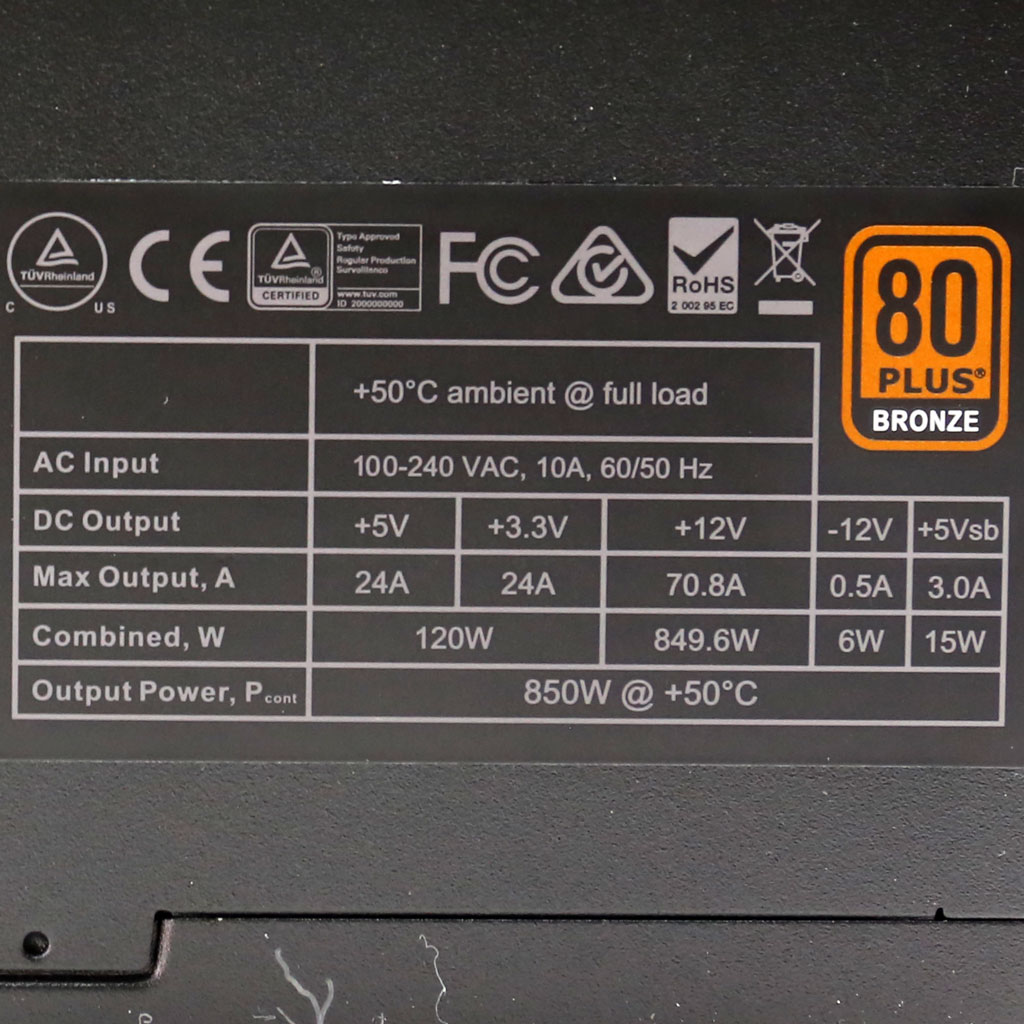

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
