Cybenetics Test - Thermaltake Toughpower Grand RGB 850W Platinum (#2)

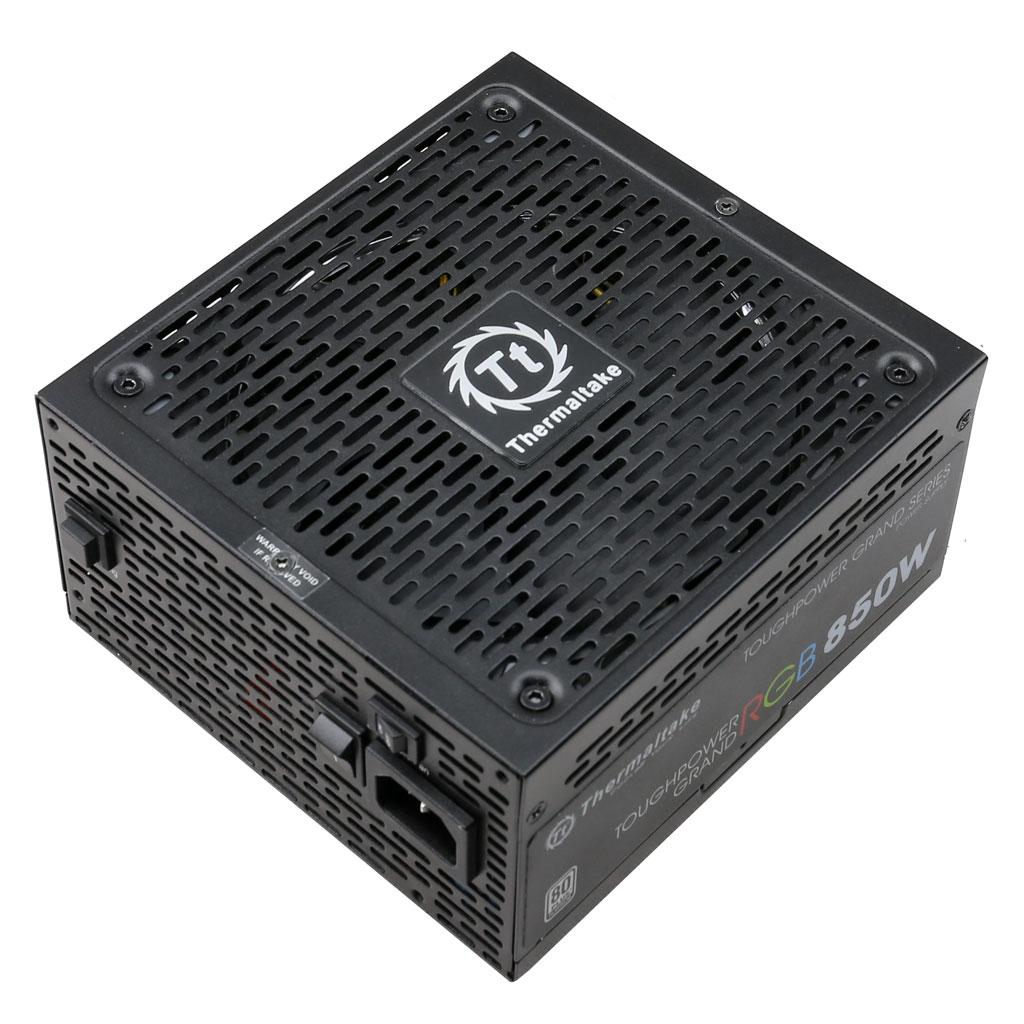

Thermaltake Toughpower Grand RGB 850W Platinum (#2)

PSTPG0850F1FAPU1LE000286

Lab IDTT20850006

Report: 20PSA
Receipt Date: Sep 11, 2019
Test Date: Feb 3, 2020
Report Date: Feb 18, 2020

	115V	230V
Wirkungsgrad

115V	230V
		Lautstärkeklasse

Aristeidis Bitziopoulos, Laboratory General Manager

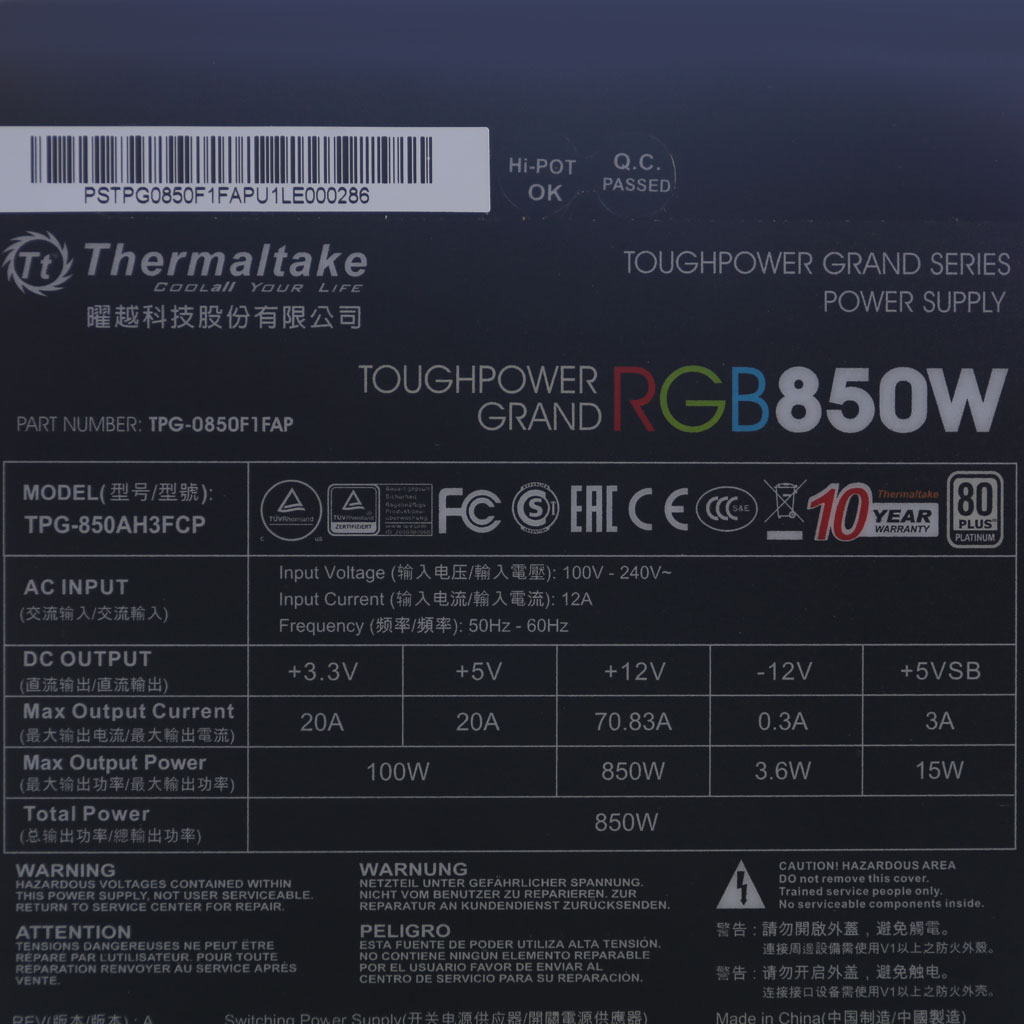

General Information

	Thermaltake
Hersteller (OEM)	Channel Well Technology
	Toughpower Grand RGB
	TPG-0850F1FAP
	PSTPG0850F1FAPU1LE000286

(Vrms)	100-240
(Arms)	12
(Hz)	50-60
(W)	850
	ATX12V
	140mm Hydro Dynamic Bearing Fan (TT-1425 (A1425L12S))
	✓ (selectable)
	Fully Modular

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	83.33	3	0.3
Max. Power	Watts	100		850	15	3.6
Total Max. Power (W)		850

Electronic Loads	Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources	Chroma 6530, Keysight AC6804B
Power Analyzers	N4L PPA1530 x2
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer	UNI-T UT372 x2
Digital Multimeter	Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS	CyberPower OLS3000E 3kVA x2
Transformer	3kVA x2
Testing Methodology	Cybenetics PSU Test Protocol

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (600mm)	1	1	16AWG	No
4+4 pin EPS12V (650mm)	1	1	16AWG	No
8 pin EPS12V (650mm)	1	1	16AWG	No
6+2 pin PCIe (500mm+150mm)	3	6	16-18AWG	No
SATA (500mm+150mm+150mm+150mm)	3	12	18AWG	No
4-pin Molex (500mm+150mm+150mm+150mm)	1	4	18AWG	No
FDD Adapter (+100mm)	1	1	22AWG	No
AC Power Cord (1440mm) - C13 coupler	1	1	18AWG	-

Parts Description

General Data	-
Manufacturer (OEM)	Enhance Electronics
PCB Type	Single Sided
Primary Side	-
Transient Filter	6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor & Relay
Bridge Rectifier(s)	1x RS2505M-U1 (600V, 25A @ 150°C)
APFC MOSFETs	4x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14Ohm)
APFC Boost Diode	2x CREEC3D08060A(600V, 8A @ 152°C)
Hold-up Cap(s)	2x Nippon Chemi-Con (450V, 560uF, 2000h @ 105°C, KMW)
Main Switchers	4x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14Ohm)
IC Driver	2x Silicon Labs Si8230BD
APFC Controller	ATK AT6101ZS & CM03X Green PFC Controller
Resonant Controller	Champion CM6901T6
Topology	Primary side: Interleaved PFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side	-
+12V MOSFETs	8x Infineon BSC014N04LS (40V, 100A @ 100°C, 1.4mOhm)
5V & 3.3V	DC-DC Converters: 4x Infineon BSC018NE2LS (25V, 97A @ 100°C, 1.4mOhm) PWM Controllers: ANPEC APW7160A
Filtering Capacitors	Electrolytic: Nippon Chemi-Con (4-10,000 @ 105°C, KY), Rubycon (3-6,000 @ 105°C, YXG), Rubycon (6-10000 @ 105°C, ZLH), Suncon (105°C) Polymer: Unicon (UPH)
Supervisor IC	SITI PS223 (OCP, OTP, OVP, UVP, SCP, PG)
Fan Model	Yate Loon D12SH (120mm, 12V, 0.30A, Rifle Bearing Fan)
5VSB Circuit	-
Rectifier	1x PFR10V45CT SBR (45V, 10A)
Standby PWM Controller	ATK AT6002H

Test Results

Temperature & Compliance Info

(°C /°F)	30-32 / 86-89.6
	✓
	✓

Performance Summary

Wirkungsgrad	PLATINUM
Lautstärkeklasse	Standard++
(>1450 load combinations)	90.434%
Average Noise Output (>1450 Load Combinations)	33.78dBA
(>1450 Load Combinations)	0.978
Efficiency With 10W (≤500W) or 2% (>500W) Load	66.795%
	0.0355W
12V Ripple (Full Load)	24.87mV
5V Ripple (Full Load)	7.95mV
3.3V Ripple (Full Load)	17.26mV
5VSB Ripple (Full Load)	8.89mV
12V Load Regulation	0.67%
5V Load Regulation	0.93%
3.3V Load Regulation	0.91%
5VSB Load Regulation	2.07%
Inrush Current	20.797A

Wirkungsgrad	SILVER
Lautstärkeklasse	Standard++
(>1450 load combinations)	92.180%
Average Noise Output (>1450 Load Combinations)	33.76dBA
(>1450 Load Combinations)	0.929
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
	0.0529W
12V Ripple (Full Load)	26.86mV
5V Ripple (Full Load)	8.46mV
3.3V Ripple (Full Load)	18.27mV
5VSB Ripple (Full Load)	8.88mV
12V Load Regulation	0.53%
5V Load Regulation	0.99%
3.3V Load Regulation	0.79%
5VSB Load Regulation	1.68%
Inrush Current	50.405A
12V Transient Response (150%)	0.00V
5V Transient Response (150%)	V
3.3V Transient Response (150%)	V
5VSB Transient Response (150%)	V
	18.80ms
AC Loss to PWR_OK Hold Up Time	17.30ms
PWR_OK Inactive to DC Loss Delay	1.50ms
PSU Timings: T1 (20% / 100%)	86.0ms	86.0ms
PSU Timings: T3 (20% / 100%)	285.0ms	285.0ms
OPP (0.00°C / 0.00°C)	149.87%	0.00%

Hold-Up Time (ms)	18.8
AC Loss to PWR_OK Hold Up Time (ms)	17.3
PWR_OK Inactive to DC Loss Delay (ms)	1.5

Stromverbrauch im Ruhezustand

Tables

Graphs

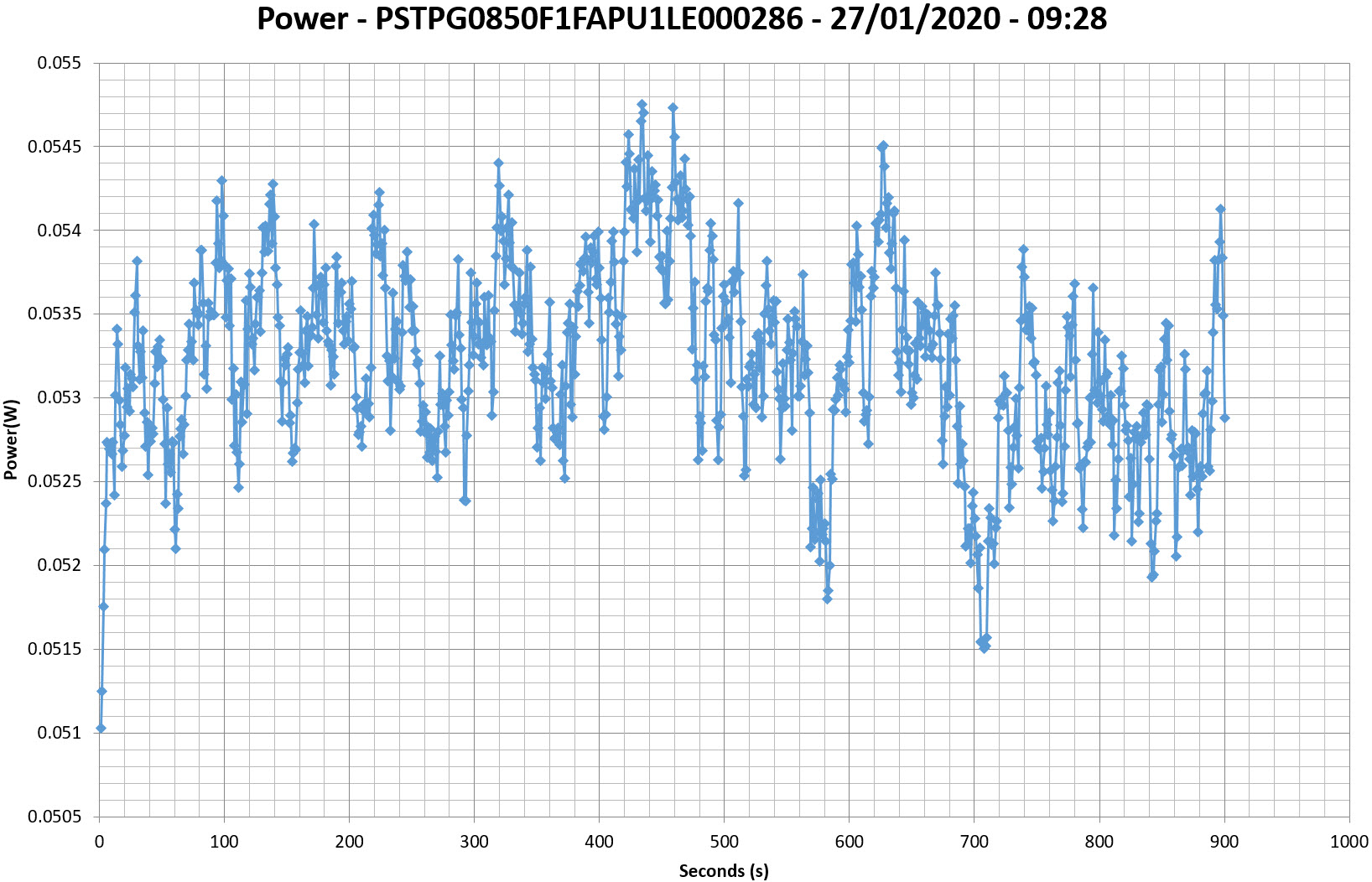

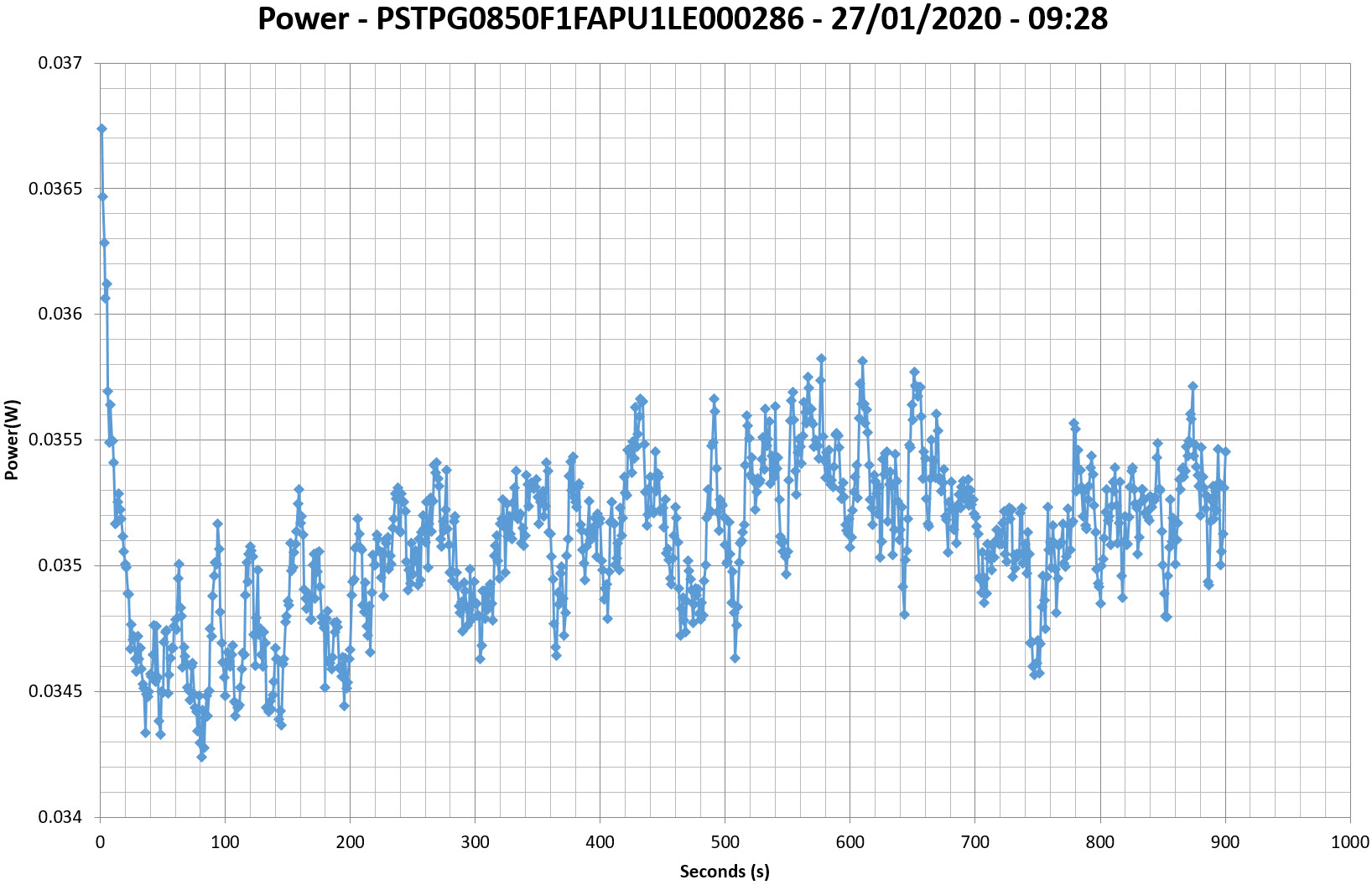

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

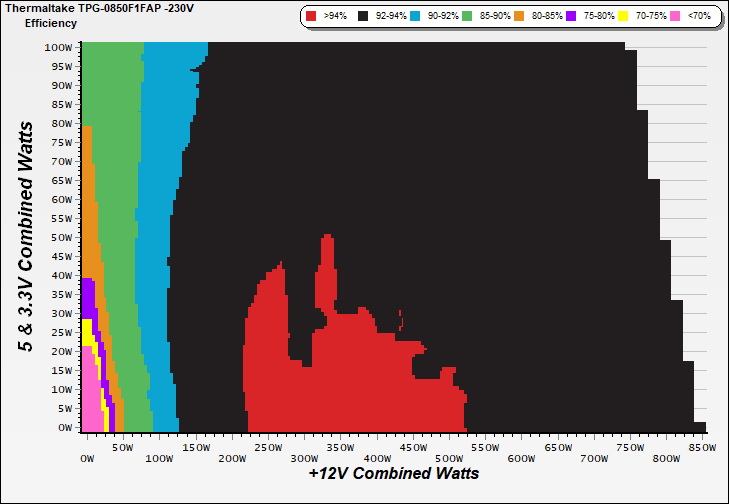

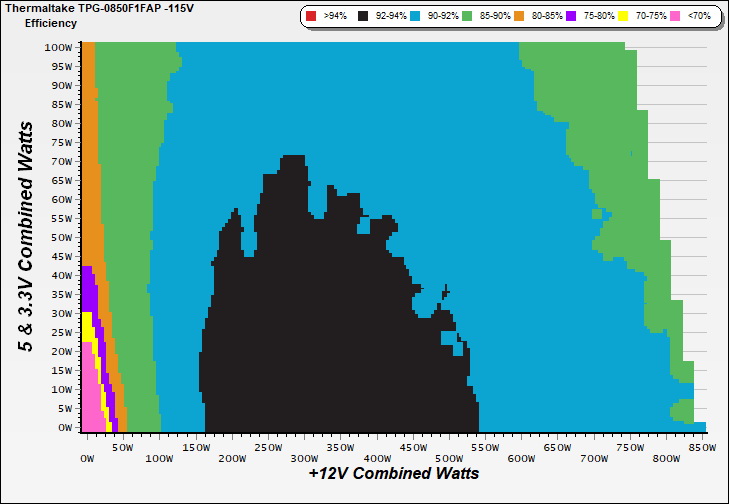

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

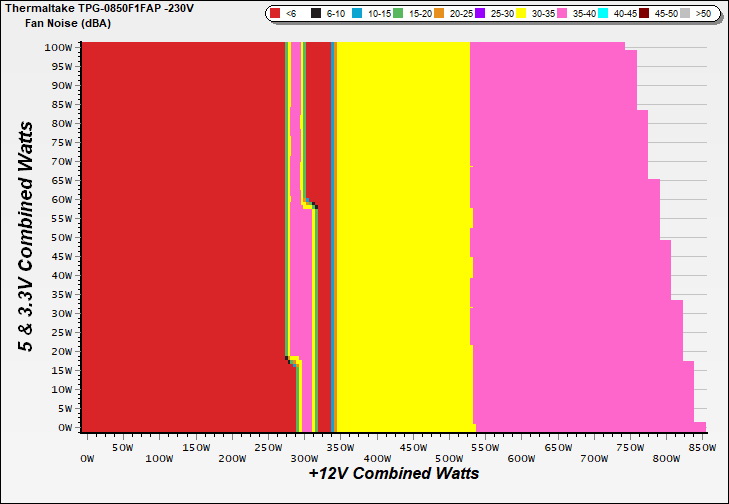

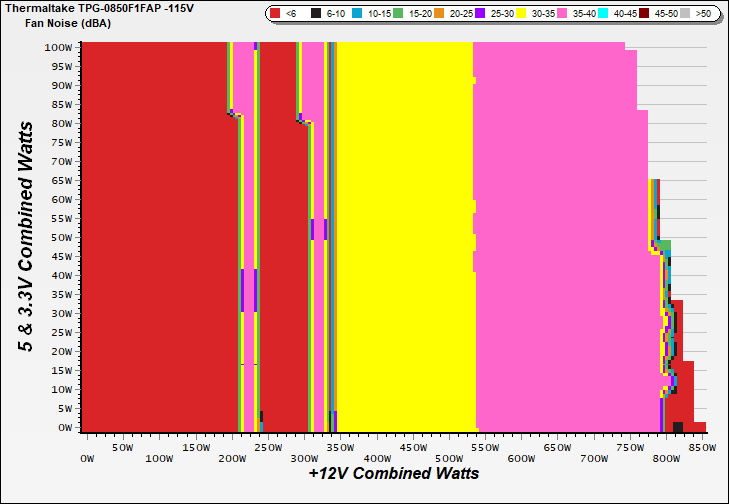

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

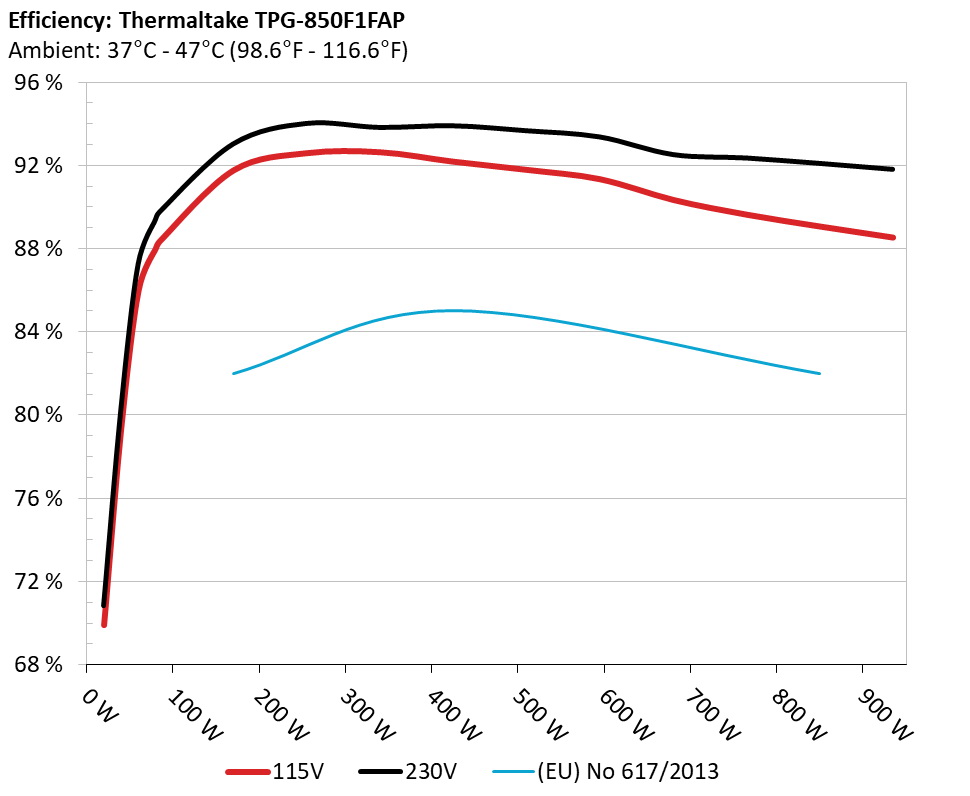

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

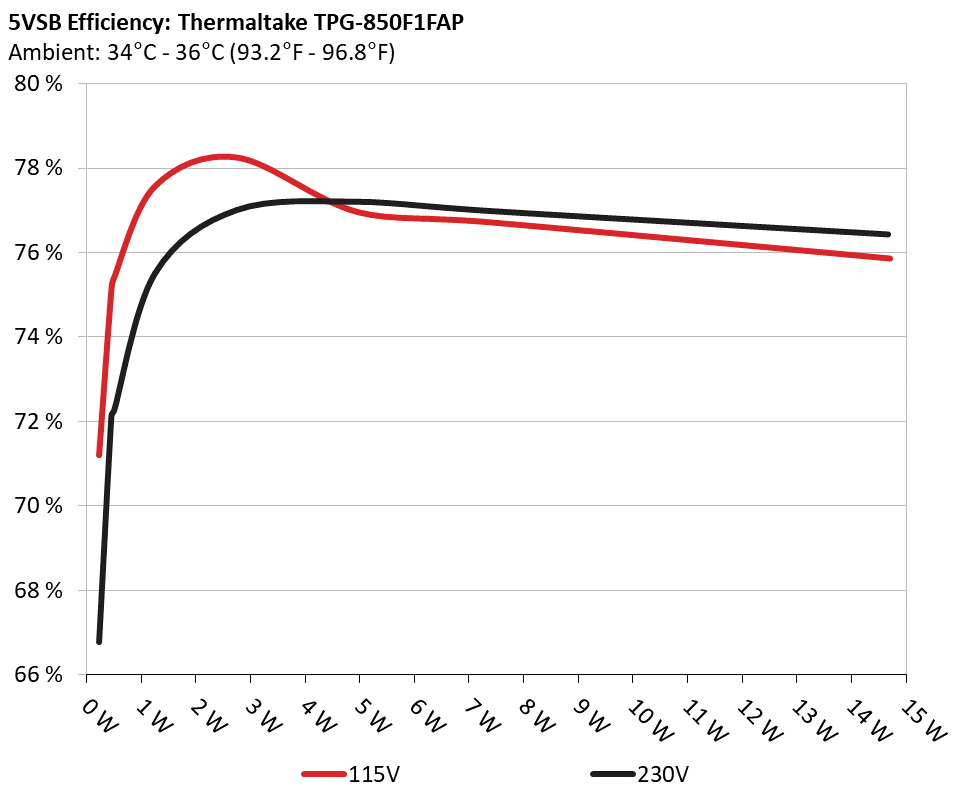

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.225	71.203%	0.026
1	5.003V	0.316	71.203%	115.15V
2	0.090A	0.450	75.125%	0.049
2	5.001V	0.599	75.125%	115.15V
3	0.550A	2.743	78.260%	0.240
3	4.987V	3.505	78.260%	115.15V
4	1.000A	4.974	76.961%	0.351
4	4.973V	6.463	76.961%	115.15V
5	1.500A	7.437	76.718%	0.418
5	4.957V	9.694	76.718%	115.15V
6	2.999A	14.708	75.865%	0.503
6	4.905V	19.387	75.865%	115.14V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.225	66.766%	0.008
1	5.004V	0.337	66.766%	230.21V
2	0.090A	0.450	72.115%	0.015
2	5.001V	0.624	72.115%	230.21V
3	0.550A	2.742	77.001%	0.085
3	4.985V	3.561	77.001%	230.22V
4	1.000A	4.970	77.198%	0.146
4	4.970V	6.438	77.198%	230.23V
5	1.500A	7.429	76.976%	0.205
5	4.952V	9.651	76.976%	230.23V
6	2.999A	14.675	76.424%	0.321
6	4.894V	19.202	76.424%	230.24V

Supplementary Tests (For Reference)

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	5.250A	1.974A	2.001A	0.991A	84.958	88.370%	0	<6.0	45.88°C	0.825
1	12.068V	5.065V	3.298V	5.049V	96.139	88.370%	0	<6.0	40.70°C	115.16V
2	11.533A	2.965A	3.005A	1.190A	170.036	91.759%	0	<6.0	46.63°C	0.991
2	12.064V	5.059V	3.295V	5.042V	185.307	91.759%	0	<6.0	40.78°C	115.15V
3	18.163A	3.462A	3.508A	1.391A	255.044	92.588%	0	<6.0	47.58°C	0.995
3	12.057V	5.055V	3.292V	5.035V	275.462	92.588%	0	<6.0	41.19°C	115.15V
4	24.803A	3.960A	4.013A	1.592A	340.054	92.634%	0	<6.0	48.83°C	0.997
4	12.049V	5.051V	3.289V	5.027V	367.093	92.634%	0	<6.0	41.91°C	115.14V
5	31.079A	4.956A	5.024A	1.794A	424.994	92.180%	1156	33.9	42.40°C	0.997
5	12.049V	5.046V	3.286V	5.020V	461.046	92.180%	1156	33.9	49.89°C	115.15V
6	37.331A	5.954A	6.033A	1.996A	509.546	91.790%	1160	34.0	42.57°C	0.997
6	12.047V	5.041V	3.283V	5.009V	555.121	91.790%	1160	34.0	50.72°C	115.18V
7	43.670A	6.952A	7.044A	2.199A	594.869	91.338%	1223	35.0	43.16°C	0.997
7	12.039V	5.037V	3.280V	5.004V	651.283	91.338%	1223	35.0	51.86°C	115.14V
8	50.058A	7.953A	8.057A	2.403A	680.219	90.340%	1385	38.8	43.79°C	0.998
8	12.022V	5.032V	3.277V	4.994V	752.954	90.340%	1385	38.8	53.51°C	115.15V
9	56.834A	8.456A	8.552A	2.407A	765.144	89.634%	1387	38.8	44.42°C	0.998
9	12.011V	5.027V	3.274V	4.987V	853.630	89.634%	1387	38.8	54.56°C	115.17V
10	63.328A	8.961A	9.080A	3.023A	849.959	89.066%	1387	38.8	45.97°C	0.998
10	12.005V	5.022V	3.271V	4.963V	954.304	89.066%	1387	38.8	56.74°C	115.17V
11	70.413A	8.968A	9.088A	3.081A	934.744	88.537%	1388	38.8	46.56°C	0.998
11	12.001V	5.019V	3.268V	4.871V	1055.769	88.537%	1388	38.8	58.09°C	115.15V
CL1	0.117A	12.001A	12.000A	0.000A	101.545	83.771%	1362	34.0	42.58°C	0.841
CL1	12.057V	5.050V	3.294V	5.082V	121.218	83.771%	1362	34.0	49.91°C	115.17V
CL2	70.849A	1.001A	0.999A	1.000A	865.150	89.674%	1385	38.8	46.21°C	0.998
CL2	12.023V	5.033V	3.278V	5.019V	964.771	89.674%	1385	38.8	56.44°C	115.17V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	5.251A	1.976A	2.001A	0.990A	84.956	89.761%	0	<6.0	45.97°C	0.680
1	12.064V	5.064V	3.299V	5.051V	94.647	89.761%	0	<6.0	40.12°C	230.32V
2	11.537A	2.966A	3.002A	1.190A	170.024	93.019%	0	<6.0	46.87°C	0.889
2	12.059V	5.058V	3.296V	5.044V	182.784	93.019%	0	<6.0	40.67°C	230.31V
3	18.169A	3.464A	3.506A	1.390A	255.029	94.009%	0	<6.0	47.55°C	0.928
3	12.052V	5.054V	3.294V	5.037V	271.282	94.009%	0	<6.0	40.97°C	230.32V
4	24.788A	3.962A	4.013A	1.591A	340.037	93.817%	1369	38.6	42.01°C	0.950
4	12.055V	5.049V	3.292V	5.030V	362.447	93.817%	1369	38.6	49.14°C	230.31V
5	31.068A	4.958A	5.019A	1.792A	424.917	93.895%	1159	34.0	42.35°C	0.964
5	12.051V	5.044V	3.289V	5.023V	452.546	93.895%	1159	34.0	50.11°C	230.30V
6	37.336A	5.957A	6.028A	1.994A	509.458	93.660%	1159	34.0	42.58°C	0.970
6	12.043V	5.038V	3.286V	5.016V	543.946	93.660%	1159	34.0	51.25°C	230.28V
7	43.670A	6.958A	7.036A	2.196A	594.777	93.363%	1229	35.1	43.42°C	0.976
7	12.037V	5.033V	3.283V	5.010V	637.059	93.363%	1229	35.1	52.52°C	230.28V
8	50.062A	7.963A	8.047A	2.399A	680.129	92.512%	1383	38.7	44.03°C	0.981
8	12.019V	5.028V	3.280V	5.003V	735.178	92.512%	1383	38.7	53.88°C	230.33V
9	56.811A	8.462A	8.542A	2.401A	765.038	92.346%	1383	38.7	44.23°C	0.988
9	12.014V	5.023V	3.278V	5.000V	828.449	92.346%	1383	38.7	54.33°C	230.35V
10	63.325A	8.971A	9.068A	3.012A	849.865	92.088%	1390	38.9	45.86°C	0.988
10	12.004V	5.017V	3.275V	4.982V	922.883	92.088%	1390	38.9	56.84°C	230.28V
11	70.437A	8.978A	9.078A	3.015A	934.675	91.805%	1391	39.0	46.69°C	0.989
11	11.996V	5.013V	3.272V	4.976V	1018.113	91.805%	1391	39.0	58.57°C	230.31V
CL1	0.118A	12.000A	11.998A	0.000A	101.580	85.092%	1364	38.5	42.26°C	0.711
CL1	12.054V	5.046V	3.301V	5.081V	119.376	85.092%	1364	38.5	50.60°C	230.33V
CL2	70.837A	0.999A	1.001A	1.000A	864.784	92.664%	1389	38.9	45.81°C	0.989
CL2	12.020V	5.032V	3.276V	5.017V	933.245	92.664%	1389	38.9	56.34°C	230.28V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.228A	0.493A	0.500A	0.197A	19.990	69.920%	0	<6.0	0.710
1	12.086V	5.070V	3.302V	5.068V	28.590	69.920%	0	<6.0	115.16V
2	2.455A	0.987A	1.001A	0.395A	39.979	79.404%	0	<6.0	0.779
2	12.086V	5.069V	3.301V	5.064V	50.349	79.404%	0	<6.0	115.16V
3	3.692A	1.480A	1.498A	0.593A	60.009	86.002%	0	<6.0	0.805
3	12.071V	5.067V	3.300V	5.059V	69.776	86.002%	0	<6.0	115.16V
4	4.918A	1.973A	2.001A	0.792A	79.958	88.011%	0	<6.0	0.823
4	12.070V	5.065V	3.299V	5.054V	90.850	88.011%	0	<6.0	115.16V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.228A	0.493A	0.501A	0.197A	19.987	70.836%	0	<6.0	0.416
1	12.080V	5.070V	3.302V	5.068V	28.216	70.836%	0	<6.0	230.32V
2	2.457A	0.986A	0.999A	0.395A	39.976	80.260%	0	<6.0	0.554
2	12.080V	5.068V	3.301V	5.064V	49.808	80.260%	0	<6.0	230.32V
3	3.693A	1.481A	1.500A	0.593A	60.006	87.250%	0	<6.0	0.624
3	12.064V	5.066V	3.300V	5.059V	68.775	87.250%	0	<6.0	230.32V
4	4.920A	1.975A	2.000A	0.791A	79.955	89.376%	0	<6.0	0.670
4	12.064V	5.064V	3.300V	5.055V	89.459	89.376%	0	<6.0	230.31V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	6.40mV	5.00mV	10.10mV	3.90mV	Pass
20% Load	8.50mV	5.10mV	10.10mV	4.60mV	Pass
30% Load	9.80mV	5.20mV	9.80mV	4.90mV	Pass
40% Load	11.40mV	6.10mV	10.50mV	5.20mV	Pass
50% Load	14.60mV	6.00mV	10.60mV	5.90mV	Pass
60% Load	15.40mV	6.20mV	11.00mV	6.00mV	Pass
70% Load	17.50mV	6.90mV	11.30mV	6.70mV	Pass
80% Load	16.70mV	6.50mV	16.60mV	7.20mV	Pass
90% Load	18.10mV	7.10mV	18.00mV	7.70mV	Pass
100% Load	24.90mV	8.00mV	17.30mV	8.90mV	Pass
110% Load	26.40mV	8.90mV	16.70mV	9.80mV	Pass
Crossload1	10.70mV	5.60mV	16.60mV	4.60mV	Pass
Crossload2	24.80mV	7.90mV	12.80mV	8.50mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	6.90mV	5.40mV	11.10mV	4.10mV	Pass
20% Load	8.20mV	5.20mV	10.90mV	4.40mV	Pass
30% Load	11.70mV	5.50mV	11.40mV	4.80mV	Pass
40% Load	12.00mV	5.80mV	11.50mV	5.40mV	Pass
50% Load	14.10mV	6.10mV	12.10mV	5.80mV	Pass
60% Load	17.30mV	6.20mV	12.70mV	6.30mV	Pass
70% Load	17.60mV	6.80mV	12.80mV	6.80mV	Pass
80% Load	17.00mV	6.80mV	18.20mV	7.20mV	Pass
90% Load	18.60mV	7.50mV	17.90mV	7.80mV	Pass
100% Load	26.90mV	8.50mV	18.30mV	8.90mV	Pass
110% Load	27.80mV	9.20mV	17.30mV	9.50mV	Pass
Crossload1	11.10mV	5.90mV	17.90mV	5.10mV	Pass
Crossload2	25.60mV	8.20mV	12.70mV	9.00mV	Pass

The results above are not used in the certification process

Thermaltake Toughpower Grand RGB 850W Platinum (#2)

Top side

Power specifications label
