CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Bitfenix Formula Gold 450W
Serial Number
Lab ID159
  • Report:
  • Receipt Date: Aug 6, 2018
  • Test Date: Aug 11, 2018
  • Report Date: Aug 14, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandBitfenix
Manufacturer (OEM)Channel Well Technology
SeriesFormula Gold Series
Model NumberBF450G
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)7
Rated Frequency (Hz)47-63
Rated Power (W)450
TypeATX12V
Cooling120mm Rifle Bearing Fan
(DF1202512SELN)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail 3.3V 5V 12V1 12V2 12V3 5VSB -12V
Max. Power Amps 20 20 25 25 25 2.5 0.3
Watts 100 450 12.5 3.6
Total Max. Power (W) 450

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (660mm) 1 1 18-22AWG
4+4 pin EPS12V (670mm) 1 1 18AWG
6+2 pin PCIe (560mm+150mm) 1 2 18AWG
SATA (460mm+150mm+150mm)+4 pin Molex (+150mm) 2 6 / 2 18AWG

Parts Description

General Data
Manufacturer (OEM) CWT
Platform Model GPS (Modified)
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CAP004DG
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x GBU606 (600V, 6A @ 100°C)
APFC MOSFETS 2x Champion GP18S50G (500V, 28A @ 150°C, 0.19O)
APFC Boost Diode 1x STMicroelectronics STTH8R06FP (600V, 8A @ 130°C)
Hold-up Cap(s) 1x Nipon Chemi-Con (400V, 390uF, 2000h @ 105°C, KMR series)
Main Switchers 2x F-Cell SVF13N50F (500V, 10A @ 100°C, 0.52O)
APFC Controller Champion CM6502S & CM03X Green PFC controller
LLC Resonant Controller Champion CM6901
Topology Primary side: Half-Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Inte ational Rectifier IRFH7004TRPBF (40 V, 164 A @ 100°C, 1.4Ohm)
5V & 3.3V DC-DC Converters: 2x UBIQ QM3006D FETs (30 V, 57 A @ 100°C, 5.5Ohm)
2x UBIQ QM3004D FETs (30 V, 40 A @ 100°C, 8.5Ohm)
PWM Controller: ANPEC APW7159C
Filtering Capacitors Electrolytics: Chemi-Con (105°C, KY series, KZE series)
Polymers: FPCAP (Japan)
Supervisor IC Sytronix ST9S429-PG14 (OCP [2x 12V channels, OVP, UVP, PG), Weltrend WD7518D (OCP [2x 12V channels], SCP) & UTC LM393G
Fan Model Martech DF1202512SEMN (120mm, 12V, 0.16A, 1630 RPM, Rifle Bearing)
5VSB Circuit
Standby PWM Controller TinySwitch-LT TNY177PN (18W Peak)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)17.3
AC Loss to PWR_OK Hold Up Time (ms)16.6
PWR_OK Inactive to DC Loss Delay (ms)0.7

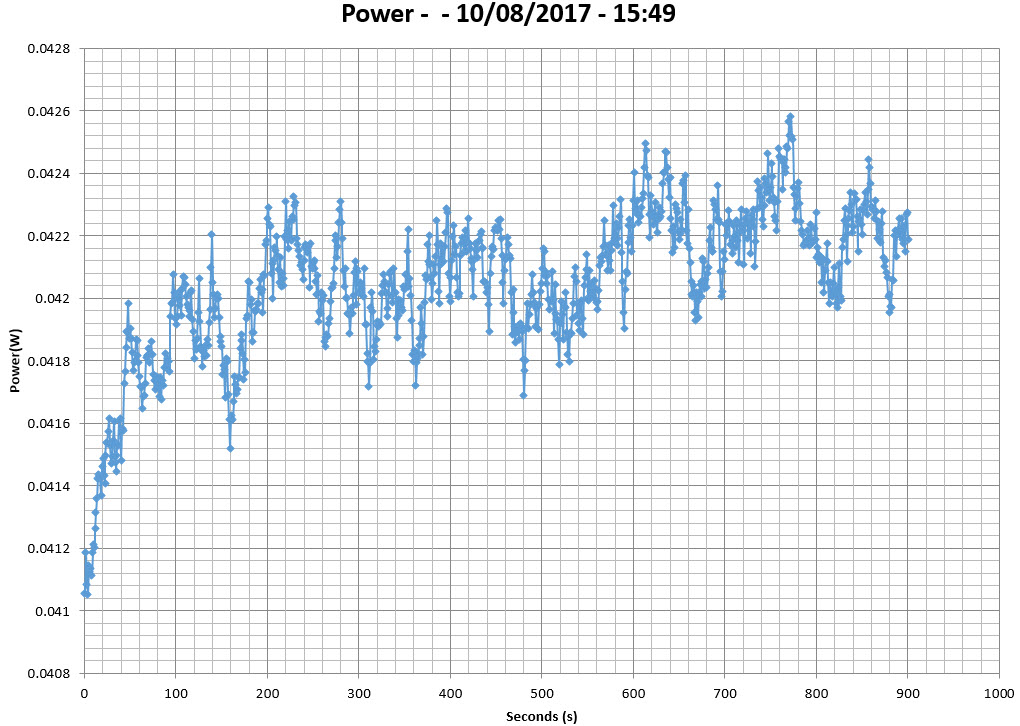

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

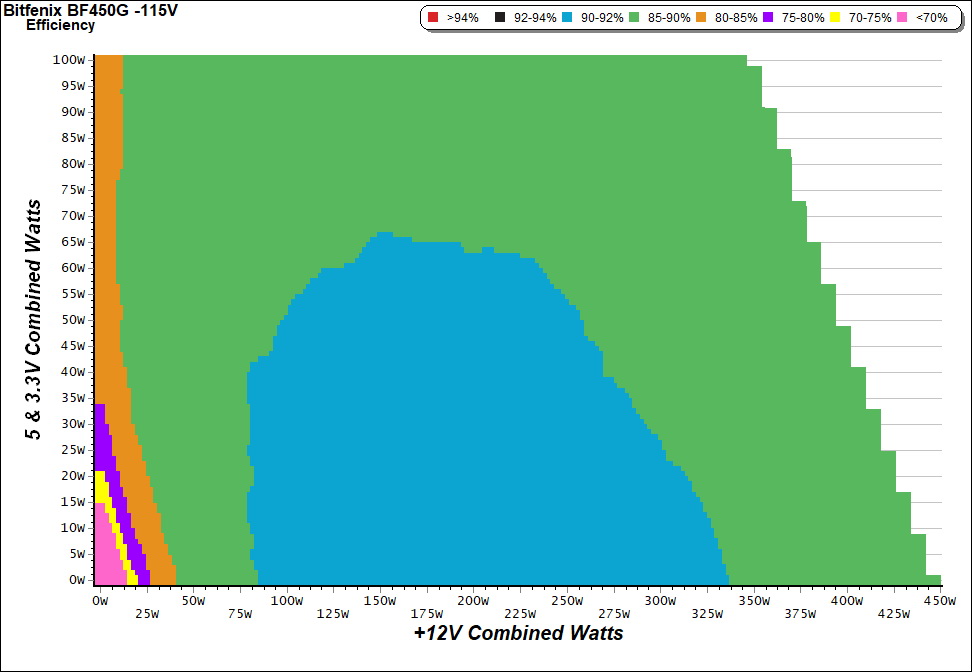

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

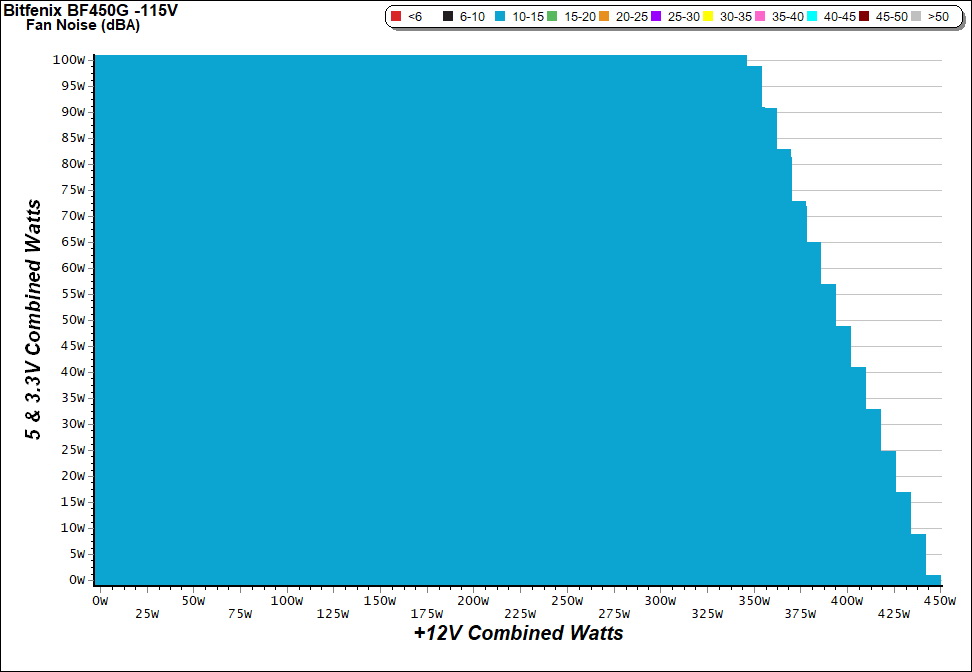

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

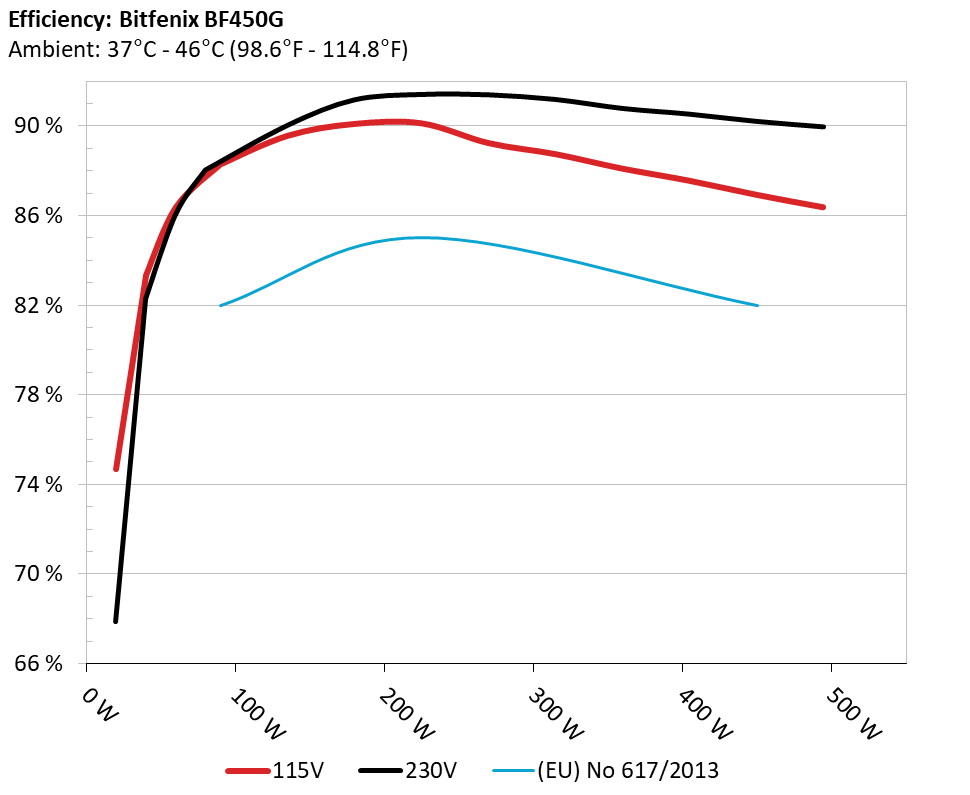

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

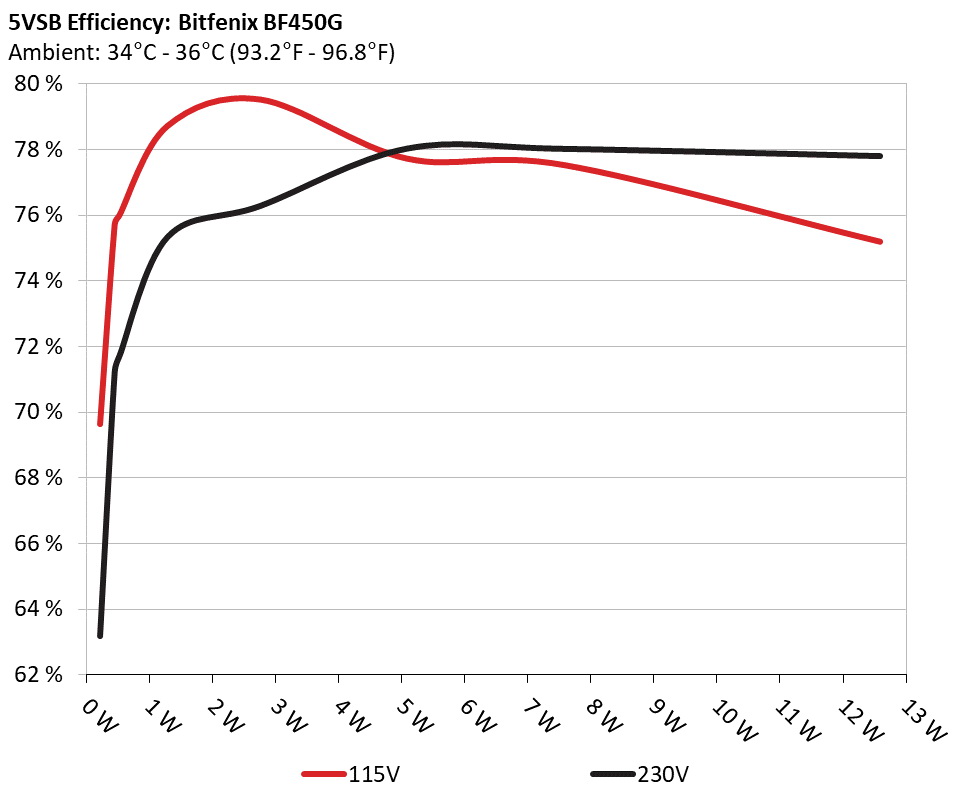

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.041A 0.211 69.637% 0.030
5.095V 0.303 115.20V
2 0.087A 0.443 75.726% 0.058
5.094V 0.585 115.20V
3 0.542A 2.754 79.526% 0.266
5.083V 3.463 115.18V
4 1.002A 5.081 77.727% 0.374
5.071V 6.537 115.18V
5 1.501A 7.595 77.524% 0.430
5.059V 9.797 115.19V
6 2.501A 12.587 75.196% 0.484
5.033V 16.739 115.18V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 1.922A 1.986A 1.973A 0.985A 44.785 83.350% 537 10.3 38.34°C 0.944
12.064V 5.047V 3.341V 5.060V 53.731 42.89°C 115.22V
2 4.883A 2.972A 2.963A 1.186A 89.731 88.092% 537 10.3 38.70°C 0.977
12.056V 5.042V 3.338V 5.047V 101.860 43.84°C 115.22V
3 8.201A 3.478A 3.474A 1.388A 134.910 89.587% 537 10.3 39.02°C 0.985
12.048V 5.039V 3.336V 5.035V 150.591 45.04°C 115.22V
4 11.508A 3.974A 3.960A 1.590A 179.765 90.115% 537 10.3 39.60°C 0.988
12.041V 5.036V 3.333V 5.023V 199.484 46.94°C 115.21V
5 14.481A 4.973A 4.949A 1.794A 224.742 90.142% 545 10.9 39.87°C 0.990
12.033V 5.033V 3.330V 5.007V 249.319 48.09°C 115.21V
6 17.456A 5.967A 5.947A 2.000A 269.716 89.261% 537 10.3 40.67°C 0.991
12.026V 5.030V 3.328V 4.993V 302.167 50.37°C 115.21V
7 20.435A 6.971A 6.947A 2.208A 314.693 88.765% 612 12.7 41.84°C 0.992
12.018V 5.025V 3.323V 4.978V 354.524 52.35°C 115.21V
8 23.422A 7.964A 7.947A 2.415A 359.646 88.116% 810 20.5 42.76°C 0.991
12.009V 5.022V 3.320V 4.965V 408.152 53.43°C 115.20V
9 26.844A 8.474A 8.469A 2.419A 404.748 87.575% 1019 26.5 43.75°C 0.991
12.000V 5.019V 3.318V 4.956V 462.175 55.01°C 115.21V
10 30.216A 8.975A 8.955A 2.525A 449.552 86.948% 1252 32.4 44.94°C 0.991
11.992V 5.017V 3.315V 4.946V 517.035 56.45°C 115.21V
11 33.987A 8.983A 8.960A 2.527A 494.561 86.391% 1479 36.9 45.98°C 0.992
11.985V 5.015V 3.314V 4.940V 572.471 57.82°C 115.20V
CL1 0.096A 12.014A 12.004A 0.004A 101.473 83.803% 537 10.3 43.51°C 0.981
12.041V 5.025V 3.326V 5.051V 121.085 54.29°C 115.22V
CL2 37.471A 1.005A 1.001A 1.001A 463.306 88.068% 1226 31.4 44.70°C 0.992
12.007V 5.027V 3.327V 5.005V 526.079 55.63°C 115.21V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.206A 0.493A 0.476A 0.196A 19.637 74.680% 537 10.3 0.838
12.071V 5.049V 3.344V 5.087V 26.295 115.23V
2 2.445A 0.990A 0.985A 0.391A 39.775 83.279% 537 10.3 0.932
12.066V 5.048V 3.341V 5.078V 47.761 115.22V
3 3.680A 1.477A 1.494A 0.590A 59.824 86.393% 537 10.3 0.962
12.062V 5.047V 3.340V 5.070V 69.246 115.22V
4 4.908A 1.986A 1.974A 0.790A 79.792 88.310% 537 10.3 0.973
12.059V 5.044V 3.339V 5.060V 90.354 115.22V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 16.6 mV 11.9 mV 6.7 mV 10.4 mV Pass
20% Load 24.4 mV 13.0 mV 6.3 mV 8.9 mV Pass
30% Load 28.9 mV 13.2 mV 6.6 mV 10.1 mV Pass
40% Load 28.2 mV 14.7 mV 6.9 mV 11.6 mV Pass
50% Load 27.7 mV 15.8 mV 8.2 mV 11.2 mV Pass
60% Load 32.9 mV 17.7 mV 8.3 mV 12.0 mV Pass
70% Load 33.2 mV 18.0 mV 10.0 mV 12.6 mV Pass
80% Load 42.2 mV 93.0 mV 52.8 mV 23.8 mV Fail
90% Load 35.2 mV 20.2 mV 8.8 mV 24.6 mV Pass
100% Load 36.6 mV 22.0 mV 9.6 mV 19.8 mV Pass
110% Load 37.4 mV 24.0 mV 15.9 mV 20.8 mV Pass
Crossload 1 35.5 mV 18.4 mV 7.6 mV 9.2 mV Pass
Crossload 2 29.9 mV 20.2 mV 9.3 mV 13.4 mV Pass

The results above are not used in the certification process

Bitfenix Formula Gold 450W

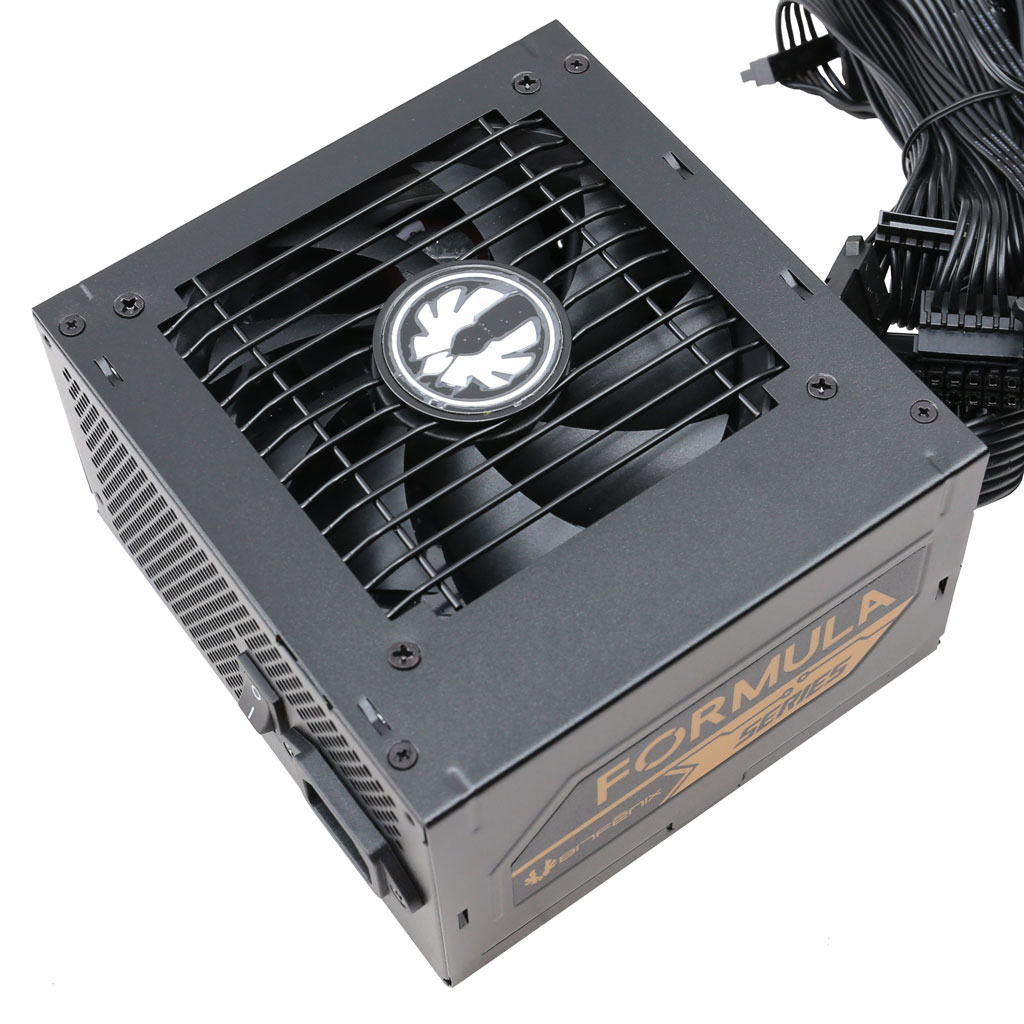

Top side

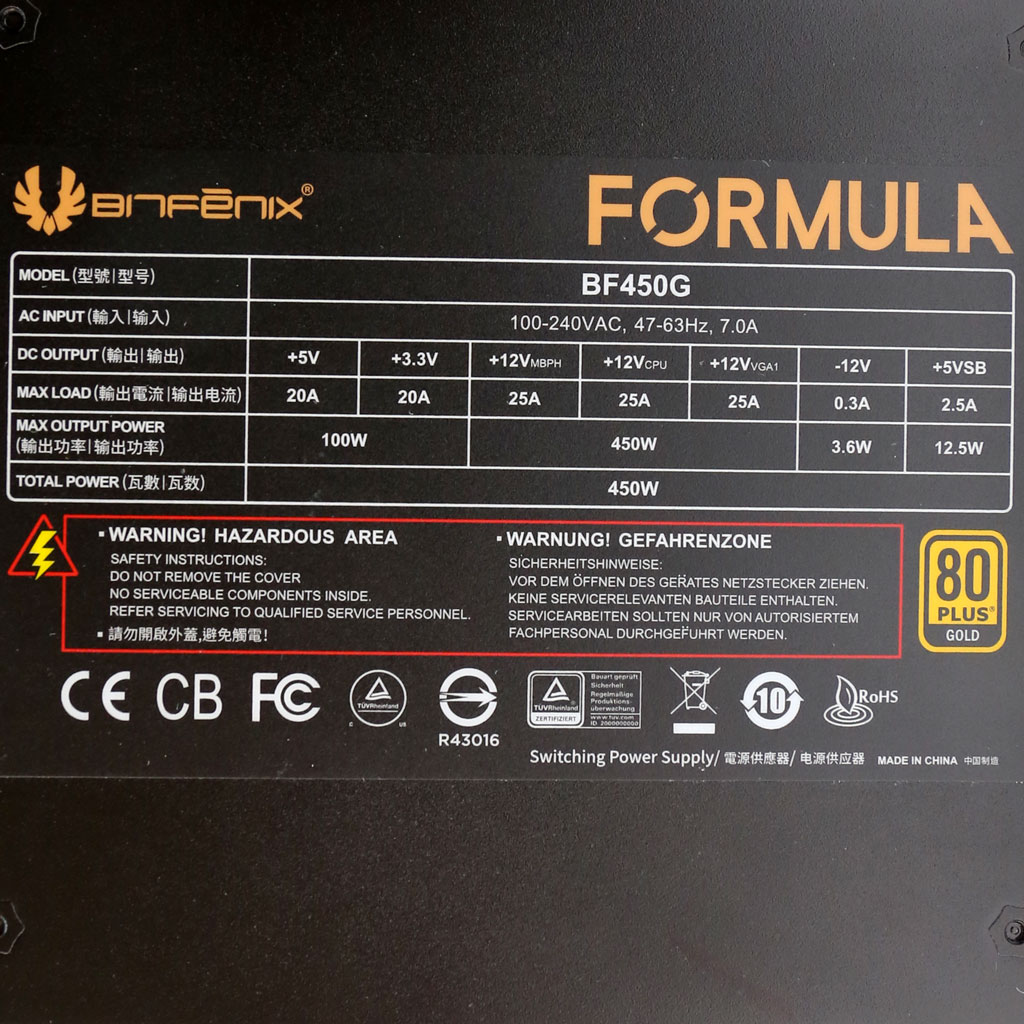

Power specifications label
