CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
XPG Core Reactor 850W
Serial Number4J3080245228
Lab IDAD20850001
  • Report: 20PS1573A
  • Receipt Date: Jan 3, 2020
  • Test Date: Jan 17, 2020
  • Report Date: Jan 18, 2020
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandXPG
Manufacturer (OEM)Channel Well Technology
SeriesCore Reactor Gold
Model Number
Serial Number4J3080245228
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)47-63
Rated Power (W)850
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 22 22 70.8 3 0.3
Watts 120 850 15 3.6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 16-20AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (650mm+150mm) 2 4 16-18AWG No
6+2 pin PCIe (650mm) 2 2 16AWG No
SATA (500mm+145mm+145mm+145mm) 3 12 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No
AC Power Cord (1430mm) - C13 coupler 1 1 16AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.6
AC Loss to PWR_OK Hold Up Time (ms)17.7
PWR_OK Inactive to DC Loss Delay (ms)2.9

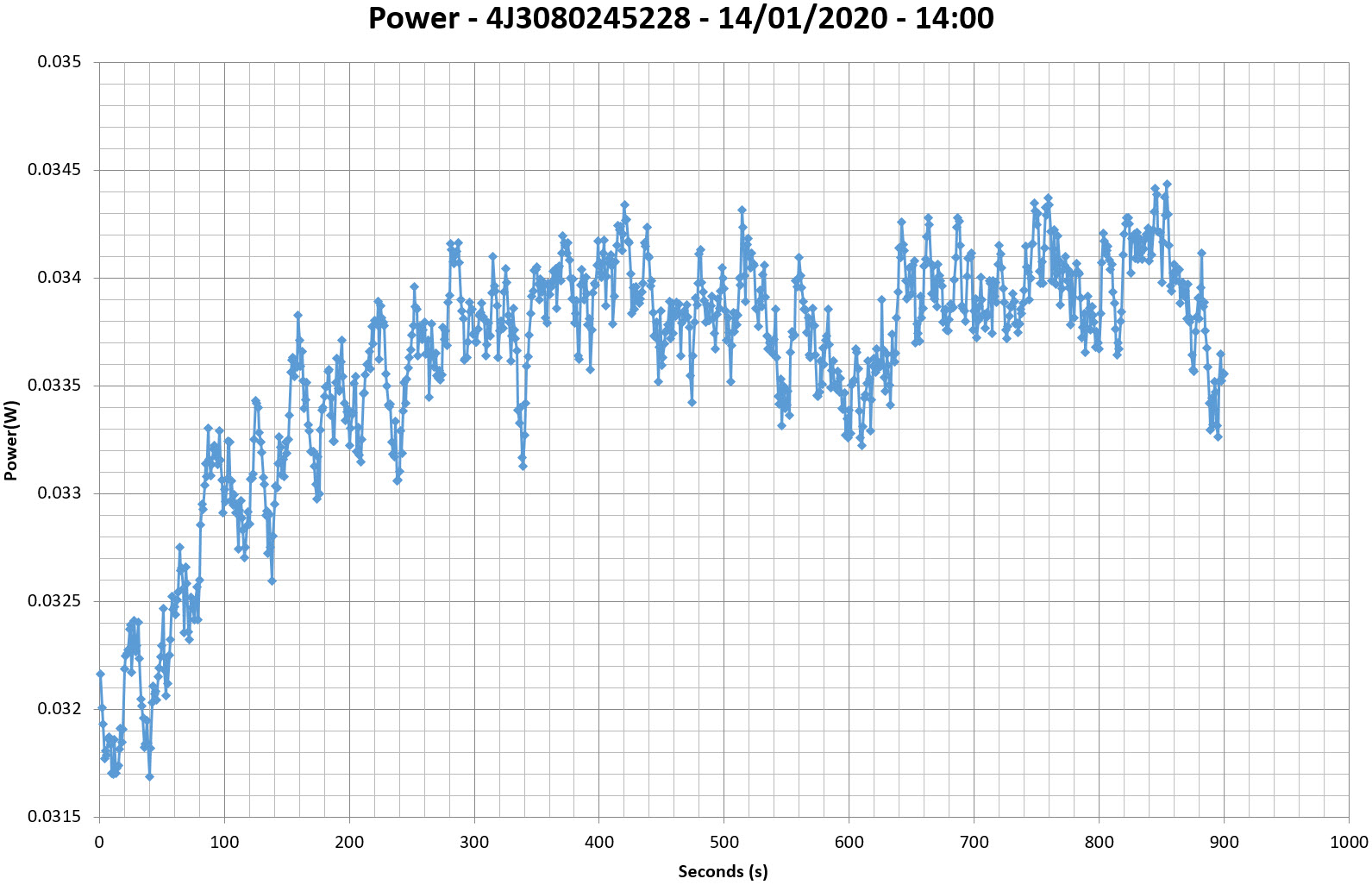

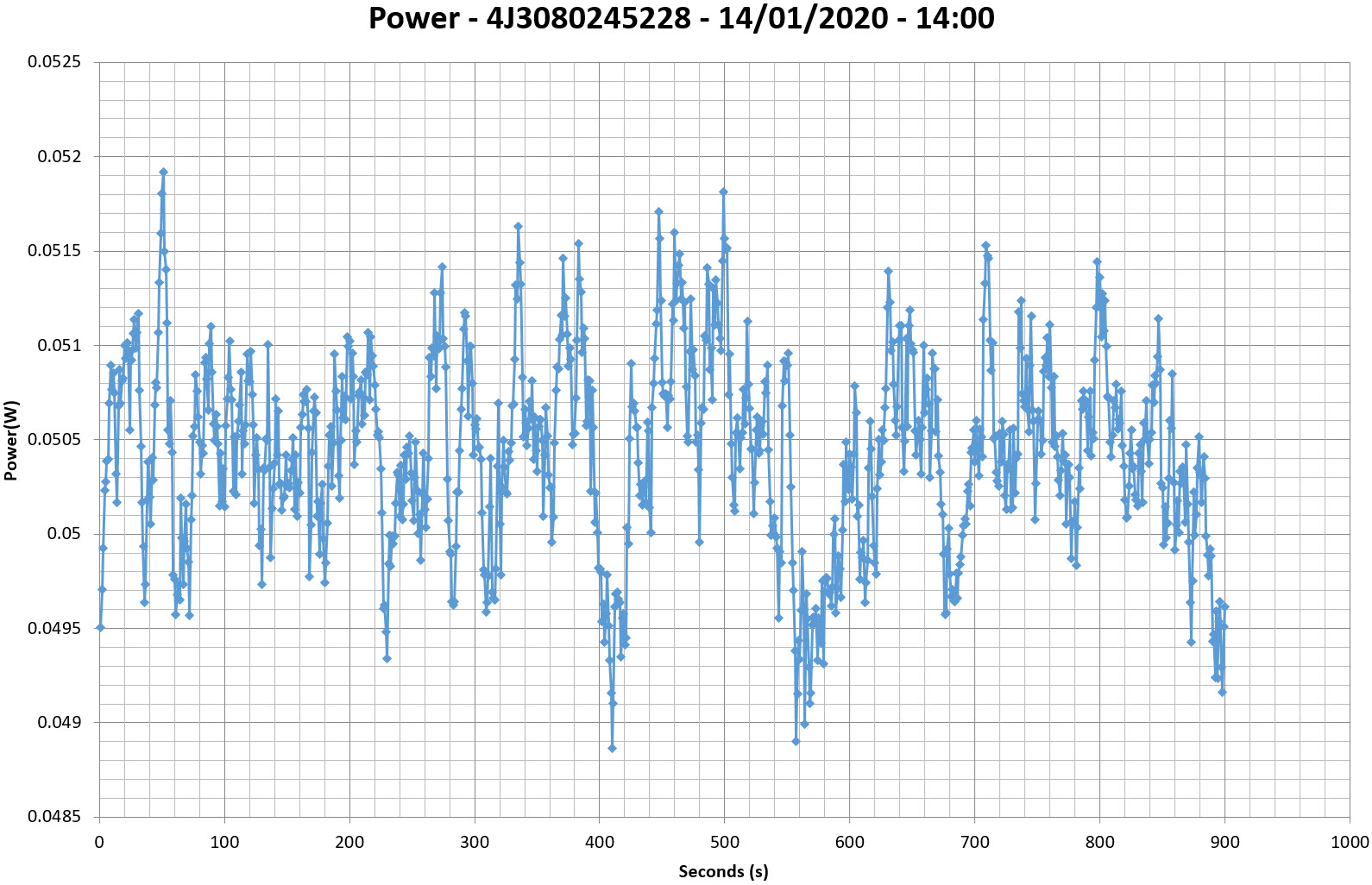

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

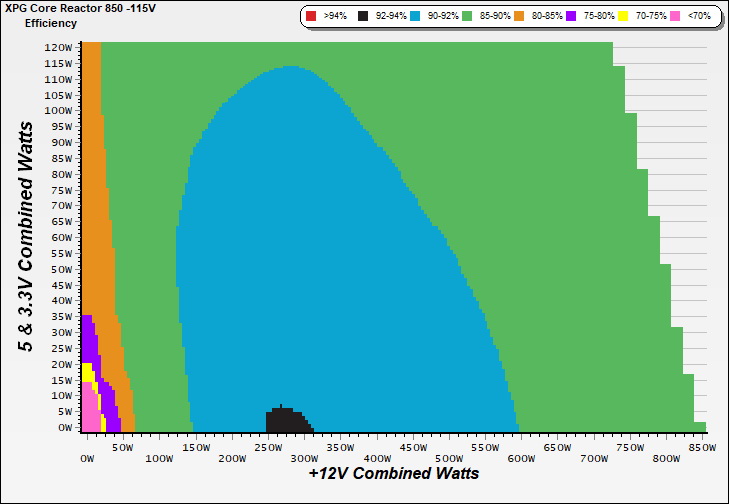

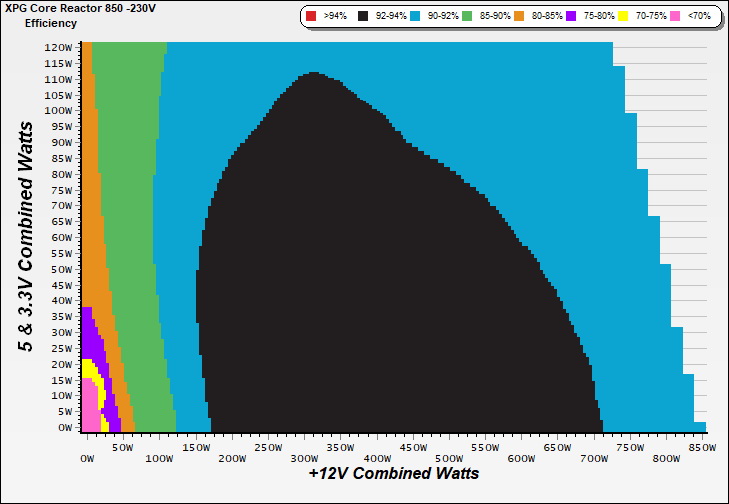

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

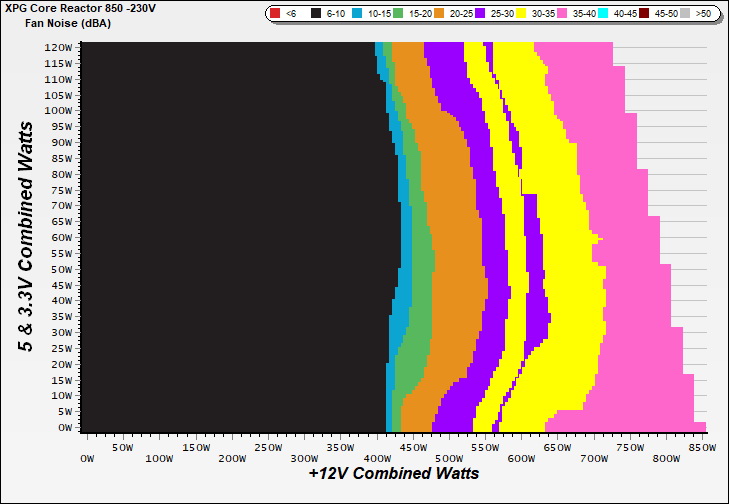

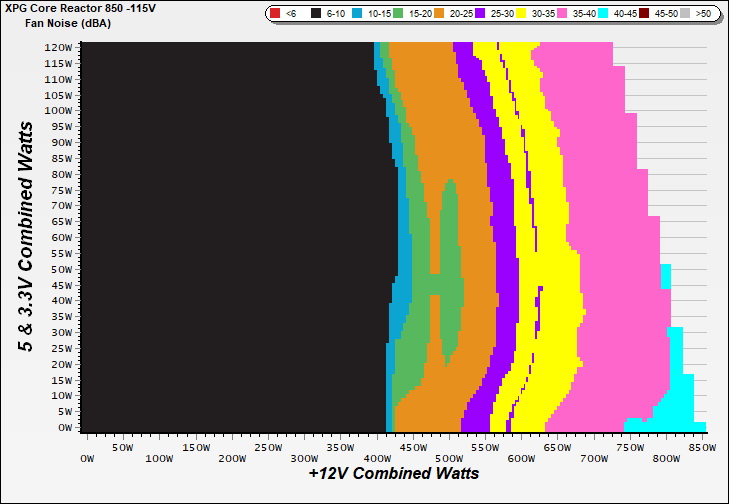

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

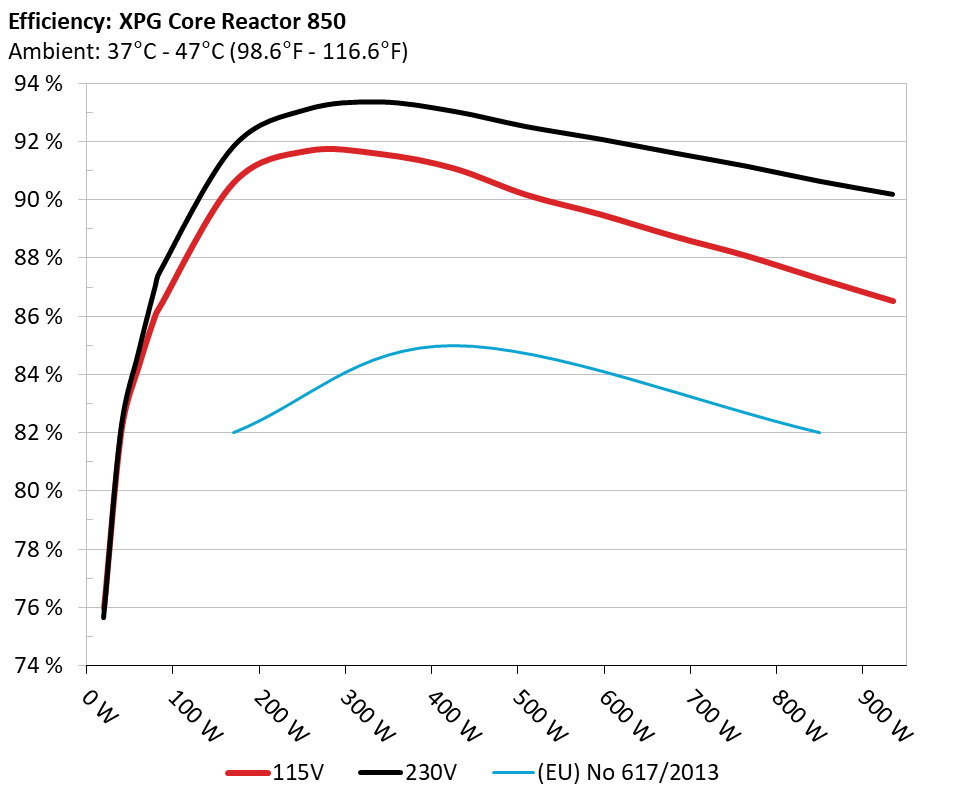

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

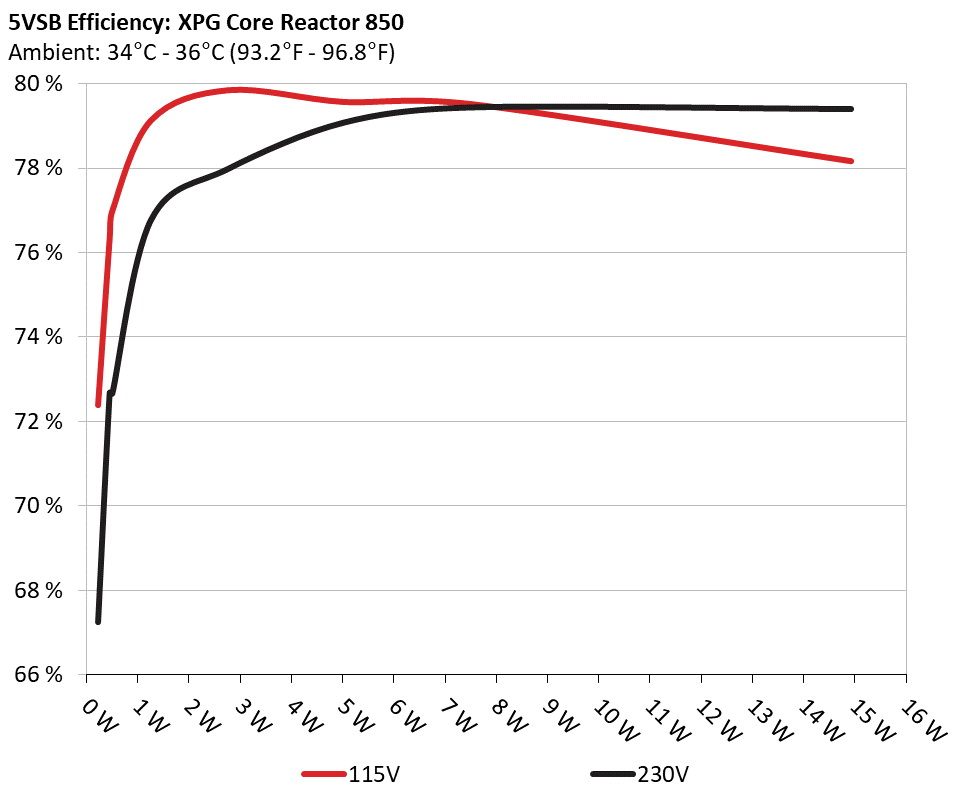

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228 72.381% 0.032
5.055V 0.315 115.18V
2 0.090A 0.455 76.342% 0.060
5.054V 0.596 115.18V
3 0.550A 2.774 79.850% 0.264
5.042V 3.474 115.17V
4 1.000A 5.032 79.570% 0.358
5.030V 6.324 115.17V
5 1.500A 7.528 79.518% 0.412
5.017V 9.467 115.17V
6 3.000A 14.933 78.167% 0.478
4.977V 19.104 115.17V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228 67.257% 0.166
5.016V 0.339 230.35V
2 0.090A 0.455 72.684% 0.019
5.054V 0.626 230.35V
3 0.550A 2.774 77.987% 0.103
5.042V 3.557 230.35V
4 1.000A 5.031 79.079% 0.170
5.030V 6.362 230.35V
5 1.500A 7.526 79.438% 0.228
5.017V 9.474 230.35V
6 3.000A 14.931 79.399% 0.330
4.977V 18.805 230.34V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.191A 1.980A 1.994A 0.994A 84.957 86.339% 637 9.3 40.25°C 0.978
12.203V 5.052V 3.312V 5.034V 98.399 45.29°C 115.14V
2 11.502A 2.972A 2.990A 1.194A 170.028 90.579% 640 9.4 40.41°C 0.987
12.096V 5.048V 3.309V 5.027V 187.713 46.01°C 115.13V
3 18.117A 3.469A 3.493A 1.395A 255.037 91.675% 643 9.4 41.22°C 0.990
12.087V 5.045V 3.307V 5.021V 278.196 47.00°C 115.13V
4 24.708A 3.966A 3.993A 1.596A 340.048 91.571% 648 9.6 41.73°C 0.988
12.095V 5.043V 3.306V 5.015V 371.349 48.14°C 115.12V
5 30.800A 4.960A 4.995A 1.797A 424.965 91.082% 975 20.5 42.65°C 0.989
12.158V 5.039V 3.304V 5.009V 466.574 49.70°C 115.12V
6 36.990A 5.960A 5.999A 2.000A 509.511 90.168% 1472 32.2 42.79°C 0.991
12.157V 5.036V 3.301V 5.003V 565.070 50.45°C 115.11V
7 43.268A 6.958A 7.006A 2.202A 594.870 89.500% 1797 39.0 42.97°C 0.992
12.151V 5.032V 3.298V 4.996V 664.656 51.03°C 115.11V
8 49.542A 7.959A 8.009A 2.406A 680.206 88.747% 2073 42.6 43.60°C 0.993
12.147V 5.028V 3.296V 4.989V 766.457 52.74°C 115.13V
9 56.215A 8.460A 8.500A 2.407A 765.133 88.069% 2266 44.7 44.77°C 0.994
12.143V 5.025V 3.294V 4.987V 868.787 54.78°C 115.15V
10 62.636A 8.963A 9.023A 3.019A 849.988 87.280% 2290 45.7 44.79°C 0.995
12.138V 5.021V 3.292V 4.970V 973.864 55.67°C 115.13V
11 69.619A 8.967A 9.025A 3.020A 934.754 86.524% 2286 45.6 46.54°C 0.995
12.138V 5.020V 3.291V 4.968V 1080.336 57.86°C 115.14V
CL1 0.117A 14.002A 14.000A 0.000A 118.188 84.109% 663 10.2 42.76°C 0.985
12.118V 5.040V 3.300V 5.069V 140.517 49.51°C 115.16V
CL2 70.846A 0.999A 1.001A 1.000A 872.992 87.771% 2170 43.6 44.93°C 0.995
12.134V 5.033V 3.301V 5.015V 994.627 55.47°C 115.14V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 5.191A 1.980A 1.994A 0.994A 84.960 87.523% 638 9.3 40.22°C 0.856
12.204V 5.052V 3.311V 5.034V 97.072 45.67°C 230.37V
2 11.502A 2.972A 2.990A 1.194A 170.043 91.827% 640 9.4 40.78°C 0.937
12.097V 5.049V 3.309V 5.028V 185.177 46.85°C 230.36V
3 18.117A 3.468A 3.493A 1.395A 255.054 93.112% 643 9.4 41.81°C 0.961
12.088V 5.046V 3.307V 5.021V 273.921 48.47°C 230.37V
4 24.705A 3.966A 3.995A 1.596A 340.064 93.375% 647 9.5 42.42°C 0.971
12.097V 5.043V 3.305V 5.015V 364.192 49.67°C 230.37V
5 30.795A 4.961A 4.995A 1.797A 425.003 93.057% 1123 24.8 42.71°C 0.976
12.161V 5.040V 3.303V 5.010V 456.711 50.48°C 230.38V
6 36.992A 5.960A 6.000A 2.000A 509.538 92.527% 1440 32.2 43.35°C 0.980
12.157V 5.036V 3.301V 5.003V 550.689 51.74°C 230.37V
7 43.272A 6.959A 7.007A 2.202A 594.882 92.099% 1775 38.7 43.59°C 0.983
12.150V 5.032V 3.298V 4.996V 645.916 52.67°C 230.37V
8 49.546A 7.960A 8.012A 2.406A 680.211 91.624% 2035 42.2 44.22°C 0.984
12.146V 5.028V 3.295V 4.989V 742.390 53.80°C 230.35V
9 56.226A 8.461A 8.501A 2.407A 765.146 91.165% 2213 44.3 44.48°C 0.985
12.141V 5.024V 3.293V 4.987V 839.302 54.72°C 230.35V
10 62.624A 8.963A 9.024A 3.019A 849.982 90.647% 2289 45.6 45.98°C 0.986
12.140V 5.022V 3.292V 4.971V 937.686 56.54°C 230.36V
11 69.635A 8.968A 9.025A 3.020A 934.736 90.198% 2288 45.6 46.79°C 0.988
12.135V 5.019V 3.291V 4.968V 1036.320 58.26°C 230.37V
CL1 0.121A 14.001A 13.999A 0.000A 118.186 84.570% 887 17.4 42.98°C 0.911
12.120V 5.038V 3.299V 5.067V 139.750 50.59°C 230.36V
CL2 70.837A 1.000A 1.000A 1.000A 873.669 91.061% 2285 45.5 45.89°C 0.987
12.145V 5.034V 3.302V 5.017V 959.437 56.72°C 230.40V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.236A 0.495A 0.497A 0.198A 19.987 75.982% 623 9.0 0.842
12.004V 5.055V 3.314V 5.053V 26.305 115.14V
2 2.470A 0.990A 0.997A 0.396A 39.976 82.044% 628 9.1 0.940
12.013V 5.053V 3.313V 5.047V 48.725 115.14V
3 3.652A 1.485A 1.495A 0.595A 60.007 84.265% 631 9.1 0.961
12.199V 5.053V 3.312V 5.043V 71.212 115.14V
4 4.865A 1.980A 1.993A 0.794A 79.956 86.079% 633 9.2 0.977
12.200V 5.052V 3.312V 5.038V 92.887 115.14V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.236A 0.494A 0.499A 0.198A 19.992 75.636% 629 9.1 0.479
12.006V 5.057V 3.314V 5.054V 26.432 230.38V
2 2.470A 0.990A 0.997A 0.396A 39.982 82.085% 629 9.1 0.677
12.015V 5.054V 3.313V 5.048V 48.708 230.37V
3 3.652A 1.485A 1.494A 0.595A 60.011 84.715% 631 9.1 0.782
12.201V 5.053V 3.312V 5.043V 70.839 230.37V
4 4.864A 1.980A 1.995A 0.794A 79.960 87.052% 633 9.2 0.844
12.202V 5.052V 3.311V 5.039V 91.853 230.37V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.5 mV 6.4 mV 16.2 mV 5.8 mV Pass
20% Load 9.9 mV 7.4 mV 17.5 mV 5.6 mV Pass
30% Load 13.0 mV 8.7 mV 20.4 mV 6.4 mV Pass
40% Load 11.5 mV 8.9 mV 20.8 mV 6.5 mV Pass
50% Load 11.0 mV 8.6 mV 21.5 mV 6.9 mV Pass
60% Load 12.1 mV 9.7 mV 20.4 mV 6.9 mV Pass
70% Load 12.6 mV 9.6 mV 21.5 mV 7.6 mV Pass
80% Load 13.3 mV 10.2 mV 23.4 mV 8.3 mV Pass
90% Load 15.2 mV 10.7 mV 24.0 mV 7.7 mV Pass
100% Load 16.9 mV 12.1 mV 26.5 mV 9.7 mV Pass
110% Load 17.5 mV 13.7 mV 28.2 mV 10.0 mV Pass
Crossload 1 9.8 mV 6.8 mV 18.2 mV 4.4 mV Pass
Crossload 2 16.7 mV 12.2 mV 22.6 mV 8.4 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.7 mV 7.3 mV 17.7 mV 5.5 mV Pass
20% Load 11.1 mV 7.7 mV 18.8 mV 5.8 mV Pass
30% Load 9.7 mV 7.9 mV 16.9 mV 5.9 mV Pass
40% Load 8.9 mV 6.7 mV 14.7 mV 4.8 mV Pass
50% Load 9.5 mV 8.1 mV 16.7 mV 6.3 mV Pass
60% Load 11.2 mV 9.2 mV 17.4 mV 6.9 mV Pass
70% Load 11.8 mV 9.2 mV 18.7 mV 7.0 mV Pass
80% Load 13.5 mV 10.0 mV 21.6 mV 7.1 mV Pass
90% Load 12.7 mV 10.0 mV 21.5 mV 7.4 mV Pass
100% Load 17.3 mV 11.3 mV 25.5 mV 8.5 mV Pass
110% Load 17.6 mV 12.2 mV 26.8 mV 9.0 mV Pass
Crossload 1 9.8 mV 6.5 mV 17.8 mV 4.0 mV Pass
Crossload 2 16.6 mV 11.5 mV 24.6 mV 8.6 mV Pass

The results above are not used in the certification process

XPG Core Reactor 850W

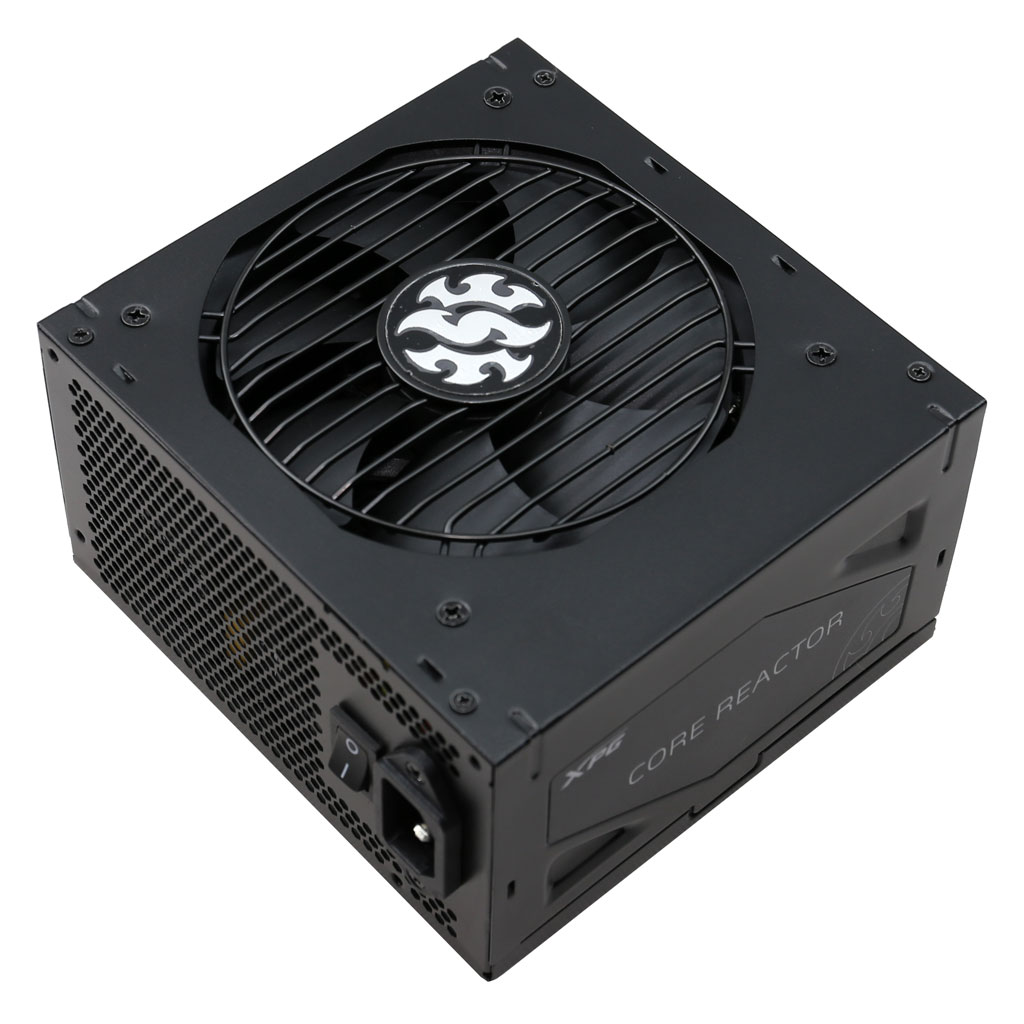

Top side

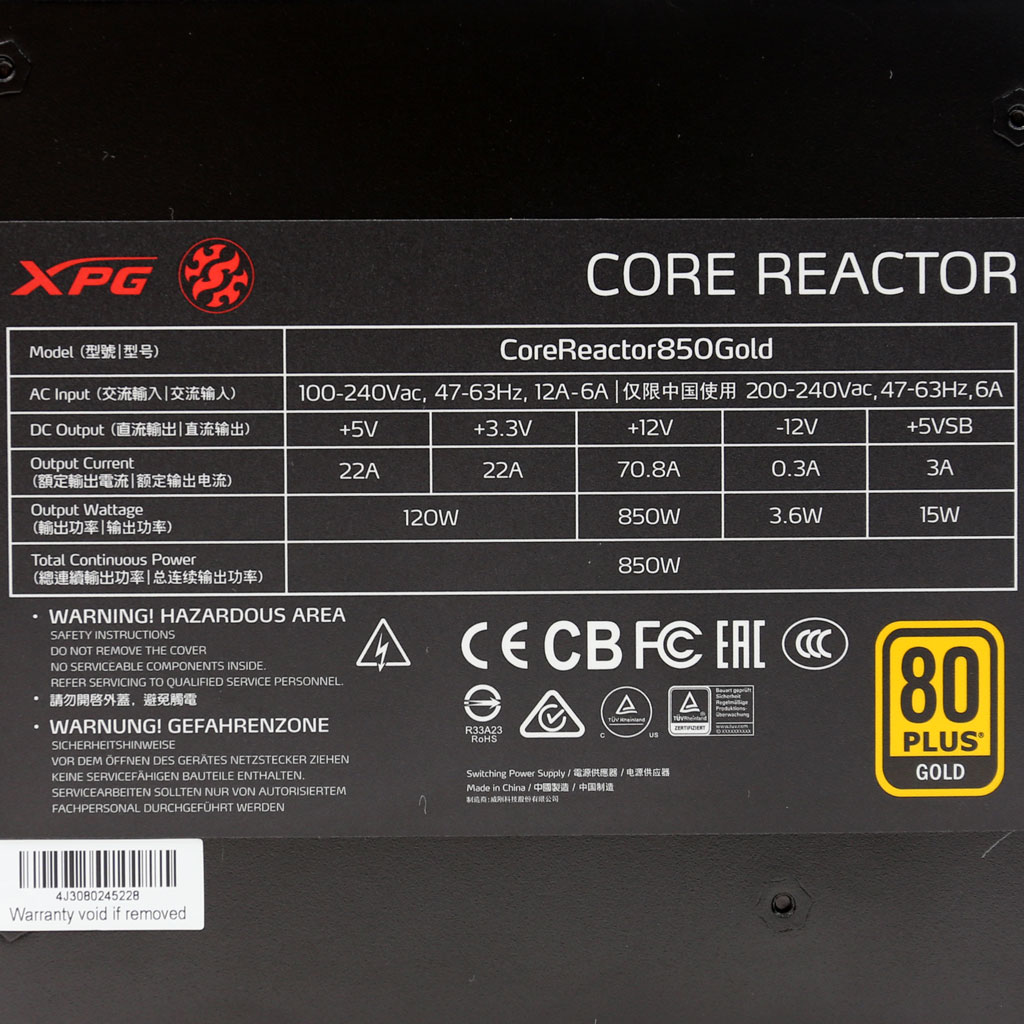

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
