ErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: Partially
ErP Lot 3/6 2014, CEC: Partially
(EU) No 617/2013 Compliance
✓
Performance Summary 115V
Efficiency Rating
SILVER
Noise Rating
A-
Average Efficiency (>1450 load combinations)
86.127%
Average Noise Output (>1450 Load Combinations)
29.74dBA
Average PF (>1450 Load Combinations)
0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
Standby Power Consumption
0.1292W
12V Ripple (Full Load)
12.32mV
5V Ripple (Full Load)
10.53mV
3.3V Ripple (Full Load)
17.44mV
5VSB Ripple (Full Load)
10.69mV
12V Load Regulation
0.70%
5V Load Regulation
0.93%
3.3V Load Regulation
1.14%
5VSB Load Regulation
3.73%
Inrush Current
76.784A
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
15.98
AC Loss to PWR_OK Hold Up Time (ms)
14.18
PWR_OK Inactive to DC Loss Delay (ms)
1.80
Vampire Power
Tables 115V
Graphs 115V
INFO

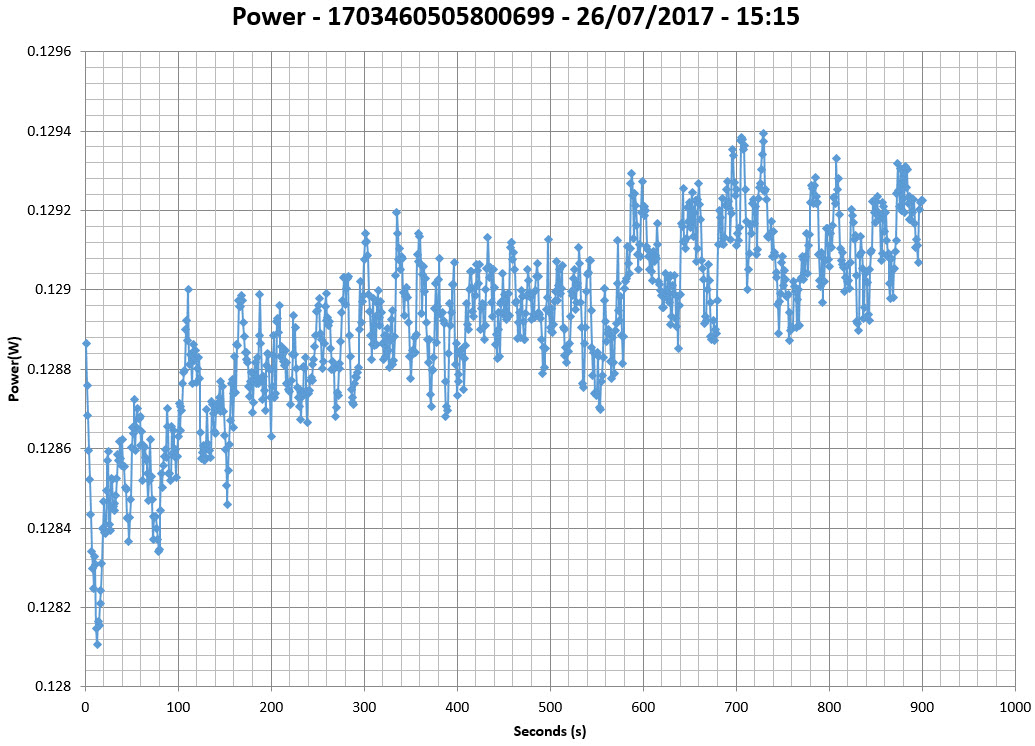

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
Efficiency Graph
115V
INFO

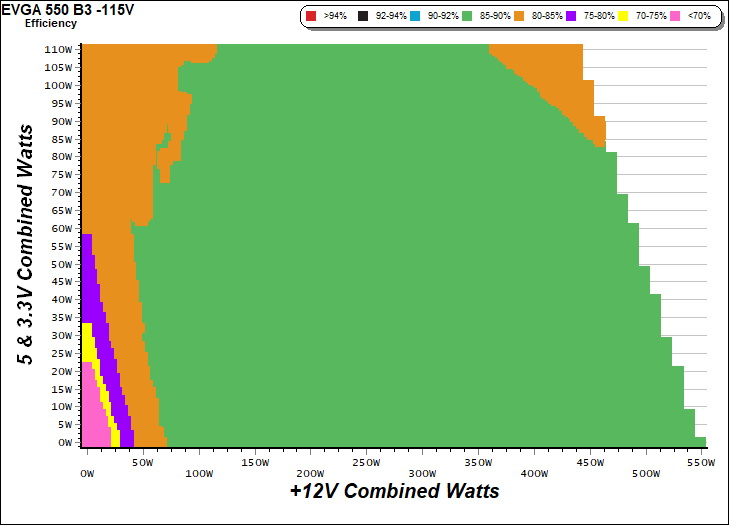

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
Noise Graph
115V
INFO

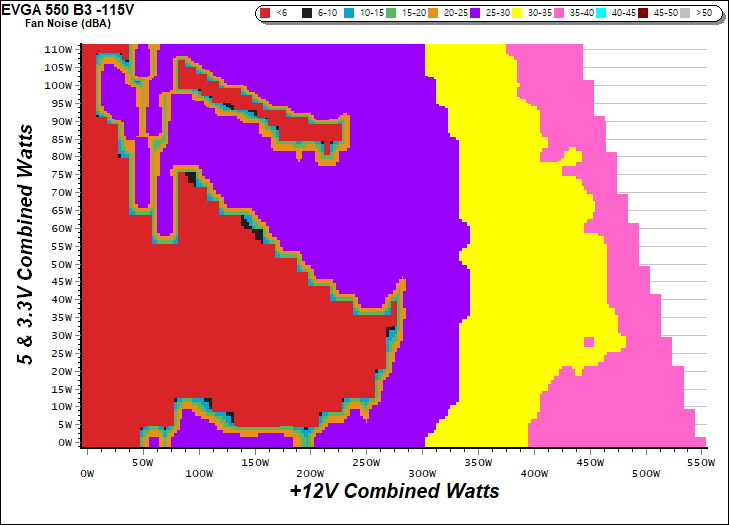

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance
Efficiency under high ambient temperature
INFO

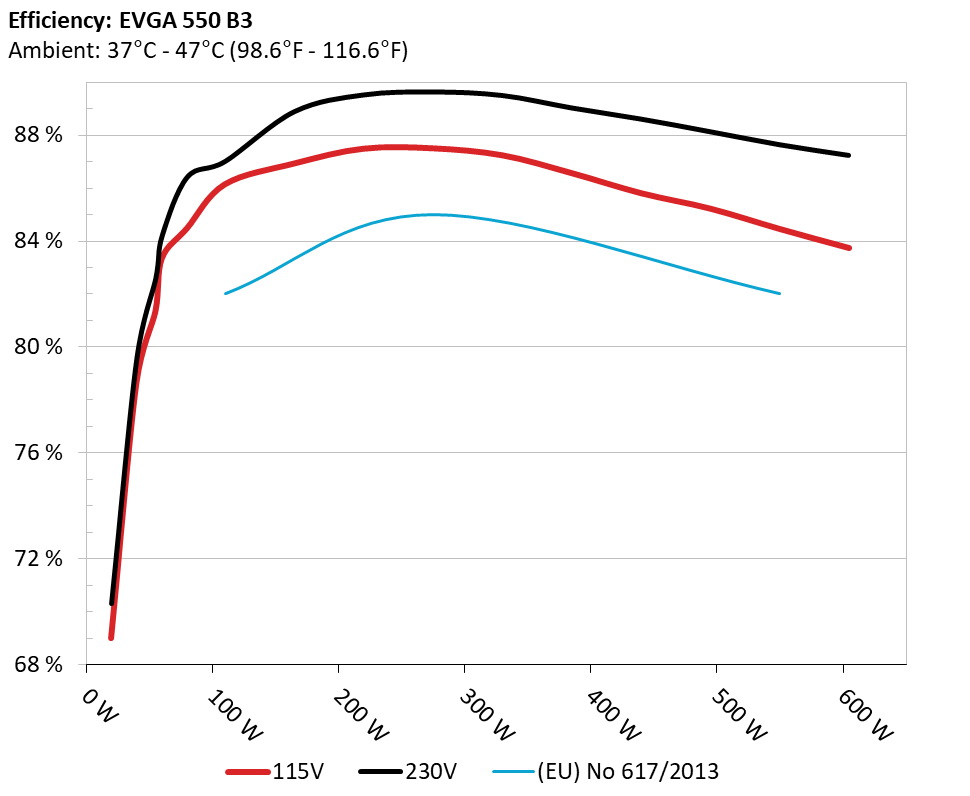

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.
5VSB Efficiency
INFO

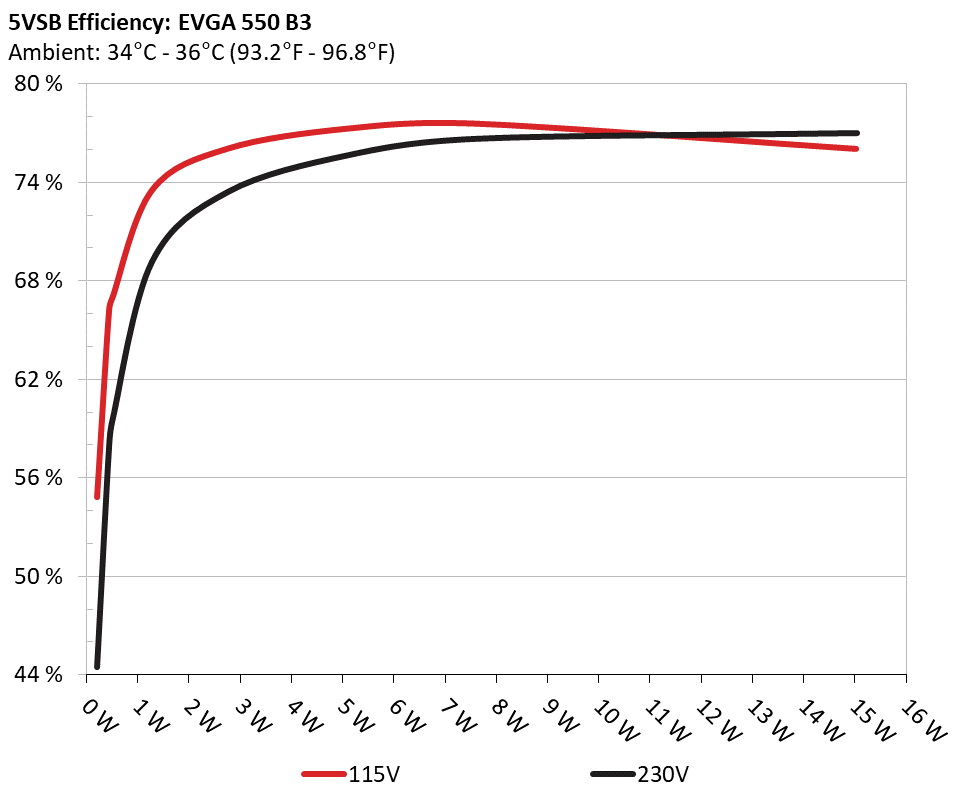

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC) 115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.041A
0.210
54.830%
0.028
5.126V
0.383
115.22V
2
0.086A
0.443
66.218%
0.049
5.125V
0.669
115.22V
3
0.541A
2.764
76.080%
0.218
5.108V
3.633
115.21V
4
1.001A
5.096
77.294%
0.310
5.090V
6.593
115.21V
5
1.500A
7.609
77.595%
0.364
5.071V
9.806
115.21V
6
3.000A
15.020
76.062%
0.436
5.006V
19.747
115.21V
Supplementary Tests (For Reference)
Typical Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
2.723A
1.976A
1.984A
0.983A
54.766
81.349%
1218
27.3
38.40°C
0.930
12.192V
5.054V
3.323V
5.074V
67.322
44.04°C
115.23V
2
6.473A
2.969A
2.977A
1.185A
109.762
86.143%
1180
26.7
38.56°C
0.975
12.188V
5.049V
3.320V
5.059V
127.418
44.28°C
115.23V
3
10.571A
3.468A
3.494A
1.385A
164.846
86.933%
1218
27.3
39.08°C
0.984
12.182V
5.045V
3.316V
5.045V
189.625
44.95°C
115.23V
4
14.664A
3.967A
3.980A
1.589A
219.727
87.490%
1240
27.8
40.26°C
0.989
12.176V
5.040V
3.314V
5.031V
251.146
46.17°C
115.23V
5
18.425A
4.970A
4.983A
1.791A
274.745
87.504%
1276
29.0
40.48°C
0.992
12.171V
5.035V
3.309V
5.015V
313.980
46.51°C
115.24V
6
22.197A
5.966A
5.989A
2.000A
329.735
87.239%
1338
30.7
41.23°C
0.993
12.161V
5.030V
3.305V
4.997V
377.967
47.41°C
115.22V
7
25.976A
6.971A
7.000A
2.205A
384.707
86.566%
1462
34.3
42.75°C
0.994
12.150V
5.024V
3.299V
4.981V
444.409
49.55°C
115.22V
8
29.755A
7.972A
8.009A
2.415A
439.617
85.809%
1584
35.9
43.46°C
0.995
12.140V
5.019V
3.295V
4.965V
512.318
51.06°C
115.22V
9
33.975A
8.479A
8.531A
2.419A
494.712
85.224%
1667
38.1
44.18°C
0.995
12.130V
5.015V
3.292V
4.956V
580.481
52.08°C
115.21V
10
37.952A
8.990A
9.030A
3.043A
549.583
84.457%
1796
41.4
45.29°C
0.995
12.117V
5.010V
3.288V
4.925V
650.723
53.89°C
115.21V
11
42.527A
8.995A
9.040A
3.049A
604.547
83.738%
1910
42.1
46.64°C
0.995
12.106V
5.007V
3.284V
4.916V
721.949
56.12°C
115.21V
CL1
0.100A
13.020A
13.004A
0.000A
109.713
80.343%
1425
32.3
43.82°C
0.975
12.172V
5.031V
3.306V
5.088V
136.555
50.50°C
115.23V
CL2
45.779A
1.005A
1.001A
1.001A
568.165
85.142%
1817
42.0
45.88°C
0.995
12.119V
5.021V
3.296V
5.019V
667.314
54.60°C
115.21V
The results above are not used in the certification process
Light Load Tests 115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.192A
0.492A
0.480A
0.195A
19.639
69.003%
0
<6.0
0.760
12.210V
5.059V
3.329V
5.116V
28.461
115.23V
2
2.413A
0.978A
0.990A
0.390A
39.672
78.647%
0
<6.0
0.893
12.202V
5.057V
3.326V
5.103V
50.443
115.23V
3
3.638A
1.481A
1.501A
0.585A
59.820
83.347%
0
<6.0
0.936
12.195V
5.055V
3.324V
5.093V
71.772
115.23V
4
4.853A
1.976A
1.982A
0.785A
79.733
84.482%
0
<6.0
0.959
12.193V
5.054V
3.323V
5.080V
94.379
115.23V
The results above are not used in the certification process
Ripple Measurements 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
6.0 mV
5.8 mV
7.4 mV
4.7 mV
Pass
20% Load
8.2 mV
5.4 mV
8.2 mV
5.5 mV
Pass
30% Load
7.9 mV
6.4 mV
9.1 mV
5.8 mV
Pass
40% Load
7.8 mV
5.9 mV
10.6 mV
6.4 mV
Pass
50% Load
8.3 mV
7.0 mV
12.6 mV
6.9 mV
Pass
60% Load
8.9 mV
7.4 mV
12.1 mV
6.9 mV
Pass
70% Load
9.6 mV
7.8 mV
14.1 mV
8.0 mV
Pass
80% Load
9.9 mV
9.1 mV
14.3 mV
9.5 mV
Pass
90% Load
10.0 mV
8.9 mV
16.4 mV
9.9 mV
Pass
100% Load
12.3 mV
10.5 mV
17.4 mV
10.7 mV
Pass
110% Load
12.8 mV
10.9 mV
17.3 mV
11.1 mV
Pass
Crossload 1
12.8 mV
7.9 mV
10.2 mV
10.1 mV
Pass
Crossload 2
11.7 mV
10.3 mV
16.2 mV
11.1 mV
Pass
The results above are not used in the certification process
EVGA 550 B3

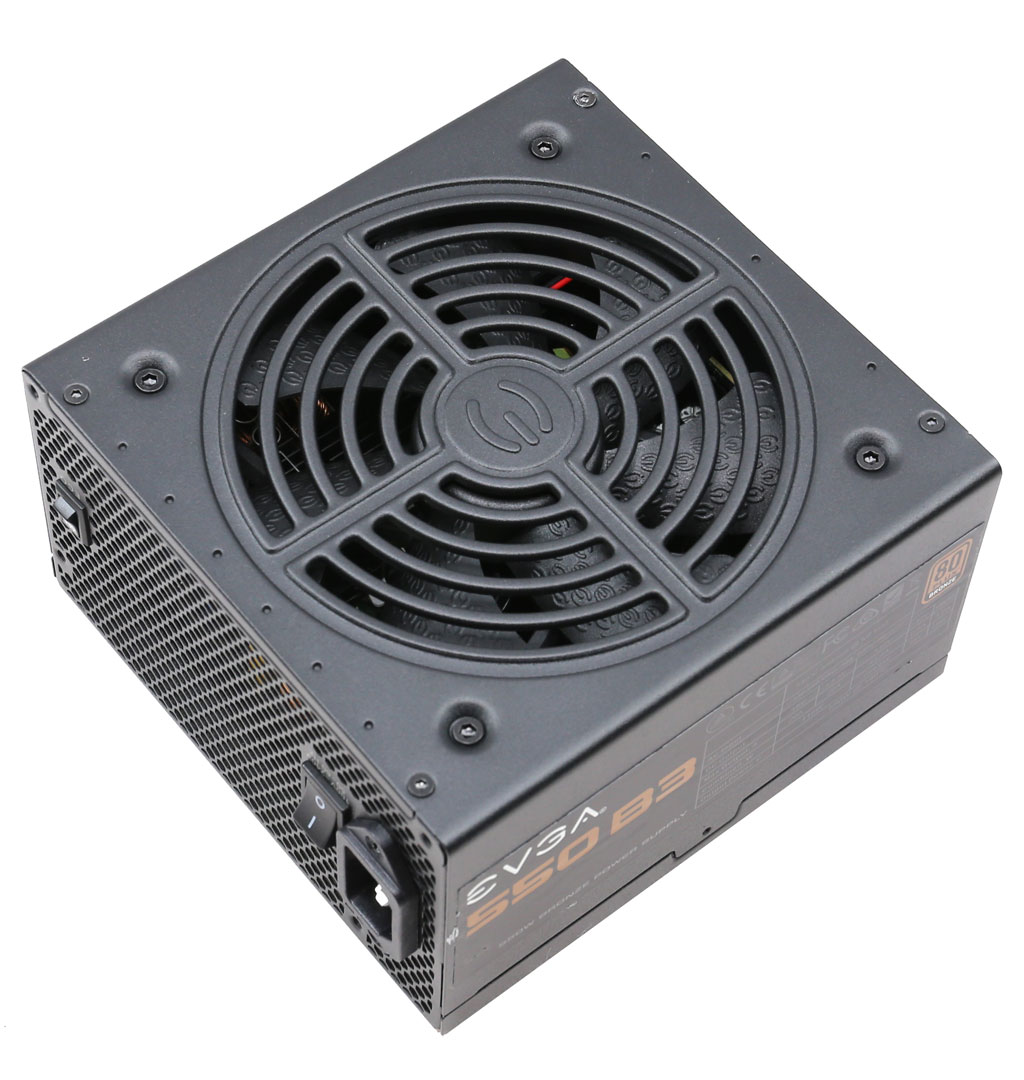

Top side

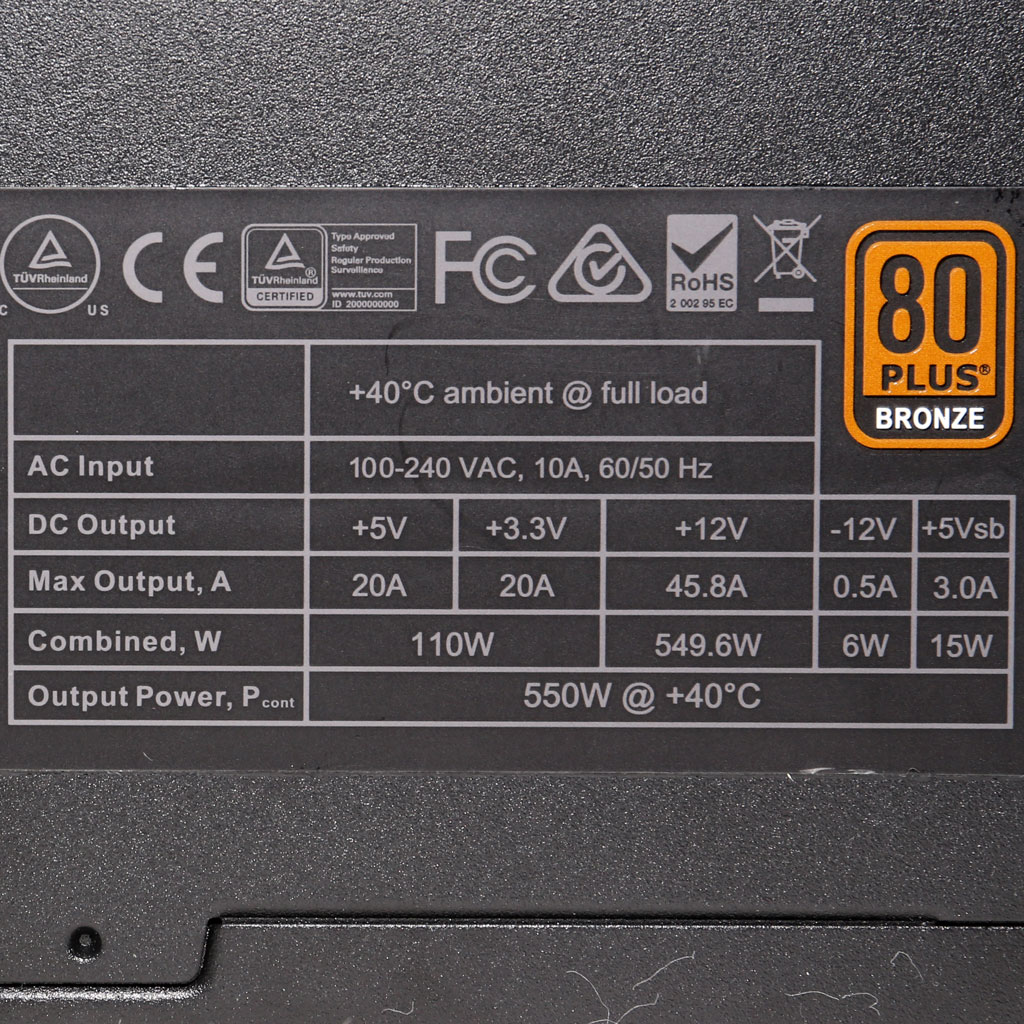

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
