Thermaltake Toughpower DPS G 1200W Platinum
PSTPG1200DPCPEUPRV000062
Lab ID145
  • Report:
  • Receipt Date: Jul 19, 2018
  • Test Date: Jul 22, 2018
  • Report Date: Jul 24, 2018
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Thermaltake
Hersteller (OEM)Enhance Electronics
Tough Power DPS G Platinum
TPG-1200D-P
PSTPG1200DPCPEUPRV000062

(Vrms)115-240
(Arms)12-6
(Hz)50-60
(W)1200
ATX12V
140mm Double Ball-Bearing Fan
(TT-1325 / D14BH-12)
✓ (selectable)
Fully Modular

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 22 100 3 0.3
Watts 120 1200 15 3.6
Total Max. Power (W) 1200

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (600mm) 1 1 16-22AWG
4+4 pin EPS12V (600mm) 2 2 16AWG
6+2 pin PCIe (560mm+150mm) 4 8 16-18AWG
SATA (560mm+145mm+145mm+145mm) 3 12 18AWG
4 pin Molex (560mm+150mm+150mm+150mm) 2 8 18AWG
FDD Adapter (+105mm) 2 2 24AWG
USB Cable (+400mm) 1 1 24-28AWG

Parts Description

Primary Side
Transient Filter 4x Y caps, 4x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor
Bridge Rectifier(s) 2x GBU15L06 (600V, 15A @ 115°C)
APFC MOSFETS 2x Infineon IPW60R099C6 (650V, 24A @ 100°C, 0.099 Ohm)
APFC Boost Diode 1x CREE C3D10060A (600V, 10A @ 153°C)
Hold-up Cap(s) 2x Matsushita/Panasonic (420V, 470uF each or 940uF combined, 2000h @ 105°C, HC)
Main Switchers 4x Infineon IPP60R160C6
(650V, 15A @ 100°C, 0.16 Ohm)
Driver ICs 2x Silicon Labs Si8230BD
APFC Controller Champion CM6502S & CM03X Green PFC controller
Switching Controller Champion CM6901
MCU STMicroelectronics STM32F302
(ARM® 32-bit Cortex®-M4 @ 72 MHz, 32KB, 12bit DAC, USB 2.0 interface, temperature sensor)
Topology Primary side: Full-Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 12x Infineon BSC014N04LS (40V, 100A @ 100°C, 1.4 mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0901NS
PWM Controller: ANPEC APW7073
Filtering Capacitors Electrolytics: Nippon Chemi-Con (105°C, KY, KZH), Rubycon (ZLJ, 6000～10000h & 105°C)
Polymers: Teapo, Duratech
Supervisor IC SITI PS223 (OVP, UVP, OCP, SCP, OTP )
Fan Model TT-1325 (Yate Loon, D14BH-12, 140mm, 12V, 0.70A, 2800RPM, 140 CFM, 48.5 dB[A], Double Ball-Bearing)
5VSB Circuit
Rectifier 1x PFR10V45CT (45V, 2 x 5A, 0.35V @ 5A & 125°C)
Standby PWM Controller Sanken STR-A6062H (23W @ 230VAC, 18W @ Universal)
-12V Circuit
Regulator L7912CV (-12V, 1.5A, TO-220)


Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
ErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: ✓
ErP Lot 3/6 2014, CEC: Partially
✓

Performance Summary 115V

WirkungsgradPLATINUM
LautstärkeklasseStandard+
(>1450 load combinations)89.640%
Average Noise Output (>1450 Load Combinations)37.29dBA
(>1450 Load Combinations)0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0672W
12V Ripple (Full Load)49.13mV
5V Ripple (Full Load)16.83mV
3.3V Ripple (Full Load)17.88mV
5VSB Ripple (Full Load)15.91mV
12V Load Regulation1.14%
5V Load Regulation2.77%
3.3V Load Regulation2.84%
5VSB Load Regulation3.59%
Inrush Current42.397A

Hold-Up Time (ms)13.7
AC Loss to PWR_OK Hold Up Time (ms)15.8
PWR_OK Inactive to DC Loss Delay (ms)-2.1

Stromverbrauch im Ruhezustand

Tables 115V

Graphs 115V

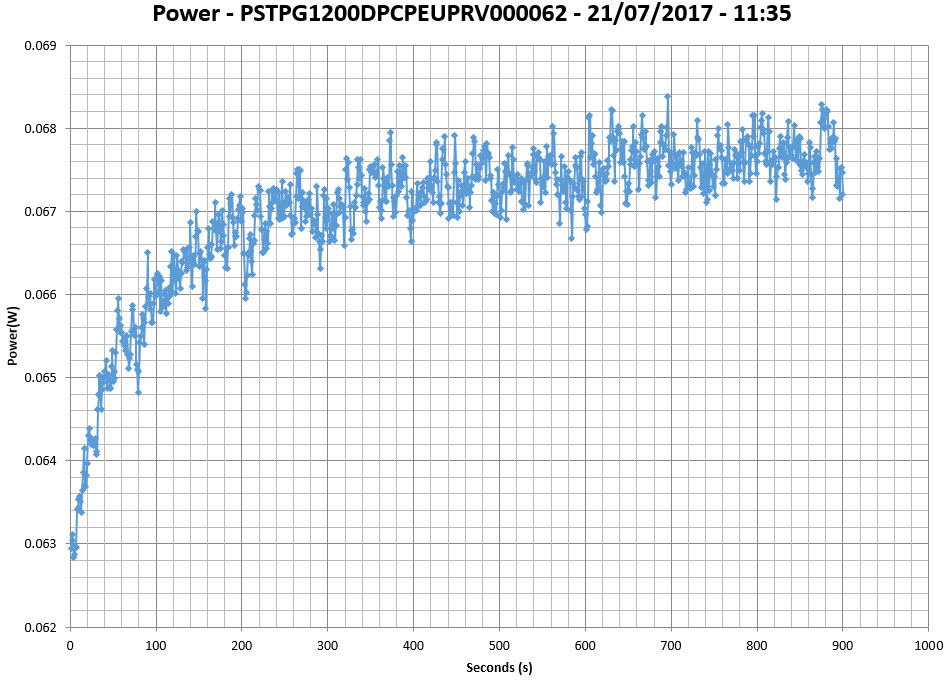

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

115V

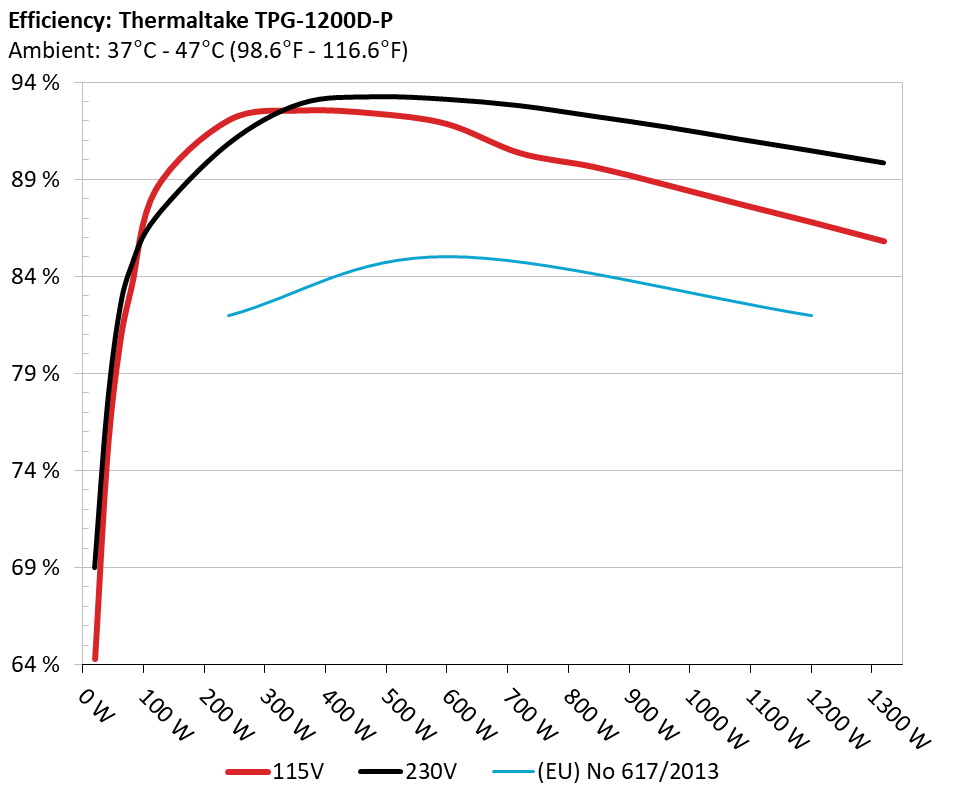

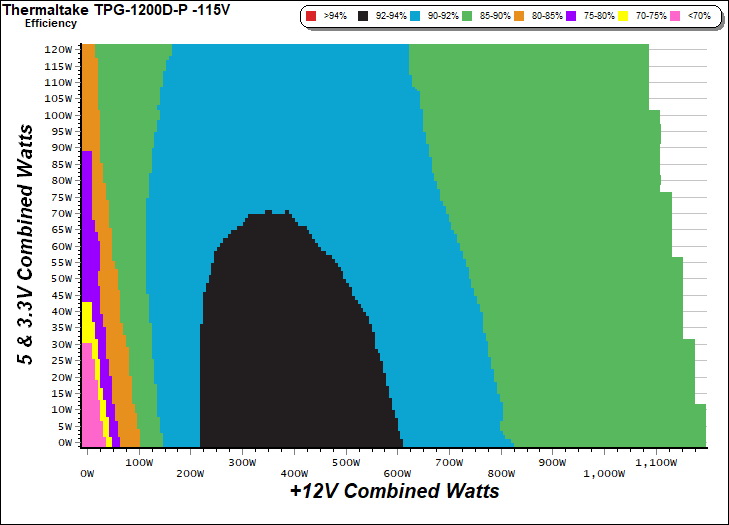

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

115V

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

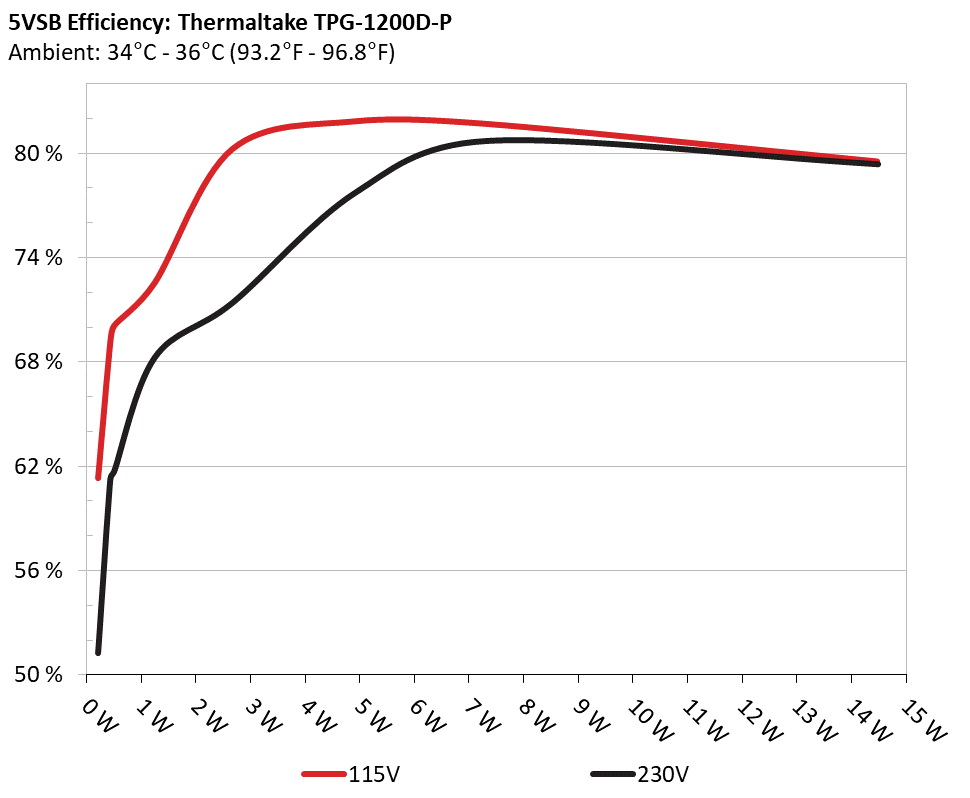

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.206 61.310% 0.022
4.940V 0.336 115.20V
2 0.087A 0.430 69.132% 0.040
4.938V 0.622 115.17V
3 0.542A 2.667 80.235% 0.192
4.919V 3.324 115.22V
4 1.002A 4.911 81.823% 0.301
4.901V 6.002 115.17V
5 1.502A 7.331 81.673% 0.379
4.882V 8.976 115.17V
6 3.001A 14.472 79.516% 0.486
4.822V 18.200 115.17V

Supplementary Tests (For Reference)

115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.102A 1.965A 1.970A 0.986A 119.767 88.464% 807 22.0 38.44°C 0.946
12.118V 5.089V 3.344V 5.071V 135.385 40.19°C 115.16V
2 17.249A 2.951A 2.963A 1.186A 239.610 92.029% 808 22.0 38.73°C 0.967
12.103V 5.073V 3.334V 5.055V 260.363 40.61°C 115.16V
3 26.777A 3.459A 3.486A 1.385A 359.758 92.534% 810 22.0 39.29°C 0.977
12.088V 5.062V 3.324V 5.040V 388.785 41.29°C 115.15V
4 36.315A 3.960A 3.980A 1.591A 479.619 92.381% 813 22.0 40.17°C 0.983
12.073V 5.050V 3.315V 5.026V 519.174 42.28°C 115.15V
5 45.534A 4.971A 4.990A 1.796A 599.560 91.836% 816 22.2 41.04°C 0.987
12.058V 5.034V 3.305V 5.008V 652.856 43.47°C 115.15V
6 54.778A 5.977A 6.006A 2.001A 719.464 90.340% 1156 33.7 42.46°C 0.989
12.043V 5.019V 3.295V 4.990V 796.399 44.47°C 115.16V
7 64.044A 7.002A 7.026A 2.210A 839.371 89.640% 1461 39.8 43.00°C 0.990
12.027V 5.004V 3.286V 4.972V 936.385 45.17°C 115.16V
8 73.338A 8.025A 8.053A 2.420A 959.256 88.712% 1719 43.4 43.77°C 0.991
12.011V 4.986V 3.277V 4.955V 1081.315 45.93°C 115.16V
9 83.092A 8.554A 8.599A 2.425A 1079.285 87.732% 1995 50.8 44.77°C 0.991
11.995V 4.971V 3.267V 4.941V 1230.210 46.94°C 115.17V
10 92.609A 9.077A 9.118A 3.050A 1199.129 86.787% 2066 49.8 45.72°C 0.992
11.980V 4.958V 3.255V 4.915V 1381.691 48.45°C 115.17V
11 102.761A 9.098A 9.148A 3.055A 1319.128 85.798% 2064 49.8 46.98°C 0.992
11.964V 4.947V 3.247V 4.905V 1537.488 49.43°C 115.18V
CL1 0.098A 14.025A 14.004A 0.004A 118.807 83.737% 826 22.2 44.47°C 0.942
12.121V 5.033V 3.357V 5.064V 141.881 47.53°C 115.18V
CL2 99.939A 1.003A 1.001A 1.002A 1210.534 87.025% 2062 49.8 47.41°C 0.992
11.980V 4.999V 3.253V 4.984V 1391.019 49.77°C 115.18V

The results above are not used in the certification process

115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.205A 0.487A 0.474A 0.196A 19.677 64.283% 803 22.0 0.840
12.120V 5.103V 3.351V 5.098V 30.610 115.17V
2 2.434A 0.981A 0.984A 0.391A 39.784 74.699% 804 22.0 0.898
12.118V 5.099V 3.350V 5.092V 53.259 115.17V
3 3.666A 1.469A 1.490A 0.586A 59.871 80.356% 805 22.0 0.932
12.116V 5.097V 3.347V 5.085V 74.507 115.17V
4 4.891A 1.961A 1.969A 0.785A 79.809 83.451% 807 22.0 0.931
12.113V 5.093V 3.347V 5.078V 95.636 115.16V

The results above are not used in the certification process

115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 30.5 mV 7.0 mV 8.5 mV 6.9 mV Pass
20% Load 20.9 mV 7.3 mV 8.1 mV 6.4 mV Pass
30% Load 21.2 mV 8.9 mV 9.8 mV 7.1 mV Pass
40% Load 24.0 mV 8.6 mV 10.1 mV 7.5 mV Pass
50% Load 29.9 mV 9.7 mV 11.6 mV 9.0 mV Pass
60% Load 33.8 mV 11.6 mV 14.0 mV 11.4 mV Pass
70% Load 37.9 mV 13.4 mV 16.1 mV 14.8 mV Pass
80% Load 39.4 mV 15.4 mV 13.0 mV 14.5 mV Pass
90% Load 43.6 mV 14.2 mV 16.1 mV 13.5 mV Pass
100% Load 49.1 mV 16.8 mV 17.9 mV 15.9 mV Pass
110% Load 52.9 mV 20.0 mV 18.1 mV 18.7 mV Pass
Crossload 1 33.8 mV 8.4 mV 9.2 mV 7.3 mV Pass
Crossload 2 50.3 mV 16.8 mV 17.4 mV 17.0 mV Pass

The results above are not used in the certification process

Thermaltake Toughpower DPS G 1200W Platinum

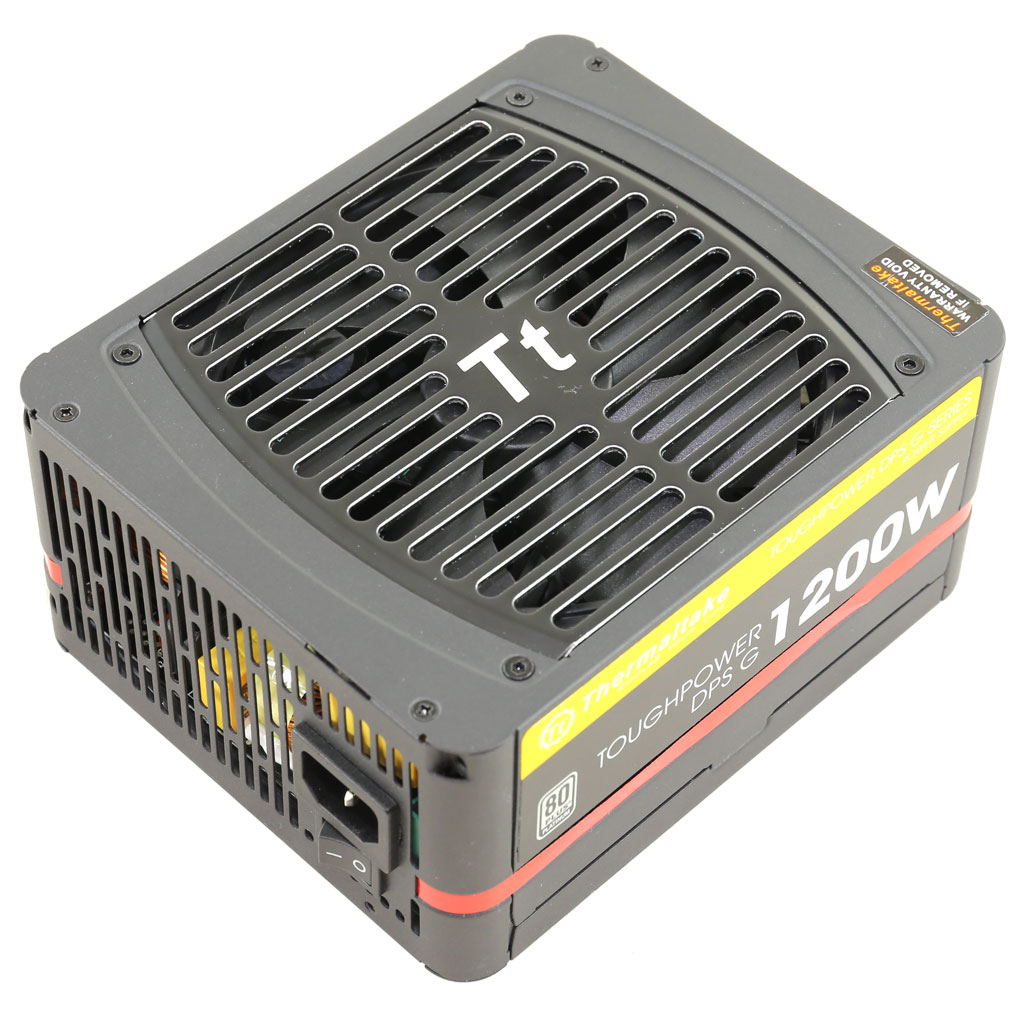

Top side

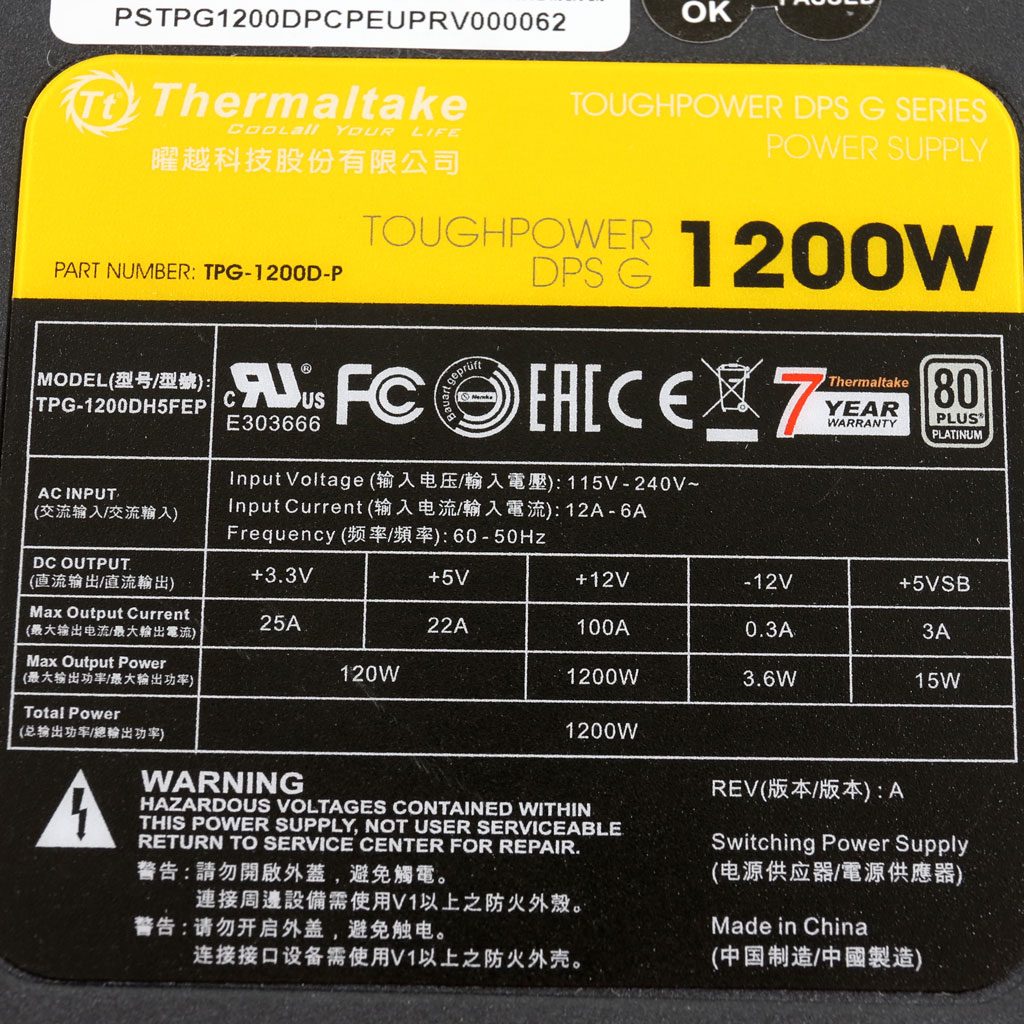

Power specifications label
