Cybenetics Test - Thermaltake Toughpower SFX 600W

Thermaltake Toughpower SFX 600W

PSSTP0600FPCGUSGMA000060

Lab ID142

Report:
Receipt Date: Jul 8, 2018
Test Date: Jul 15, 2018
Report Date: Jul 18, 2018

	115V	230V
Wirkungsgrad

115V	230V
		Lautstärkeklasse

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

	Thermaltake
Hersteller (OEM)	Enhance Electronics
	Toughpower SFX
	STP-0600F-G
	PSSTP0600FPCGUSGMA000060

(Vrms)	100-240
(Arms)	9-4.5
(Hz)	50-60
(W)	600
	SFX
	80mm Double Ball-Bearing Fan (R128015SM)
	✓
	Fully Modular

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	15	50	2.5	0.3
Max. Power	Watts	90		600	12.5	3.6
Total Max. Power (W)		600

Electronic Loads	Chroma 6314A x2 63123A x6 63102A 63101A	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, Chroma 61604
Power Analyzers	N4L PPA1530, N4L PPA5530
Oscilloscopes	Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter	Keithley 2015 THD 6.5 Digit
Sound Analyzer	Bruel & Kjaer 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology	Cybenetics PSU Test Protocol

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge
ATX connector 20+4 pin (305mm)	1	1	18-22AWG
4+4 pin EPS12V (410mm)	1	1	18AWG
6+2 pin PCIe (410mm+150mm)	1	2	18AWG
SATA (300mm+145mm+145mm)	1	3	18AWG
4 pin Molex (310mm+145mm) / FDD (+150mm)	1	2 / 1	18-22AWG

Parts Description

General Data
Manufacturer (OEM)	Enhance Electronics
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor
Bridge Rectifier(s)	1x Vishay BU1506 (600 V, 15 A @ 80 °C)
APFC MOSFETS	2x Infineon IPP50R140CP (550 V, 15 A @ 100 °C, 0.14 Ohm)
APFC Boost Diode	1x CREE C3D08060A (600 V, 8 A @ 152 °C)
Hold-up Cap(s)	1x Nippon Chemi-Con (450 V, 330 uF, 2000 h @ 105 °C, KMR)
Main Switchers	2x Infineon IPP50R140CP (550 V, 15 A @ 100 °C, 0.14 Ohm)
FET Driver	1x Silicon Labs Si8230BD
APFC Controller	Champion CM6500
Switching Controller	Champion CM6901
Topology	Primary side: Half-Bridge & LLC Resonant Converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS	6x Inte ational Rectifier IRFH7004PbF (40 V, 164 A @ 100 °C, 1.4 mOhm)
5V & 3.3V	DC-DC Converters: Â 2x Infineon BSC018NE2LS (25 V, 97 A @ 100 °C, 1.8 mOhm), 2x Infineon BSC050NE2LS (25 V, 37 A @ 100 °C, 5 mOhm) PWM Controllers: 2x ANPEC APW7073
Filtering Capacitors	Electrolytics: Nippon Chemi-Con (105 °C, KZE), United Chemi-Con (105 °C, LXZ) , Rubycon (105 °C, ZL), Suncon (105 °C) Polymers: Unicon
Supervisor IC	SITI PS223 (OVP, UVP, OCP, SCP, OTP )
Fan Model	EverflowR128015SM (80 mm, 12 V, 0.25 A, 3000 RPM, 33.27 CFM, 31 dBA, Dual Ball-Bearing)
5VSB Circuit
Rectifier	1x STP3NK90ZFP (900 V, 1.89 A @ 100 °C, 4.8 Ohm)

Test Results

Temperature & Compliance Info

(°C /°F)	30-32 / 86-89.6
	ErP Lot 3/6 2010: ✓ ErP Lot 3/6 2013: ✓ ErP Lot 3/6 2014, CEC: Partially
	✓

Performance Summary 115V

Wirkungsgrad	GOLD
Lautstärkeklasse	Standard+
(>1450 load combinations)	88.401%
Average Noise Output (>1450 Load Combinations)	36.51dBA
(>1450 Load Combinations)	0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
	0.0608W
12V Ripple (Full Load)	68.00mV
5V Ripple (Full Load)	31.98mV
3.3V Ripple (Full Load)	22.71mV
5VSB Ripple (Full Load)	35.09mV
12V Load Regulation	1.67%
5V Load Regulation	2.25%
3.3V Load Regulation	3.82%
5VSB Load Regulation	3.29%
Inrush Current	90.881A

Hold-Up Time (ms)	5.8
AC Loss to PWR_OK Hold Up Time (ms)	12.8
PWR_OK Inactive to DC Loss Delay (ms)	-7

Stromverbrauch im Ruhezustand

Tables 115V

Graphs 115V

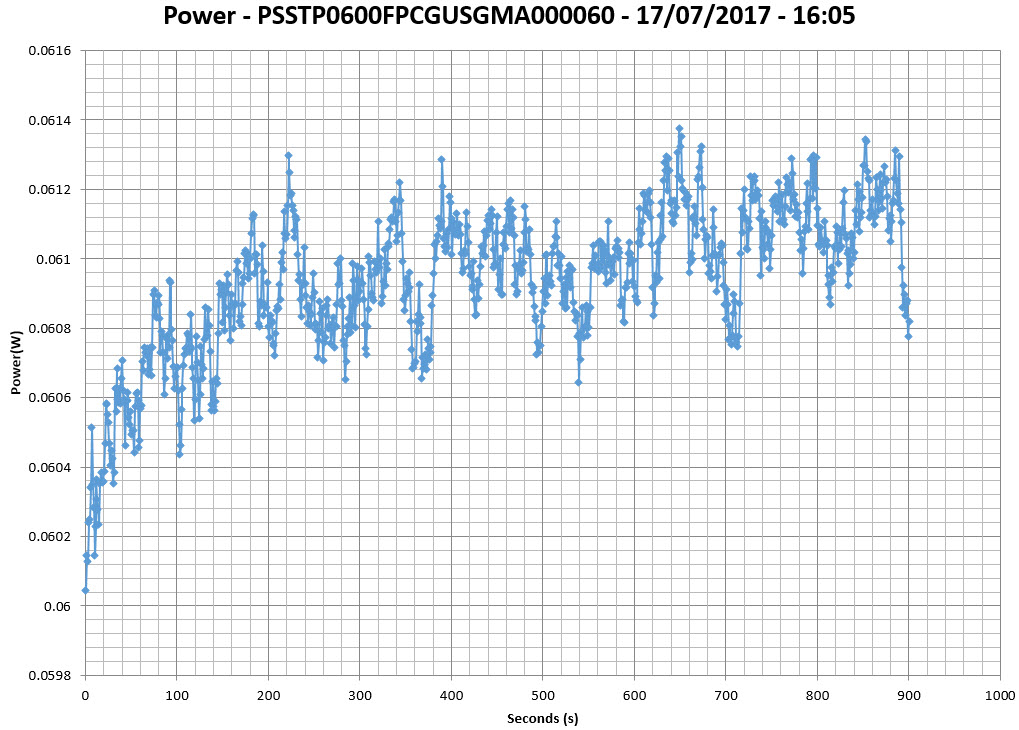

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

115V

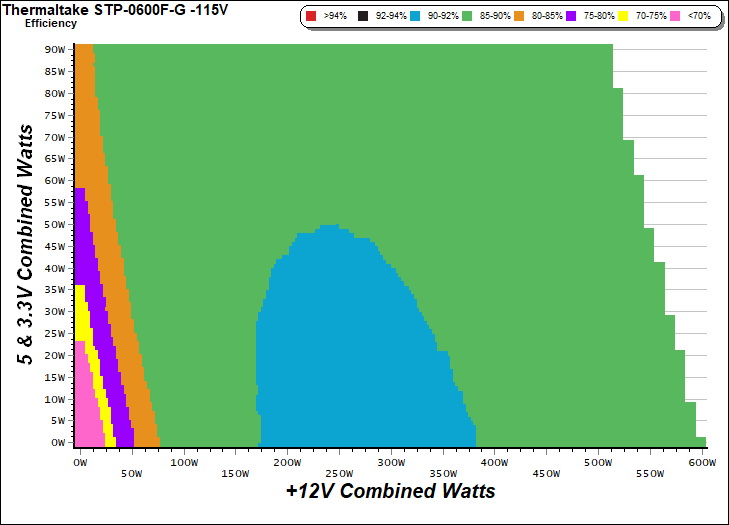

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

115V

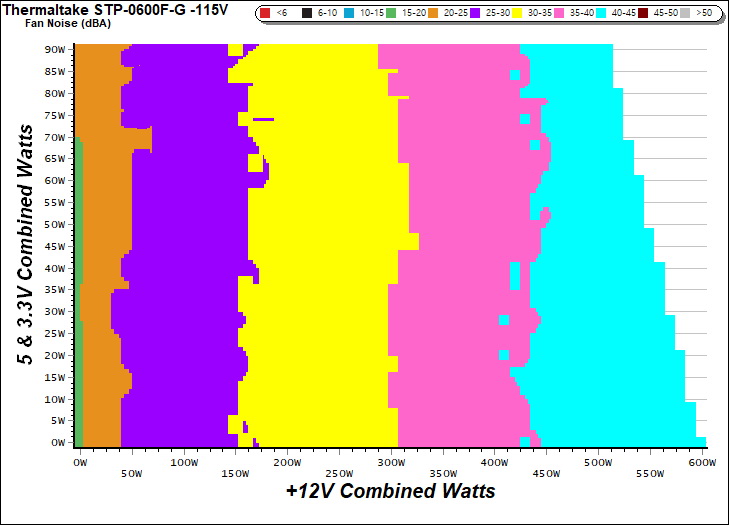

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

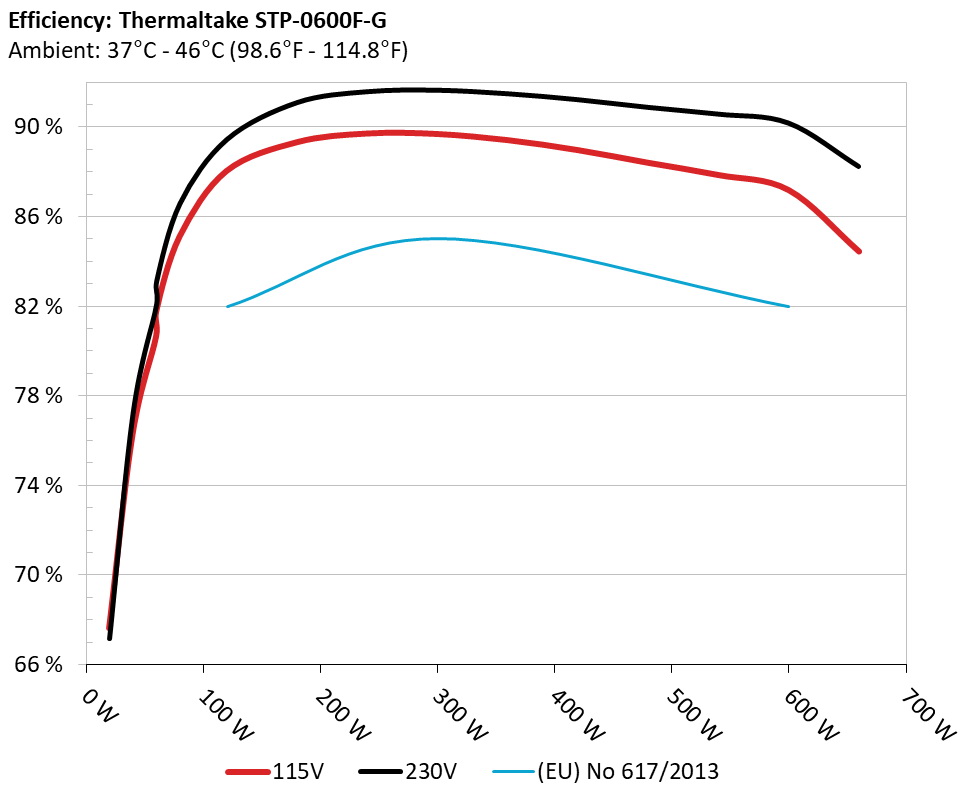

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

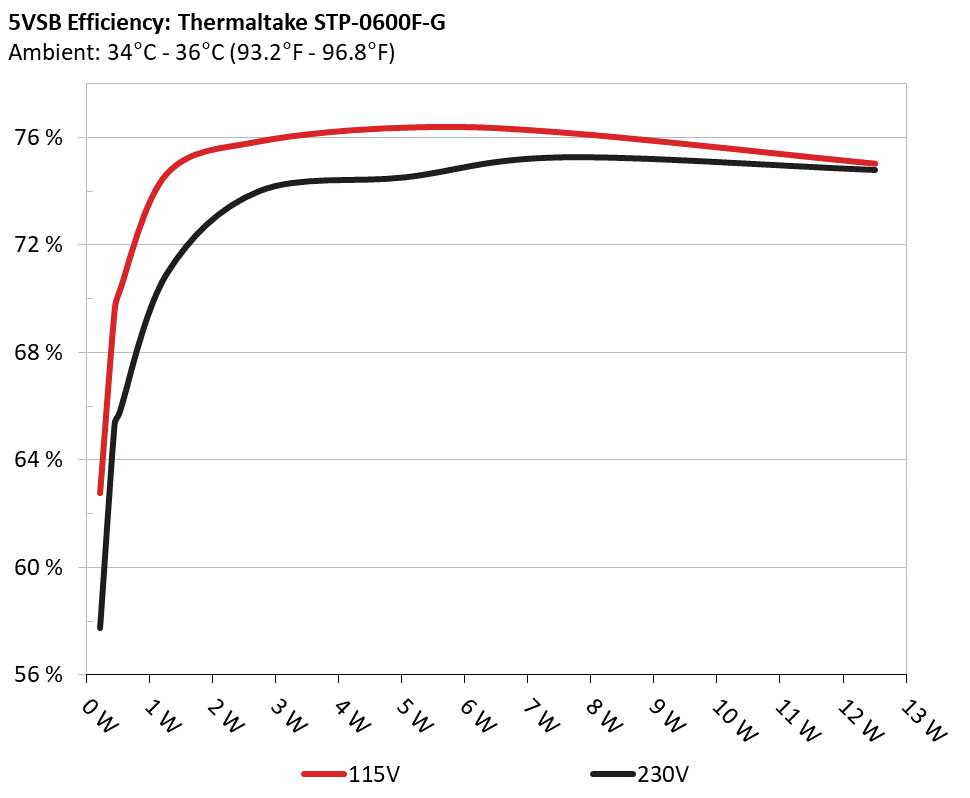

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

115V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.041A	0.209	62.763%	0.036
1	5.057V	0.333	62.763%	115.17V
2	0.087A	0.438	69.524%	0.067
2	5.055V	0.630	69.524%	115.17V
3	0.542A	2.732	75.847%	0.274
3	5.045V	3.602	75.847%	115.16V
4	1.002A	5.043	76.363%	0.354
4	5.035V	6.604	76.363%	115.16V
5	1.501A	7.543	76.184%	0.395
5	5.024V	9.901	76.184%	115.16V
6	2.501A	12.513	75.022%	0.436
6	5.003V	16.679	75.022%	115.16V

Supplementary Tests (For Reference)

115V

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	Fan Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	3.161A	1.996A	1.984A	0.995A	59.768	80.665%	2122	33.8	38.48°C	0.964
1	12.080V	5.010V	3.319V	5.024V	74.094	80.665%	2122	33.8	41.34°C	115.17V
2	7.370A	2.998A	2.993A	1.196A	119.779	88.031%	2122	33.8	38.68°C	0.976
2	12.064V	4.999V	3.305V	5.007V	136.064	88.031%	2122	33.8	41.69°C	115.17V
3	11.941A	3.510A	3.518A	1.400A	179.867	89.318%	2245	25.9	39.13°C	0.969
3	12.042V	4.986V	3.293V	4.991V	201.378	89.318%	2245	25.9	42.54°C	115.17V
4	16.522A	4.023A	4.019A	1.605A	239.771	89.704%	2306	36.8	39.83°C	0.981
4	12.019V	4.975V	3.282V	4.977V	267.291	89.704%	2306	36.8	43.89°C	115.17V
5	20.776A	5.033A	5.047A	1.810A	299.704	89.682%	2465	36.9	40.33°C	0.987
5	11.997V	4.963V	3.268V	4.962V	334.187	89.682%	2465	36.9	45.17°C	115.17V
6	25.045A	6.061A	6.085A	2.020A	359.731	89.409%	2590	38.5	40.82°C	0.991
6	11.976V	4.951V	3.253V	4.945V	402.344	89.409%	2590	38.5	46.22°C	115.18V
7	29.328A	7.085A	7.127A	2.230A	419.655	88.964%	2777	42.2	41.91°C	0.993
7	11.954V	4.939V	3.239V	4.928V	471.714	88.964%	2777	42.2	48.31°C	115.18V
8	33.634A	8.118A	8.185A	2.441A	479.656	88.398%	2916	41.3	42.36°C	0.994
8	11.931V	4.927V	3.224V	4.909V	542.611	88.398%	2916	41.3	50.04°C	115.17V
9	38.387A	8.653A	8.746A	2.448A	539.704	87.850%	2987	41.6	43.90°C	0.995
9	11.908V	4.914V	3.211V	4.897V	614.346	87.850%	2987	41.6	52.27°C	115.18V
10	43.113A	9.182A	9.280A	2.557A	599.559	87.177%	3025	41.9	44.99°C	0.996
10	11.884V	4.903V	3.200V	4.884V	687.747	87.177%	3025	41.9	55.03°C	115.17V
11	48.259A	9.202A	9.310A	2.562A	659.464	84.442%	3025	41.9	46.42°C	0.996
11	11.858V	4.893V	3.190V	4.873V	780.970	84.442%	3025	41.9	59.00°C	115.17V
CL1	0.099A	11.018A	11.004A	0.004A	92.235	84.028%	3055	42.0	45.26°C	0.989
CL1	12.080V	4.987V	3.278V	5.020V	109.767	84.028%	3055	42.0	52.10°C	115.18V
CL2	49.959A	1.004A	1.003A	1.002A	606.605	87.825%	3025	41.9	45.19°C	0.996
CL2	11.879V	4.922V	3.239V	4.941V	690.698	87.825%	3025	41.9	55.31°C	115.18V

The results above are not used in the certification process

115V

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	Fan Noise (dB[A])	PF/AC Volts
1	1.206A	0.492A	0.477A	0.195A	19.629	67.642%	1875	30.1	0.878
1	12.093V	5.020V	3.333V	5.050V	29.019	67.642%	1875	30.1	115.17V
2	2.442A	0.990A	0.991A	0.395A	39.768	76.339%	1920	30.9	0.942
2	12.086V	5.016V	3.327V	5.042V	52.094	76.339%	1920	30.9	115.17V
3	3.676A	1.487A	1.503A	0.596A	59.847	81.778%	2010	31.5	0.963
3	12.079V	5.012V	3.321V	5.034V	73.182	81.778%	2010	31.5	115.17V
4	4.899A	1.996A	1.989A	0.796A	79.772	85.112%	2100	33.1	0.972
4	12.080V	5.008V	3.316V	5.025V	93.726	85.112%	2100	33.1	115.17V

The results above are not used in the certification process

115V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	30.0 mV	14.9 mV	11.7 mV	12.2 mV	Pass
20% Load	26.9 mV	16.1 mV	11.8 mV	13.7 mV	Pass
30% Load	28.7 mV	17.0 mV	11.2 mV	14.6 mV	Pass
40% Load	30.9 mV	18.7 mV	11.4 mV	19.1 mV	Pass
50% Load	33.4 mV	20.1 mV	12.3 mV	20.9 mV	Pass
60% Load	37.6 mV	22.2 mV	13.5 mV	22.4 mV	Pass
70% Load	44.7 mV	23.7 mV	14.2 mV	25.0 mV	Pass
80% Load	54.3 mV	24.6 mV	16.3 mV	29.1 mV	Pass
90% Load	61.5 mV	27.3 mV	17.8 mV	32.3 mV	Pass
100% Load	68.0 mV	32.0 mV	22.7 mV	35.1 mV	Pass
110% Load	83.9 mV	34.1 mV	24.9 mV	38.6 mV	Pass
Crossload 1	30.7 mV	19.6 mV	13.9 mV	21.1 mV	Pass
Crossload 2	63.4 mV	30.0 mV	21.2 mV	30.6 mV	Pass

The results above are not used in the certification process

Thermaltake Toughpower SFX 600W

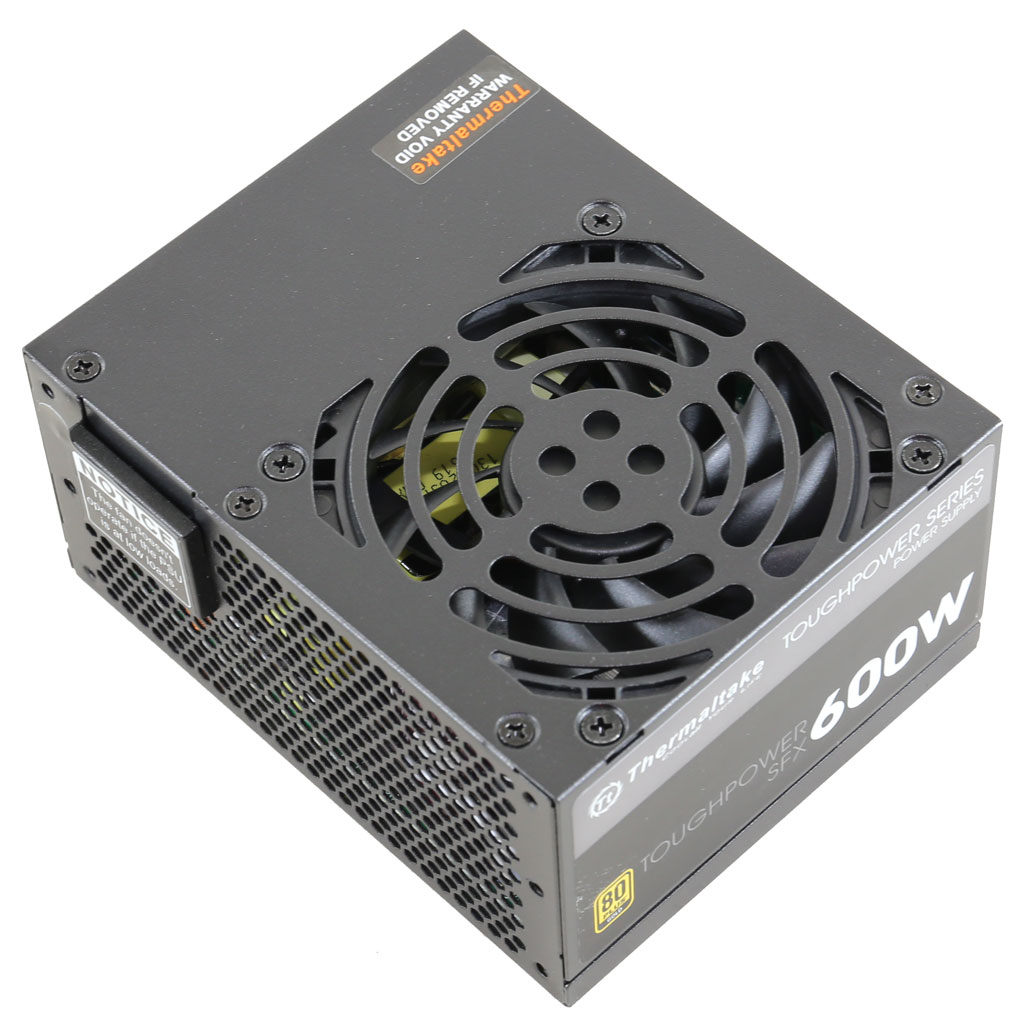

Top side

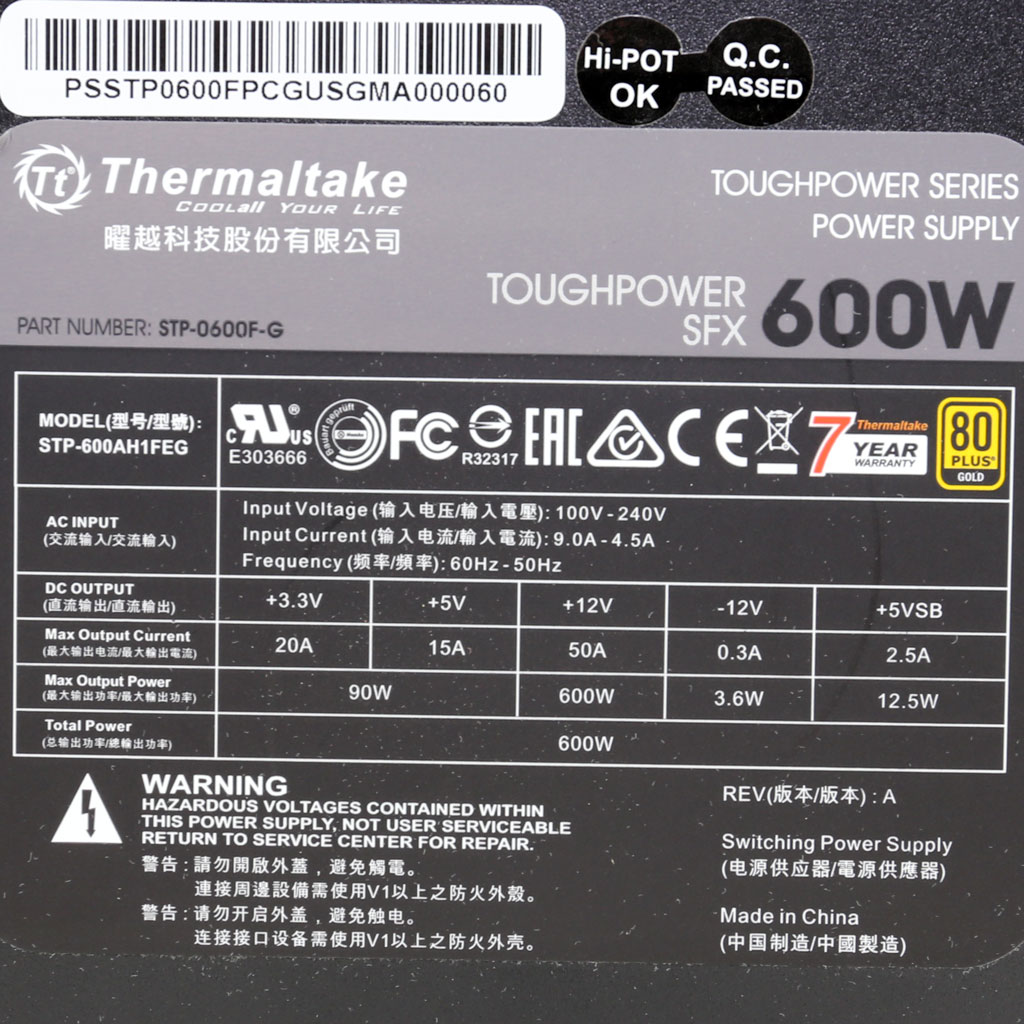

Power specifications label
