Kolink Continuum 1200W
163391B00PTT1F05000001
Lab ID141
  • Report:
  • Receipt Date: Jul 9, 2018
  • Test Date: Jul 14, 2018
  • Report Date: Jul 17, 2018
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Kolink
Hersteller (OEM)Sirfa / High Power
Continuum
KL-C1200PL
163391B00PTT1F05000001

(Vrms)100-240
(Arms)15
(Hz)50-60
(W)1200
ATX12V
135mm Double Ball-Bearing Fan
(RL4Z B1352512H)
✗
Fully Modular

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 25 100 3 0.3
Watts 130 1200 15 3.6
Total Max. Power (W) 1200

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (600mm) 1 1 18AWG
4+4 pin EPS12V (700mm) 1 1 16AWG
8 pin EPS12V (600mm) 1 1 16AWG
6+2 pin PCIe (600mm+200mm) 6 12 16-18AWG
SATA (410mm+155mm+155mm+155mm) 2 8 18AWG
4 pin Molex (450mm+100mm+100mm+100mm) 2 8 18AWG

Parts Description

General Data
Manufacturer (OEM) CWT
Platform Model -
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Diode
Bridge Rectifier(s) 2x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETS 2x Infineon IPW50R280CE (550V, 11.4A @ 100°C, 0.28Ohm)
APFC Boost Diode 1x Power Integrations QH08TZ600 (600V, 8A @ 150°C)
Hold-up Cap(s) 1x Nichicon (400V, 390uF, 2000h @ 105 °C, GG)
Main Switchers 2x Vishay SiHG20N50C
(560V, 11A @ 100°C, 0.27Ohm)
Combo APFC/PWM Controller Champion CM6800TX & CM03X Green PFC controller
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x APEC AP9990GH-HF (60V, 100A @ 25°C, 6mOhm)
5V & 3.3V DC-DC Converters: 6x APEC AP72T03GP (30V, 47A @ 100°C, 9.5mOhm)
PWM Controller: APW7159C
Filtering Capacitors Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KZE), Su' scon (2-5,000h @ 105°C, MF), TAICON (105°C)
Polymers: APAQ, EneSol
Supervisor IC Weltrend WT7502 (OVP, UVP, SCP, PG)
Fan Model Power Logic PLA13525S12M (12V, 0.40A, 111.1CFM, 41.6 dBA, Hydro Dynamic Bearing)
5VSB Circuit
Rectifier 1x MBR2045CT SBR (45V, 20A) & CEF04N7G (700V, 4A, 3.3Ohm)
Standby PWM Controller On-Bright OB5269CP
-12V Circuit
Rectifier UTC 2SB834L

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseStandard++
(>1450 load combinations)89.743%
Average Noise Output (>1450 Load Combinations)30.22dBA
(>1450 Load Combinations)0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1025W
12V Ripple (Full Load)56.49mV
5V Ripple (Full Load)42.22mV
3.3V Ripple (Full Load)69.46mV
5VSB Ripple (Full Load)27.71mV
12V Load Regulation1.71%
5V Load Regulation1.30%
3.3V Load Regulation2.13%
5VSB Load Regulation3.27%
Inrush Current103.864A
Wirkungsgrad
LautstärkeklasseStandard+
(>1450 load combinations)91.973%
Average Noise Output (>1450 Load Combinations)36.74dBA
(>1450 Load Combinations)0.945
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1234W
12V Ripple (Full Load)56.02mV
5V Ripple (Full Load)29.78mV
3.3V Ripple (Full Load)30.50mV
5VSB Ripple (Full Load)20.34mV
12V Load Regulation1.69%
5V Load Regulation1.28%
3.3V Load Regulation2.16%
5VSB Load Regulation3.21%
Inrush Current70.250A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
10.00ms
AC Loss to PWR_OK Hold Up Time7.40ms
PWR_OK Inactive to DC Loss Delay2.60ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time (ms)10
AC Loss to PWR_OK Hold Up Time (ms)7.4
PWR_OK Inactive to DC Loss Delay (ms)2.6

Stromverbrauch im Ruhezustand

Tables

Graphs

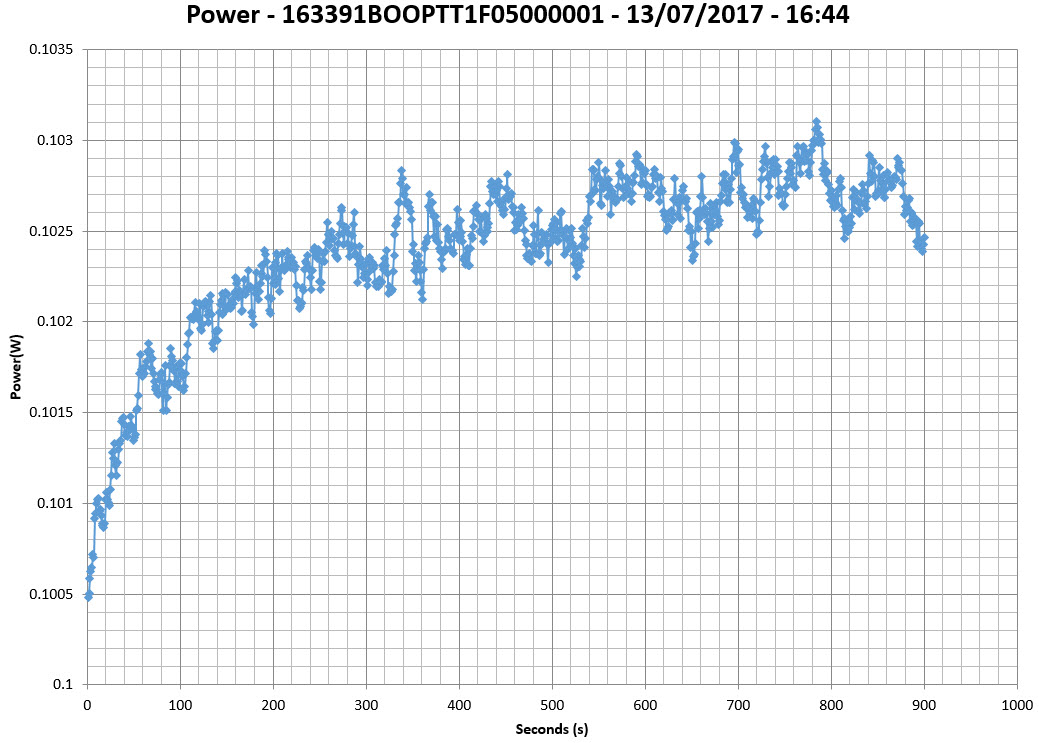

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

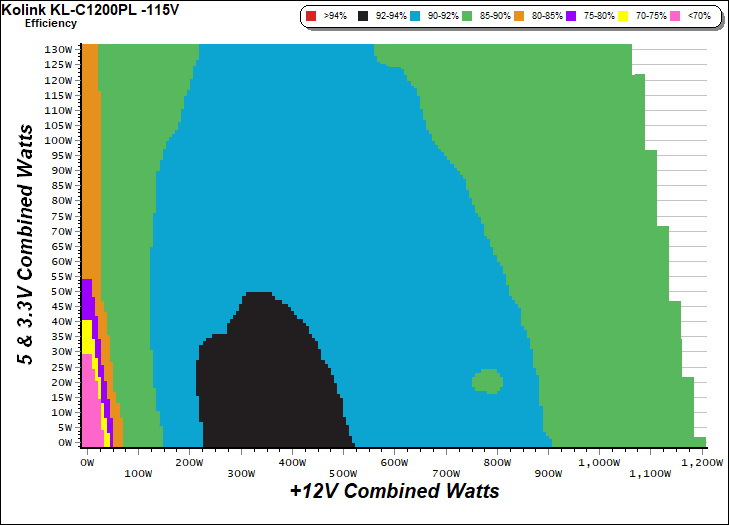

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

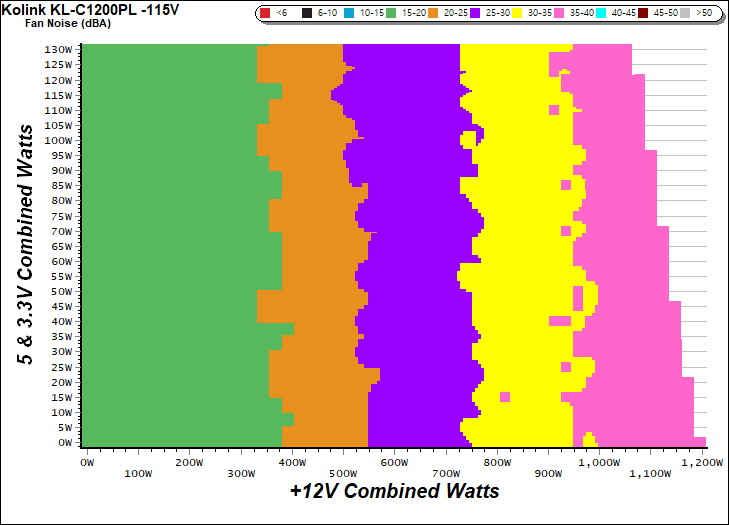

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

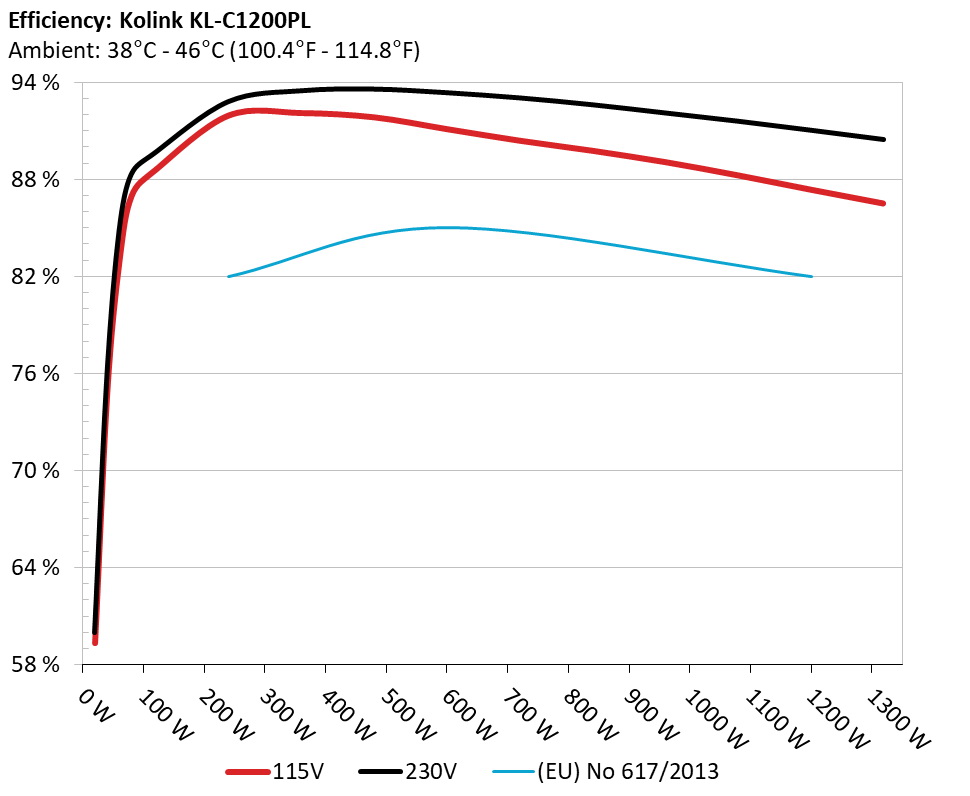

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

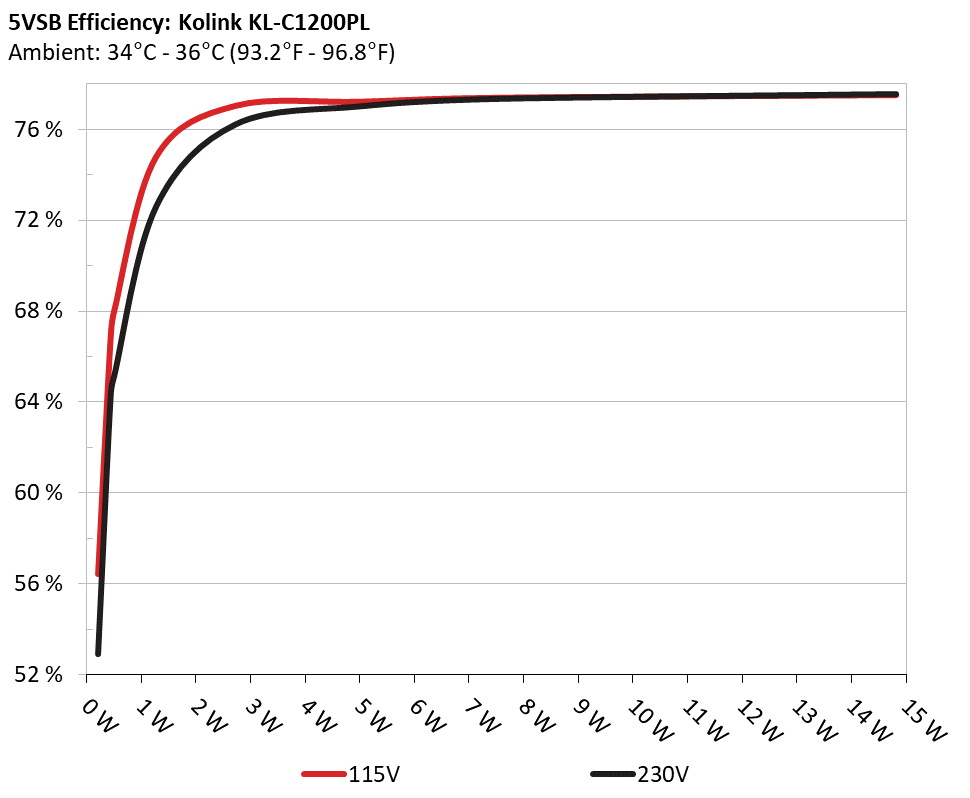

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.210 56.452% 0.054
5.047V 0.372 115.17V
2 0.087A 0.439 66.819% 0.091
5.045V 0.657 115.18V
3 0.542A 2.725 77.021% 0.265
5.027V 3.538 115.18V
4 1.002A 5.021 77.199% 0.311
5.011V 6.504 115.18V
5 1.502A 7.498 77.371% 0.335
4.993V 9.691 115.18V
6 3.001A 14.811 77.488% 0.371
4.935V 19.114 115.18V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.041A 0.209 52.911% 0.017
5.047V 0.395 230.44V
2 0.087A 0.439 64.275% 0.030
5.044V 0.683 230.44V
3 0.542A 2.724 76.196% 0.136
5.026V 3.575 230.44V
4 1.002A 5.020 76.994% 0.205
5.010V 6.520 230.43V
5 1.501A 7.496 77.318% 0.250
4.993V 9.695 230.44V
6 3.001A 14.811 77.528% 0.314
4.935V 19.104 230.44V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 7.948A 1.945A 1.953A 0.979A 119.771 88.606% 875 23.5 38.55°C 0.962
12.354V 5.142V 3.372V 5.102V 135.173 42.61°C 115.19V
2 16.928A 2.920A 2.938A 1.176A 239.638 91.949% 915 24.6 38.81°C 0.974
12.333V 5.135V 3.364V 5.091V 260.620 45.02°C 115.19V
3 26.291A 3.417A 3.451A 1.375A 359.815 92.104% 1012 28.4 39.32°C 0.982
12.313V 5.129V 3.358V 5.076V 390.661 48.27°C 115.18V
4 35.666A 3.904A 3.934A 1.576A 479.535 91.843% 1080 29.7 40.18°C 0.981
12.291V 5.123V 3.351V 5.064V 522.124 51.24°C 115.18V
5 44.742A 4.887A 4.932A 1.780A 599.463 91.113% 1135 31.4 41.00°C 0.984
12.270V 5.116V 3.343V 5.050V 657.935 54.38°C 115.18V
6 53.847A 5.871A 5.934A 1.983A 719.341 90.398% 1215 33.9 41.84°C 0.987
12.249V 5.108V 3.335V 5.038V 795.748 57.61°C 115.18V
7 62.989A 6.866A 6.941A 2.185A 839.198 89.776% 1365 37.1 42.84°C 0.989
12.226V 5.100V 3.328V 5.025V 934.770 60.44°C 115.18V
8 72.155A 7.862A 7.954A 2.394A 959.093 89.078% 1410 37.9 43.62°C 0.991
12.205V 5.094V 3.319V 5.010V 1076.695 63.09°C 115.18V
9 81.791A 8.361A 8.480A 2.395A 1078.983 88.259% 1433 38.2 44.68°C 0.992
12.182V 5.087V 3.312V 5.005V 1222.523 65.36°C 115.19V
10 91.207A 8.861A 9.015A 3.015A 1198.785 87.378% 1458 39.9 45.79°C 0.993
12.159V 5.080V 3.305V 4.972V 1371.948 68.92°C 115.19V
11 101.262A 8.871A 9.001A 3.017A 1318.597 86.525% 1465 39.9 46.47°C 0.994
12.136V 5.073V 3.299V 4.967V 1523.948 70.39°C 115.19V
CL1 0.098A 16.029A 16.003A 0.004A 136.990 83.095% 1394 37.4 45.59°C 0.964
12.353V 5.132V 3.343V 5.171V 164.859 57.84°C 115.21V
CL2 99.927A 1.003A 1.002A 1.002A 1227.602 87.498% 1465 39.9 46.95°C 0.993
12.150V 5.086V 3.323V 5.048V 1403.007 69.68°C 115.19V

The results above are not used in the certification process

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.175A 0.482A 0.472A 0.191A 19.599 59.364% 850 22.6 0.893
12.375V 5.149V 3.379V 5.140V 33.015 115.19V
2 2.386A 0.967A 0.975A 0.386A 39.768 74.867% 850 22.6 0.921
12.371V 5.147V 3.377V 5.130V 53.118 115.19V
3 3.591A 1.458A 1.480A 0.586A 59.908 83.006% 828 22.3 0.944
12.367V 5.145V 3.375V 5.123V 72.173 115.19V
4 4.788A 1.945A 1.952A 0.780A 79.767 86.980% 895 24.3 0.937
12.362V 5.144V 3.373V 5.113V 91.707 115.19V

The results above are not used in the certification process

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 19.0 mV 13.8 mV 13.2 mV 16.2 mV Pass
20% Load 21.2 mV 13.9 mV 17.4 mV 14.9 mV Pass
30% Load 25.3 mV 14.2 mV 16.2 mV 14.2 mV Pass
40% Load 27.0 mV 16.5 mV 17.9 mV 14.9 mV Pass
50% Load 30.8 mV 20.1 mV 25.5 mV 17.0 mV Pass
60% Load 36.2 mV 26.6 mV 41.1 mV 18.1 mV Pass
70% Load 39.9 mV 31.9 mV 45.7 mV 21.3 mV Pass
80% Load 45.8 mV 35.0 mV 55.7 mV 24.5 mV Fail
90% Load 49.7 mV 38.5 mV 68.5 mV 26.4 mV Fail
100% Load 56.5 mV 42.2 mV 69.5 mV 27.7 mV Fail
110% Load 56.7 mV 43.8 mV 70.4 mV 30.0 mV Fail
Crossload 1 34.1 mV 23.0 mV 21.7 mV 18.4 mV Pass
Crossload 2 53.1 mV 40.4 mV 72.0 mV 28.5 mV Fail

The results above are not used in the certification process

The results above are not used in the certification process

Kolink Continuum 1200W

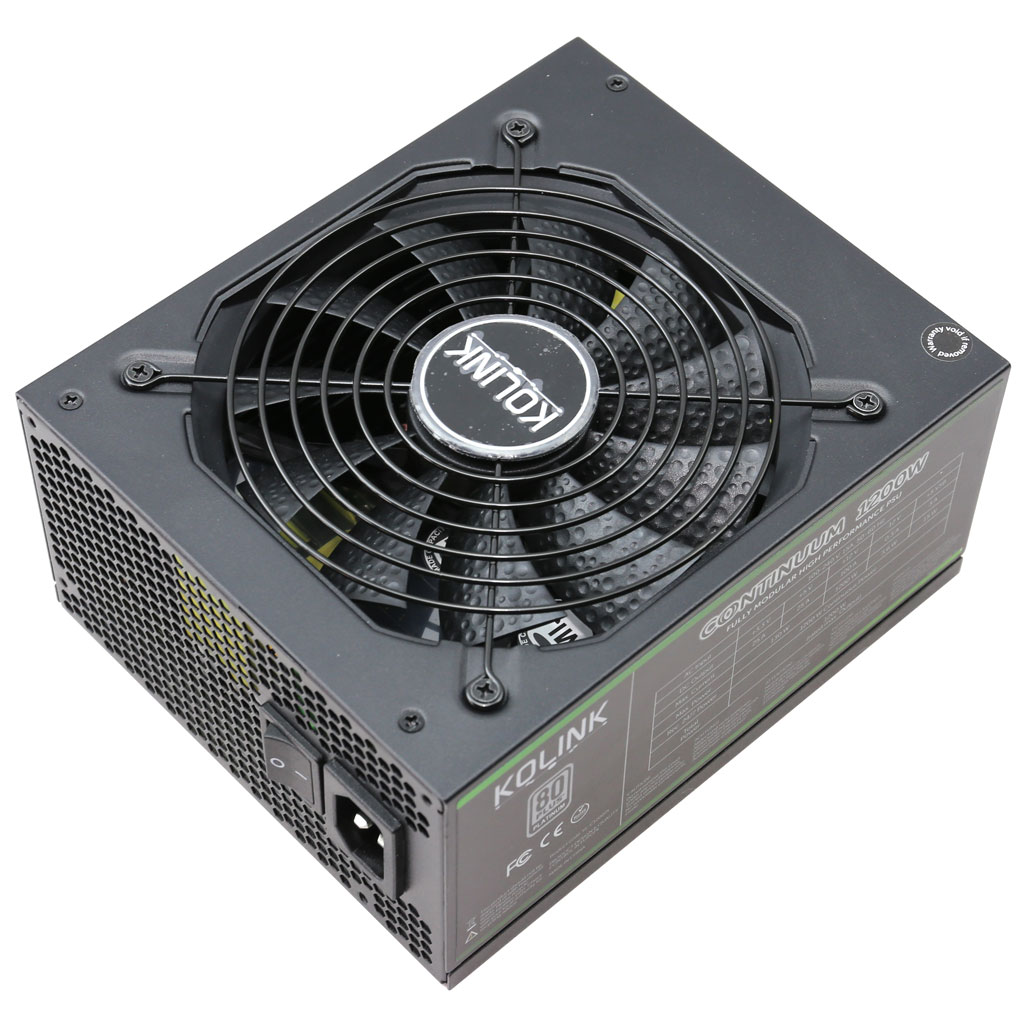

Top side

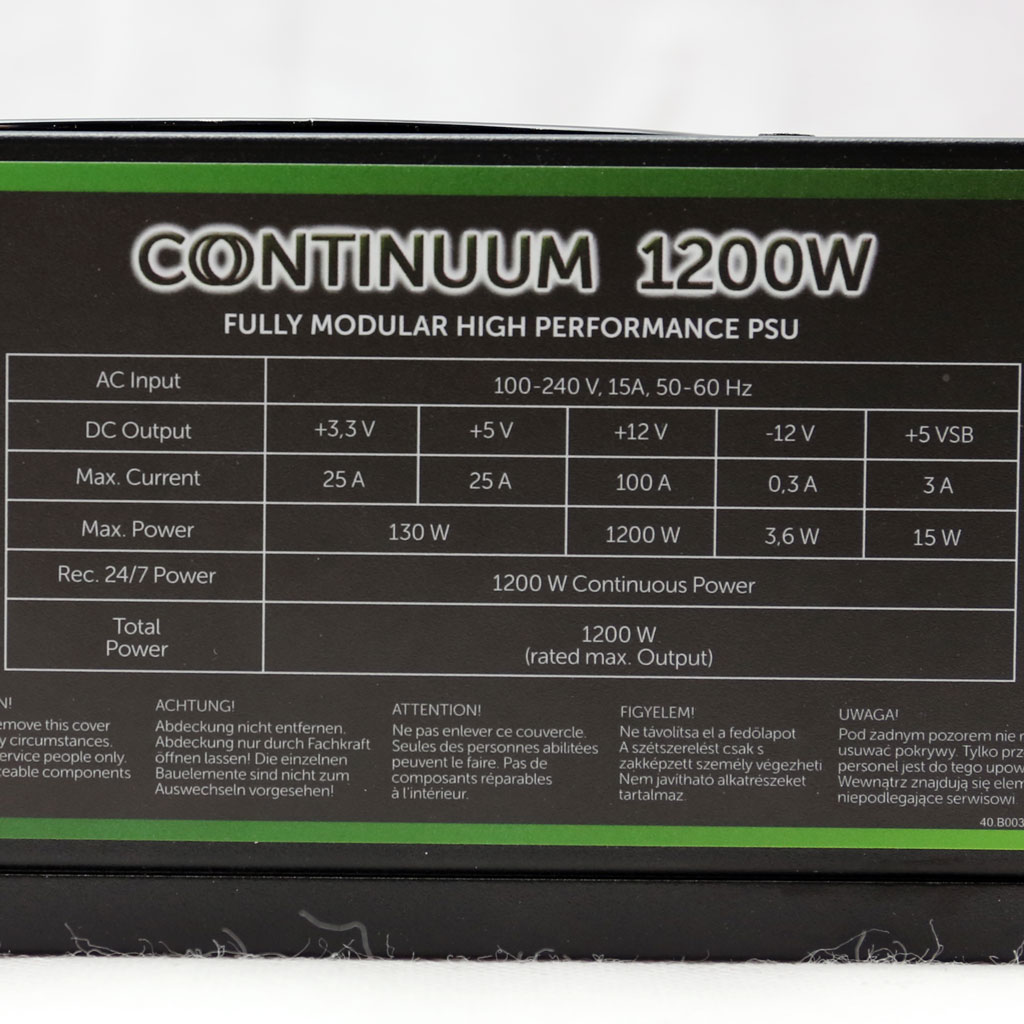

Power specifications label
