SATA (555mm+145mm) / 4 pin Molex (+150mm+150mm) / FDD (+150mm)
1
2 / 2 / 1
18-22AWG
Test Results
Temperature & Compliance Info
(°C /°F)
30-32 / 86-89.6
✓
✓
Performance Summary 115V
Wirkungsgrad
TITANIUM
Lautstärkeklasse
Standard+
(>1450 load combinations)
91.690%
Average Noise Output (>1450 Load Combinations)
38.29dBA
(>1450 Load Combinations)
0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
0.0684W
12V Ripple (Full Load)
77.60mV
5V Ripple (Full Load)
29.37mV
3.3V Ripple (Full Load)
30.31mV
5VSB Ripple (Full Load)
25.37mV
12V Load Regulation
0.99%
5V Load Regulation
0.53%
3.3V Load Regulation
1.40%
5VSB Load Regulation
2.10%
Inrush Current
47.308A
Hold-Up Time (ms)
14.7
AC Loss to PWR_OK Hold Up Time (ms)
20.8
PWR_OK Inactive to DC Loss Delay (ms)
-6.1
Stromverbrauch im Ruhezustand
Tables 115V
Graphs 115V

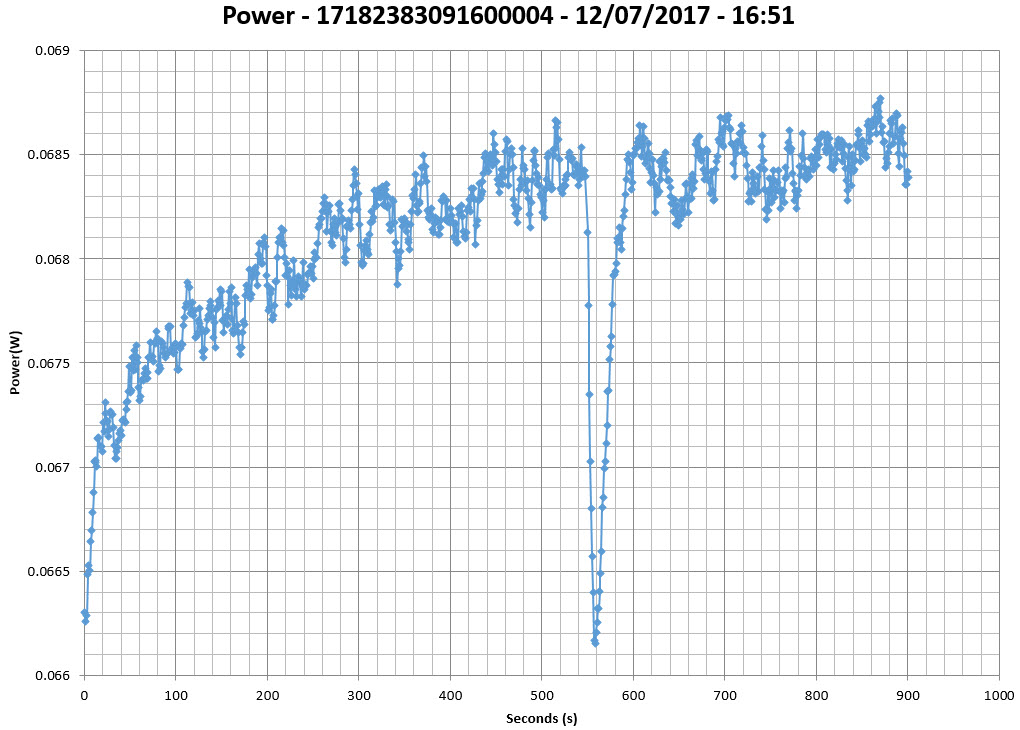

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
115V

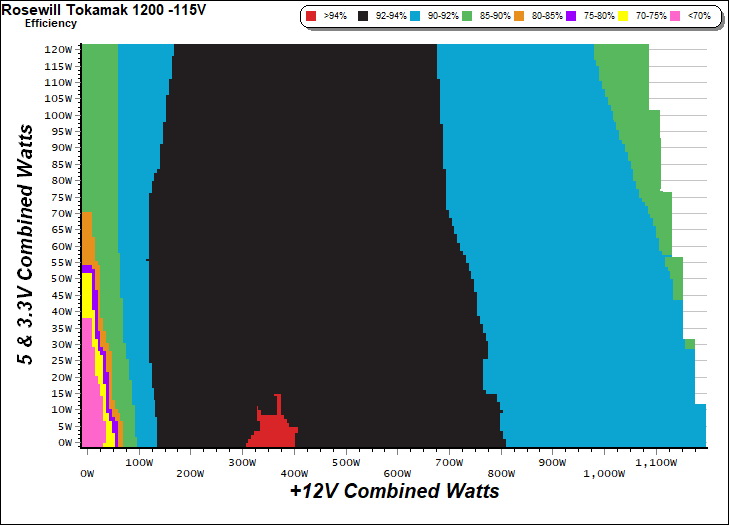

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
115V

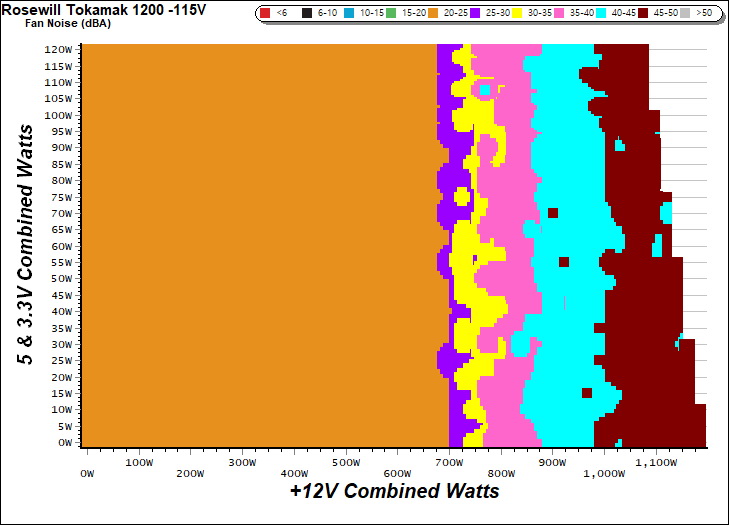

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

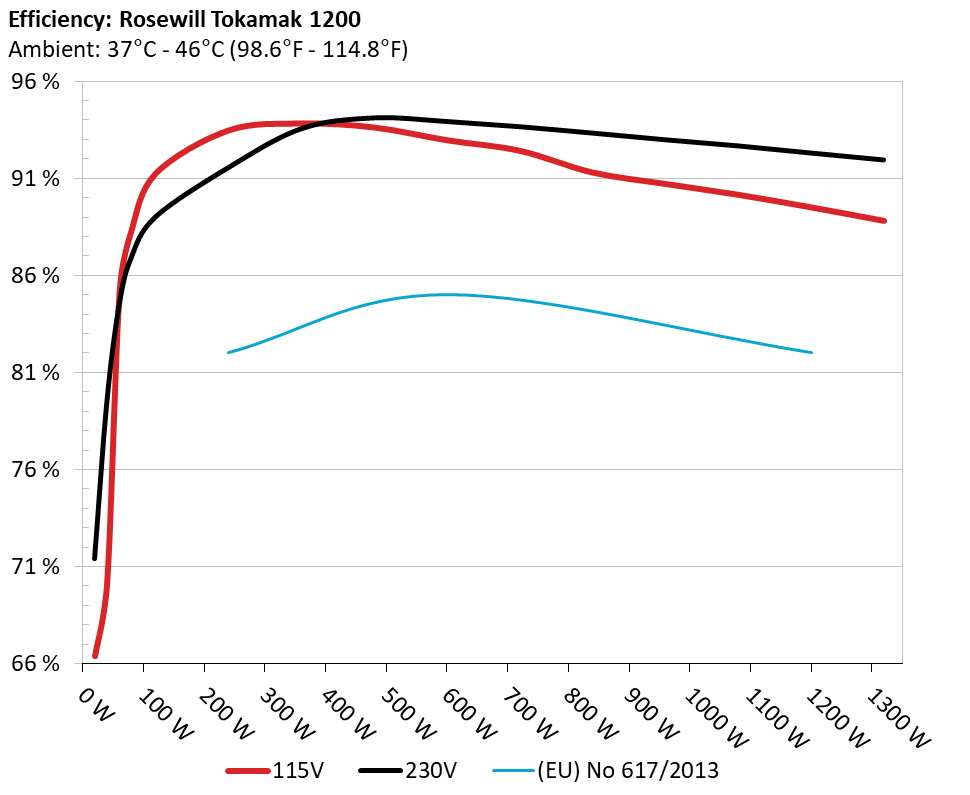

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.041A
0.205
60.472%
0.014
4.945V
0.339
115.15V
2
0.087A
0.429
68.203%
0.027
4.942V
0.629
115.18V
3
0.542A
2.671
80.622%
0.134
4.929V
3.313
115.16V
4
1.002A
4.926
82.168%
0.224
4.918V
5.995
115.16V
5
1.502A
7.362
82.028%
0.302
4.903V
8.975
115.17V
6
3.001A
14.583
80.877%
0.436
4.859V
18.031
115.17V
Supplementary Tests (For Reference)
115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
Fan Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
8.064A
1.976A
1.963A
0.991A
119.757
91.252%
870
25.1
38.22°C
0.944
12.174V
5.063V
3.359V
5.032V
131.237
41.20°C
115.18V
2
17.164A
2.961A
2.948A
1.190A
239.599
93.462%
870
25.1
38.51°C
0.972
12.162V
5.060V
3.354V
5.025V
256.359
41.96°C
115.18V
3
26.641A
3.464A
3.461A
1.395A
359.797
93.817%
1165
33.6
38.93°C
0.980
12.150V
5.058V
3.349V
5.016V
383.511
43.51°C
115.18V
4
36.115A
3.955A
3.943A
1.595A
479.533
93.614%
1130
32.3
39.49°C
0.985
12.138V
5.055V
3.345V
5.007V
512.245
45.23°C
115.17V
5
45.272A
4.953A
4.938A
1.800A
599.480
92.957%
1745
43.2
39.93°C
0.987
12.126V
5.052V
3.340V
4.998V
644.902
46.50°C
115.17V
6
54.453A
5.945A
5.932A
2.000A
719.317
92.414%
2020
46.6
40.44°C
0.989
12.112V
5.049V
3.335V
4.991V
778.367
47.26°C
115.17V
7
63.652A
6.942A
6.934A
2.205A
839.296
91.296%
2225
49.0
41.40°C
0.991
12.100V
5.046V
3.330V
4.983V
919.316
48.75°C
115.17V
8
72.861A
7.933A
7.940A
2.410A
959.208
90.709%
2390
50.5
42.50°C
0.992
12.089V
5.043V
3.324V
4.976V
1057.459
50.67°C
115.18V
9
82.543A
8.443A
8.462A
2.410A
1079.260
90.150%
2480
51.5
43.50°C
0.993
12.074V
5.040V
3.320V
4.975V
1197.186
52.49°C
115.18V
10
91.973A
8.938A
8.956A
3.025A
1199.089
89.506%
2500
51.9
44.89°C
0.993
12.062V
5.038V
3.316V
4.953V
1339.676
55.33°C
115.19V
11
102.024A
8.939A
8.965A
3.028A
1319.090
88.809%
2500
51.9
46.30°C
0.993
12.050V
5.036V
3.312V
4.951V
1485.318
58.08°C
115.20V
CL1
0.098A
14.024A
14.004A
0.004A
118.934
84.148%
2370
50.3
44.10°C
0.945
12.171V
5.058V
3.341V
5.089V
141.339
48.42°C
115.20V
CL2
99.934A
1.005A
1.001A
1.002A
1219.227
89.683%
2500
51.9
45.34°C
0.993
12.066V
5.042V
3.330V
5.013V
1359.491
55.65°C
115.20V
The results above are not used in the certification process
115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
Fan Noise (dB[A])
PF/AC Volts
1
1.200A
0.493A
0.474A
0.195A
19.688
66.413%
870
25.1
0.734
12.175V
5.065V
3.364V
5.059V
29.645
115.19V
2
2.421A
0.977A
0.980A
0.396A
39.721
70.264%
870
25.1
0.865
12.175V
5.065V
3.363V
5.052V
56.531
115.20V
3
3.644A
1.478A
1.483A
0.590A
59.837
85.090%
870
25.1
0.898
12.182V
5.064V
3.361V
5.045V
70.322
115.19V
4
4.860A
1.970A
1.961A
0.791A
79.742
88.313%
870
25.1
0.920
12.179V
5.064V
3.360V
5.040V
90.295
115.18V
The results above are not used in the certification process
115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
17.8 mV
11.0 mV
9.2 mV
7.3 mV
Pass
20% Load
23.0 mV
12.4 mV
11.8 mV
9.7 mV
Pass
30% Load
28.9 mV
14.5 mV
13.5 mV
10.8 mV
Pass
40% Load
34.0 mV
15.3 mV
14.2 mV
12.0 mV
Pass
50% Load
43.2 mV
17.3 mV
16.2 mV
14.6 mV
Pass
60% Load
50.5 mV
18.4 mV
17.2 mV
14.9 mV
Pass
70% Load
59.2 mV
27.8 mV
28.9 mV
23.7 mV
Pass
80% Load
63.3 mV
23.5 mV
25.6 mV
22.0 mV
Pass
90% Load
69.8 mV
26.1 mV
25.8 mV
22.6 mV
Pass
100% Load
77.6 mV
29.4 mV
30.3 mV
25.4 mV
Pass
110% Load
81.8 mV
30.7 mV
31.4 mV
25.6 mV
Pass
Crossload 1
27.0 mV
13.7 mV
14.1 mV
9.6 mV
Pass
Crossload 2
74.5 mV
30.2 mV
32.9 mV
25.3 mV
Pass
The results above are not used in the certification process
Rosewill Tokamak 1200W

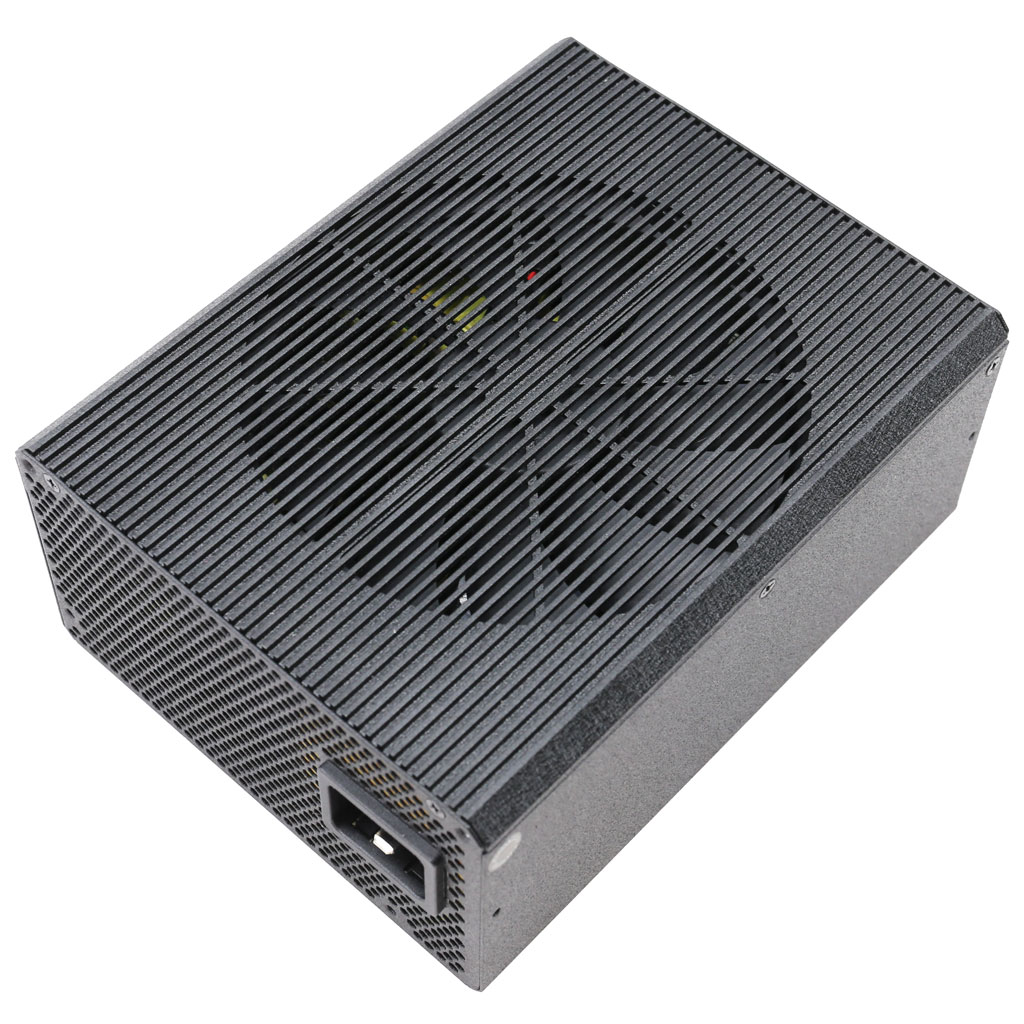

Top side

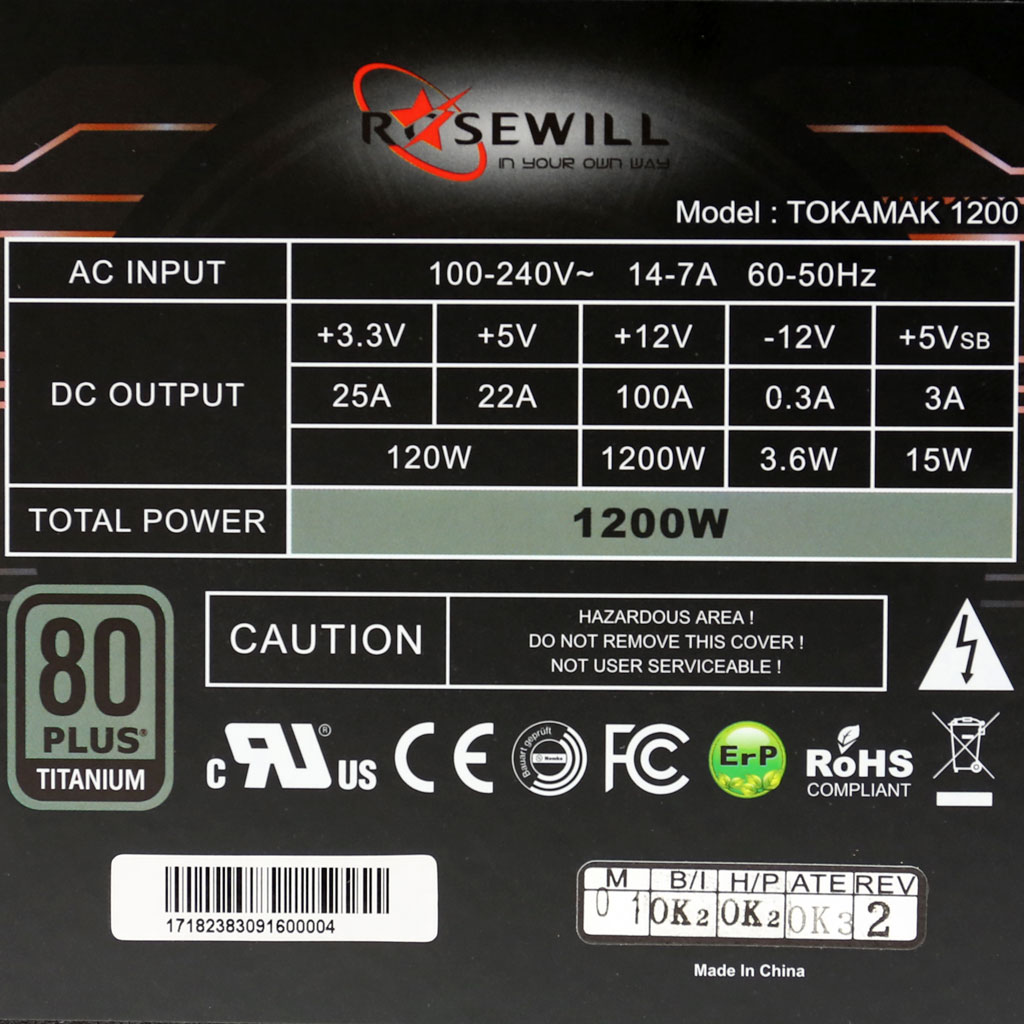

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
