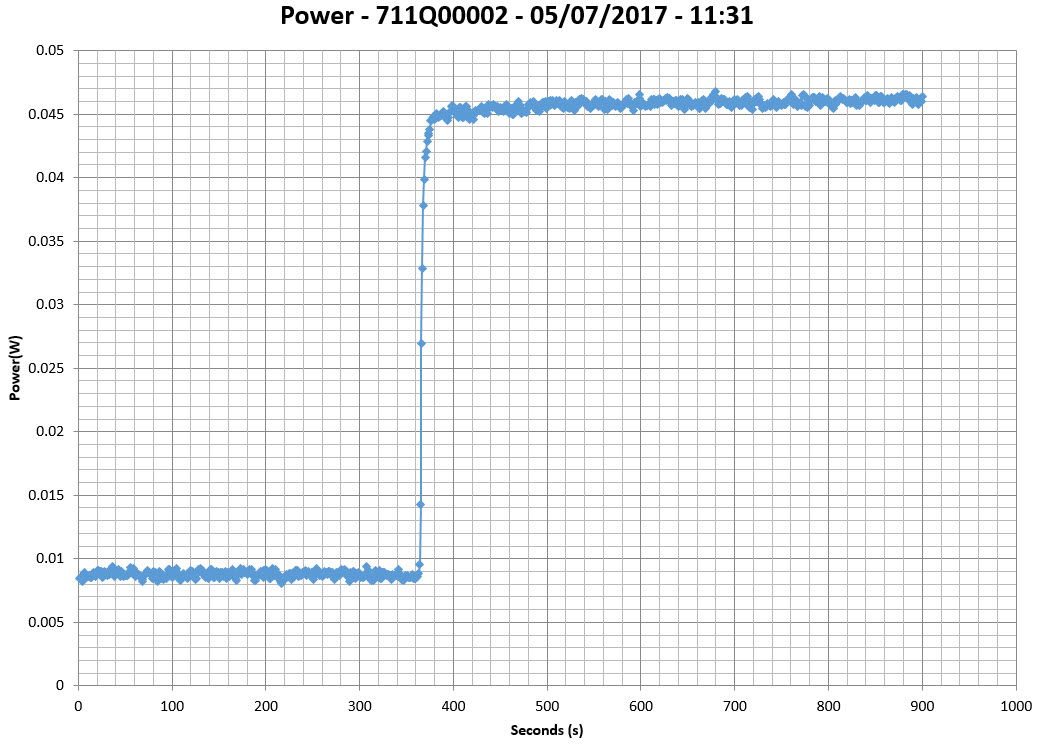

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
INFO

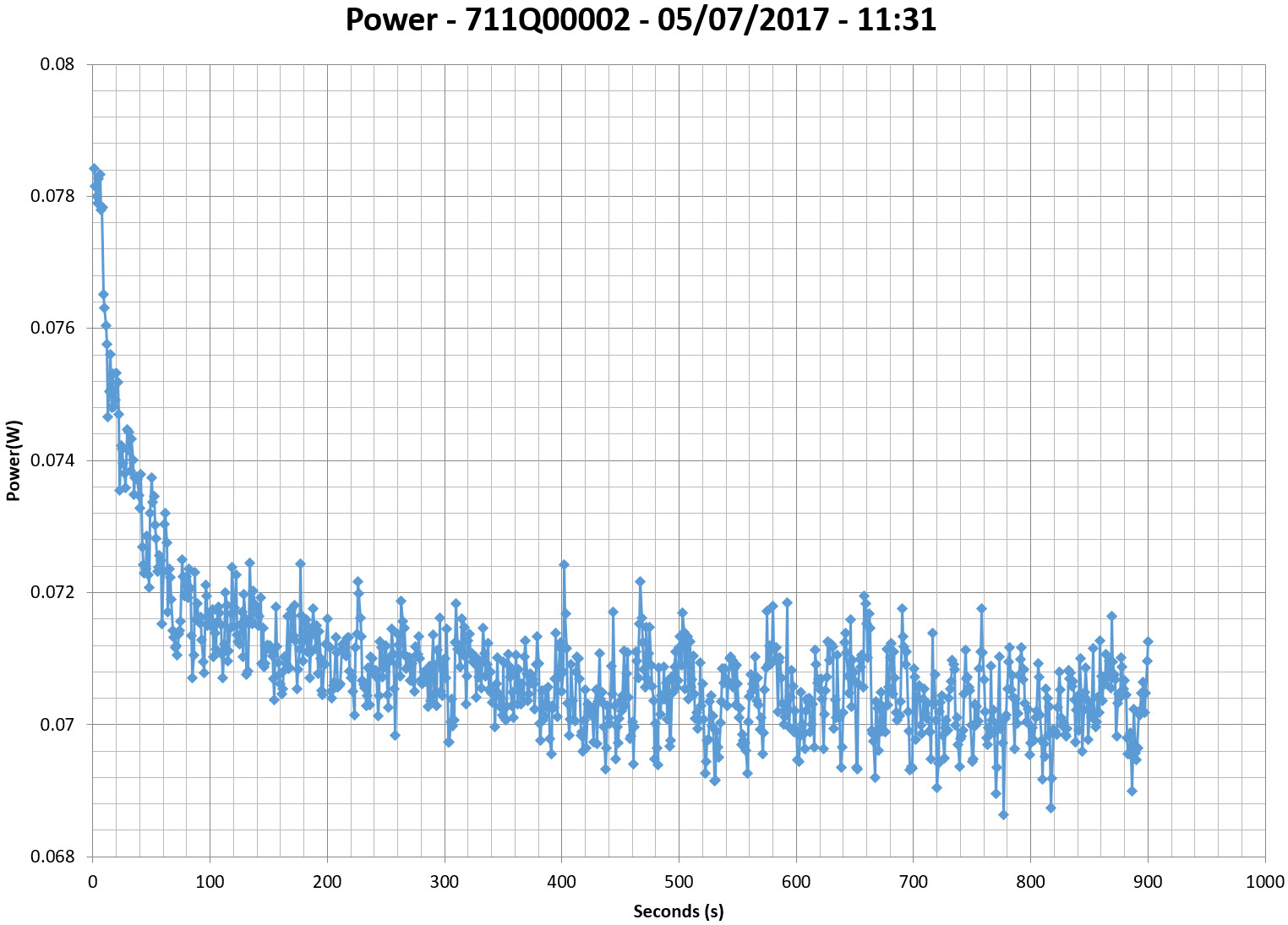

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
Efficiency Graph
INFO

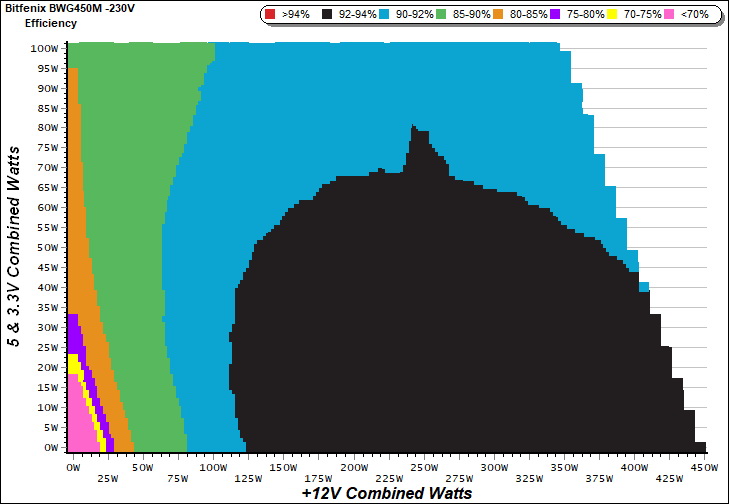

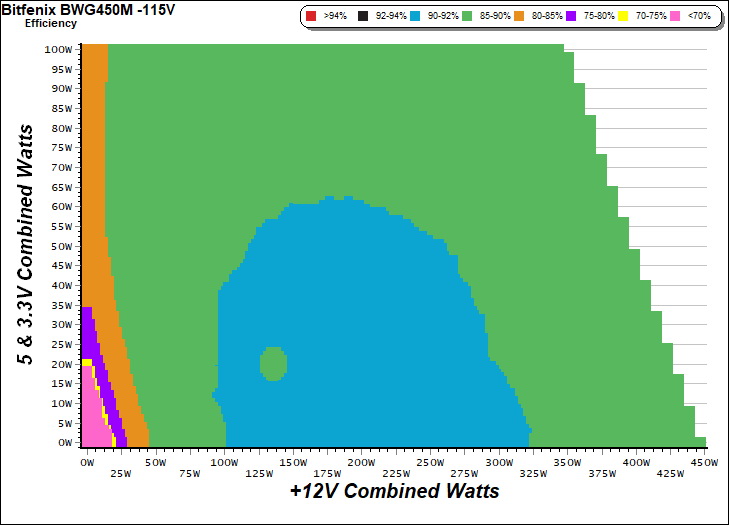

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

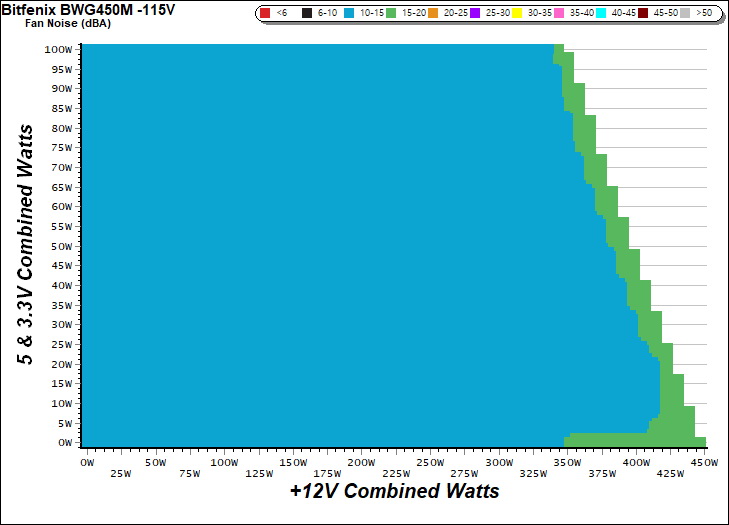

Noise Graph
INFO

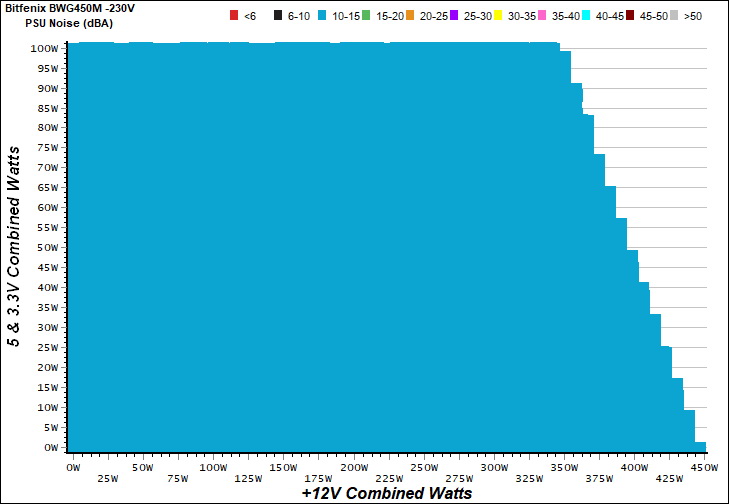

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

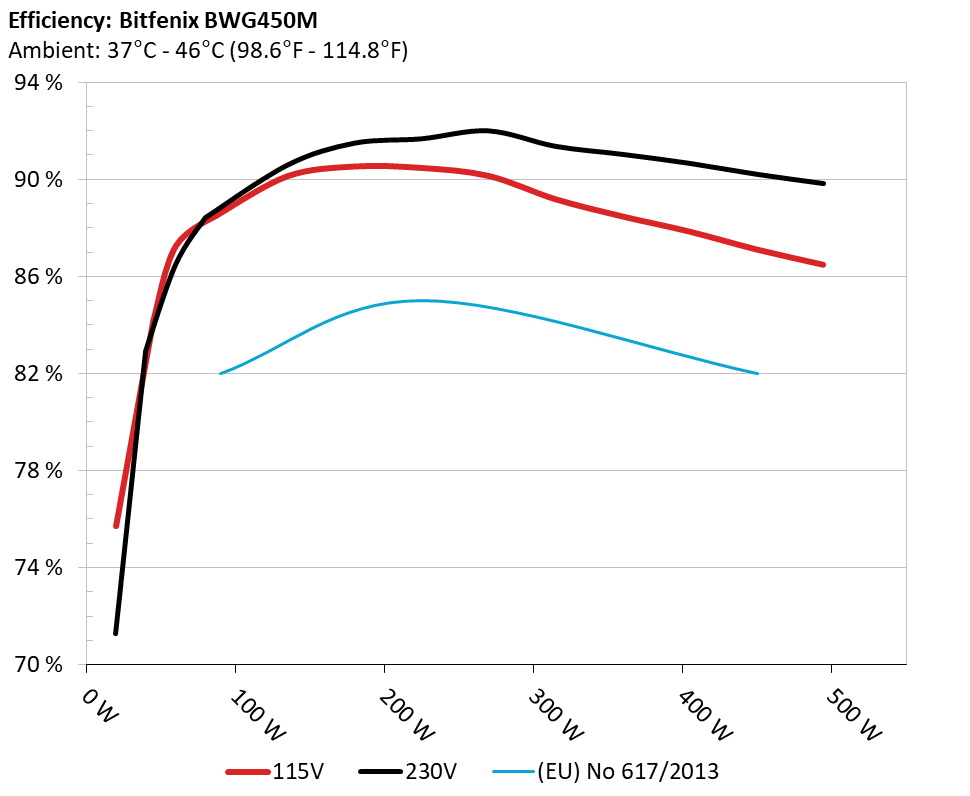

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

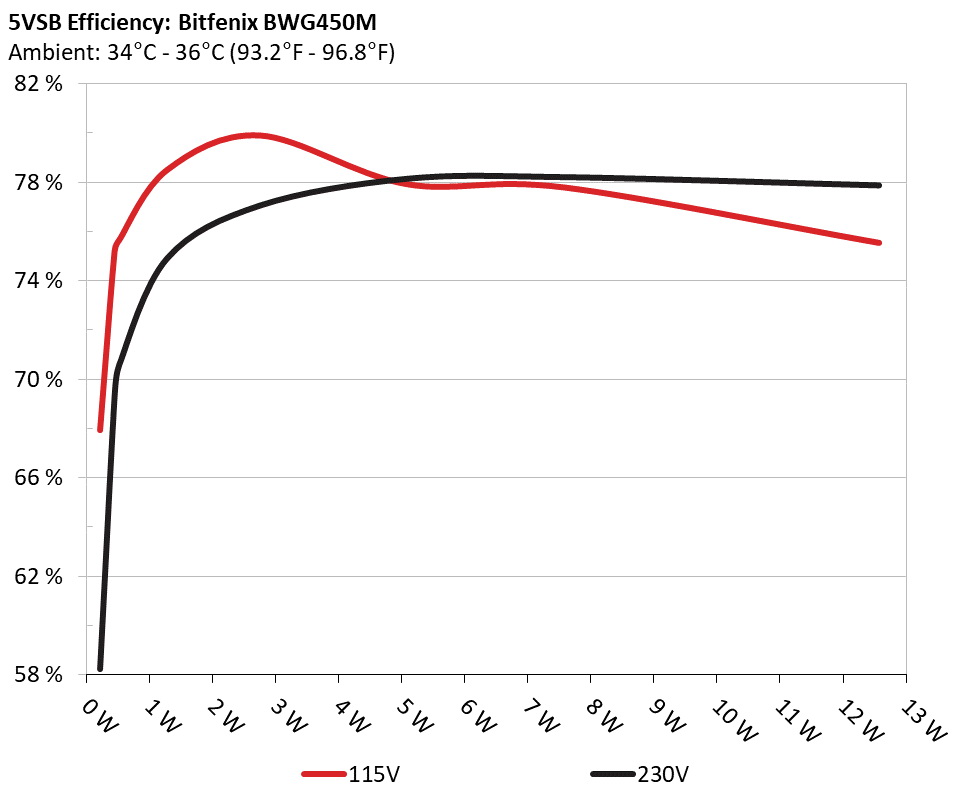

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
5VSB Efficiency (ERP LOT 3/6 & CEC)
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.212
67.949%
0.031
5.085V
0.312
115.16V
2
0.087A
0.443
75.212%
0.058
5.084V
0.589
115.16V
3
0.542A
2.750
79.895%
0.260
5.073V
3.442
115.14V
4
1.002A
5.073
77.926%
0.360
5.063V
6.510
115.14V
5
1.502A
7.585
77.787%
0.412
5.051V
9.751
115.14V
6
2.501A
12.576
75.541%
0.462
5.028V
16.648
115.14V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.212
58.242%
0.011
5.086V
0.364
230.39V
2
0.087A
0.443
69.327%
0.019
5.085V
0.639
230.39V
3
0.542A
2.750
77.052%
0.101
5.074V
3.569
230.38V
4
1.002A
5.074
78.134%
0.169
5.063V
6.494
230.38V
5
1.502A
7.585
78.204%
0.227
5.051V
9.699
230.39V
6
2.501A
12.577
77.867%
0.304
5.028V
16.152
230.39V
Supplementary Tests (For Reference)
Typical Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
1.920A
1.994A
1.969A
0.986A
44.770
84.034%
470
11.6
38.39°C
0.932
12.077V
5.019V
3.345V
5.059V
53.276
43.41°C
115.18V
2
4.880A
2.988A
2.961A
1.186A
89.755
88.589%
470
11.6
38.54°C
0.967
12.069V
5.012V
3.340V
5.053V
101.316
43.97°C
115.17V
3
8.191A
3.499A
3.474A
1.385A
134.896
90.116%
470
11.6
38.83°C
0.976
12.062V
5.006V
3.336V
5.047V
149.692
44.56°C
115.16V
4
11.496A
4.005A
3.958A
1.585A
179.786
90.512%
470
11.6
39.07°C
0.982
12.055V
5.000V
3.332V
5.040V
198.632
45.39°C
115.16V
5
14.469A
5.000A
4.955A
1.786A
224.723
90.453%
470
11.6
39.64°C
0.984
12.046V
4.990V
3.328V
5.033V
248.441
46.63°C
115.16V
6
17.440A
6.018A
5.955A
1.987A
269.711
90.127%
470
11.6
40.46°C
0.985
12.038V
4.984V
3.323V
5.026V
299.255
47.93°C
115.16V
7
20.419A
7.031A
6.960A
2.190A
314.675
89.167%
470
11.6
41.30°C
0.984
12.028V
4.977V
3.318V
5.018V
352.906
49.20°C
115.16V
8
23.403A
8.057A
7.964A
2.394A
359.704
88.456%
800
22.4
42.44°C
0.985
12.019V
4.969V
3.314V
5.010V
406.646
50.79°C
115.16V
9
26.822A
8.566A
8.488A
2.394A
404.755
87.832%
1150
32.3
43.73°C
0.984
12.011V
4.963V
3.310V
5.007V
460.829
52.53°C
115.16V
10
30.192A
9.078A
8.983A
2.495A
449.563
87.099%
1455
39.2
44.87°C
0.984
12.003V
4.956V
3.306V
5.002V
516.150
53.87°C
115.16V
11
33.959A
9.082A
8.992A
2.497A
494.540
86.468%
1455
39.2
46.08°C
0.985
11.996V
4.954V
3.302V
5.000V
571.932
55.13°C
115.16V
CL1
0.100A
12.012A
12.004A
0.004A
101.042
84.670%
470
11.6
44.18°C
0.972
12.043V
4.978V
3.334V
5.075V
119.336
52.88°C
115.17V
CL2
37.476A
1.003A
1.003A
1.002A
463.923
87.994%
1460
39.3
44.44°C
0.984
12.022V
4.991V
3.316V
5.045V
527.220
53.34°C
115.17V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
1.924A
1.986A
1.967A
0.986A
44.784
83.046%
470
11.6
40.10°C
0.686
12.066V
5.030V
3.350V
5.061V
53.927
43.59°C
230.29V
2
4.881A
2.982A
2.953A
1.186A
89.736
88.680%
470
11.6
40.75°C
0.835
12.059V
5.028V
3.348V
5.055V
101.191
44.76°C
230.30V
3
8.189A
3.489A
3.462A
1.386A
134.880
90.784%
470
11.6
41.08°C
0.891
12.060V
5.026V
3.347V
5.049V
148.573
45.43°C
230.30V
4
11.491A
3.981A
3.942A
1.585A
179.741
91.714%
470
11.6
41.83°C
0.919
12.058V
5.025V
3.345V
5.043V
195.980
46.72°C
230.31V
5
14.457A
4.975A
4.931A
1.786A
224.717
91.951%
470
11.6
42.22°C
0.934
12.052V
5.024V
3.344V
5.037V
244.388
47.85°C
230.32V
6
17.430A
5.974A
5.917A
1.985A
269.725
92.330%
470
11.6
42.69°C
0.945
12.045V
5.023V
3.344V
5.031V
292.133
48.71°C
230.32V
7
20.405A
6.977A
6.909A
2.185A
314.730
91.544%
780
22.0
43.18°C
0.951
12.038V
5.021V
3.341V
5.025V
343.803
49.50°C
000.00V
8
23.375A
7.972A
7.903A
2.389A
359.667
91.180%
970
27.3
43.79°C
0.955
12.033V
5.020V
3.339V
5.018V
394.457
50.53°C
230.34V
9
26.784A
8.475A
8.416A
2.390A
404.771
90.935%
1215
33.9
44.16°C
0.959
12.028V
5.018V
3.338V
5.018V
445.120
51.69°C
230.34V
10
30.141A
8.978A
8.899A
2.490A
449.628
90.571%
1455
39.2
45.13°C
0.961
12.024V
5.017V
3.336V
5.013V
496.438
52.89°C
230.33V
11
33.896A
8.979A
8.901A
2.492A
494.610
90.327%
1455
39.2
46.00°C
0.964
12.019V
5.016V
3.335V
5.012V
547.578
54.87°C
230.31V
CL1
0.101A
12.013A
12.005A
0.005A
101.813
85.103%
470
11.6
42.79°C
0.864
12.044V
5.027V
3.347V
5.082V
119.635
49.10°C
230.29V
CL2
37.483A
1.003A
1.001A
1.002A
464.663
91.714%
1390
35.2
45.57°C
0.962
12.038V
5.020V
3.342V
5.051V
506.645
52.63°C
230.29V
The results above are not used in the certification process
Light Load Tests
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
Fan Noise (dB[A])
PF/AC Volts
1
1.206A
0.492A
0.474A
0.196A
19.633
75.695%
470
11.6
0.821
12.086V
5.029V
3.350V
5.080V
25.937
115.17V
2
2.441A
0.991A
0.984A
0.391A
39.749
84.193%
470
11.6
0.919
12.082V
5.024V
3.347V
5.074V
47.212
115.17V
3
3.677A
1.487A
1.494A
0.591A
59.865
87.246%
470
11.6
0.949
12.077V
5.020V
3.345V
5.069V
68.616
115.17V
4
4.903A
1.994A
1.972A
0.786A
79.771
88.595%
470
11.6
0.962
12.073V
5.017V
3.343V
5.064V
90.030
115.17V
The results above are not used in the certification process
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.210A
0.492A
0.472A
0.196A
19.663
71.214%
470
11.6
0.477
12.074V
5.031V
3.353V
5.080V
27.611
230.27V
2
2.447A
0.988A
0.984A
0.391A
39.787
83.005%
470
11.6
0.650
12.070V
5.030V
3.352V
5.075V
47.933
230.27V
3
3.684A
1.487A
1.489A
0.590A
59.913
86.630%
470
11.6
0.753
12.067V
5.029V
3.350V
5.070V
69.160
230.27V
4
4.907A
1.985A
1.967A
0.786A
79.745
88.484%
470
11.6
0.813
12.063V
5.029V
3.349V
5.065V
90.124
230.29V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
13.7 mV
8.4 mV
8.1 mV
5.3 mV
Pass
20% Load
20.5 mV
8.1 mV
8.4 mV
5.9 mV
Pass
30% Load
21.3 mV
8.1 mV
9.0 mV
5.8 mV
Pass
40% Load
20.9 mV
8.6 mV
9.2 mV
7.1 mV
Pass
50% Load
20.7 mV
8.8 mV
9.3 mV
7.3 mV
Pass
60% Load
21.0 mV
8.9 mV
11.4 mV
10.4 mV
Pass
70% Load
22.0 mV
9.7 mV
14.8 mV
10.4 mV
Pass
80% Load
23.5 mV
16.0 mV
17.8 mV
19.8 mV
Pass
90% Load
24.6 mV
10.9 mV
19.0 mV
21.4 mV
Pass
100% Load
26.3 mV
12.2 mV
21.2 mV
18.7 mV
Pass
110% Load
26.2 mV
12.2 mV
20.8 mV
20.7 mV
Pass
Crossload 1
23.8 mV
12.4 mV
10.1 mV
5.6 mV
Pass
Crossload 2
25.0 mV
11.7 mV
18.7 mV
13.9 mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
4.7 mV
5.6 mV
7.6 mV
6.7 mV
Pass
20% Load
4.6 mV
5.6 mV
7.9 mV
6.3 mV
Pass
30% Load
47.2 mV
6.4 mV
8.0 mV
7.8 mV
Pass
40% Load
28.8 mV
6.3 mV
8.5 mV
7.8 mV
Pass
50% Load
24.5 mV
6.0 mV
8.2 mV
8.7 mV
Pass
60% Load
19.7 mV
6.1 mV
8.5 mV
11.4 mV
Pass
70% Load
21.0 mV
6.0 mV
8.3 mV
11.2 mV
Pass
80% Load
22.4 mV
15.4 mV
12.8 mV
20.4 mV
Pass
90% Load
22.7 mV
10.7 mV
9.9 mV
21.4 mV
Pass
100% Load
24.6 mV
7.4 mV
11.9 mV
21.0 mV
Pass
110% Load
24.5 mV
7.6 mV
12.6 mV
21.7 mV
Pass
Crossload 1
5.8 mV
6.4 mV
11.6 mV
5.5 mV
Pass
Crossload 2
23.8 mV
7.5 mV
10.3 mV
11.8 mV
Pass
The results above are not used in the certification process

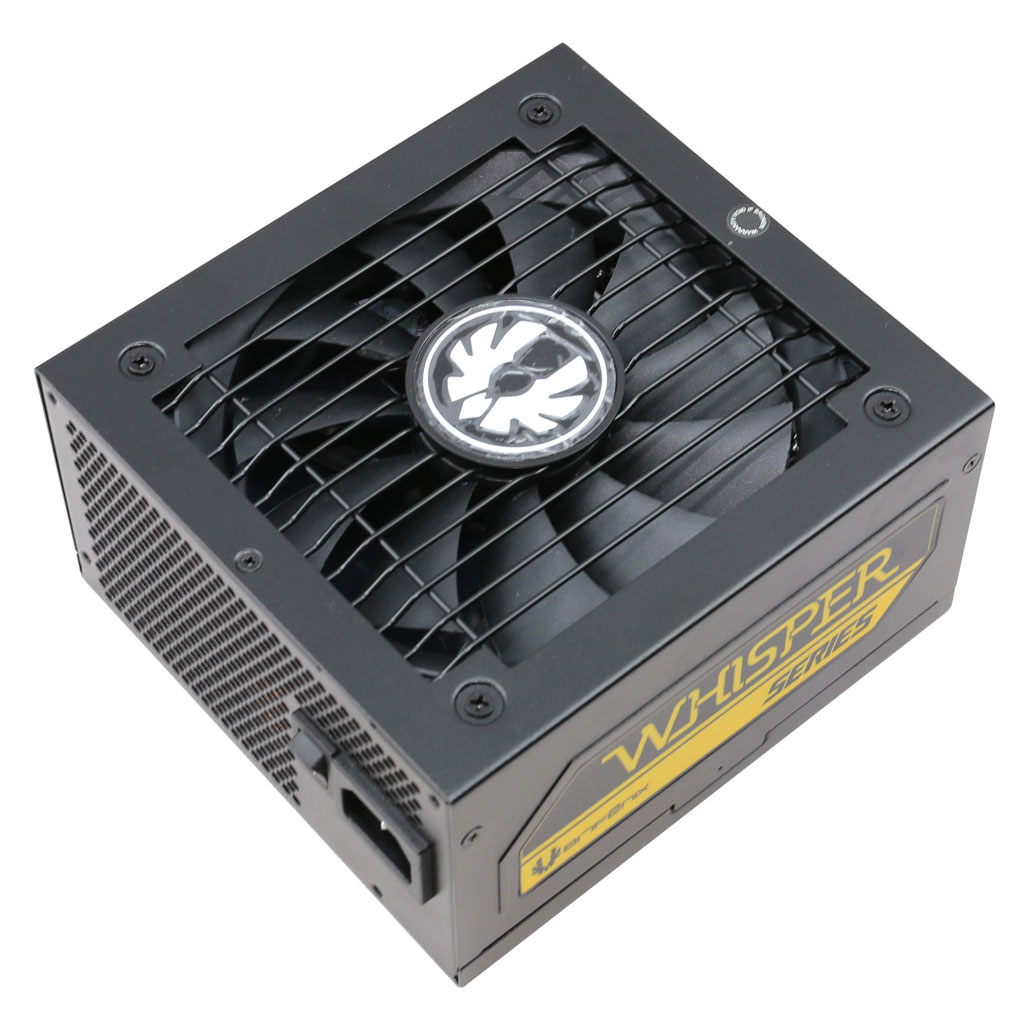

BitFenix Whisper 450W
Top side

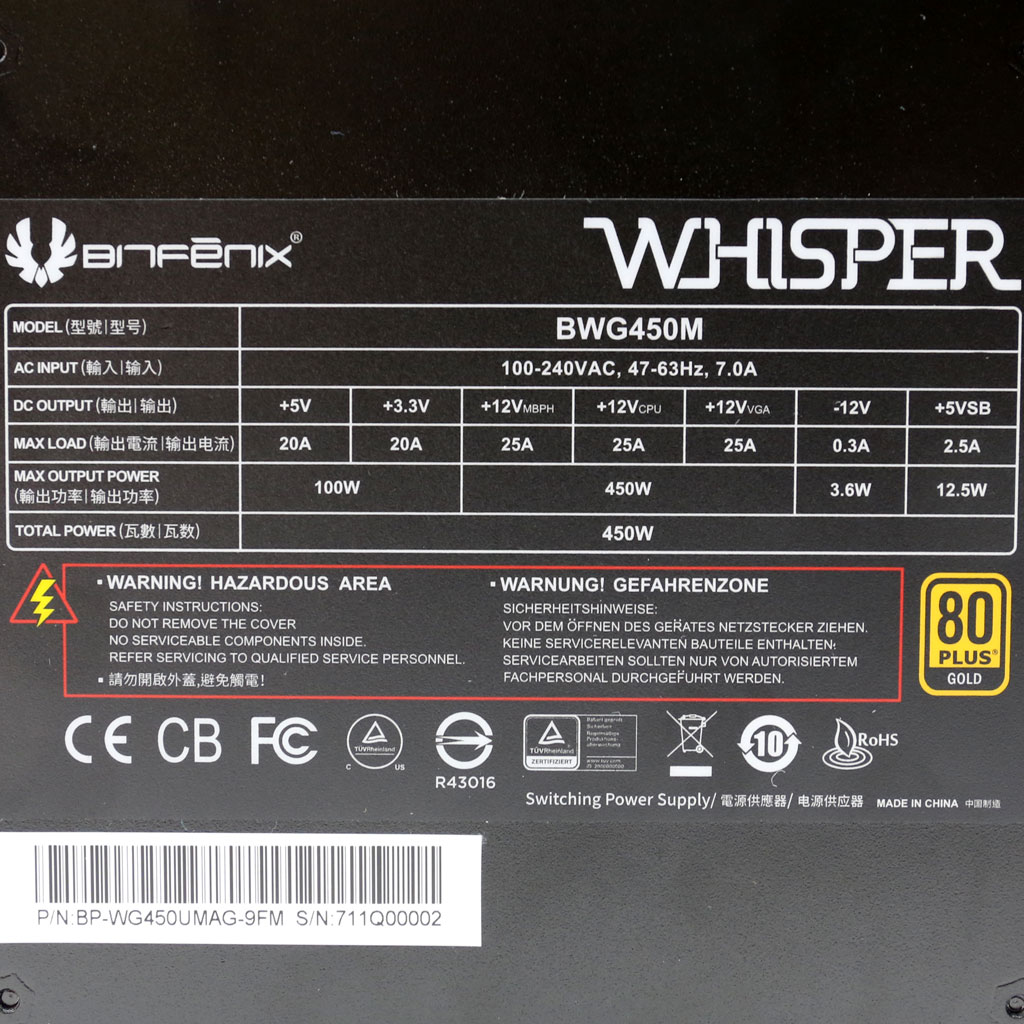

Power specifications label
