Cybenetics Test - SilverStone Strider Titanium 600W

SilverStone Strider Titanium 600W

155200448

Lab ID128

Report:
Receipt Date: Jun 4, 2018
Test Date: Jun 16, 2018
Report Date: Jun 20, 2018

	115V	230V
Wirkungsgrad

115V	230V
		Lautstärkeklasse

Aristeidis Bitziopoulos, Laboratory General Manager

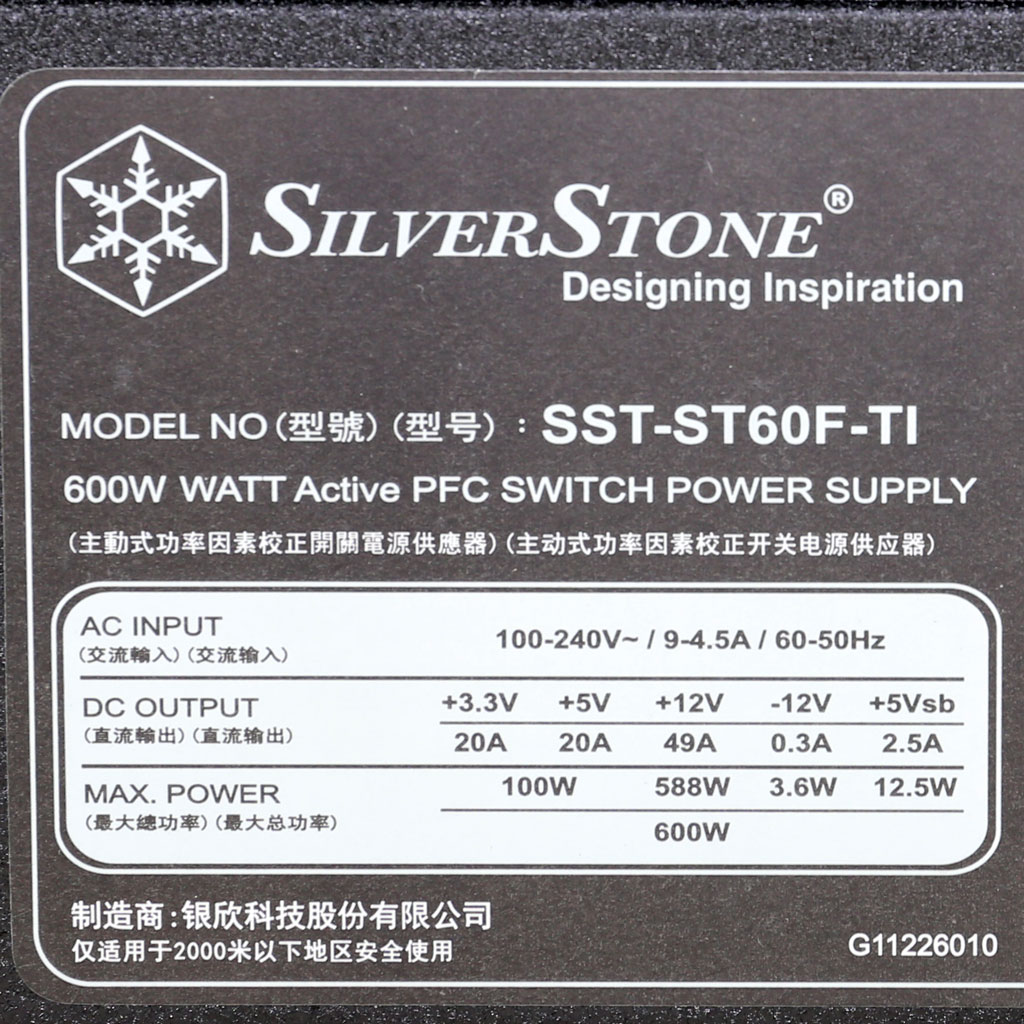

General Information

	SilverStone
Hersteller (OEM)	Enhance Electronics
	Strider Titanium
	ST60F-TI
	155200448

(Vrms)	100-240
(Arms)	9-4.5
(Hz)	50-60
(W)	600
	ATX12V
	120mm Fluid Dymanic Bearing Fan (HA1225H12F-Z)
	✗
	Fully Modular

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	49	2.5	0.3
Max. Power	Watts	100		588	12.5	3.6
Total Max. Power (W)		600

Electronic Loads	Chroma 6314A x2 63123A x6 63102A 63101A	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, Chroma 61604
Power Analyzers	N4L PPA1530, N4L PPA5530
Oscilloscopes	Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter	Keithley 2015 THD 6.5 Digit
Sound Analyzer	Bruel & Kjaer 2250-L G4
Microphone	Bruel & Kjaer Type 4189
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology	Cybenetics PSU Test Protocol

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge
ATX connector 20+4 pin (560mm)	1	1	18-22AWG
4+4 pin EPS12V (755mm)	1	1	18AWG
6 pin PCIe (560mm)	2	2	18AWG
6+2 pin PCIe (560mm)	2	2	18AWG
SATA (600mm+140mm+140mm+140mm)	2	8	18AWG
4 pin Molex (610mm+150mm+150mm)	1	3	18AWG
FDD Adapter (+105mm)	1	1	22AWG

Parts Description

Primary Side
Transient Filter	4x Y caps, 4x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor
Bridge Rectifier(s)	2x Vishay BU1506 (600V, 15A @ 150°C)
APFC MOSFETS	2x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14 Ohm)
APFC Boost Diode	1x CREE C3D08060A (600V, 8A @ 152°C)
Hold-up Cap(s)	1x Nippon Chemi-Con (450V, 470uF, 2000h @ 105°C, KMQ)
Main Switchers	2x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14 Ohm) Driver IC: 1x Silicon Labs Si8230BD
APFC Controller	Champion CM6502S & CM03X Green PFC controller
Switching Controller	Champion CM6901
Topology	Primary side: Half-Bridge & LLC Resonant Converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS	8x Infineon BSC014N04LS (40V, 100A @ 100°C, 1.4 mOhm)
5V & 3.3V	DC-DC Converters: 2x BSC050NE2LS FETs (25V, 37A @ 100°C, 5.0mΩ) 2x BSC018NE2LS FETs (25V, 97A @ 100°C, 1.8mΩ) PWM Controller: 2x APW7073
Filtering Capacitors	Electrolytics: Nippon Chemi-Con (105°C, KY 4,000-10,000h, KZH 5,000-6,000h), Rubycon (105°C, ZLH 6,000-10,000h, YXG 3,000-6,000h) Polymers: Unicon (TW)
Supervisor IC	SITI PS223 (OVP, UVP, OCP, SCP, OTP )
Fan Model	Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, 2200RPM, Fluid Dynamic Bearing)
5VSB Circuit
Rectifier	1x PFR10V45CT & 1x SG30N04D
Standby PWM Controller	Sanken STR-A6069H

Test Results

Temperature & Compliance Info

(°C /°F)	30-32 / 86-89.6
	ErP Lot 6 2010: ✓ ErP Lot 6 2013: ✓ ErP Lot 3 2014: Partially
	✓

Performance Summary

Wirkungsgrad	PLATINUM
Lautstärkeklasse	A
(>1450 load combinations)	91.801%
Average Noise Output (>1450 Load Combinations)	21.10dBA
(>1450 Load Combinations)	0.975
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
	0.0587W
12V Ripple (Full Load)	66.17mV
5V Ripple (Full Load)	18.81mV
3.3V Ripple (Full Load)	36.68mV
5VSB Ripple (Full Load)	15.79mV
12V Load Regulation	0.37%
5V Load Regulation	1.52%
3.3V Load Regulation	2.32%
5VSB Load Regulation	2.70%
Inrush Current	89.963A

Wirkungsgrad	BRONZE
Lautstärkeklasse	A
(>1450 load combinations)	92.961%
Average Noise Output (>1450 Load Combinations)	20.79dBA
(>1450 Load Combinations)	0.910
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
	0.0943W
12V Ripple (Full Load)	55.81mV
5V Ripple (Full Load)	14.94mV
3.3V Ripple (Full Load)	29.26mV
5VSB Ripple (Full Load)	8.23mV
12V Load Regulation	0.10%
5V Load Regulation	1.30%
3.3V Load Regulation	2.09%
5VSB Load Regulation	2.59%
Inrush Current	61.642A
12V Transient Response (150%)	0.00V
5V Transient Response (150%)	V
3.3V Transient Response (150%)	V
5VSB Transient Response (150%)	V
	14.30ms
AC Loss to PWR_OK Hold Up Time	19.70ms
PWR_OK Inactive to DC Loss Delay	-5.40ms
PSU Timings: T1 (20% / 100%)	0.0ms	0.0ms
PSU Timings: T3 (20% / 100%)	0.0ms	0.0ms
OPP (0.00°C / 0.00°C)	0.00%	0.00%

Hold-Up Time (ms)	14.3
AC Loss to PWR_OK Hold Up Time (ms)	19.7
PWR_OK Inactive to DC Loss Delay (ms)	-5.4

Stromverbrauch im Ruhezustand

Tables

Graphs

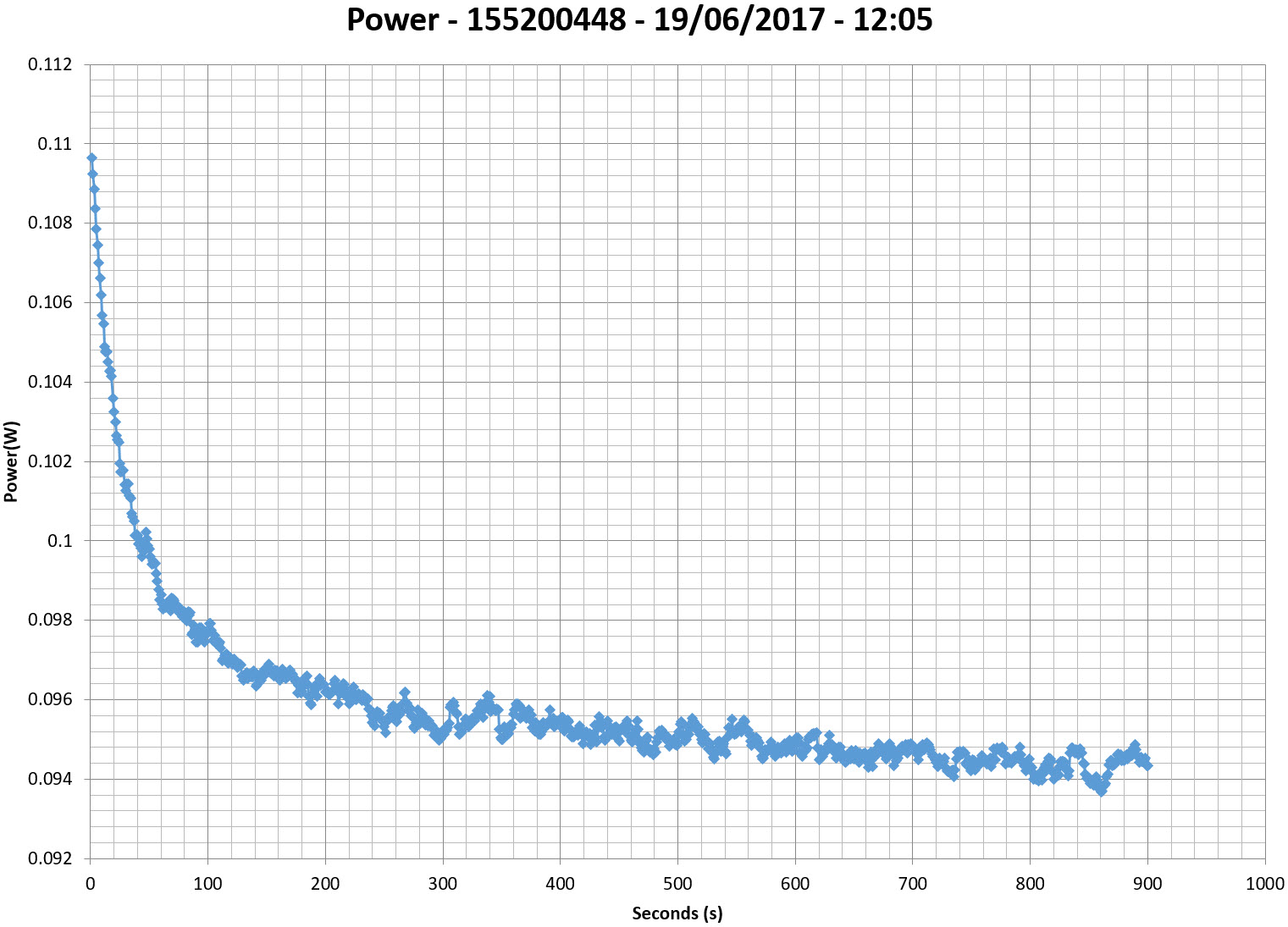

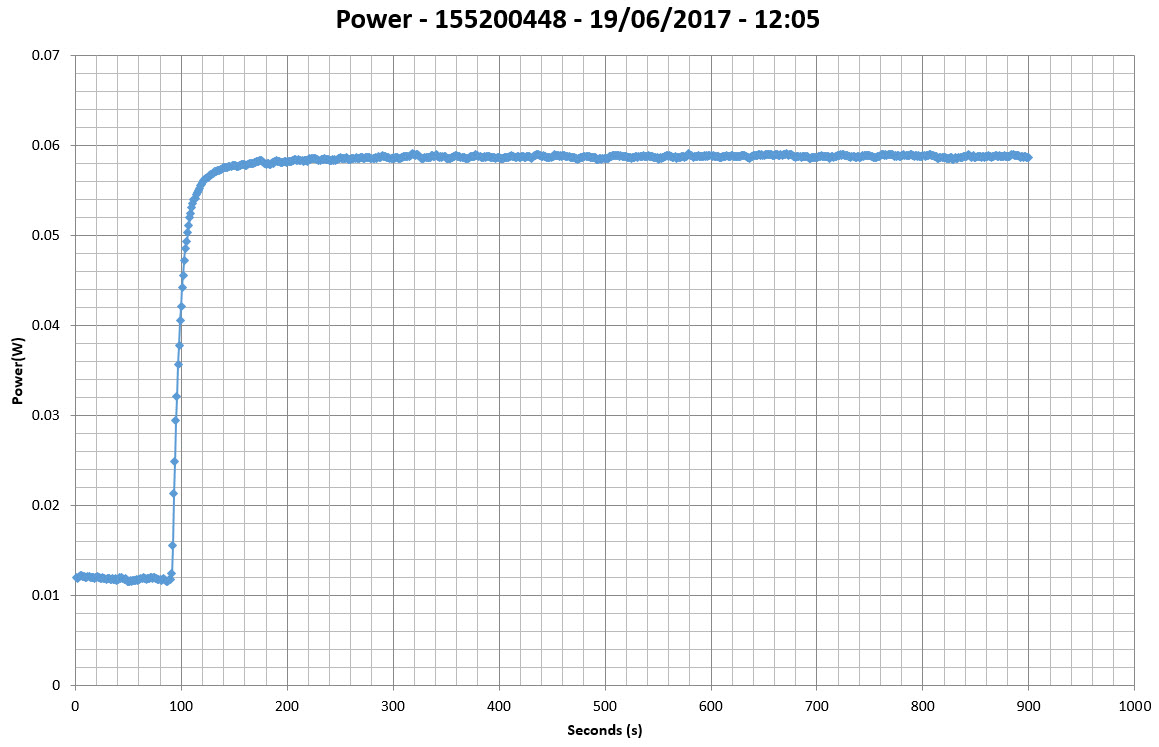

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

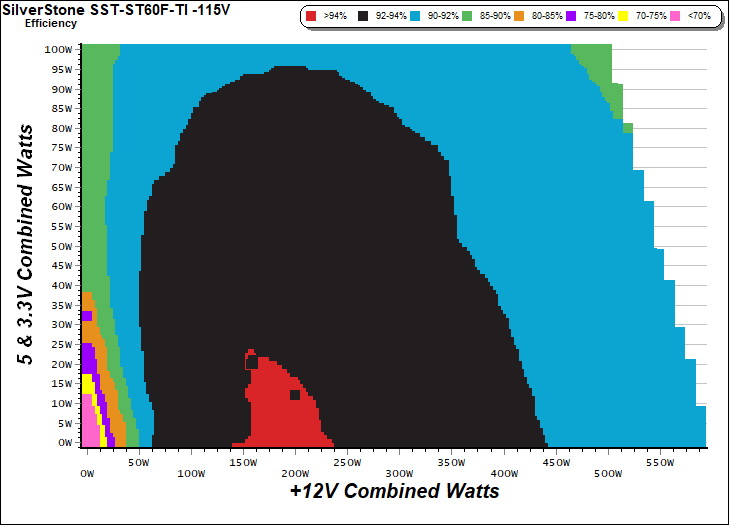

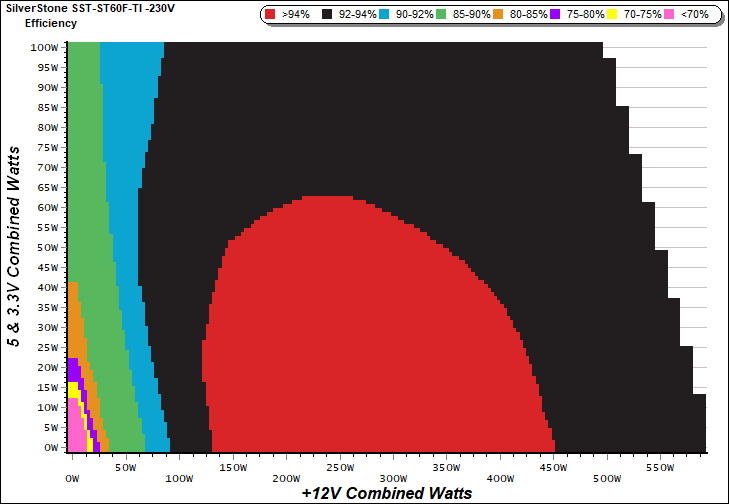

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

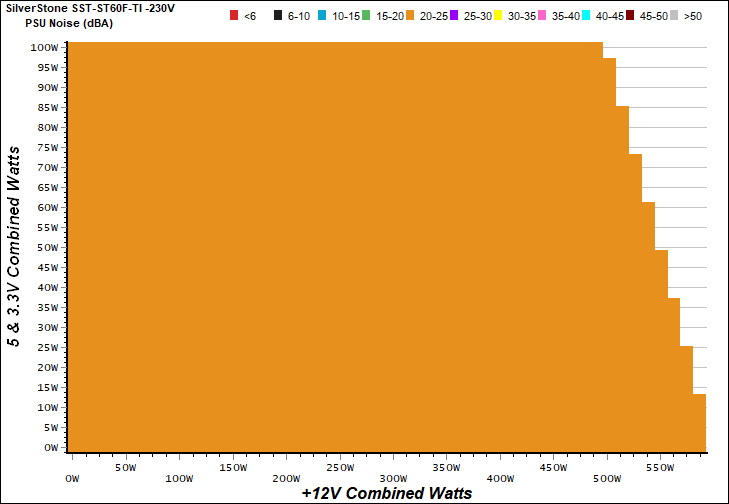

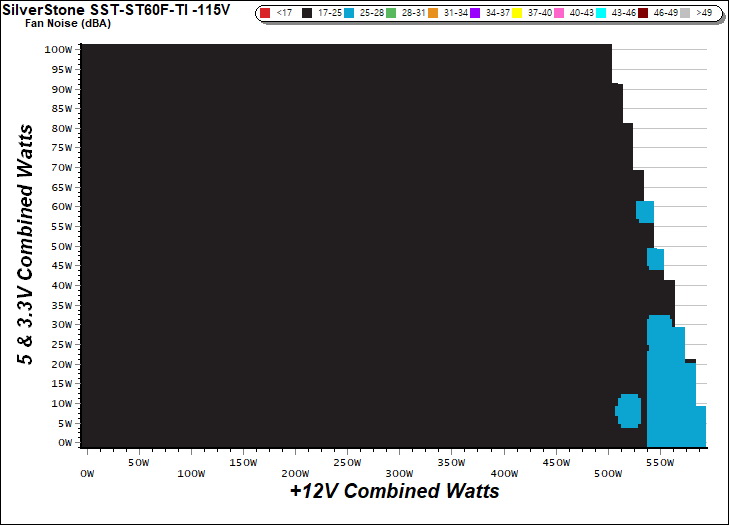

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

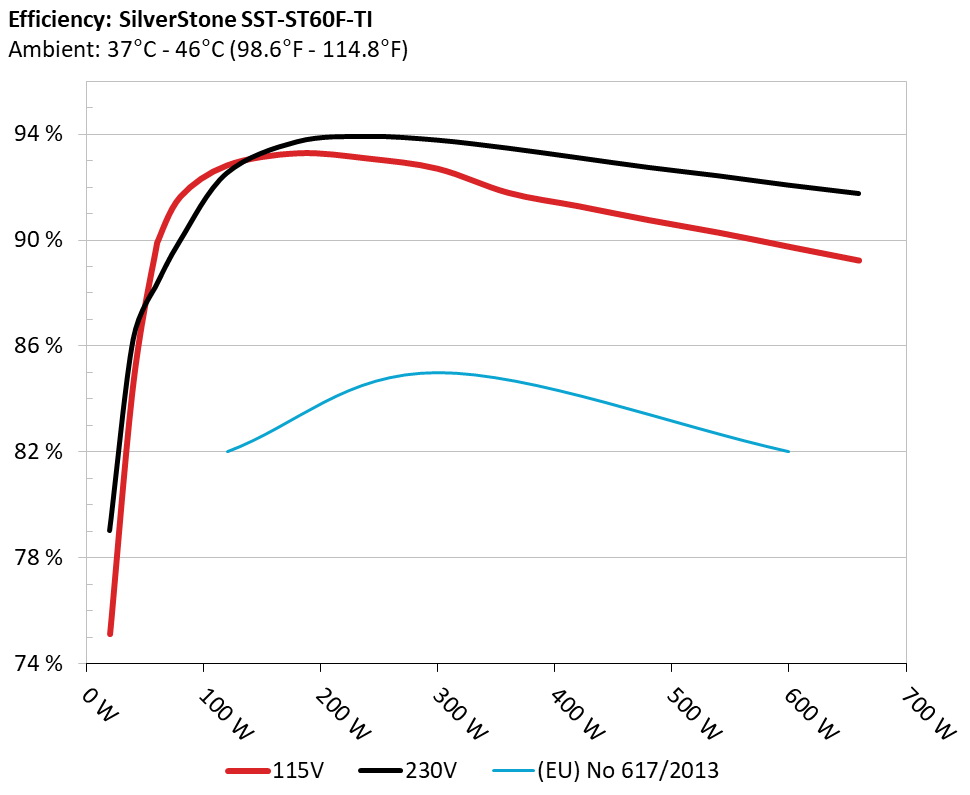

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

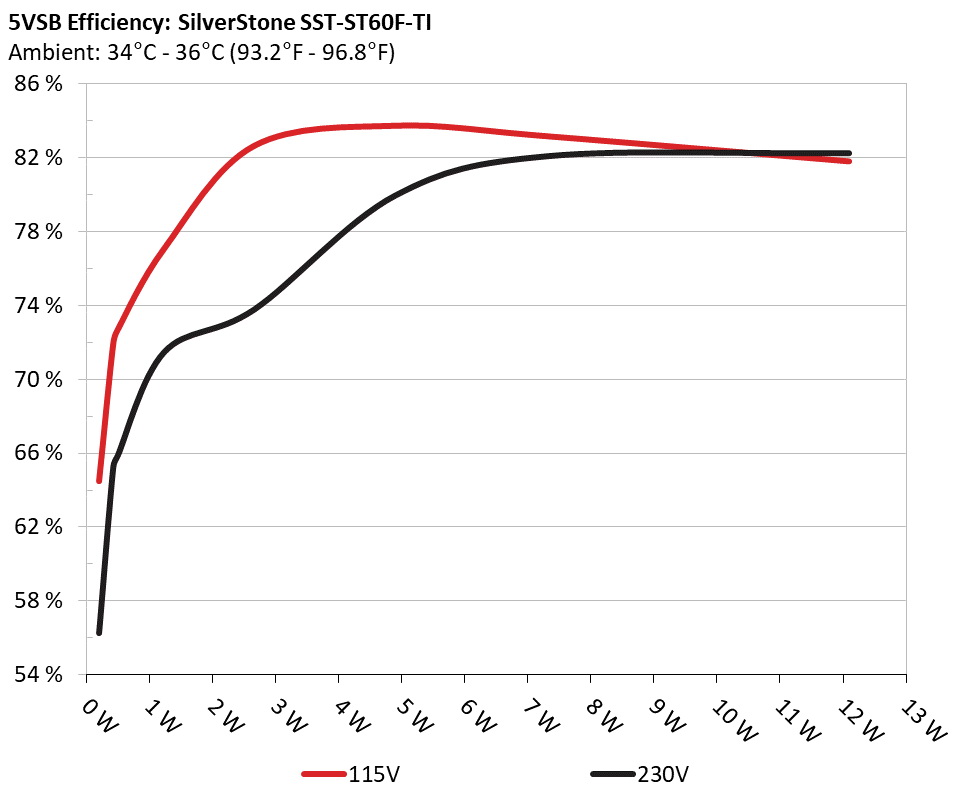

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.042A	0.205	64.465%	0.021
1	4.935V	0.318	64.465%	115.14V
2	0.086A	0.426	71.838%	0.040
2	4.933V	0.593	71.838%	115.13V
3	0.542A	2.663	82.651%	0.185
3	4.913V	3.222	82.651%	115.12V
4	1.002A	4.903	83.740%	0.274
4	4.894V	5.855	83.740%	115.12V
5	1.502A	7.317	83.167%	0.330
5	4.873V	8.798	83.167%	115.13V
6	2.502A	12.088	81.808%	0.387
6	4.832V	14.776	81.808%	115.13V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.042A	0.206	56.284%	0.007
1	4.935V	0.366	56.284%	230.35V
2	0.087A	0.430	65.250%	0.013
2	4.933V	0.659	65.250%	230.36V
3	0.542A	2.664	73.795%	0.071
3	4.914V	3.610	73.795%	230.35V
4	1.002A	4.905	79.977%	0.115
4	4.895V	6.133	79.977%	230.35V
5	1.502A	7.321	82.102%	0.159
5	4.875V	8.917	82.102%	230.35V
6	2.501A	12.093	82.260%	0.229
6	4.835V	14.701	82.260%	230.35V

Supplementary Tests (For Reference)

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	Fan Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	3.211A	1.994A	1.969A	1.006A	59.812	89.896%	964	24.4	38.43°C	0.919
1	11.904V	5.010V	3.350V	4.972V	66.535	89.896%	964	24.4	40.45°C	115.14V
2	7.475A	2.993A	2.959A	1.206A	119.776	92.816%	1133	25.5	38.68°C	0.952
2	11.898V	5.002V	3.341V	4.960V	129.047	92.816%	1133	25.5	41.01°C	115.13V
3	12.093A	3.508A	3.472A	1.414A	179.911	93.272%	1268	27.2	38.95°C	0.970
3	11.893V	4.993V	3.335V	4.946V	192.889	93.272%	1268	27.2	42.07°C	115.13V
4	16.706A	4.015A	3.964A	1.621A	239.806	93.075%	1488	32.4	39.49°C	0.975
4	11.888V	4.985V	3.328V	4.934V	257.647	93.075%	1488	32.4	42.98°C	115.12V
5	20.976A	5.020A	4.971A	1.826A	299.737	92.687%	1712	37.9	39.90°C	0.980
5	11.884V	4.976V	3.318V	4.921V	323.385	92.687%	1712	37.9	44.02°C	115.12V
6	25.251A	6.039A	5.978A	2.036A	359.739	91.782%	1979	40.4	40.21°C	0.984
6	11.879V	4.968V	3.310V	4.908V	391.951	91.782%	1979	40.4	45.23°C	115.12V
7	29.528A	7.053A	6.996A	2.246A	419.679	91.275%	2124	43.5	41.19°C	0.986
7	11.874V	4.960V	3.300V	4.895V	459.797	91.275%	2124	43.5	46.57°C	115.12V
8	33.808A	8.080A	8.016A	2.456A	479.699	90.753%	2156	44.1	42.41°C	0.988
8	11.870V	4.951V	3.293V	4.885V	528.576	90.753%	2156	44.1	48.35°C	115.12V
9	38.529A	8.597A	8.551A	2.456A	539.781	90.276%	2156	44.1	43.40°C	0.989
9	11.866V	4.945V	3.285V	4.883V	597.922	90.276%	2156	44.1	49.88°C	115.12V
10	43.200A	9.112A	9.060A	2.561A	599.624	89.744%	2156	44.1	44.81°C	0.990
10	11.862V	4.939V	3.278V	4.874V	668.150	89.744%	2156	44.1	53.14°C	115.13V
11	48.273A	9.124A	9.073A	2.566A	659.613	89.223%	2226	43.9	45.96°C	0.991
11	11.858V	4.932V	3.273V	4.870V	739.288	89.223%	2226	43.9	56.04°C	115.13V
CL1	0.099A	12.012A	12.006A	0.004A	100.865	86.502%	2156	44.1	42.81°C	0.950
CL1	11.901V	4.980V	3.319V	5.049V	116.604	86.502%	2156	44.1	49.95°C	115.13V
CL2	48.963A	1.003A	1.002A	1.002A	594.172	90.417%	2226	43.9	43.76°C	0.990
CL2	11.865V	4.964V	3.306V	4.926V	657.143	90.417%	2226	43.9	52.24°C	115.14V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	3.212A	1.994A	1.966A	1.006A	59.791	87.179%	1547	33.6	39.28°C	0.704
1	11.894V	5.011V	3.353V	4.973V	68.584	87.179%	1547	33.6	42.63°C	230.79V
2	7.444A	2.996A	2.955A	1.209A	119.466	92.050%	1595	33.7	40.03°C	0.840
2	11.901V	5.004V	3.345V	4.961V	129.784	92.050%	1595	33.7	43.68°C	230.76V
3	12.052A	3.500A	3.444A	1.415A	179.398	93.373%	1730	37.2	40.54°C	0.894
3	11.899V	4.998V	3.338V	4.948V	192.130	93.373%	1730	37.2	44.64°C	230.71V
4	16.663A	4.007A	3.959A	1.621A	239.424	93.659%	1950	39.1	40.82°C	0.920
4	11.897V	4.991V	3.331V	4.934V	255.635	93.659%	1950	39.1	45.54°C	230.67V
5	20.936A	5.013A	4.963A	1.829A	299.508	93.640%	2105	42.4	41.10°C	0.935
5	11.895V	4.983V	3.323V	4.922V	319.852	93.640%	2105	42.4	46.20°C	230.63V
6	25.208A	6.028A	5.972A	2.036A	359.618	93.431%	2166	43.7	41.82°C	0.945
6	11.894V	4.976V	3.315V	4.912V	384.902	93.431%	2166	43.7	47.24°C	230.59V
7	29.454A	7.043A	6.982A	2.244A	419.386	93.172%	2200	44.1	42.98°C	0.951
7	11.893V	4.969V	3.307V	4.904V	450.119	93.172%	2200	44.1	48.62°C	230.53V
8	33.762A	8.062A	8.001A	2.454A	479.858	92.879%	2226	43.9	43.45°C	0.956
8	11.891V	4.961V	3.299V	4.891V	516.649	92.879%	2226	43.9	49.55°C	230.49V
9	38.410A	8.576A	8.504A	2.455A	539.187	92.579%	2226	43.9	43.90°C	0.960
9	11.890V	4.955V	3.292V	4.889V	582.406	92.579%	2226	43.9	50.84°C	230.55V
10	43.124A	9.096A	9.040A	2.562A	599.907	92.228%	2226	43.9	44.76°C	0.963
10	11.889V	4.948V	3.285V	4.880V	650.462	92.228%	2226	43.9	51.95°C	230.51V
11	48.176A	9.103A	9.056A	2.564A	659.955	91.914%	2226	43.9	45.68°C	0.965
11	11.889V	4.943V	3.279V	4.875V	718.012	91.914%	2226	43.9	53.44°C	230.47V
CL1	0.128A	11.999A	11.998A	0.000A	101.302	86.425%	2145	43.4	40.83°C	0.825
CL1	11.891V	4.988V	3.328V	5.053V	117.214	86.425%	2145	43.4	46.85°C	230.85V
CL2	48.997A	1.000A	0.997A	1.000A	595.956	92.913%	2226	43.9	44.40°C	0.964
CL2	11.894V	4.967V	3.303V	4.926V	641.410	92.913%	2226	43.9	51.02°C	230.51V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	Fan Noise (dB[A])	PF/AC Volts
1	1.230A	0.491A	0.473A	0.196A	19.669	75.124%	765	19.8	0.807
1	11.898V	5.019V	3.359V	5.009V	26.182	75.124%	765	19.8	115.14V
2	2.478A	0.990A	0.982A	0.399A	39.758	84.667%	765	19.8	0.891
2	11.906V	5.015V	3.356V	4.999V	46.958	84.667%	765	19.8	115.14V
3	3.732A	1.487A	1.489A	0.601A	59.871	90.639%	788	20.2	0.919
3	11.904V	5.012V	3.353V	4.990V	66.054	90.639%	788	20.2	115.14V
4	4.974A	1.995A	1.969A	0.801A	79.776	91.634%	924	22.3	0.935
4	11.902V	5.009V	3.349V	4.980V	87.059	91.634%	924	22.3	115.13V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.193A	0.496A	0.472A	0.200A	19.268	78.909%	765	19.8	0.388
1	11.894V	5.019V	3.361V	5.012V	24.418	78.909%	765	19.8	230.81V
2	2.471A	0.995A	0.982A	0.400A	39.679	86.626%	765	19.8	0.586
2	11.894V	5.016V	3.358V	5.001V	45.805	86.626%	765	19.8	230.80V
3	3.679A	1.493A	1.458A	0.601A	59.135	88.081%	998	24.3	0.697
3	11.894V	5.014V	3.355V	4.992V	67.137	88.081%	998	24.3	230.79V
4	4.958A	1.993A	1.967A	0.803A	79.546	89.706%	1133	25.5	0.769
4	11.894V	5.010V	3.351V	4.981V	88.674	89.706%	1133	25.5	230.77V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	19.4 mV	7.5 mV	15.0 mV	6.1 mV	Pass
20% Load	20.0 mV	7.7 mV	16.5 mV	5.7 mV	Pass
30% Load	25.7 mV	8.6 mV	23.3 mV	6.8 mV	Pass
40% Load	31.5 mV	9.1 mV	20.2 mV	7.0 mV	Pass
50% Load	37.3 mV	10.2 mV	22.1 mV	8.8 mV	Pass
60% Load	43.8 mV	11.8 mV	25.6 mV	8.3 mV	Pass
70% Load	51.0 mV	21.5 mV	42.0 mV	17.7 mV	Pass
80% Load	55.4 mV	21.6 mV	45.7 mV	17.3 mV	Pass
90% Load	60.0 mV	15.5 mV	38.1 mV	11.2 mV	Pass
100% Load	66.2 mV	18.8 mV	36.7 mV	15.8 mV	Pass
110% Load	72.1 mV	20.6 mV	37.1 mV	15.3 mV	Pass
Crossload 1	21.2 mV	9.7 mV	18.1 mV	7.0 mV	Pass
Crossload 2	64.8 mV	18.8 mV	33.7 mV	13.3 mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	11.3 mV	4.9 mV	14.9 mV	4.1 mV	Pass
20% Load	23.5 mV	6.2 mV	24.7 mV	5.2 mV	Pass
30% Load	25.8 mV	7.3 mV	19.4 mV	5.1 mV	Pass
40% Load	29.8 mV	7.7 mV	19.4 mV	5.2 mV	Pass
50% Load	34.4 mV	8.9 mV	21.2 mV	6.0 mV	Pass
60% Load	38.4 mV	10.8 mV	22.7 mV	5.7 mV	Pass
70% Load	43.4 mV	21.2 mV	39.1 mV	15.7 mV	Pass
80% Load	47.9 mV	22.7 mV	42.6 mV	16.7 mV	Pass
90% Load	50.5 mV	14.1 mV	38.9 mV	7.7 mV	Pass
100% Load	55.8 mV	14.9 mV	29.3 mV	8.2 mV	Pass
110% Load	60.4 mV	16.6 mV	29.4 mV	8.7 mV	Pass
Crossload 1	33.3 mV	9.1 mV	20.5 mV	7.4 mV	Pass
Crossload 2	55.5 mV	12.6 mV	25.2 mV	7.8 mV	Pass

The results above are not used in the certification process

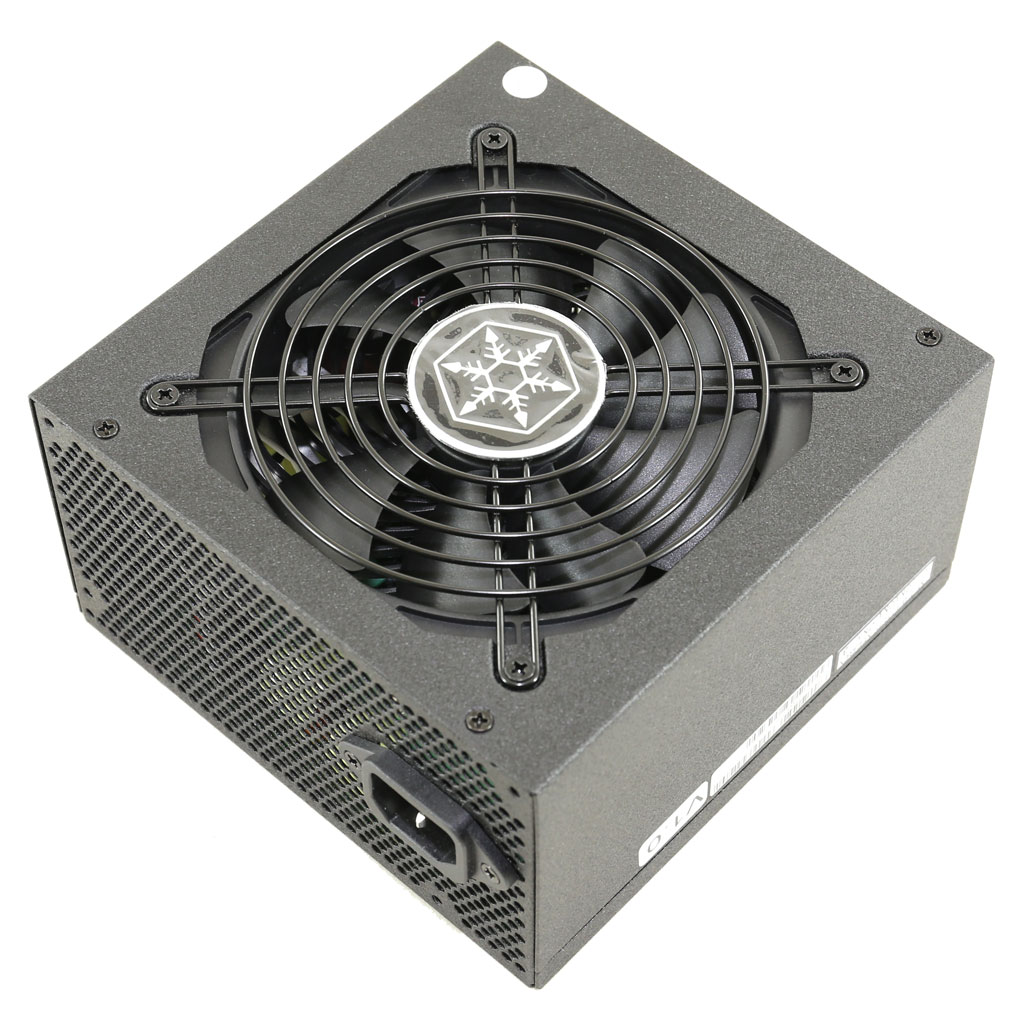

SilverStone Strider Titanium 600W

Top side

Power specifications label
