CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Enermax Revolution SFX 650W
1695080010300
Lab ID120
  • Report:
  • Receipt Date: Jun 29, 2018
  • Test Date: Jul 3, 2018
  • Report Date: Jul 6, 2018
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Enermax
Hersteller (OEM)Channel Well Technology
Revolution SFX
ERV650SWT
1695080010300
Retested on 7/6/2017

(Vrms)100-240
(Arms)8-4
(Hz)47-63
(W)650
SFX
80mm Sleeve Bearing Fan
(D80SH-12B)
✗
Fully Modular

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 18 15 54 3 0.3
Watts 90 648 15 3.6
Total Max. Power (W) 650

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (300mm) 1 1 18AWG
4+4 pin EPS12V (400mm) 1 1 18AWG
6+2 pin PCIe (400mm) 2 2 18AWG
SATA (200mm+150mm+150mm) 2 6 18AWG
4 pin Molex (250mm+150mm+150mm+150mm) 1 4 18AWG

Parts Description

General Data
Manufacturer (OEM) CWT
Platform Model CSN
Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Diode
Bridge Rectifier(s) 1x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETS 1x Vishay SiHG33N60E (650V, 21A @ 100°C, 0.099Ohm)
APFC Boost Diode 1x CREE C3D06060A (600V, 6A @ 154°C)
Hold-up Cap(s) 1x Nichicon (400V, 390uF, 2000h @ 105 °C, GG)
Main Switchers 2x CMS6020
APFC Controller Champion CM6502 & CM03X Green PFC Controller
LLC/PWM Controller Champion CM6901
Topology Primary side: Half-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6x  SM4021NA (40V, 100A @ 150°C)
5V & 3.3V DC-DC Converters: 2x QM3004D (30V, 40A @ 100°C, 8.5 mOhm) , 2x QM3006D (30V, 57A @ 100°C, 5.5 mOhm)
PWM Controller: 1x APW7159C
Filtering Capacitors Electrolytics: Nippon Chemi-Con (1-5,000 @ 105°C, KZE), Nippon Chemi-Con (1-2,000 @ 105°C, KMQ), Nippon Chemi-Con (4-10,000 @ 105°C, KY)
Polymers: Elite (GT, RP)
Supervisor IC Infinno ST9S313 (OVP, UVP, SCP, PG)
Fan Model Yate Loon D80SH-12B (12V, 0.70A,Sleeve Bearing Fan)
5VSB Circuit
FET & Rectifier 1x UTC4N65K (650V, 4A @ 25°C, 2.5Ohm @ 25°C) & S10P45U SBR (45V, 10A @ 110°C, 0.39V @ 125°C)
Standby PWM Controller On-Bright OB5269CP

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

Hold-Up Time (ms)7.9
AC Loss to PWR_OK Hold Up Time (ms)5.8
PWR_OK Inactive to DC Loss Delay (ms)2.1

Stromverbrauch im Ruhezustand

Graphs

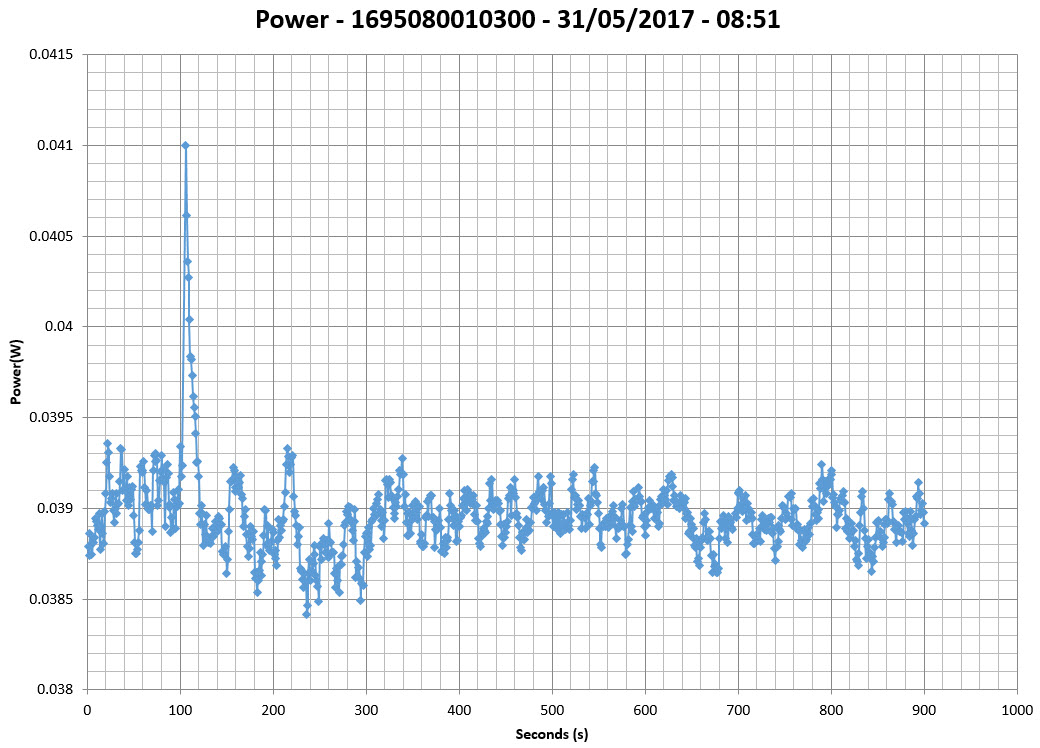

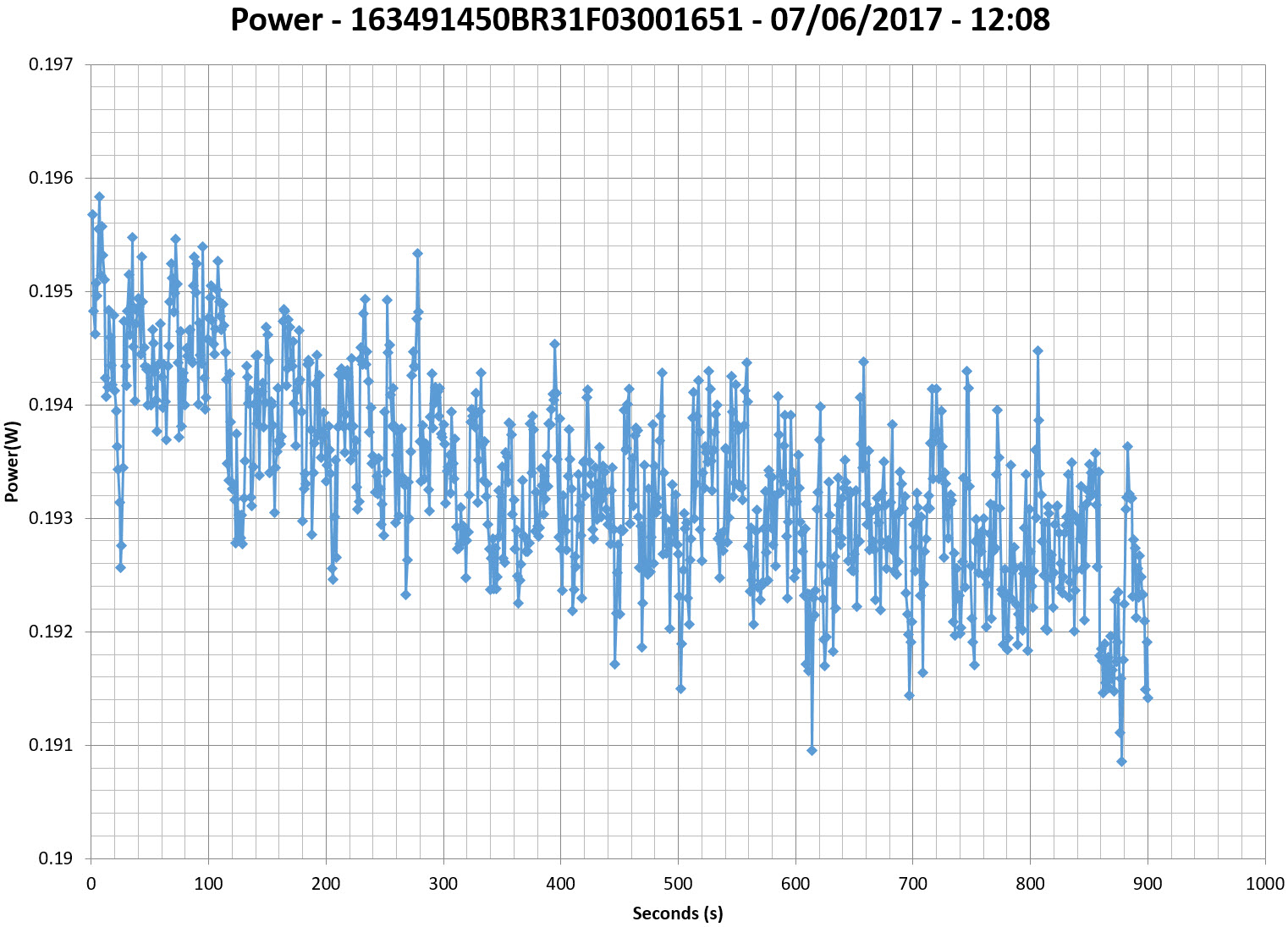

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

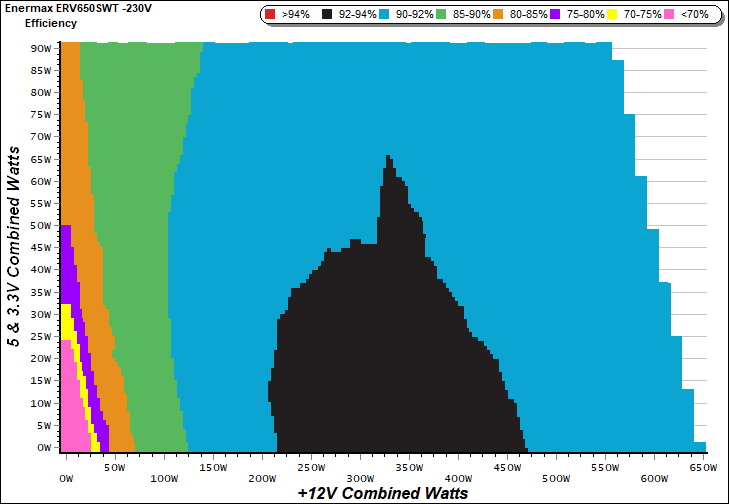

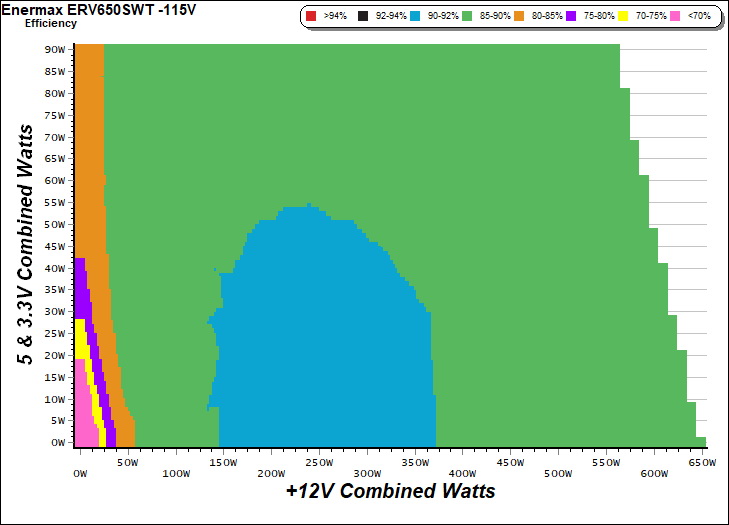

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

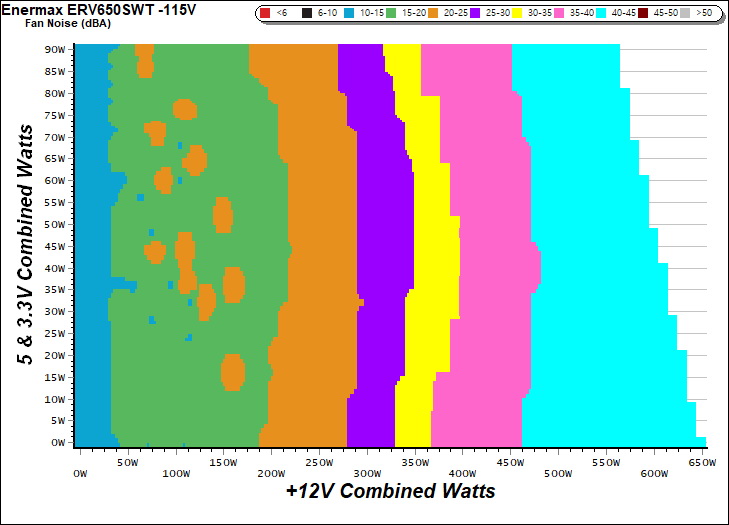

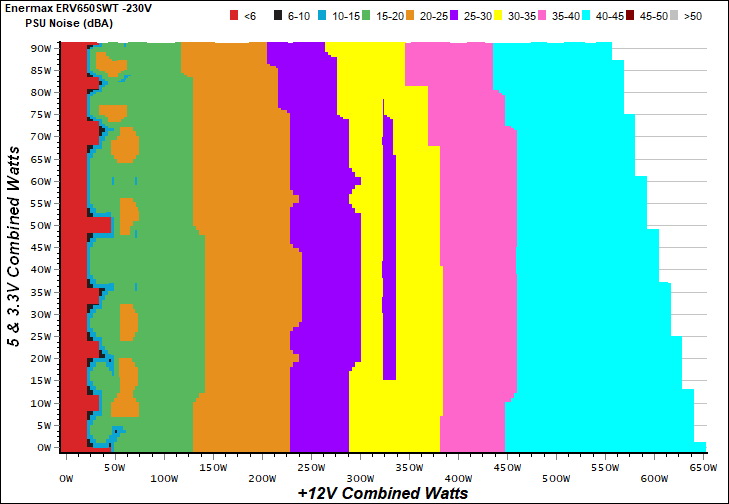

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

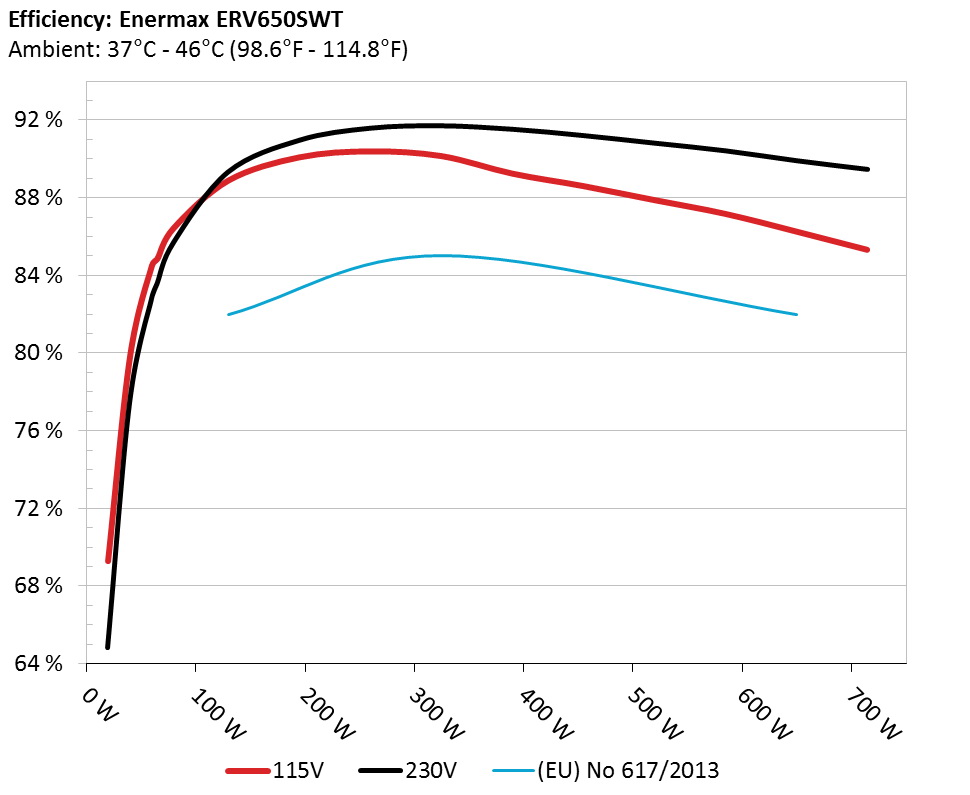

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

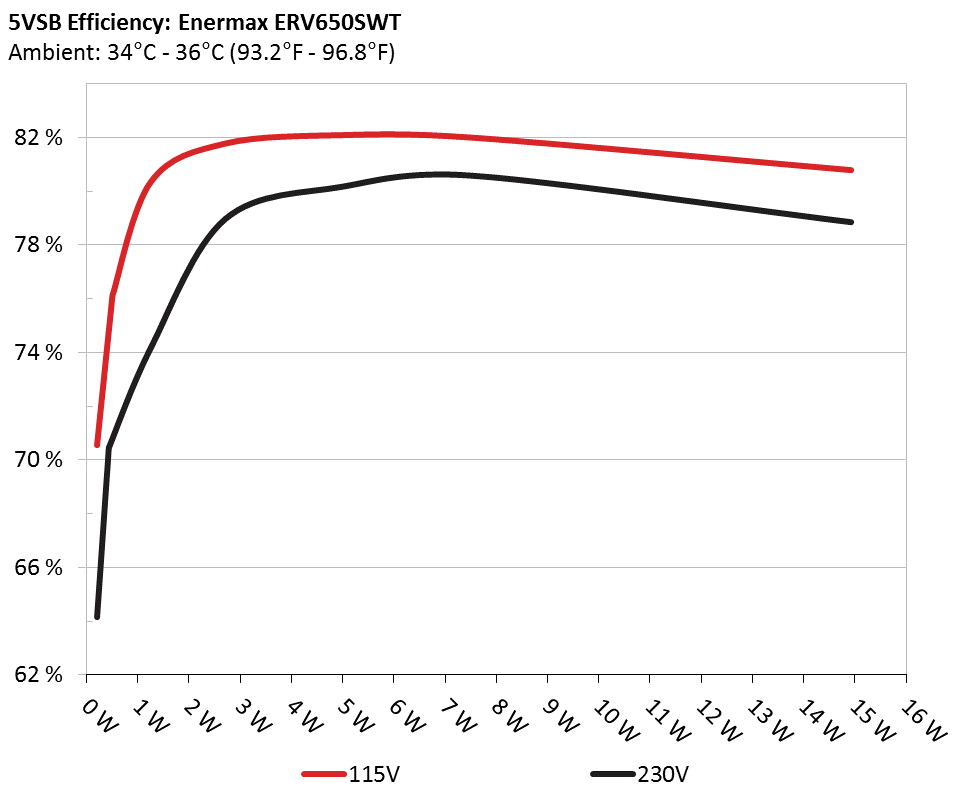

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.211 70.569% 0.030
5.019V 0.299 115.15V
2 0.088A 0.440 76.125% 0.057
5.018V 0.578 115.14V
3 0.542A 2.718 81.769% 0.243
5.011V 3.324 115.14V
4 1.002A 5.016 82.081% 0.327
5.004V 6.111 115.14V
5 1.502A 7.503 81.991% 0.373
4.995V 9.151 115.14V
6 3.002A 14.922 80.782% 0.435
4.971V 18.472 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.211 64.134% 0.010
5.019V 0.329 230.33V
2 0.088A 0.440 70.288% 0.019
5.018V 0.626 230.33V
3 0.542A 2.718 78.966% 0.097
5.011V 3.442 230.33V
4 1.003A 5.016 80.166% 0.162
5.003V 6.257 230.33V
5 1.502A 7.503 80.573% 0.216
4.995V 9.312 230.33V
6 3.002A 14.922 78.840% 0.319
4.971V 18.927 230.33V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.555A 1.985A 1.988A 0.996A 64.791 84.840% 1390 22.7 38.15°C 0.963
12.148V 5.040V 3.317V 5.025V 76.367 44.28°C 115.13V
2 8.155A 2.981A 2.991A 1.196A 129.809 88.881% 1585 25.1 38.53°C 0.970
12.131V 5.030V 3.307V 5.012V 146.048 45.45°C 115.13V
3 13.109A 3.488A 3.514A 1.397A 194.905 90.080% 1875 29.3 39.40°C 0.981
12.115V 5.021V 3.298V 5.001V 216.368 46.54°C 115.12V
4 18.066A 3.990A 4.011A 1.601A 259.783 90.386% 2130 32.8 39.45°C 0.986
12.100V 5.013V 3.289V 4.991V 287.414 46.77°C 115.12V
5 22.698A 4.990A 5.029A 1.806A 324.727 90.144% 2420 36.5 40.04°C 0.989
12.084V 5.003V 3.278V 4.980V 360.230 47.43°C 115.11V
6 27.299A 6.012A 6.055A 2.011A 389.724 89.239% 3060 40.7 40.59°C 0.989
12.086V 4.991V 3.268V 4.970V 436.718 48.27°C 115.11V
7 31.948A 7.020A 7.091A 2.216A 454.622 88.598% 3450 43.8 41.90°C 0.991
12.069V 4.981V 3.256V 4.958V 513.129 50.12°C 115.11V
8 36.610A 8.050A 8.133A 2.425A 519.658 87.876% 3720 46.5 42.48°C 0.992
12.053V 4.970V 3.245V 4.947V 591.354 51.74°C 115.10V
9 41.710A 8.567A 8.681A 2.426A 584.691 87.165% 3720 46.5 44.16°C 0.992
12.038V 4.962V 3.236V 4.940V 670.785 54.01°C 115.10V
10 46.568A 9.086A 9.208A 3.049A 649.537 86.255% 3720 46.5 44.98°C 0.993
12.022V 4.953V 3.225V 4.919V 753.044 56.03°C 115.10V
11 52.018A 9.100A 9.231A 3.051A 714.476 85.316% 3720 46.5 46.15°C 0.994
12.011V 4.946V 3.217V 4.911V 837.445 60.17°C 115.09V
CL1 0.100A 11.017A 11.006A 0.005A 92.774 81.967% 2780 38.9 43.03°C 0.963
12.121V 4.991V 3.321V 5.032V 113.185 57.09°C 115.14V
CL2 54.117A 1.003A 1.002A 0.005A 659.022 87.391% 2780 38.9 44.17°C 0.993
12.025V 4.970V 3.249V 4.975V 754.108 57.76°C 115.05V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.538A 1.980A 1.973A 0.991A 64.822 84.431% 1955 29.3 40.19°C 0.817
12.222V 5.050V 3.343V 5.031V 76.775 44.65°C 230.21V
2 8.138A 2.969A 2.966A 1.194A 129.785 90.005% 2010 29.8 40.73°C 0.911
12.157V 5.042V 3.334V 5.020V 144.198 45.80°C 230.21V
3 13.093A 3.475A 3.486A 1.396A 194.894 91.371% 2355 34.6 41.10°C 0.935
12.130V 5.034V 3.325V 5.009V 213.300 46.38°C 230.21V
4 18.050A 3.975A 3.975A 1.601A 259.764 91.832% 2655 38.1 41.86°C 0.952
12.111V 5.026V 3.316V 4.998V 282.870 47.56°C 230.23V
5 22.713A 4.979A 4.986A 1.801A 324.727 92.394% 2725 38.8 42.23°C 0.962
12.075V 5.019V 3.308V 4.988V 351.460 48.09°C 230.23V
6 27.308A 5.986A 6.001A 2.007A 389.678 91.674% 3380 43.5 42.63°C 0.965
12.081V 5.010V 3.298V 4.977V 425.070 49.27°C 230.24V
7 31.944A 7.003A 7.022A 2.211A 454.640 91.380% 2650 44.6 43.36°C 0.968
12.069V 5.002V 3.289V 4.967V 497.529 50.12°C 230.25V
8 36.602A 8.015A 8.051A 2.421A 519.628 90.955% 3775 46.7 43.95°C 0.971
12.055V 4.991V 3.278V 4.955V 571.304 51.86°C 230.25V
9 41.681A 8.525A 8.591A 2.422A 584.621 90.561% 3720 46.5 44.38°C 0.974
12.045V 4.985V 3.270V 4.948V 645.557 52.58°C 230.25V
10 46.517A 9.052A 9.107A 3.041A 649.541 90.032% 3720 46.5 45.82°C 0.976
12.035V 4.975V 3.260V 4.928V 721.457 54.45°C 230.25V
11 51.949A 9.064A 9.130A 3.046A 714.449 89.494% 3775 46.7 46.79°C 0.978
12.026V 4.969V 3.251V 4.921V 798.324 55.79°C 230.26V
CL1 0.100A 11.020A 11.004A 0.004A 93.203 82.727% 3195 41.5 42.80°C 0.886
12.189V 5.029V 3.321V 5.051V 112.663 48.69°C 230.26V
CL2 53.974A 1.003A 1.003A 1.002A 663.191 90.815% 3775 46.7 45.15°C 0.976
12.041V 4.996V 3.282V 4.977V 730.264 53.33°C 230.27V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.202A 0.492A 0.481A 0.196A 19.695 69.263% 1155 19.9 0.881
12.164V 5.050V 3.328V 5.045V 28.435 115.13V
2 2.429A 0.989A 0.990A 0.396A 39.806 79.813% 1200 20.4 0.948
12.157V 5.047V 3.323V 5.039V 49.874 115.13V
3 3.657A 1.477A 1.505A 0.596A 59.877 84.505% 1300 21.5 0.965
12.150V 5.042V 3.320V 5.033V 70.856 115.13V
4 4.877A 1.985A 1.989A 0.796A 79.830 86.434% 1390 22.7 0.960
12.145V 5.039V 3.316V 5.028V 92.360 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.194A 0.490A 0.475A 0.196A 19.689 65.451% 1485 22.7 0.555
12.251V 5.057V 3.352V 5.052V 30.082 230.20V
2 2.413A 0.978A 0.986A 0.396A 39.756 79.312% 1585 24.1 0.715
12.231V 5.054V 3.348V 5.045V 50.126 230.20V
3 3.637A 1.476A 1.491A 0.595A 59.902 83.959% 1690 25.6 0.801
12.224V 5.052V 3.345V 5.040V 71.347 230.20V
4 4.850A 1.982A 1.974A 0.791A 79.838 86.481% 1875 29.3 0.853
12.217V 5.049V 3.341V 5.035V 92.319 230.20V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load18.10mV12.20mV10.10mV7.40mVPass
20% Load21.70mV13.00mV12.40mV7.60mVPass
30% Load23.80mV14.40mV14.30mV8.80mVPass
40% Load26.50mV16.20mV17.00mV9.70mVPass
50% Load31.40mV17.90mV22.50mV10.60mVPass
60% Load25.00mV20.20mV27.10mV12.00mVPass
70% Load27.20mV19.90mV27.00mV11.40mVPass
80% Load27.90mV21.90mV28.80mV11.80mVPass
90% Load28.60mV23.20mV32.40mV12.60mVPass
100% Load34.10mV24.80mV35.40mV13.30mVPass
110% Load36.00mV27.10mV40.20mV14.70mVPass
Crossload119.10mV13.90mV10.60mV6.70mVPass
Crossload233.30mV23.70mV32.10mV12.60mVPass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.0 mV 9.6 mV 9.3 mV 16.0 mV Pass
20% Load 23.7 mV 10.5 mV 10.3 mV 17.6 mV Pass
30% Load 26.9 mV 11.5 mV 11.1 mV 19.7 mV Pass
40% Load 27.9 mV 13.2 mV 15.8 mV 19.7 mV Pass
50% Load 31.0 mV 15.0 mV 17.7 mV 20.1 mV Pass
60% Load 37.7 mV 17.3 mV 34.0 mV 21.8 mV Pass
70% Load 36.5 mV 19.7 mV 16.9 mV 32.1 mV Pass
80% Load 39.2 mV 21.4 mV 17.9 mV 27.9 mV Pass
90% Load 41.0 mV 23.9 mV 28.2 mV 30.1 mV Pass
100% Load 45.1 mV 29.9 mV 33.9 mV 28.4 mV Pass
110% Load 47.2 mV 31.7 mV 39.7 mV 30.2 mV Pass
Crossload 1 36.2 mV 17.4 mV 11.9 mV 15.1 mV Pass
Crossload 2 37.4 mV 26.8 mV 38.9 mV 33.9 mV Pass

The results above are not used in the certification process

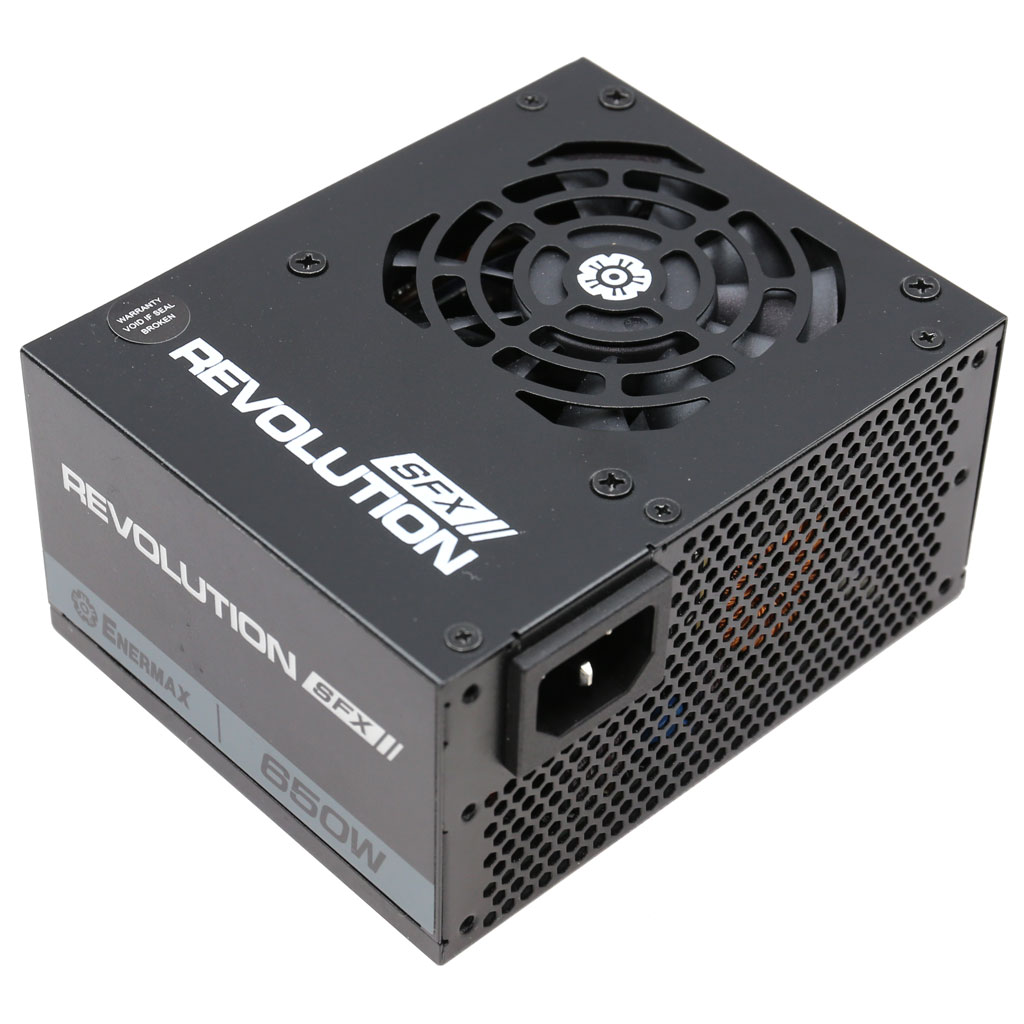

Enermax Revolution SFX 650W

Top side

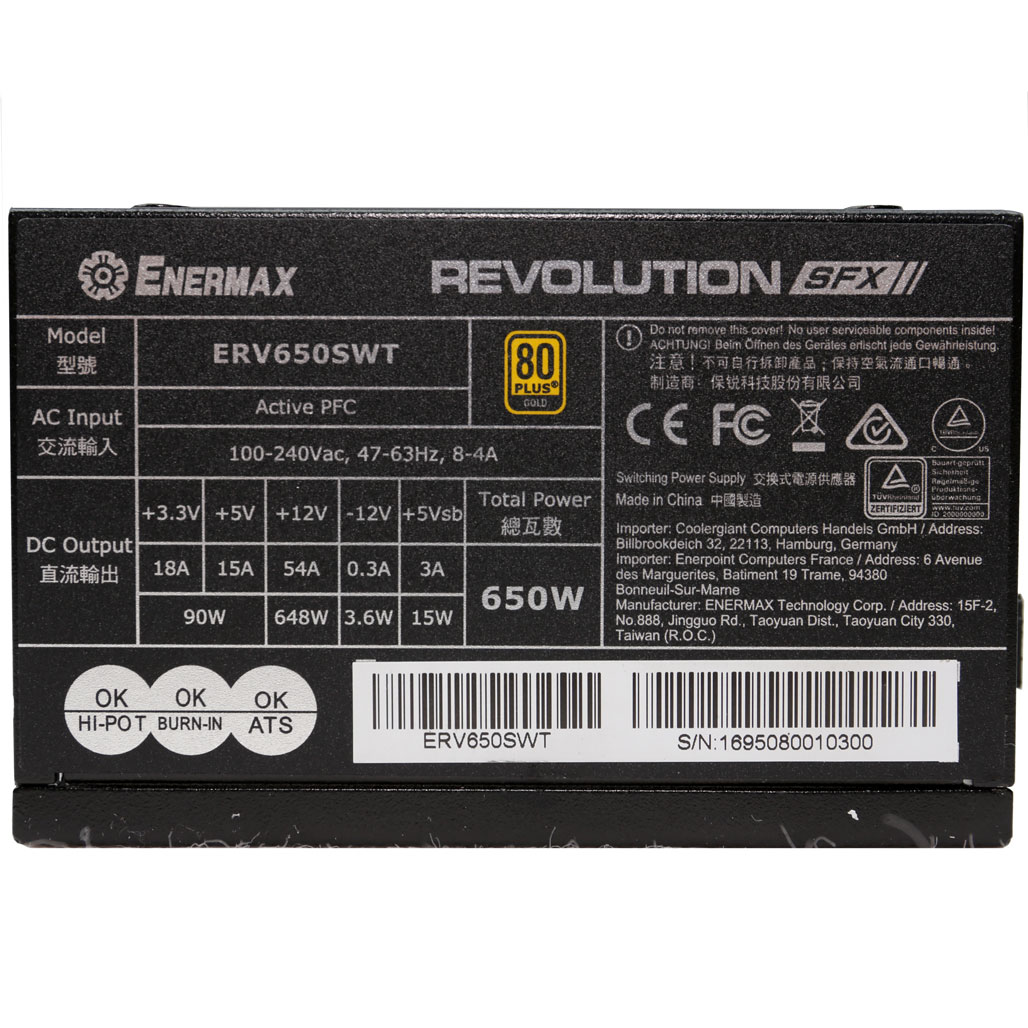

Power specifications label
