CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
EVGA 650 BQ
Serial Number1603560605801329
Lab ID107
  • Report:
  • Receipt Date: Sep 25, 2018
  • Test Date: Oct 3, 2018
  • Report Date: Oct 5, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEVGA
Manufacturer (OEM)HEC
SeriesBQ
Model Number
Serial Number1603560605801329
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Cooling140mm Teflon Nano-Steel Bearing
(RL4Z-T1352512H)
Semi-Passive Operation✗
Cable DesignSemi Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 24 20 54 3 0.3
Watts 130 648 15 3.6
Total Max. Power (W) 650

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Native Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (570mm) 1 1 18-20AWG
4+4 pin EPS12V (630mm) 1 1 18AWG
6+2 pin PCIe (570mm+150mm) 1 1 18AWG
Modular Cables
6+2 pin PCIe (550mm+150mm) 1 1 18AWG
SATA (660mm+150mm+150mm+150mm) 1 4 18AWG
SATA (505mm+150mm+150mm) 1 3 18AWG
4 pin Molex (550mm+150mm+150mm) / FDD (+150mm) 1 3 / 1 18/20AWG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 17.278
AC Loss to PWR_OK Hold Up Time  (ms) 14.340
PWR_OK Inactive to DC Loss Delay (ms) 2.938

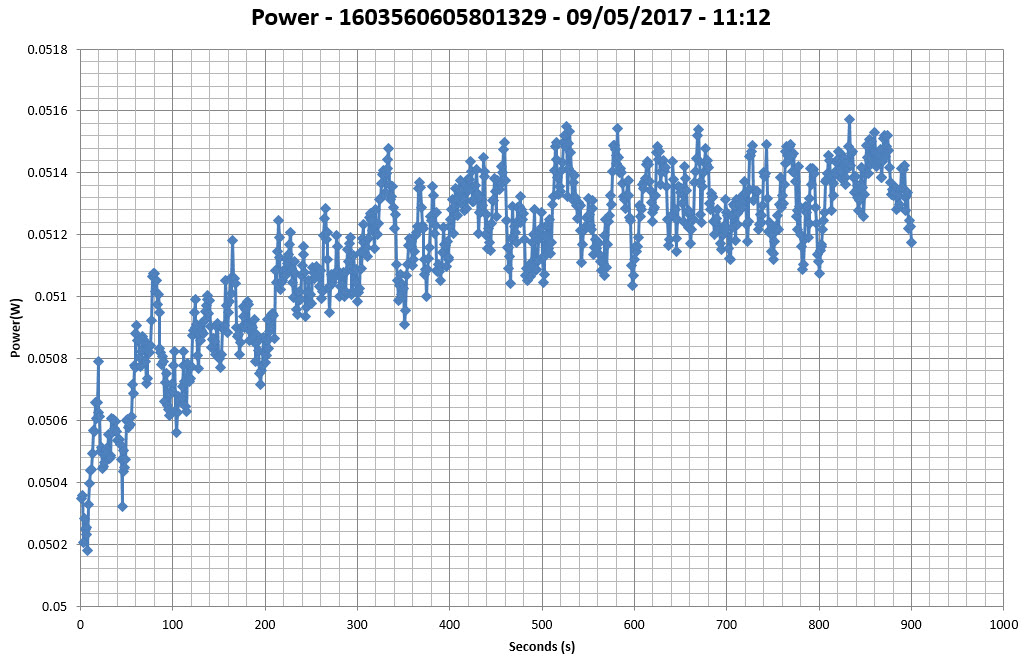

Vampire Power

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

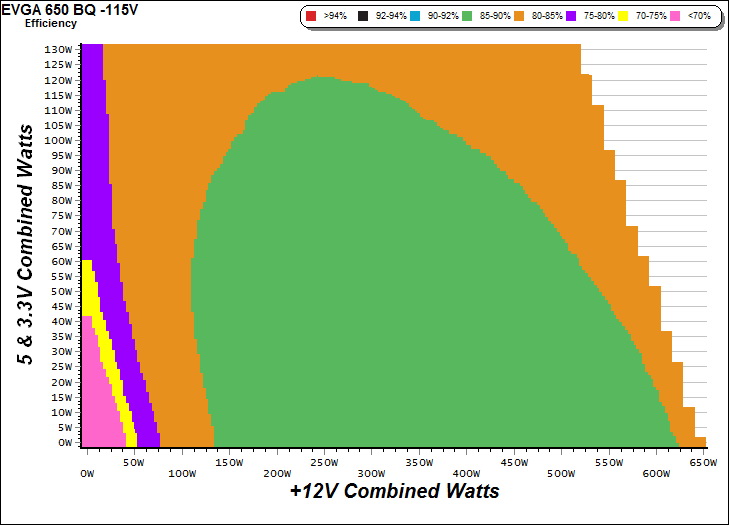

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

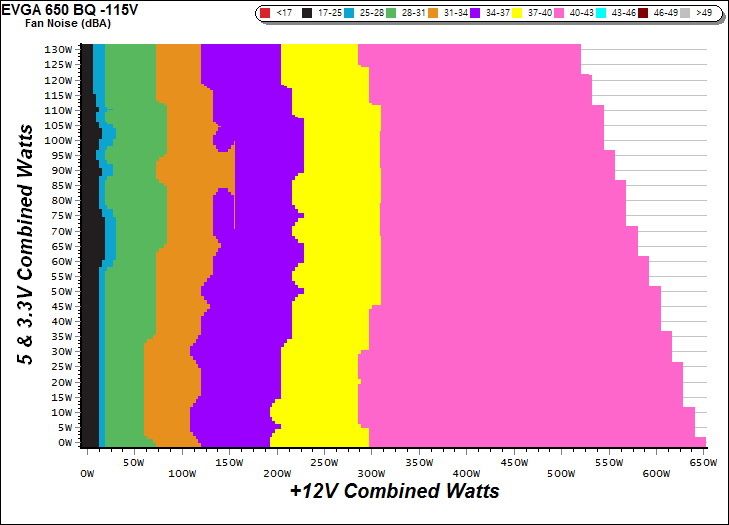

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

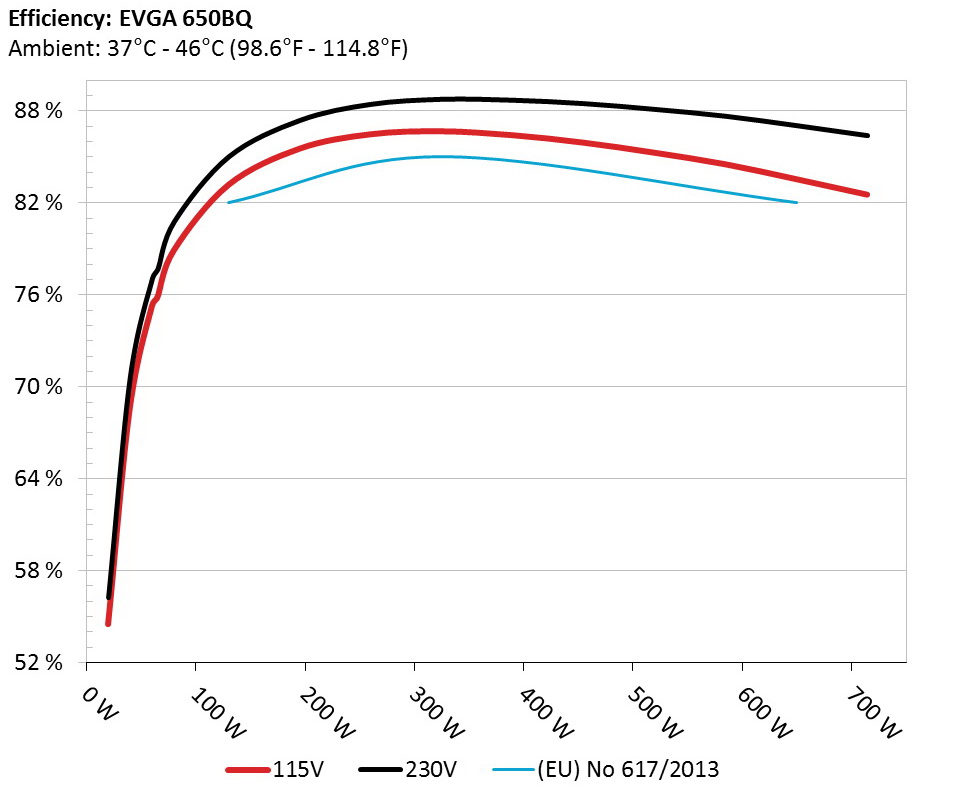

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

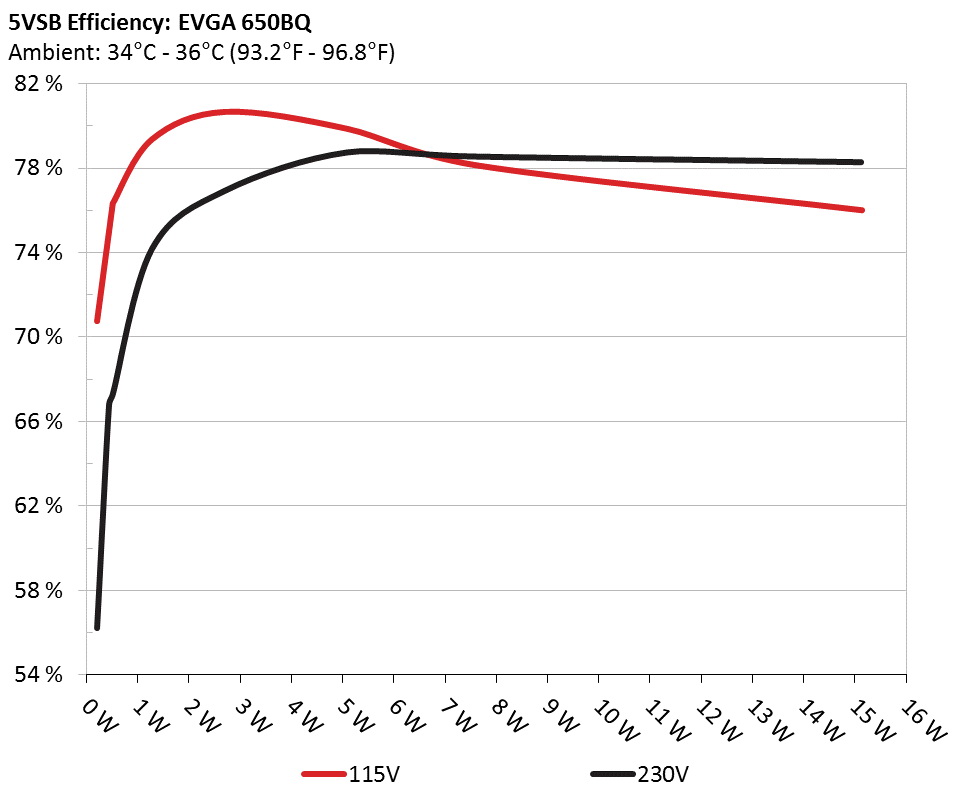

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.213 70.764% 0.042
5.105V 0.301 115.11V
2 0.087A 0.445 76.329% 0.079
5.104V 0.583 115.11V
3 0.532A 2.710 80.655% 0.284
5.094V 3.360 115.10V
4 1.002A 5.097 79.853% 0.353
5.086V 6.383 115.10V
5 1.502A 7.619 78.128% 0.388
5.073V 9.752 115.11V
6 3.002A 15.132 76.006% 0.437
5.041V 19.909 115.10V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.554A 1.975A 1.960A 0.987A 64.810 75.857% 1665 41.0 38.55°C 0.956
12.161V 5.062V 3.361V 5.070V 85.437 41.53°C 115.12V
2 8.149A 2.971A 2.952A 1.186A 129.781 83.201% 1685 41.2 38.83°C 0.975
12.139V 5.045V 3.348V 5.050V 155.985 42.34°C 115.12V
3 13.104A 3.478A 3.473A 1.384A 194.859 85.570% 1695 41.3 39.22°C 0.976
12.119V 5.030V 3.336V 5.037V 227.718 43.25°C 115.12V
4 18.067A 3.986A 3.967A 1.590A 259.751 86.509% 1695 41.3 39.87°C 0.979
12.099V 5.015V 3.324V 5.020V 300.258 44.32°C 115.11V
5 22.710A 5.001A 4.979A 1.796A 324.734 86.704% 1695 41.3 40.31°C 0.984
12.077V 4.996V 3.312V 5.005V 374.532 45.81°C 115.11V
6 27.370A 6.034A 6.000A 2.004A 389.747 86.450% 1695 41.3 41.10°C 0.987
12.055V 4.975V 3.298V 4.988V 450.834 47.57°C 115.11V
7 32.046A 7.059A 7.031A 2.210A 454.615 85.966% 1695 41.3 41.68°C 0.990
12.031V 4.957V 3.285V 4.969V 528.830 49.38°C 115.12V
8 36.748A 8.108A 8.072A 2.423A 519.649 85.308% 1695 41.3 42.59°C 0.992
12.007V 4.937V 3.270V 4.949V 609.144 51.62°C 115.11V
9 41.895A 8.640A 8.621A 2.429A 584.675 84.551% 1695 41.3 43.80°C 0.993
11.984V 4.922V 3.258V 4.937V 691.504 54.01°C 115.11V
10 46.800A 9.176A 9.150A 3.056A 649.515 83.581% 1695 41.3 44.89°C 0.994
11.962V 4.905V 3.245V 4.906V 777.107 56.82°C 115.11V
11 52.329A 9.200A 9.182A 3.064A 714.467 82.570% 1695 41.3 46.00°C 0.995
11.939V 4.894V 3.234V 4.893V 865.286 59.14°C 115.11V
CL1 0.099A 16.027A 16.004A 0.004A 133.061 78.070% 1695 41.3 43.84°C 0.976
12.115V 4.927V 3.304V 5.040V 170.438 52.24°C 115.12V
CL2 54.115A 1.004A 1.003A 1.003A 661.194 84.259% 1695 41.3 44.83°C 0.995
11.973V 4.977V 3.277V 4.977V 784.719 55.27°C 115.12V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.200A 0.493A 0.471A 0.194A 19.697 54.519% 1590 39.6 0.928
12.179V 5.081V 3.374V 5.095V 36.129 115.13V
2 2.421A 0.980A 0.977A 0.391A 39.716 68.706% 1610 39.8 0.932
12.170V 5.074V 3.369V 5.088V 57.806 115.12V
3 3.655A 1.474A 1.485A 0.590A 59.913 75.316% 1635 40.3 0.961
12.163V 5.066V 3.363V 5.080V 79.549 115.12V
4 4.871A 1.976A 1.963A 0.785A 79.783 78.924% 1665 41.0 0.955
12.156V 5.060V 3.359V 5.069V 101.089 115.12V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 7.5 mV 30.6 mV 36.0 mV 8.5 mV Pass
20% Load 7.4 mV 29.2 mV 31.2 mV 15.5 mV Pass
30% Load 8.8 mV 26.4 mV 27.2 mV 11.1 mV Pass
40% Load 10.5 mV 10.9 mV 11.5 mV 16.4 mV Pass
50% Load 12.5 mV 11.6 mV 14.0 mV 13.4 mV Pass
60% Load 14.3 mV 19.4 mV 23.5 mV 14.4 mV Pass
70% Load 16.6 mV 25.6 mV 29.8 mV 15.4 mV Pass
80% Load 20.1 mV 27.5 mV 36.5 mV 17.9 mV Pass
90% Load 22.0 mV 24.9 mV 34.9 mV 18.8 mV Pass
100% Load 26.1 mV 31.8 mV 38.6 mV 23.6 mV Pass
110% Load 30.8 mV 32.8 mV 40.0 mV 23.6 mV Pass
Crossload 1 16.9 mV 20.1 mV 30.5 mV 14.7 mV Pass
Crossload 2 26.3 mV 37.9 mV 41.7 mV 15.5 mV Pass

The results above are not used in the certification process

EVGA 650 BQ

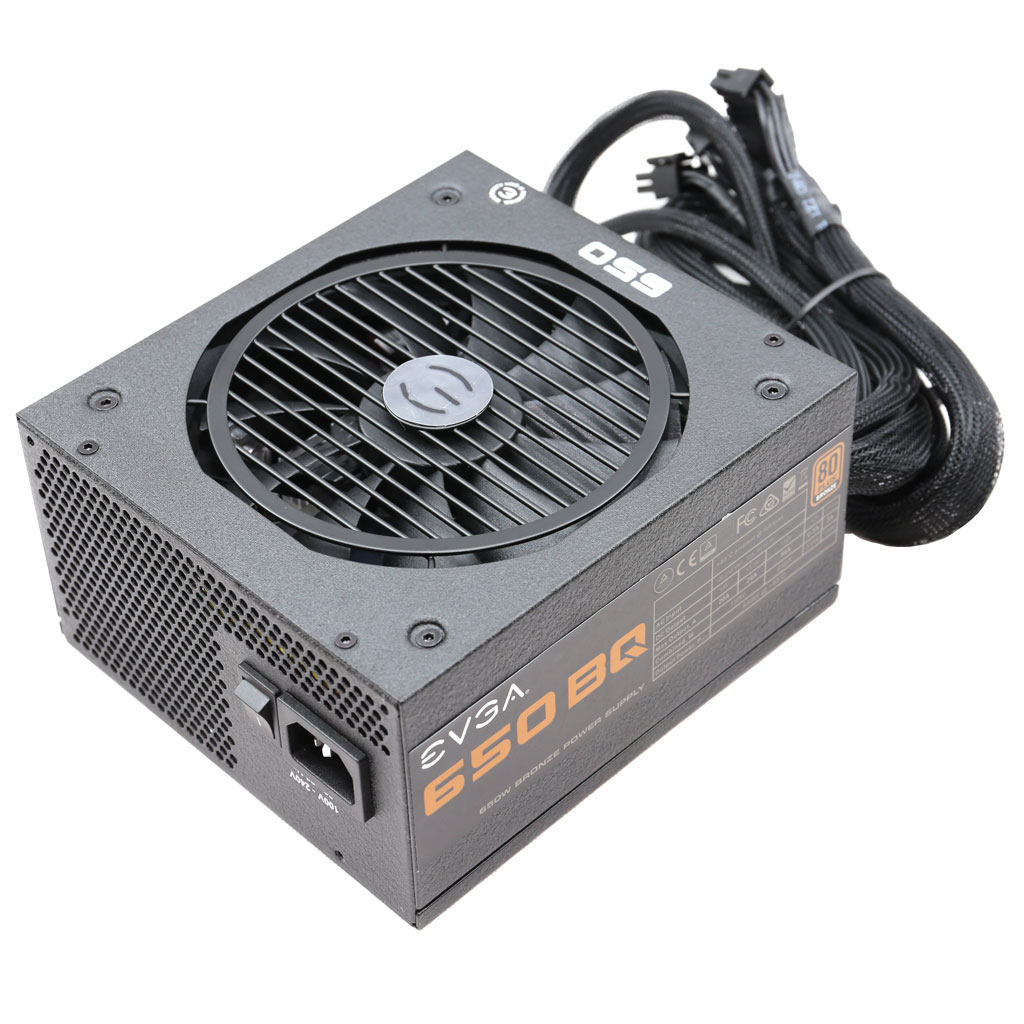

Top side

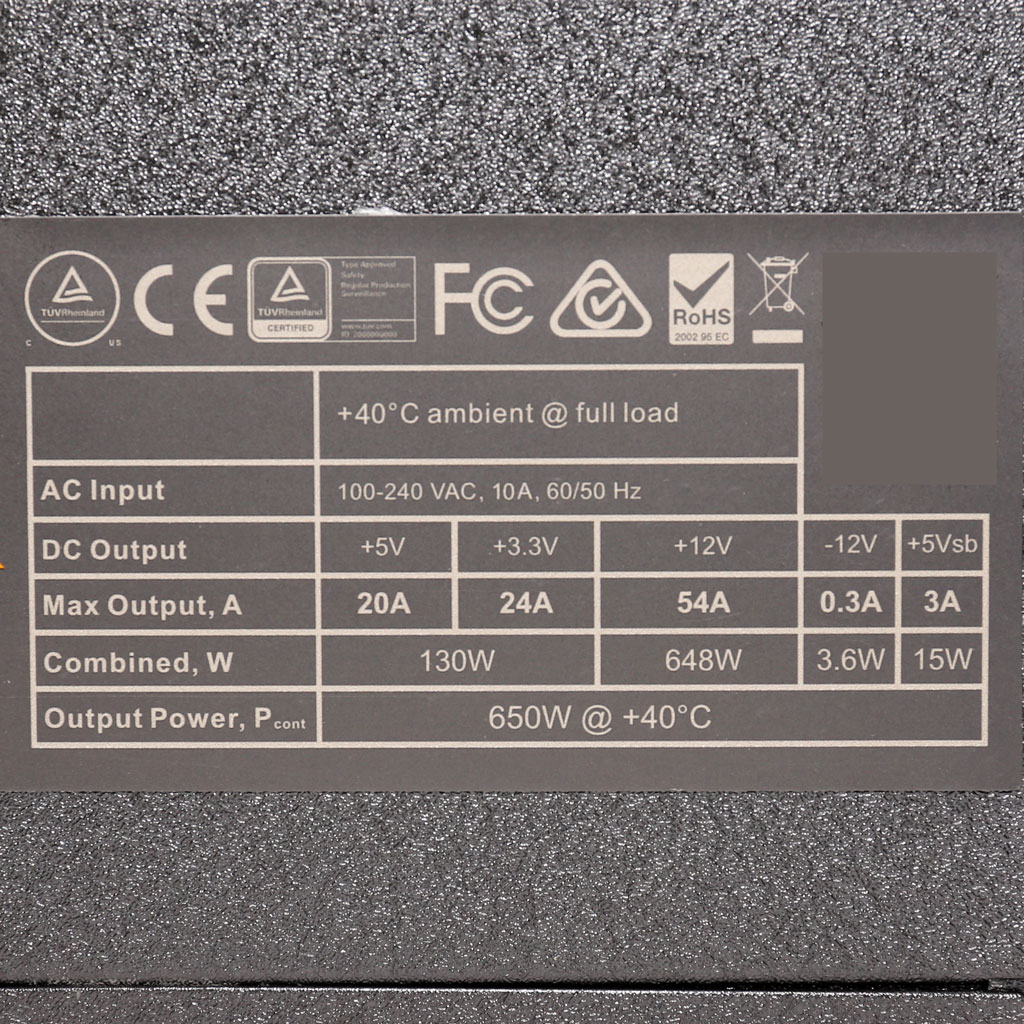

Power specifications label
