Arctic BioniX P120
English
Deutsch
繁體中文
简体中文
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

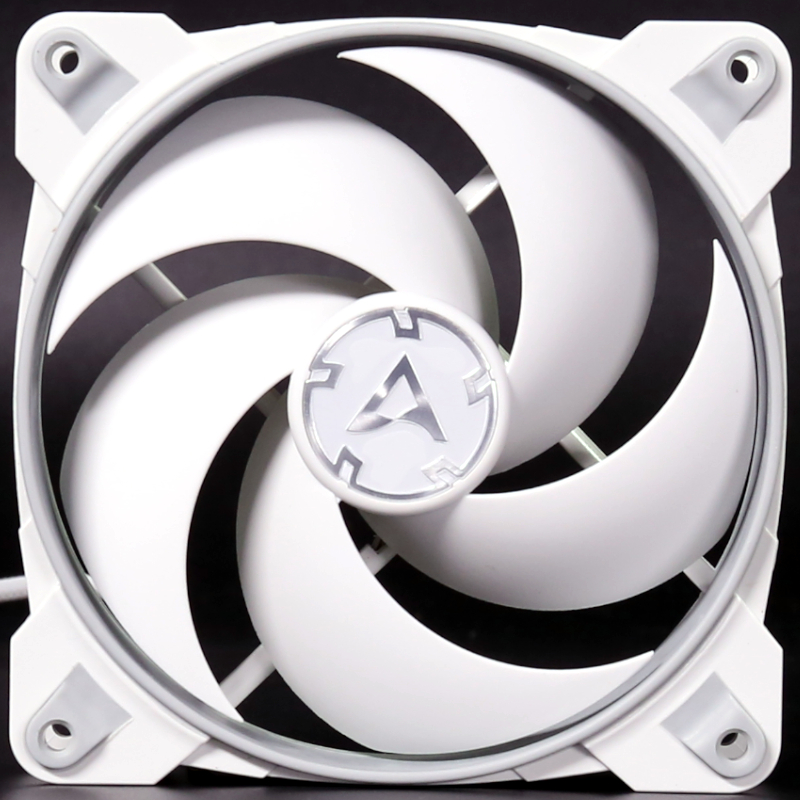

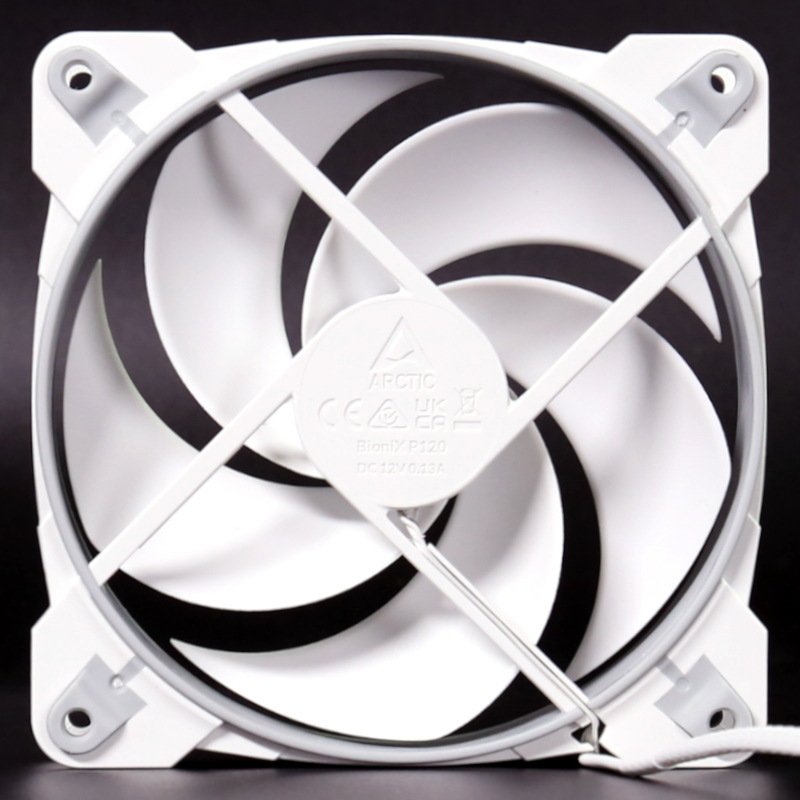

Arctic BioniX P120
Lab ID
AC12000079
Report: 25FN79A
Receipt Date:
-
Test Date:
-
Report Date:
-
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Laboratory General Manager
General Information
Fan Testing Instrument Technical Specifications
tech-specs
Manufacturer
Long Win Science & Technology Corporation
Model Number
LW-9266
Air Flow Rate
2.4 – 250 CFM
Accuracy of Air Flow Rage
< 3.5% INFS
Repeatability error
< 2%
Static pressure
0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions
0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source
220VAC, 5A, Single Phase, 50/60Hz
Based on Standards
ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200
Test Equipment
test-equip
Test Environment
Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions
25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer
Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone
Bruel & Kjaer Type 4955-A
Mic Calibrator
Bruel & Kjaer Type 4231
Data Logger
Picoscope TC-08
Technical Specifications Table
tech-specs2
Arctic
型號
BioniX P120
Max Speed (RPM)
2093
Max Airflow (CFM)
55.40
Max Static Pressure (mmAq)
1.69
Max Fan Noise Level (dBA)
32.00
Fan Bearing Type
Fluid Dynamic
Fan Connector
PWM
Fan Max Current (A)
0.13
Fan Weight (gr)
131
Dimensions (W x H x D)
120x120x27
Fan daisy-chain connector
✓
Cable length (mm)
395
Pressure and Airflow

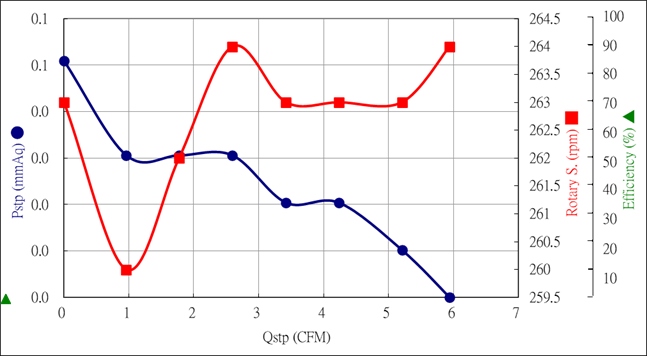

PWM
PQ Chart 60% Speed
PQ Chart 70% Speed
PQ Chart 80% Speed

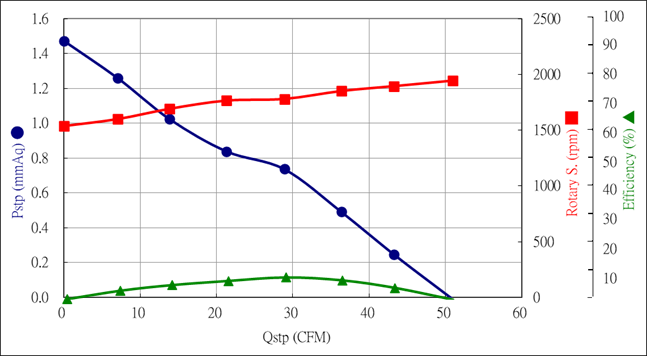

PQ Chart 90% Speed
PQ Chart 100% Speed

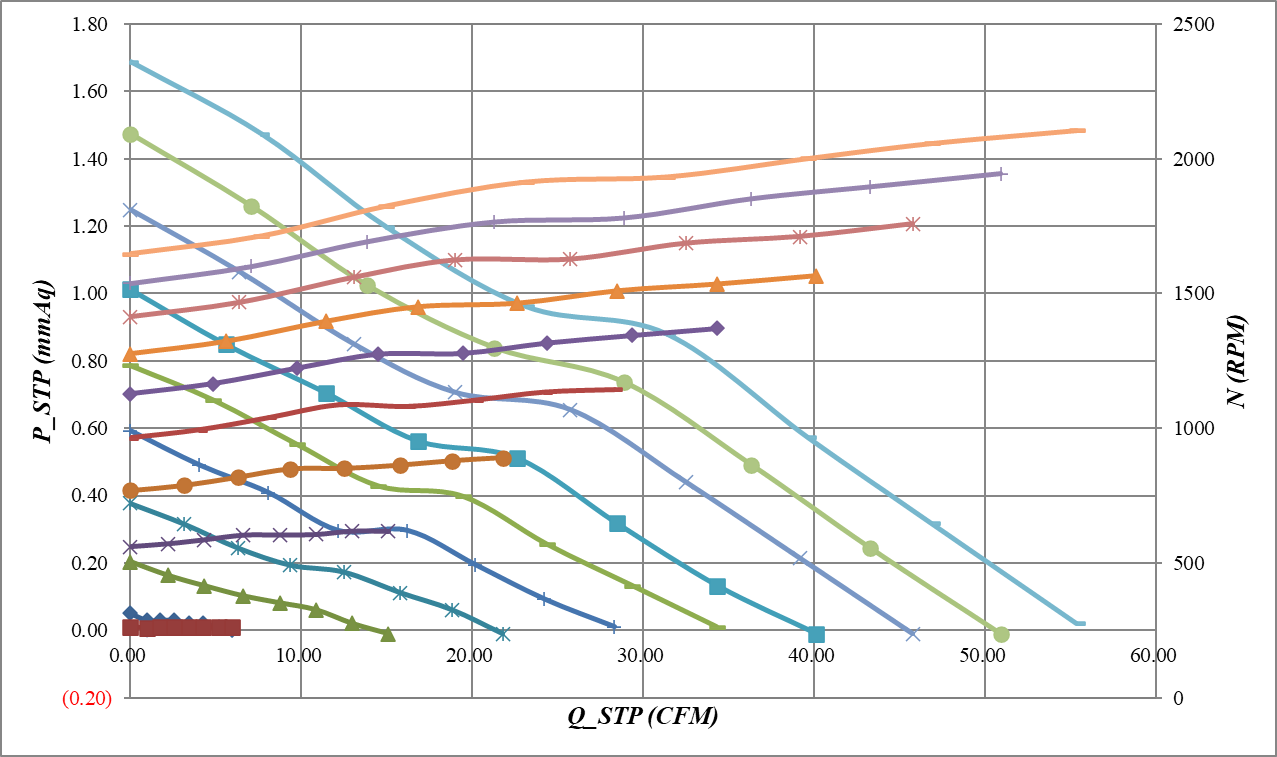

PQ Chart All Speed
PQ Chart 20% Speed
PQ Chart 30% Speed
PQ Chart 40% Speed

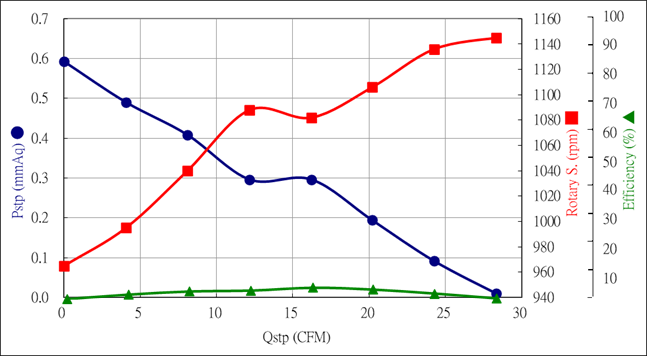

PQ Chart 50% Speed
PQ Chart 60% Speed

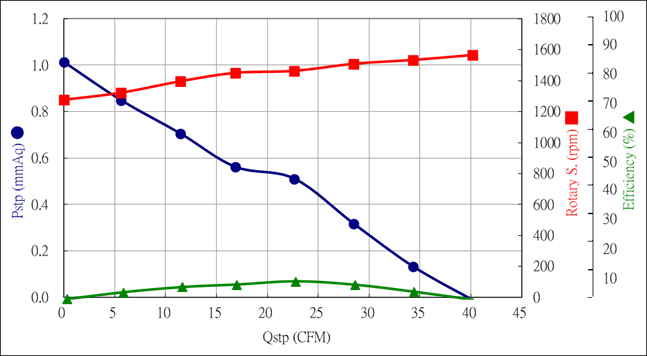

PQ Chart 70% Speed

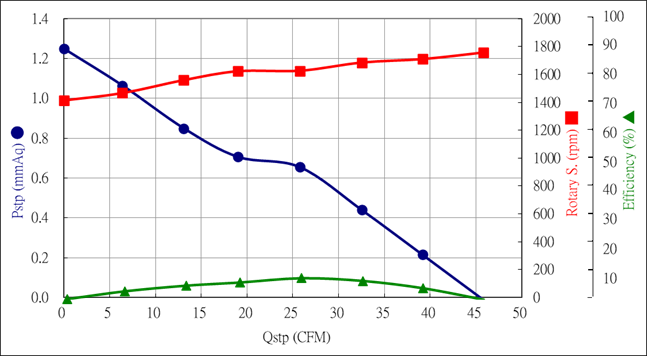

PQ Chart 80% Speed
PQ Chart 90% Speed
PQ Chart 100% Speed
PQ Chart All Speed

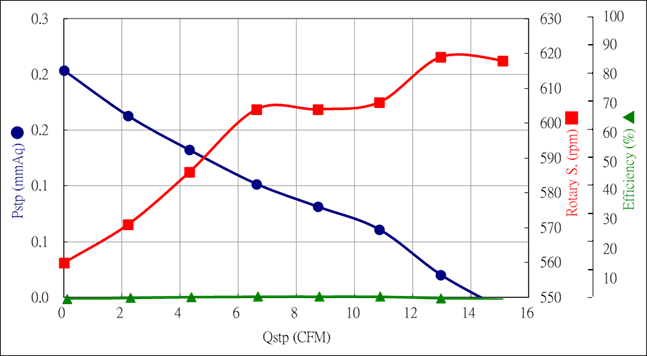

PQ Chart 20% Speed

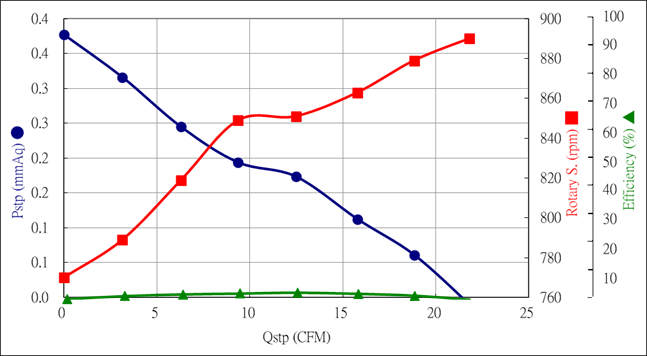

PQ Chart 30% Speed
PQ Chart 40% Speed
PQ Chart 50% Speed
‹
›
General Performance
WTF

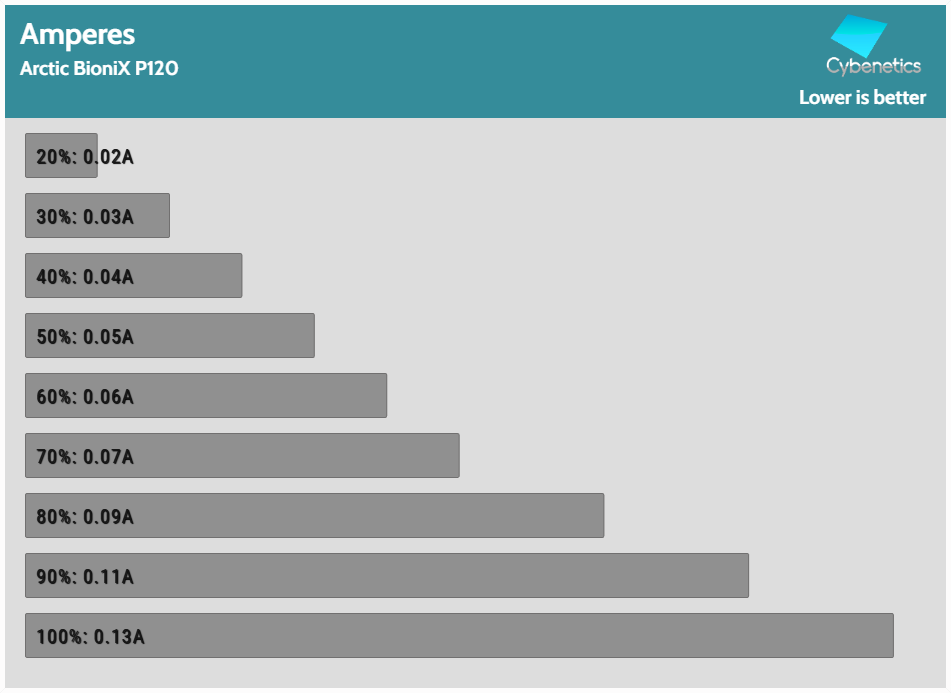

Fan Percentage Amps

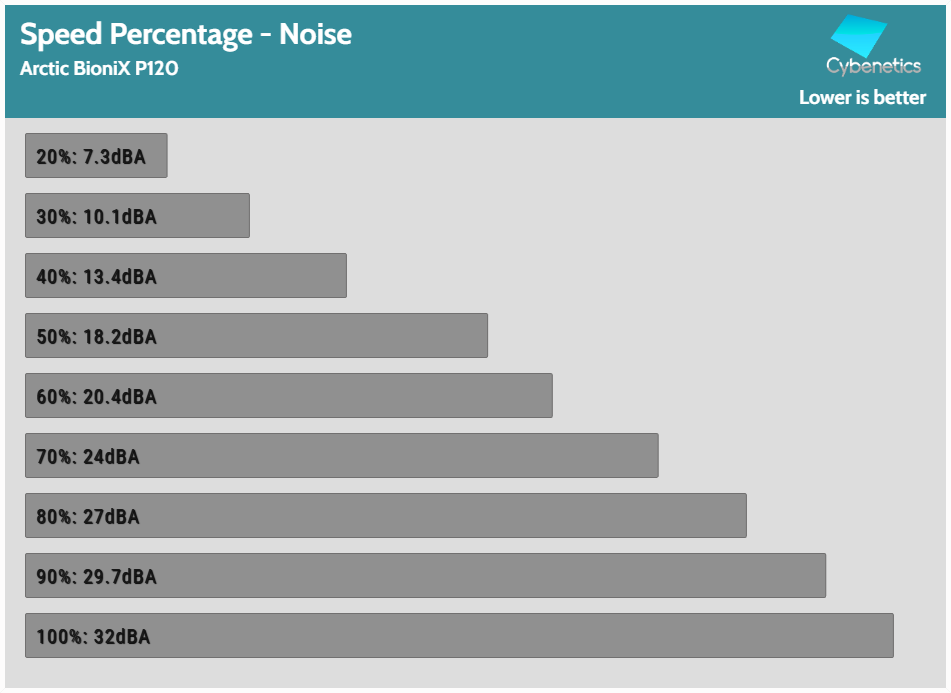

Fan Percentage Noise

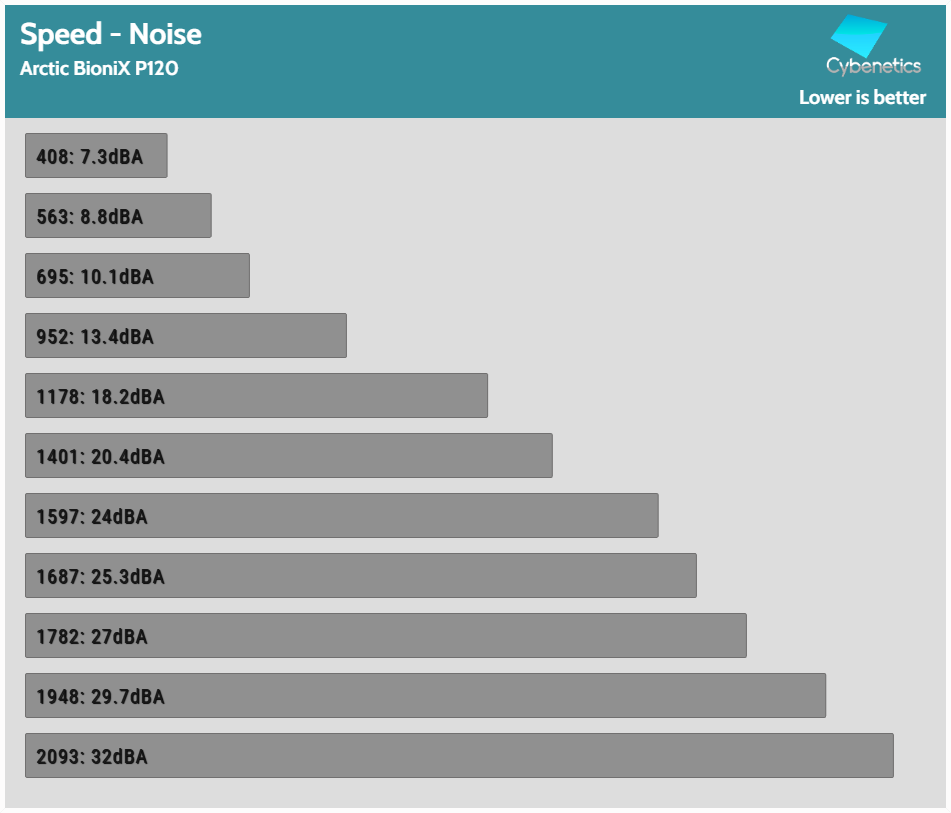

Fan Speed Noise

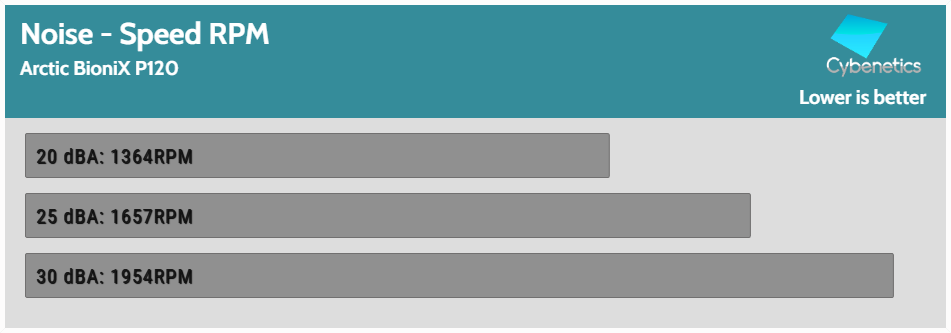

Fan Noise Speed

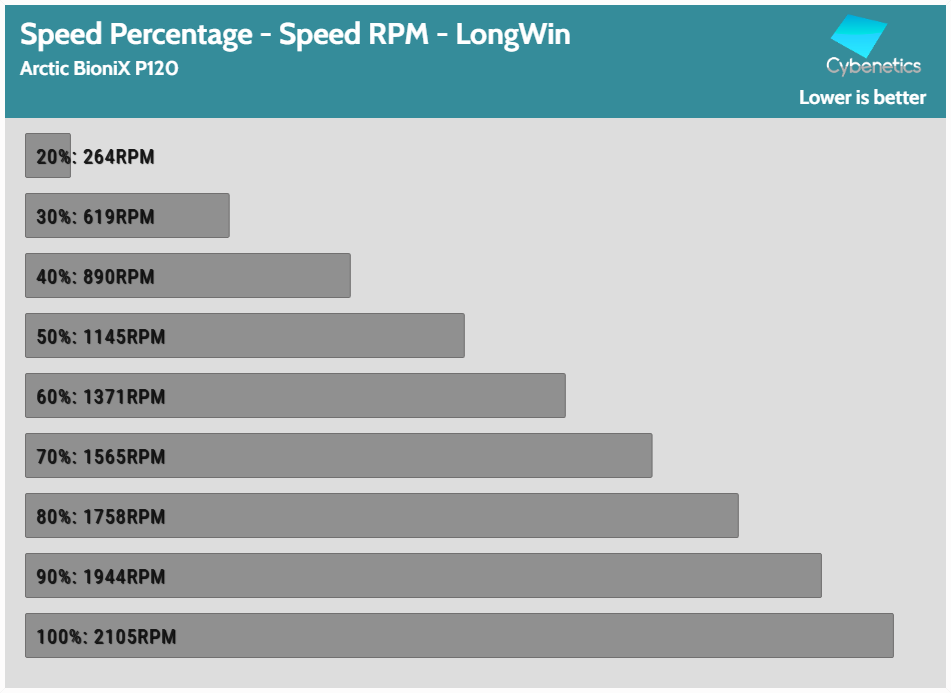

Fan Percentage RPM LongWin

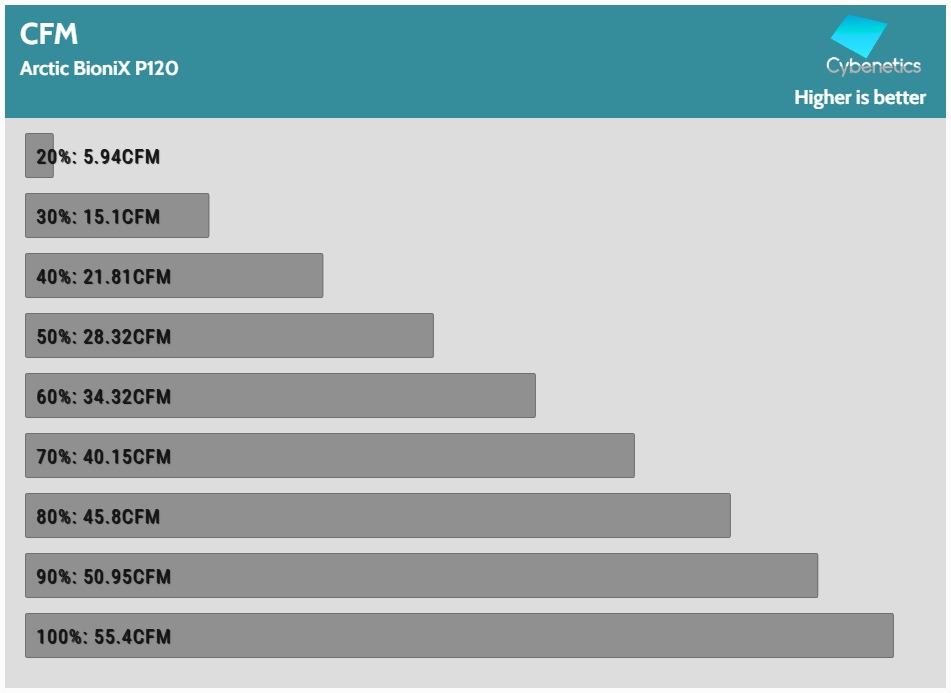

Fan Percentage CFM

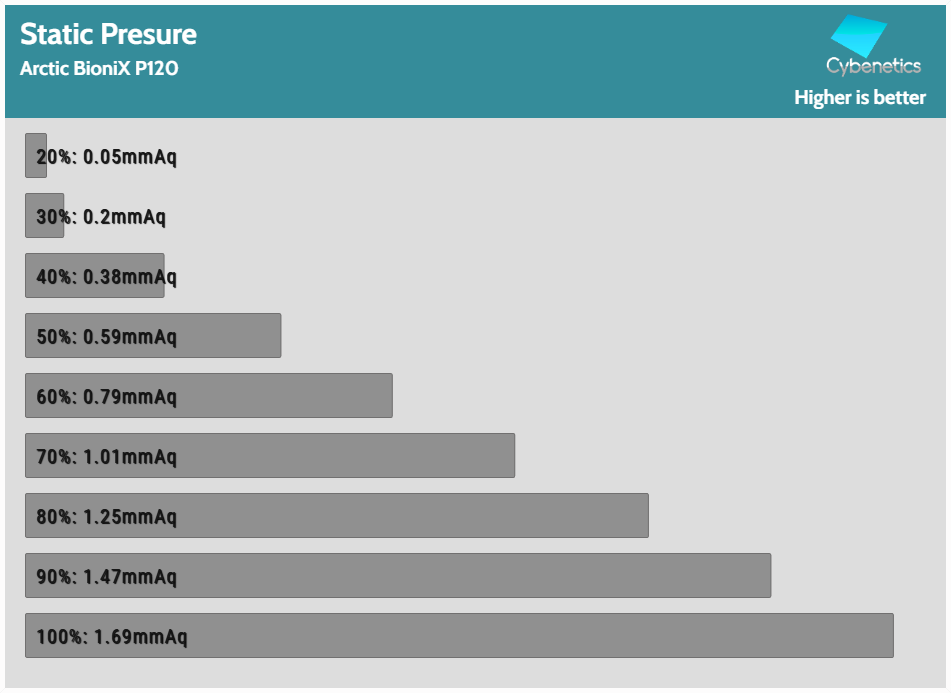

Fan Percentage Pressure

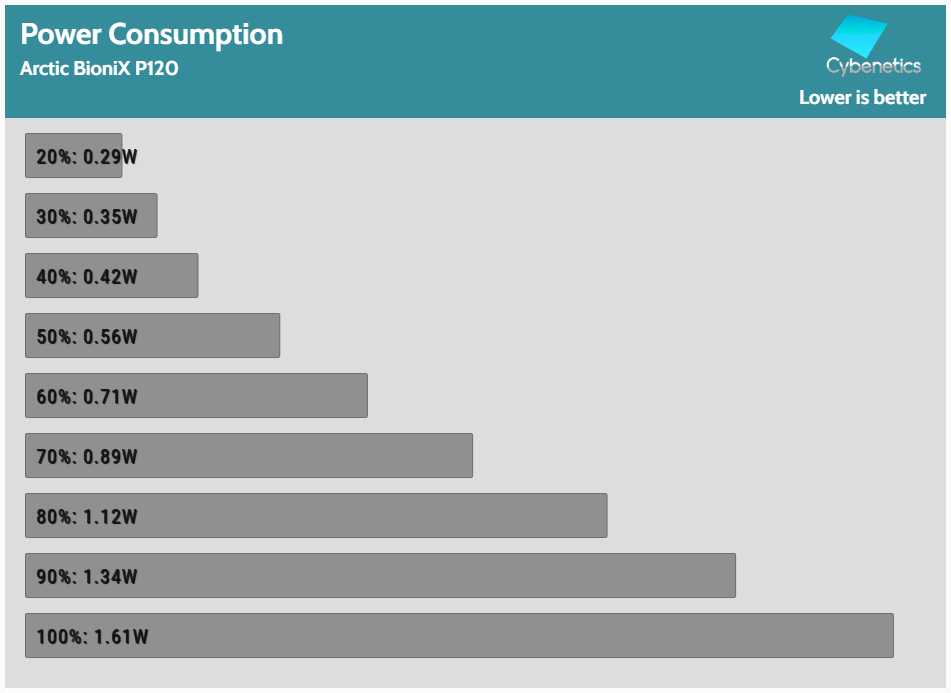

Fan Percentage Power
Fan Percentage Amps
Fan Percentage Noise
Fan Speed Noise
Fan Noise Speed
Fan Percentage RPM LongWin
Fan Percentage CFM
Fan Percentage Pressure
Fan Percentage Power
‹
›
Arctic BioniX P120
