Cybenetics Test - Arctic P12 Pro

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

Version:00

Arctic P12 Pro

Serial Number

Lab IDAC12000175

Certification IDFN25175

Test Result Report ID: 25FN175A
Certificate Issue Date: Apr 17, 2025

Airflow Rating

Static Pressure Rating

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Fan Testing Instrument Technical Specifications

Manufacturer	Long Win Science & Technology Corporation
Model Number	LW-9266
Air Flow Rate	2.4 – 250 CFM
Accuracy of Air Flow Rage	< 3.5% INFS
Repeatability error	< 2%
Static pressure	0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions	0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source	220VAC, 5A, Single Phase, 50/60Hz
Based on Standards	ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment(Non-accredited measurements)

Test Environment	Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions	25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer	Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone	Bruel & Kjaer Type 4955-A
Mic Calibrator	Bruel & Kjaer Type 4231
Data Logger	Picoscope TC-08

Technical Specifications Table(Non-accredited measurements)

Brand	Arctic
Model	P12 Pro
Max Speed (RPM)	3022
Max Airflow (CFM)	76.76
Max Static Pressure (mmAq)	6.29
Max Fan Noise Level (dBA)	39.70
Fan Bearing Type	Fluid Dynamic
Fan Connector	PWM
Fan Max Current (A)	0.39
Fan Weight (gr)	188
Dimensions (W x H x D)	120x120x25
Fan daisy-chain connector	✗
Cable length (mm)	53
Notes	Fan is from cooler Arctic Liquid Freezer III PRO 360

Pressure and Airflow

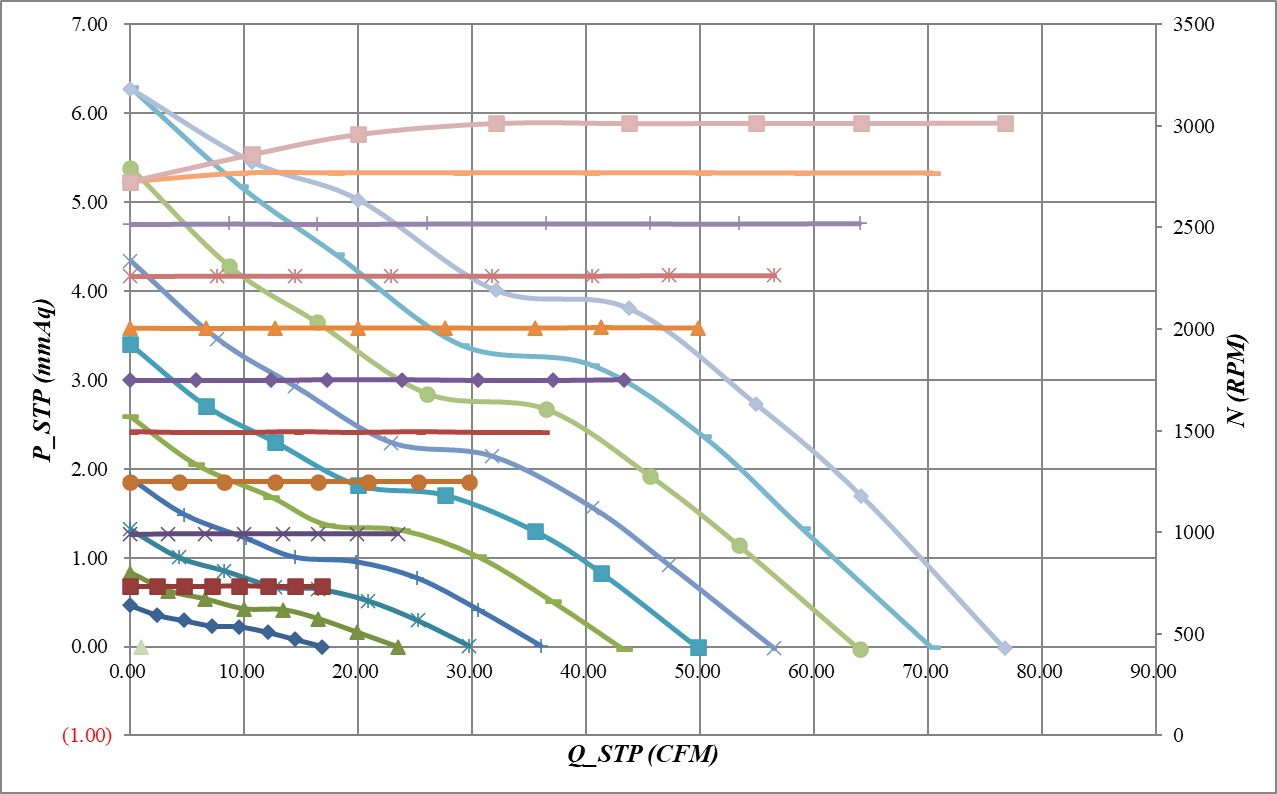

PQ Chart All Speed

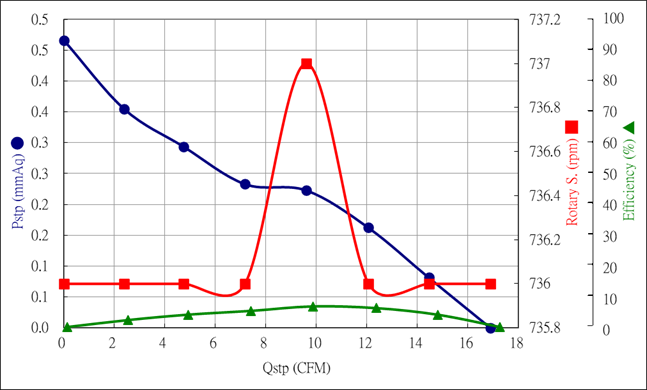

PQ Chart 10% Speed

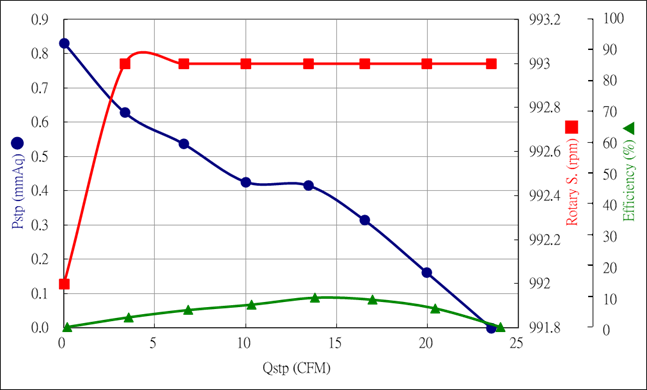

PQ Chart 20% Speed

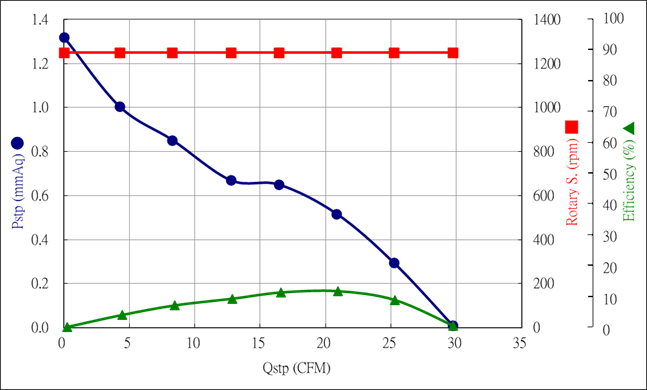

PQ Chart 30% Speed

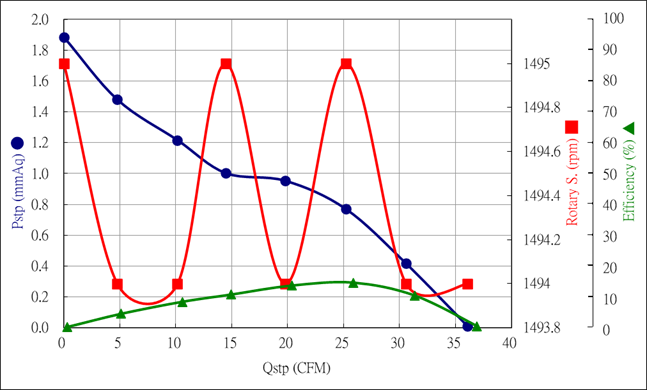

PQ Chart 40% Speed

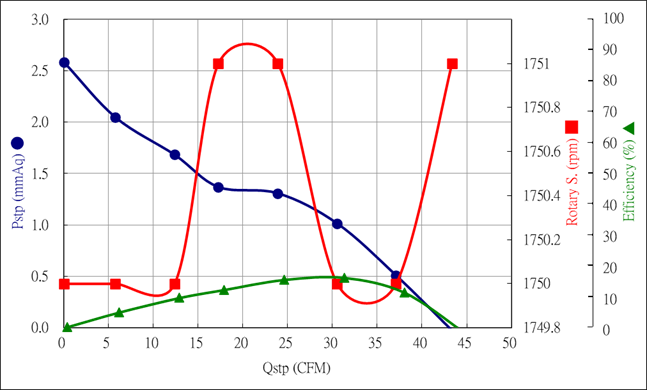

PQ Chart 50% Speed

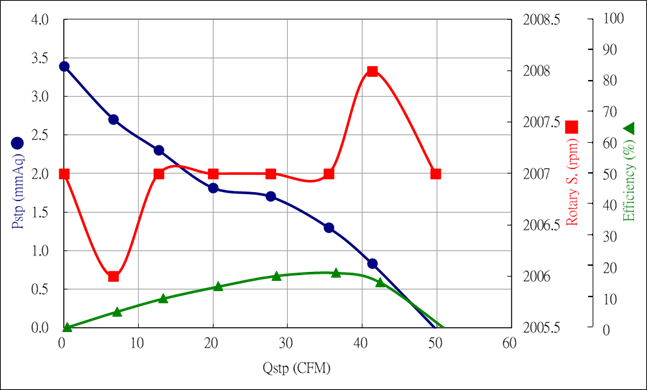

PQ Chart 60% Speed

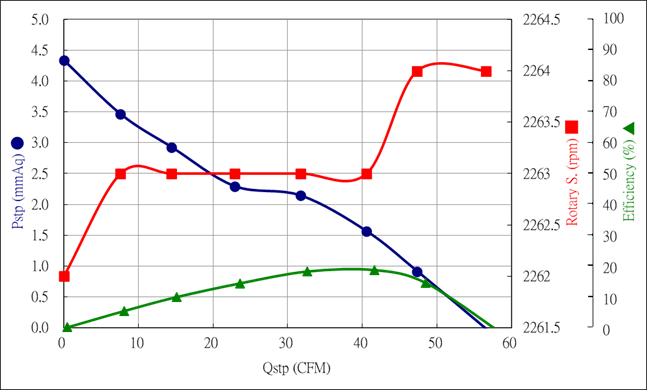

PQ Chart 70% Speed

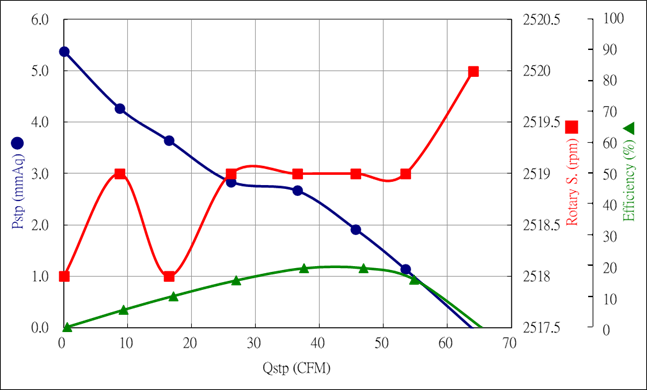

PQ Chart 80% Speed

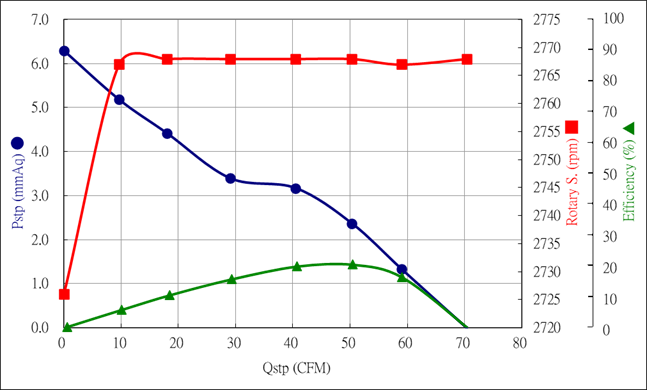

PQ Chart 90% Speed

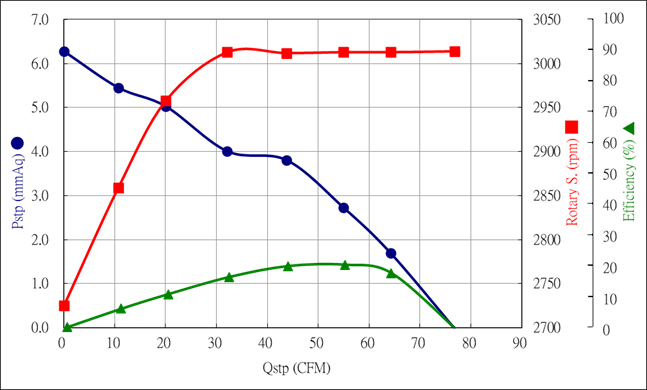

PQ Chart 100% Speed

General Performance

Fan Percentage RPM LongWin

Fan Percentage CFM

Fan Percentage Pressure

Fan Percentage Power

Fan Percentage Amps

Fan Percentage Noise

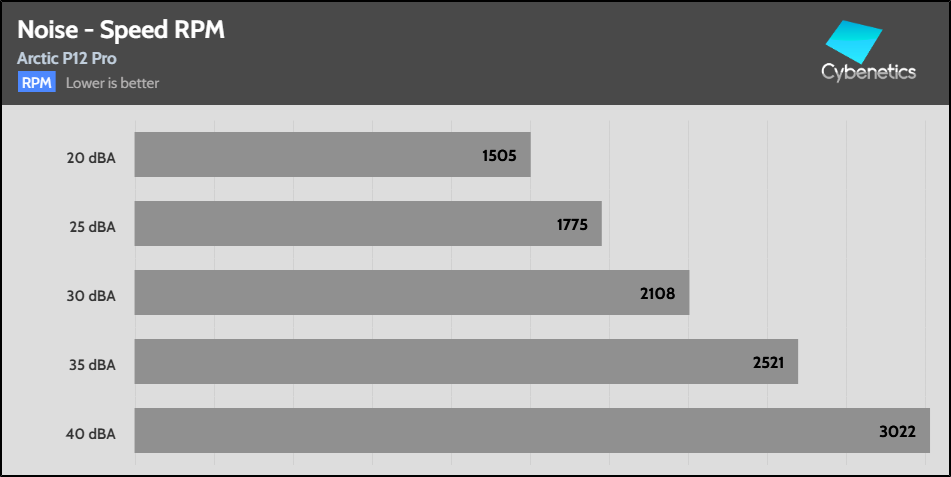

Fan Noise Speed

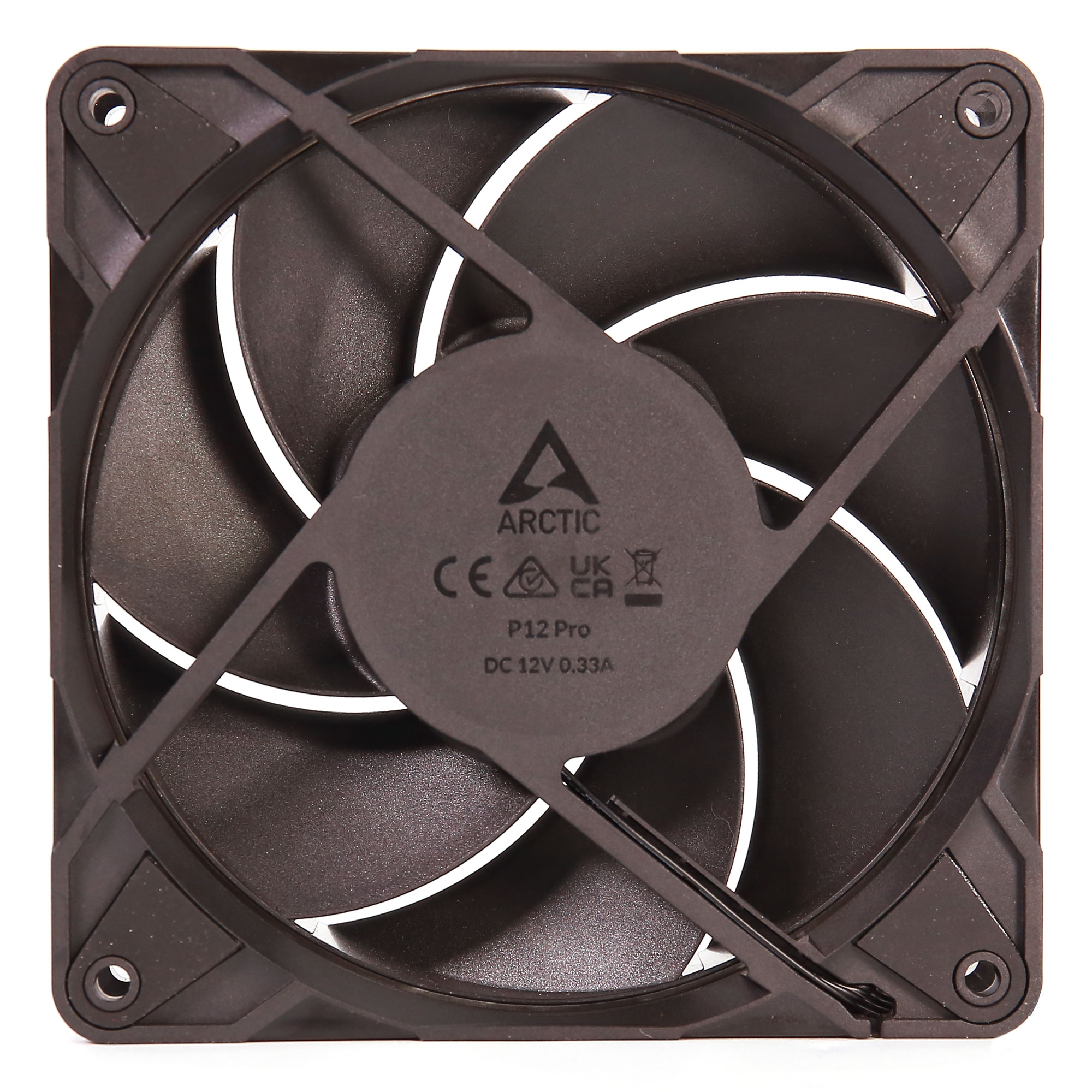

Arctic P12 Pro

Front

Rear
