General Information
Fan Testing Instrument Technical Specifications
Manufacturer
Long Win Science & Technology Corporation
Model Number
LW-9266
Air Flow Rate
2.4 – 250 CFM
Accuracy of Air Flow Rage
< 3.5% INFS
Repeatability error
< 2%
Static pressure
0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions
0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source
220VAC, 5A, Single Phase, 50/60Hz
Based on Standards
ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200
Test Equipment
Test Environment
Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions
25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer
Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone
Bruel & Kjaer Type 4955-A
Mic Calibrator
Bruel & Kjaer Type 4231
Data Logger
Picoscope TC-08
Technical Specifications Table
Brand
Protechnic Electric
Model
MGA13512XF-A25
Max Speed (RPM)
2143
Max Airflow (CFM)
94.09
Max Static Pressure (mmAq)
4.57
Max Fan Noise Level (dBA)
41.60
Fan Bearing Type
Fluid Dynamic
Fan Connector
2-Pin
Fan Max Current (A)
0.29
Fan Weight (gr)
182
Dimensions (W x H x D)
135x135x26
Fan daisy-chain connector
✗
Cable length (mm)
160

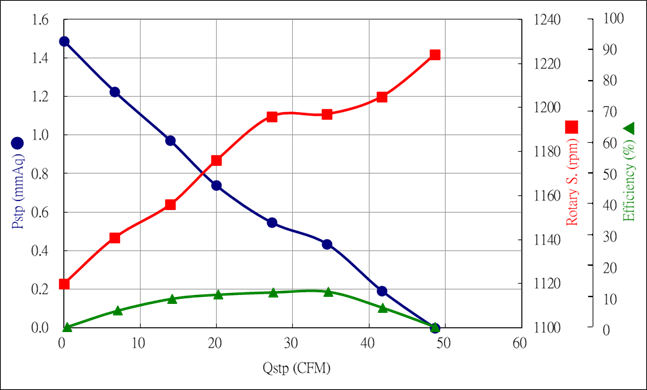

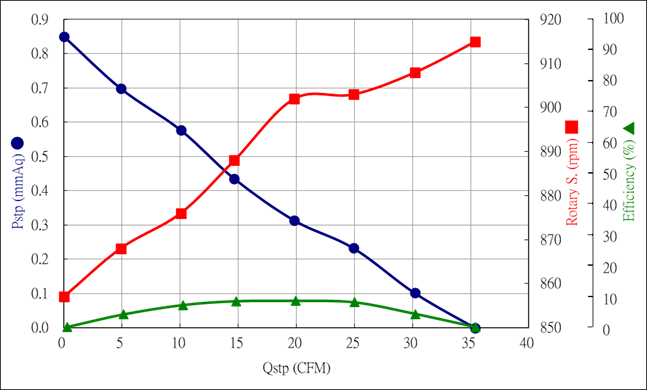

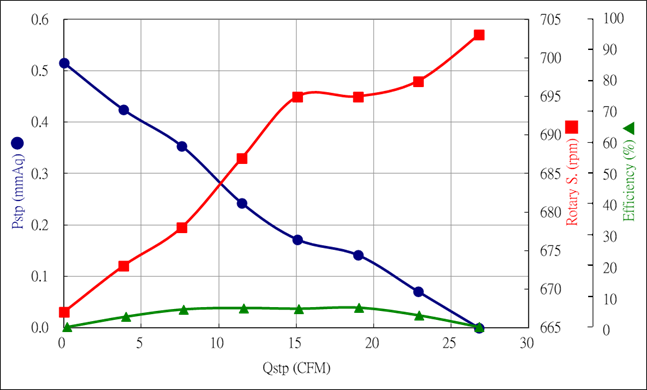

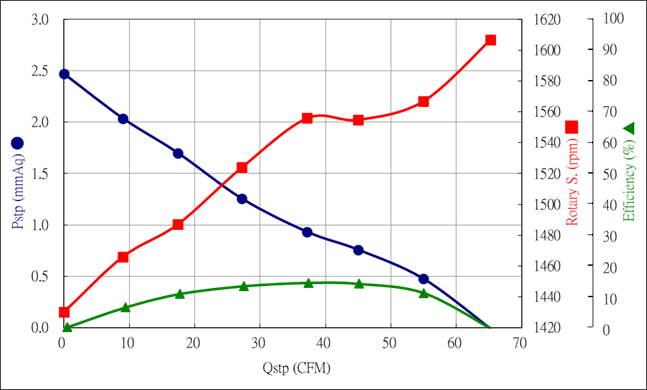

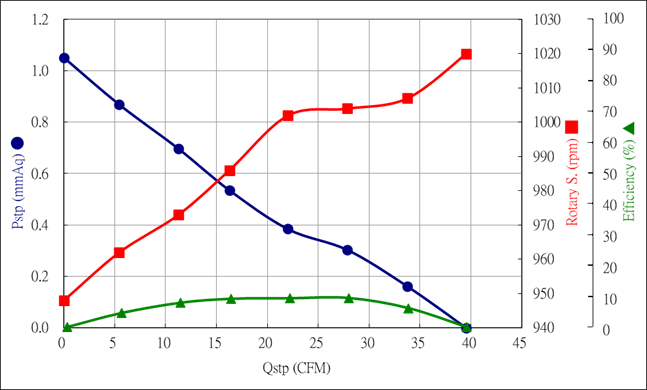

Pressure and Airflow

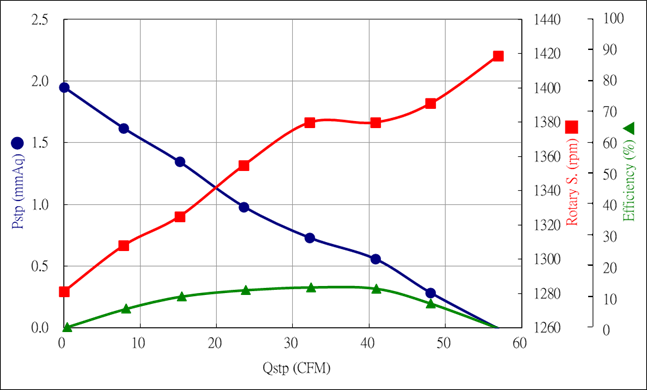

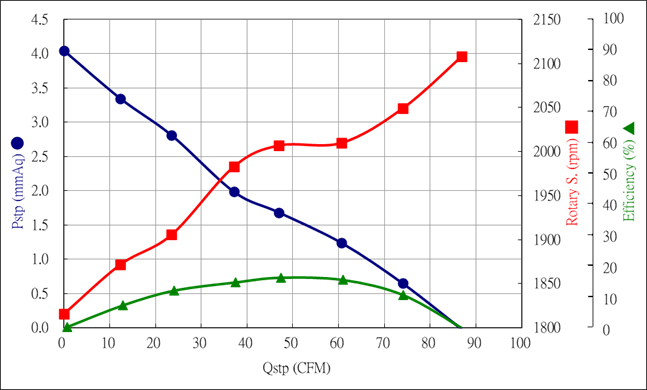

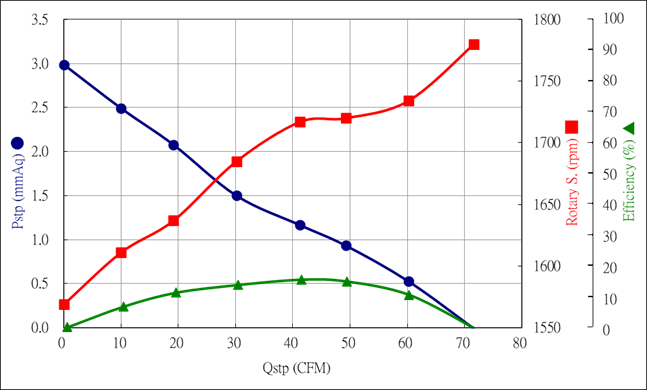

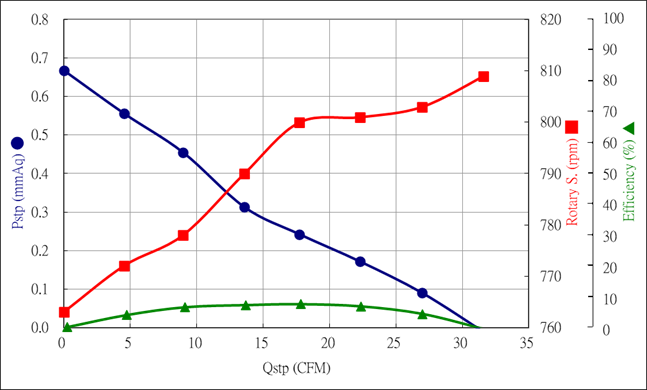

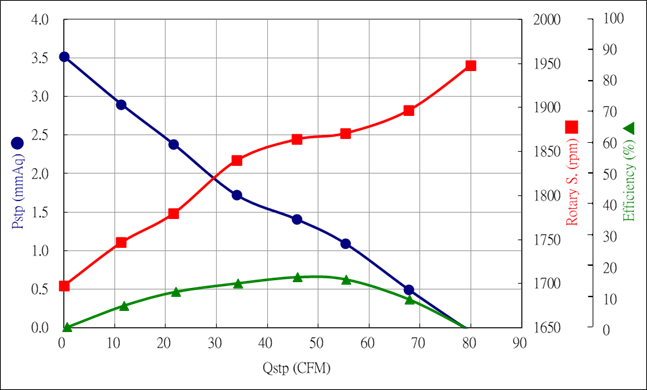

PQ Chart 6V
PQ Chart 7V
PQ Chart 8V
PQ Chart 10V
PQ Chart 11V
PQ Chart 12V

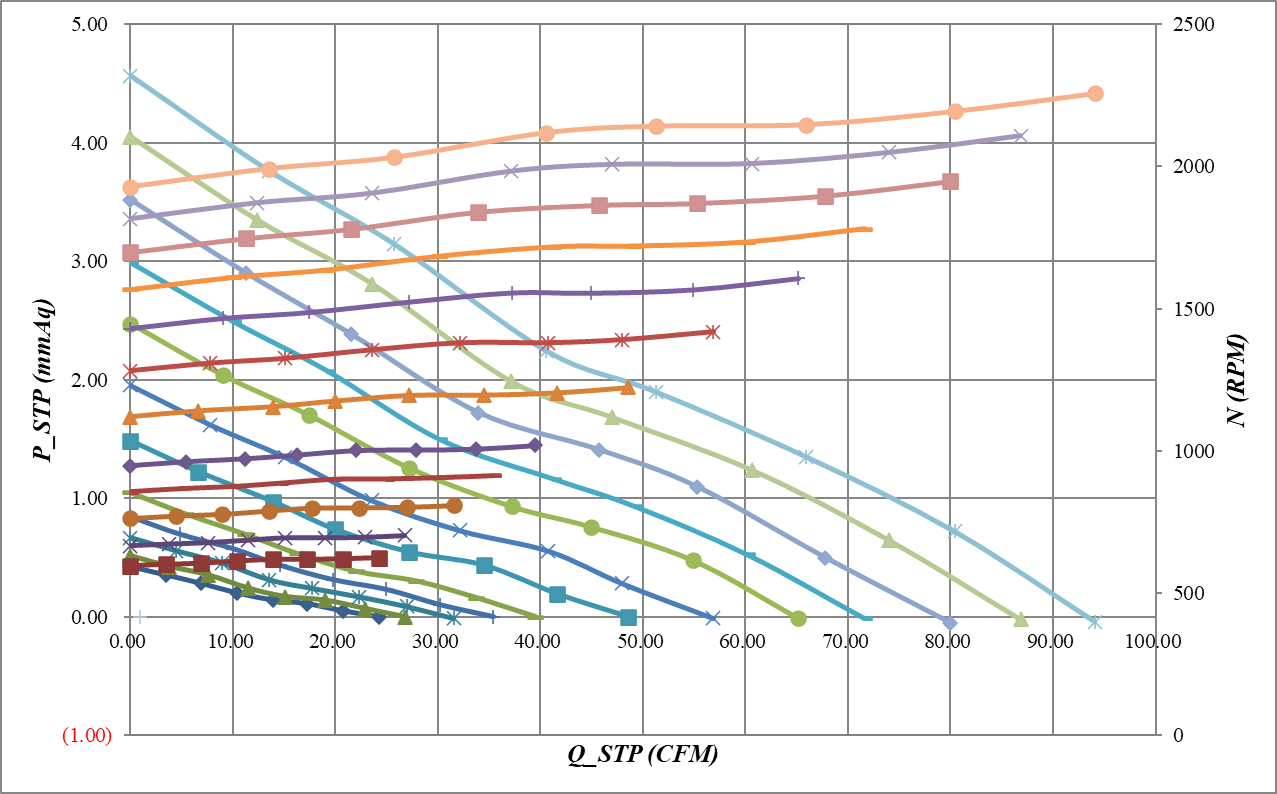

PQ Chart All Speed
PQ Chart 3.14V
PQ Chart 3.5V
PQ Chart 4.5V
PQ Chart 5V
PQ Chart 6V
PQ Chart 7V
PQ Chart 8V
PQ Chart 10V
PQ Chart 11V
PQ Chart 12V
PQ Chart All Speed
PQ Chart 3.14V
PQ Chart 3.5V
PQ Chart 4.5V
PQ Chart 5V
PQ Chart 6V
General Performance

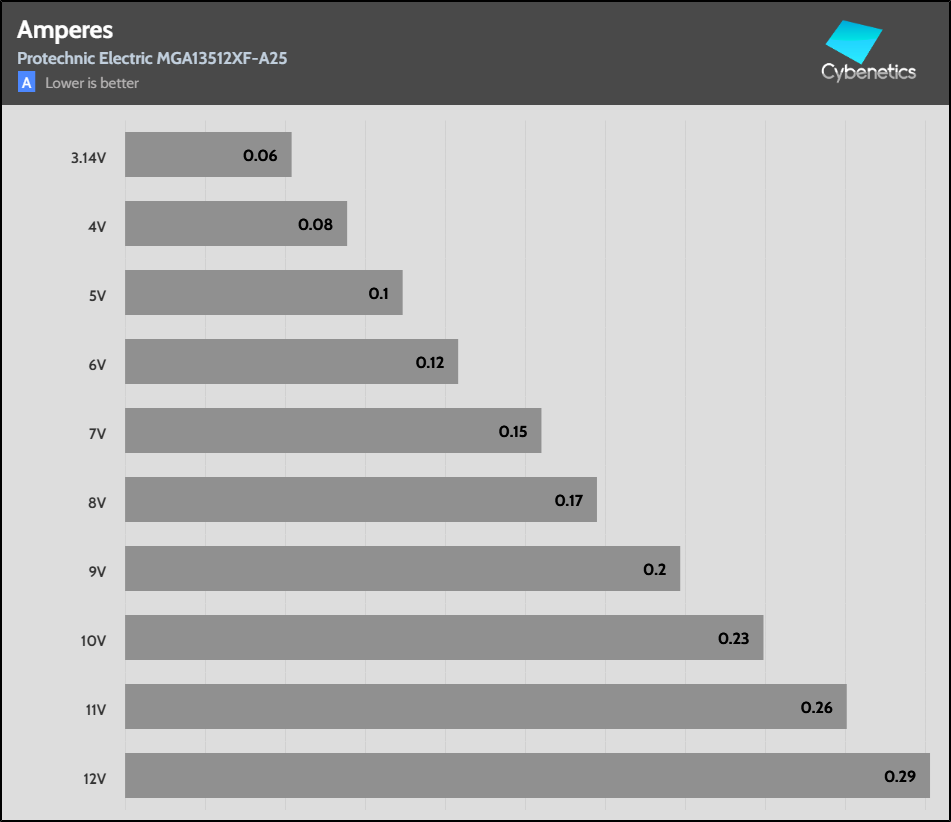

Fan Percentage Amps

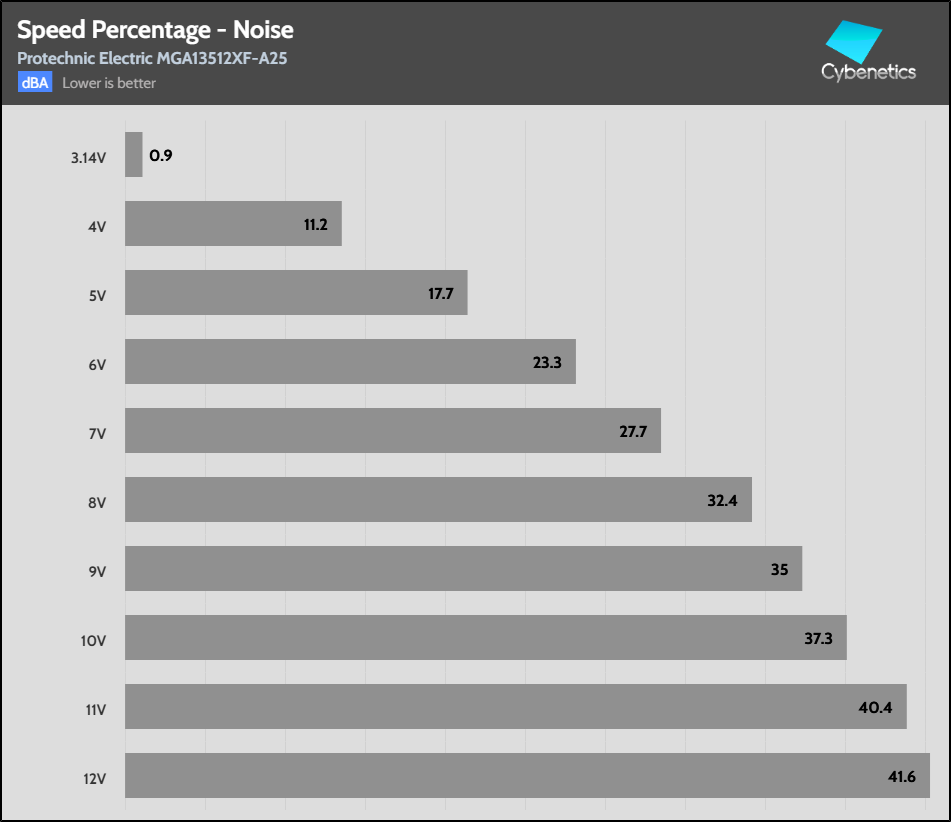

Fan Percentage Noise

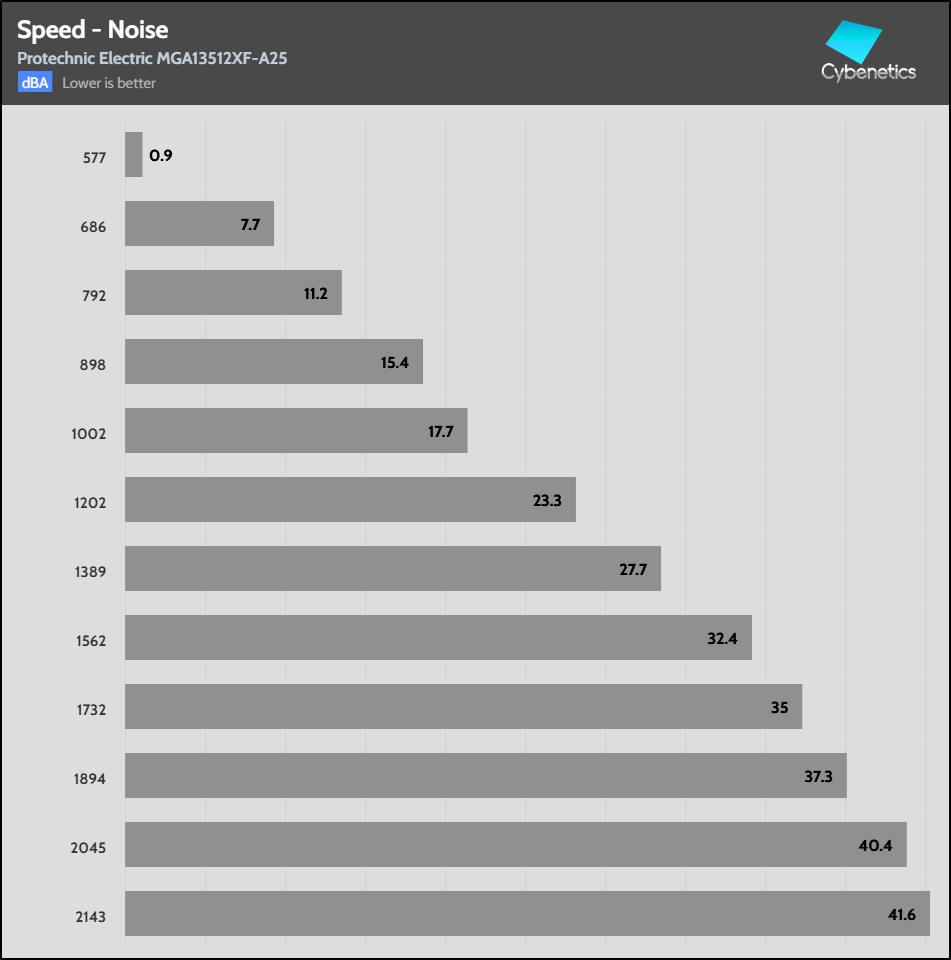

Fan Speed Noise

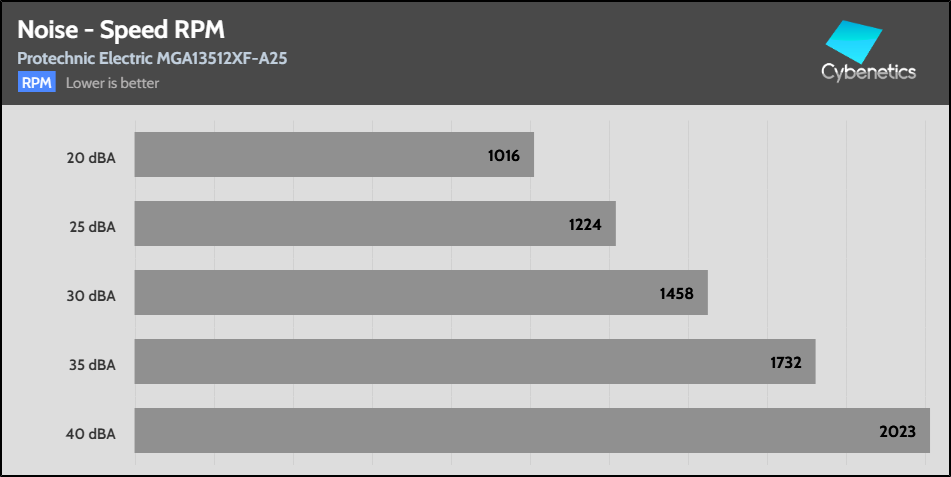

Fan Noise Speed

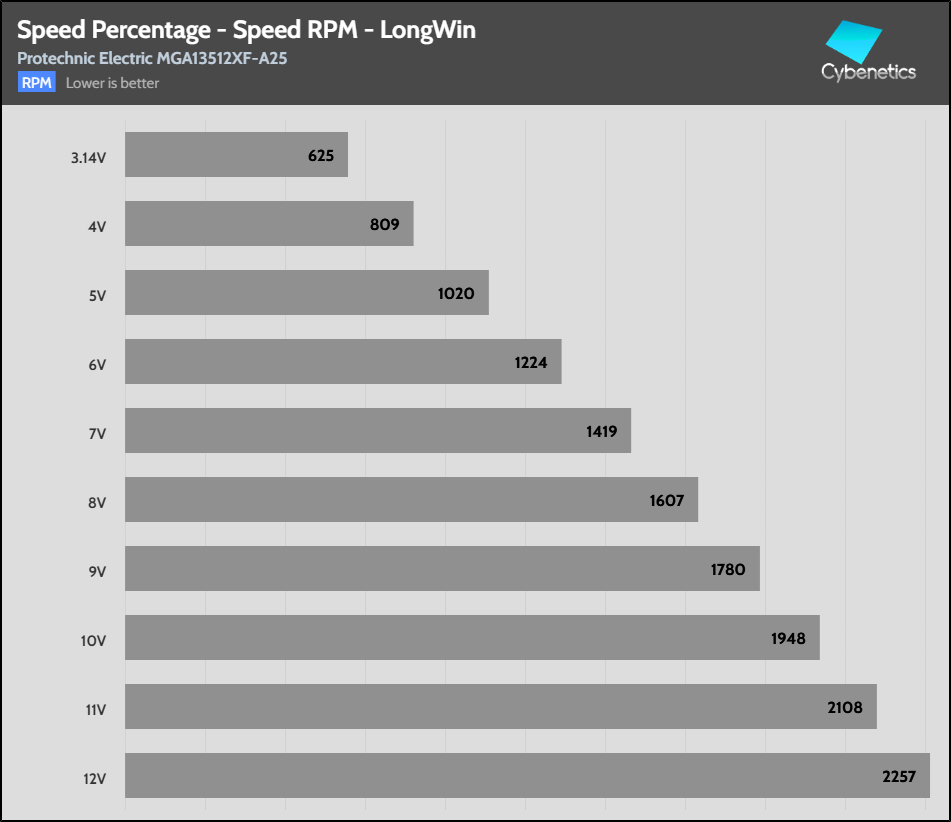

Fan Percentage RPM LongWin

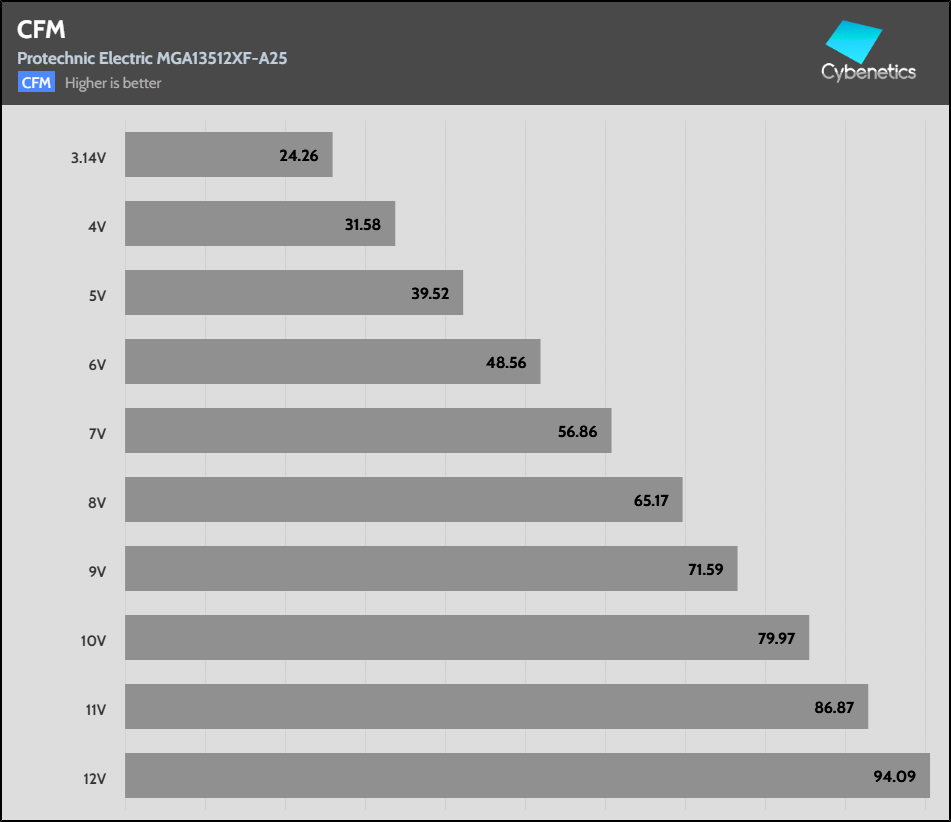

Fan Percentage CFM

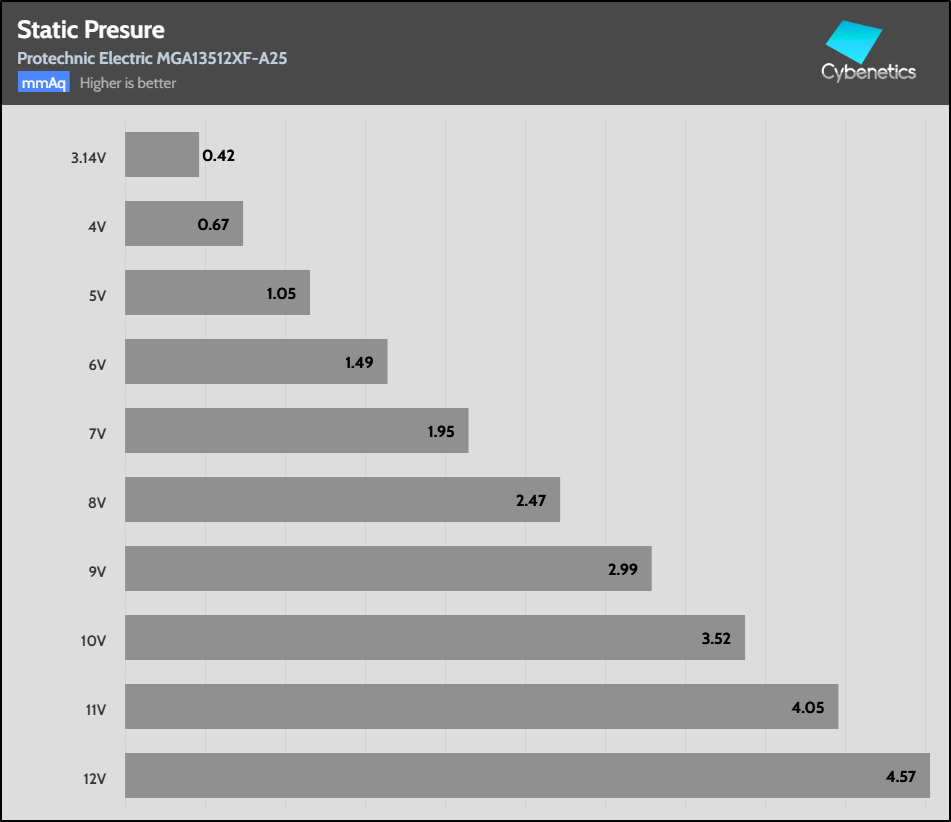

Fan Percentage Pressure

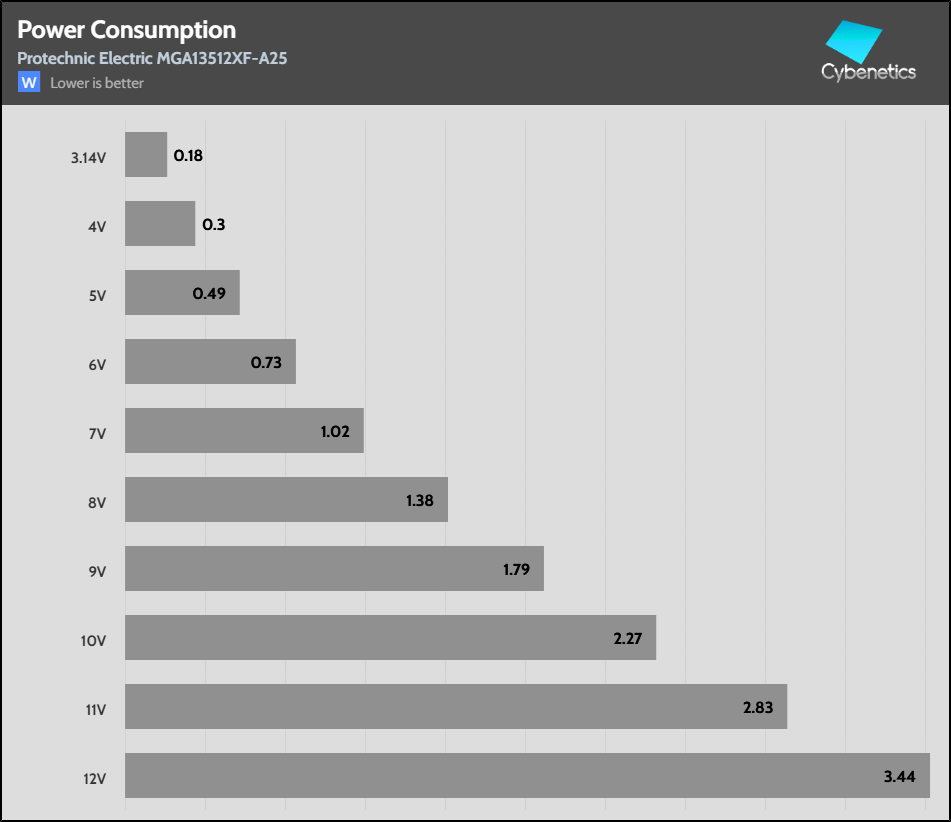

Fan Percentage Power
Fan Percentage Amps
Fan Percentage Noise
Fan Speed Noise
Fan Noise Speed
Fan Percentage RPM LongWin
Fan Percentage CFM
Fan Percentage Pressure
Fan Percentage Power

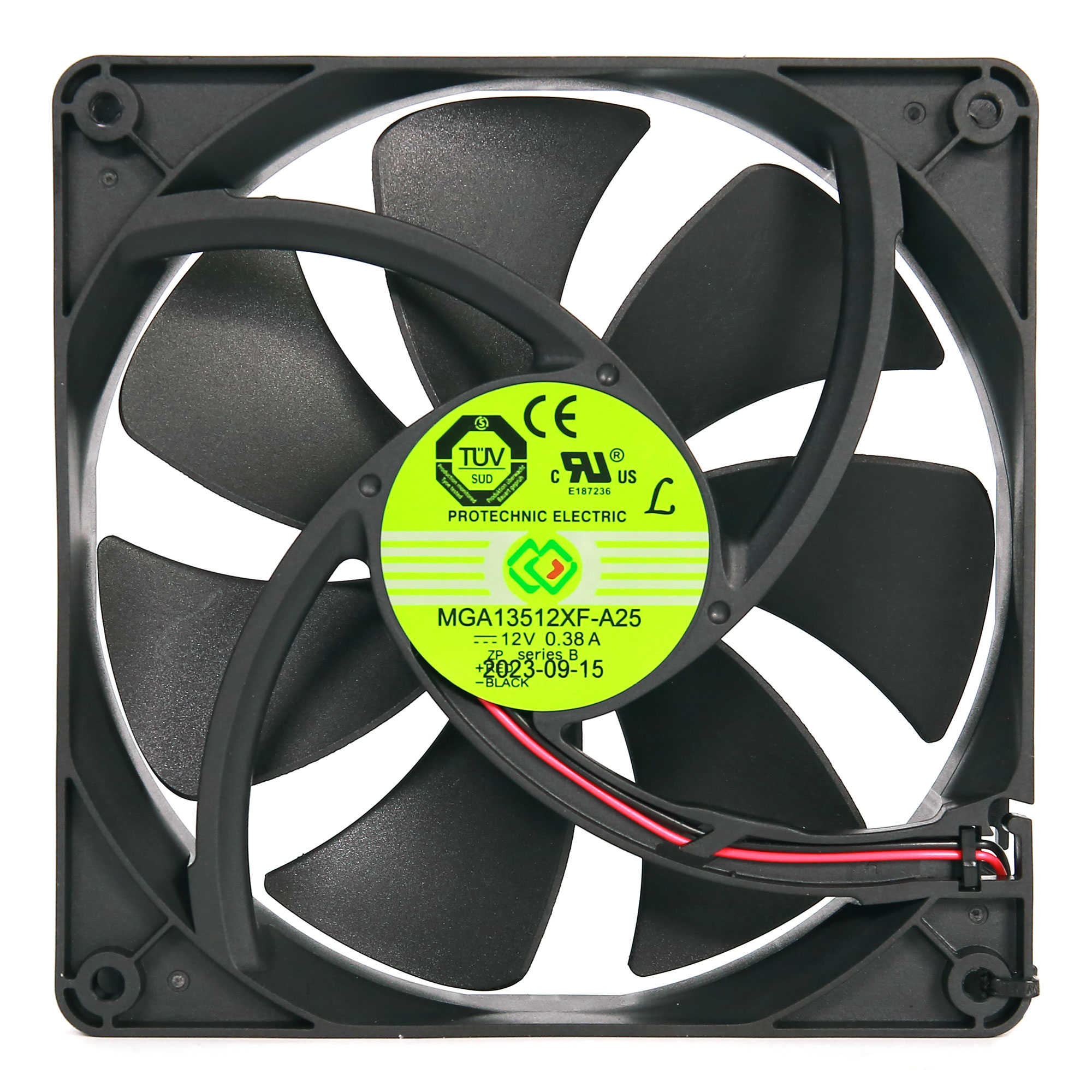

Protechnic Electric MGA13512XF-A25
