CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Super Flower MegaCool 120mm (Forward & Reverse Rotation Fan) High
Lab IDSF12000143
  • Report: 24FN143A
  • Receipt Date: Oct 10, 2024
  • Test Date: Oct 18, 2024
  • Report Date: Oct 18, 2024
Airflow Rating
Static Pressure Rating
Aristeidis Bitziopoulos, Lab Director

General Information

Fan Testing Instrument Technical Specifications

Manufacturer Long Win Science & Technology Corporation
Model Number LW-9266
Air Flow Rate 2.4 – 250 CFM
Accuracy of Air Flow Rage < 3.5% INFS
Repeatability error < 2%
Static pressure 0-20mmAq (100mmAq with the high static pressure throttle device)
Overall Dimensions 0.7 (W) x 2.2 (L) x 1.6 (H) m
Power Source 220VAC, 5A, Single Phase, 50/60Hz
Based on Standards ISO 5801-2007, AMCA 210-0, ASHRAE 51-2007, IEC 61591-2005, GB/T 1236-200

Test Equipment

Test Environment Hemi-Anechoic Chamber with 6 dB(A) noise floor
Conditions 25(±2) degrees Celsius, 40-50% humidity
Sound Analyzer Bruel & Kjaer 2270-S G4 & 2250-L G4
Microphone Bruel & Kjaer Type 4955-A
Mic Calibrator Bruel & Kjaer Type 4231
Data Logger Picoscope TC-08

Technical Specifications Table

Super Flower
ModellMegaCool 120mm (Forward & Reverse Rotation Fan) High
Max Speed (RPM)2758
Max Airflow (CFM)131.27
Max Static Pressure (mmAq)7.42
Max Fan Noise Level49.80
Fan Bearing TypeTwo Ball
Fan ConnectorPWM
Fan Max Current (A)0.77
Fan Weight (gr)248
Dimensions (W x H x D)120x120x30
Fan daisy-chain connector✓
Cable length (mm)130

Pressure and Airflow

General Performance

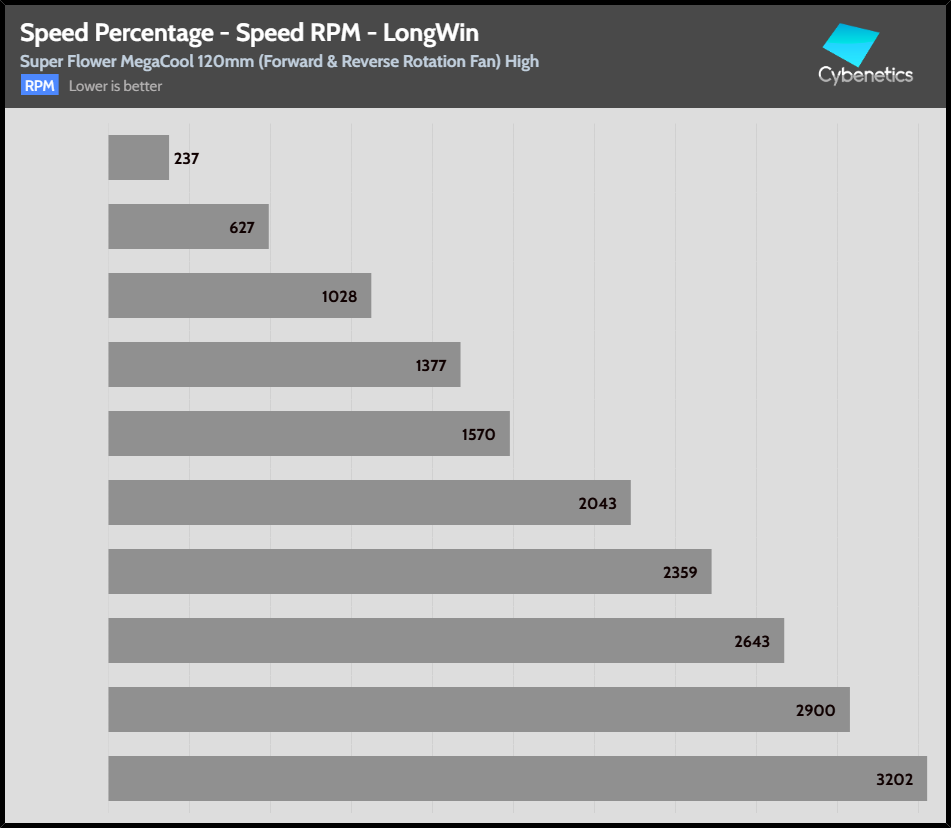

Fan Percentage RPM LongWin

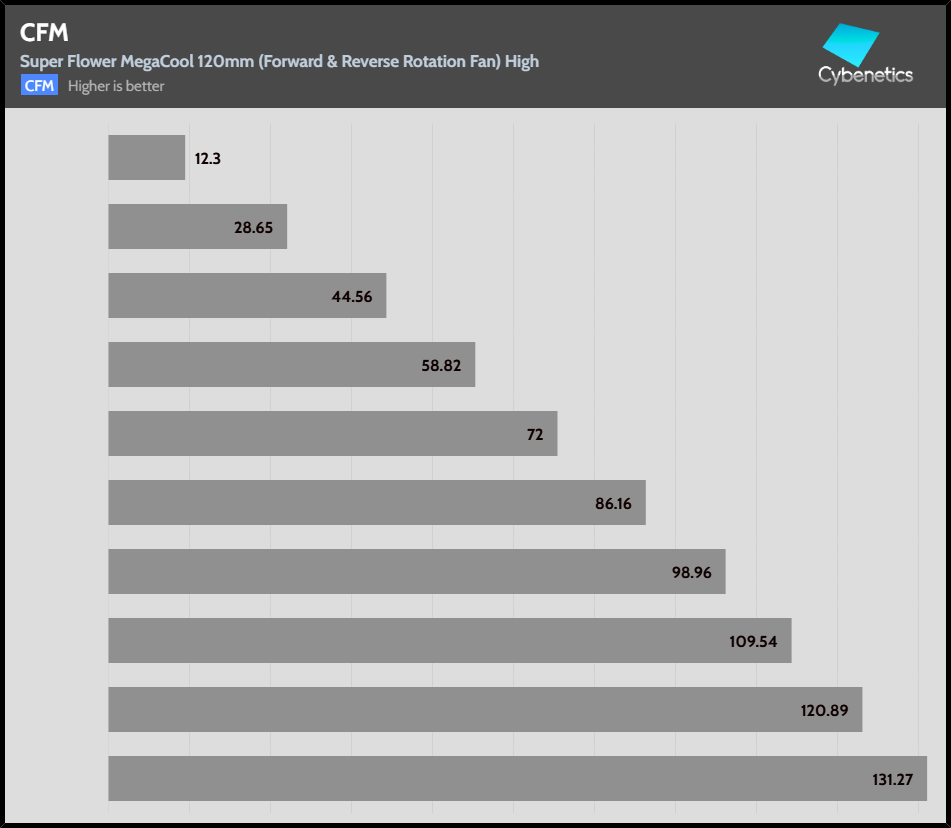

Fan Percentage CFM

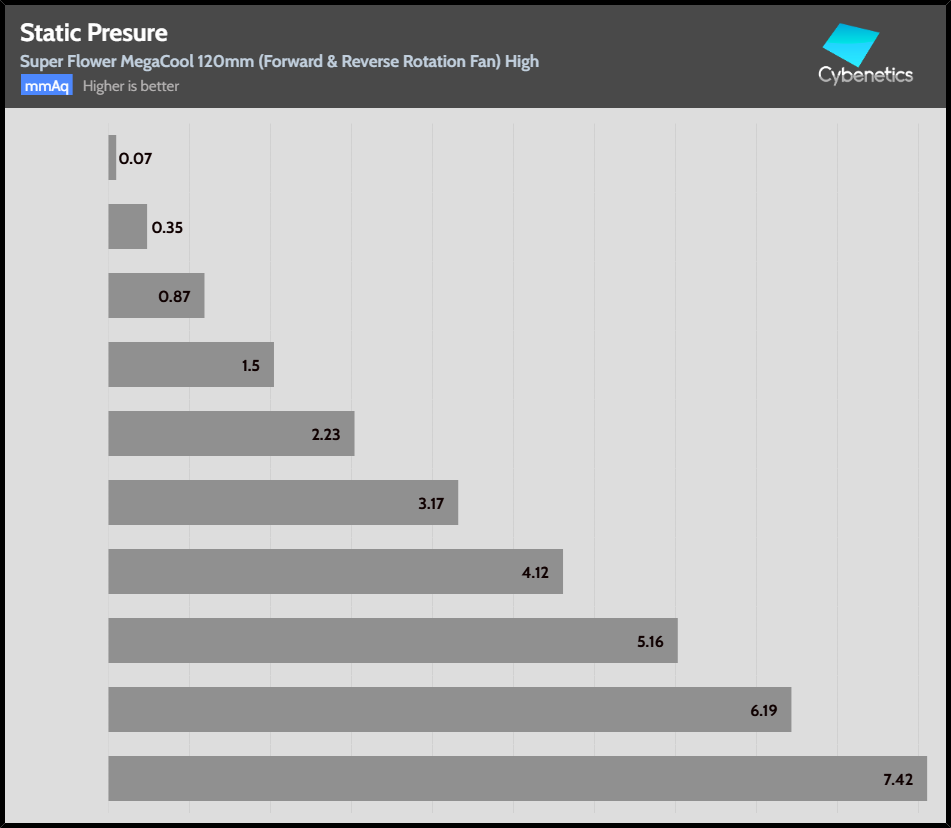

Fan Percentage Pressure

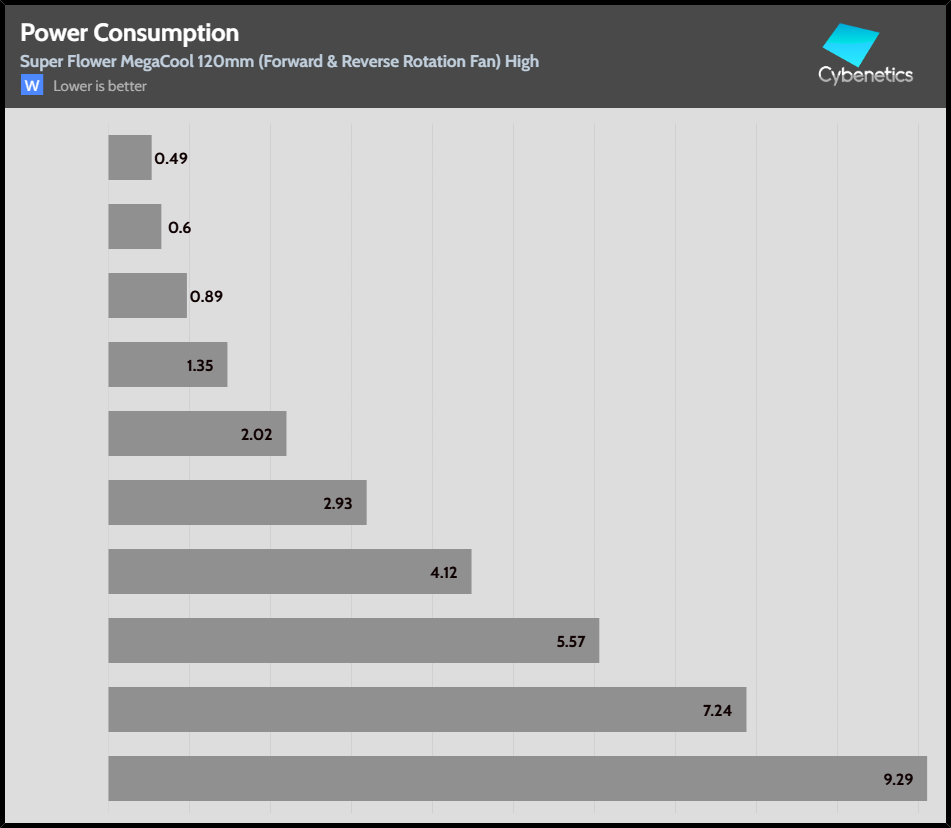

Fan Percentage Power

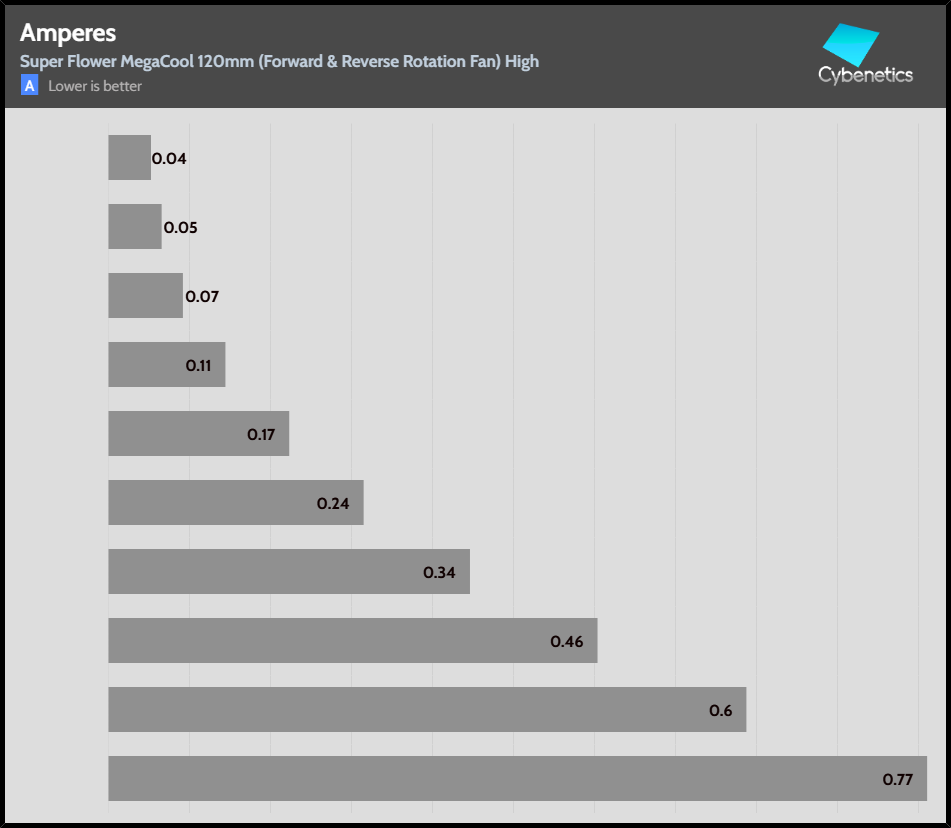

Fan Percentage Amps

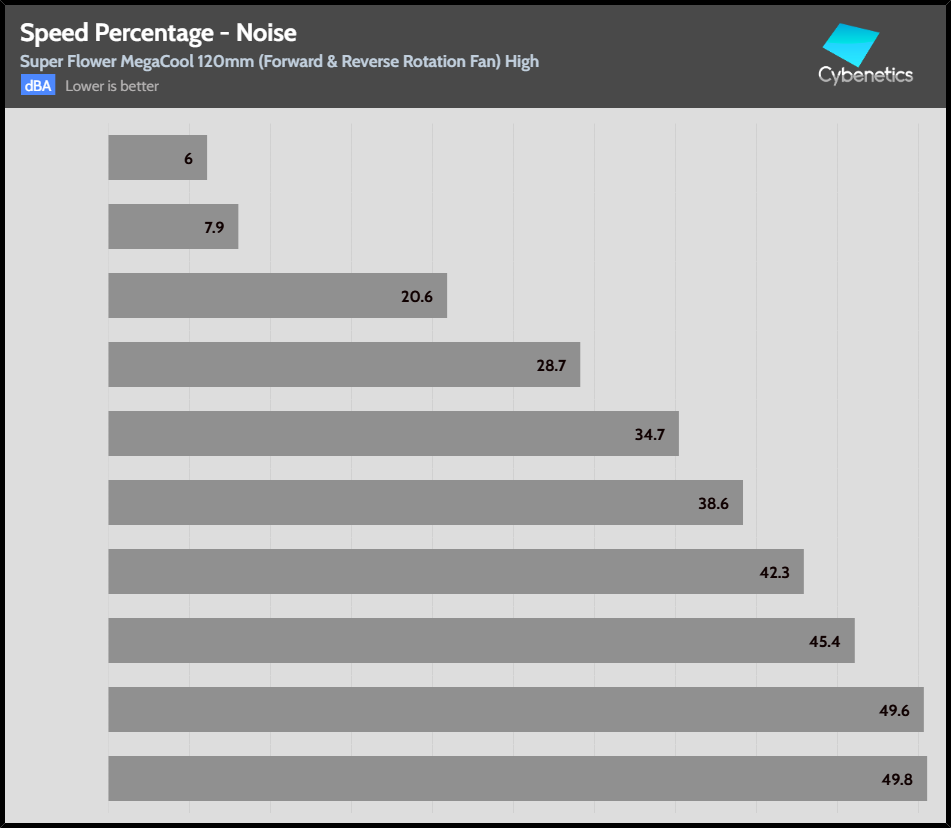

Fan Percentage Noise

Fan Speed Noise

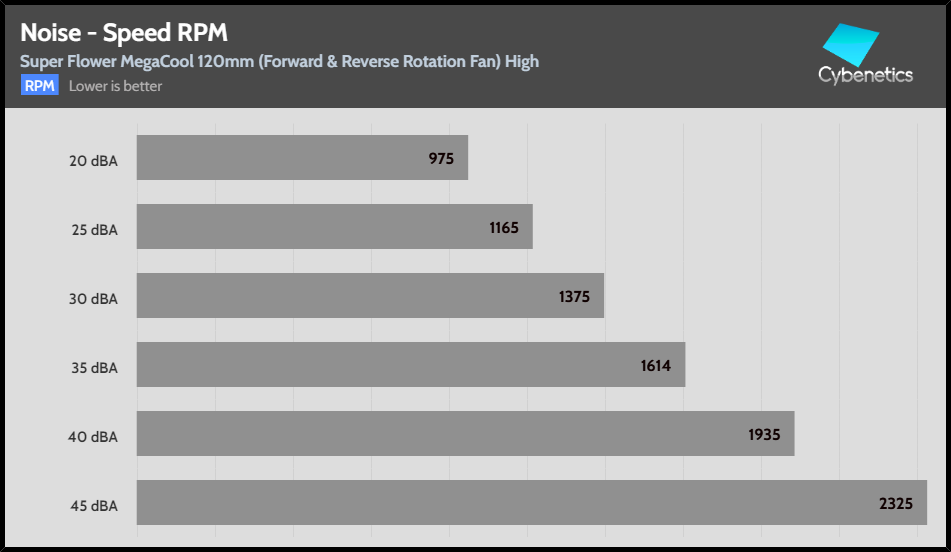

Fan Noise Speed

Super Flower MegaCool 120mm (Forward & Reverse Rotation Fan) High
